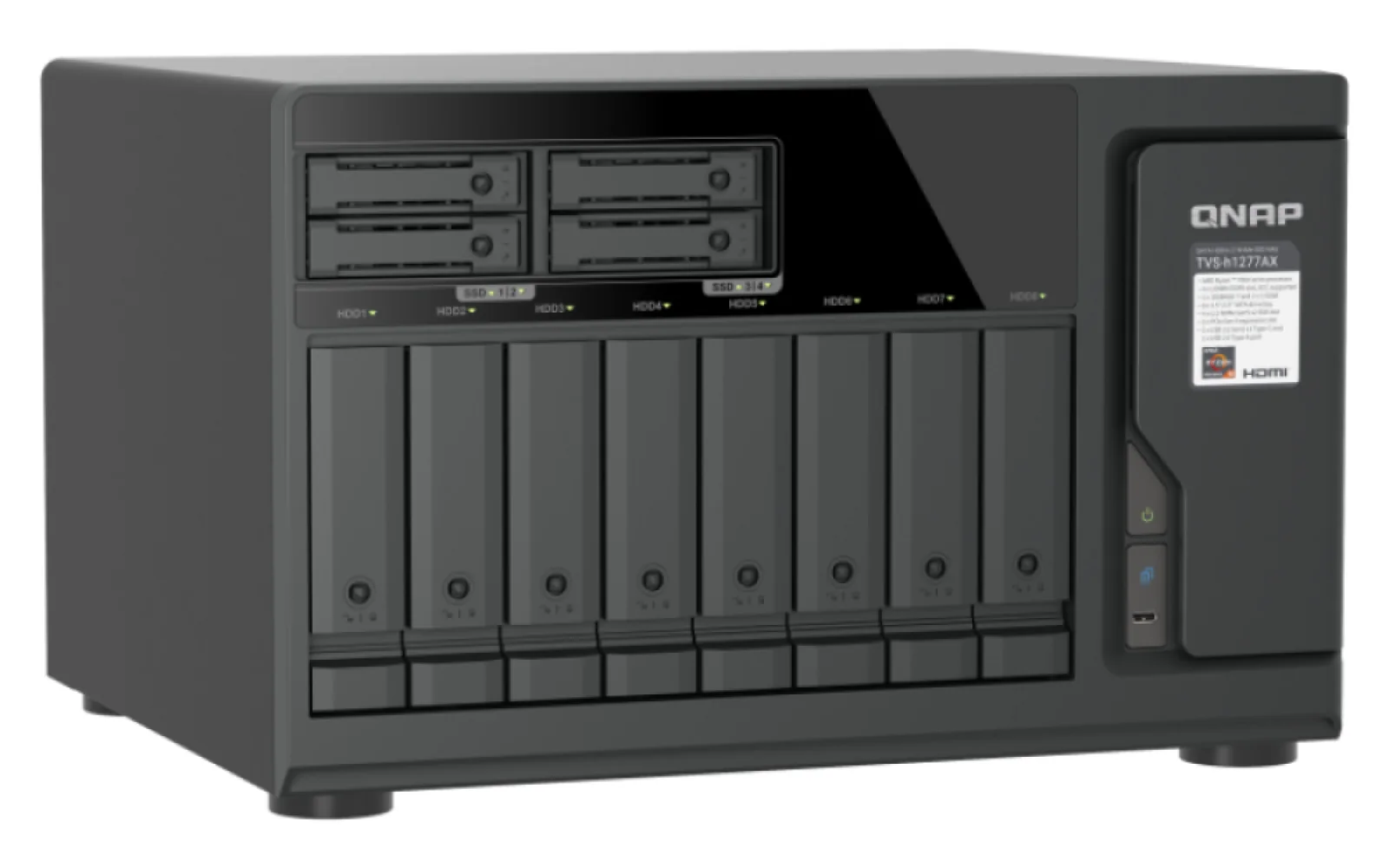

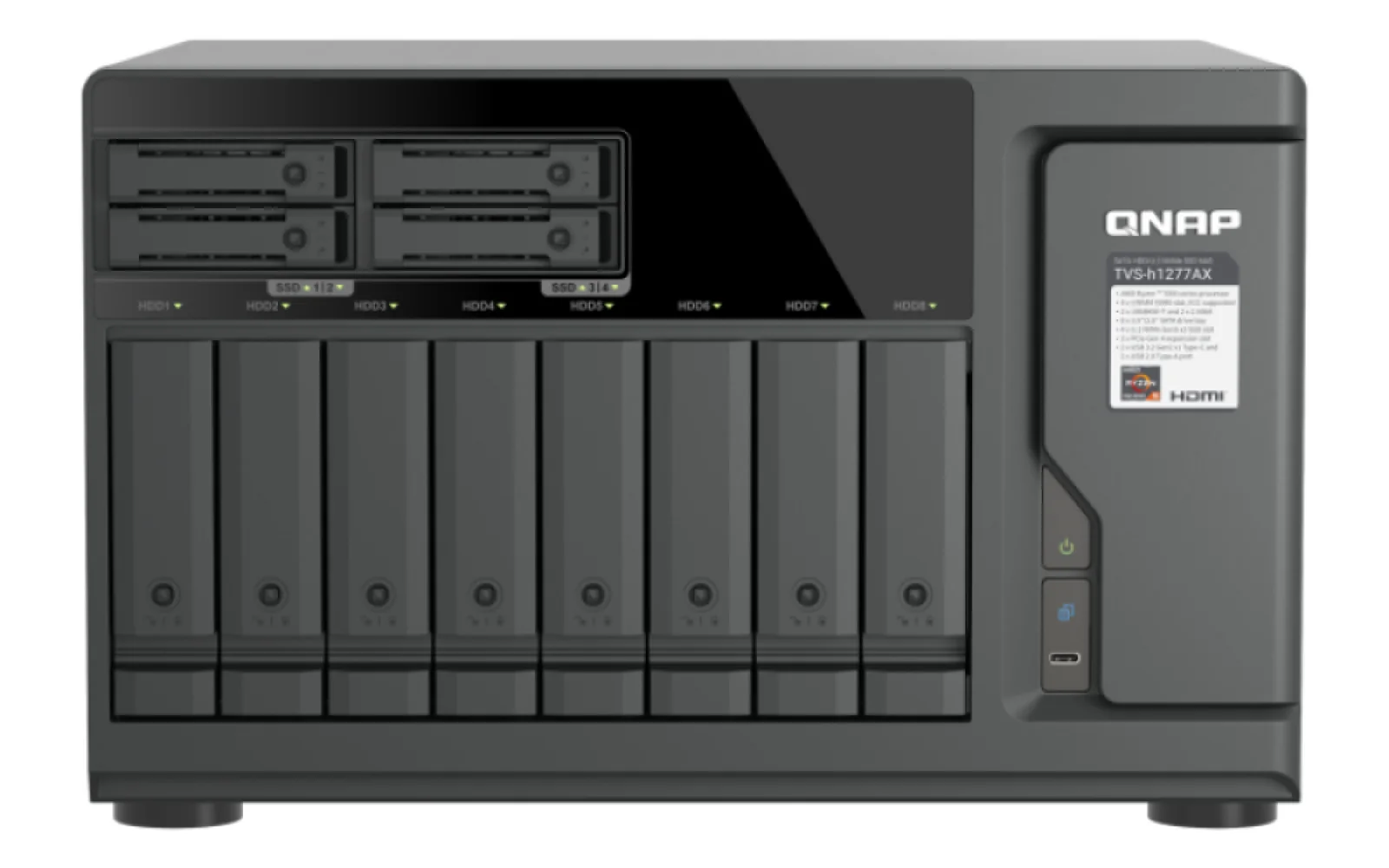

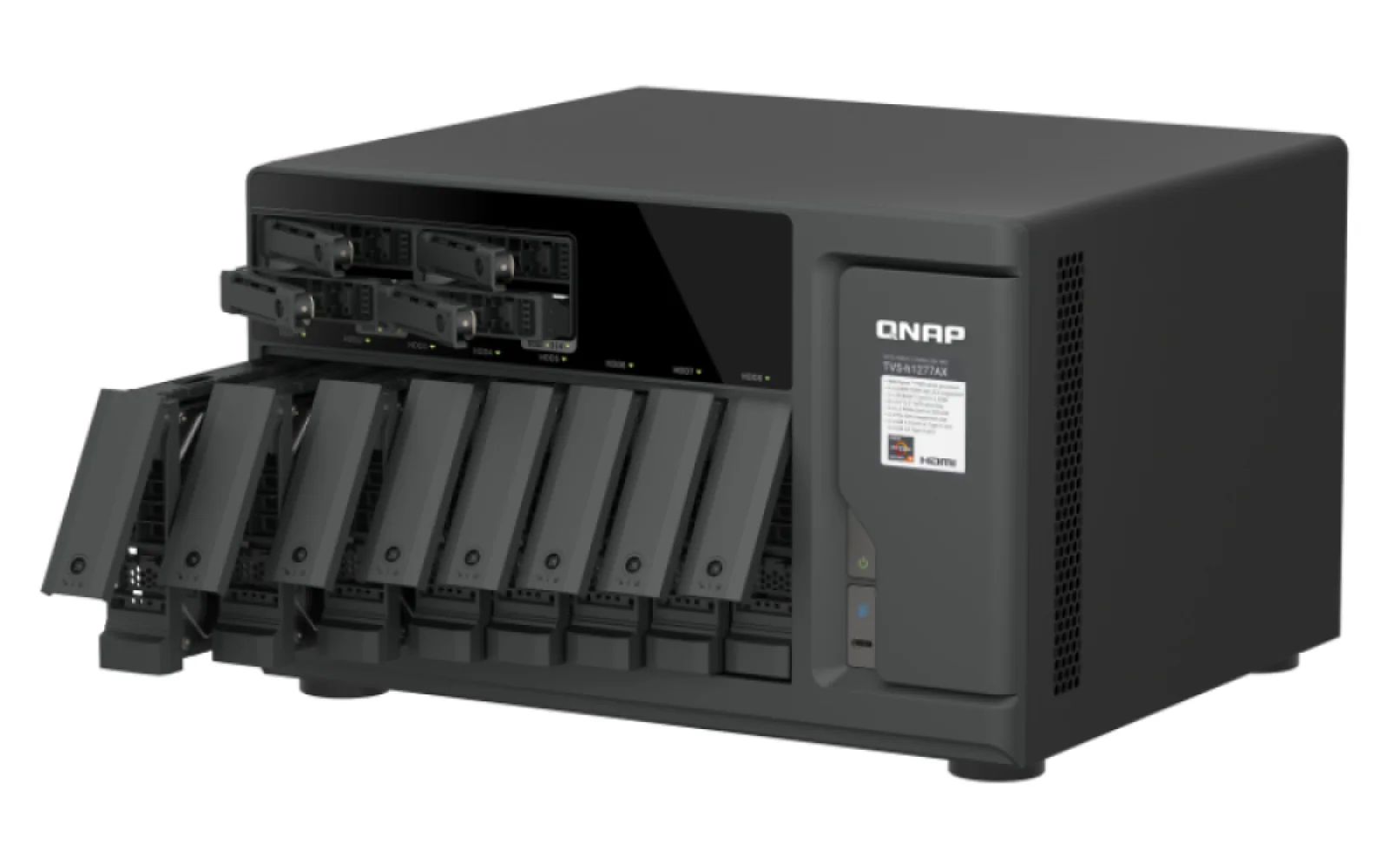

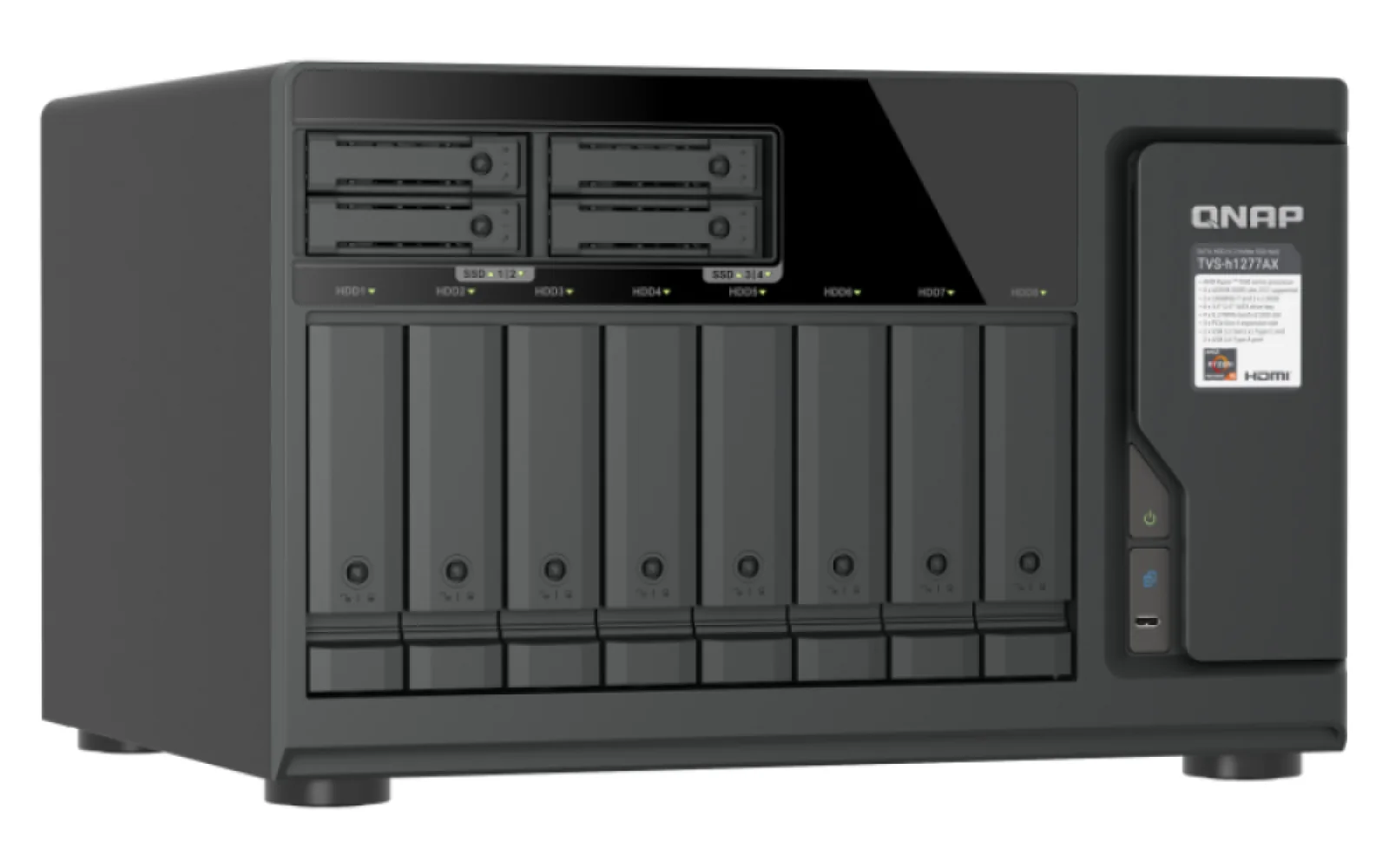

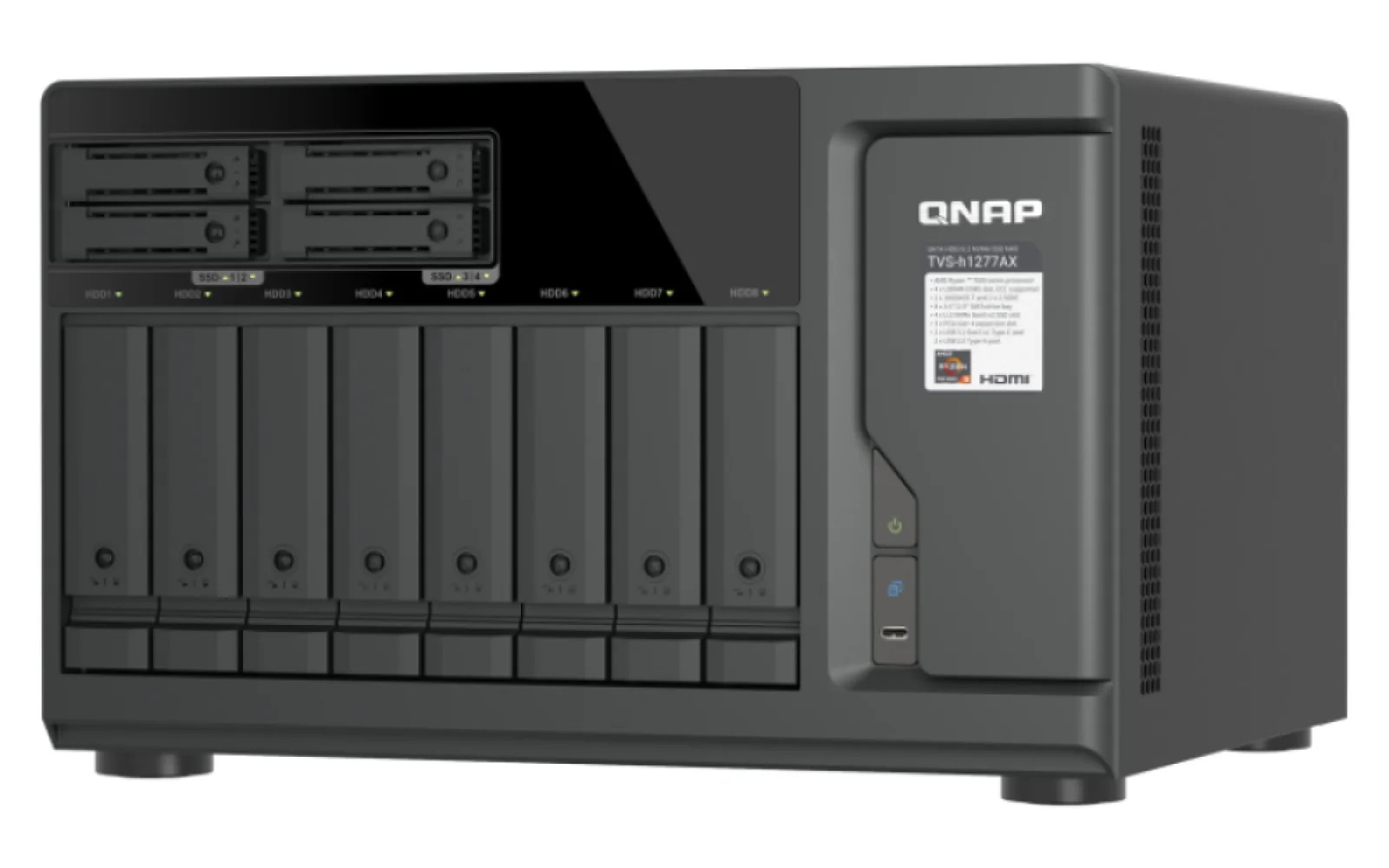

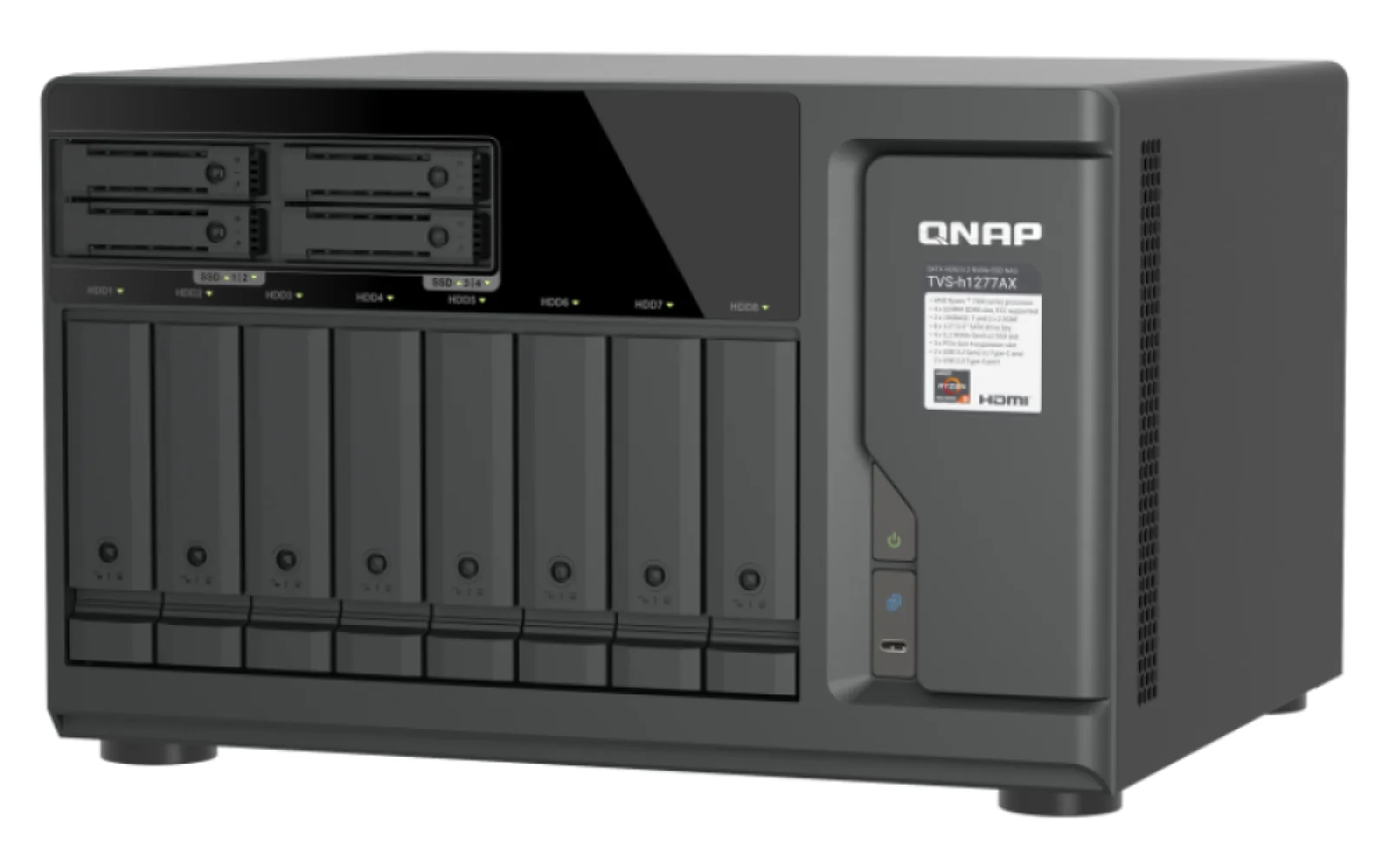

QNAP TVS-H1277AX NAS
Model TVS-H1277AX
Overview
Zen 4 Architecture & DDR5 RAM Powered by AMD Ryzen™ 7000 Series 6 Core processor and supporting up to 192 GB DDR5 memory (optional ECC supported). Accelerate with U.2 SSDs Features multiple hybrid bays supporting U.2 PCIe Gen 4 NVMe SSDs for massive bandwidth. Accelerate AI with NFS over RDMA Bypass CPU overhead for high-throughput, low-latency direct storage ideal for AI workloads. 10GbE & 2.5GbE Built-in dual 10GBASE-T and dual 2.5GbE ports accelerate large file sharing. PCIe Gen 4 Expansion Three PCIe Gen 4 slots for 25GbE cards or NVIDIA RTX™ GPU cards. Virtualization Applications Supports VMs, containers, centralized storage, backup, and disaster recovery.
Specifications
Performance
- Type
- NAS
- Device class
- Home & Home Office
- Backup function
- Yes
- Backup features
- Cloud
- Buzzer
- Yes
- Snapshot
- Yes
- Security algorithms
- 256-bit AES,FIPS 140-2,HTTPS,SNMPv3,SNMPv2
- Access Control List (ACL)
- Yes
- Reset button
- Yes
- On/off switch
- Yes
- Built-in FTP server
- Yes
- Browser supported
- Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox
- System log
- Yes
- Hot spare
- Yes
- Disk scan
- Yes
Storage
- Storage drive interface
- Serial ATA
- Supported storage drive interfaces
- Serial ATA
- Storage drive size
- 3.5"
- Storage drive sizes supported
- 2.5,3.5"
- Number of M.2 (M & B) slots
- 2
- RAID support
- Yes
- RAID levels
- 0,1,5,6,10,50,60
- Online RAID expansion
- Yes
- RAID rebuild
- Yes
- Hot-swap drive bays
- Yes
- Supported file systems
- FAT32,HFS+,NTFS,exFAT,ext3,ext4
- Storage drives installed
- No
- Installed storage drive type
- No
- Supported storage drive types
- HDD & SSD
- Disk roaming
- Yes
Design
- Chassis type
- Tower
- Cooling type
- Active
- Product colour
- Black
- Number of fans
- 4 fan(s)
- Fan diameter
- 80 mm
- Fan diameter 2
- 60 mm
- LED indicators
- HDD,LAN,Status,SSD
- Built-in display
- Yes
- Display type
- LCD
Power
- Power supply location
- Built-in
- Power supply unit (PSU) capacity
- 500 W
- AC input voltage
- 100 - 240 V
- Fan voltage
- 12 V
Memory
- Internal memory
- 16 GB
- Internal memory type
- DDR5
- Maximum RAM supported
- 192 GB
- Memory slots
- 2
- Memory form factor
- UDIMM
- Flash memory
- 5000 MB
Network
- Ethernet LAN
- Yes
- Ethernet LAN data rates
- 10,100,1000,2500 Mbit/s
- DHCP server
- Yes
- Jumbo frames support
- Yes
- iSCSI support
- Yes
- Wake-on-LAN ready
- Yes
- Supported network protocols
- IPv4, IPv6
- Dynamic DNS (DDNS)
- Yes
Software
- Operating system installed
- QNAP QTS
- Operating system version
- QTS 5.2.9
- Windows operating systems supported
- Windows 10,Windows 11,Windows 7,Windows 8
- Linux operating systems supported
- CentOS 7.0,SuSE Linux 12.0,SuSE Linux 12.3,SuSE Linux 15,Ubuntu 14.04
- Mac operating systems supported
- Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina,Mac OS X 10.15.3 Catalina,Mac OS X 11.0 Big Sur,Mac OS X 12.0 Monterey,Mac OS X 13.0 Ventura
- Server operating systems supported
- Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019,Windows Server 2022
- Other operating systems supported
- IBM AIX 7.1,IBM AIX 7.2,Solaris 10
Processor
- Processor manufacturer
- AMD
- Processor generation
- AMD Ryzen 7000 Series
- Processor family
- AMD Ryzen 5
- Processor boost frequency
- 5.1 GHz
- Processor cores
- 6
- Processor threads
- 12
- On-board graphics card model
- AMD Radeon Graphics
Other features
- Warranty period
- 5 year(s)
Ports & interfaces
- USB port
- Yes
- USB 2.0 ports quantity
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 2
- HDMI ports quantity
- 1
- HDMI version
- 1.4b
- Ethernet LAN (RJ-45) ports
- 2
Weight & dimensions
- Width
- 369.9 mm
- Depth
- 319.8 mm
- Height
- 225.2 mm
- Weight
- 10980 g
- Package width
- 426 mm
- Package depth
- 476 mm
- Package height
- 343 mm
- Package weight
- 12120 g
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Operating relative humidity (H-H)
- 5 - 95 %
- Storage temperature (T-T)
- -20 - 70 °C
