QNAP

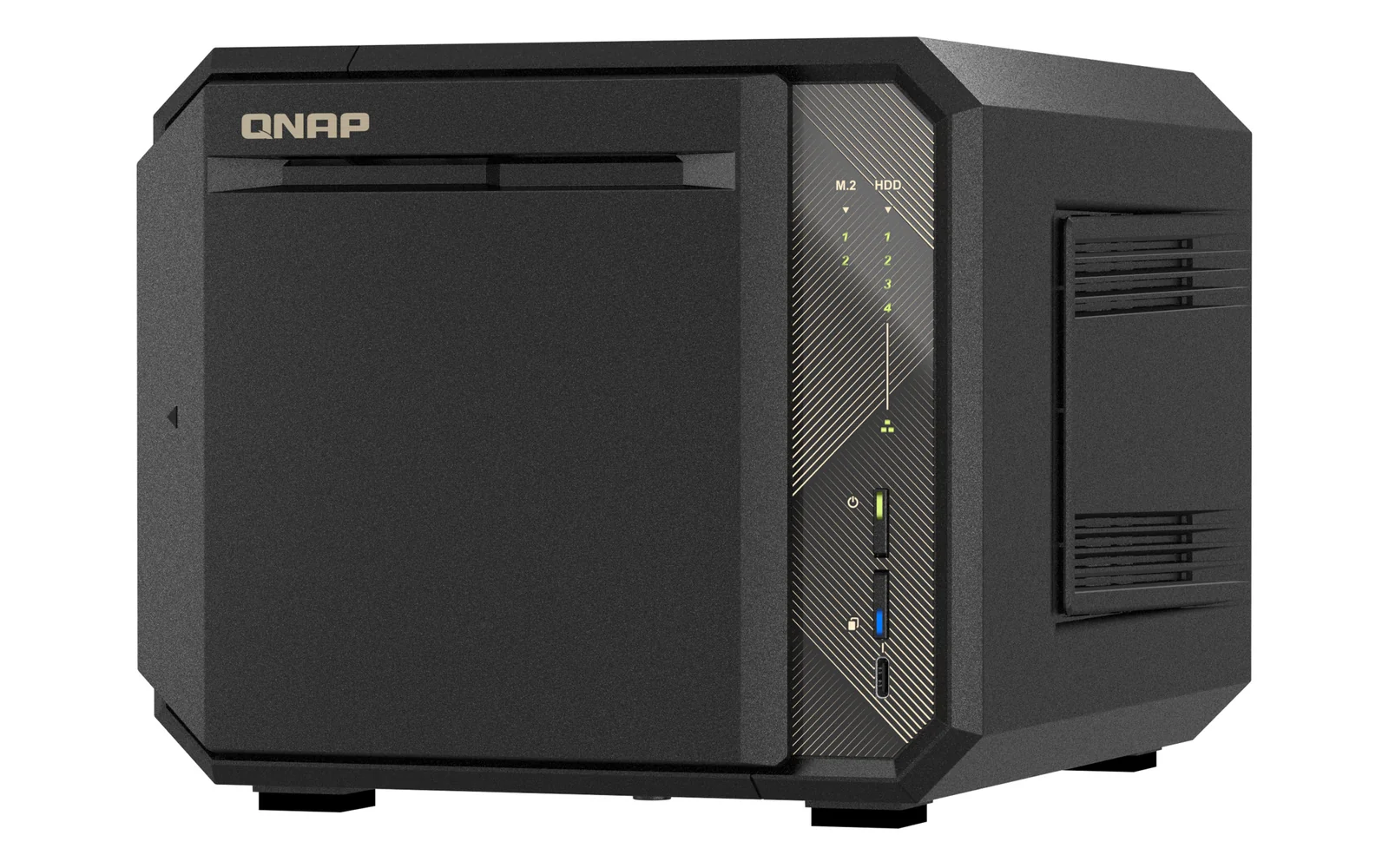

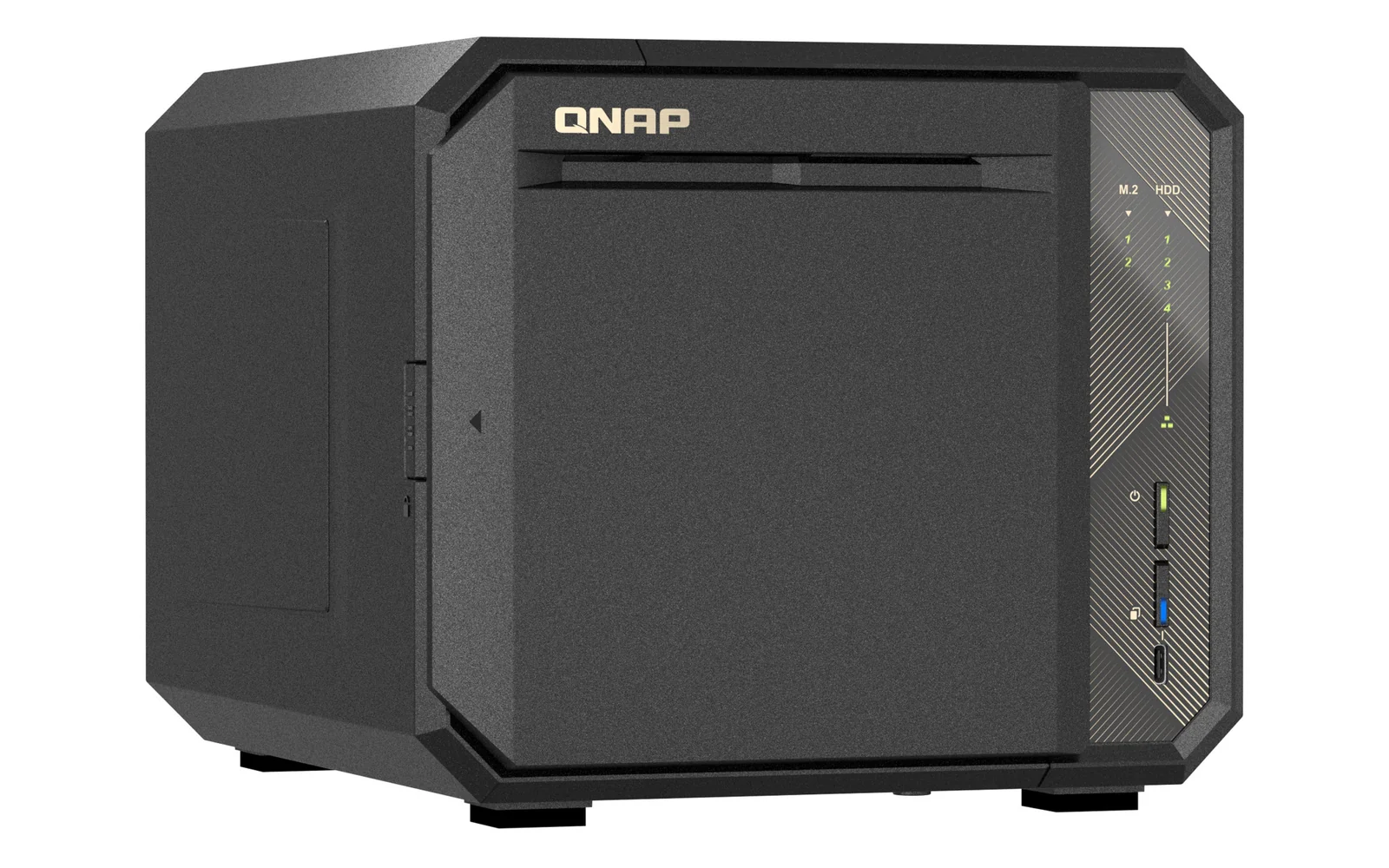

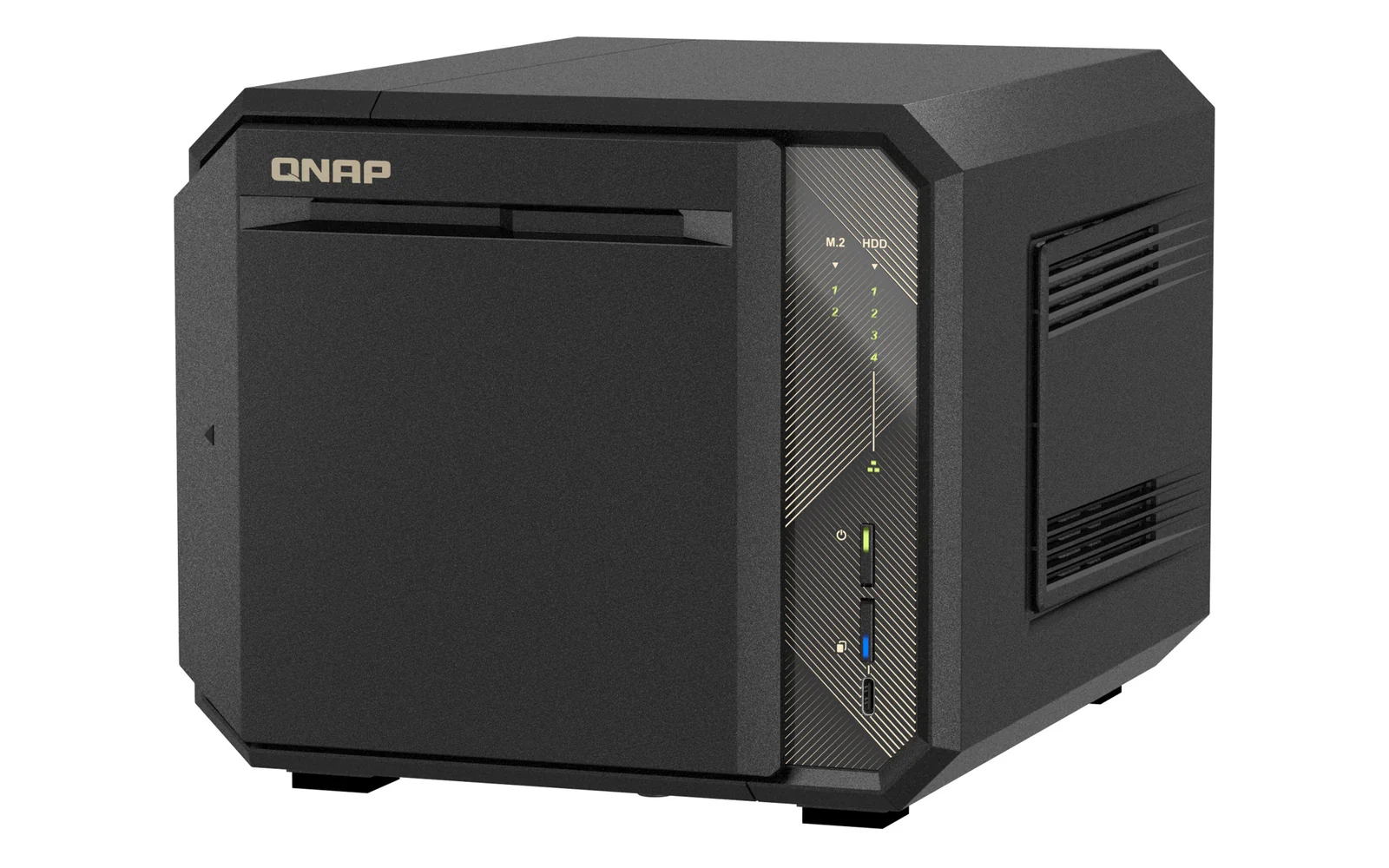

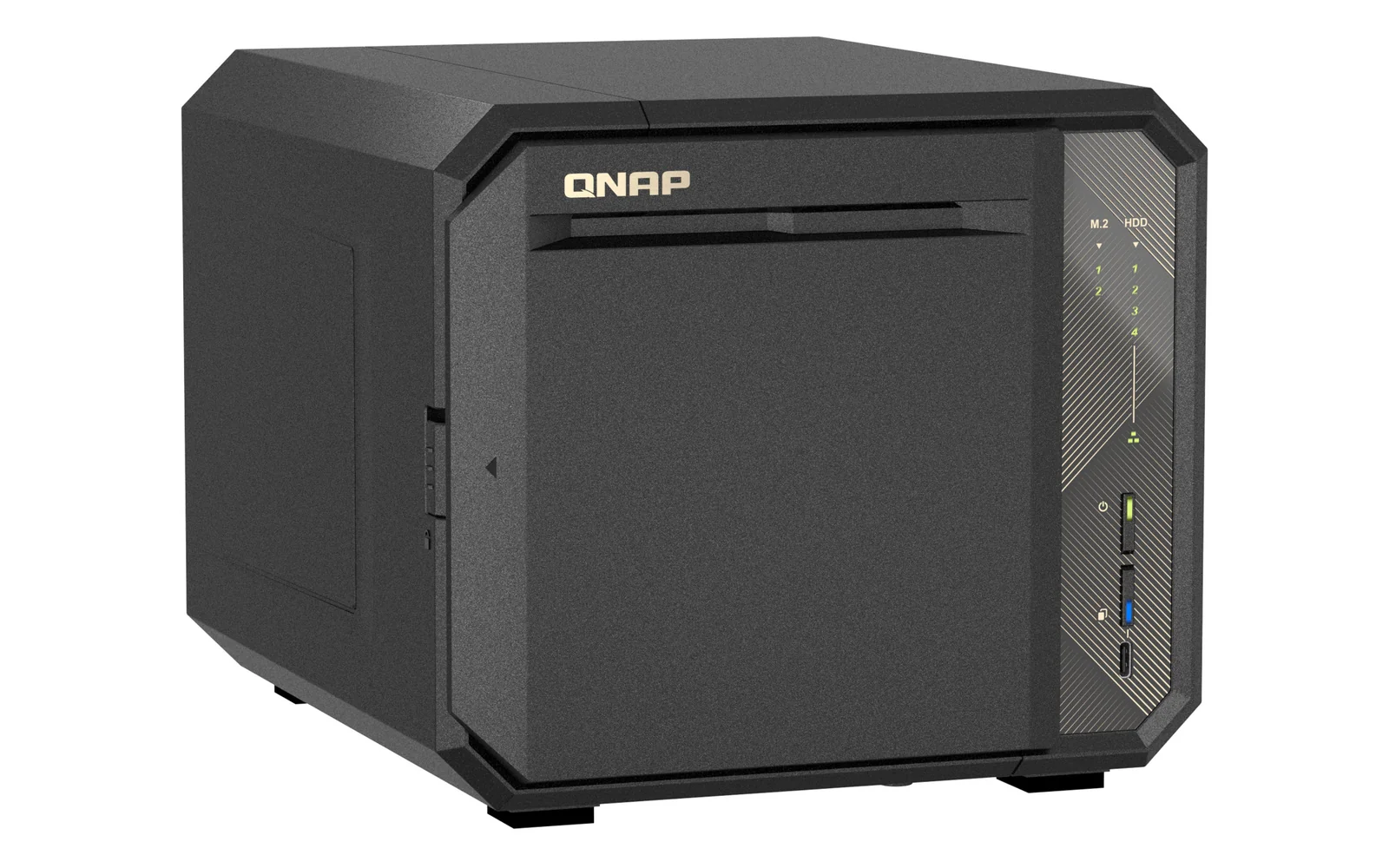

QNAP TS-467X 6-Bay NAS
Model TS-467X
Overview
TS-467X Built-in 10GbE, PCIe expansion, and USB4 deliver cost-effective, high-speed storage for studios and enterprises. Powered by an AMD Ryzen™ V1500B quad-core/8-thread processor, the TS-467X delivers professional-grade dual-port 10GBASE-T networking at an exceptional price. With precisely optimized hardware, it's the ideal storage solution for SMBs and professional teams that demand blazing-fast transfers — leave bandwidth bottlenecks behind, whether you're collaborating online with your team or backing up large-scale projects. The TS-467X also lets you freely switch between QTS and QuTS hero operating systems, striking the perfect balance of high performance, high bandwidth, and outstanding value — making it the ideal choice for SMBs and SOHO studios ready to upgrade to a 10GbE environment.
Specifications
Performance
- Type
- NAS
- Device class
- Small & Medium Business
- Backup function
- Yes
- Buzzer
- Yes
- Multilingual support
- Yes
- Number of users
- 4096 user(s)
- Snapshot
- Yes
- Management protocols
- SNMP V2, V3
- Web-based management
- Yes
- Share folder access right management
- Yes
- Security algorithms
- FIPS 140-2,AES
- Access Control List (ACL)
- Yes
- Reset button
- Yes
- On/off switch
- Yes
- Built-in FTP server
- Yes
Storage
- Supported storage drive interfaces
- Serial ATA III,M.2
- Storage drive sizes supported
- 2.5,3.5"
- Number of M.2 (M & B) slots
- 2
- RAID support
- Yes
- RAID levels
- JBOD,0,1,5,6,10,50,60

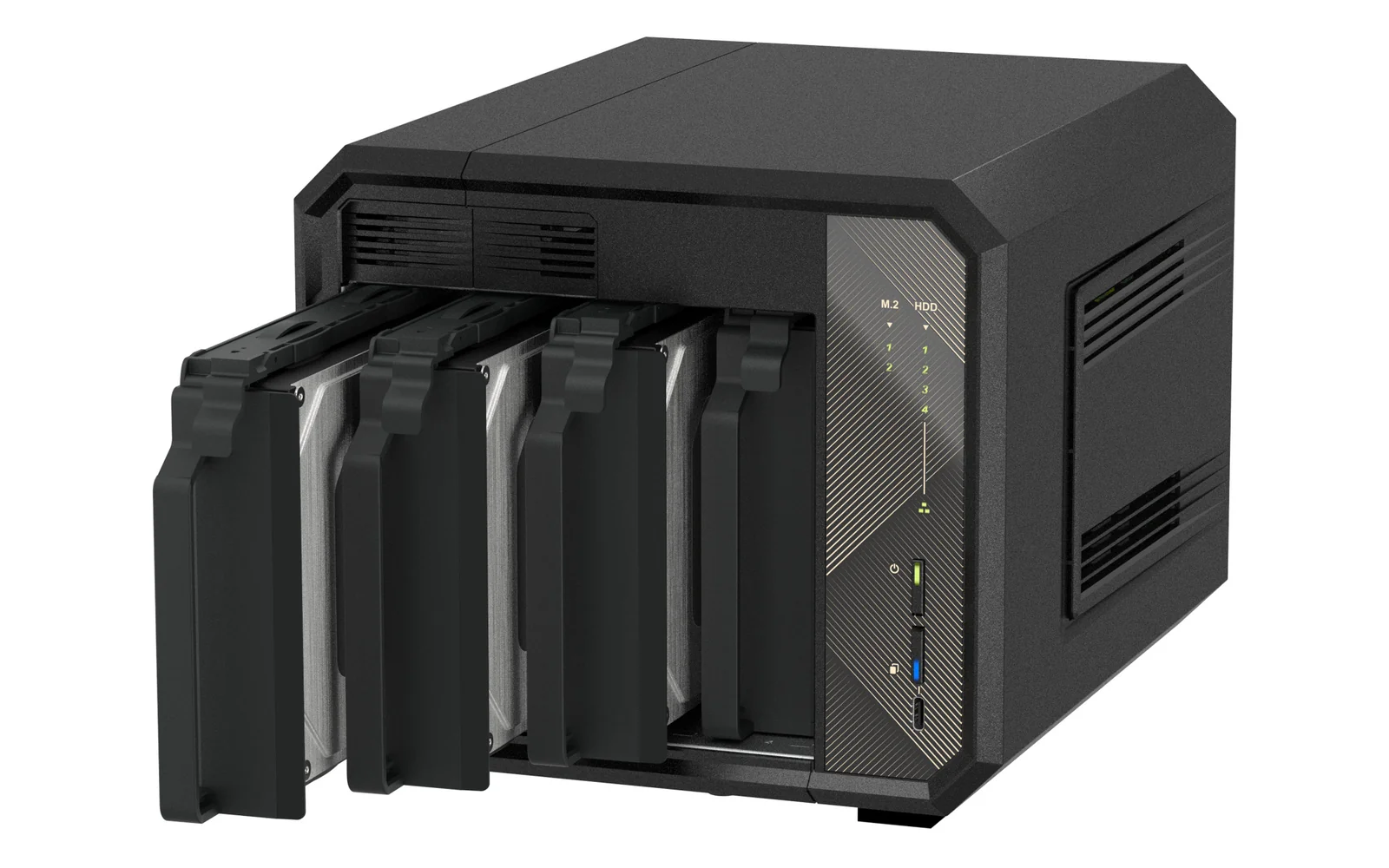

- Hot-swap drive bays
- Yes
- Supported file systems
- ext3,ext4,FAT32,HFS+,NTFS,exFAT
- Storage drives installed
- Yes
- Number of storage drives supported
- 6
- Supported storage drive types
- HDD & SSD
- Disk roaming
- Yes
Design
- Chassis type
- Tower
- Cooling type
- Active
- Product colour
- Black
- Number of fans
- 1 fan(s)
- Fan diameter
- 120 mm
- LED indicators
- LAN,M.2,Power,Status,USB
- Cable lock slot
- Yes
- Cable lock slot type
- Kensington
Power
- Power supply location
- External
- Power supply unit (PSU) capacity
- 90 W
- Power consumption (typical)
- 28 W
- Power consumption (HDD standby)
- 15 W
- AC input voltage
- 100 - 240 V
Memory
- Internal memory
- 4 GB
- Internal memory type
- DDR4
- Maximum RAM supported
- 64 GB
- Memory slots
- 2
- Memory form factor
- SO-DIMM
- ECC
- No
- Flash memory
- 8000 MB
Network
- Ethernet LAN
- Yes
- Ethernet LAN data rates
- 10000 Mbit/s
- Ethernet LAN data rate supported (max)
- 10000 Mbit/s
- DHCP server
- Yes
- iSCSI support
- Yes
- Supported network protocols
- IPv4, IPv6
- Link aggregation
- Yes
- Dynamic DNS (DDNS)
- Yes
Software
- Operating system installed
- QNAP QTS
- Operating system version
- 5.2.9
- Windows operating systems supported
- Windows 7,Windows 8,Windows 10,Windows 11
- Linux operating systems supported
- Ubuntu 14.04,CentOS 7.0,Red Hat Enterprise Linux 7.9,SuSE Linux 12.0
- Mac operating systems supported
- Mac OS X 10.10 Yosemite
- Other operating systems supported
- Linux
Processor
- Processor manufacturer
- AMD
- Processor family
- Ryzen Embedded
- Processor model
- V1500B
- Processor frequency
- 2.2 GHz
- Processor cores
- 4
- Processor threads
- 8
Logistics data
- Master (outer) case width
- 393 mm
- Master (outer) case length
- 227 mm
- Master (outer) case height
- 287 mm
- Master (outer) case gross weight
- 2490 g
- Products per master (outer) case
- 4 pc(s)

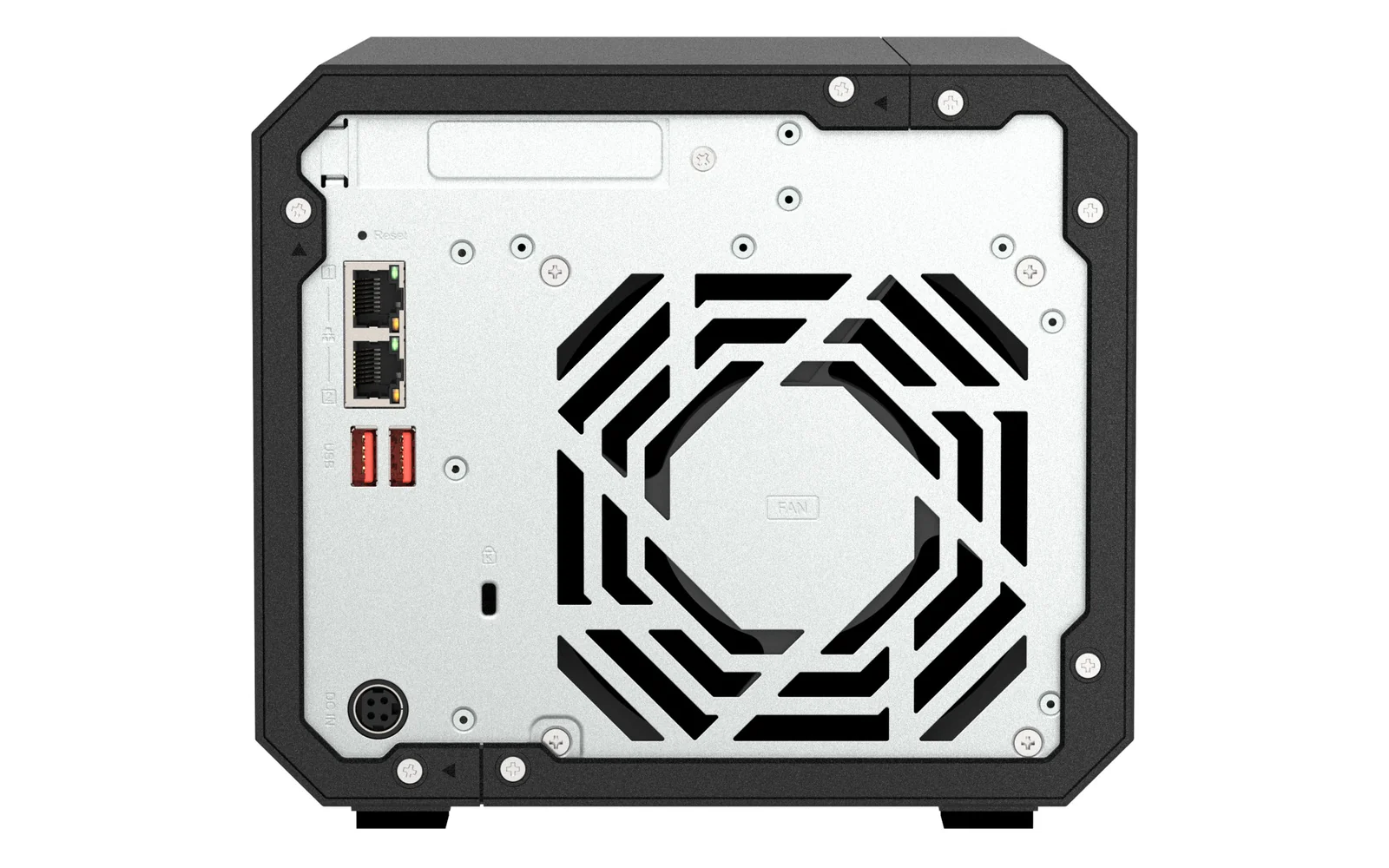

Ports & interfaces
- USB port
- Yes
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 2
- PCI Express x4 (Gen 3.x) slots
- 1
Weight & dimensions
- Width
- 195 mm
- Depth
- 232 mm
- Height
- 171 mm
- Weight
- 2490 g
- Package weight
- 4910 g
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Operating relative humidity (H-H)
- 5 - 95 %
- Storage temperature (T-T)
- -20 - 70 °C
