MSI

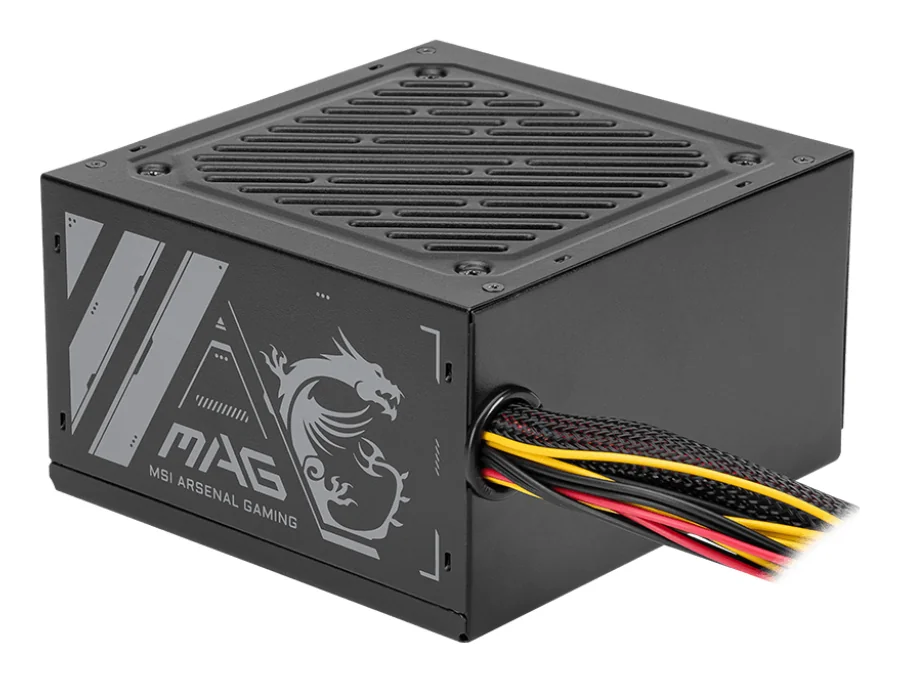

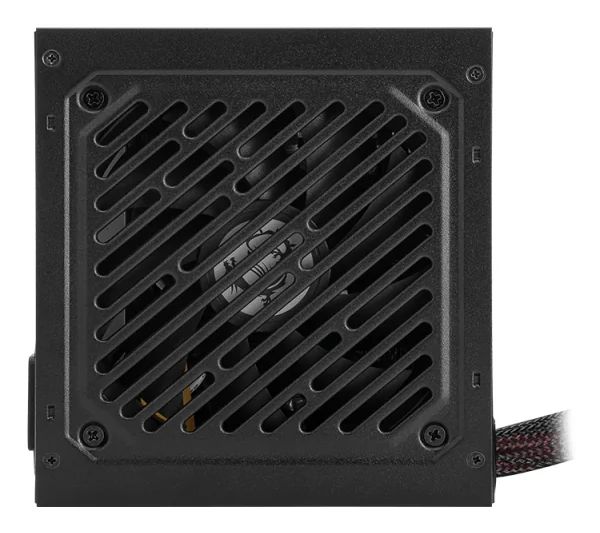

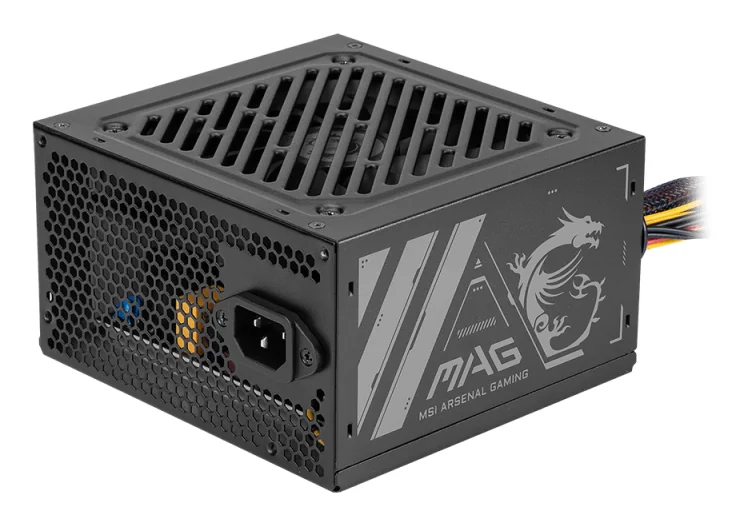

MSI MAG A500N-H 500W Power Supply

Model MAG A500N-H

Overview

MSI MAG A500N-H. Total power: 500 W, AC input voltage: 200 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX. Purpose: PC, Power supply unit (PSU) form factor: ATX. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 140 mm, Depth: 150 mm, Height: 86 mm

Specifications

Performance

Purpose
PC
Power supply unit (PSU) form factor
ATX

Design

Product colour
Black
Cooling type
Active
Fan diameter
120 mm
Fan speed
500 - 1800 RPM
Illumination
No

Power

Total power
500 W
AC input voltage
200 - 240 V
AC input frequency
50/60 Hz
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
105 W
Combined power (+12V)
500 W
Combined power (+5V)
456 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
12.5 W
Max output current (+3.3V)
14 A
Max output current (+12V)
38 A
Max output current (+5V)
14 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
2.5 A

Ports & interfaces

Motherboard power connector
24-pin ATX
Number of SATA power connectors
3
Peripheral (Molex) power connectors (4-pin)
2
EPS power connector (8-pin)
No
EPS power connector (4+4 pin)
Yes
PCI Express power connectors (6+2 pin)
1
ATX Power connector (24-pin)
Yes

Weight & dimensions

Width
140 mm
Depth
150 mm
Height
86 mm
