ASUS

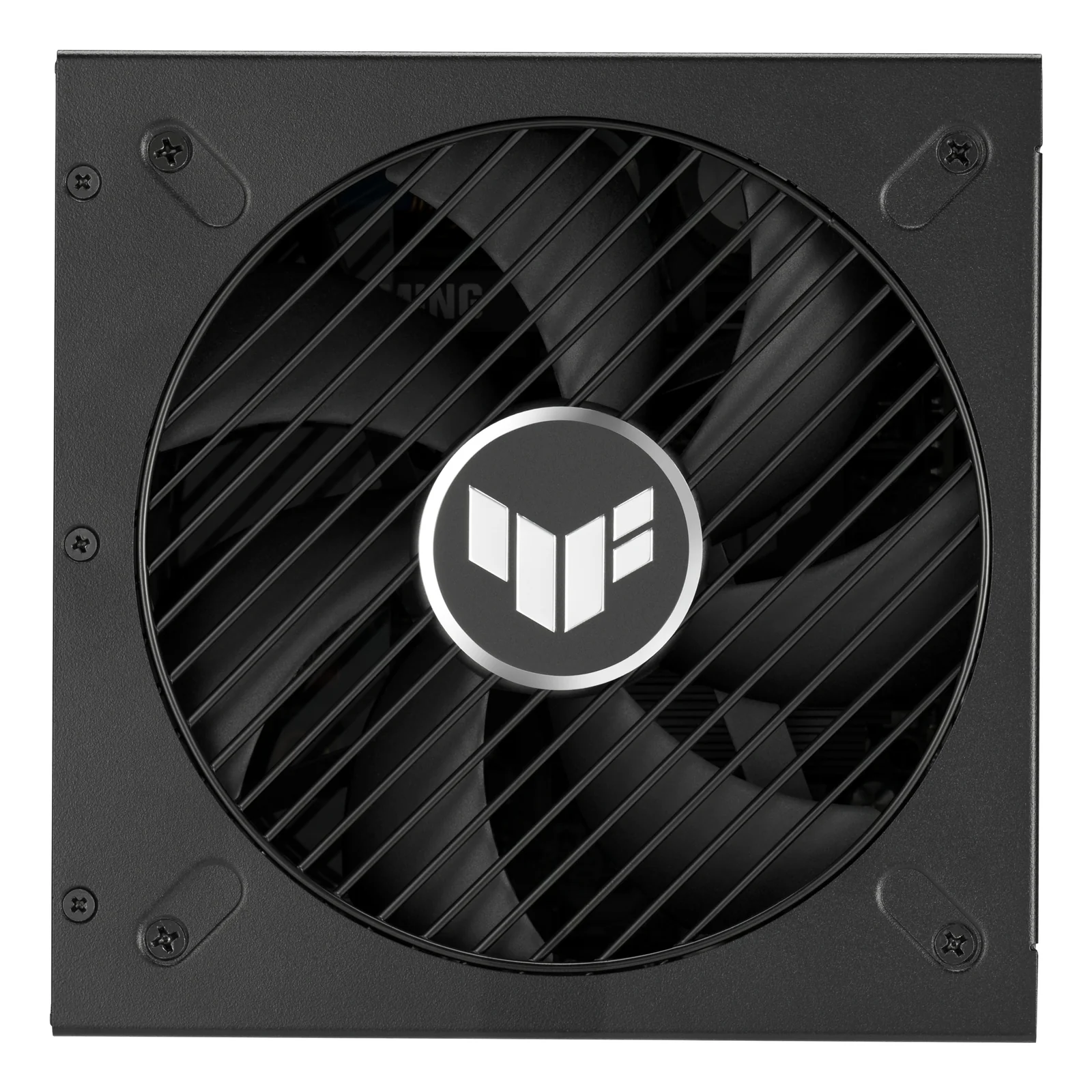

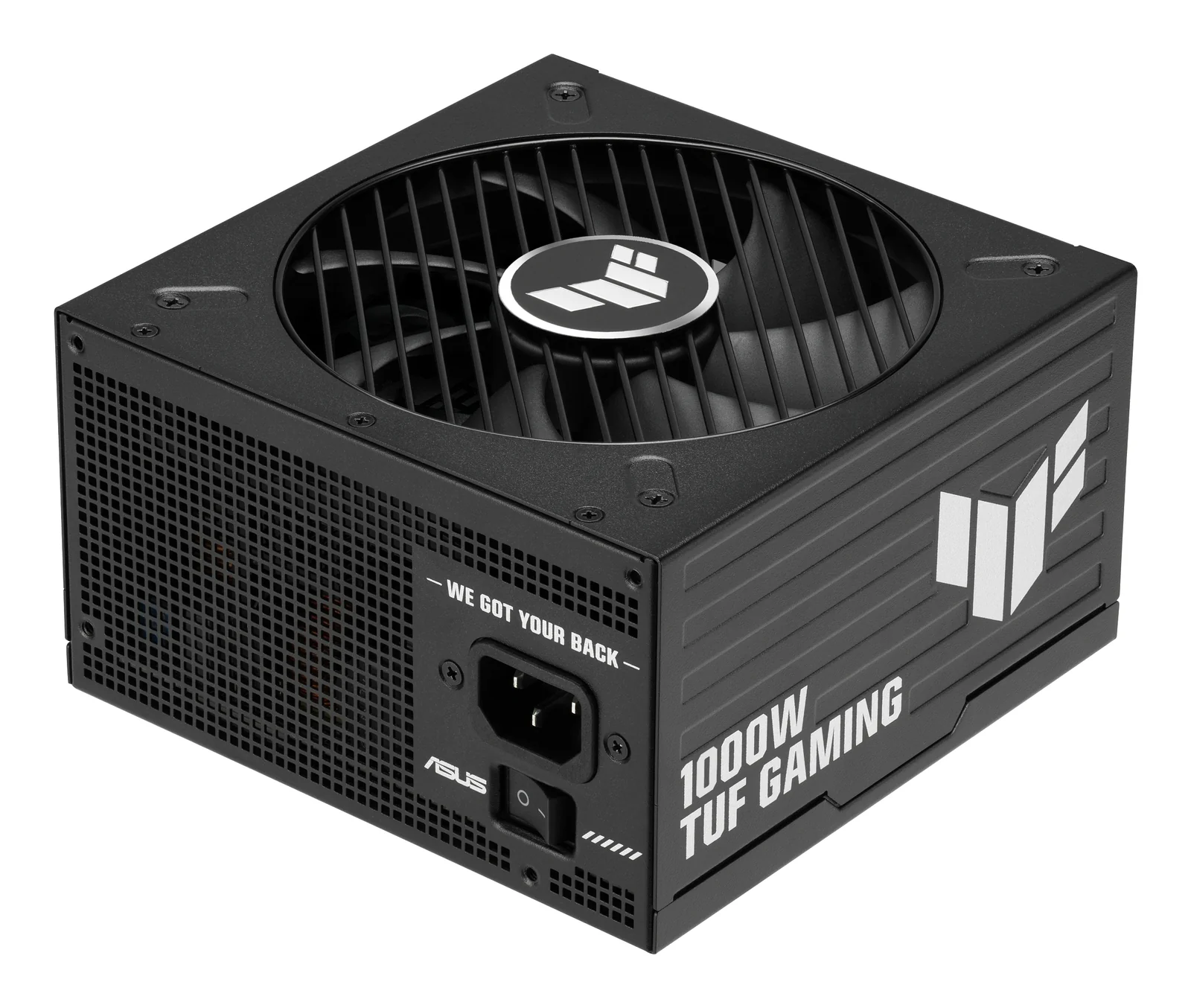

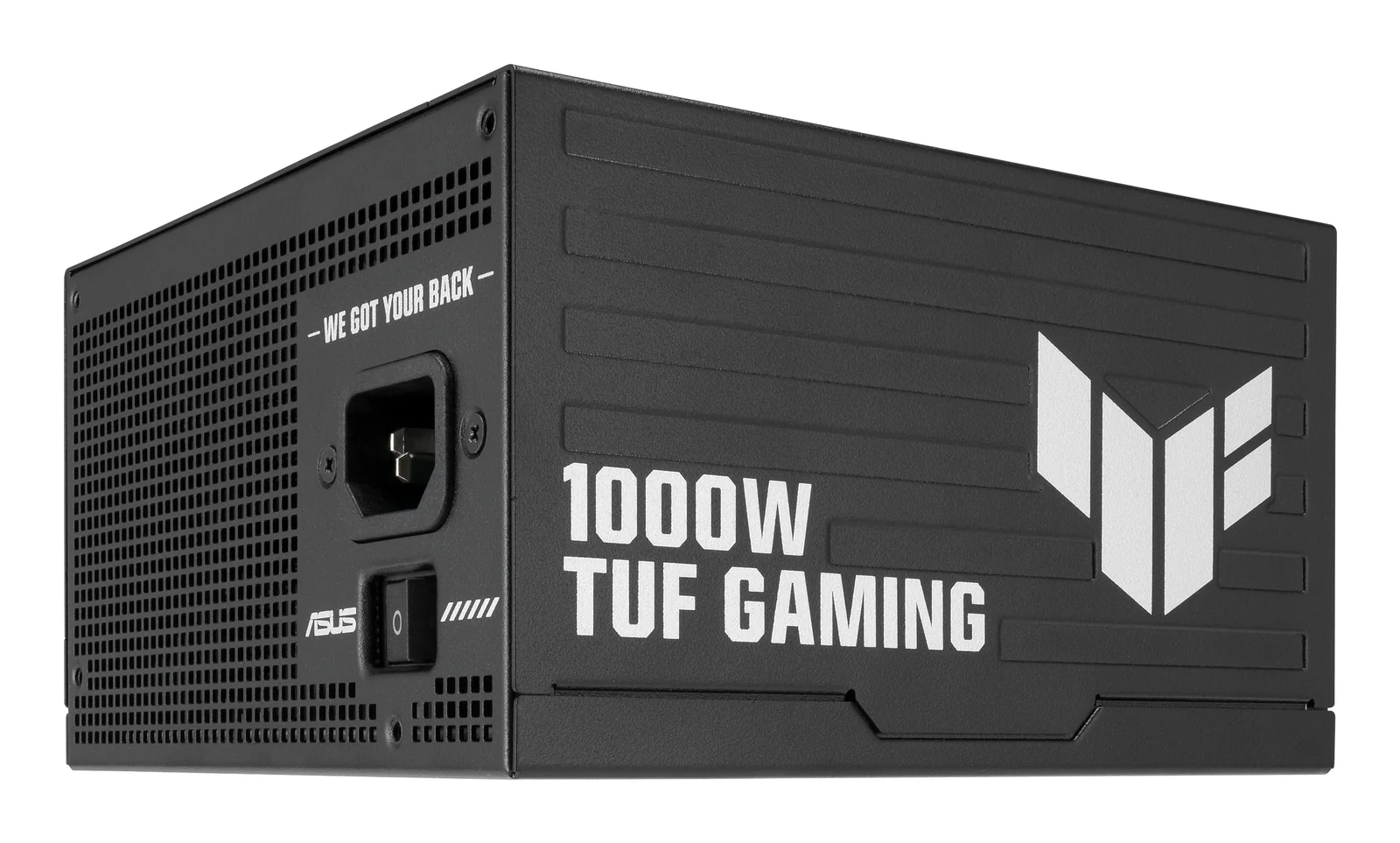

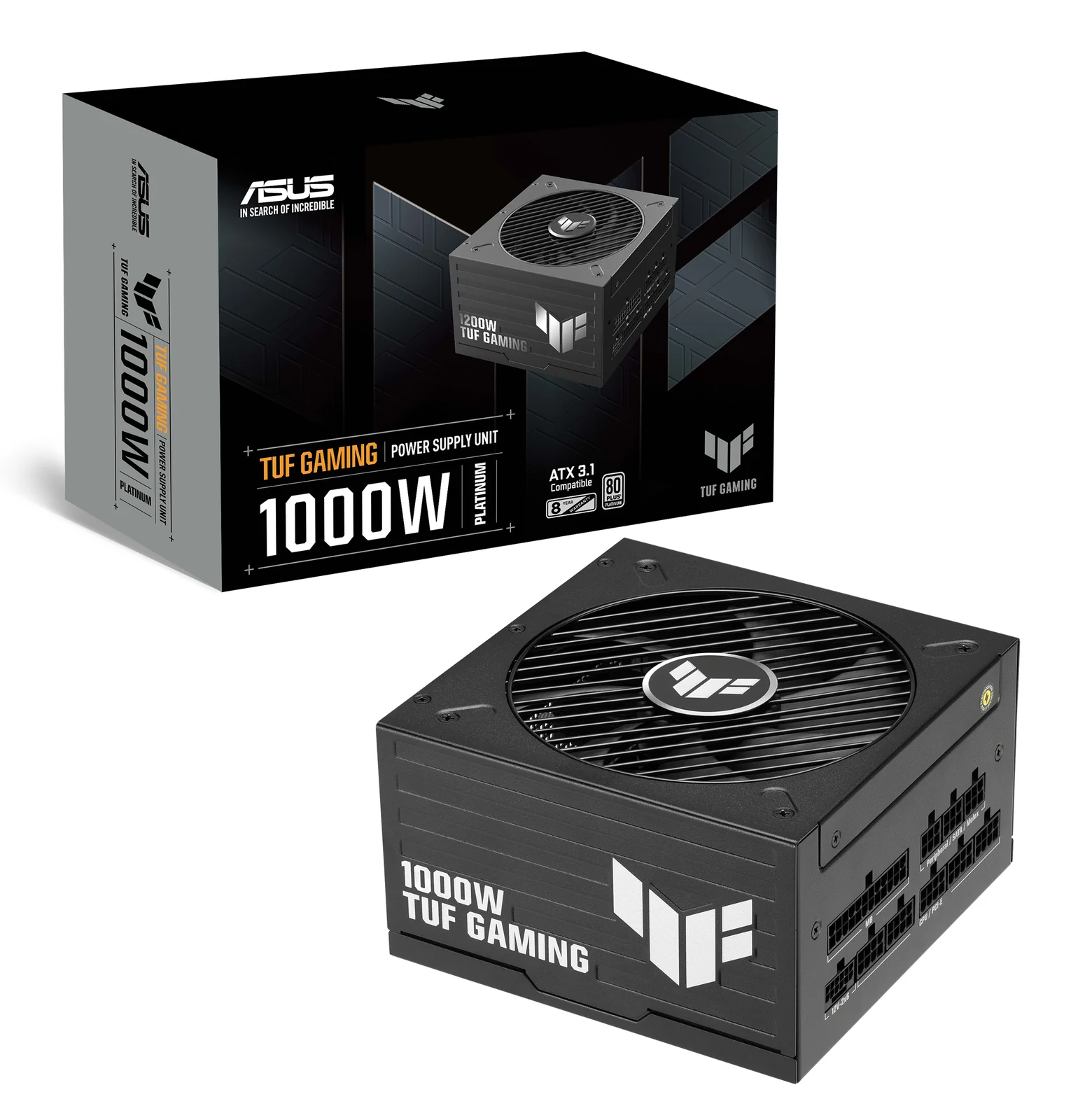

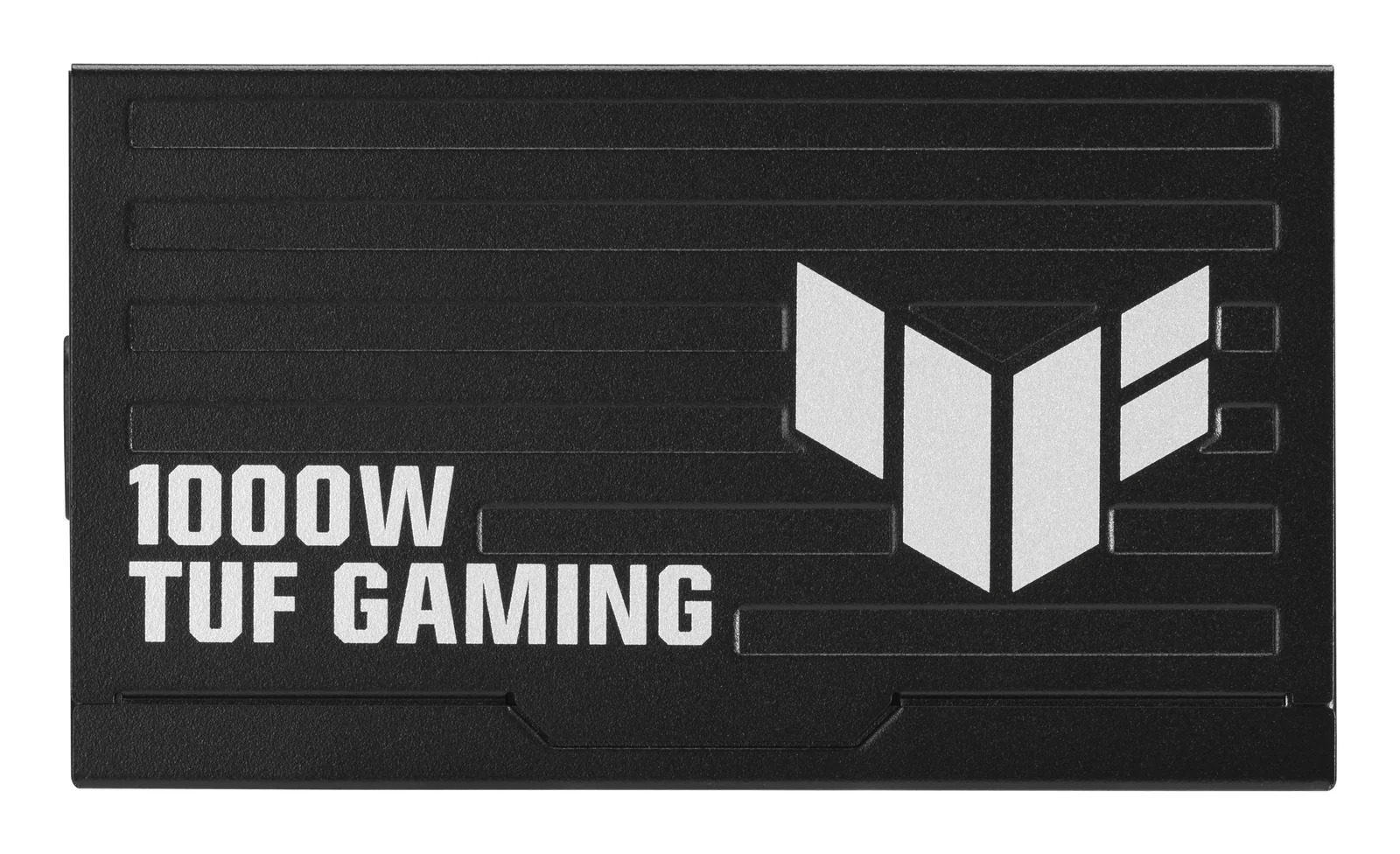

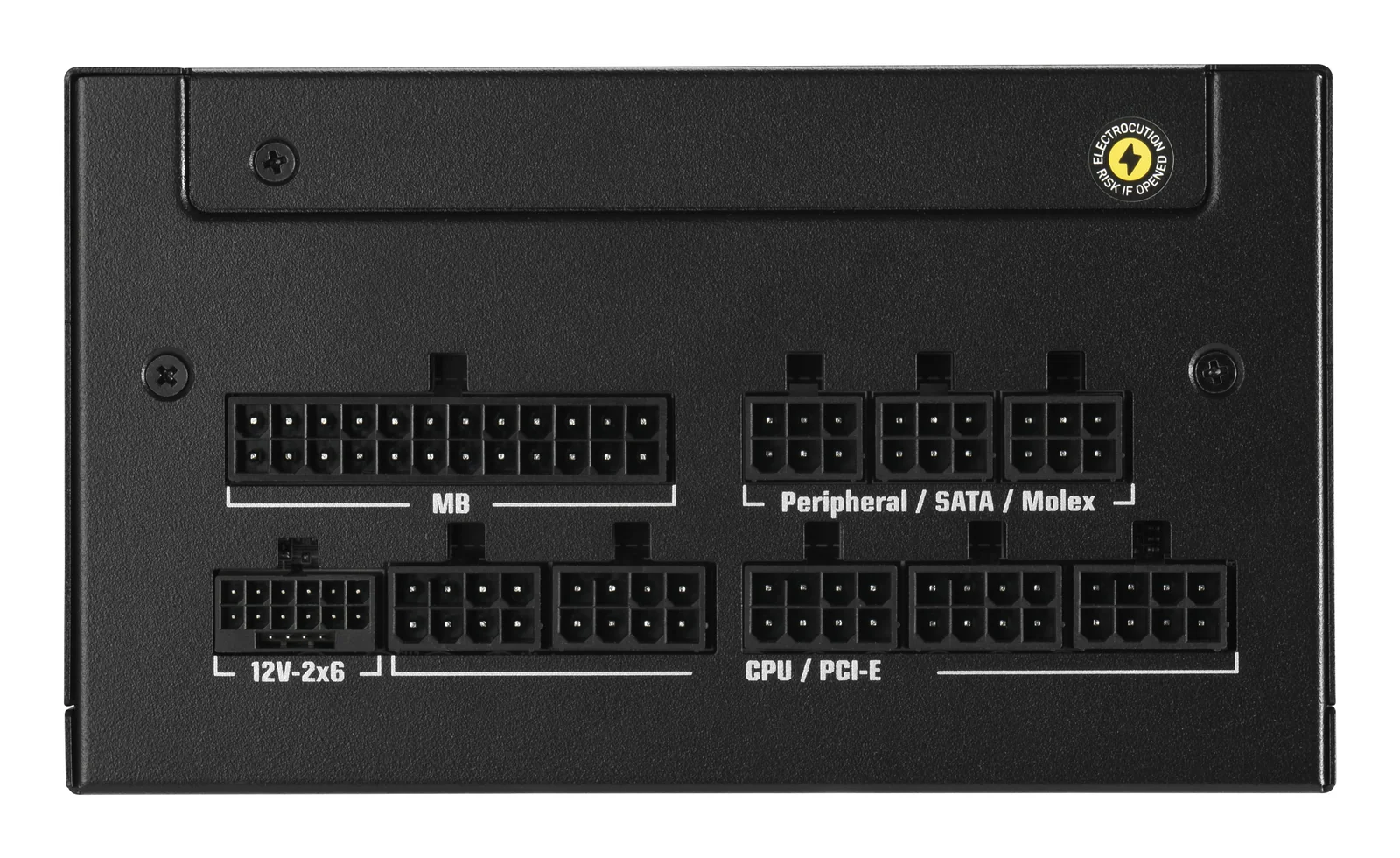

ASUS TUF-GAMING-1000P 1000W Power Supply

Model TUF-GAMING-1000P

Overview

Built For The Long Haul The ASUS TUF Gaming 1000W Platinum packs a next gen GaN MOSFET, military-grade strength, flagship fan design, and PCB protection for efficient, durable power delivery. The result is a PSU that can reliably fuel your rig for years to come.

Specifications

Performance

80 PLUS certification
80 PLUS Platinum
Purpose
PC
Power supply unit (PSU) form factor
ATX
ATX version
3.1
Mean time between failures (MTBF)
120000 h

Design

Product colour
Black
Cooling type
Active
Number of fans
1 fan(s)

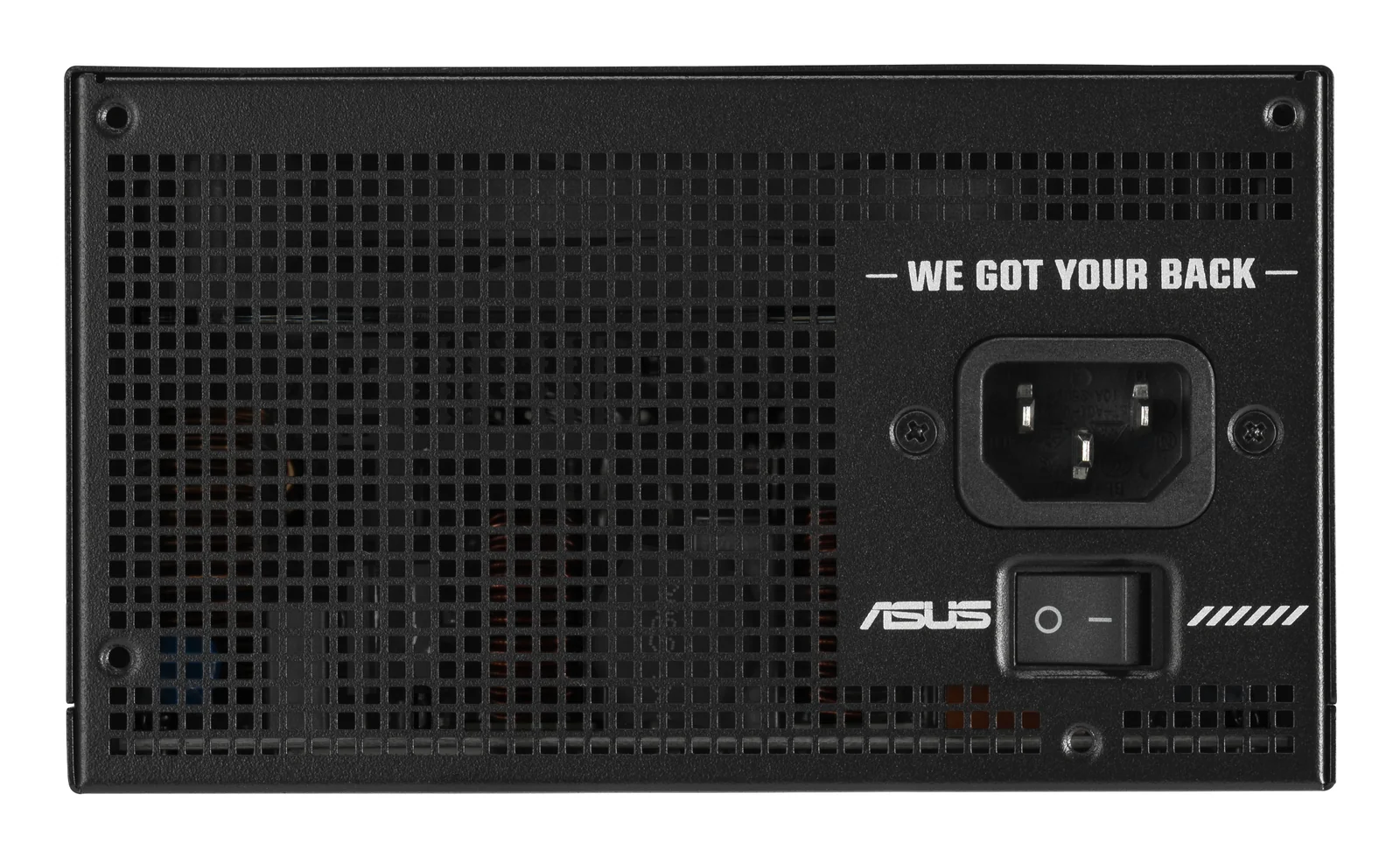

On/off switch
Yes

Power

Total power
1000 W
AC input voltage
100 - 240 V
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
125 W
Combined power (+12V)
1000 W
Combined power (+5V)
125 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
15 W
Max output current (+3.3V)
25 A
Max output current (+12V)
83.3 A
Max output current (+5V)
25 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
3 A
Power protection features
Over power,Over voltage,Under voltage,Short circuit,Over current

Certificates

Compliance certificates
RoHS

Packaging data

Package width
304 mm
Package depth
188 mm
Package height
127 mm
Package weight
3290 g
Package type
Box

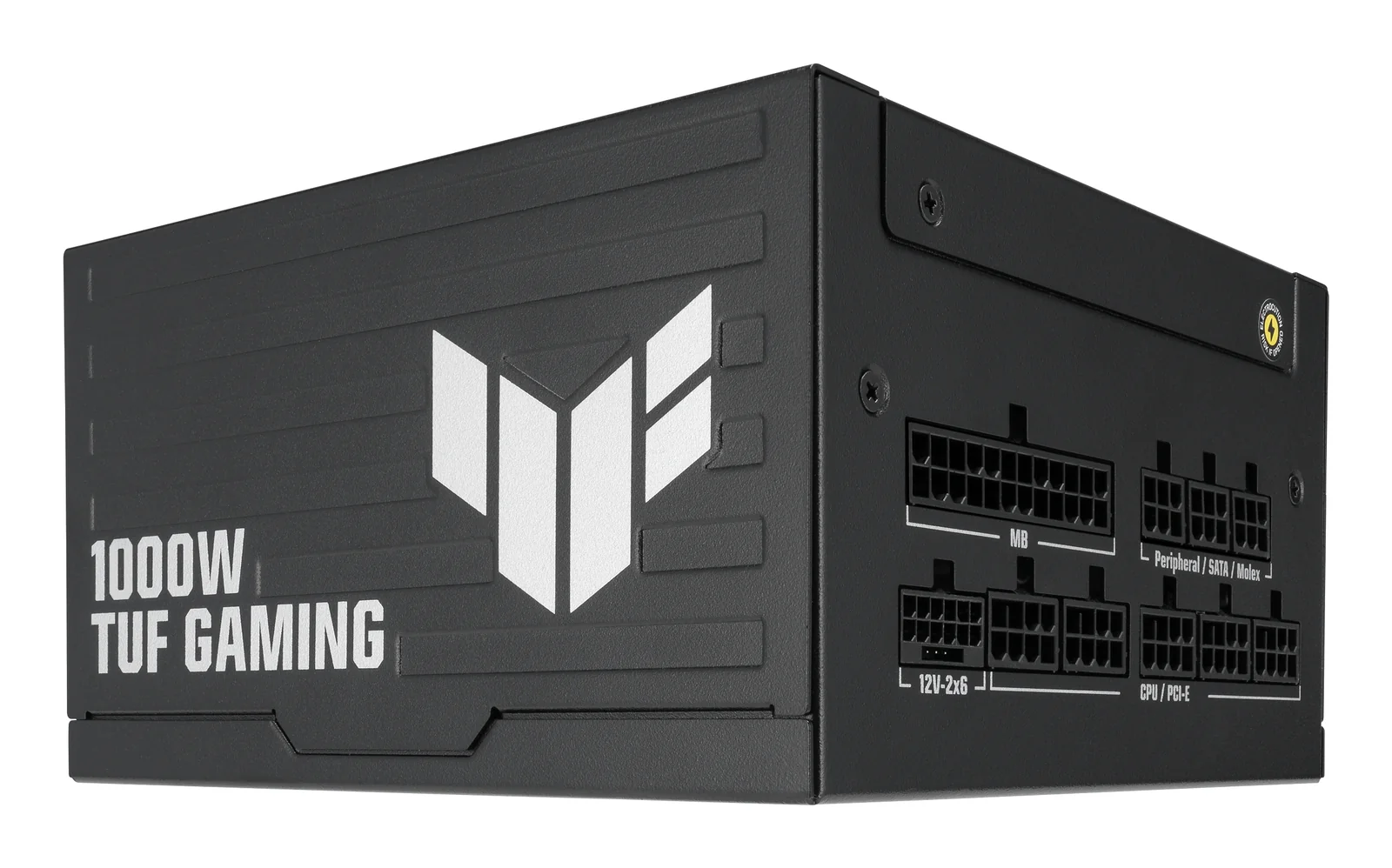

Ports & interfaces

Motherboard power connector
20+4 pin ATX
Motherboard power cable length
610 mm
Number of SATA power connectors
6
SATA power cable length
150,400 mm
Peripheral (Molex) power connectors (4-pin)
3
Peripheral (Molex) power cable length
150,400 mm
PCI Express power connectors (6+2 pin)
3
PCI Express power connectors (16-pin)
1
PCI Express power cable length
675 mm
CPU power connector (4+4 pin)
Yes
CPU power cable length
750 mm
Cabling type
Fully-Modular

Weight & dimensions

Width
150 mm
Depth
150 mm
Height
86 mm
Weight
1510 g
