GIGABYTE

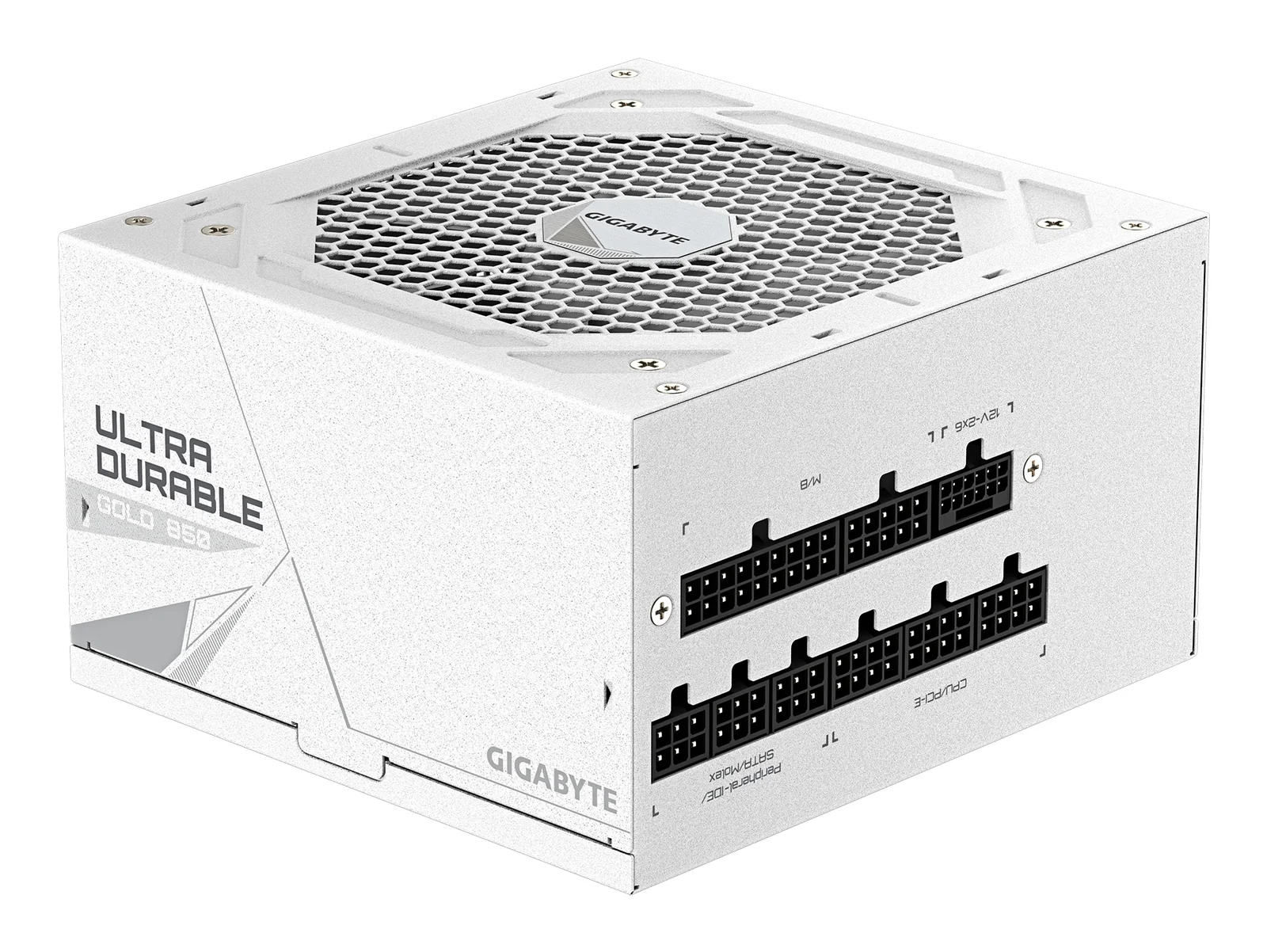

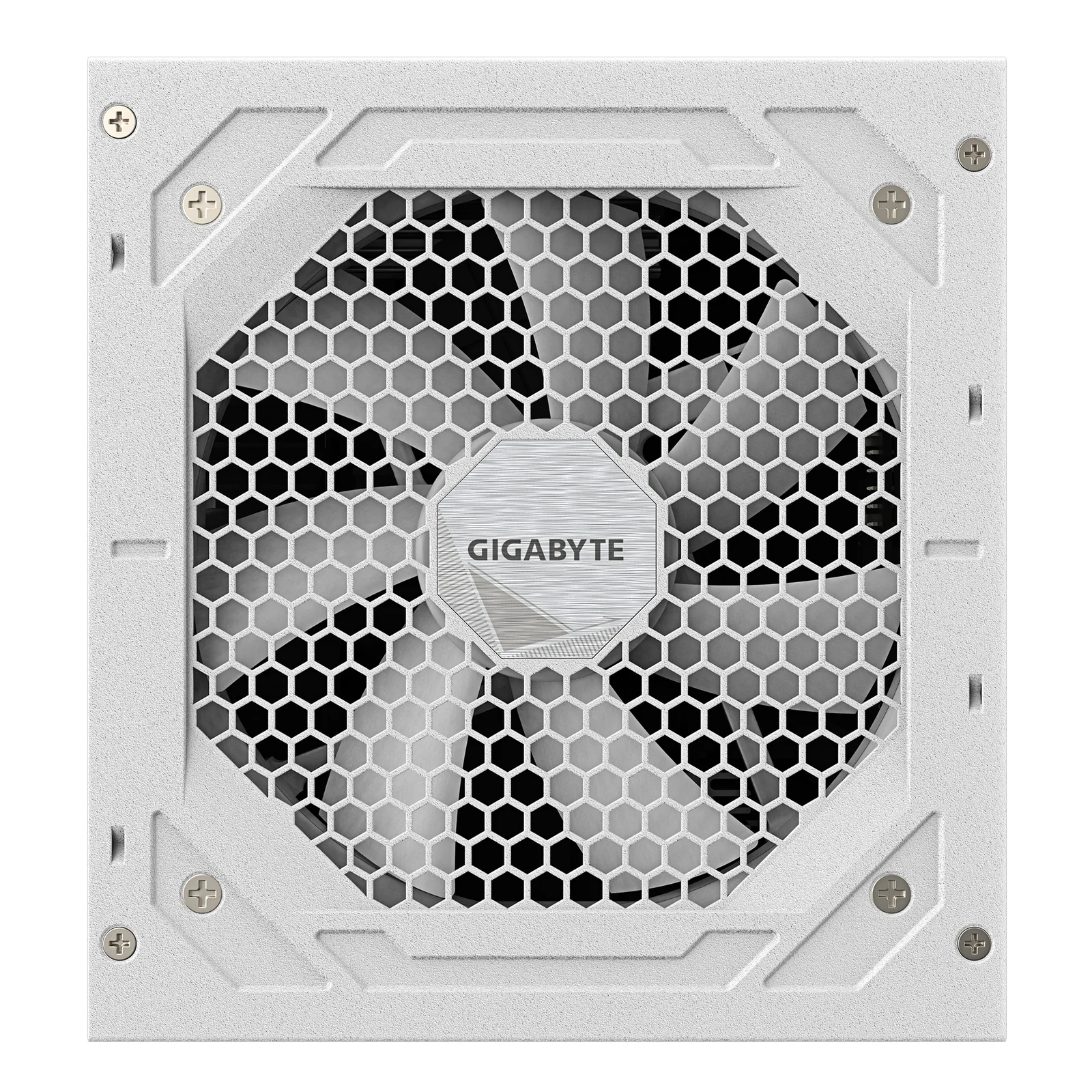

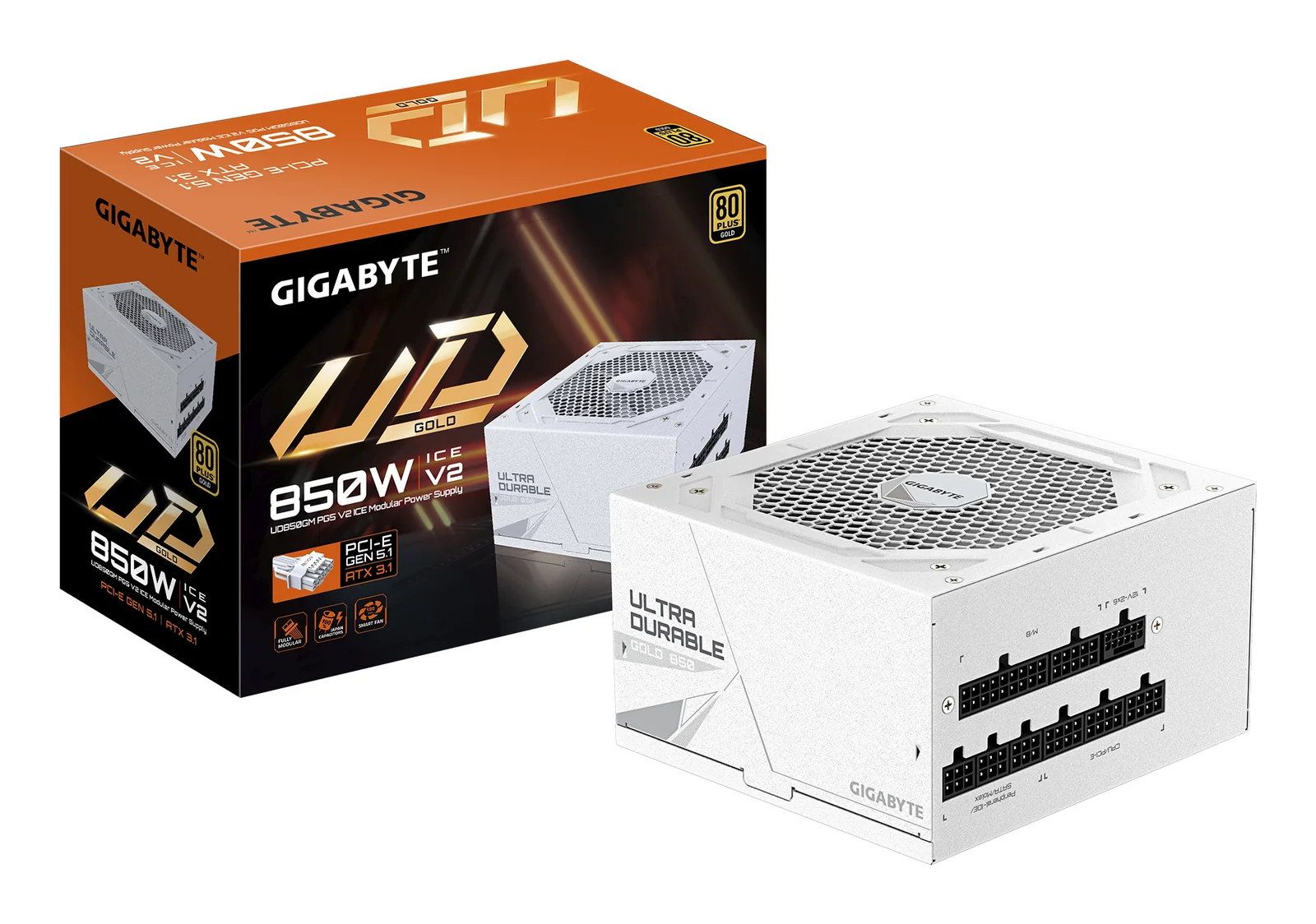

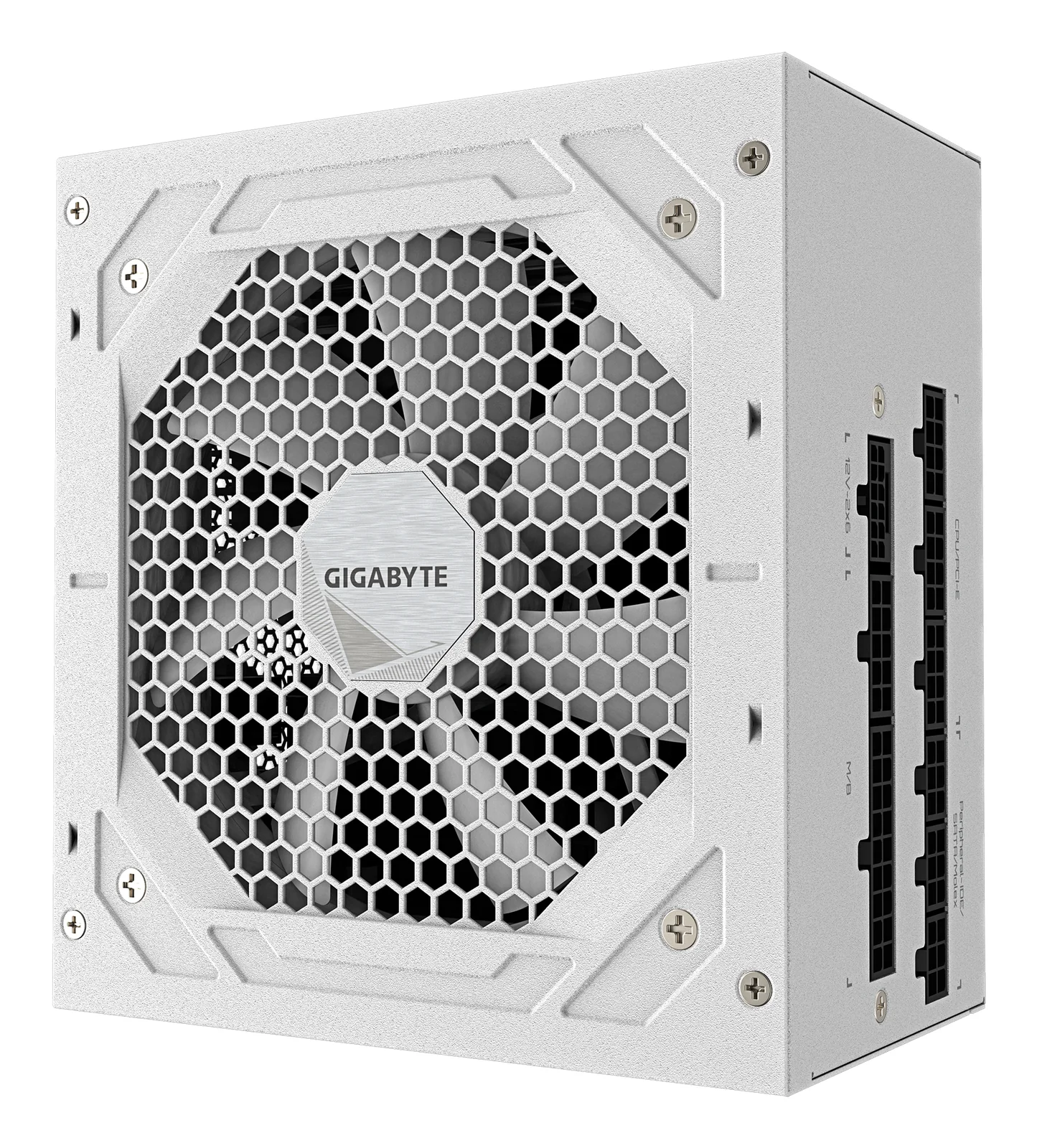

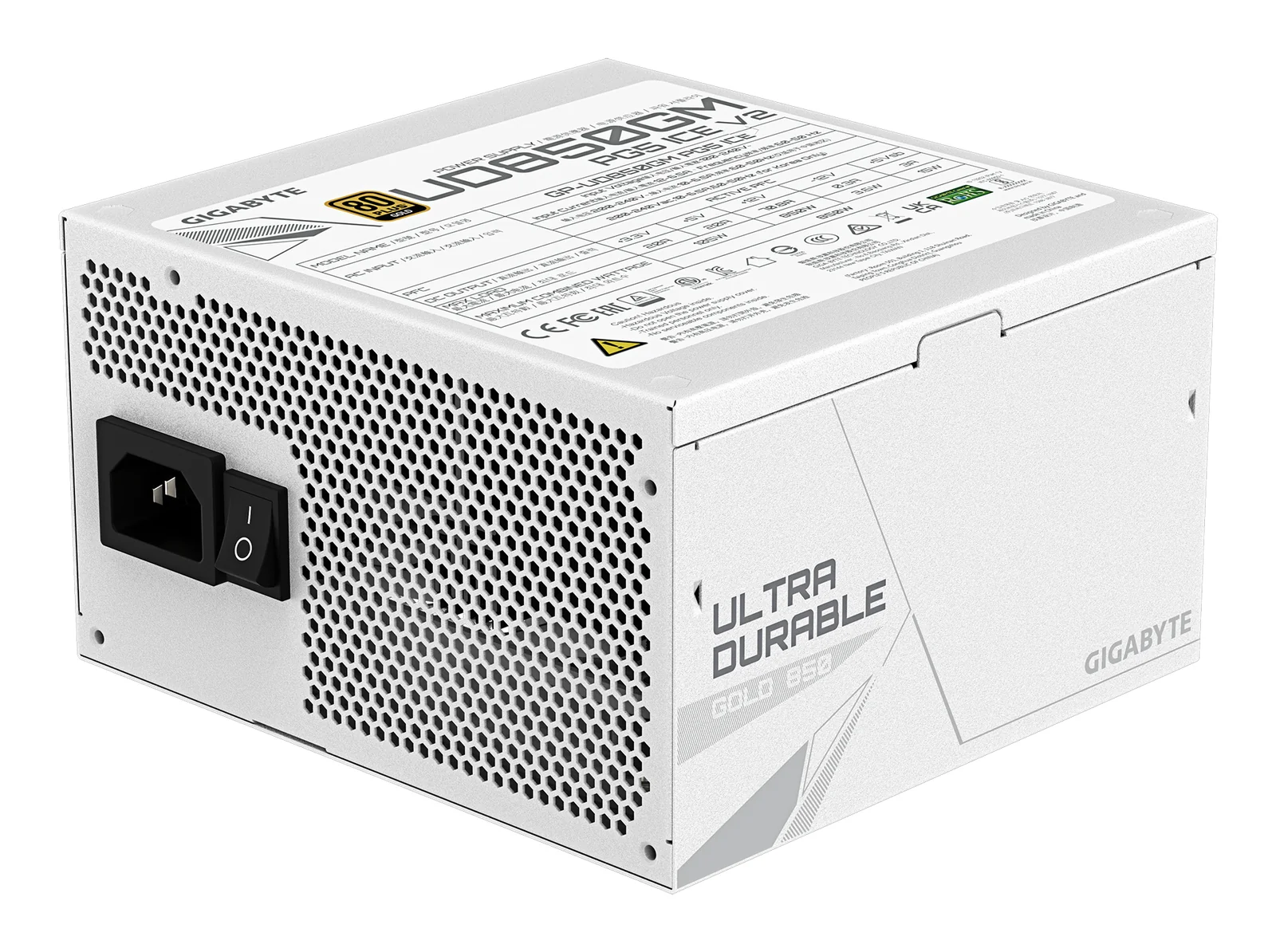

GIGABYTE UD850GM PG5 V2 ICE 850W Power Supply
Model UD850GM PG5 V2 ICE Power Supply Unit
Overview
Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.
Specifications
Performance
- 80 PLUS certification
- 80 PLUS Gold
- Purpose
- PC
- Power supply unit (PSU) form factor
- ATX
- ATX version
- 3.1
- Bearing technology
- HYB
- Mean time between failures (MTBF)
- 100000 h
Design
- Product colour
- White
- Cooling type
- Active
- Fan diameter
- 120 mm
- Number of fans
- 1 fan(s)
- On/off switch
- Yes

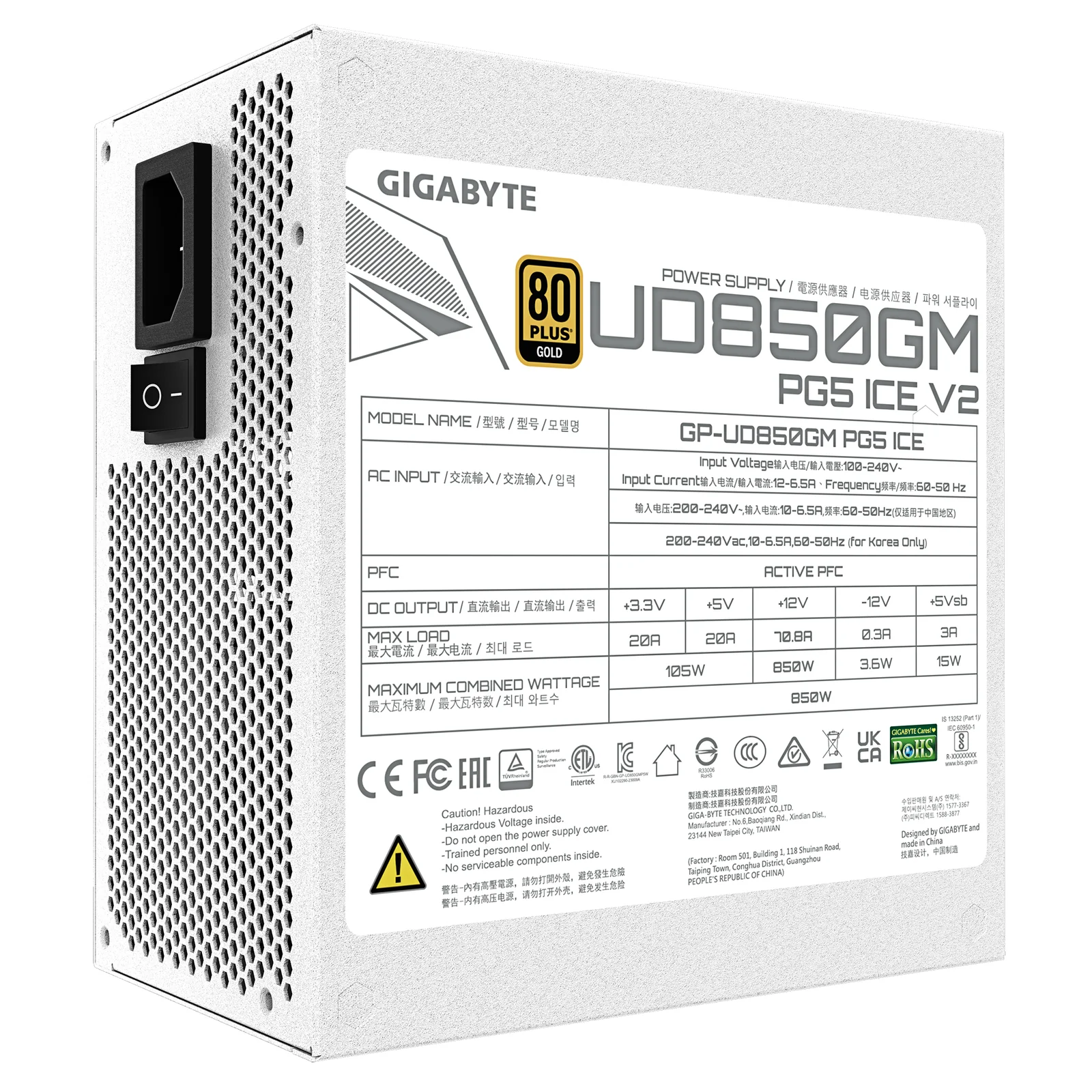

Power
- Total power
- 850 W
- AC input voltage
- 100 - 240 V
- AC input frequency
- 50/60 Hz
- Input current
- 12 - 6.5 A
- Power factor
- 0.9
- Power Factor Correction (PFC) type
- Active
- Combined power (+3.3V)
- 105 W
- Combined power (+12V)
- 850 W
- Combined power (+5V)
- 105 W
- Combined power (-12V)
- 3.6 W
- Combined power (+5Vsb)
- 15 W
- Max output current (+3.3V)
- 20 A
- Max output current (+12V)
- 70.8 A
- Max output current (+5V)
- 20 A
- Max output current (-12V)
- 0.3 A
Logistics data
- Warranty period
- 10 year(s)
Packaging data
- Package width
- 618 mm
- Package depth
- 269 mm
- Package height
- 211 mm
- Package weight
- 2560 g
- Package type
- Box

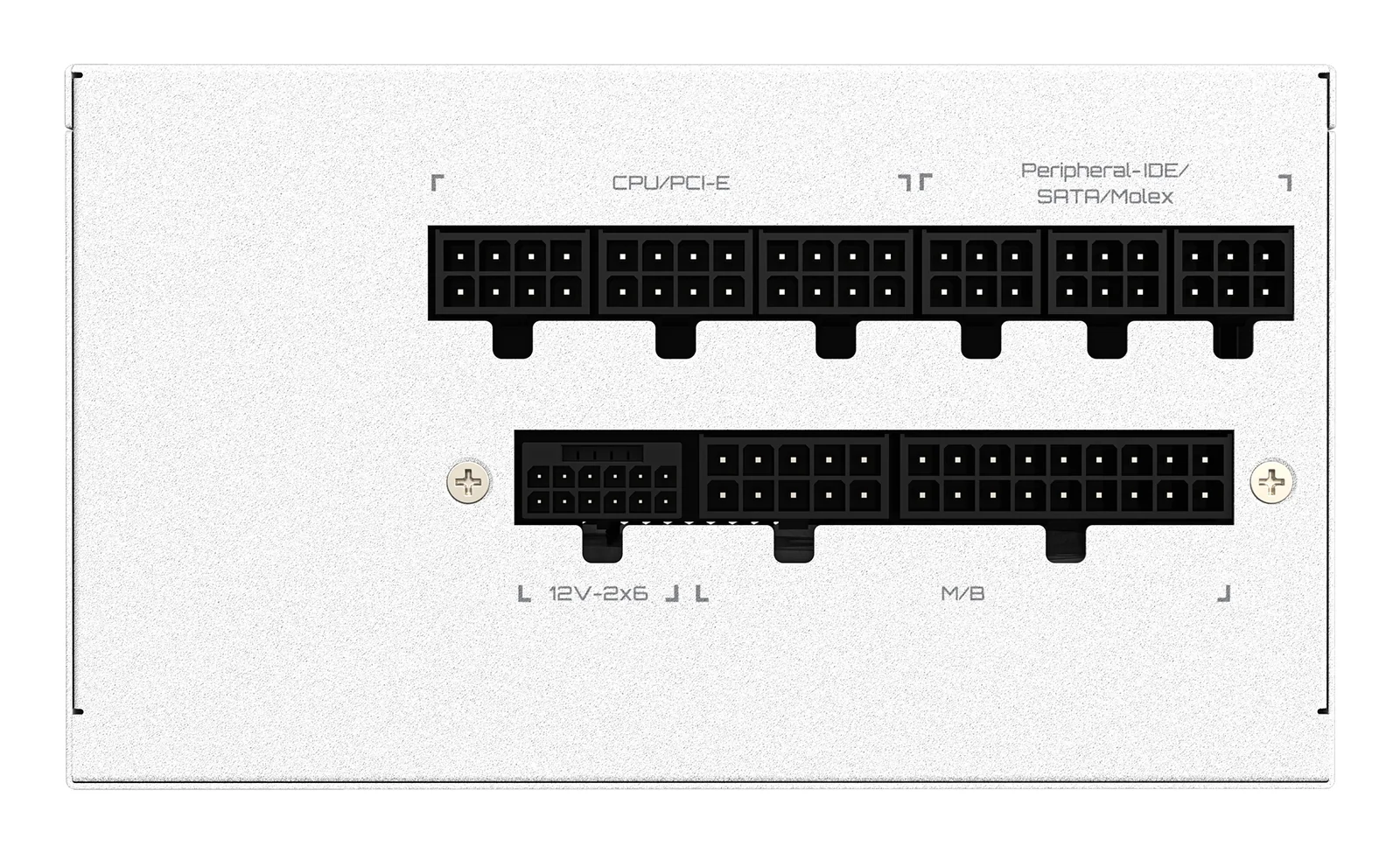

Ports & interfaces
- Motherboard power connector
- 20+4 pin ATX
- Motherboard power cable length
- 610 mm
- Number of SATA power connectors
- 8
- SATA power cable length
- 150,600 mm
- Peripheral (Molex) power connectors (4-pin)
- 3
- Peripheral (Molex) power cable length
- 150,500 mm
- PCI Express power connectors (6+2 pin)
- 4
- PCI Express power connectors (12+4 pin)
- 1
- PCI Express power connectors (12+4 pin) cable length
- 700 mm
- PCI Express power cable length
- 600 mm
- CPU power connector (4+4 pin)
- Yes
- CPU power cable length
- 650 mm
- Floppy drive power connector
- 1
- PCI Express connector
- Yes
- Number of EPS connectors
- 2
Weight & dimensions
- Width
- 150 mm
- Depth
- 140 mm
- Height
- 86 mm
- Weight
- 2400 g
