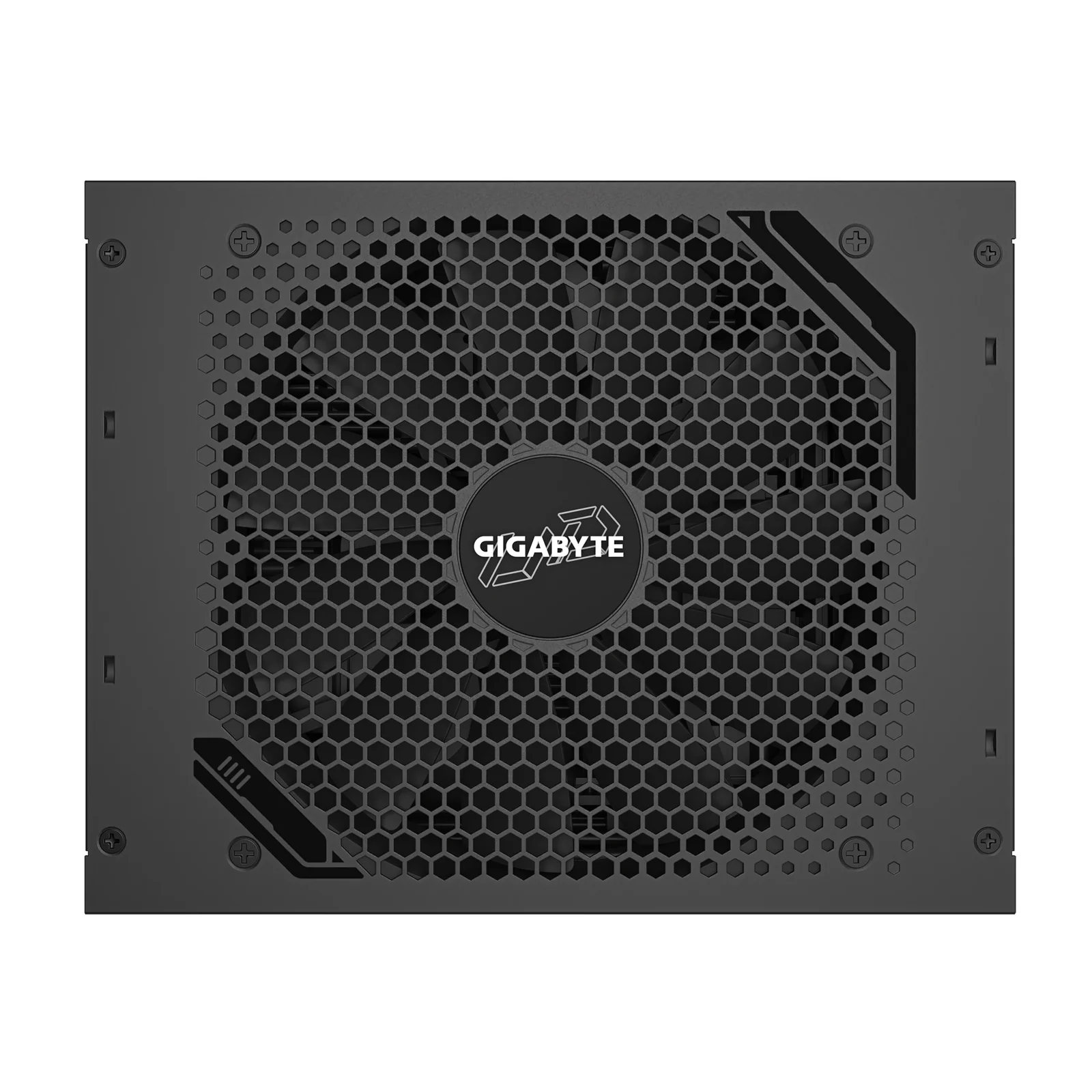

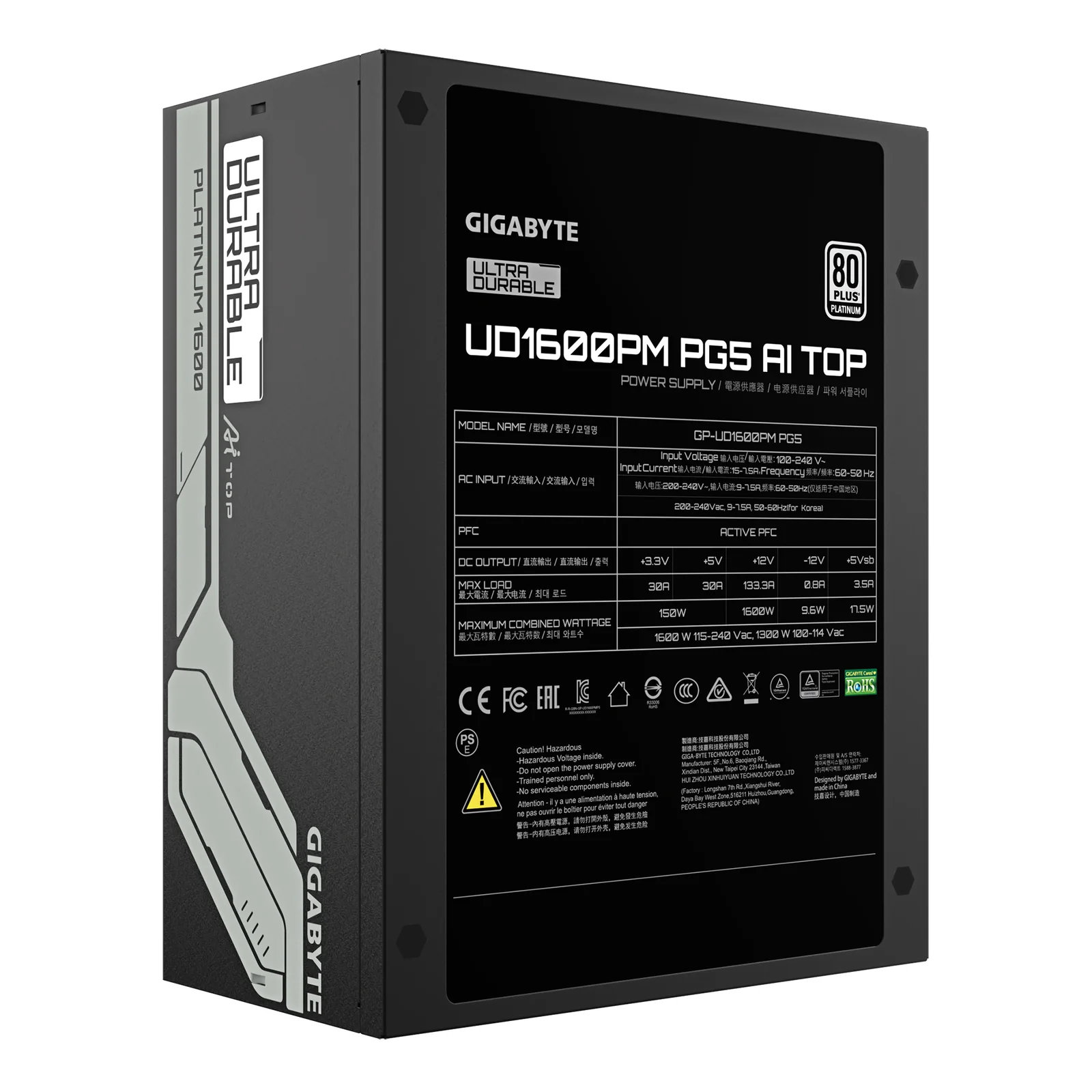

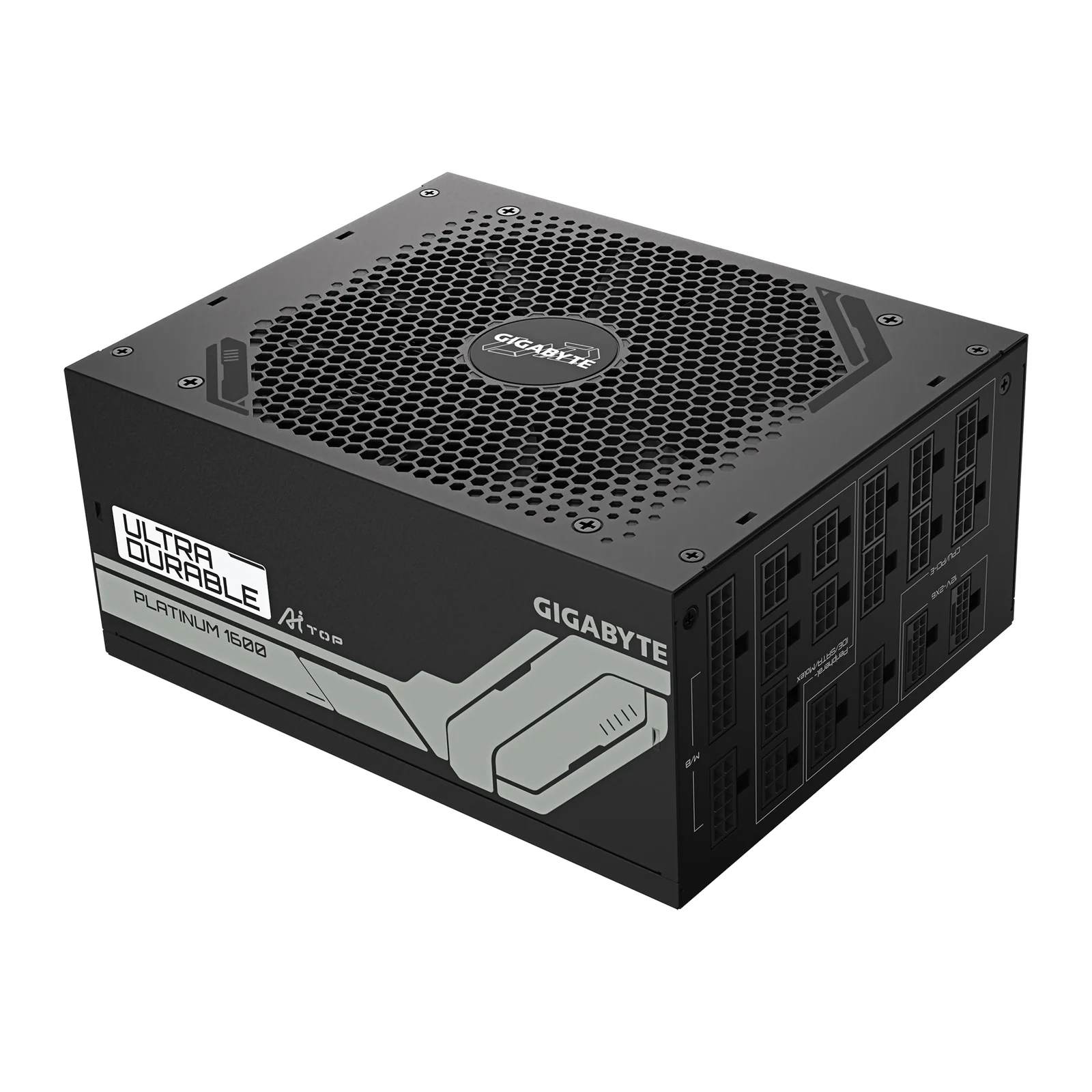

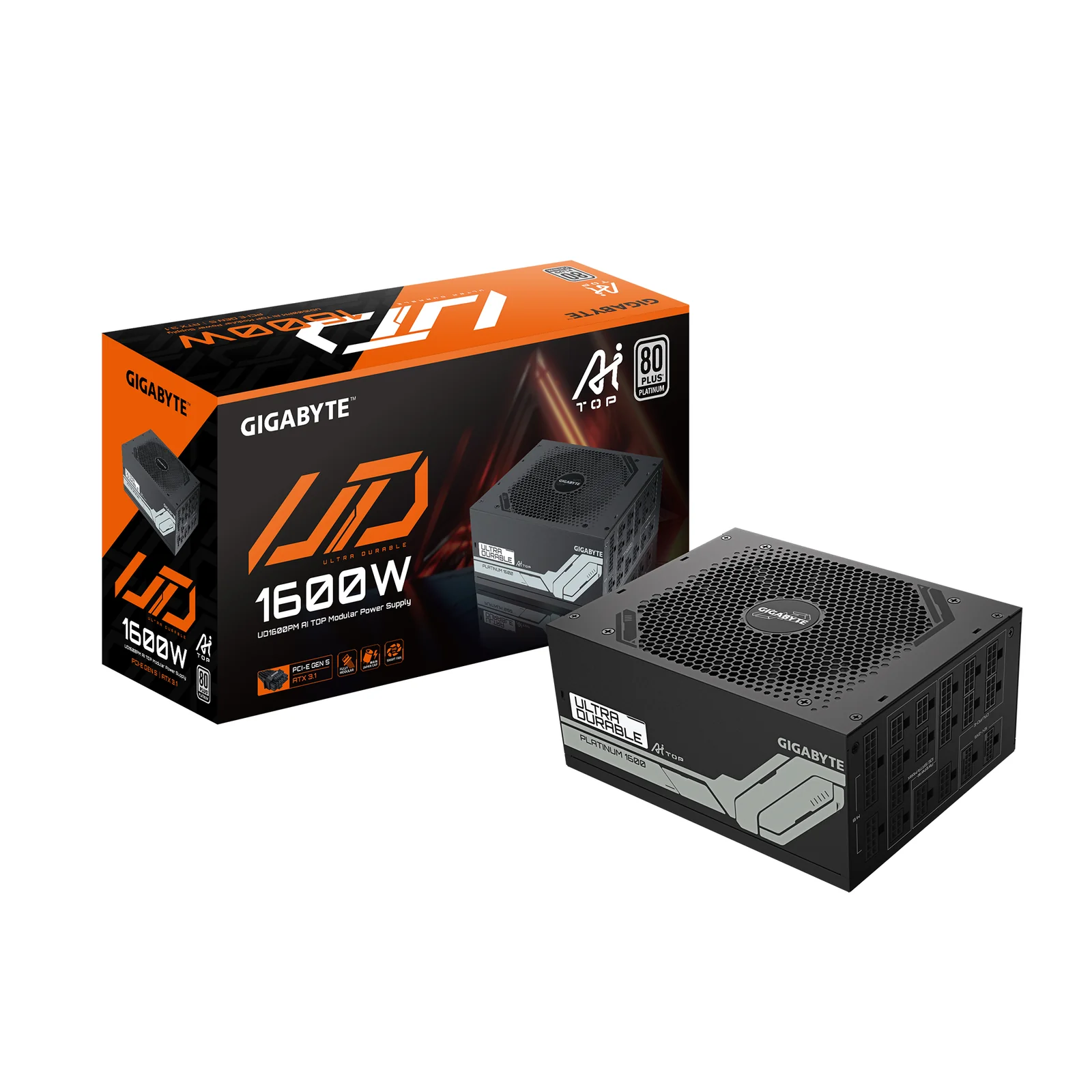

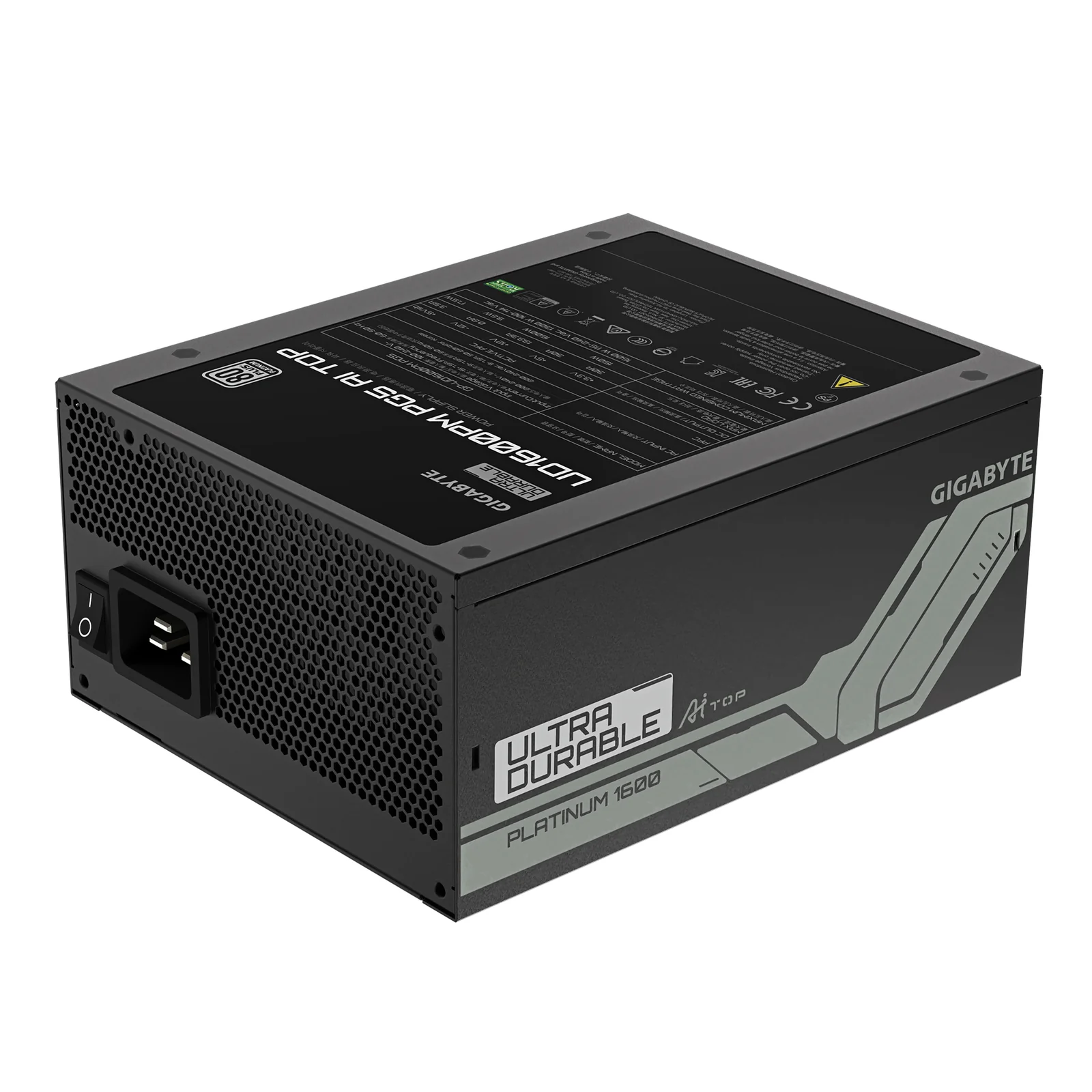

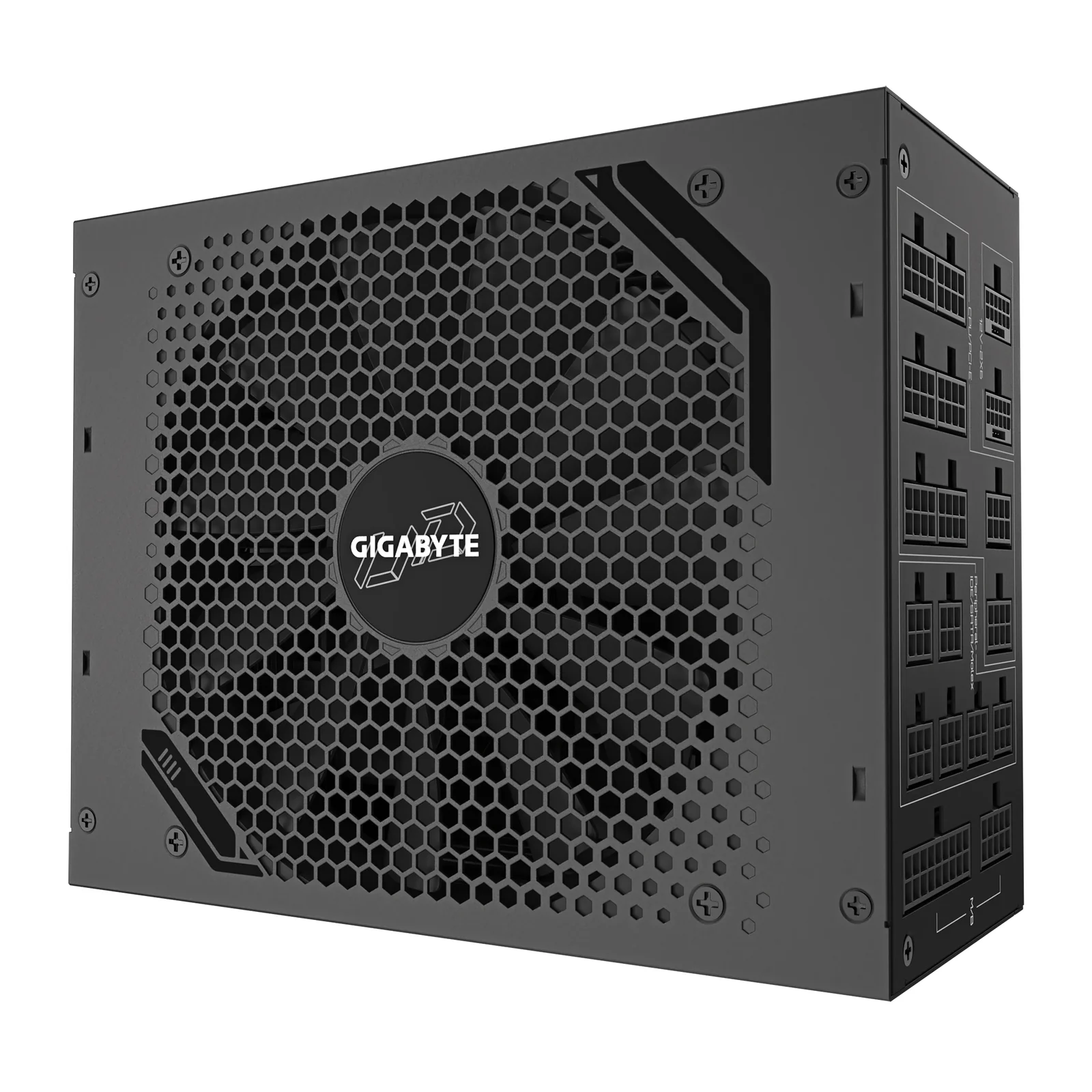

GIGABYTE UD1600PM PG5 AI TOP 1600W Power Supply

Model UD1600PM PG5 AI TOP Power Supply

Overview

Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.

Specifications

Performance

80 PLUS certification
80 PLUS Platinum
Purpose
PC
Power supply unit (PSU) form factor
ATX
ATX version
3.1
Bearing technology
DBB
Mean time between failures (MTBF)
100000 h

Design

Product colour
Black
Cooling type
Active
Fan diameter
120 mm
Number of fans
1 fan(s)
Fan location
Top
On/off switch
Yes

Power

Total power
1600 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Input current
15 - 7.5 A
Power factor
0.9
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
150 W
Combined power (+12V)
1600 W
Combined power (+5V)
150 W
Combined power (-12V)
9.6 W
Combined power (+5Vsb)
17.5 W
Max output current (+3.3V)
30 A
Max output current (+12V)
133.3 A
Max output current (+5V)
30 A
Max output current (-12V)
0.8 A

Logistics data

Warranty period
10 year(s)

Packaging data

Package width
410 mm
Package depth
219 mm
Package height
145 mm
Package weight
5575 g
Package type
Box

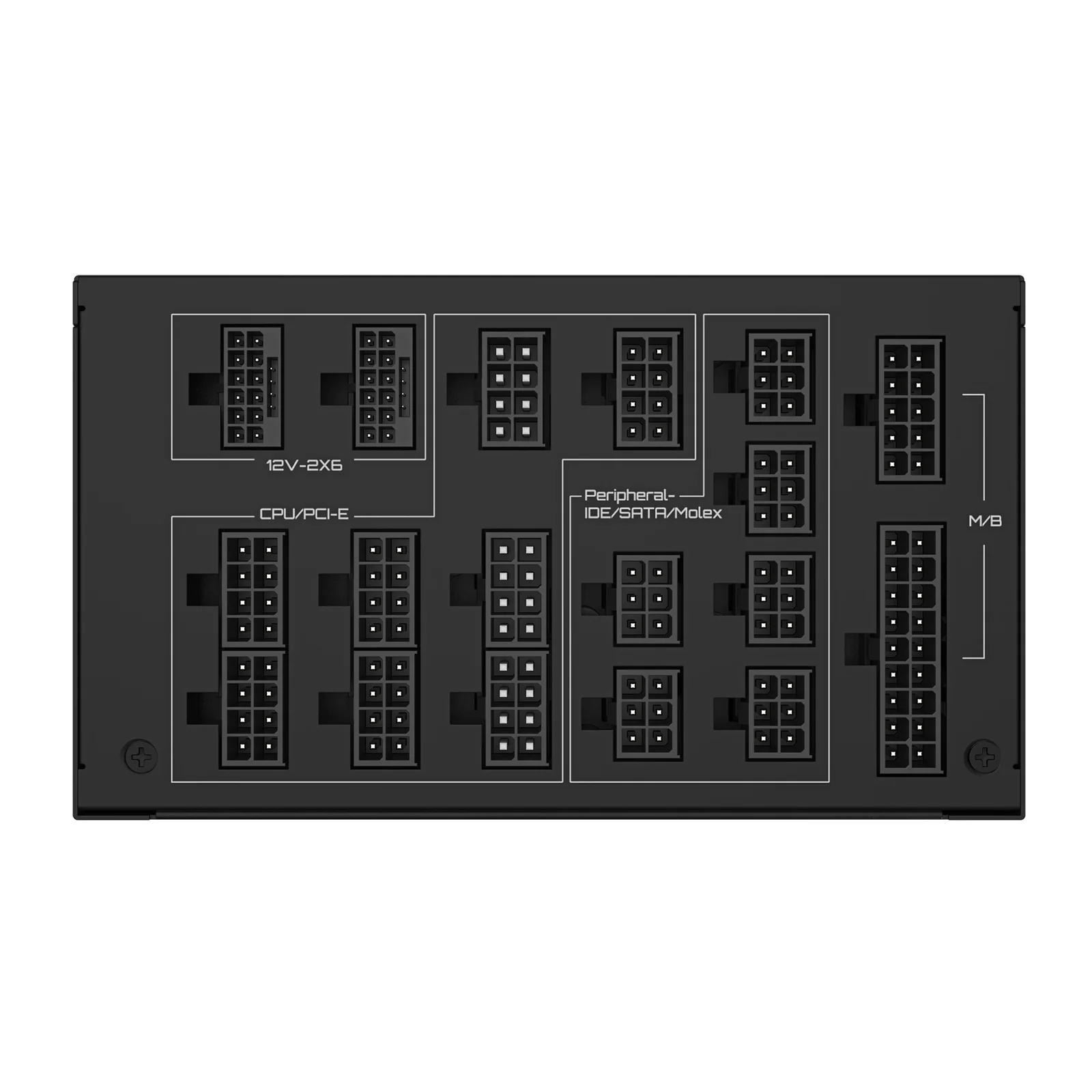

Ports & interfaces

Motherboard power connector
20+4 pin ATX
Motherboard power cable length
610 mm
Number of SATA power connectors
16
SATA power cable length
150,650 mm
Peripheral (Molex) power connectors (4-pin)
6
EPS power connector (4+4 pin)
Yes
PCI Express power connectors (6+2 pin)
8
CPU power connector (4+4 pin)
Yes
ATX power connector (20+4 pin)
Yes
PCI Express connector
Yes
Cabling type
Fully-Modular

Weight & dimensions

Width
150 mm
Depth
190 mm
Height
86 mm
Weight
5300 g
