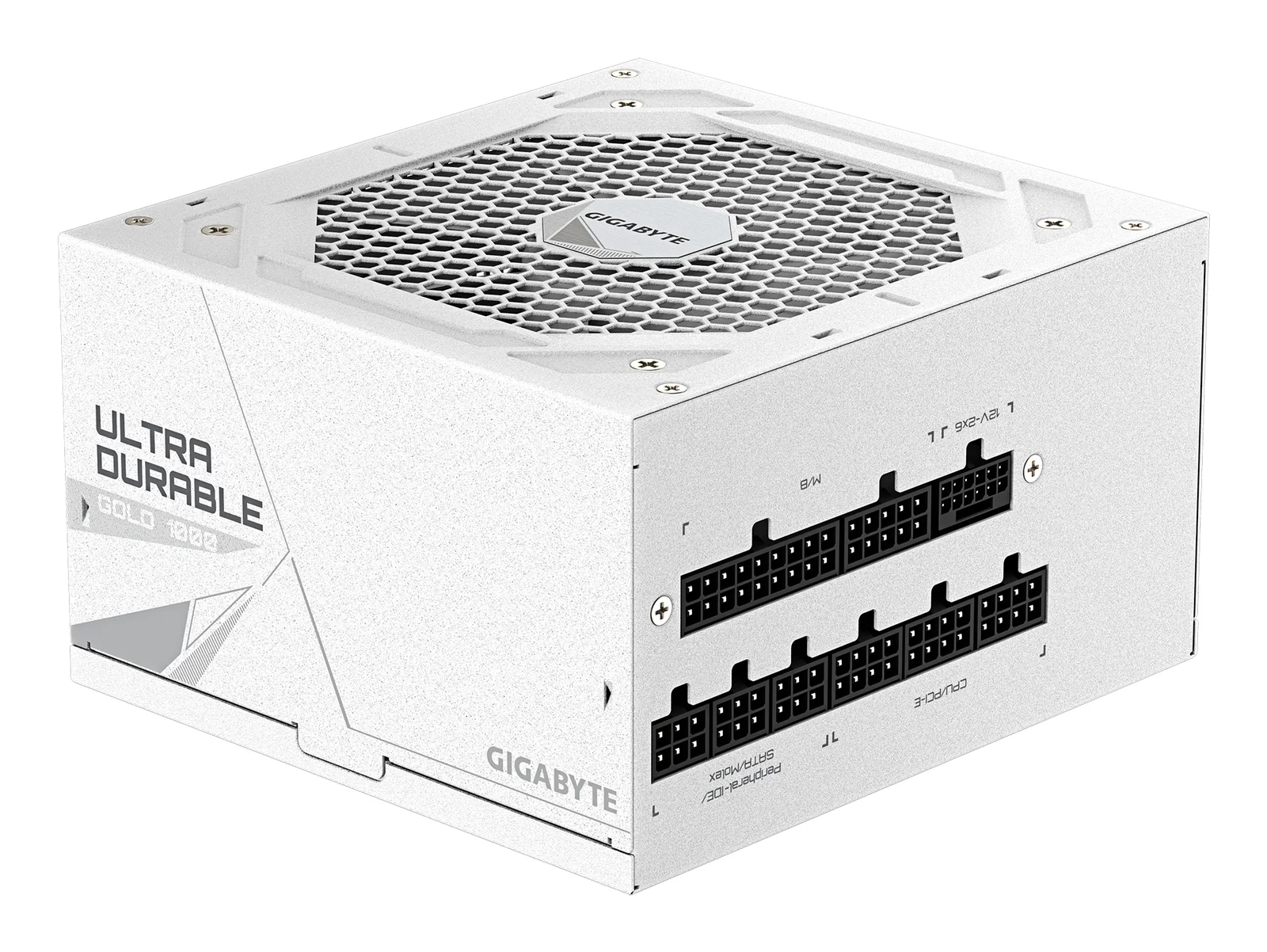

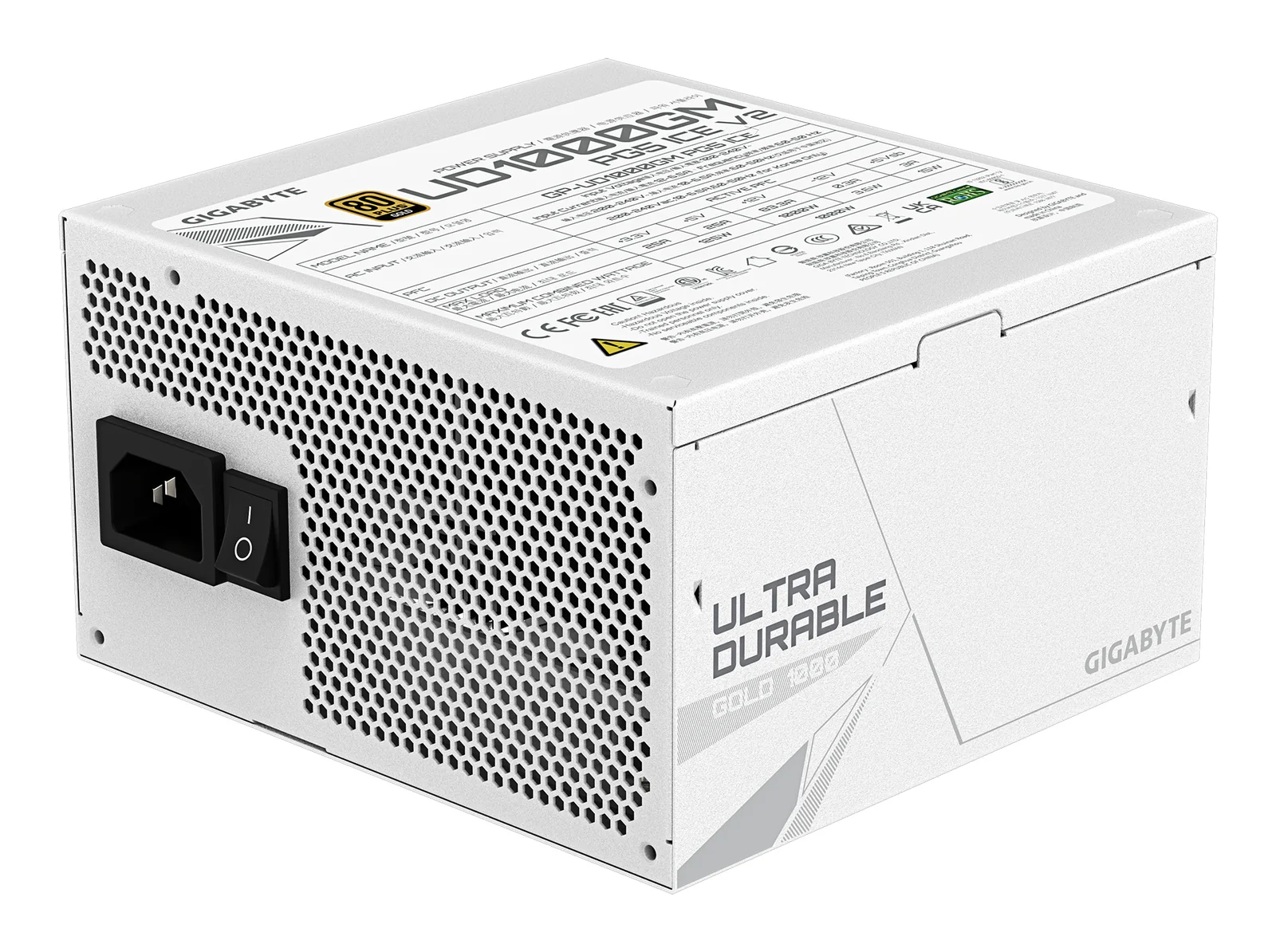

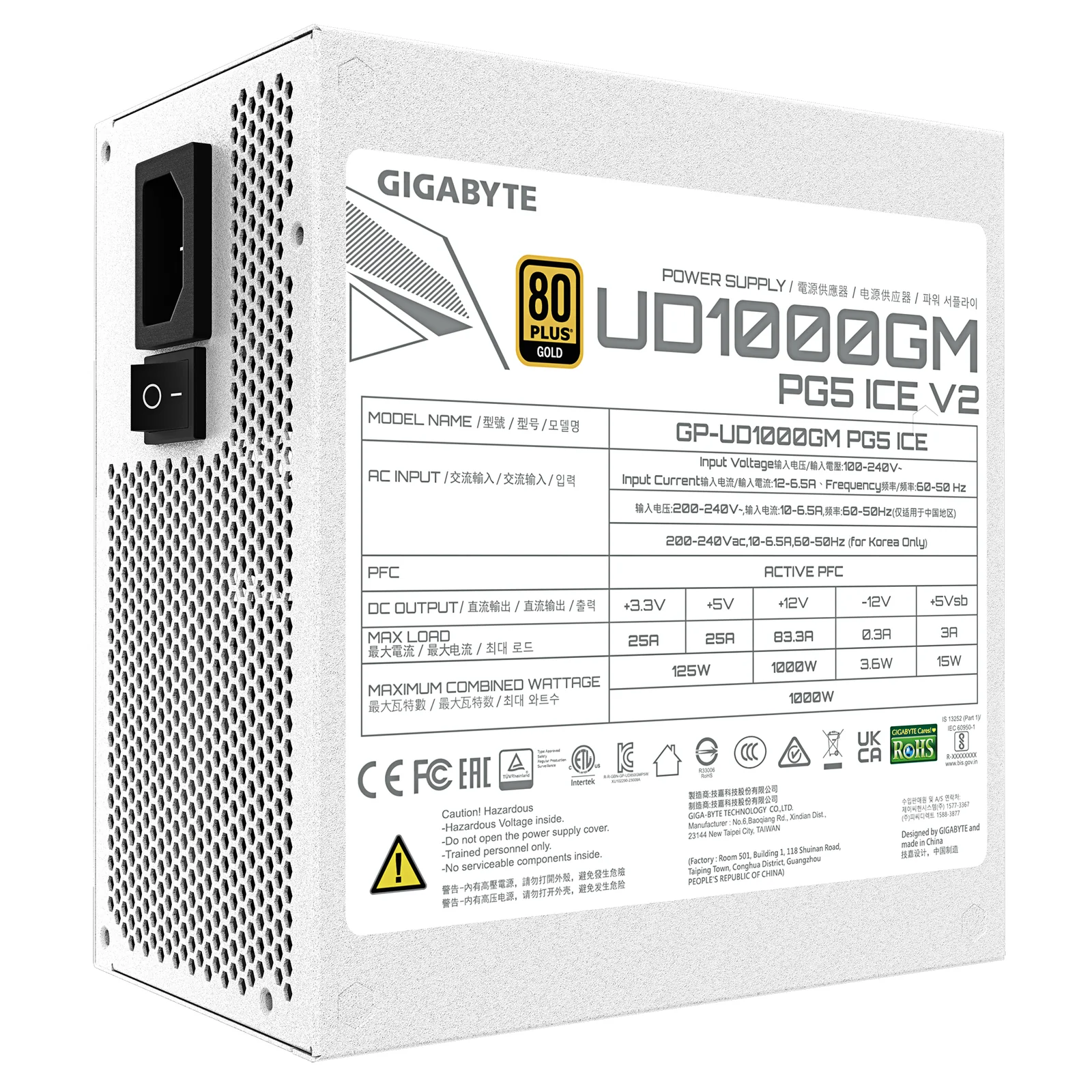

GIGABYTE UD1000GM PG5 V2 ICE 1000W Power Supply

Model UD1000GM PG5 V2 ICE Power Supply Unit

Overview

Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.

Specifications

Performance

80 PLUS certification
80 PLUS Gold
Purpose
PC
Power supply unit (PSU) form factor
ATX
ATX version
3.1
Bearing technology
HYB
Mean time between failures (MTBF)
100000 h

Design

Product colour
White
Cooling type
Active
Fan diameter
120 mm
Number of fans
1 fan(s)
On/off switch
Yes

Power

Total power
1000 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Input current
15 - 6.5 A
Power factor
0.9
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
125 W
Combined power (+12V)
1000 W
Combined power (+5V)
125 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
15 W
Max output current (+3.3V)
25 A
Max output current (+12V)
83.3 A
Max output current (+5V)
25 A
Max output current (-12V)
0.3 A

Logistics data

Warranty period
10 year(s)

Packaging data

Package width
618 mm
Package depth
269 mm
Package height
211 mm
Package weight
2640 g
Package type
Box

Ports & interfaces

Motherboard power connector
20+4 pin ATX
Motherboard power cable length
610 mm
Number of SATA power connectors
8
Peripheral (Molex) power connectors (4-pin)
3
PCI Express power connectors (6+2 pin)
4
PCI Express power connectors (12+4 pin)
1
PCI Express power connectors (12+4 pin) cable length
700 mm
PCI Express power cable length
600 mm
CPU power connector (4+4 pin)
Yes
CPU power cable length
650 mm
Floppy drive power connector
1
PCI Express connector
Yes
Number of EPS connectors
2
Cabling type
Fully-Modular

Weight & dimensions

Width
150 mm
Depth
140 mm
Height
86 mm
Weight
2480 g
