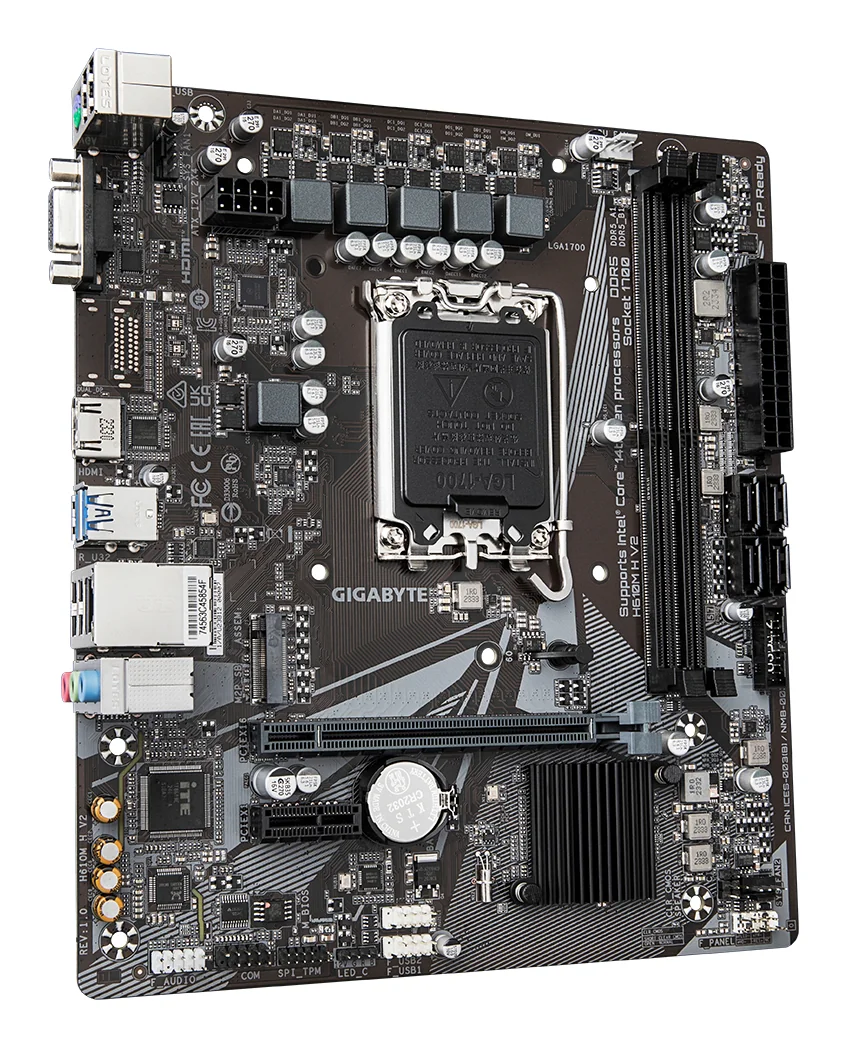

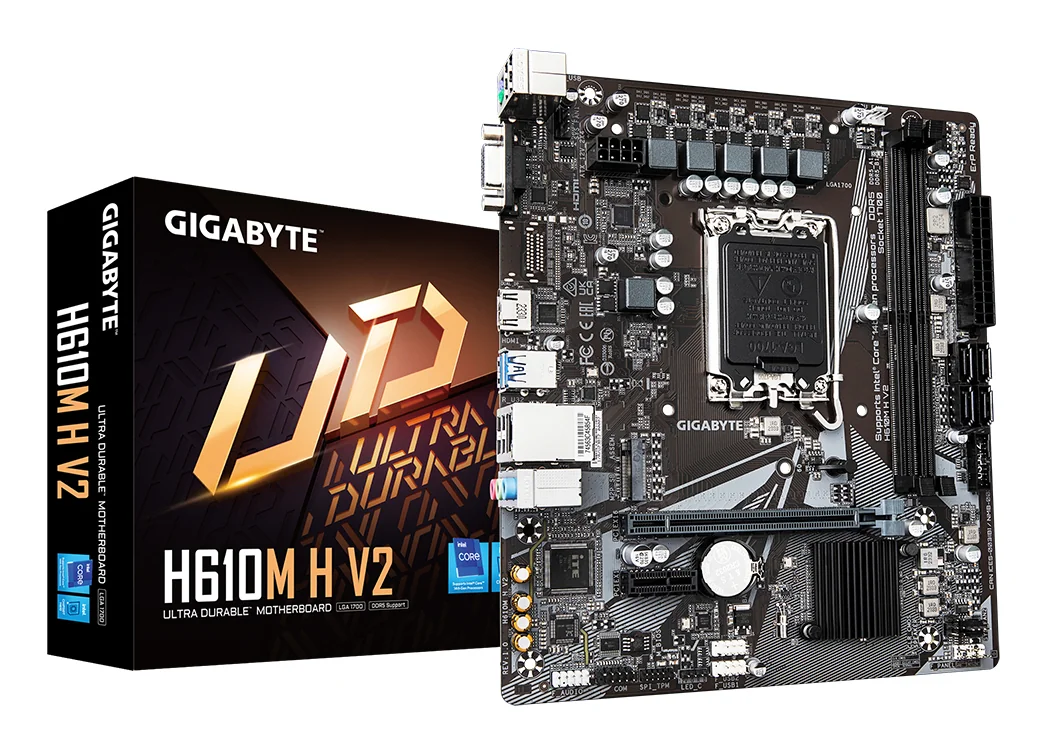

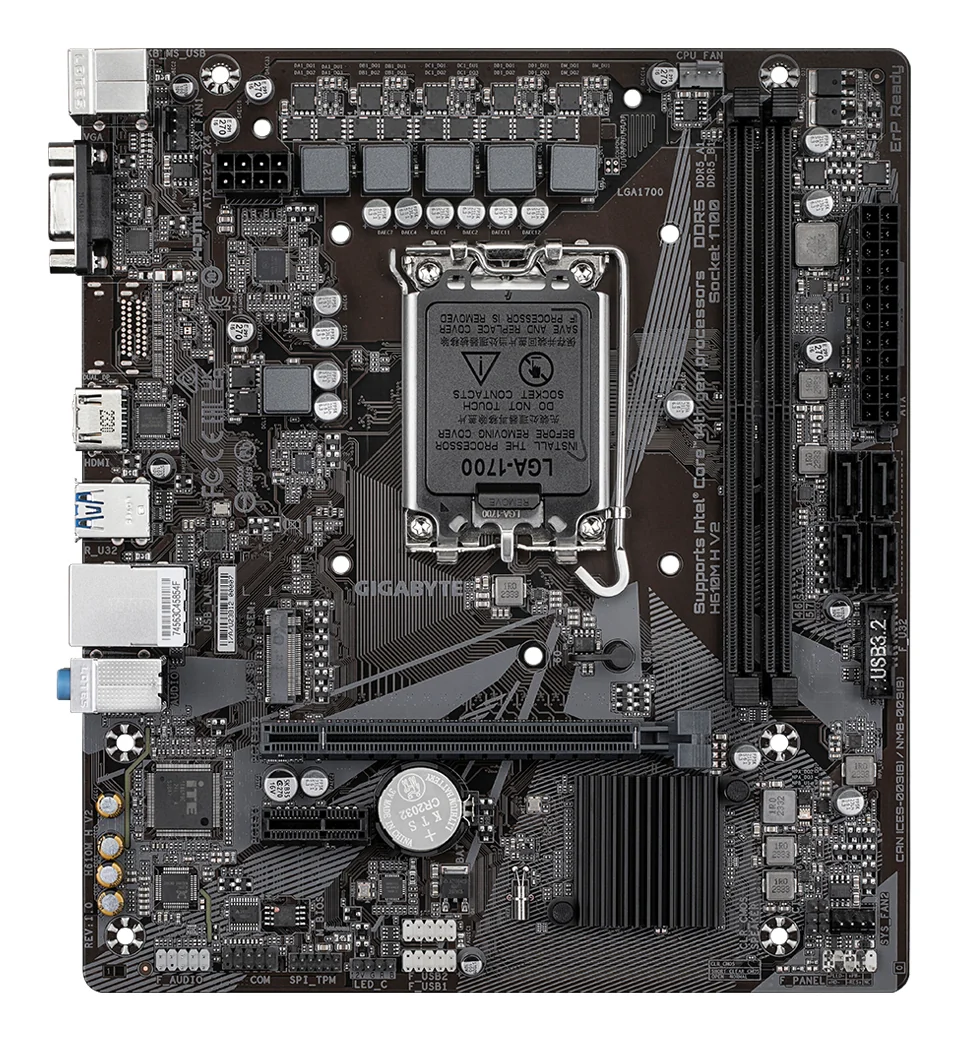

Coming soonGIGABYTE H610M H V2
Model H610M H V2 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Digital VRM, up to 5600MHz DDR5, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
Overview
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
Specifications
BIOS
- BIOS type
- UEFI AMI
- BIOS memory size
- 128 Mbit
- ACPI version
- 5.0
- Clear CMOS jumper
- Yes
- Clear CMOS button
- Yes
- Desktop Management Interface (DMI) version
- 2.7
- System Management BIOS (SMBIOS) version
- 2.7
Memory
- Supported memory types
- DDR5-SDRAM
- Number of memory slots
- 2
- Memory slots type
- DIMM
- Memory channels
- Dual-channel
- ECC сompatibility
- ECC & non-ECC
- Supported memory clock speeds
- 5600, 5200, 4800, 4400 MHz
- Supported memory clock speed (max)
- 5600 MHz
- Maximum internal memory
- 96 GB
- Supported memory module capacities
- 1GB,2GB,4GB,8GB,12GB,32GB,48GB
- Unbuffered memory
- Yes
Battery
- Battery weight
- 3 g
- Lithium weight per battery
- 0.07 g
- Number of battery cells
- 1
- Battery technology
- Lithium-Manganese Dioxide (LiMnO2)
- Battery type
- CR2032
Network
- Ethernet LAN
- Yes
- Ethernet interface type
- Gigabit Ethernet
- Wi-Fi
- No
Features
- Motherboard chipset
- Intel H610 Express
- Audio chip
- Realtek ALC897
- Audio output channels
- 7.1 channels
- Product colour
- Black
- PC health monitoring
- FAN,Temperature,Voltage,Water cooling
- Component for
- PC
- Motherboard form factor
- Micro ATX
- Motherboard chipset family
- Intel
- Cooling type
- Active
- Power source type
- ATX
- Windows operating systems supported
- Windows 10 x64,Windows 11 x64
Graphics
- Parallel processing technology support
- Not supported
- Graphics card family
- Intel
- Graphics card
- HD Graphics
- Maximum resolution
- 4096 x 2304 pixels
- HDCP
- Yes
Processor
- Processor manufacturer
- Intel
- Processor socket
- LGA 1700
- Compatible processor series
- Intel Celeron,Intel Core i3,Intel Core i5,Intel Core i7,Intel Core i9,Intel Pentium Gold
- Supported processor sockets
- LGA 1700
- Maximum internal memory supported by processor
- 96 GB
Internal I/O
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- Number of SATA III connectors
- 4
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- EPS power connector (8-pin)
- Yes
- TPM connector
- Yes
- Serial port headers
- 1
- 12V power connector
- Yes
- RGB LED pin header
- Yes
Logistics data
- Country of origin
- China
- Products per shipping (inner) case
- 1 pc(s)
Expansion slots
- PCI Express x1 slots
- 1
- PCI Express x16 slots
- 1
- Number of M.2 (M) slots
- 1
Storage controllers
- Supported storage drive types
- HDD & SSD
- Supported storage drive interfaces
- M.2,SATA III
- Number of HDDs supported
- 1
- Number of storage drives supported
- 5
Rear panel I/O ports
- USB 2.0 ports quantity
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- Ethernet LAN (RJ-45) ports
- 1
- PS/2 ports quantity
- 1
- VGA (D-Sub) ports quantity
- 1
- HDMI ports quantity
- 1
- DVI-D ports quantity
- 1
- DisplayPorts quantity
- 2
- Headphone outputs
- 3
- Microphone in
- Yes
- USB connector type
- USB Type-A
