GIGABYTE B550M X AORUS ELITE
Model B550M X AORUS ELITE Motherboard
Overview
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
Specifications
BIOS
- BIOS type
- UEFI AMI
Memory
- Supported memory types
- DDR4-SDRAM
- Number of memory slots
- 4
- Memory slots type
- DIMM
- Memory channels
- Dual-channel
- ECC сompatibility
- ECC & non-ECC
- Supported memory clock speed (max)
- 3200 MHz
- Maximum internal memory
- 128 GB
- Unbuffered memory
- Yes
- Maximum internal memory per slot
- 32 GB
Battery
- Battery weight
- 3 g
- Lithium weight per battery
- 0.07 g
- Number of battery cells
- 1
- Battery capacity
- 220 mAh
- Battery technology
- Lithium-Manganese Dioxide (LiMnO2)
- Battery type
- CR2032
Network
- Ethernet LAN
- Yes
- Ethernet interface type
- 2.5 Gigabit Ethernet
- LAN controller
- Realtek RTL8125
- Wi-Fi
- No
Features
- Motherboard chipset
- AMD B550
- Audio chip
- Realtek ALC1220-VB
- Audio output channels
- 7.1 channels
- Product colour
- Black
- Component for
- PC
- Motherboard form factor
- Micro ATX
- Motherboard chipset family
- AMD
- Cooling type
- Passive
- Power source type
- ATX
Graphics
- Parallel processing technology support
- Not supported
- DirectX version
- 12.0
Processor
- Processor manufacturer
- AMD
- Processor socket
- Socket AM4
- Compatible processor series
- AMD Ryzen 5000 Series,AMD Ryzen 4000 Series,AMD Ryzen 3000 Series
- Supported processor sockets
- Socket AM4
Internal I/O
- USB 2.0 connectors
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 2
- Number of SATA III connectors
- 4
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- TPM connector
- Yes
Logistics data
- Country of origin
- China
- Products per shipping (inner) case
- 1 pc(s)
Expansion slots
- PCI Express x4 slots
- 1
- PCI Express x16 (Gen 4.x) slots
- 1
- Number of M.2 (M) slots
- 2
- 1st M.2 largest key size
- 2280
- 1st M.2 highest PCI Express generation
- 4.0
- 2nd M.2 largest key size
- 2280
- 2nd M.2 highest PCI Express generation
- 3.0
Storage controllers
- Supported storage drive types
- HDD & SSD
- Supported storage drive interfaces
- M.2,PCI Express 4.0,PCI Express 3.0,SATA III
- Number of HDDs supported
- 4
- Number of storage drives supported
- 6
- RAID support
- Yes
- RAID levels
- 0,1,10

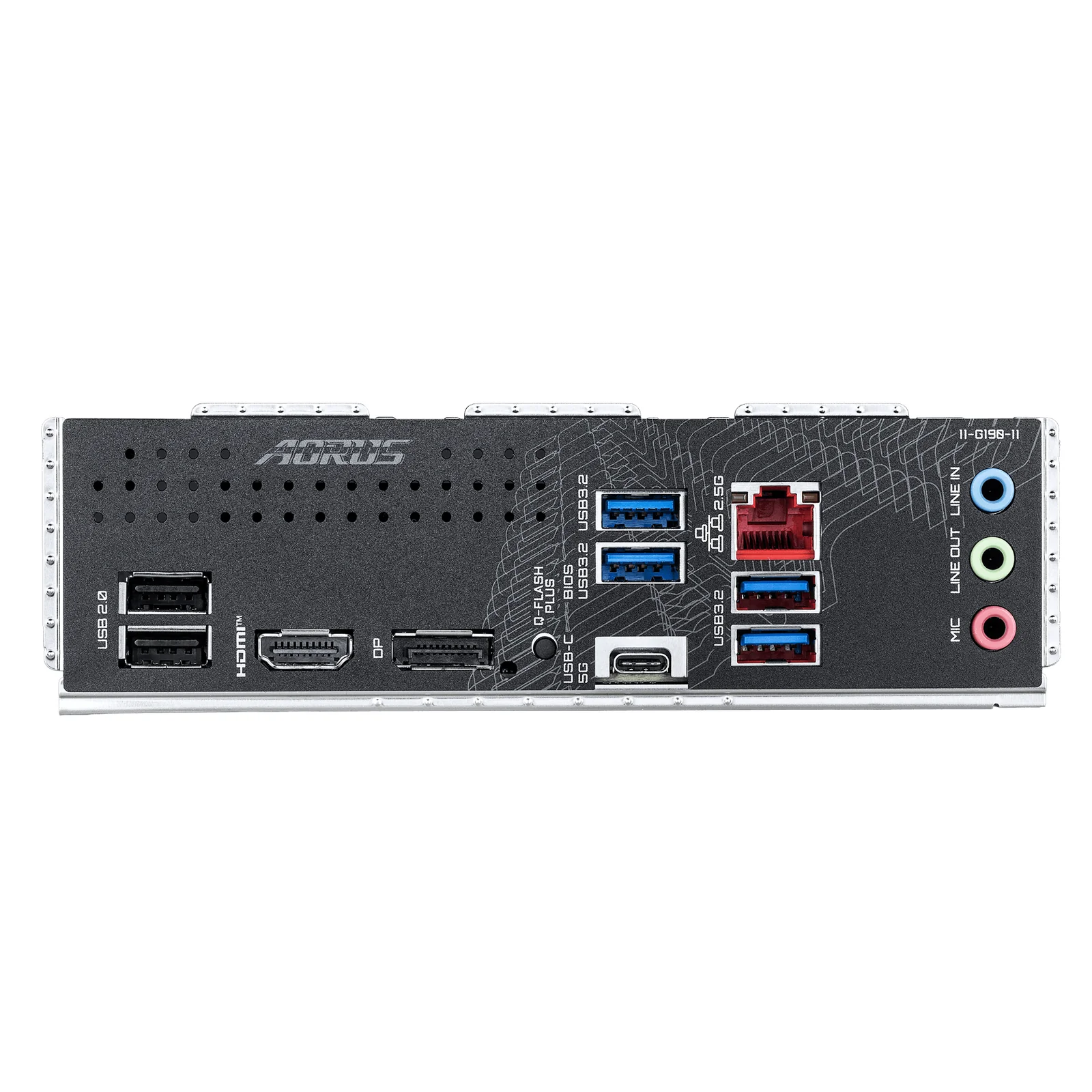

Rear panel I/O ports
- USB 2.0 ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
- HDMI ports quantity
- 1
- DisplayPorts quantity
- 1
- Headphone outputs
- 1
- Line-in
- Yes
- Microphone in
- Yes
