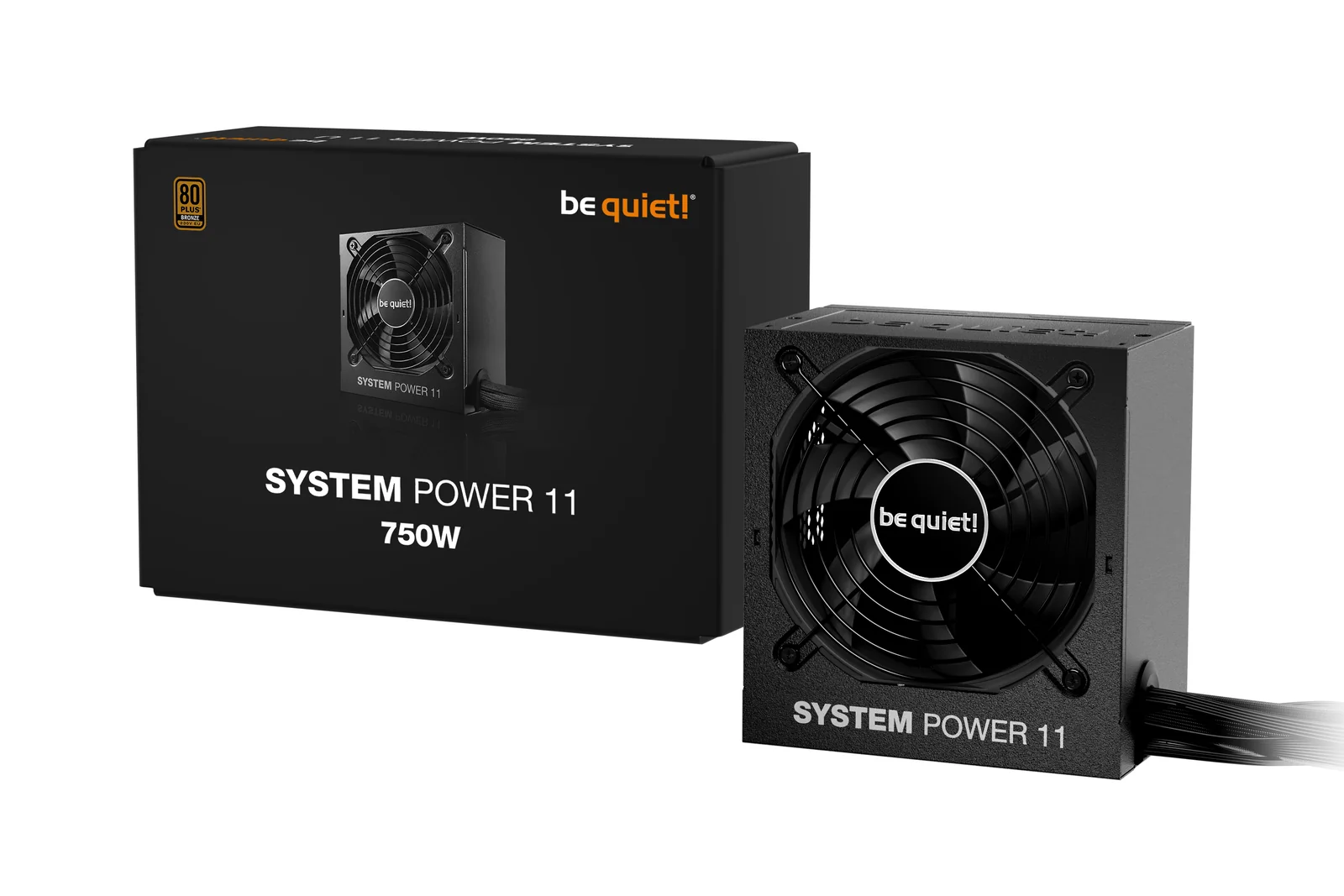

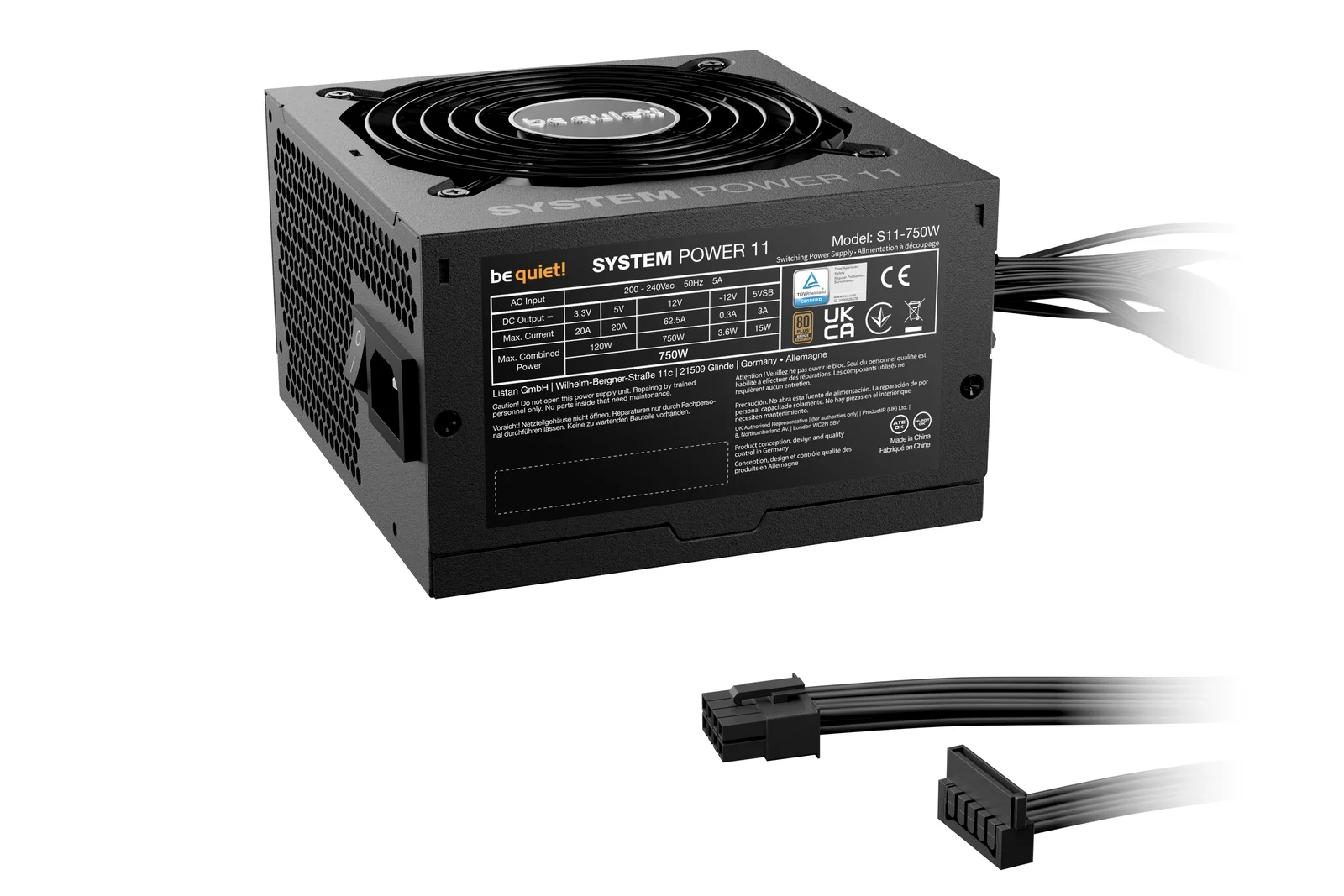

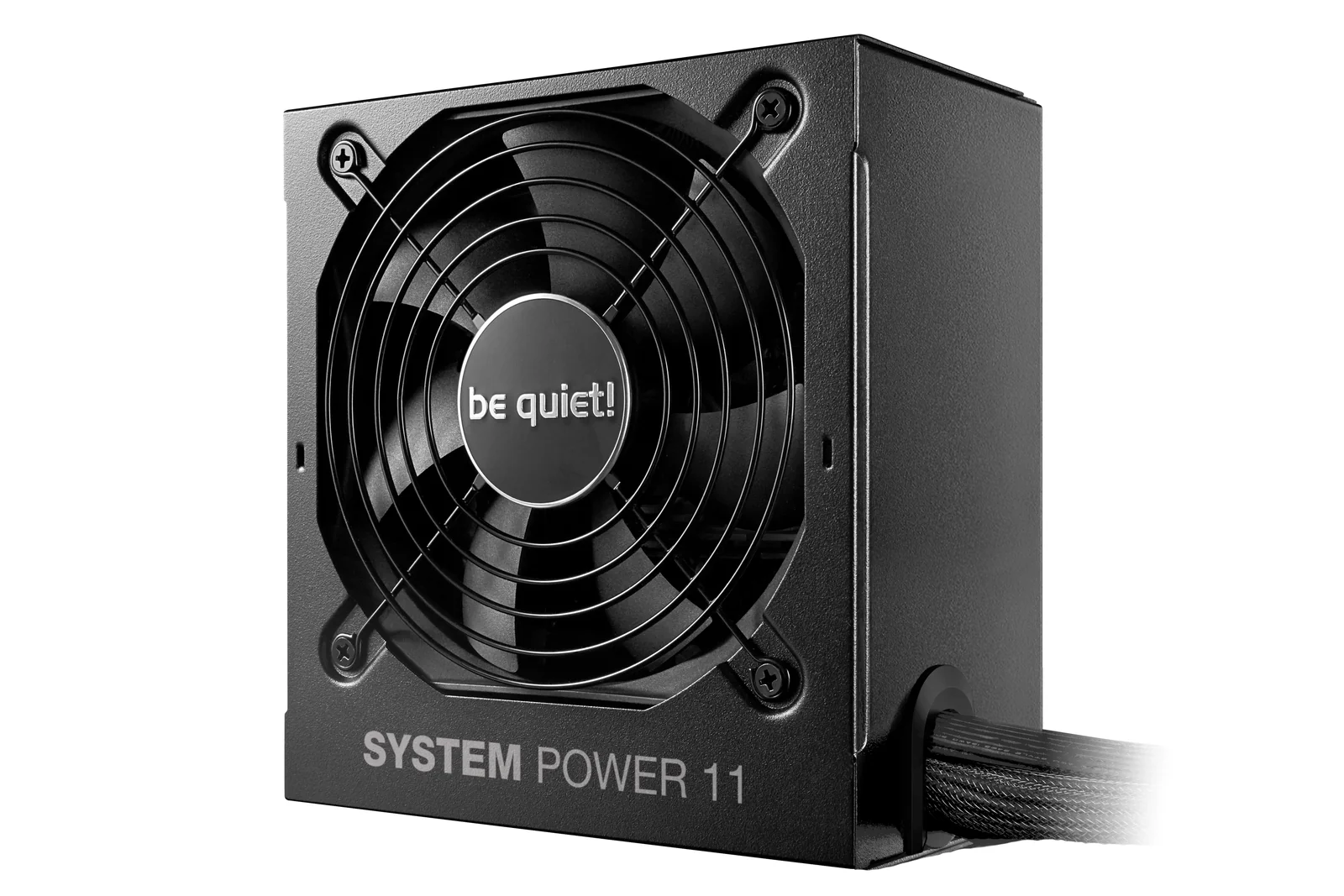

be quiet! System Power 11 750W Power Supply

Model System Power 11 750W

Price coming soon

Leave your email and we'll tell you when it's available to order.

SKU: TS-400967
EAN: 4260052193075

Overview

Proven reliability, quiet operation System Power 11 750W has been built with value-oriented users in mind that do not want to pass on reliability and quietness. Elaborated features such as ATX 3.1 compatibility and a temperature-controlled fan underline the value System Power 11 750W offers even at entry-level.

Specifications

Performance

80 PLUS certification: 80 PLUS Bronze
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
EPS version: 2.92
Noise level: 33.4 dB
Bearing technology: Rifle
Mean time between failures (MTBF): 100000 h

Design

Product colour: Black
Cooling type: Active
Fan diameter: 120 mm
Number of fans: 1 fan(s)
Fan speed: 0 - 2100 RPM
Illumination: No
On/off switch: Yes

Power

Total power: 750 W
AC input voltage: 200 - 240 V
AC input frequency: 50 Hz
Input current: 4 A
Power factor: 0.98
Number of +12V rail(s): 1
Combined power (+3.3V): 120 W
Combined power (+12V): 750 W
Combined power (+5V): 120 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V1): 62.5 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A

Certificates

Waste Electrical and Electronic Equipment (WEEE) compliance: Yes
Compliance certificates: CB,CE,RoHS,TÜV mark,UKCA,WEEE

Logistics data

Shipping (inner) case length: 556 mm
Shipping (inner) case width: 311 mm
Shipping (inner) case height: 218 mm
Products per shipping (inner) case: 6 pc(s)
Shipping (inner) case gross weight: 15600 g

Other features

Screws included: Yes
Cable ties included: Yes

Packaging data

Package width: 195 mm
Package depth: 268 mm
Package height: 97 mm
Package weight: 2400 g
Package type: Box

Technical details

Sustainability certificates: ENERGY STAR,ErP

Ports & interfaces

Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 6
Peripheral (Molex) power connectors (4-pin): 1
EPS power connector (8-pin): Yes
PCI Express power connectors (6+2 pin): 3
PCI Express power connectors (12-pin): 1
CPU P4 connector (4-pin): 1
CPU power connector (4+4 pin): Yes
PCI Express connector: Yes
Cabling type: Non-Modular

Weight & dimensions

Width: 150 mm
Depth: 86 mm
Height: 140 mm
Weight: 2040 g
