be quiet!

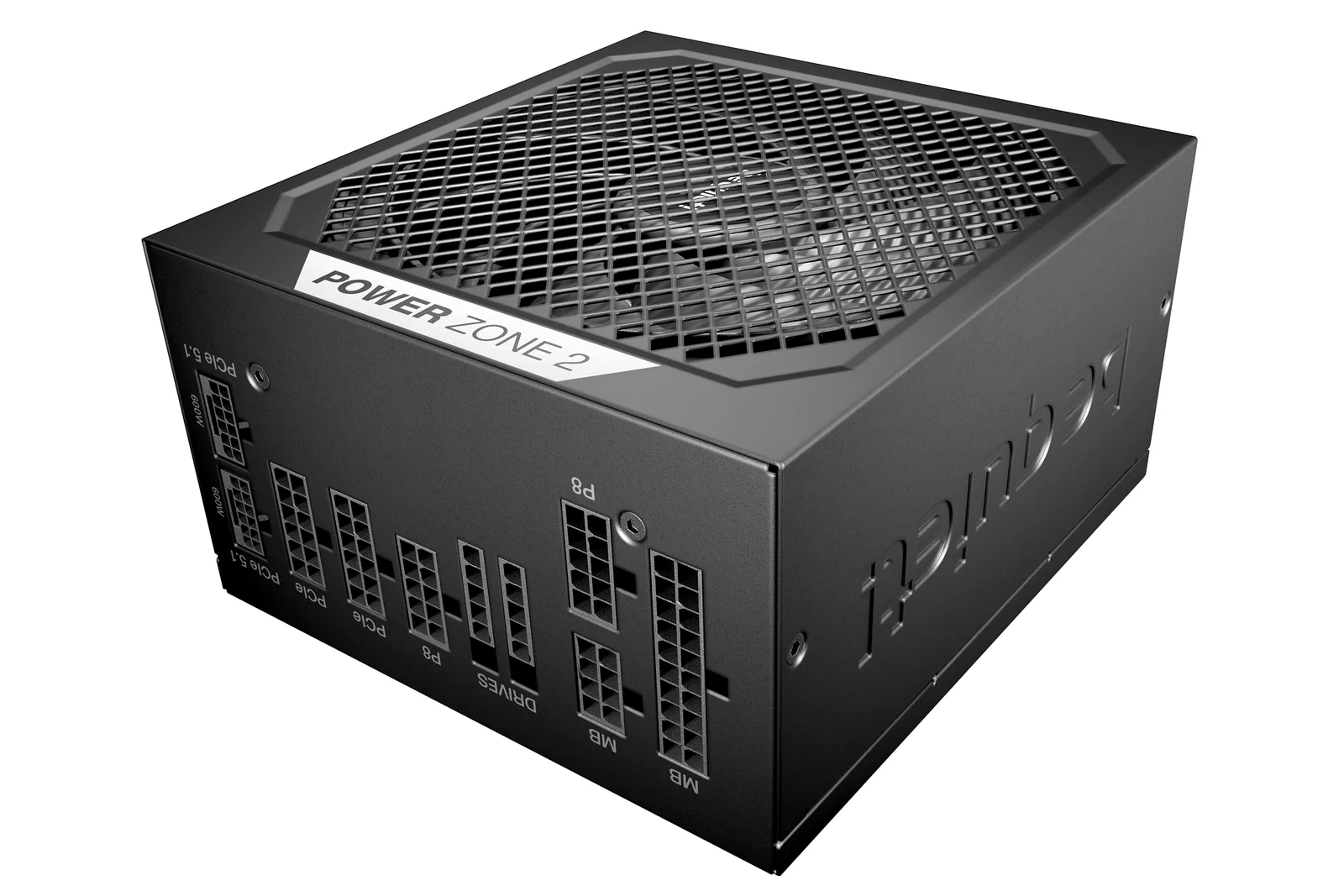

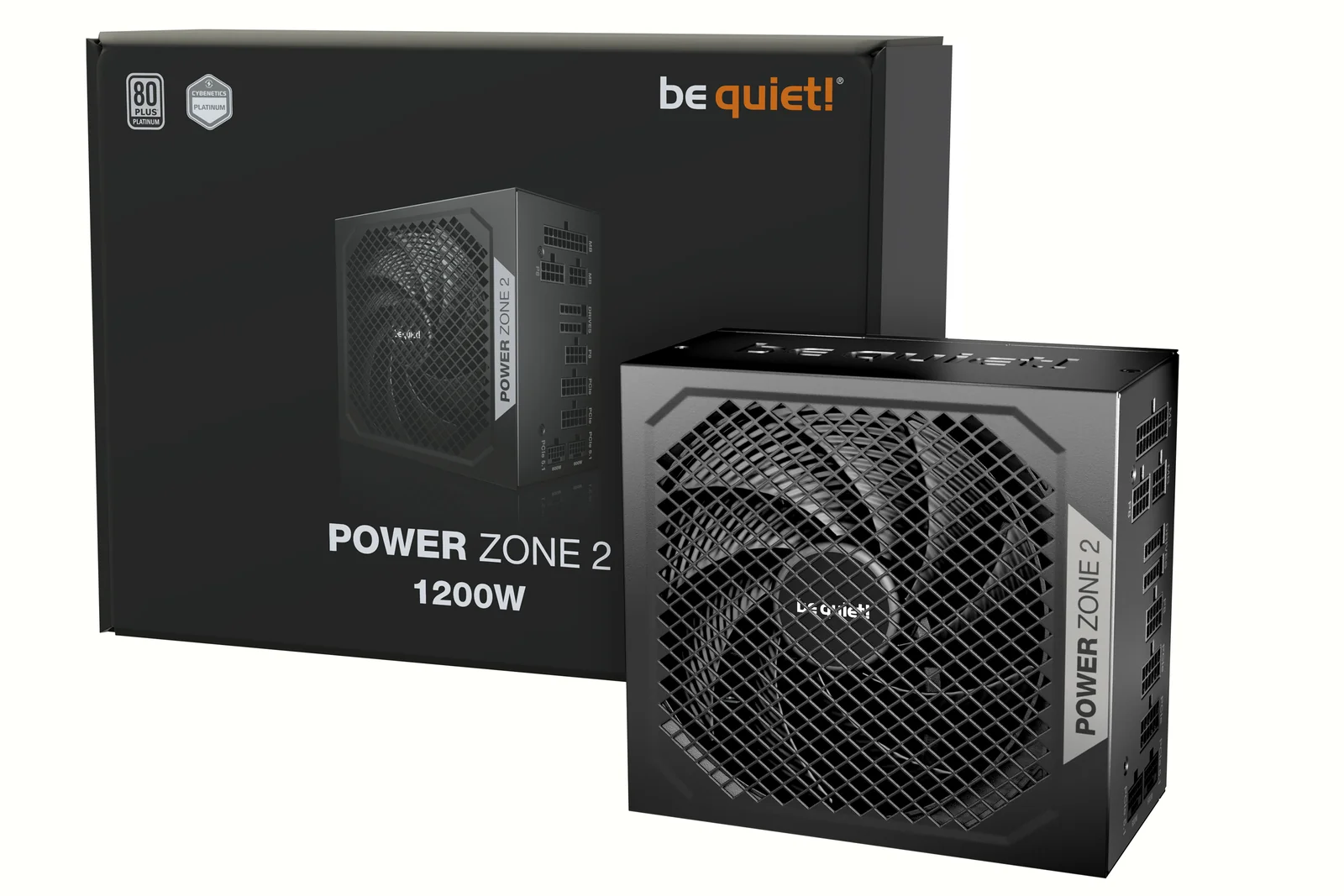

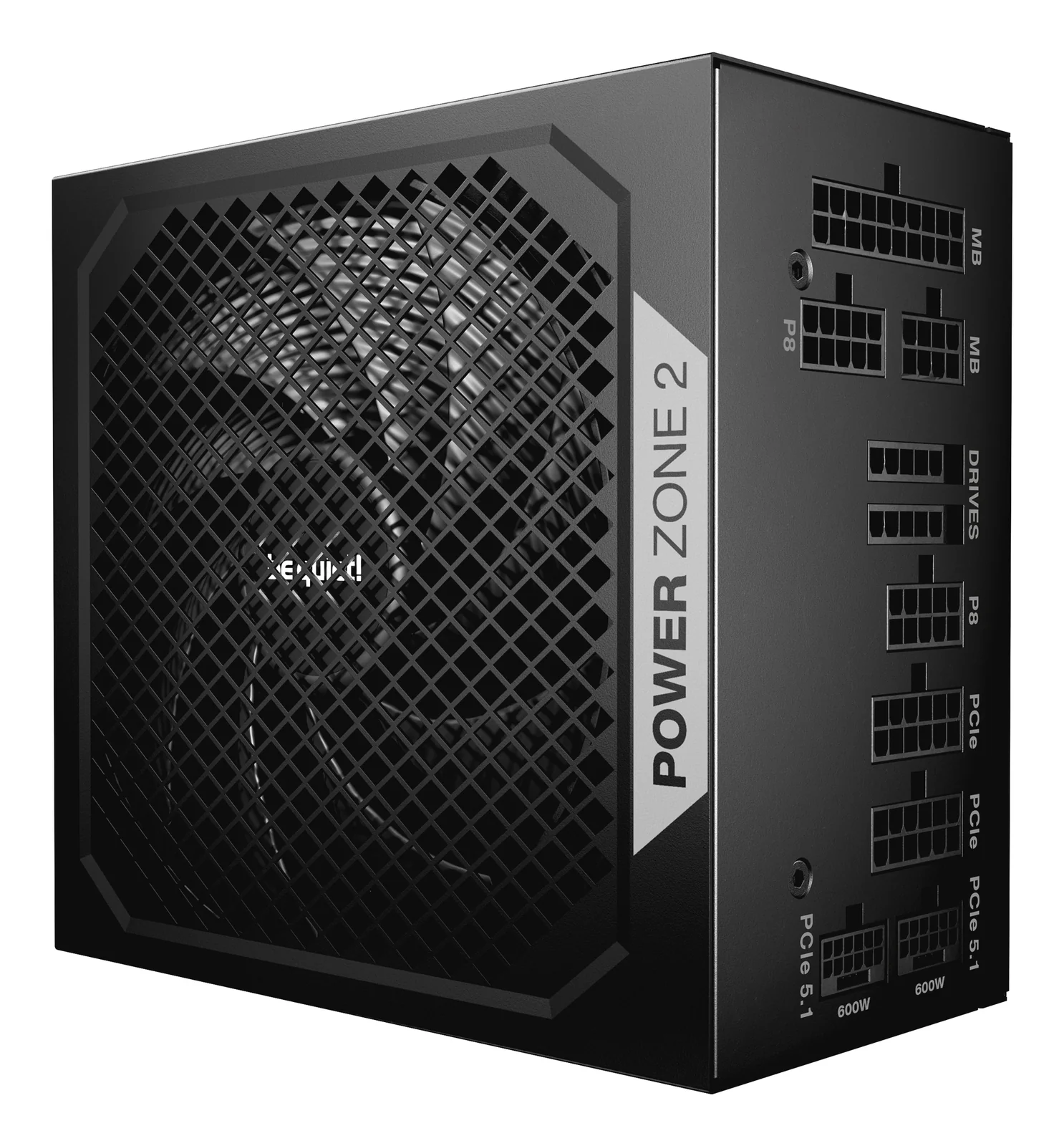

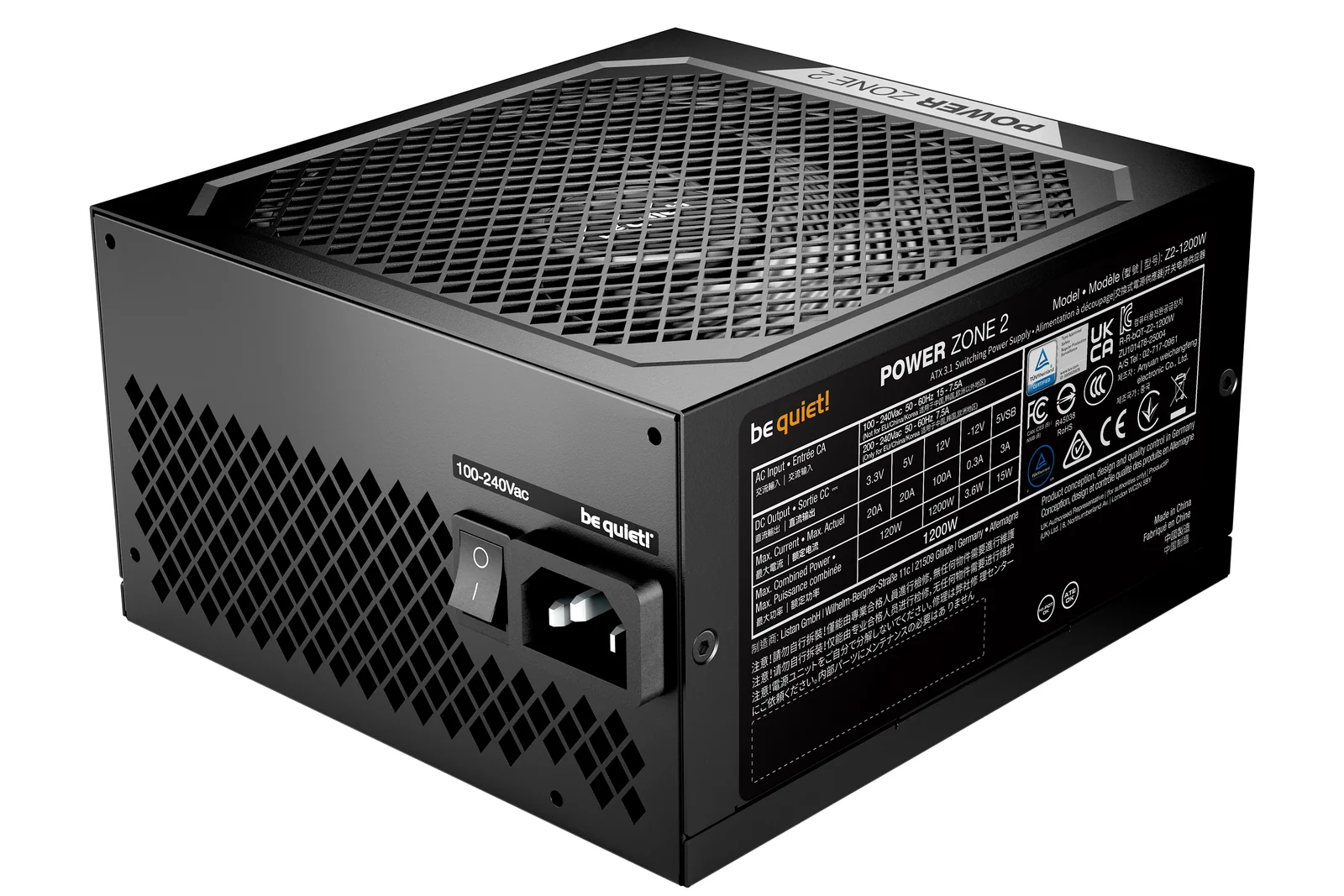

be quiet! POWER ZONE 2 | 1200 W Power Supply

Model POWER ZONE 2 | 1200 W

Price coming soon

Leave your email and we'll tell you when it's available to order.

SKU: TS-400966
EAN: 4260052193563

Overview

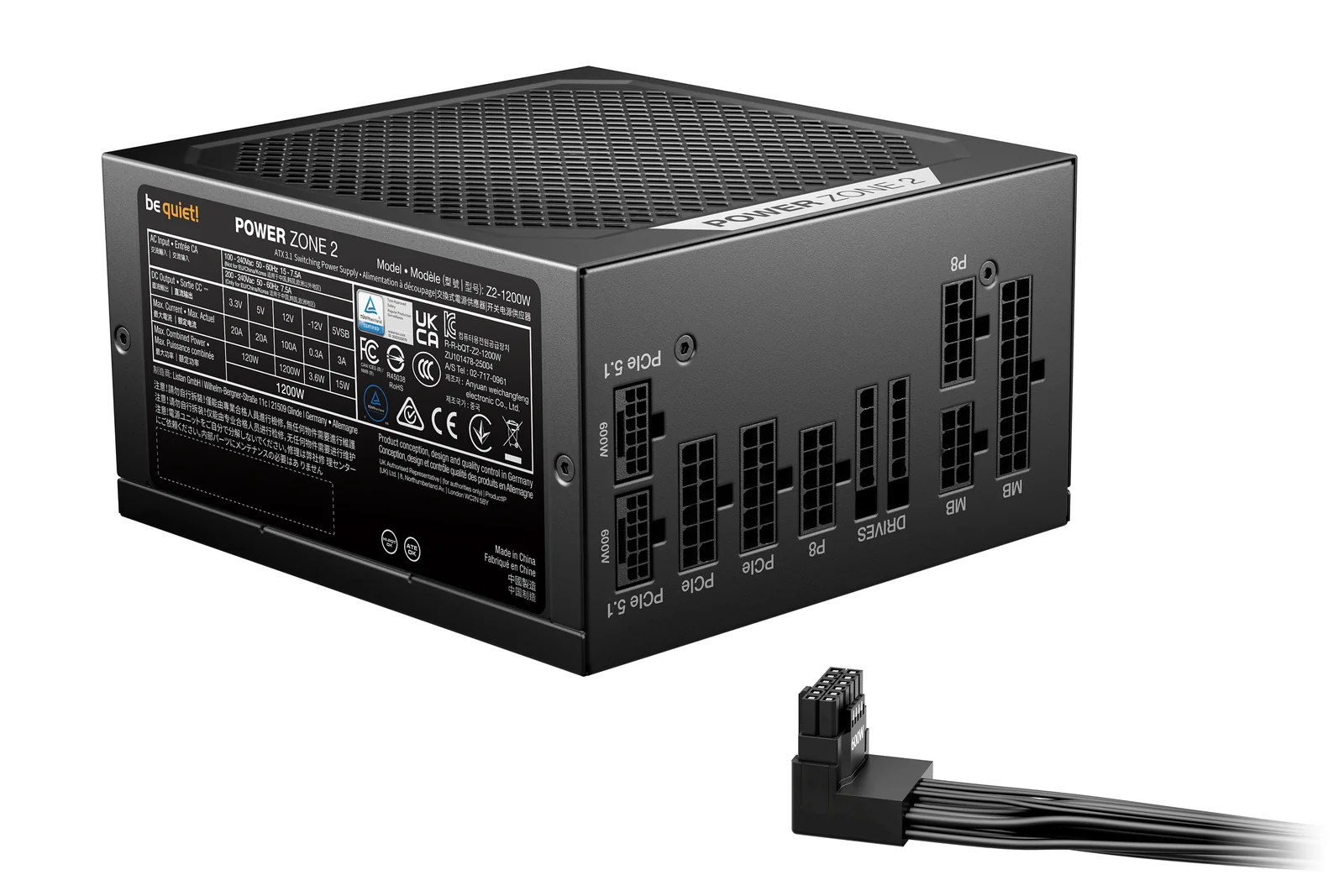

Exceptional efficiency for Gamers Power Zone 2 1200W is a power supply with 80 PLUS® Platinum certification and semi-passive zero-RPM cooling for both efficient and quiet gaming sessions. With 90° angled 12V-2x6 connectors in the scope of delivery and PCIe 5.1/ATX 3.1 compatibility, Power Zone 2 supports the latest graphics cards and constitutes a reliable investment for the future.

Specifications

Performance

80 PLUS certification: 80 PLUS Platinum
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
EPS version: 2.92

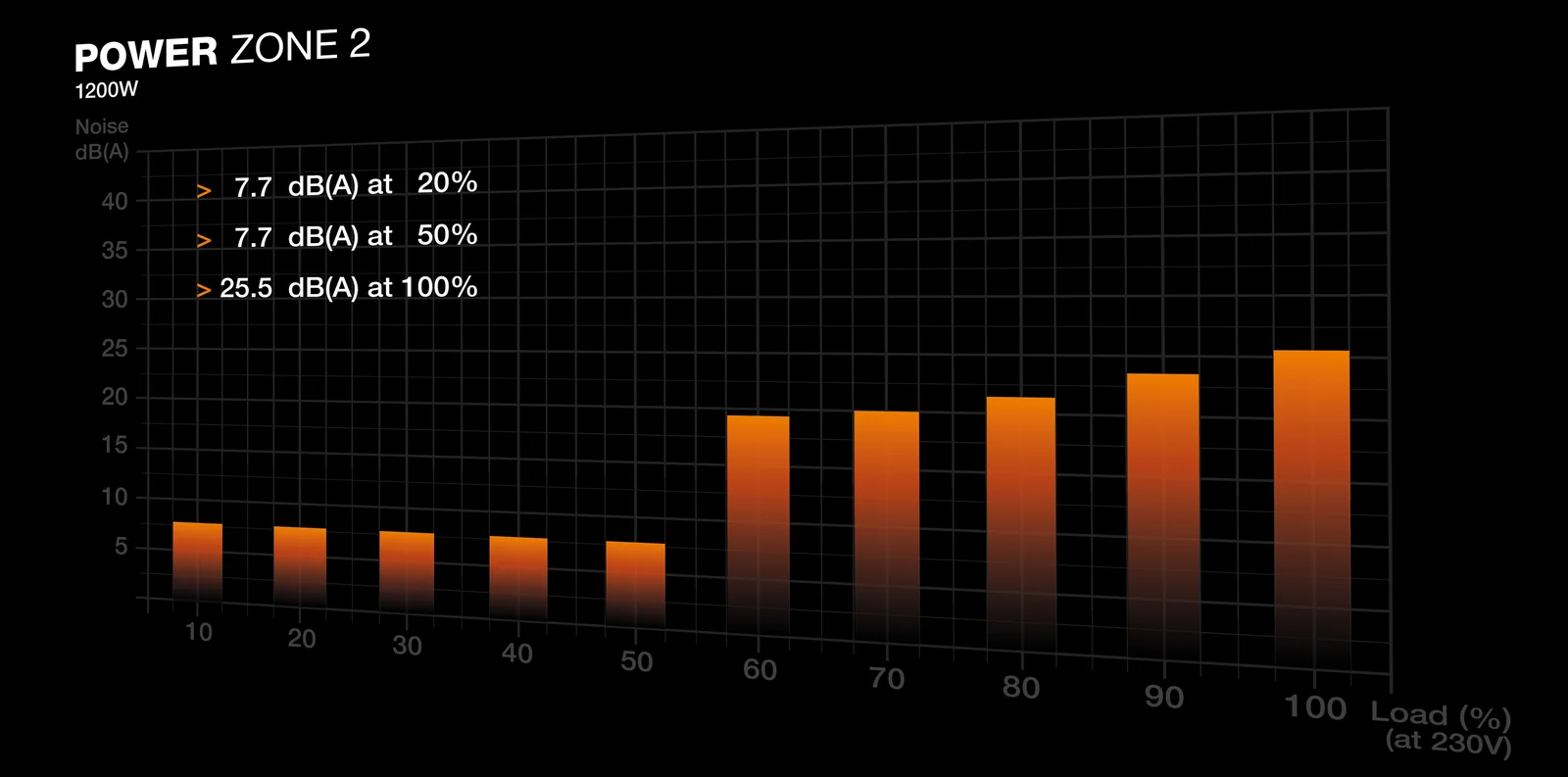

Noise level: 25.5 dB
Bearing technology: Rifle
Mean time between failures (MTBF): 100000 h

Design

Product colour: Black
Cooling type: Active
Fan diameter: 140 mm
Number of fans: 1 fan(s)
Fan speed: 0 - 2100 RPM
Illumination: No
On/off switch: Yes

Power

Total power: 1200 W
Peak power: 1270 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Maximum input current (@110V): 15 A
Maximum input current (@220V): 7.5 A
Power factor: 0.97
Number of +12V rail(s): 1
Combined power (+3.3V): 120 W
Combined power (+12V): 1200 W
Combined power (+5V): 120 W
Combined power (-12V): 6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 100 A

Certificates

Waste Electrical and Electronic Equipment (WEEE) compliance: Yes
Compliance certificates: BSMI,CB,CCC,CE,Federal Communications Commission (FCC),RCM,RoHS,TÜV mark,UKCA,WEEE

Logistics data

Shipping (inner) case length: 430 mm
Shipping (inner) case width: 265 mm
Shipping (inner) case height: 340 mm
Products per shipping (inner) case: 4 pc(s)
Shipping (inner) case gross weight: 14870 g

Other features

Screws included: Yes
Cable ties included: Yes

Packaging data

Manual: Yes
Manual languages: DEU,ENG,ESP,FRE,POL,RUS,UKR
Package width: 248 mm
Package depth: 328 mm
Package height: 102 mm
Package weight: 3500 g
Package type: Box

Technical details

Sustainability certificates: ENERGY STAR,ErP,Triman

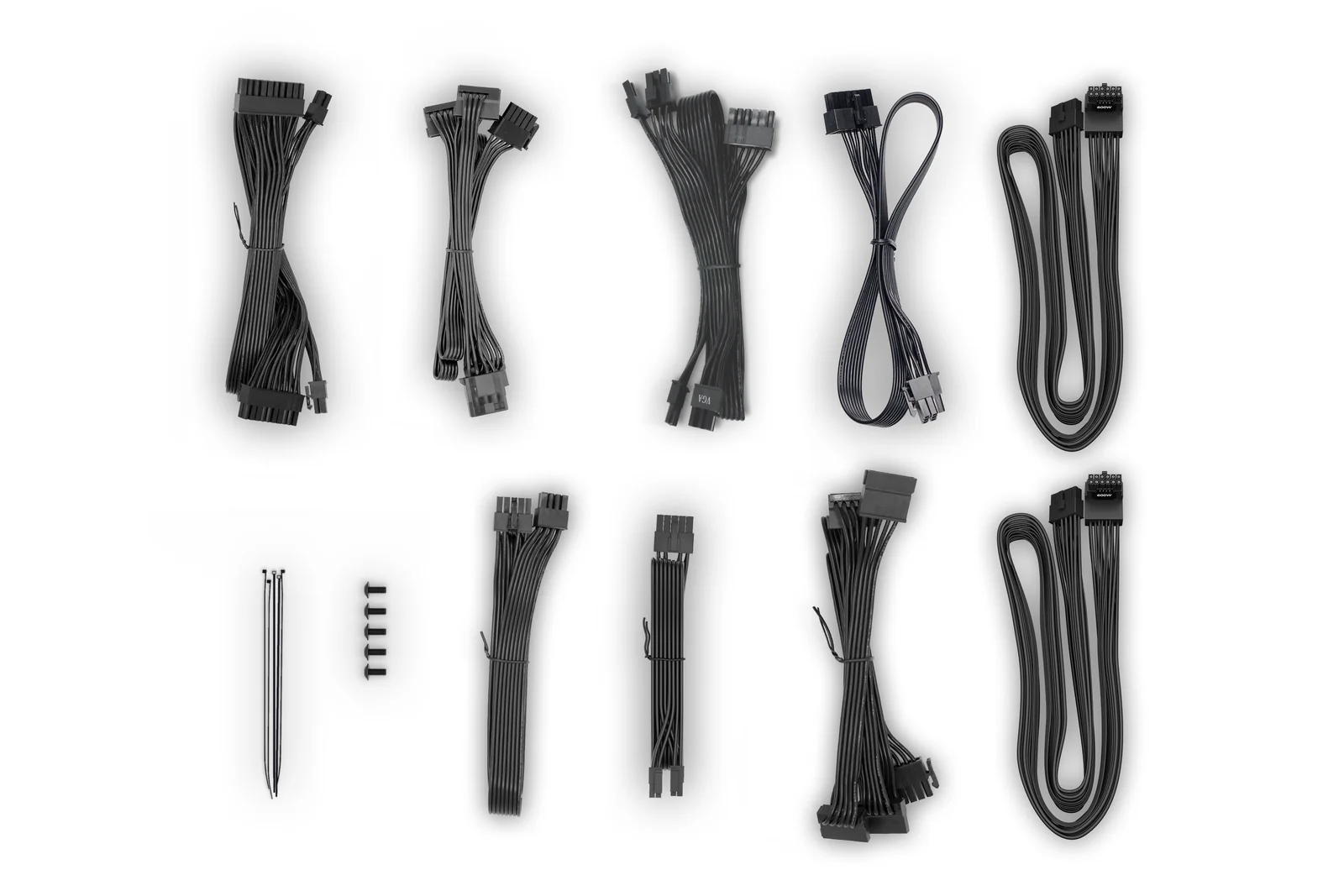

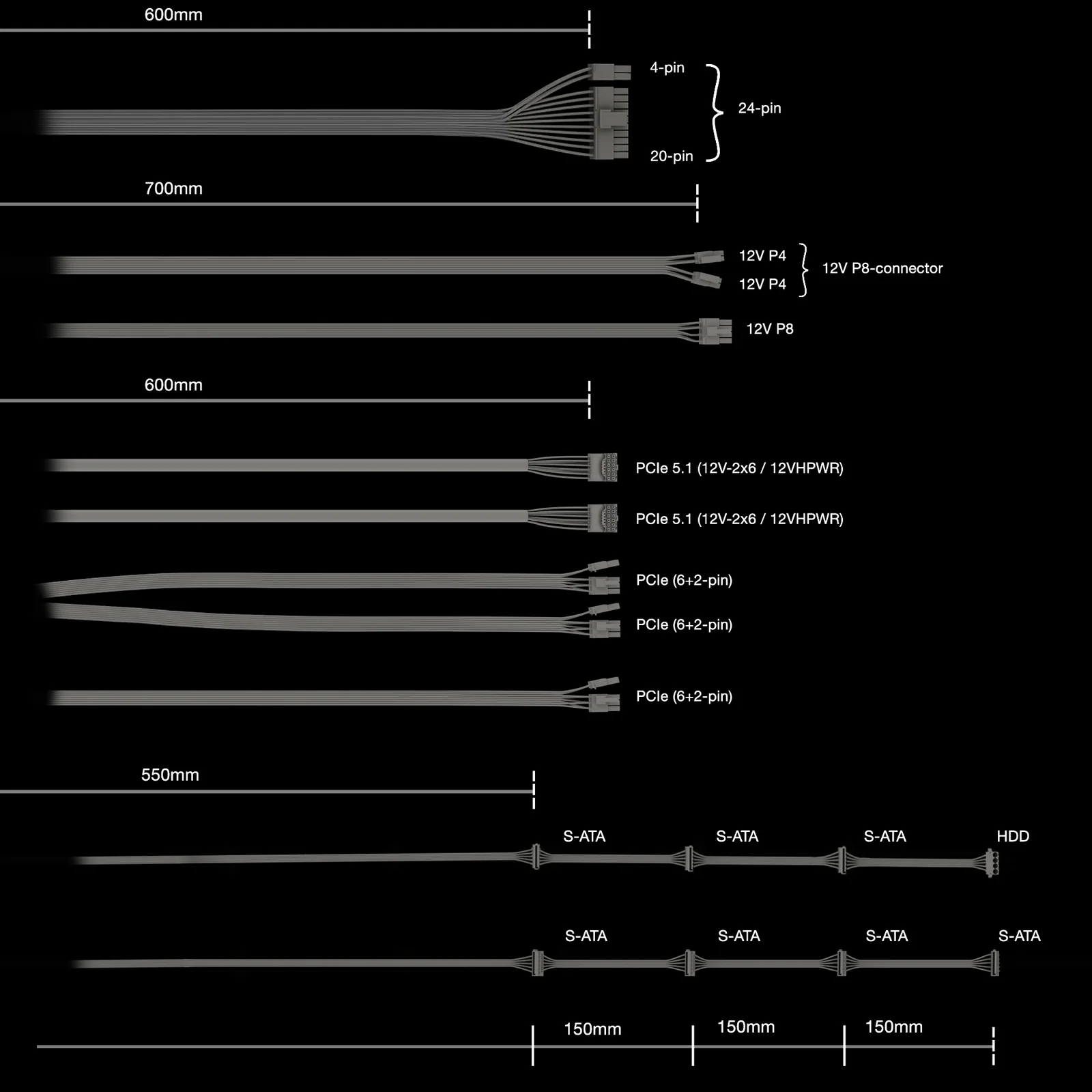

Ports & interfaces

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 600 mm
Number of SATA power connectors: 7
SATA power cable length: 550,700,850,1000 mm
Number of SATA power cables: 2
Peripheral (Molex) power connectors (4-pin): 1
Peripheral (Molex) power cable length: 1000 mm
EPS power connector (8-pin): Yes
PCI Express power connectors (6+2 pin): 3
PCI Express power connectors (12-pin): 2
PCI Express power cable length: 600 mm
CPU P4 connector (4-pin): 1
CPU power connector (4+4 pin): Yes
CPU power cable length: 700 mm
PCI Express connector: Yes

Weight & dimensions

Width: 150 mm
Depth: 160 mm
Height: 86 mm
Weight: 1880 g

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 0 - 85 %
Storage relative humidity (H-H): 0 - 95 %
