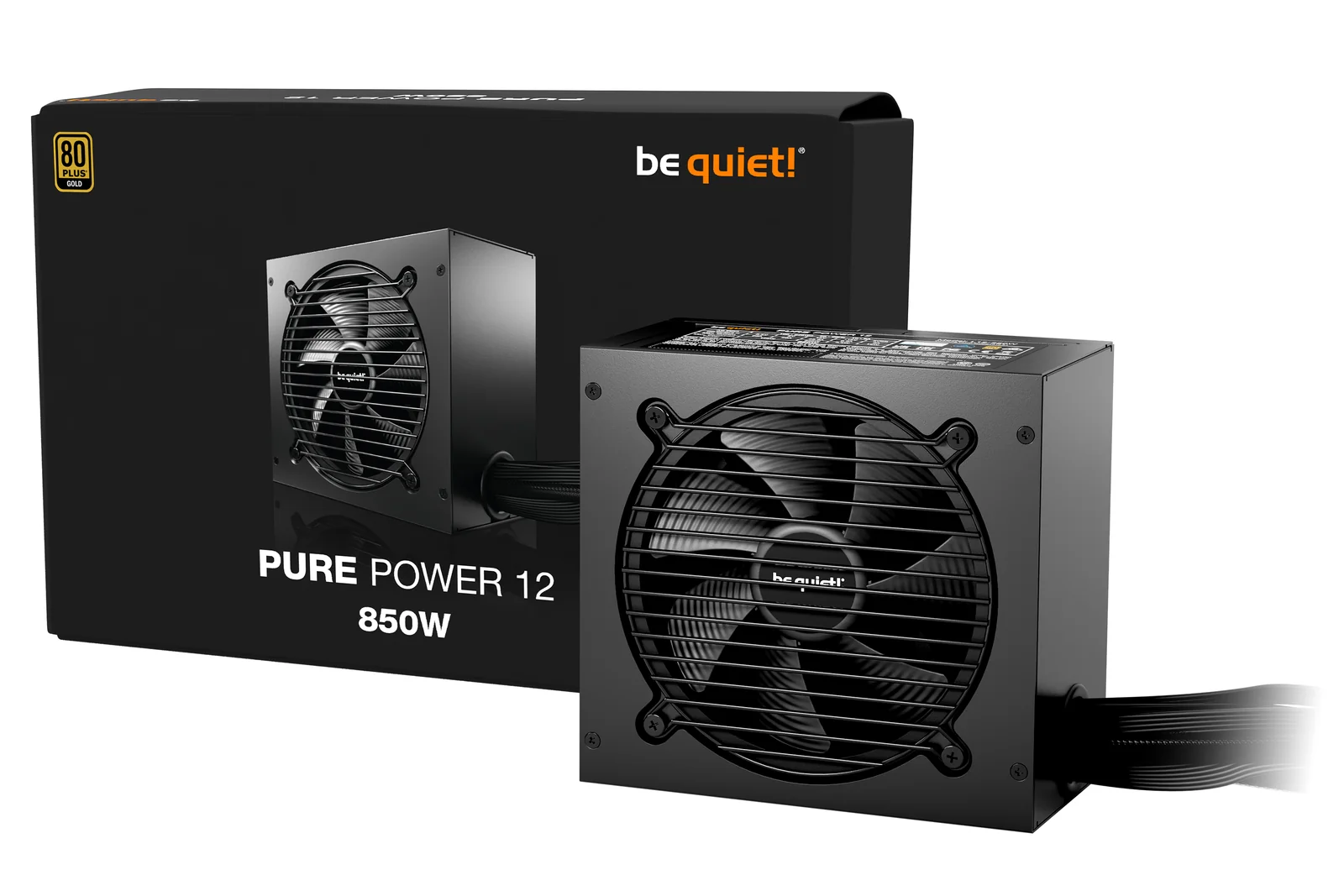

be quiet! PURE POWER 12 850W Power Supply

Model PURE POWER 12 850W

Overview

Exceptional quiet, superior features Pure Power 12 850W is ATX 3.1 compliant and PCIe 5.1 compatible and offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers remarkable convenience and outstanding compatibility.

Specifications

Performance

80 PLUS certification
80 PLUS Gold
Purpose
PC
Power supply unit (PSU) form factor
ATX
ATX version
3.1
EPS version
2.92

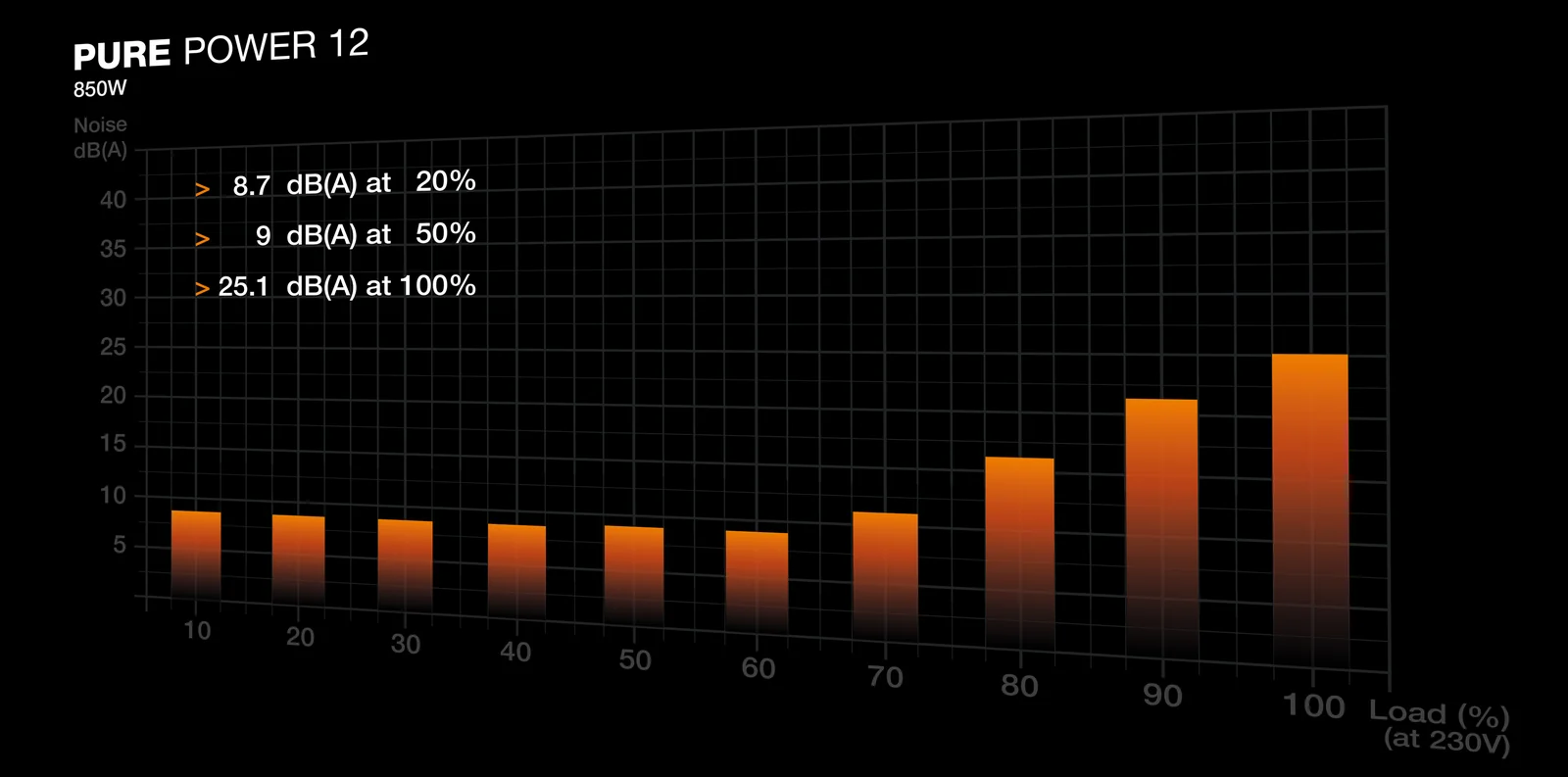

Noise level
25.1 dB
Bearing technology
Rifle
Mean time between failures (MTBF)
100000 h

Design

Product colour
Black
Cooling type
Active
Fan diameter
120 mm
Number of fans
1 fan(s)
Illumination
No
On/off switch
Yes

Power

Total power
850 W
Peak power
900 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Maximum input current (@110V)
12 A
Maximum input current (@220V)
6 A
Power factor
0.98
Power Factor Correction (PFC) type
Active
Number of +12V rail(s)
1
Combined power (+3.3V)
120 W
Combined power (+12V)
850 W
Combined power (+5V)
120 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
15 W
Max output current (+3.3V)
22 A

Certificates

Compliance certificates
CB,CE,Federal Communications Commission (FCC),RoHS,UKCA,WEEE,cTUVus

Logistics data

Shipping (inner) case length
560 mm
Shipping (inner) case width
240 mm
Shipping (inner) case height
340 mm
Shipping (inner) case net weight
13400 g
Products per shipping (inner) case
4 pc(s)
Warranty period
10 year(s)

Other features

Screws included
Yes

Packaging data

Package width
133 mm
Package depth
320 mm
Package height
210 mm
Package weight
3100 g

Packaging content

Cables included
AC
Cable tie(s) included
Yes

Technical details

Sustainability certificates
ENERGY STAR,ErP,Triman

Ports & interfaces

Motherboard power connector
20+4 pin ATX
Motherboard power cable length
550 mm
Number of SATA power connectors
6
SATA power cable length
500,650,800,950 mm
Peripheral (Molex) power connectors (4-pin)
1
Peripheral (Molex) power cable length
800 mm
PCI Express power connectors (6+2 pin)
3
PCI Express power connectors (12-pin)
1
PCI Express power cable length
600 mm
CPU power connector (4+4 pin)
Yes
CPU power cable length
600 mm
PCI Express connector
Yes
Cabling type
Non-Modular

Weight & dimensions

Width
86 mm
Depth
160 mm
Height
150 mm
Weight
2700 g

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
0 - 90 %
Storage relative humidity (H-H)
0 - 95 %
