be quiet! Dark Power Pro 14 IO 1600W Power Supply

Model Dark Power Pro 14 IO

Price coming soon

Leave your email and we'll tell you when it's available to order.

SKU: TS-300006
EAN: 4260052192115

Overview

CONTROL SILENCE AND PERFORMANCE Dark Power Pro 14 IO 1600W features a high-performance heat sink design with an integrated fan that can be configured in the be quiet! IO Center software.

Specifications

Performance

80 PLUS certification: 80 PLUS Titanium
Cybenetics certification: Titanium
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
EPS version: 2.92
Noise level: 29.1 dB
Bearing technology: FDB
Mean time between failures (MTBF): 100000 h

Design

Product colour: Black
Cooling type: Active
Fan diameter: 135 mm
Number of fans: 1 fan(s)

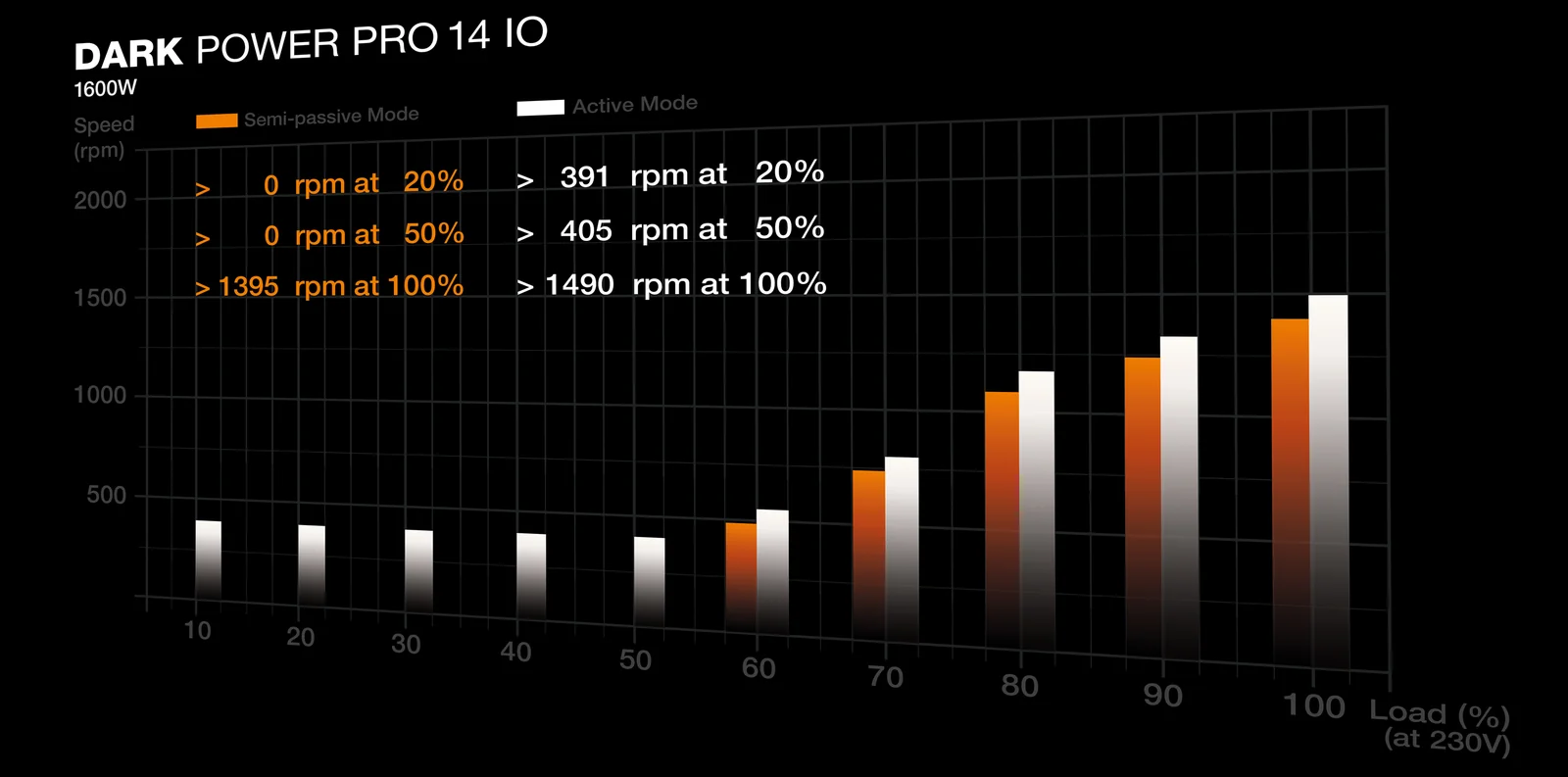

Fan speed: 0 - 2600 RPM
Illumination: No
On/off switch: Yes
On/off fan switch: Yes

Power

Total power: 1600 W
Peak power: 1700 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Maximum input current (@110V): 15 A
Maximum input current (@220V): 9 A
Power factor: 0.98
Power Factor Correction (PFC) type: Active
Number of +12V rail(s): 6
Combined power (+3.3V): 150 W
Combined power (+12V): 1600 W
Combined power (+5V): 150 W
Combined power (-12V): 6 W
Combined power (+5Vsb): 17.5 W
Max output current (+3.3V): 25 A

Certificates

Compliance certificates: CB,Federal Communications Commission (FCC),RoHS,TÜV mark,UKCA,WEEE,cTUVus,BSMI,CCC,CE,RCM

Logistics data

Shipping (inner) case length: 440 mm
Shipping (inner) case width: 325 mm
Shipping (inner) case height: 283 mm
Shipping (inner) case net weight: 15220 g
Products per shipping (inner) case: 2 pc(s)
Warranty period: 10 year(s)

Other features

Screws included: Yes
Cable ties included: Yes

Packaging data

Manual: Yes
Manual languages: CHI (SIMPL),DEU,ENG,ESP,FRE,ITA,JPN,POL,RUS,THA
Package width: 253 mm
Package depth: 417 mm
Package height: 152 mm
Package weight: 6680 g

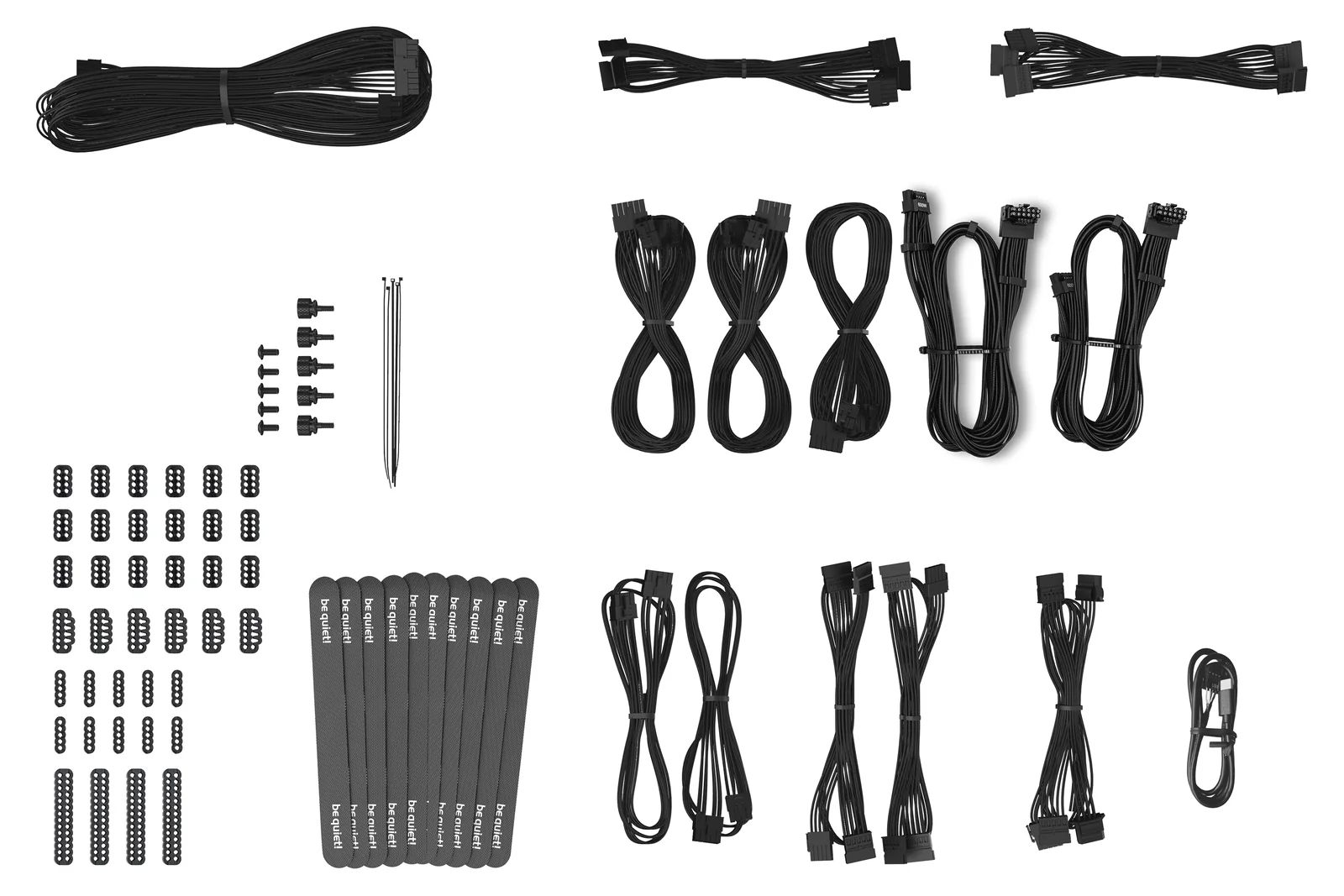

Packaging content

Cable tie(s) included: Yes
USB cable length: 0.8 m

Ports & interfaces

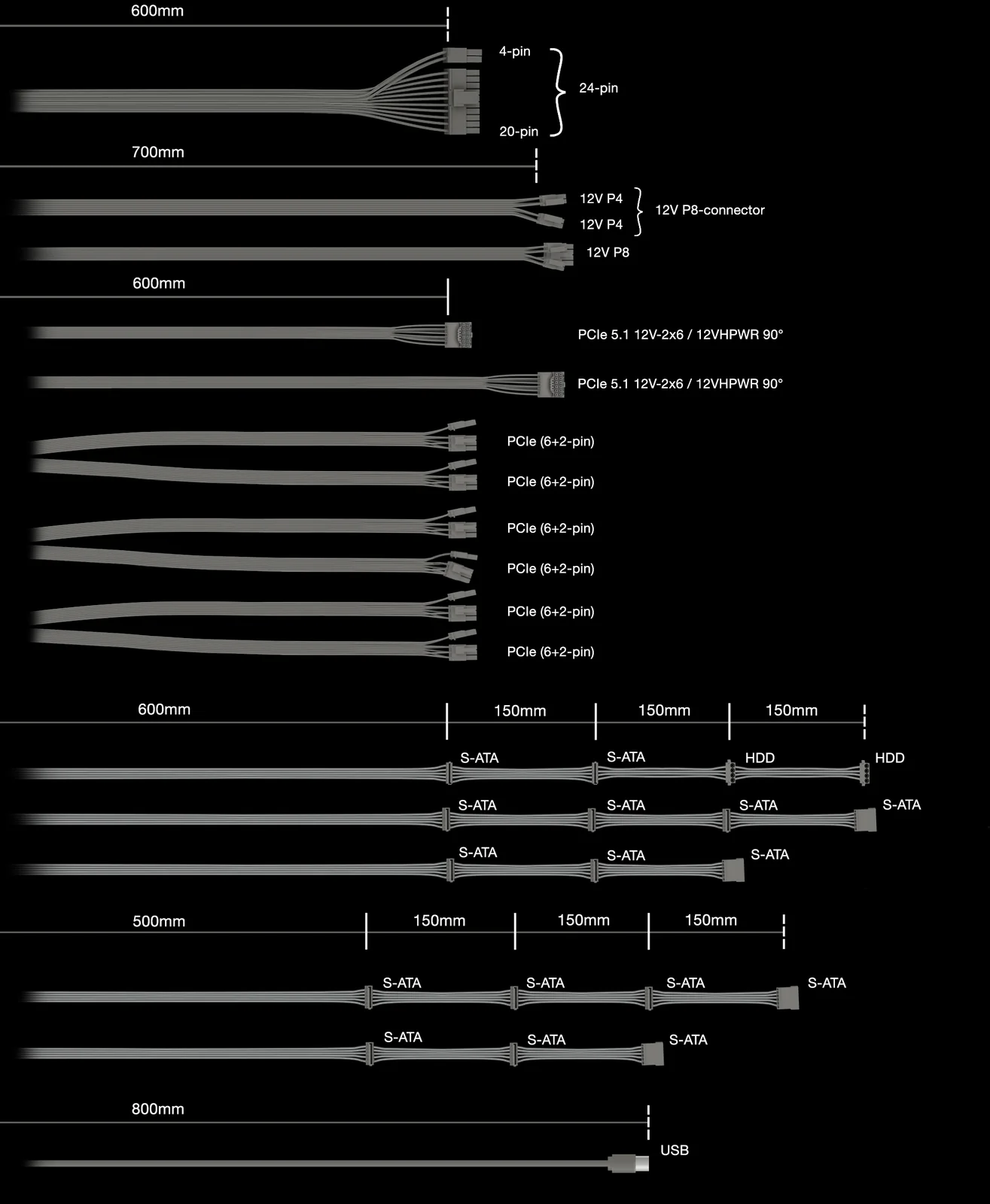

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 600 mm
Number of SATA power connectors: 16
SATA power cable length: 600,750,900,1050 mm
Number of SATA power cables: 5
Peripheral (Molex) power connectors (4-pin): 2
Peripheral (Molex) power cable length: 900,1050 mm
EPS power connector (8-pin): Yes
EPS power connector (4+4 pin): Yes
PCI Express power connectors (6+2 pin): 6
PCI Express power connectors (12-pin): 2
PCI Express power cable length: 600 mm
CPU power connector (4+4 pin): Yes
CPU power cable length: 700 mm
ATX power connector (20+4 pin): Yes

Weight & dimensions

Width: 150 mm
Depth: 200 mm
Height: 86 mm
Weight: 2630 g

Operational conditions

Operating temperature (T-T): 0 - 40 °C
