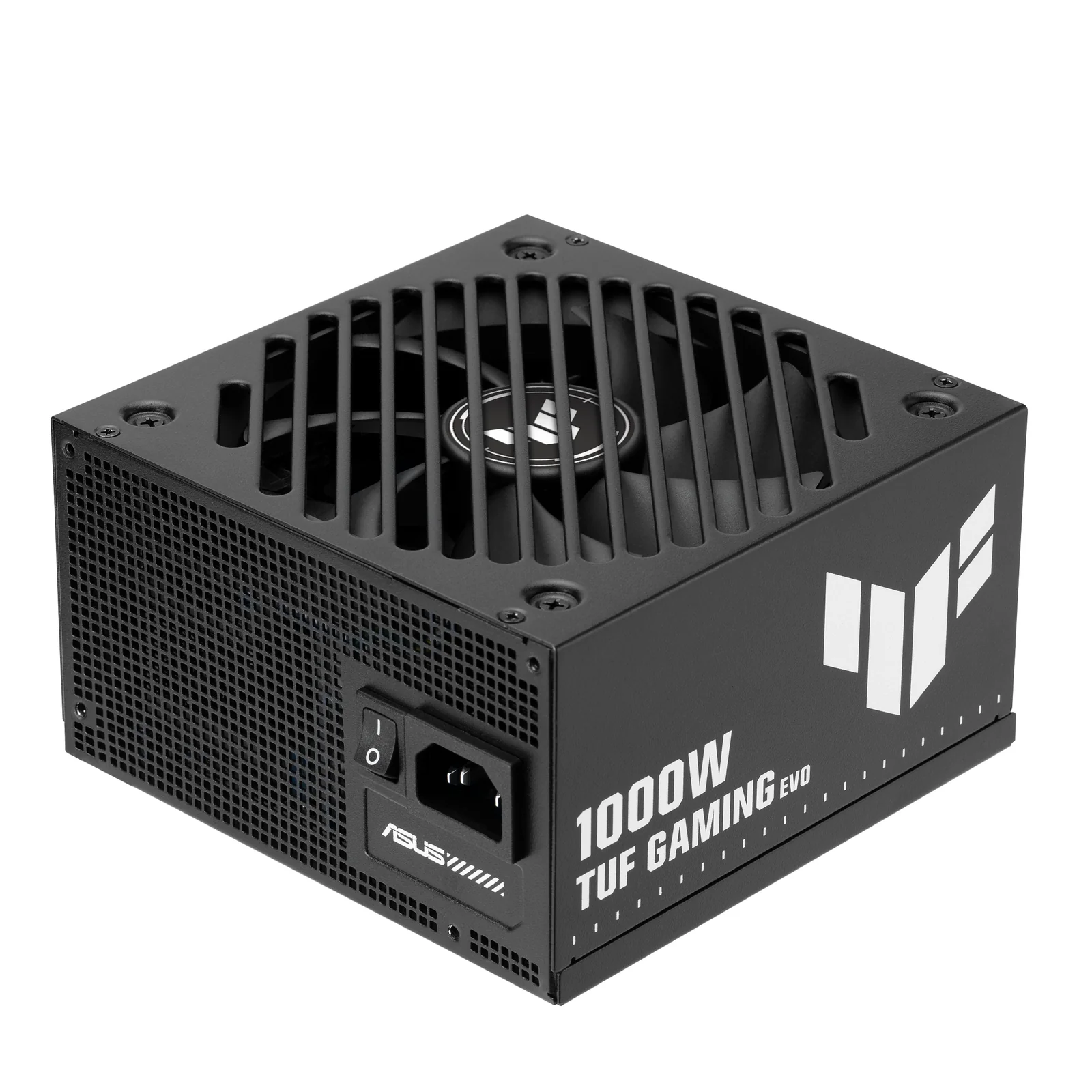

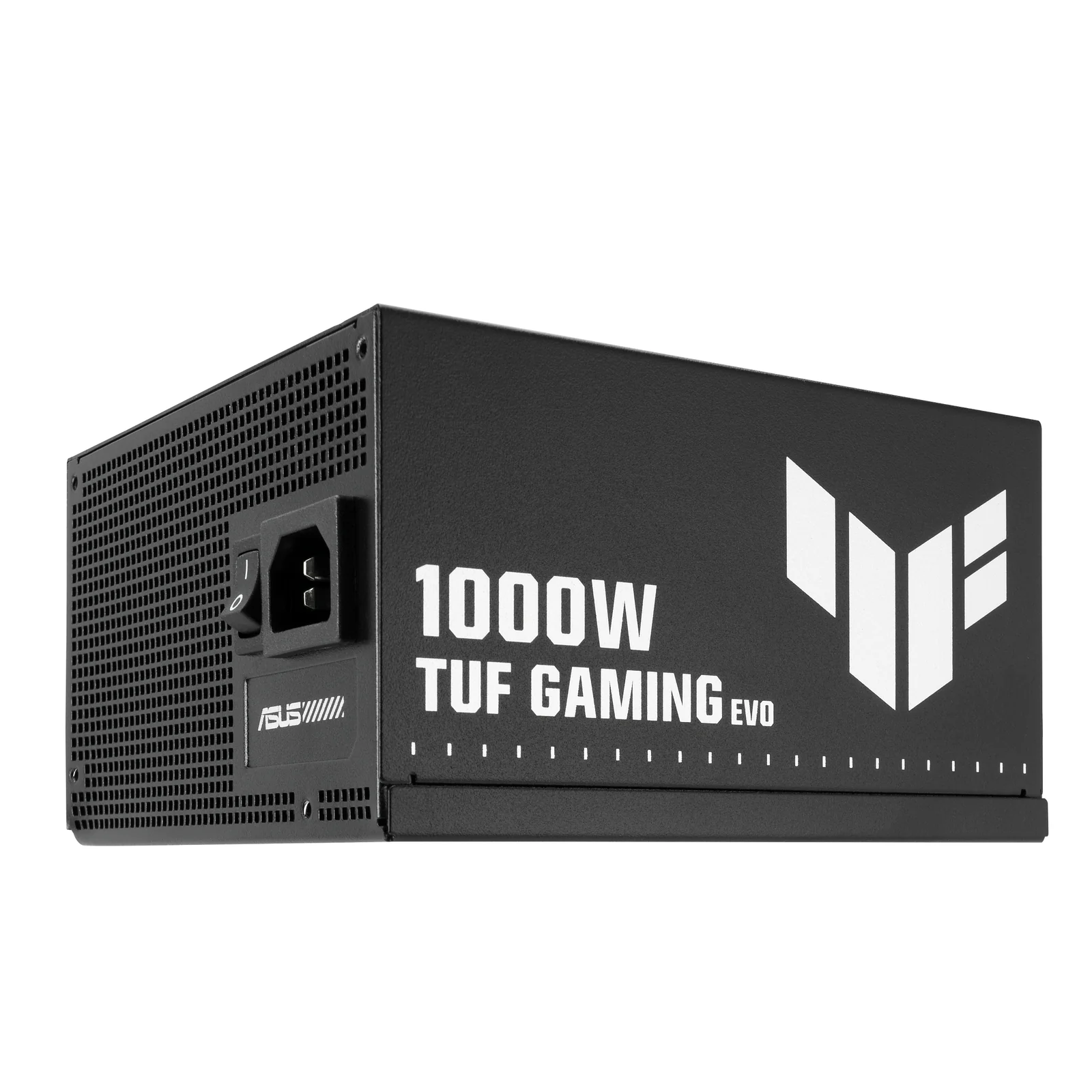

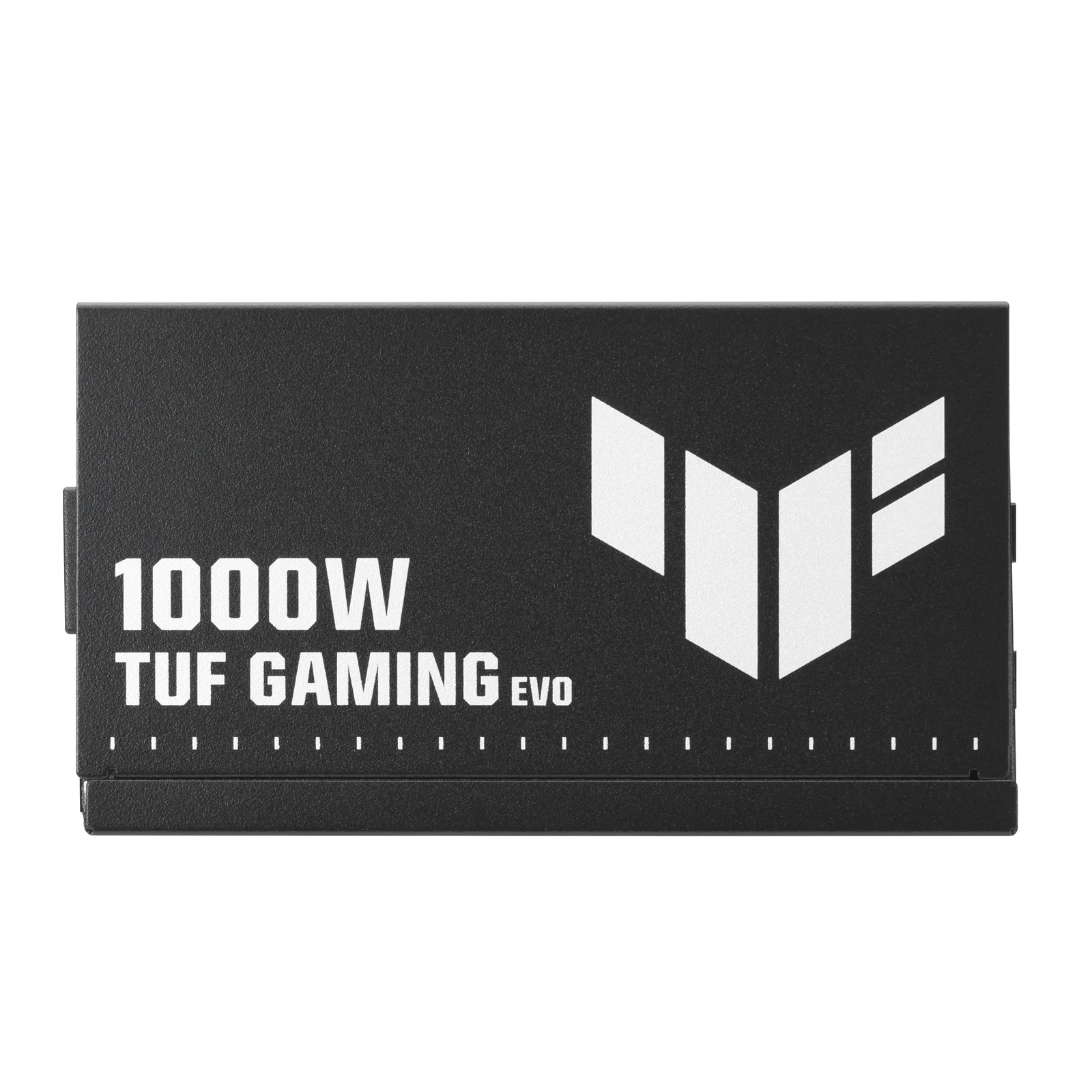

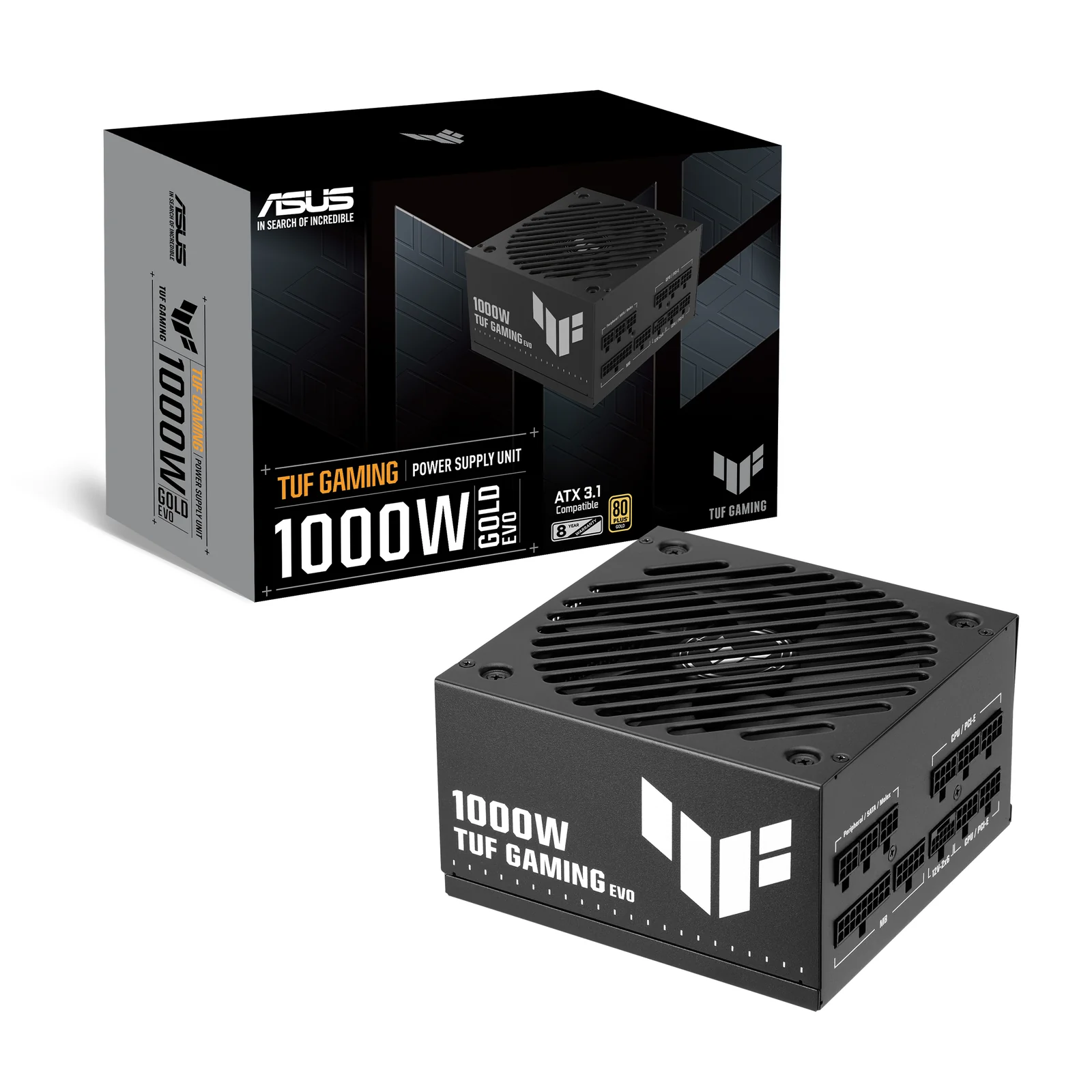

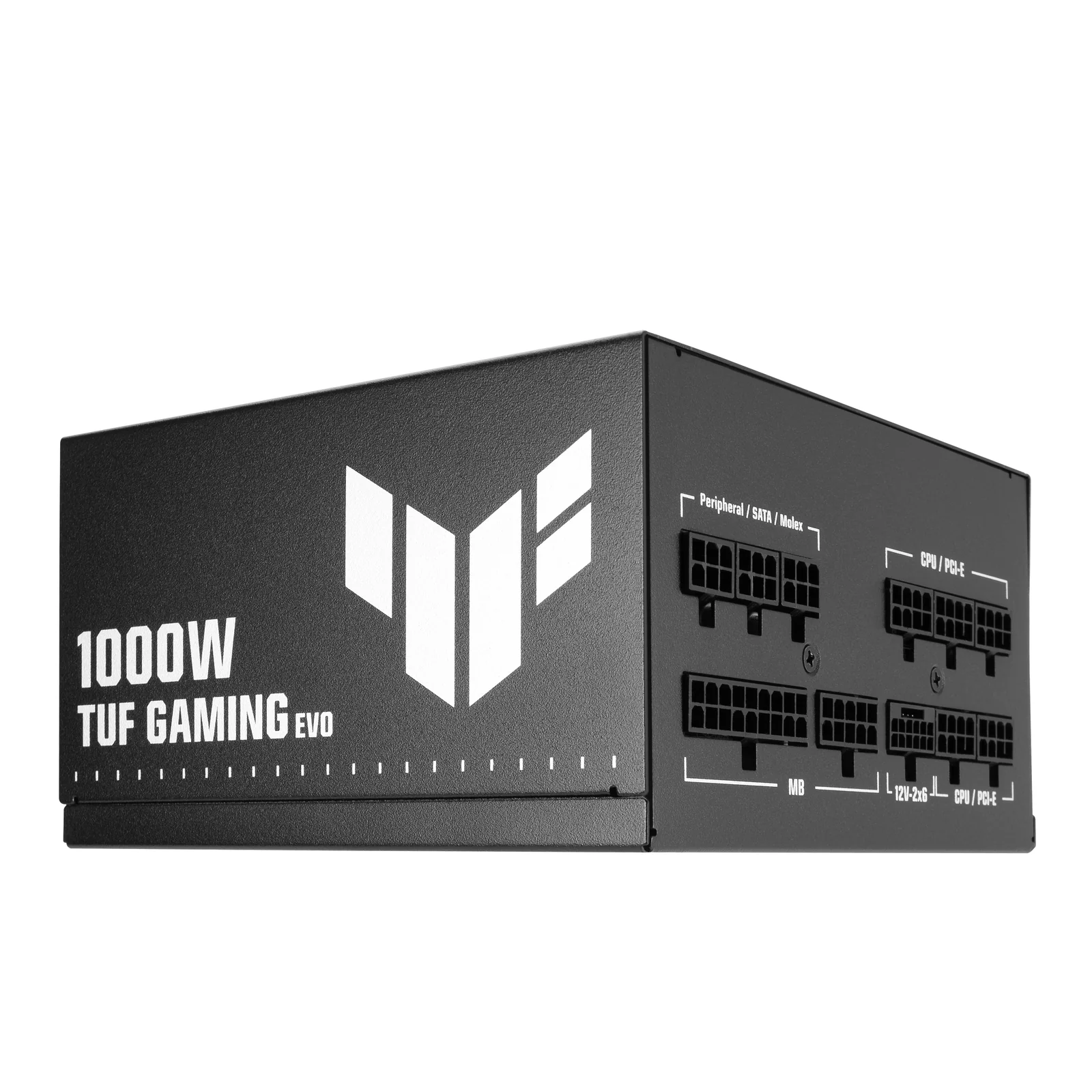

ASUS TUF Gaming 1000W Gold EVO Power Supply

Model 1000W Gold EVO

Overview

Built For The Long Haul The ASUS TUF Gaming 1000W Gold EVO packs military-grade strength, a flagship fan design, and PCB protection for efficient, durable power delivery. The result is a PSU that can reliably fuel your rig for years to come. Premium Durability Military-Grade Capacitors Engineered for exceptional durability, the TUF Gaming Gold EVO series features TUF 5K black metallic capacitors, offering a 52% wider temperature tolerance and up to a 2.5X longer lifespan than standard capacitors. Latest Standards ATX 3.1 & PCIe 5.1 Compatible The TUF Gaming Gold EVO series meets the stringent requirements of the ATX 3.1 standard and supports PCIe 5.1 graphics cards. It supports total power excursions up to twice the rated power and graphics card power excursions up to three times the rated power, helping to ensure rock-solid stability for your PC. EFFICIENCY CERTIFICATION 80 PLUS Gold Efficiency The TUF Gaming Gold EVO series achieves 80 PLUS Gold certifications by leveraging low-ESR Japanese capacitors that deliver stability and efficiency, leading to improved power consumption, heat generation, acoustics and reliability. PREMIUM ETCHED CABLES Made from a pliable premium material, these etched cables are easily flexible during installation, and they operate at temperatures 50°C lower than the safety limit when routed for cable management. PROTECTION To make sure the entire system can operate safely and stably at all times, this power supply comes with a number of protection mechanisms to give you the best peace of mind.

Specifications

Performance

80 PLUS certification
80 PLUS Gold
Purpose
PC
Power supply unit (PSU) form factor
ATX
ATX version
3.1
Bearing technology
Ball bearing
Mean time between failures (MTBF)
120000 h

Design

Product colour
Black
Cooling type
Active
Fan diameter
135 mm
Number of fans
1 fan(s)
On/off switch
Yes

Power

Total power
1000 W
AC input voltage
100 - 240 V
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
125 W
Combined power (+12V)
1000 W
Combined power (+5V)
125 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
15 W
Max output current (+3.3V)
25 A
Max output current (+12V)
83.33 A
Max output current (+5V)
25 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
3 A
Power protection features
Over current,Over power,Over voltage,Short circuit,Under voltage,Overheating

Certificates

Compliance certificates
RoHS

Logistics data

Warranty period
8 year(s)

Packaging data

Package width
282 mm
Package depth
182 mm
Package height
127 mm
Package weight
3170 g
Package type
Box

Packaging content

Cables included
AC,CPU,PCIe,Peripheral (Molex),SATA

Ports & interfaces

Motherboard power connector
20+4 pin ATX
Motherboard power cable length
610 mm
Number of SATA power connectors
6
Peripheral (Molex) power connectors (4-pin)
3
PCI Express power connectors (6+2 pin)
3
PCI Express power connectors (16-pin)
1
CPU power connector (4+4 pin)
Yes
Cabling type
Fully-Modular

Weight & dimensions

Width
150 mm
Depth
150 mm
Height
86 mm
Weight
1720 g
