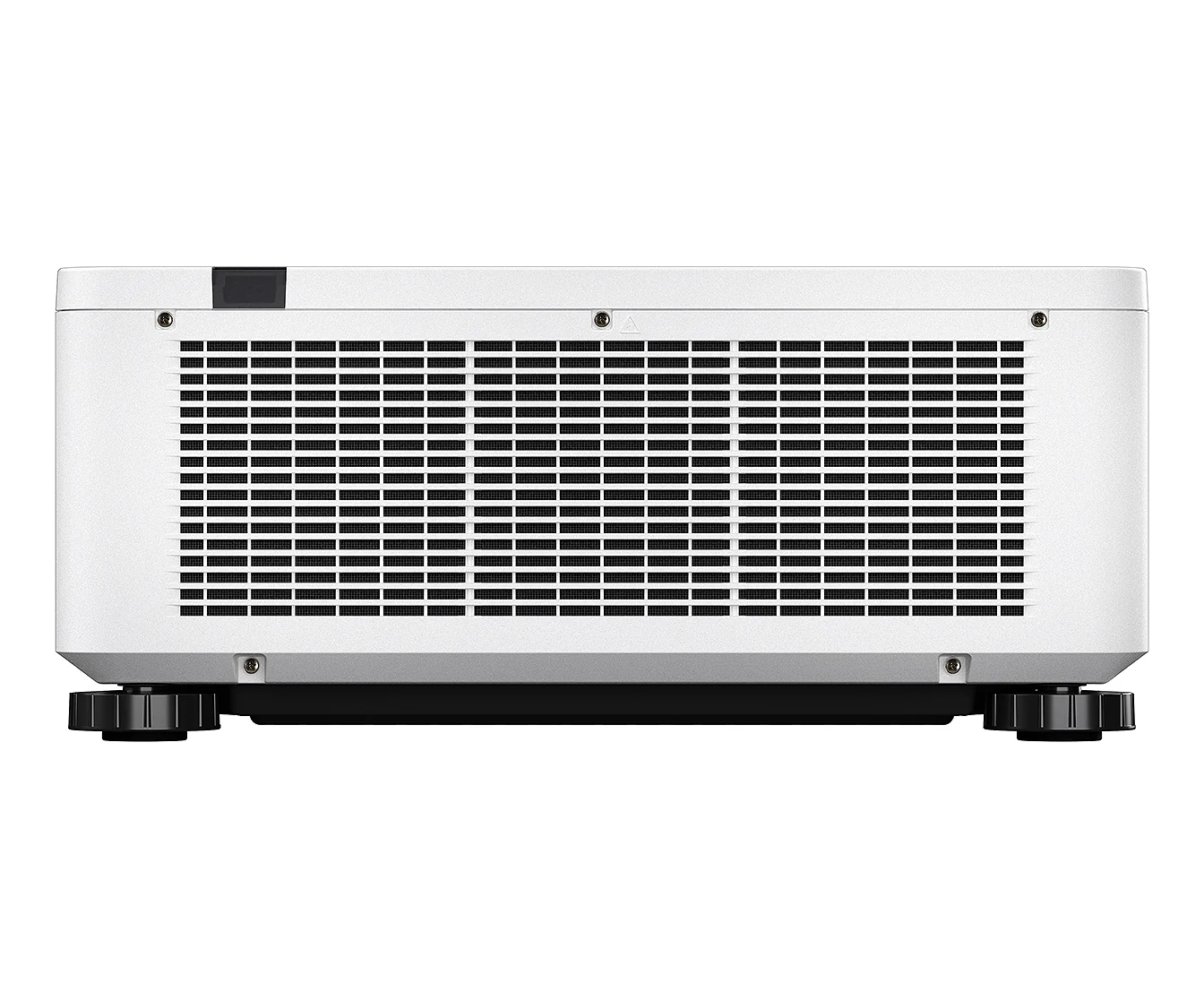

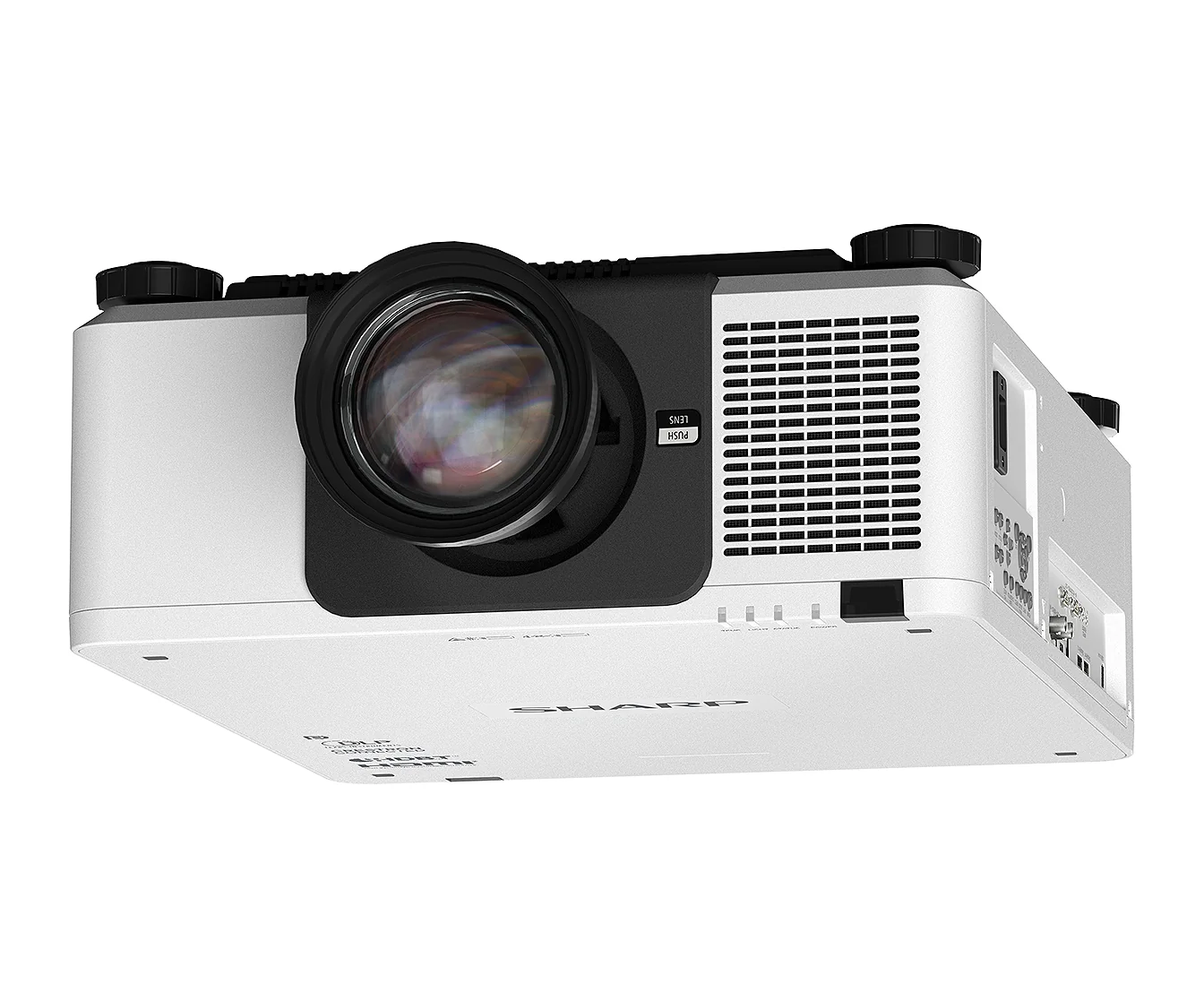

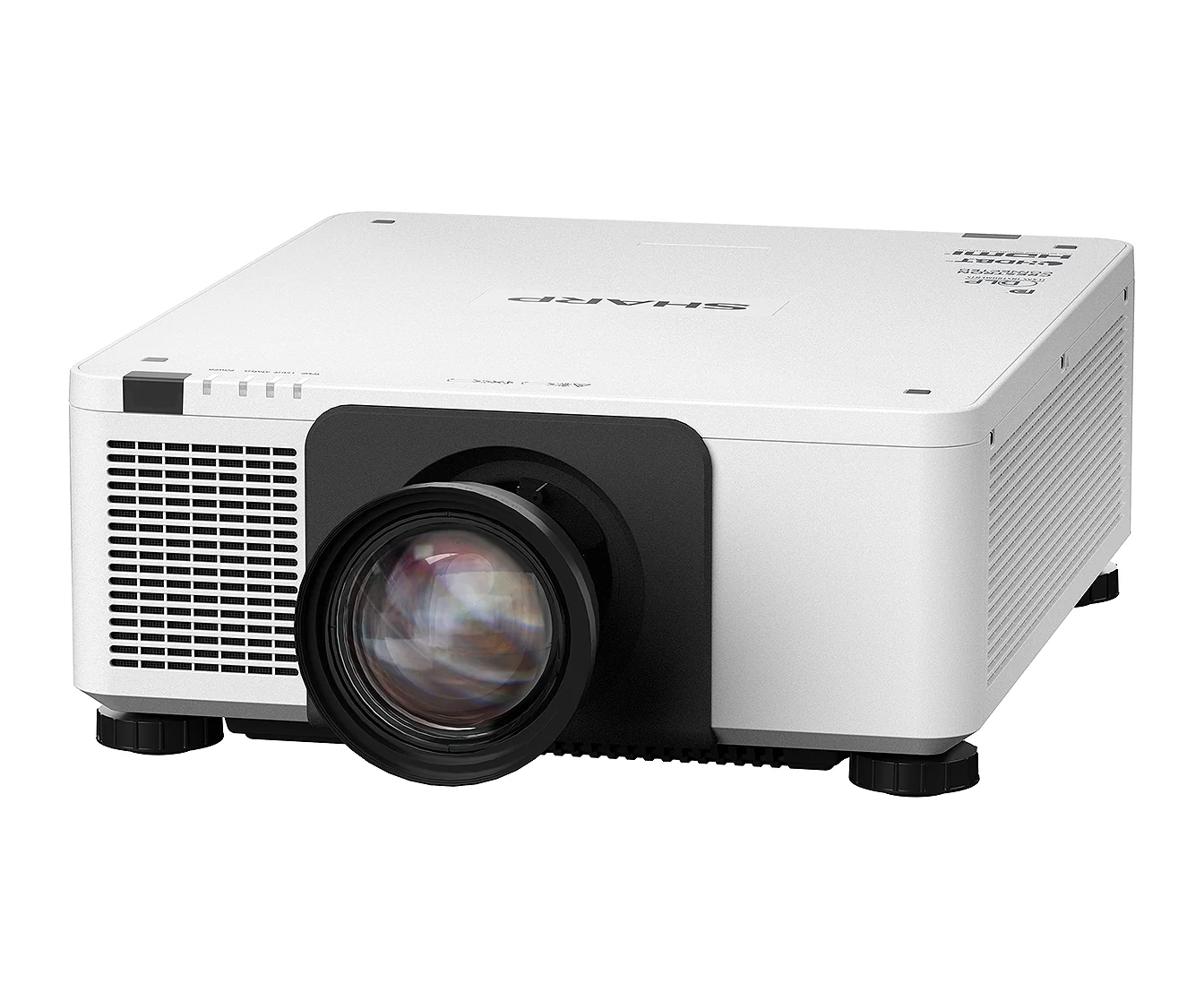

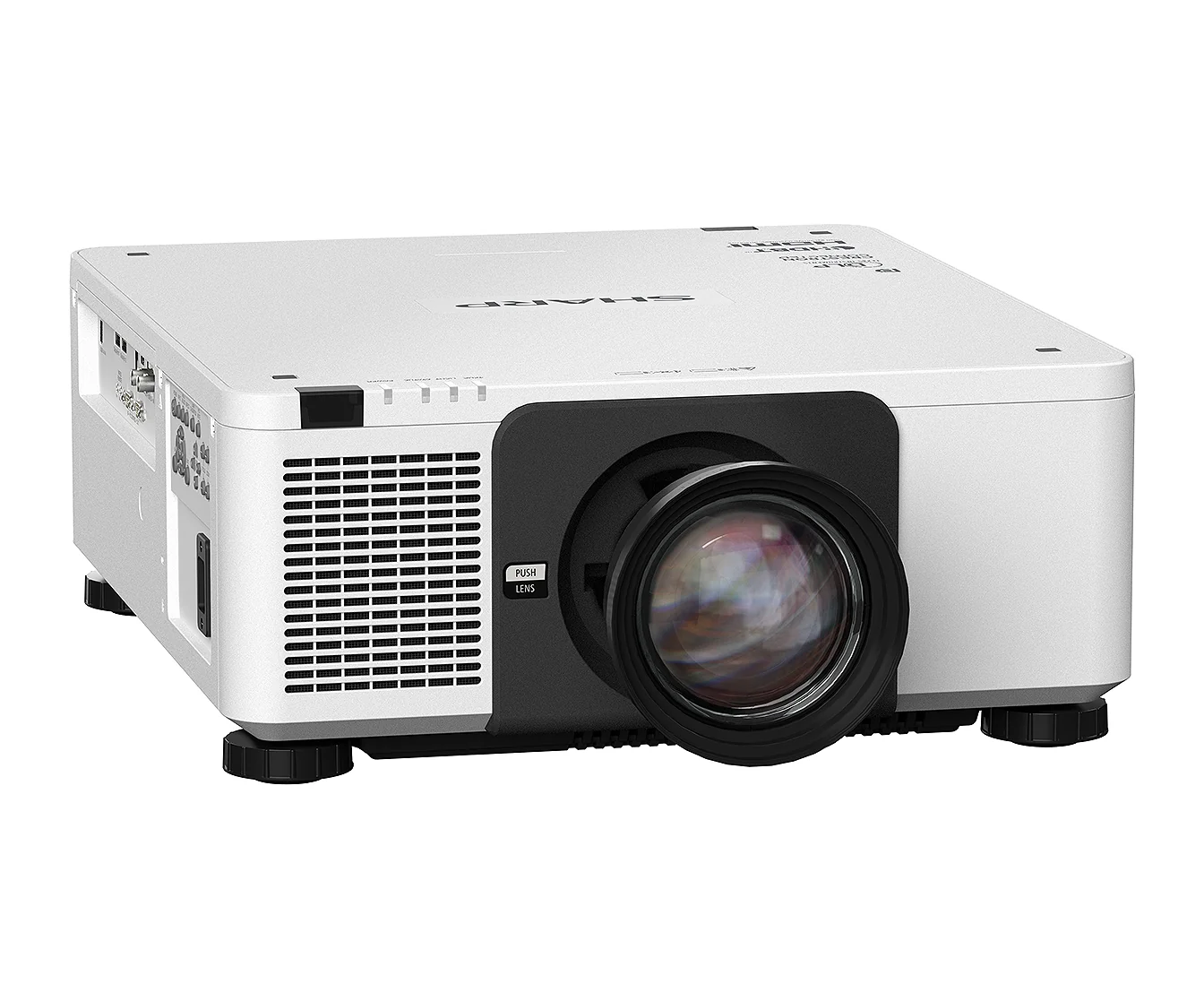

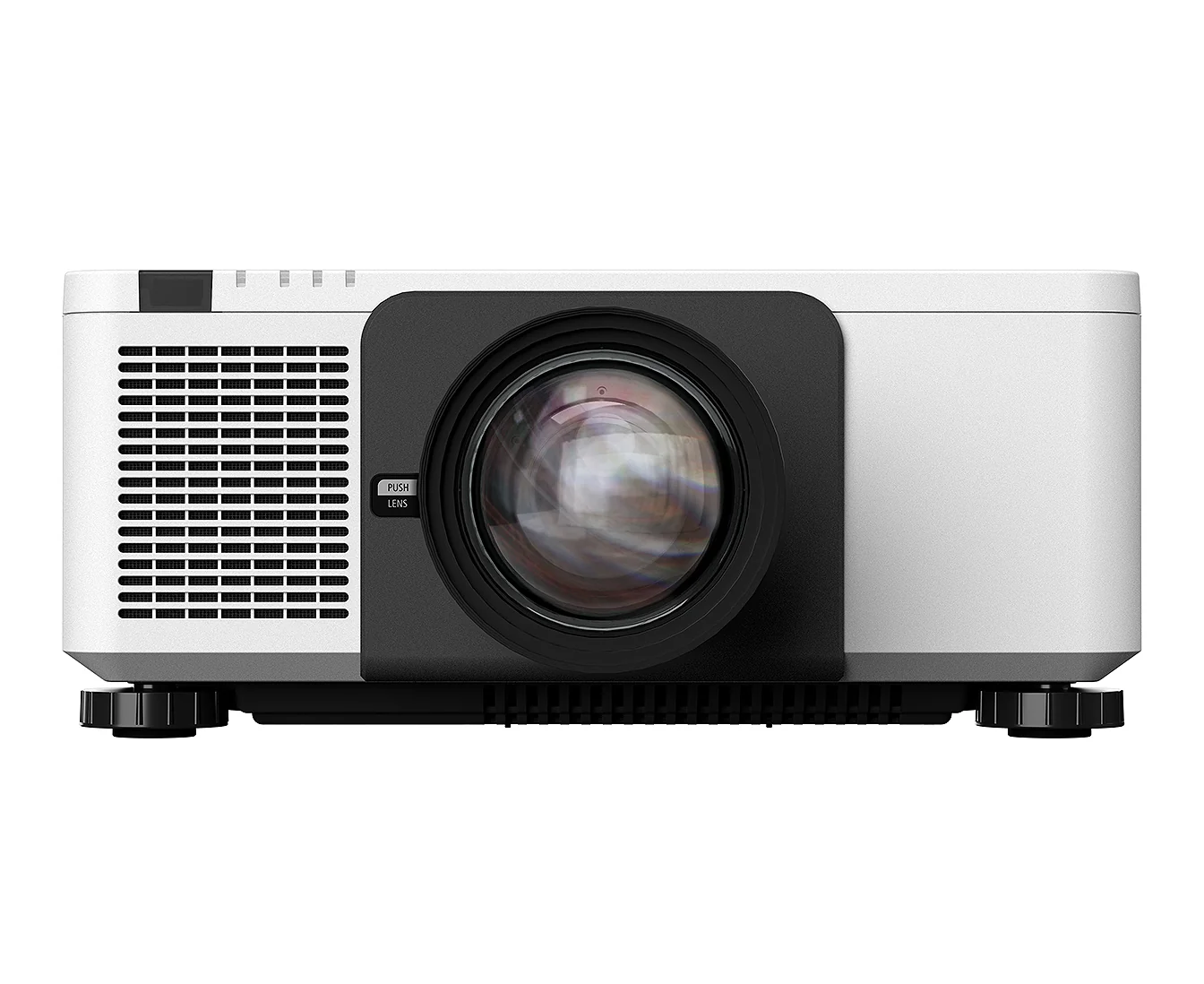

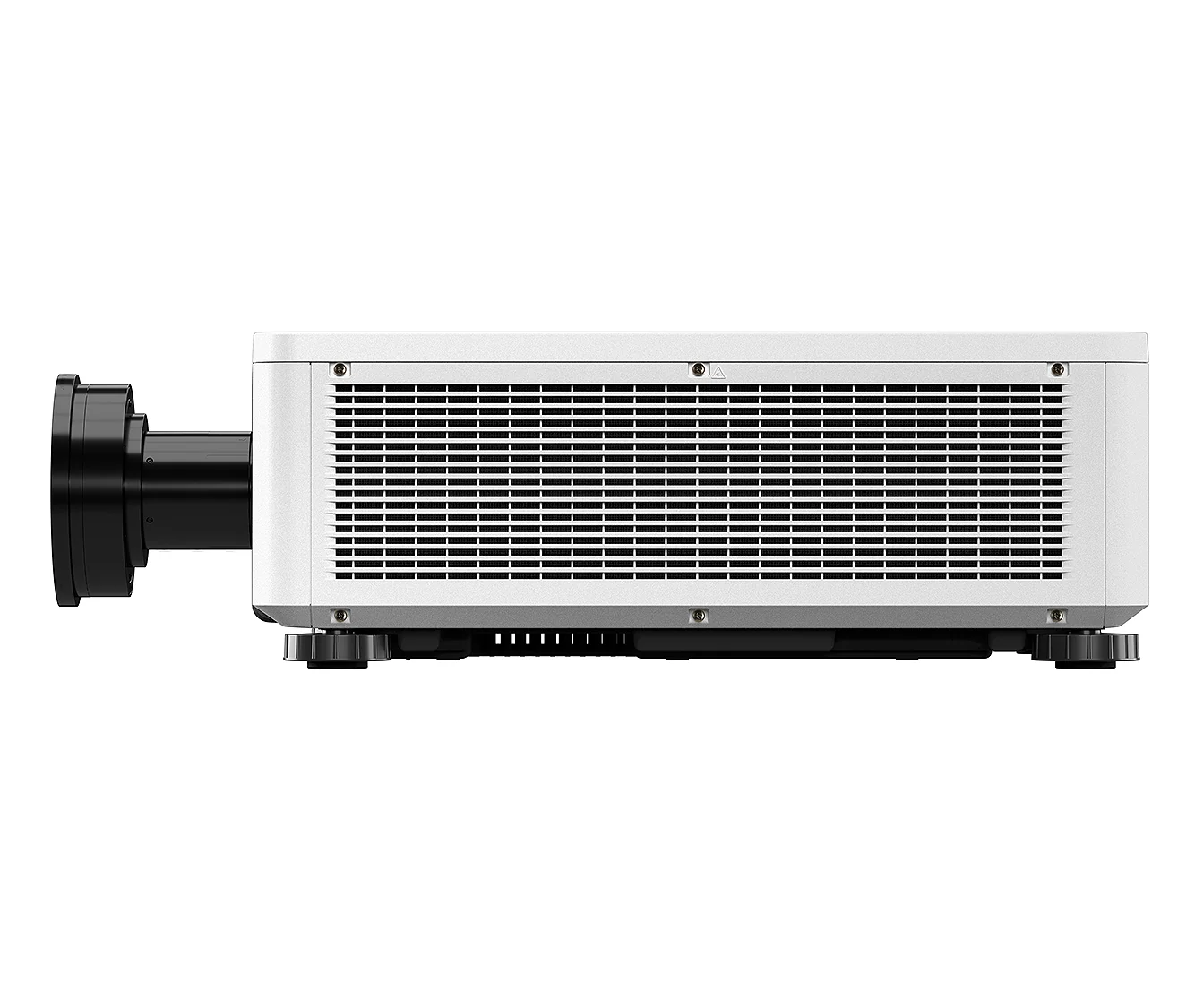

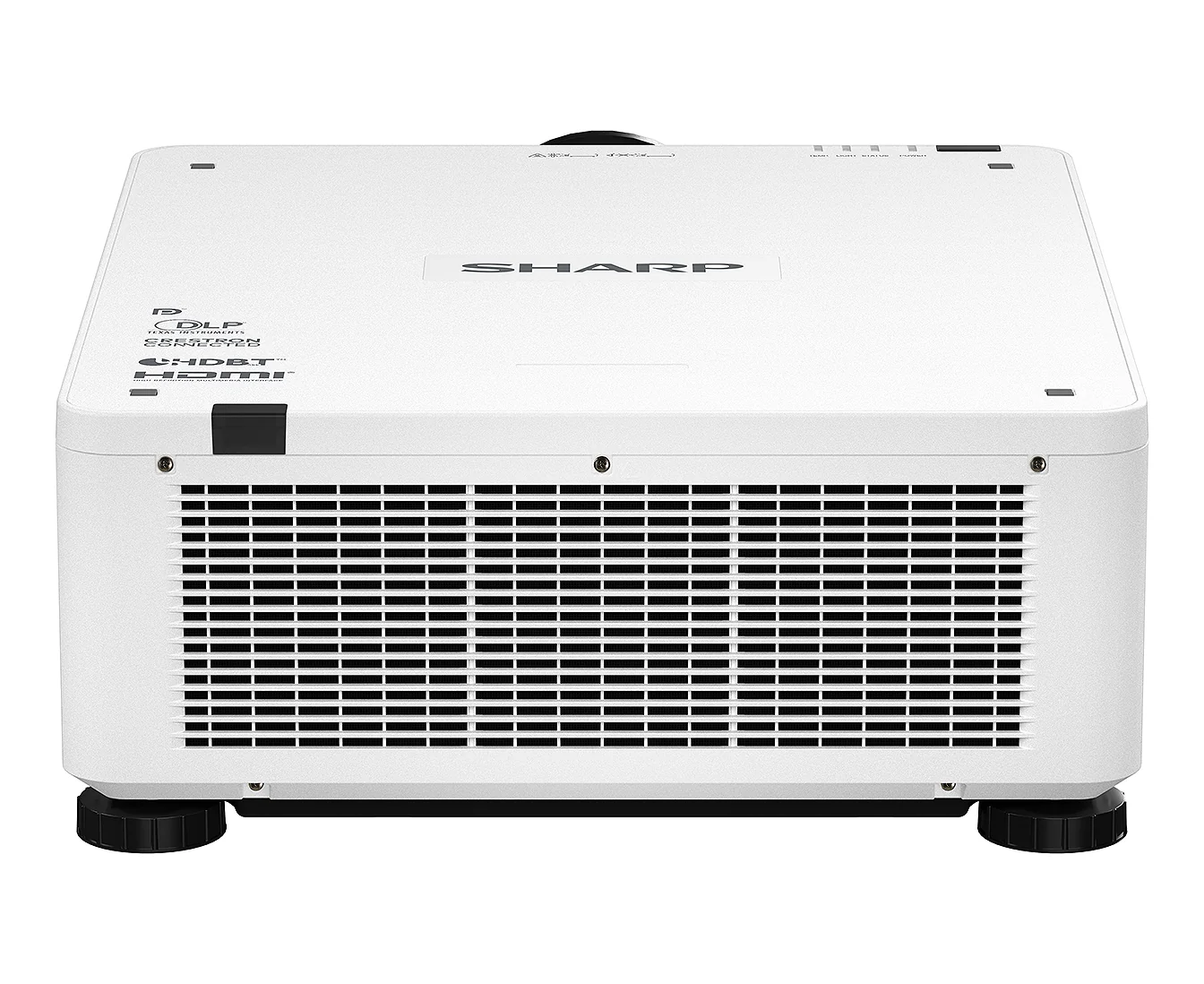

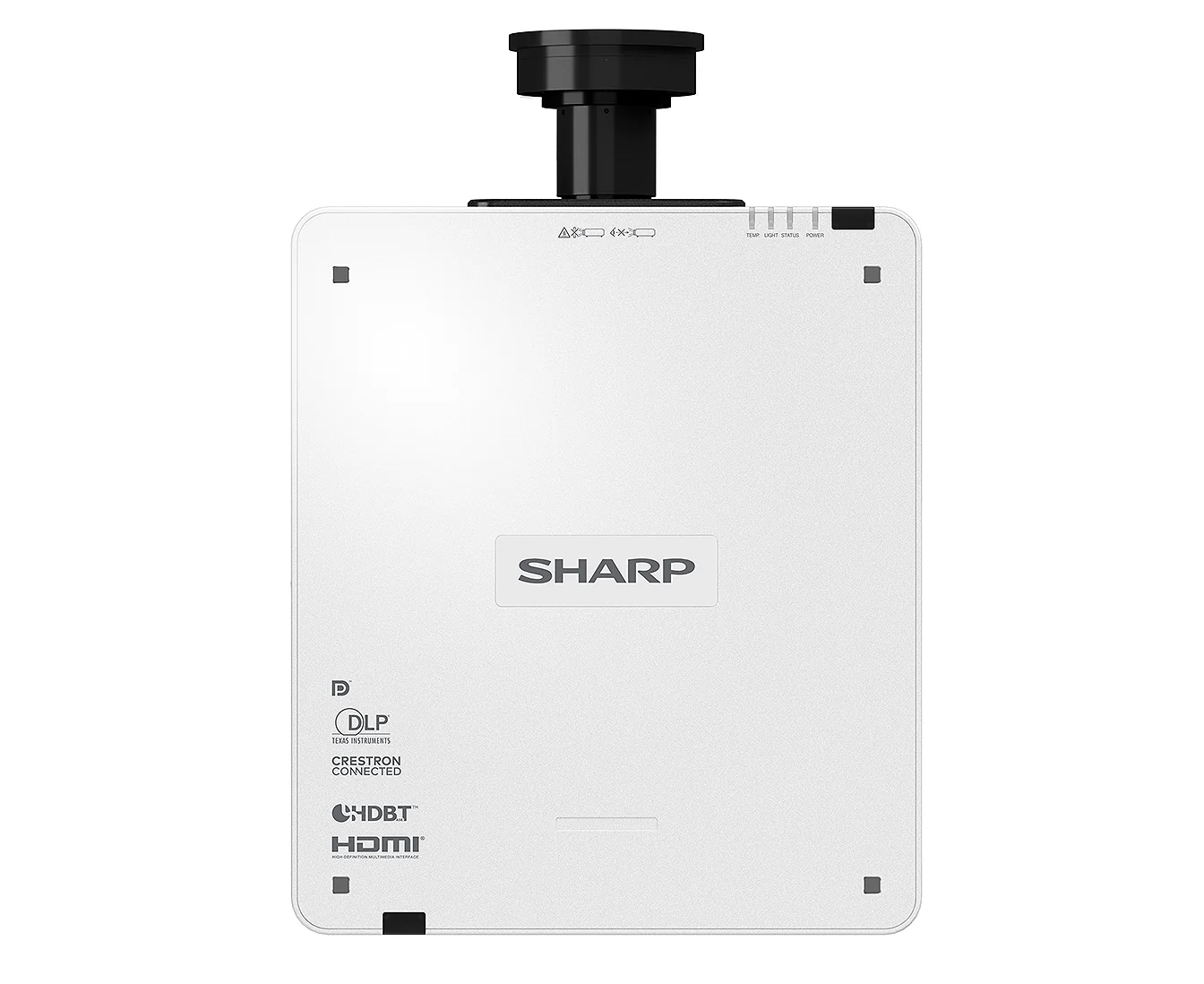

Sharp XP-X171Q-W WUXGA Projector
Model XP-X171Q-W
Overview
Powerful efficiency in the sharpest detail Projecting the sharpest detail and most life-like colours, the 4K+ X171Q laser phosphor projector features new HEP DMD technology for enhanced contrast and remarkably efficient performance. RB laser technology is highly efficient in producing the most intensely natural tones, minimising power consumption whilst delivering brilliant colours at high brightness levels. Long lasting imaging performance is safeguarded against dust contamination with an IP6X rated sealed light engine, also minimising maintenance requirements. Compact and light weight, yet this impressive projector delivers all the professional functionality for easy installation and precision setup. For higher education, museums and conferencing, the X171Q offers reliable long-life performance at an impressively low total cost of ownership.
Specifications
Design
- Market positioning
- Business
- Product type
- Standard throw projector
- Product colour
- Black
- Placement
- Desktop,Ceiling
Power
- Power source
- AC
- Power consumption (typical)
- 1080 W
- Power consumption (standby)
- 0.5 W
- AC input voltage
- 100/240 V
- AC input frequency
- 50 - 60 Hz
Video
- Analog signal format system
- NTSC,NTSC 4.43,PAL,PAL 60,PAL M,PAL N,SECAM
- Full HD
- Yes
- Supported graphics resolutions
- 640 x 480 (VGA),1920 x 1200 (WUXGA),2048 x 1080,2560 x 1600 (WQXGA),3840 x 2160,4096 x 2160
- Supported video modes
- 480i,480p,576i,576p,720p,1080i,1080p
Network
- Ethernet LAN
- Yes
- Ethernet LAN (RJ-45) ports
- 1
Features
- Noise level (economic mode)
- 35 dB
- HDCP
- Yes
- On Screen Display (OSD)
- Yes
- Noise level
- 37 dB
- Certification
- CE; ErP; TUEV Type Approved
Projector
- Projection distance
- 1.09 - 43 m
- Projector brightness
- 16500 ANSI lumens
- Projection technology
- DLP
- Projector native resolution
- WUXGA (1920x1200)
- Contrast ratio (typical)
- 10000:1
- Native aspect ratio
- 16:10
- Horizontal scan range
- 15 - 153 kHz
- Vertical scan range
- 24 - 120 Hz
- Keystone correction, horizontal
- -36 - 36 °
- Keystone correction, vertical
- -36 - 36 °
Lens system
- Focus
- Auto
- Zoom capability
- Yes
- Zoom type
- Auto
Light source
- Light source type
- Laser
- Service life of light source
- 20000 h
Packaging content
- Remote control included
- Yes
- Remote control type
- IR
- Cables included
- AC
- Quick start guide
- Yes
- Manual
- Yes

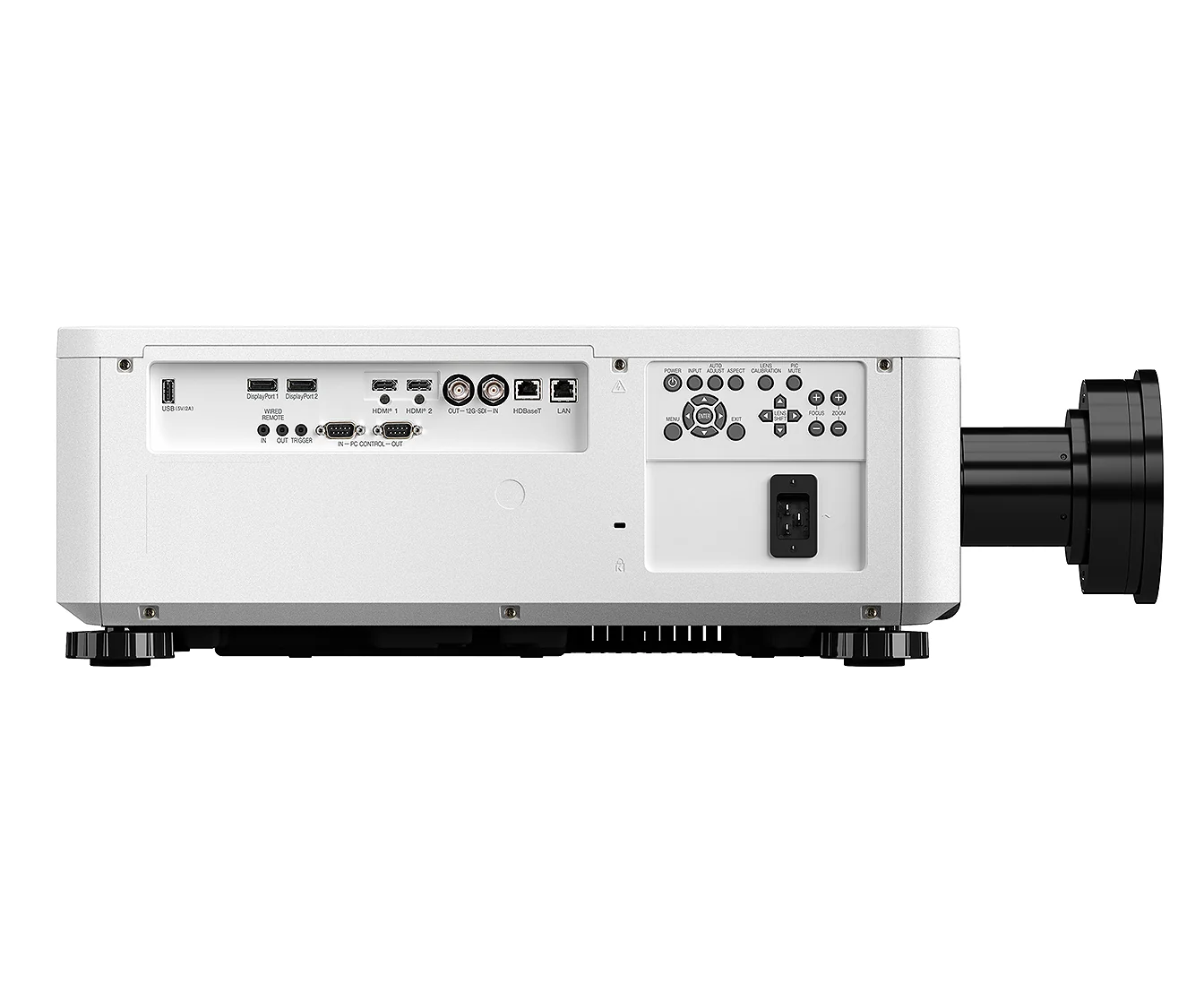

Ports & interfaces
- DisplayPorts quantity
- 2
- HDBaseT port
- Yes
- USB 2.0 ports quantity
- 1
- Audio (L/R) in
- 1
- VGA (D-Sub) ports quantity
- 1
- HDMI ports quantity
- 2
Weight & dimensions
- Width
- 500 mm
- Depth
- 606 mm
- Height
- 216 mm
- Weight
- 29000 g
- Package width
- 784 mm
- Package depth
- 699 mm
- Package height
- 445 mm
- Package weight
- 40000 g
Operational conditions
- Operating temperature (T-T)
- 0 - 45 °C
- Storage temperature (T-T)
- -10 - 60 °C
- Operating relative humidity (H-H)
- 20 - 80 %
- Storage relative humidity (H-H)
- 20 - 80 %
