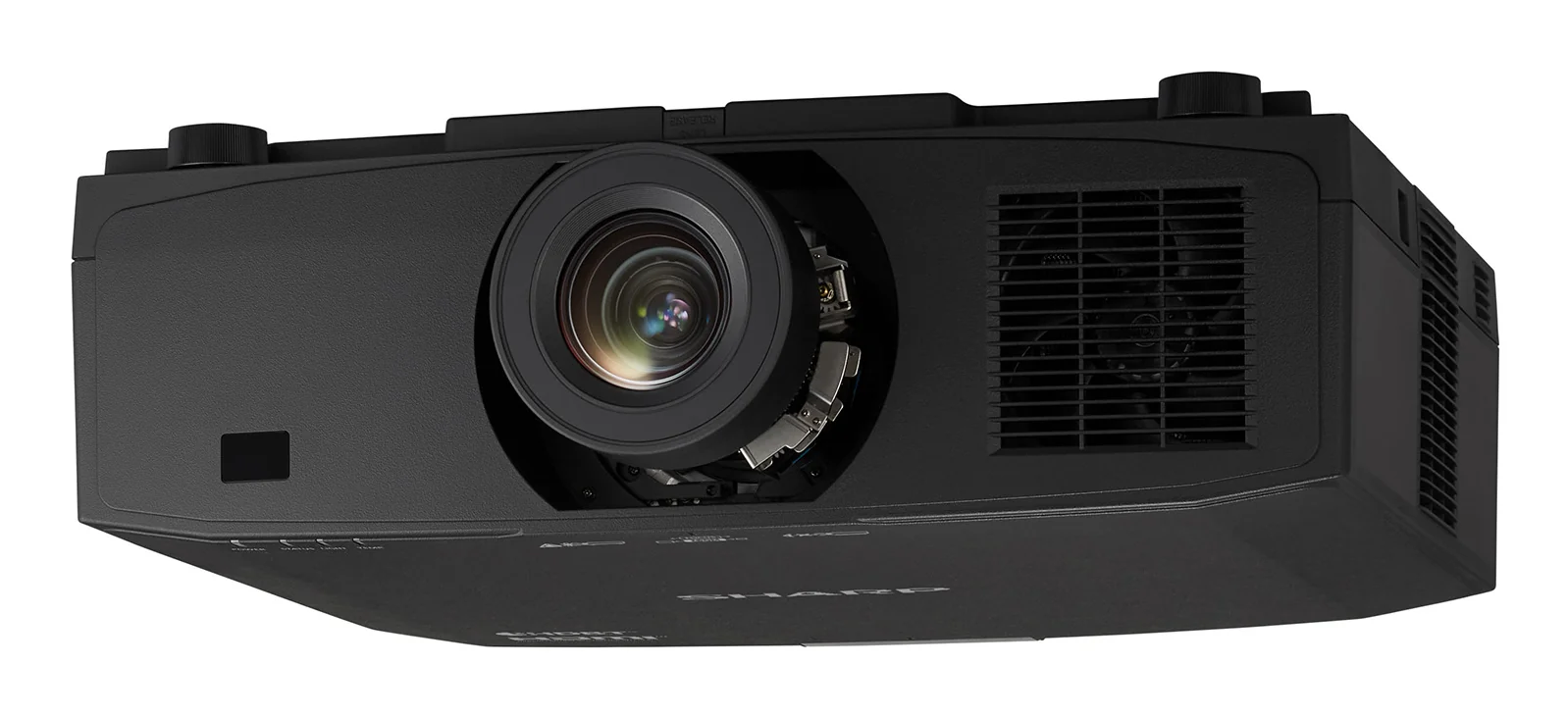

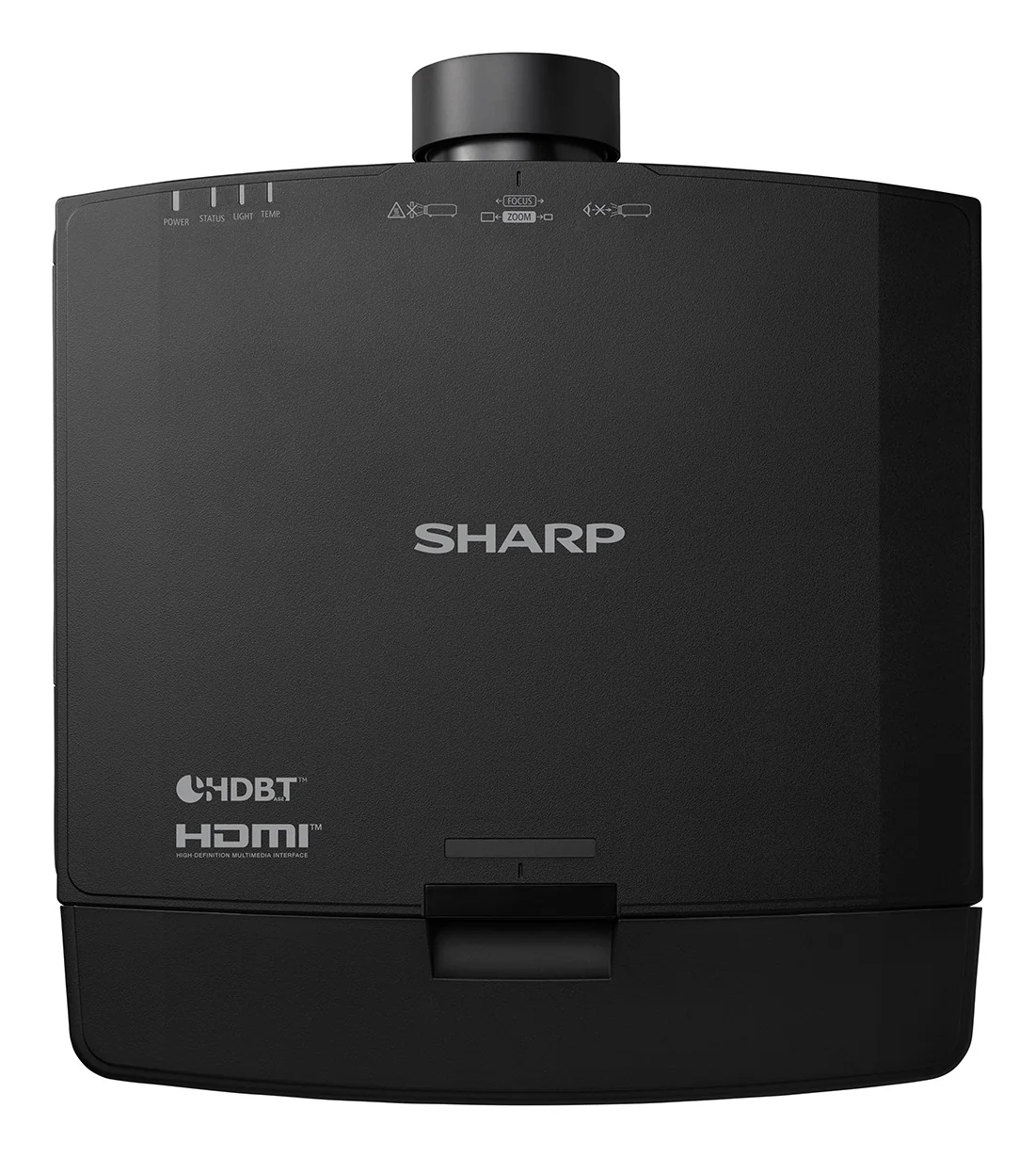

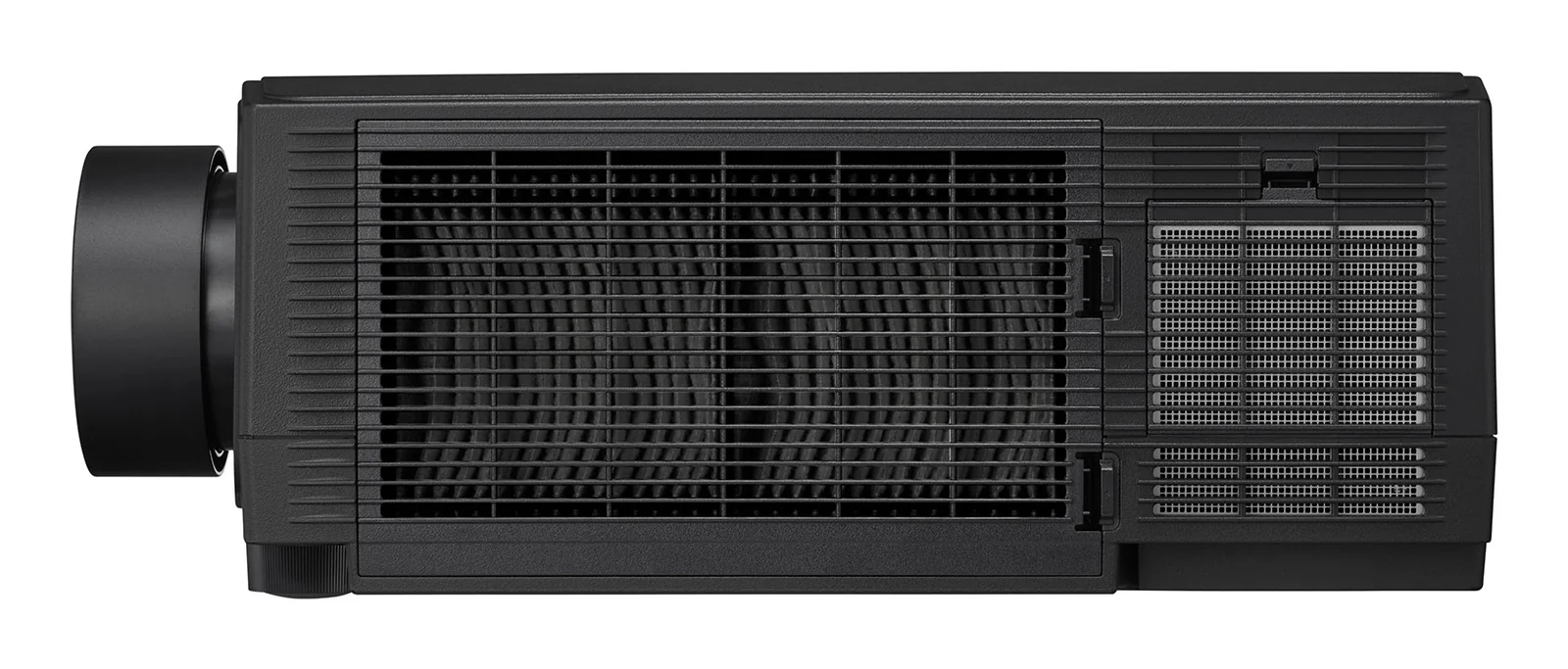

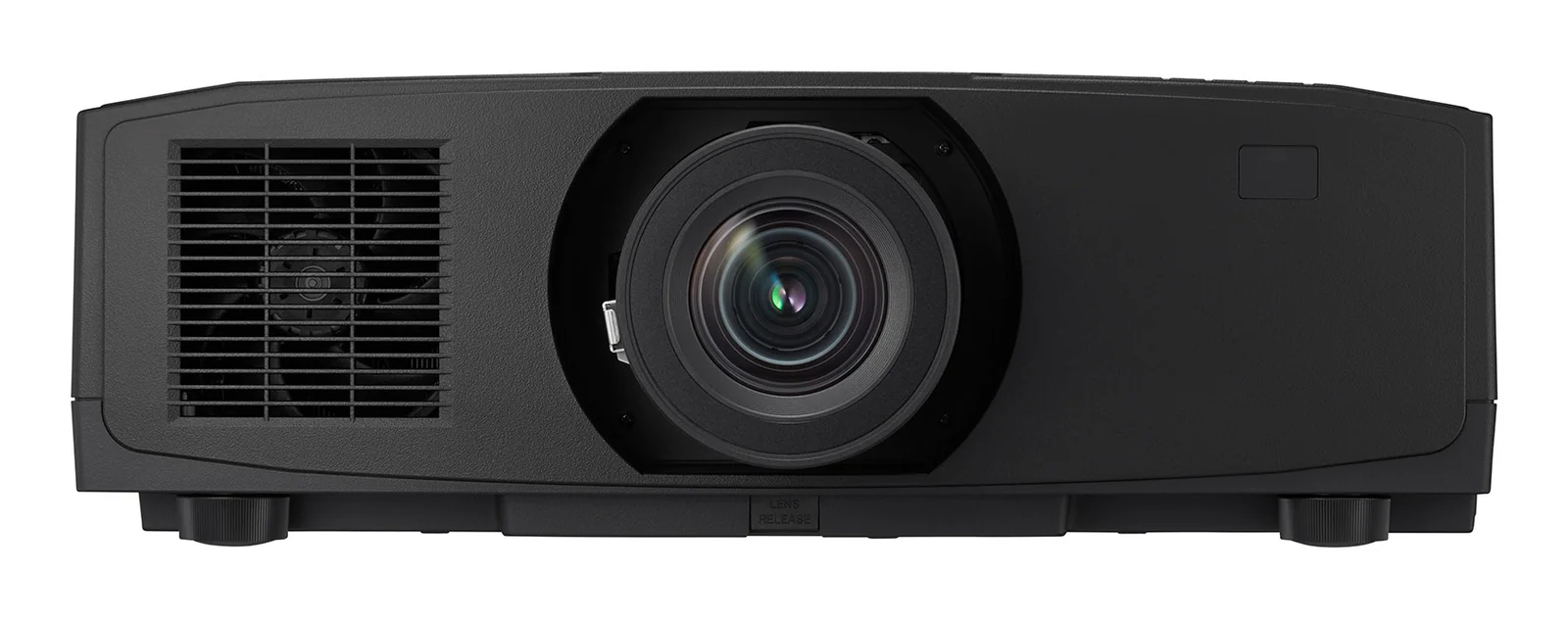

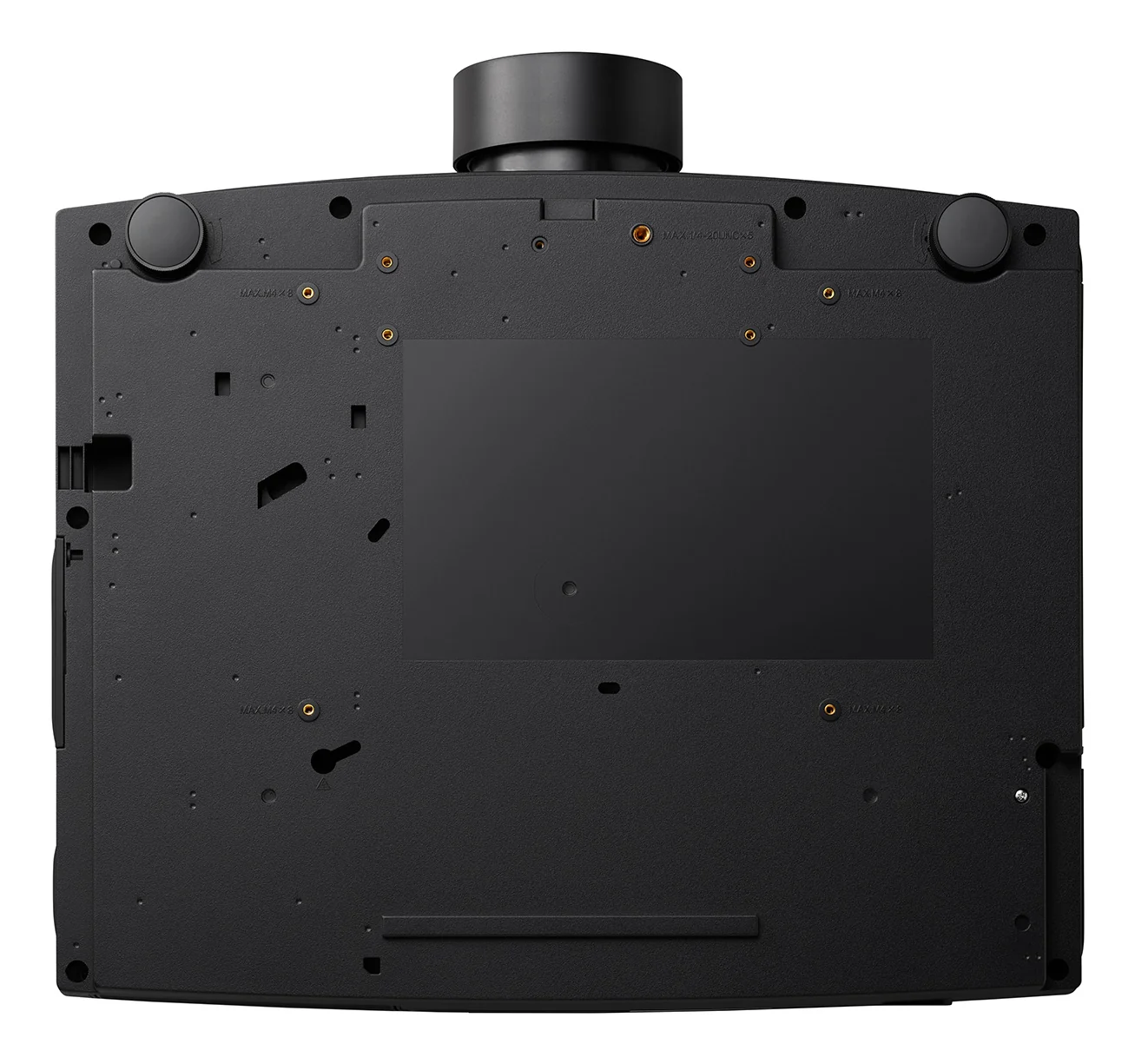

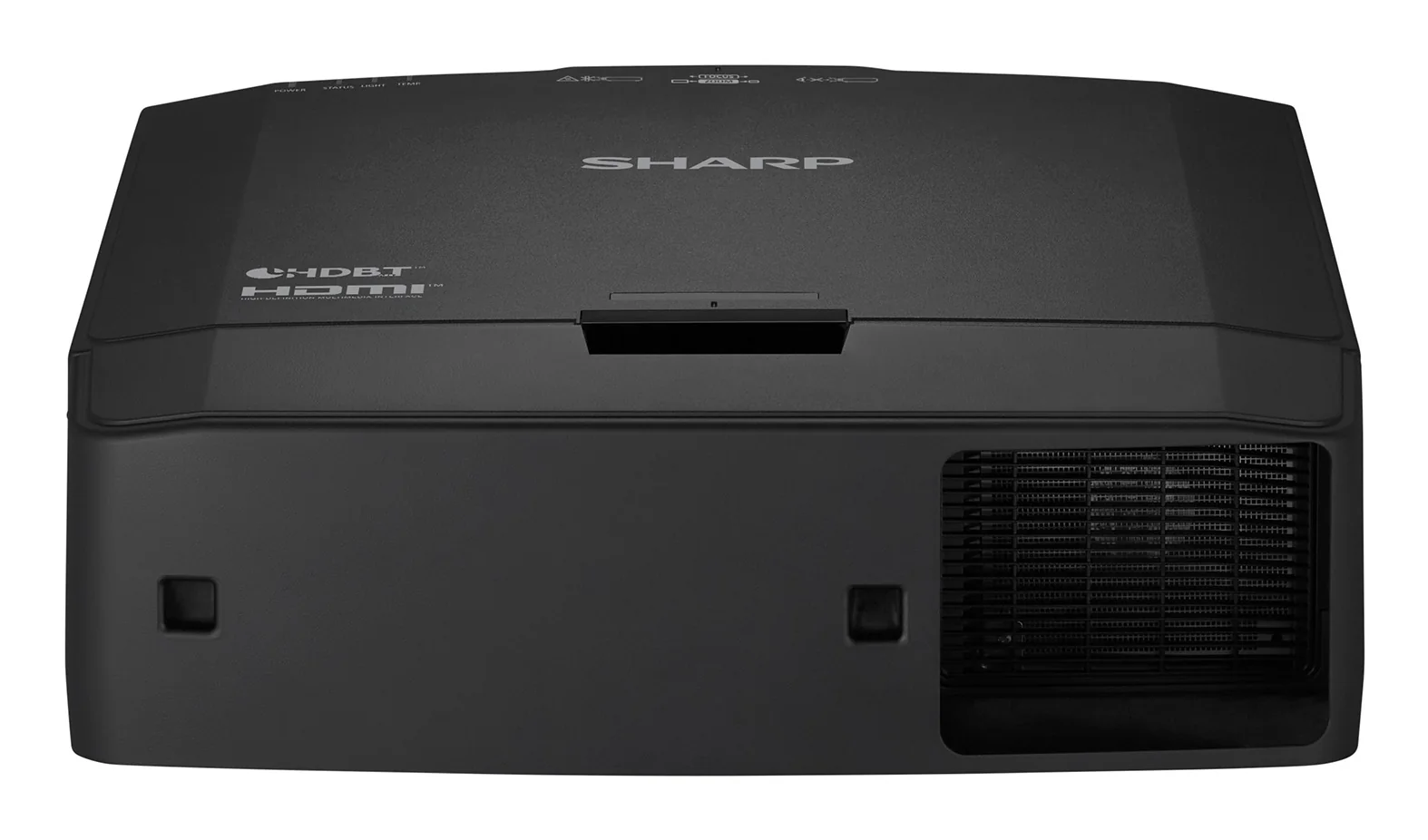

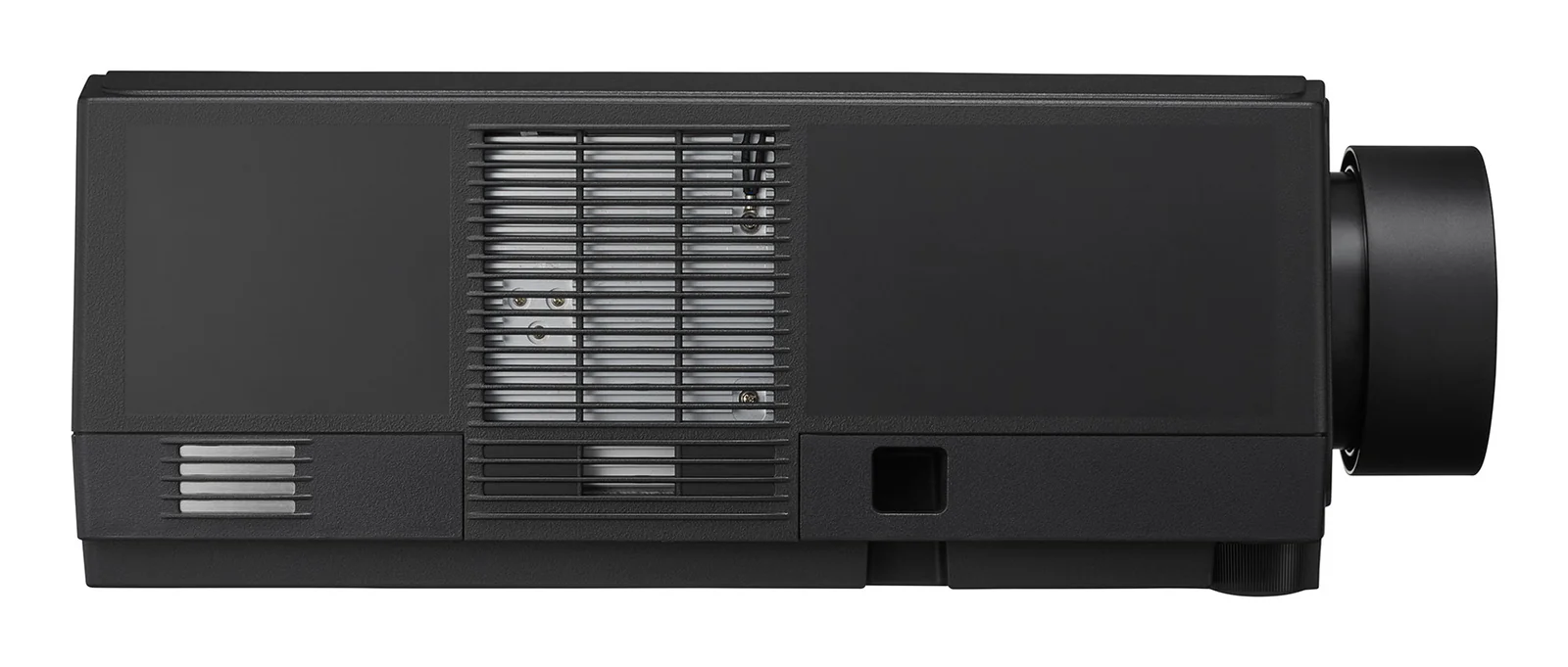

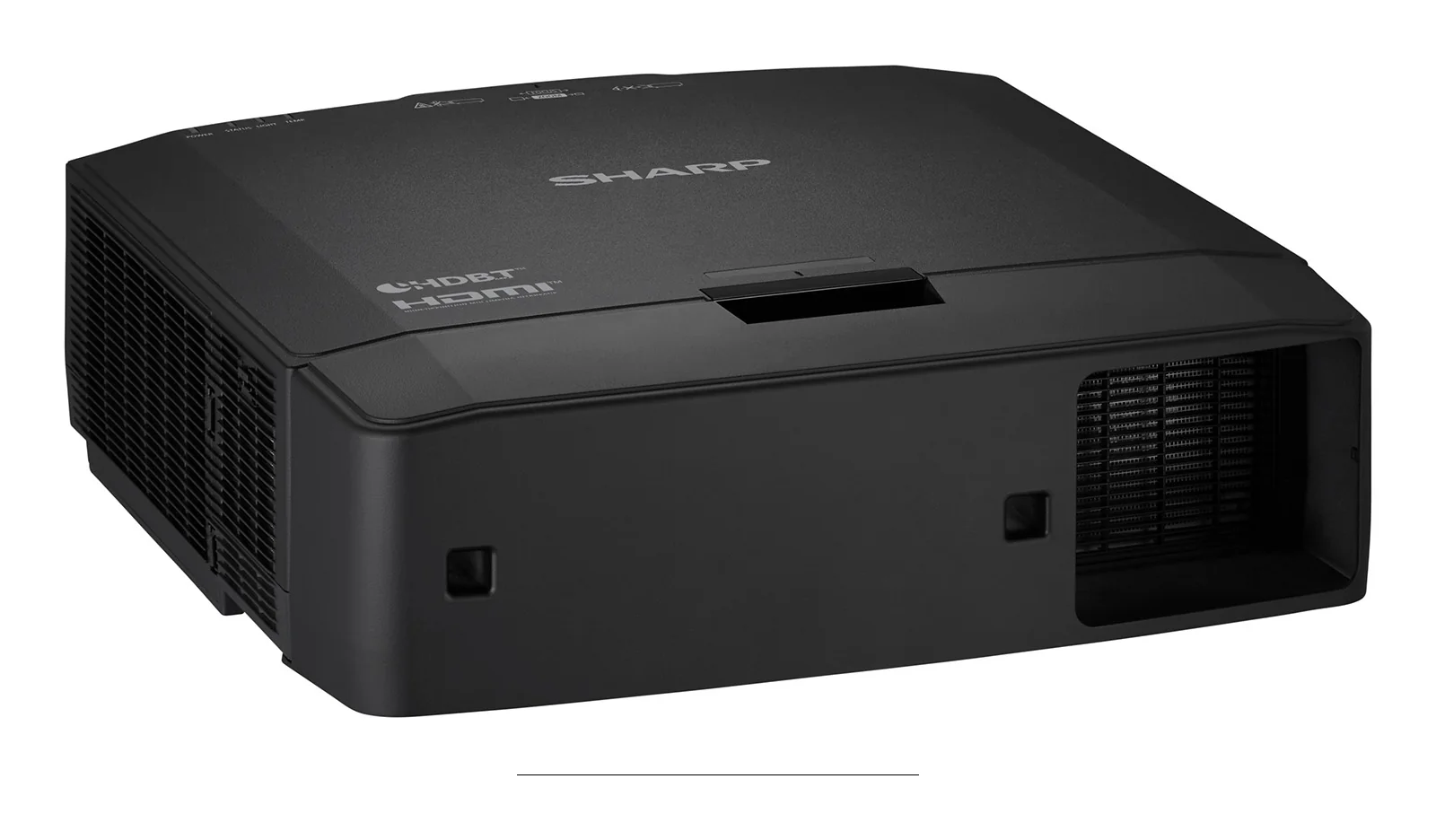

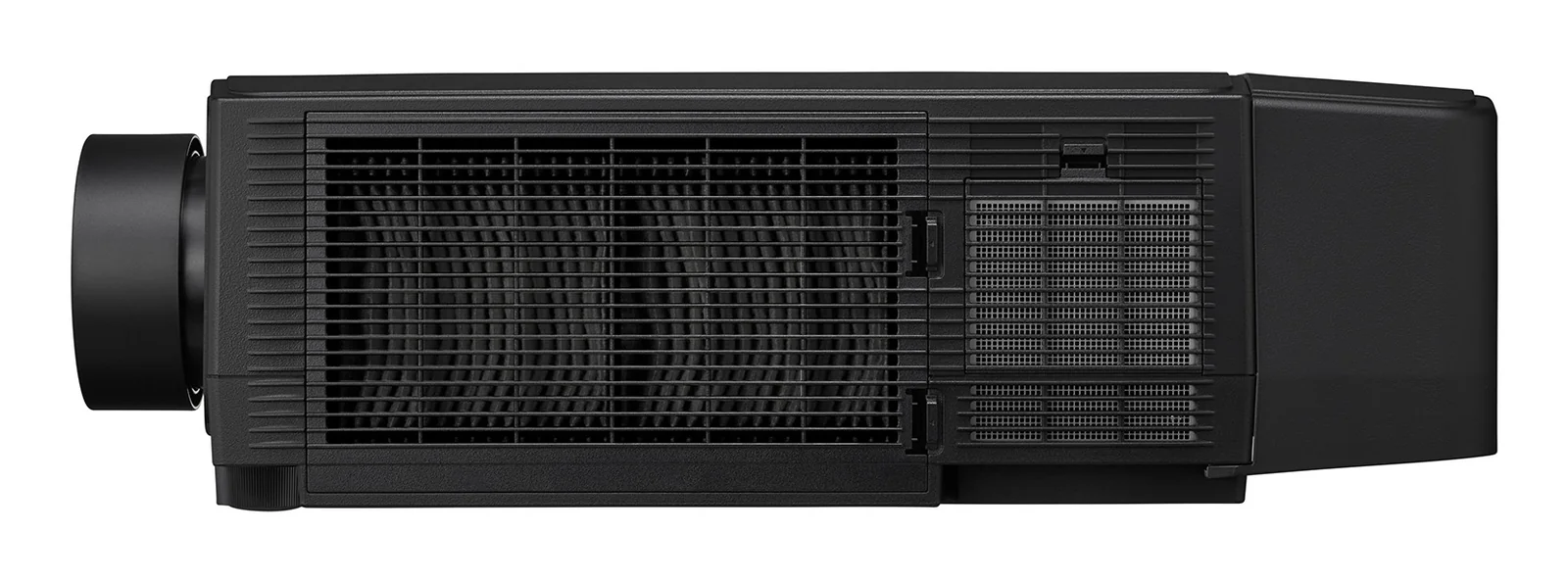

Sharp V731U WUXGA Projector
Model V731U
Overview
Versatile, Value-driven Performance A highly economical projection solution, the Sharp V Series combines installation flexibility, low maintenance, and long-life laser performance in a compact, cost-efficient design. Using 3LCD technology, it delivers vivid colour and precise white point calibration with 12-bit colour processing for rich saturation and contrast making it suited for education, corporate, leisure, and simulation environments. Compatible with existing mounts and lenses, the V Series provides a seamless upgrade path from lamp-based or earlier laser models, maximising assets and reducing costs while embracing next-generation efficiencies. Sharp's ProAssist software enables easy remote setup and adjustment, while advanced features such as geometric correction, edge blending, and wide lens shift support flexible, precise integration.
Specifications
Display
- Built-in display
- No
Design
- Product type
- Standard throw projector
- Product colour
- Black
- Housing material
- Plastic
Power
- Power source
- AC
- Power consumption (typical)
- 434 W
- Power consumption (standby)
- 0.5 W
- Power consumption (economy mode)
- 403 W
- AC input voltage
- 100-240 V
- AC input frequency
- 50-60 Hz
Video
- Full HD
- Yes
- 3D
- Yes
- Supported graphics resolutions
- 1280 x 768,1920 x 1200 (WUXGA),3840 x 2160
- Supported video modes
- 480p,576p,720p,1080i,1080p
- Video colour modes
- DICOM simulation mode
Network
- Ethernet LAN
- Yes
- Ethernet LAN (RJ-45) ports
- 1
Features
- Noise level (economic mode)
- 31 dB
- HDCP
- Yes
- Number of OSD languages
- 27
- Test patterns
- Yes
- Noise level
- 40 dB
- Sleep timer
- Yes
- Standby timer
- Yes
- Air filter
- Yes
- Password protection
- Yes
Projector
- Supported aspect ratios
- 16:10
- Smart projector
- Yes
- Screen size compatibility
- 40 - 500"
- Projection distance
- 0.7 - 50.9 m
- Projector brightness
- 7300 ANSI lumens
- Projection technology
- 3LCD
- Projector native resolution
- WUXGA (1920x1200)
- Contrast ratio (typical)
- 3000000:1
- Native aspect ratio
- 16:10
- Horizontal scan range
- 24 - 153 kHz
- Vertical scan range
- 50 - 120 Hz
- Keystone correction, horizontal
- 30 °
- Keystone correction, vertical
- 30 °
Lens system
- Focus
- Motorized
- Zoom capability
- Yes
- Zoom type
- Auto/Manual
- Horizontal lens shift range
- 0 - 20 %
- Vertical lens shift range
- 0 - 50 %
Light source
- Light source type
- Laser
- Service life of light source
- 20000 h

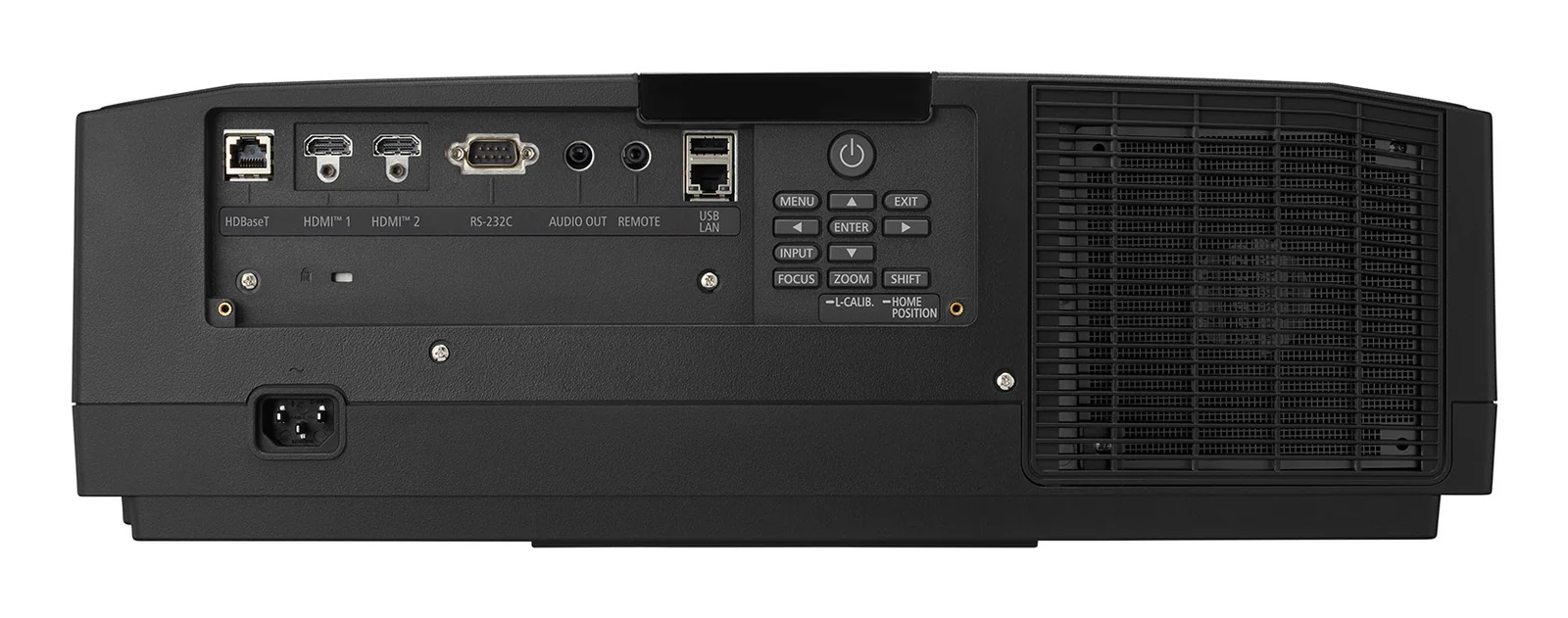

Ports & interfaces
- HDBaseT port
- Yes
- USB 2.0 Type-A ports quantity
- 1
- Audio (L/R) in
- 1
- Audio (L/R) out
- 1
- Serial interface type
- RS-232
- HDMI ports quantity
- 2
Weight & dimensions
- Width
- 499 mm
- Depth
- 407 mm
- Height
- 164 mm
- Weight
- 11200 g
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -10 - 50 °C
- Operating relative humidity (H-H)
- 20 - 80 %
- Storage relative humidity (H-H)
- 20 - 80 %
