Sharp

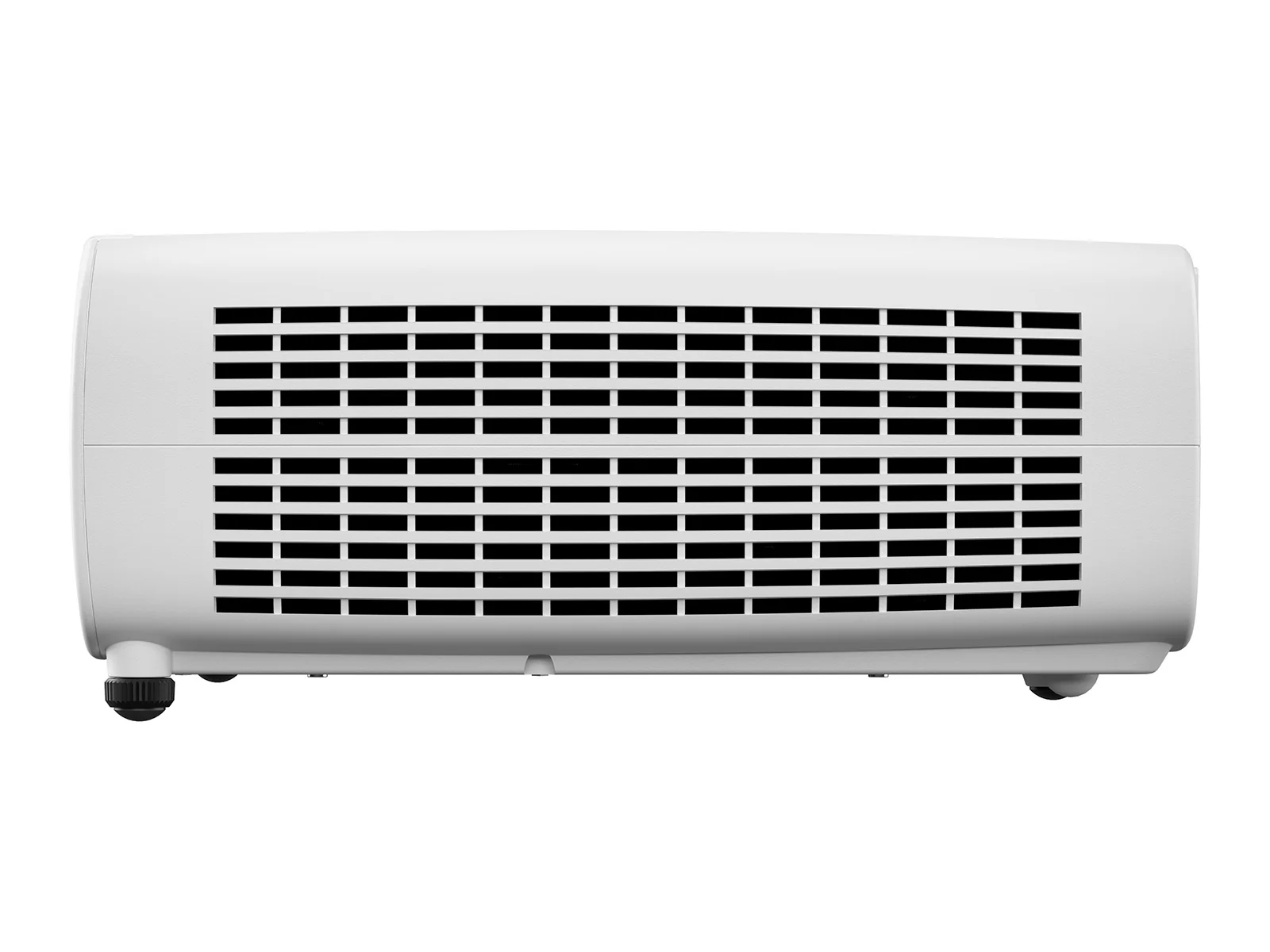

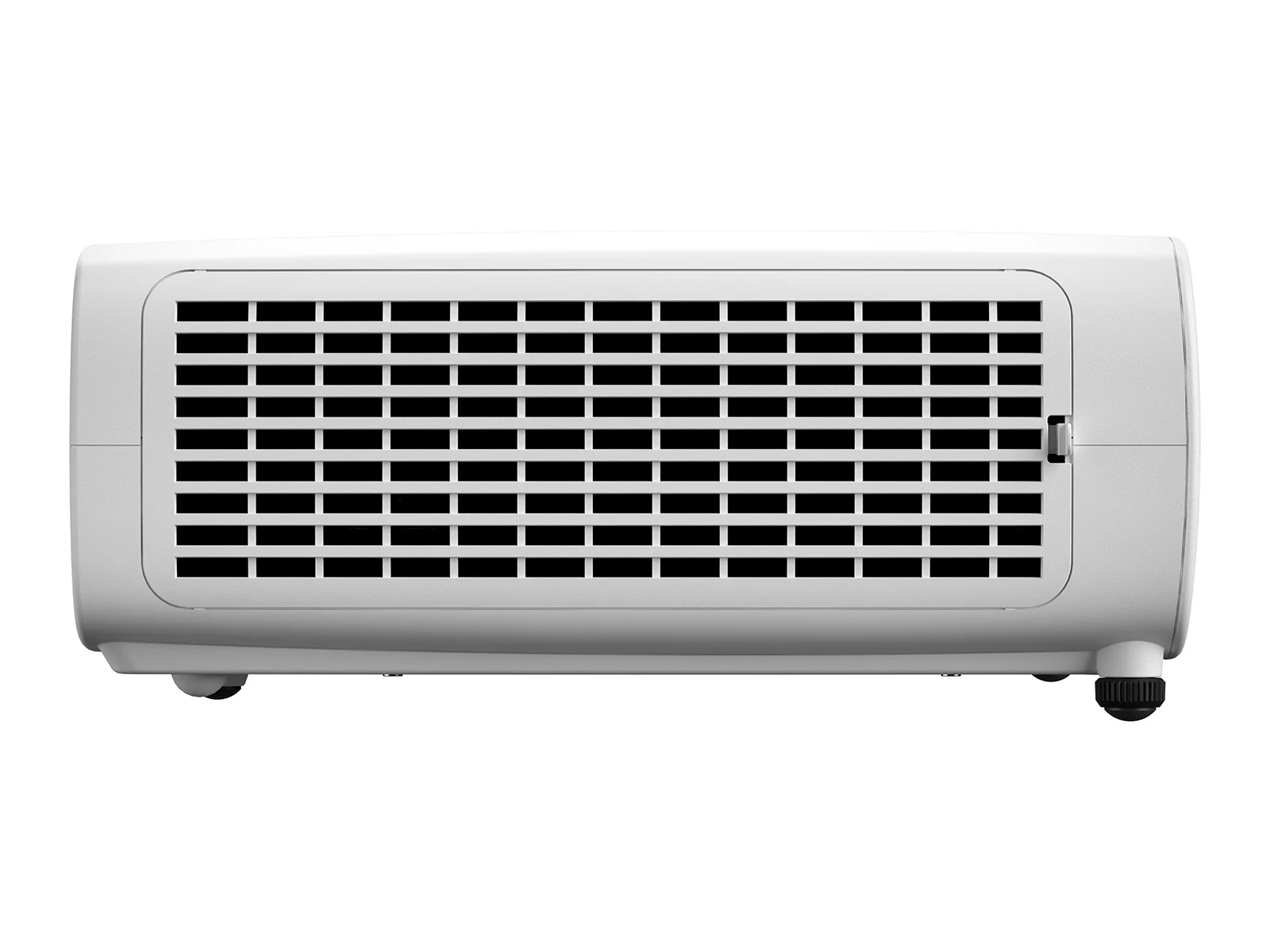

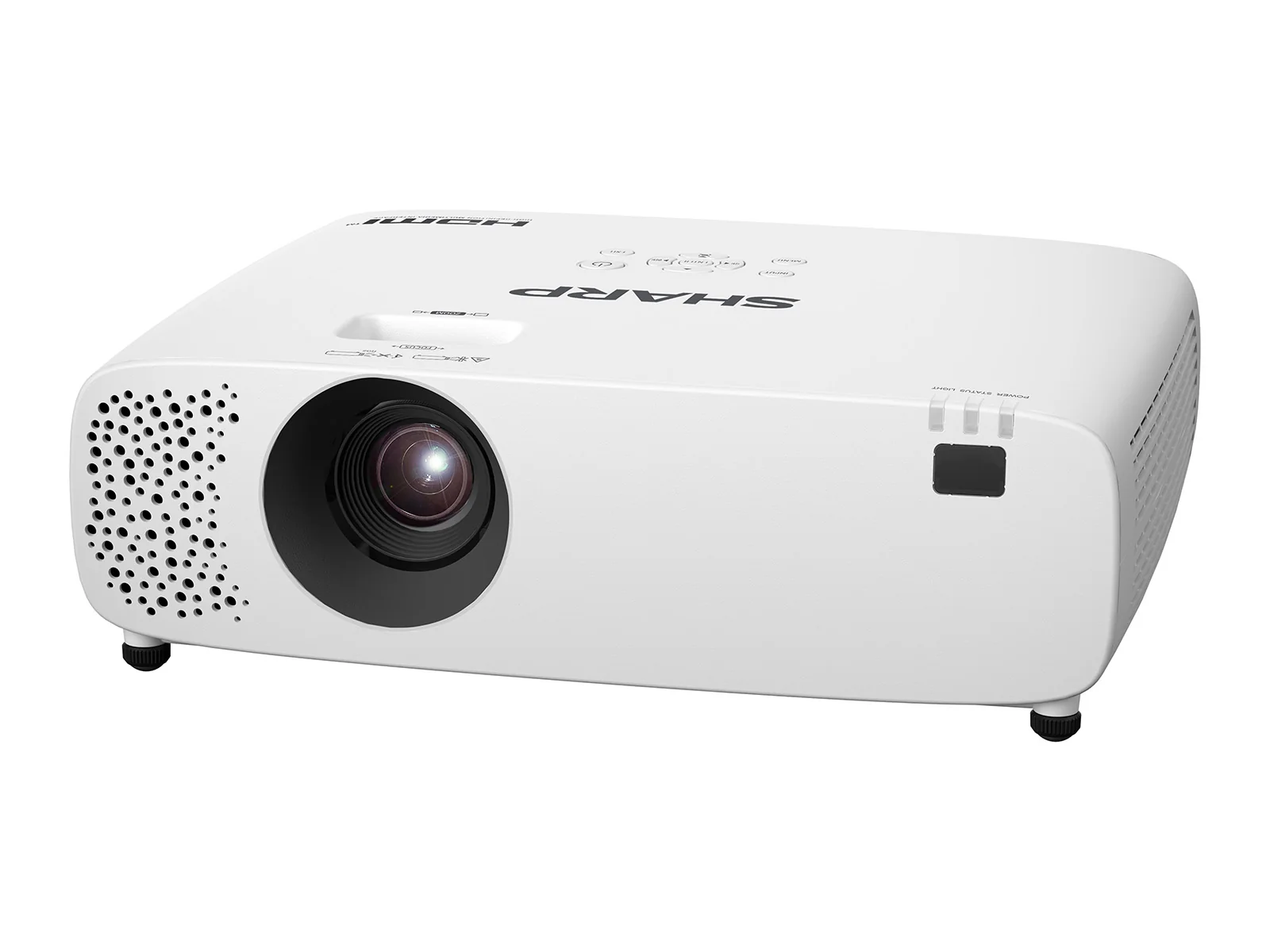

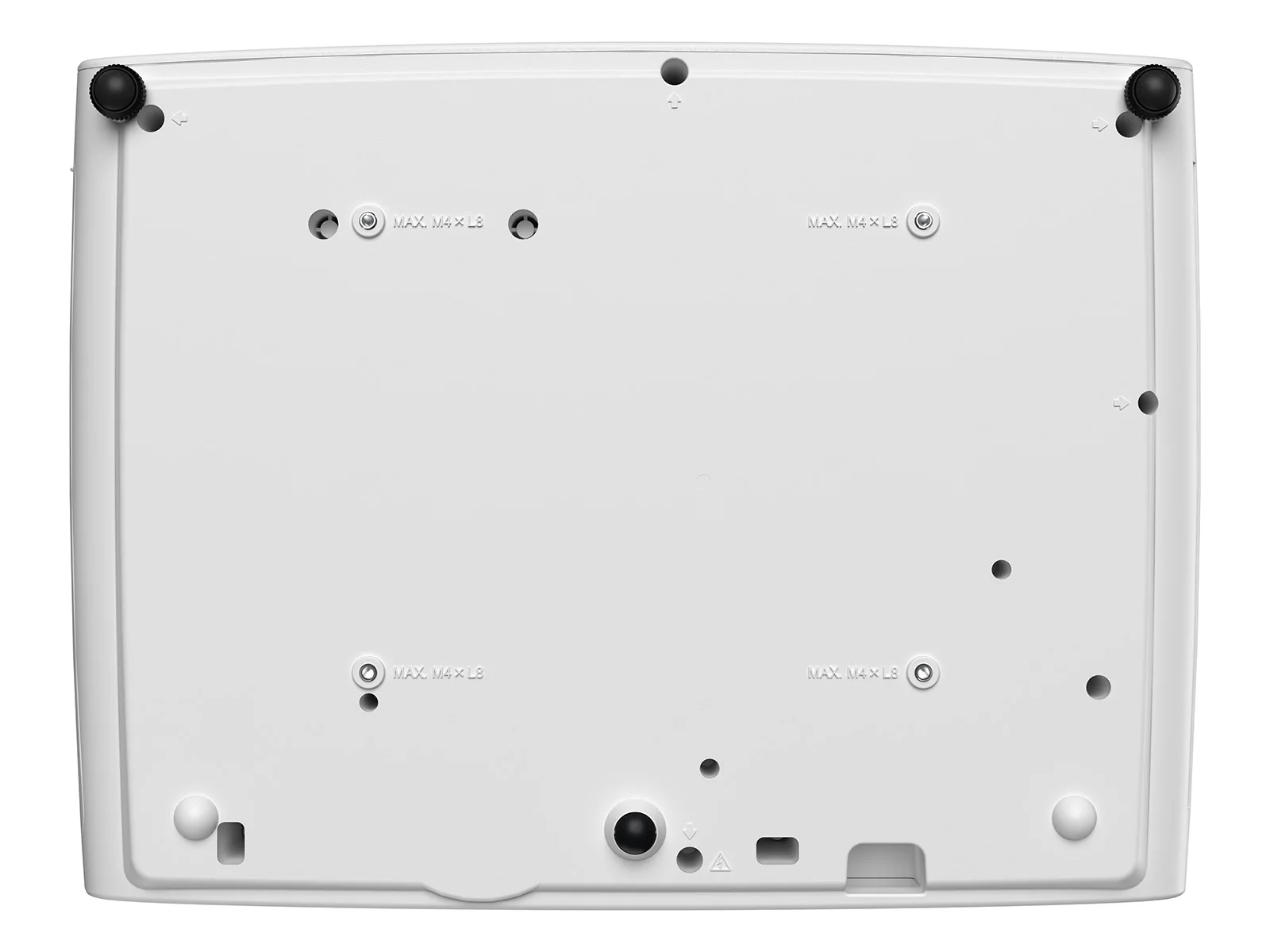

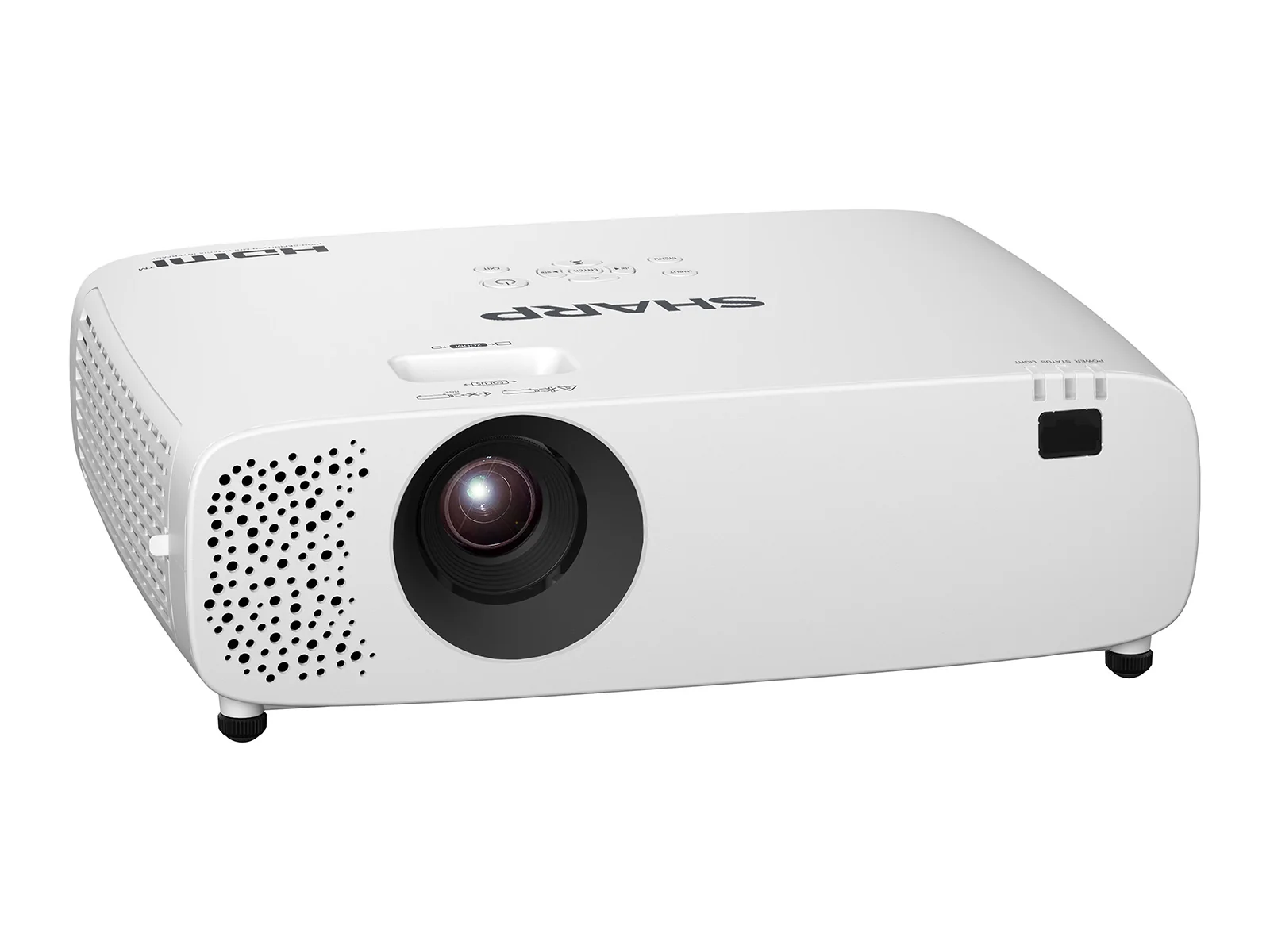

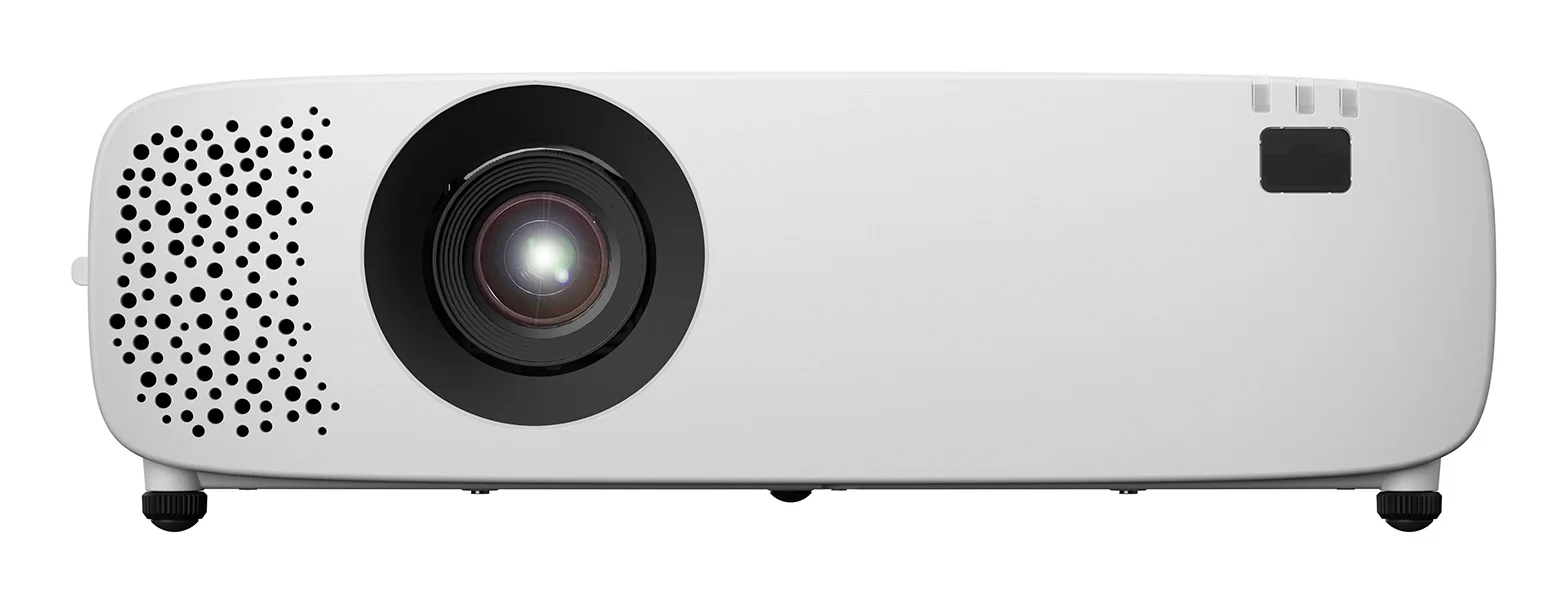

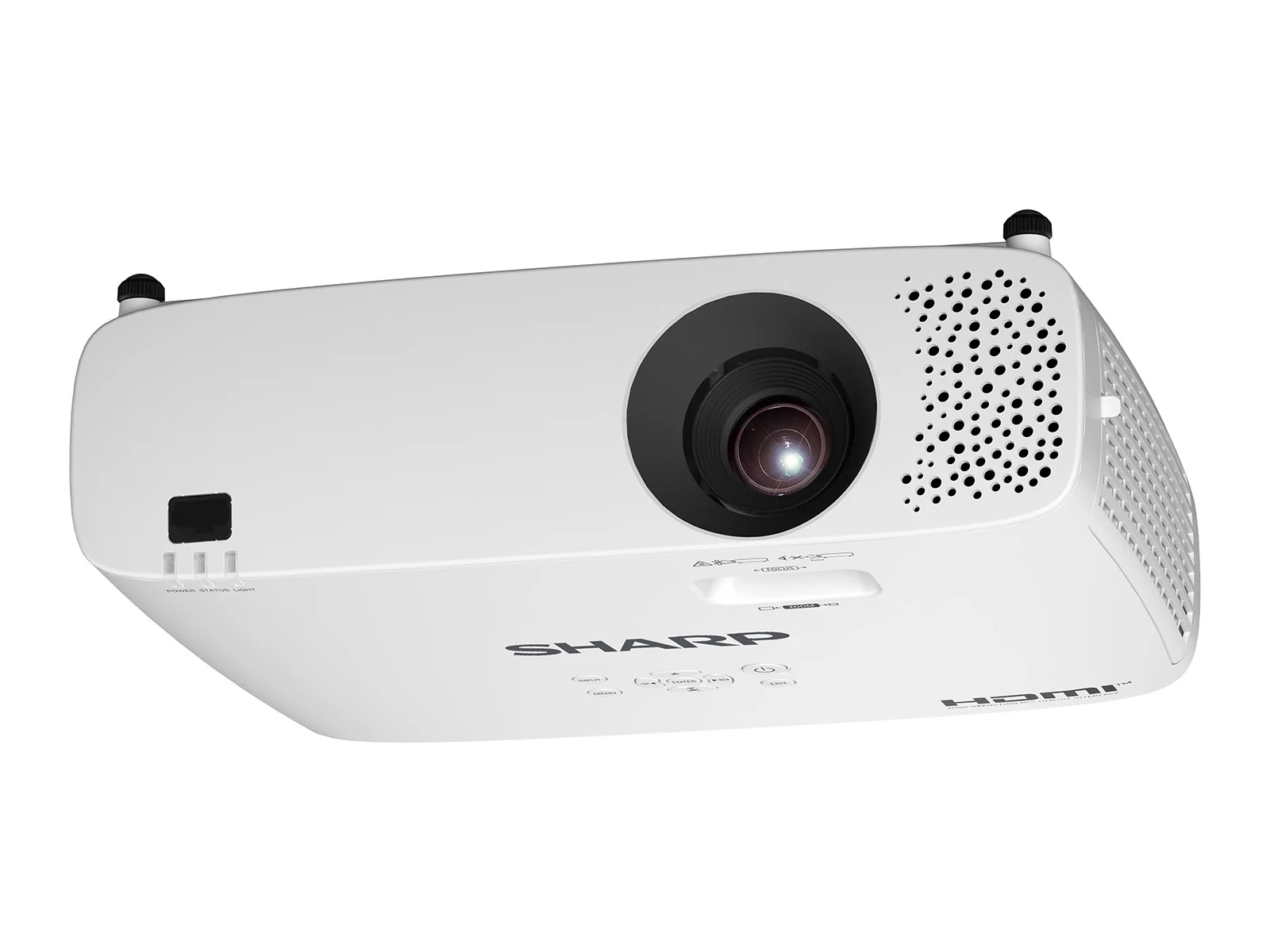

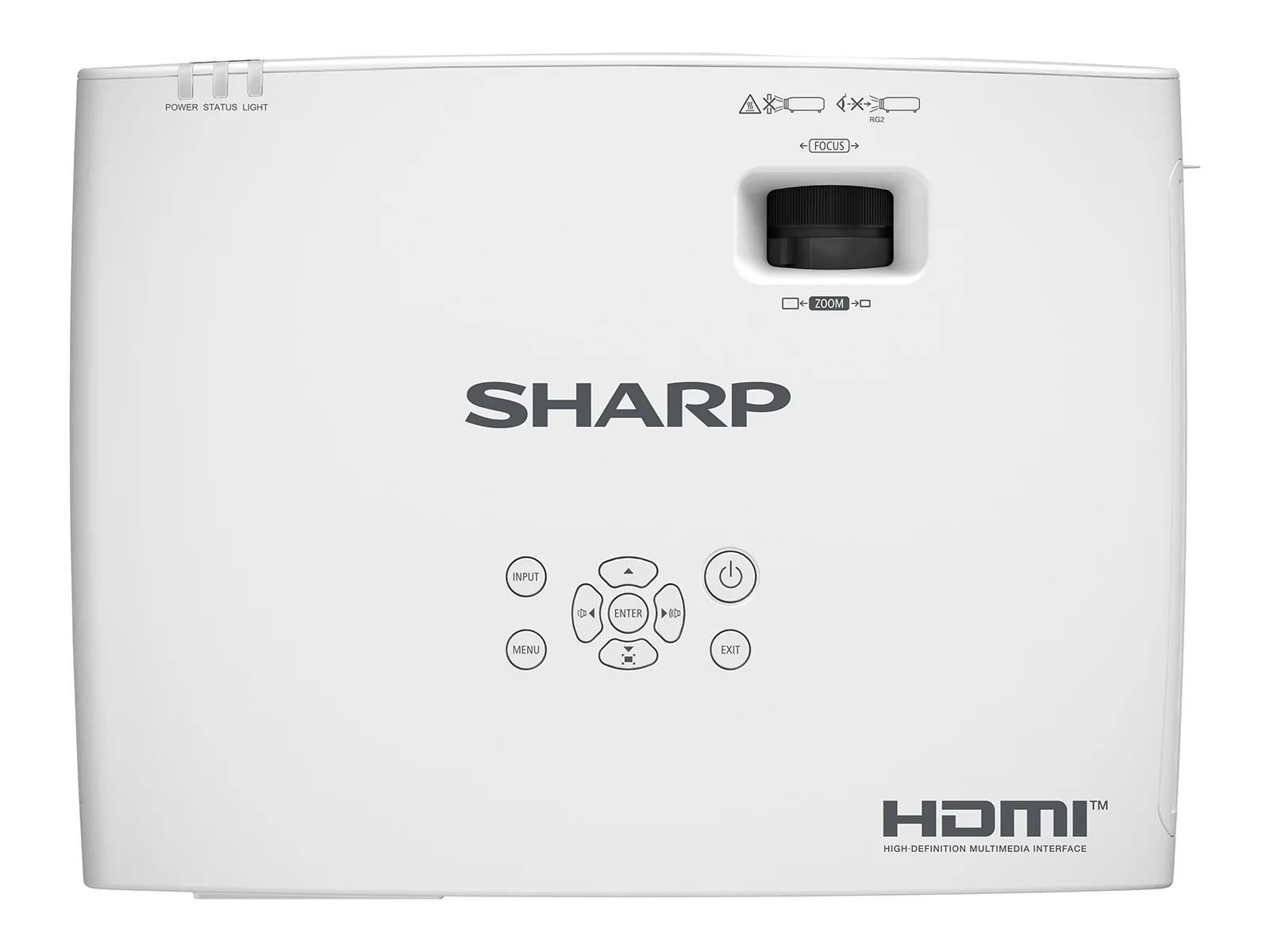

Sharp E501U WUXGA Projector
Model E501U
Overview
High Brightness, Low Cost For outstanding projection performance at an impressively low total cost of ownership, the Sharp E501U appeals to cost-conscious users who demand professional reliability. Delivering 5,000 lumens of brightness and the vivid colour reproduction of 3LCD technology, this compact WUXGA laser projector packs a powerful punch while weighing just 5kg. Designed for versatility, the E501U offers flexible installation options and a long operational life, making it a natural fit for classrooms, training facilities, and meeting rooms. Combining high performance, low maintenance, and exceptional value, it’s the smart choice for any budget-aware installation.
Specifications
Design
- Product colour
- White
Power
- Power source
- AC
- Power consumption (typical)
- 310 W
- Power consumption (standby)
- 0.5 W
- Power consumption (economy mode)
- 155 W
- AC input voltage
- 100 - 240 V
- AC input frequency
- 50 - 60 Hz
Video
- Analog signal format system
- NTSC 3.58,NTSC 4.43,PAL,PAL 60,PAL M,PAL N,SECAM
- Full HD
- Yes
Network
- Ethernet LAN
- Yes
- Ethernet LAN (RJ-45) ports
- 1
Projector
- Supported aspect ratios
- 16:10
- Screen size compatibility
- 30 - 300"
- Projection distance
- 0.85 - 11 m
- Projector brightness
- 5000 ANSI lumens
- Projection technology
- 3LCD
- Projector native resolution
- WUXGA (1920x1200)
- Contrast ratio (typical)
- 5000000:1
- Native aspect ratio
- 16:10
Multimedia
- Built-in speaker(s)
- Yes
- RMS rated power
- 1.6 W
- Number of built-in speakers
- 1
Lens system
- Focus
- Manual
- Focal length range
- 19.16 - 23.02 mm
- Aperture range (F-F)
- 1.6 - 1.76
- Zoom capability
- Yes
- Zoom ratio
- 1.2:1
Light source
- Light source type
- Laser
- Service life of light source
- 20000 h
Packaging content
- Remote control included
- Yes

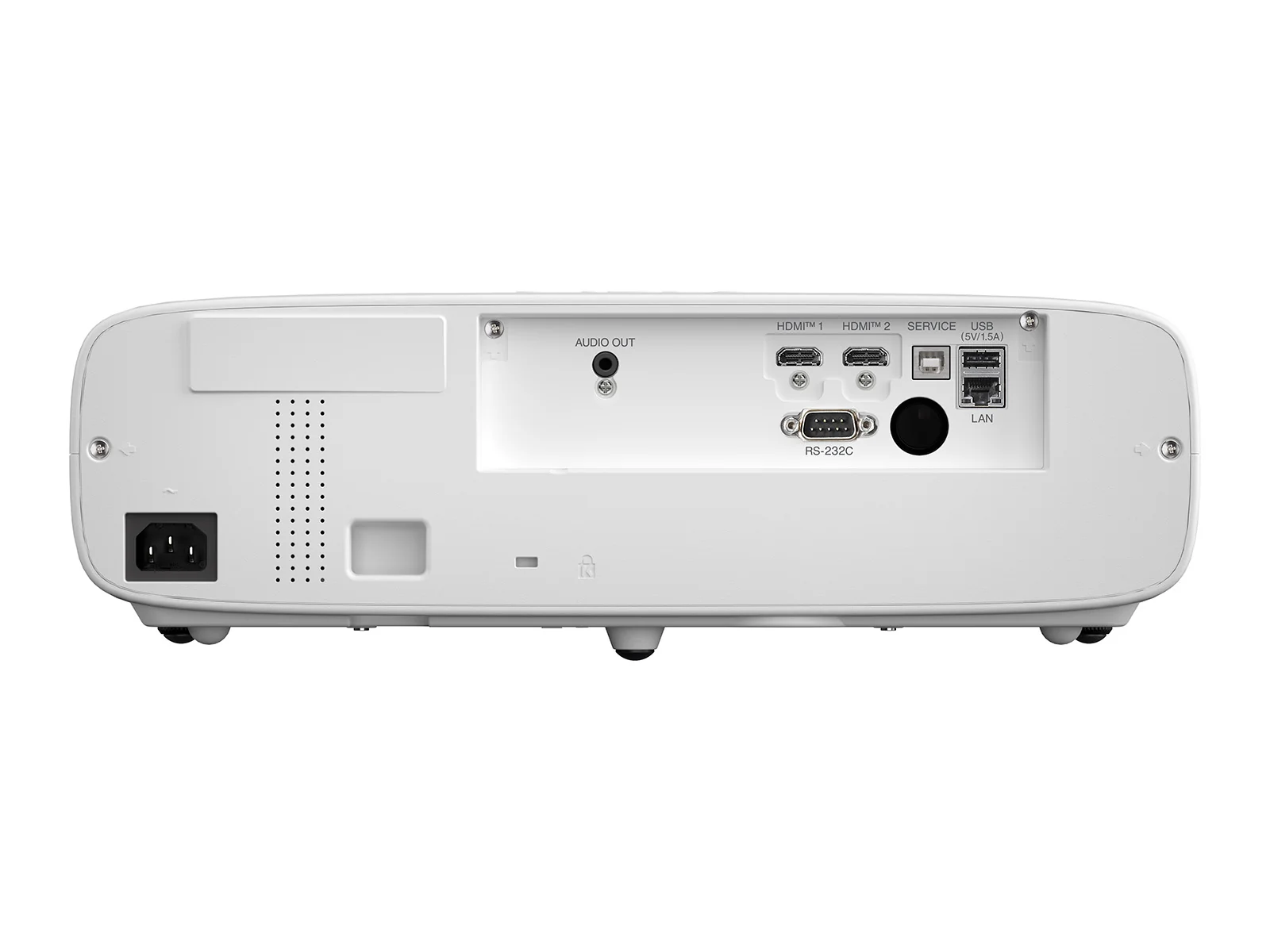

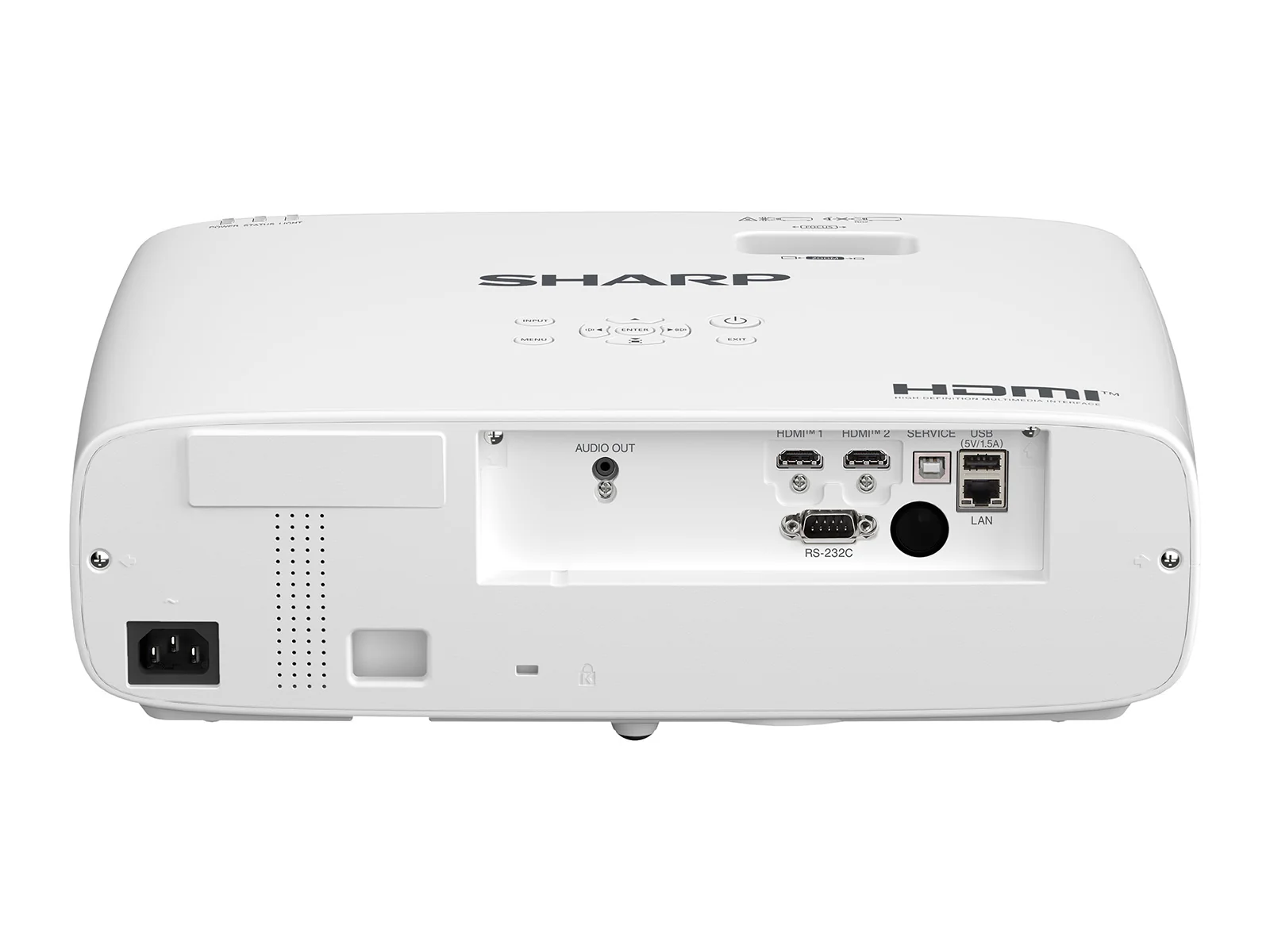

Ports & interfaces
- USB 2.0 Type-A ports quantity
- 1
- USB 2.0 Type-B ports quantity
- 1
- Audio (L/R) in
- 1
- Serial interface type
- RS-232
- HDMI ports quantity
- 2
Weight & dimensions
- Width
- 390 mm
- Depth
- 128 mm
- Height
- 294 mm
- Weight
- 5000 g
Operational conditions
- Operating temperature (T-T)
- 5 - 45 °C
- Storage temperature (T-T)
- -10 - 50 °C
- Operating relative humidity (H-H)
- 20 - 80 %
- Storage relative humidity (H-H)
- 20 - 80 %
