MSI PRO Z890-P WIFI
Model PRO Z890-P WIFI
Overview
PRO Z890-P WIFI PRO Z890-P WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 5G LAN, Thunderbolt 4, PCIe 5.0 M.2 with EZ M.2 Shield Frozr II, and Supplemental PCIe Power, ready for the Intel® Core™ Ultra processors. BUSINESS ELEGANCE The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency. MSI Motherboard ai logo MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before. 14+1+1+1 DRPS POWER DESIGN Unleash and sustain the maximum performance with a flagship VRM design built with a total of 14+1+1+1 digital power phases. Combining dual power connectors and 55A DrMOS, PRO Z890-P WIFI is ready for the challenge of high-end processors. HIGH-BANDWIDTH AND LOW-LATENCY NETWORK MSI's premium network solution provides incredible data transfer speed for demanding users.
Specifications
Memory
- Supported memory types
- DDR5-SDRAM
- Number of memory slots
- 4
- Memory slots type
- DIMM
- Memory channels
- Dual-channel
- ECC сompatibility
- non-ECC
- Supported memory clock speeds
- 6400,9200 MHz
- Supported memory clock speed (max)
- 9200 MHz
- Maximum internal memory
- 256 GB
Network
- Ethernet LAN
- Yes
- Ethernet interface type
- 5 Gigabit Ethernet
- Wi-Fi
- Yes
- Top Wi-Fi standard
- Wi-Fi 7 (802.11be)
- Wi-Fi standards
- 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax),Wi-Fi 6E (802.11ax),Wi-Fi 7 (802.11be)
- Bluetooth
- Yes
- Bluetooth version
- 5.4
Features
- Motherboard chipset
- Intel Z890
- Audio chip
- Realtek ALC897
- Audio output channels
- 7.1 channels
- Product colour
- Black
- Component for
- PC
- Motherboard form factor
- ATX
- Motherboard chipset family
- Intel
- Windows operating systems supported
- Windows 11
Graphics
- On-board graphics card
- No
Processor
- Processor manufacturer
- Intel
- Processor socket
- LGA 1851 (Socket V1)
- Compatible processor series
- Intel Core Ultra (Series 2)
- Supported processor sockets
- LGA 1851
- Maximum internal memory supported by processor
- 256 GB
Internal I/O
- USB 2.0 connectors
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 4
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 1
- Number of SATA III connectors
- 4
- Total number of SATA connectors
- 4
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- EPS power connector (8-pin)
- Yes
- Number of EPS power connectors (8-pin)
- 1
- TPM connector
- Yes
Expansion slots
- PCI Express x1 (Gen 4.x) slots
- 1
- PCI Express x4 (Gen 4.x) slots
- 2
- PCI Express x16 (Gen 4.x) slots
- 2
- PCI Express x16 (Gen 5.x) slots
- 1
- Number of M.2 (M) slots
- 4
Storage controllers
- Supported storage drive types
- HDD & SSD
- Supported storage drive interfaces
- M.2,SATA III
- Number of HDDs supported
- 8
- Number of storage drives supported
- 4
- RAID support
- Yes
- RAID levels
- 0,1,5,10
Weight & dimensions
- Width
- 243.84 mm
- Depth
- 304.8 mm

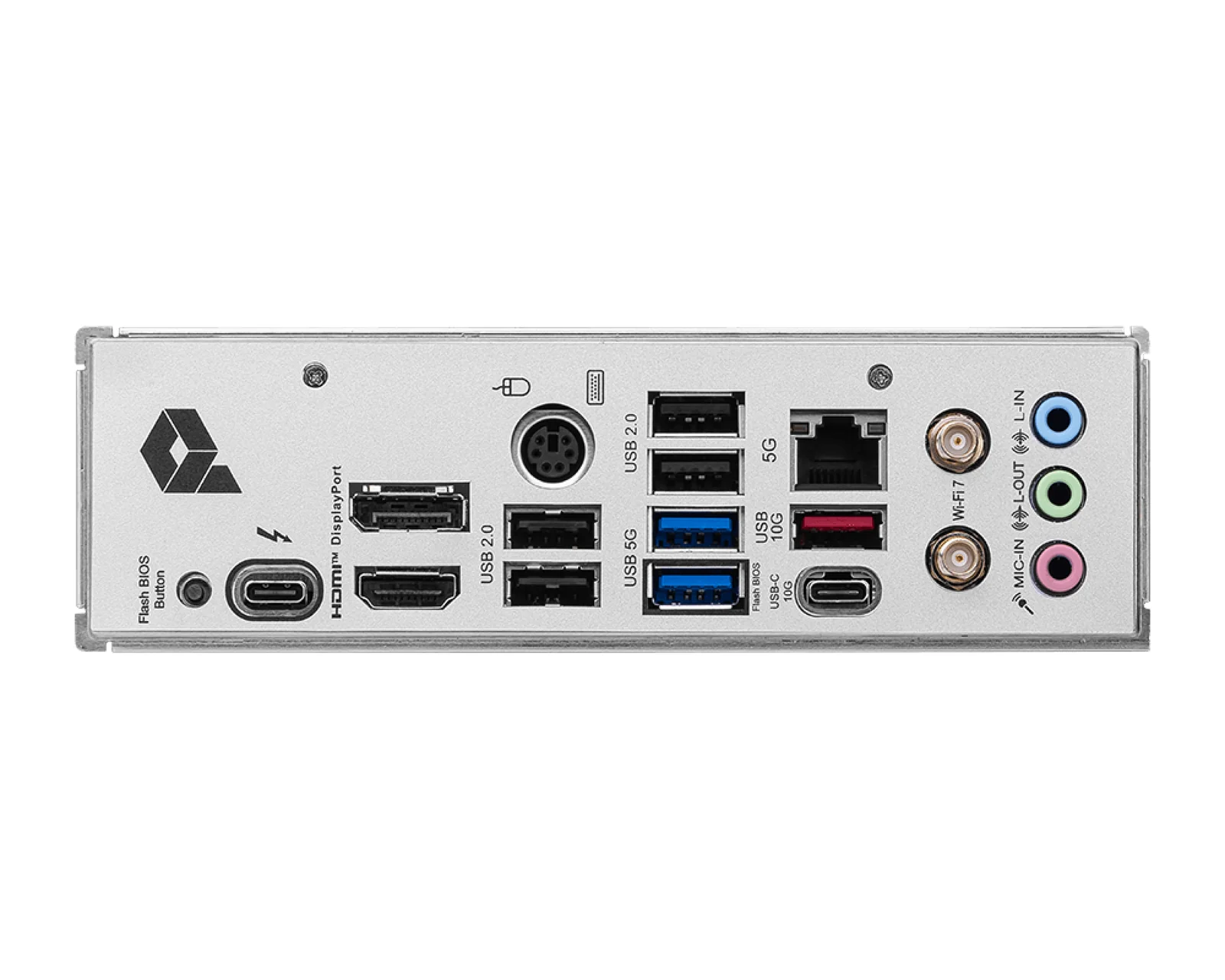

Rear panel I/O ports
- USB 2.0 ports quantity
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
- HDMI ports quantity
- 1
- HDMI version
- 2.1
- DisplayPorts quantity
- 1
- DisplayPort version
- 1.4
- Thunderbolt ports quantity
- 1
