Integral

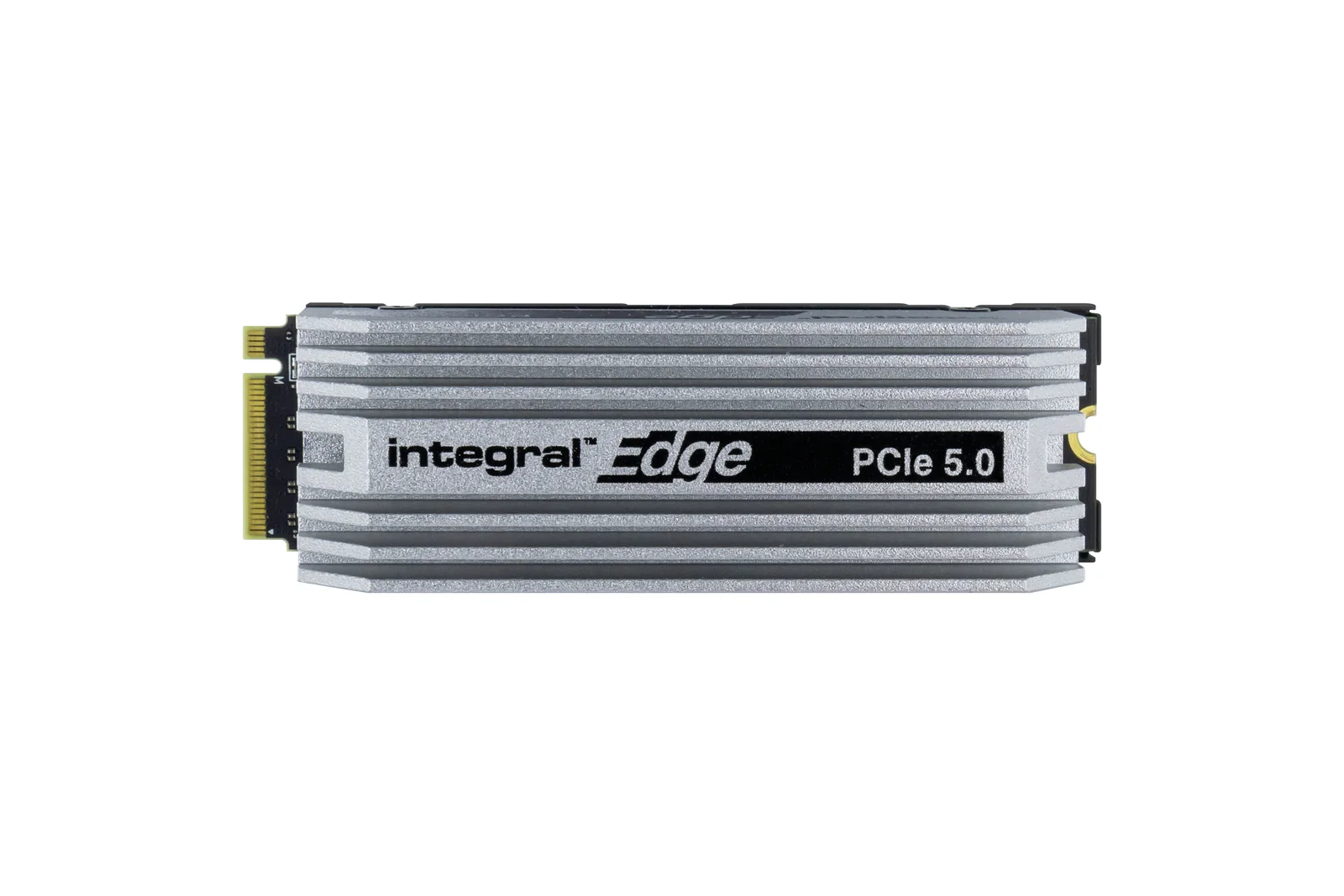

Integral SP002TBP54XS8005-IN 2TB Internal SSD
Model 2TB EDGE GEN5 M.2 2280 NVME SOLID STATE DRIVE WITH HEATSINK for SILICON POWER SP002TBP54XS8005 and INSSD2TM2280G5EDGEHSX
Overview
The Integral Edge Gen5 M.2 2280 NVMe SSD, providing blister speeds of up to 12000 MB/s read, 10000 MB/s write and 1400K read/write speeds IOPS. Using the latest, Gen5x 4 controller technology, our latest Edge series NVMe Solid State Drives push the limits over the edge of what is possible! Whether it’s for gaming, video and photo editing, 3D rendering, machine or deep learning.
Specifications
Power
- Operating voltage
- 3.47 V
- Power consumption (read)
- 11.5 W
- Power consumption (write)
- 11.5 W
Features
- SSD capacity
- 2000 GB
- SSD form factor
- M.2
- Interface
- PCI Express 5.0
- NVMe
- Yes
- Memory type
- TLC
- Component for
- PC
- Hardware encryption
- No
- Read speed
- 12000 MB/s
- Write speed
- 10000 MB/s
- Random read (4KB)
- 1400 IOPS
- Random write (4KB)
- 1400 IOPS
- S.M.A.R.T. support
- Yes
- TRIM support
- Yes
- Mean time between failures (MTBF)
- 1600000 h
- Protection features
- Shock resistant
Other features
- Compliance certificates
- RoHS
Packaging data
- Package width
- 73 mm
- Package depth
- 40 mm
- Package height
- 145 mm
- Package weight
- 55 g
Weight & dimensions
- Width
- 22 mm
- Depth
- 3.5 mm
- Height
- 80 mm
- Weight
- 7.4 g
Operational conditions
- Operating temperature (T-T)
- 0 - 70 °C
- Storage temperature (T-T)
- -40 - 85 °C
- Operating relative humidity (H-H)
- 0 - 90 %
