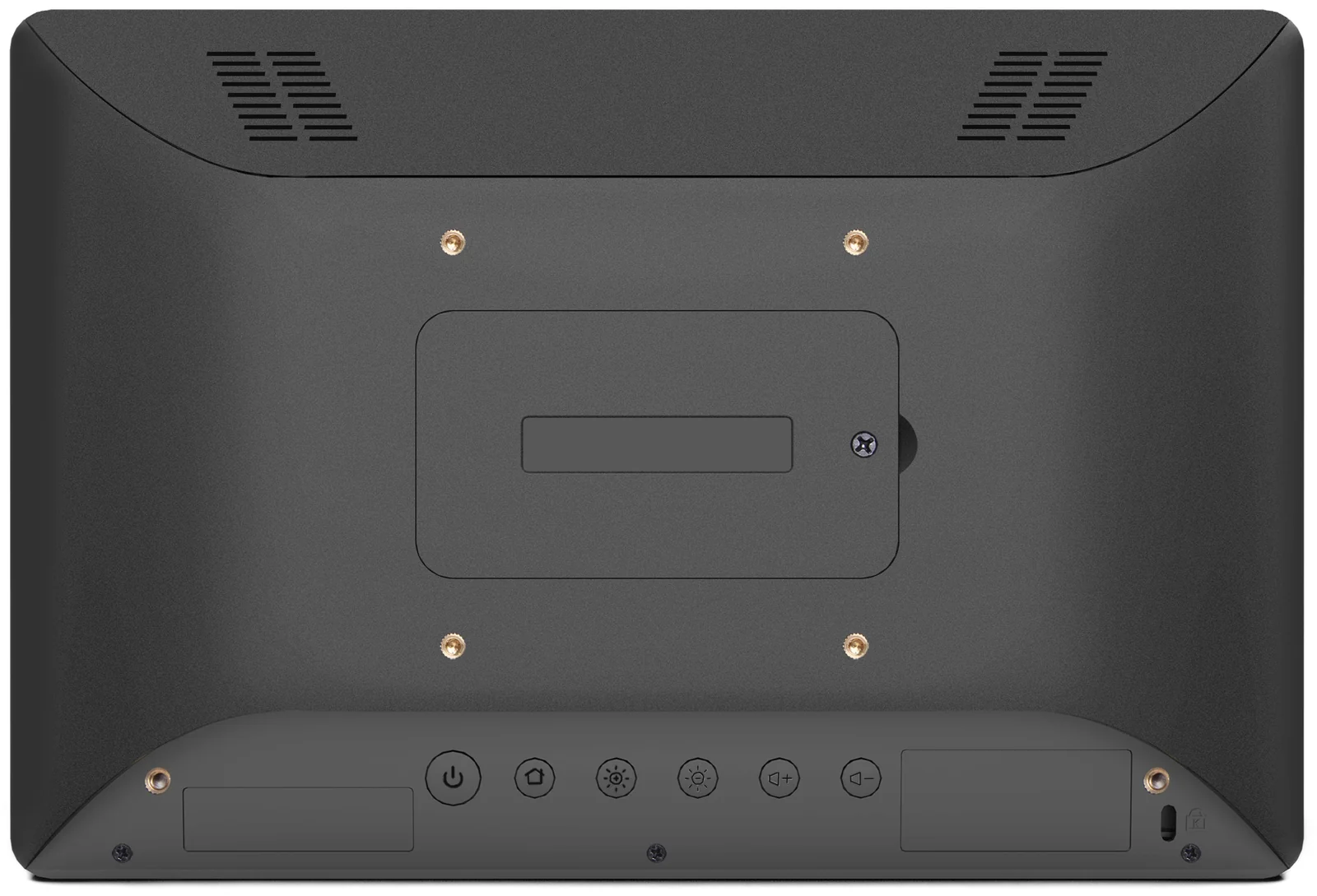

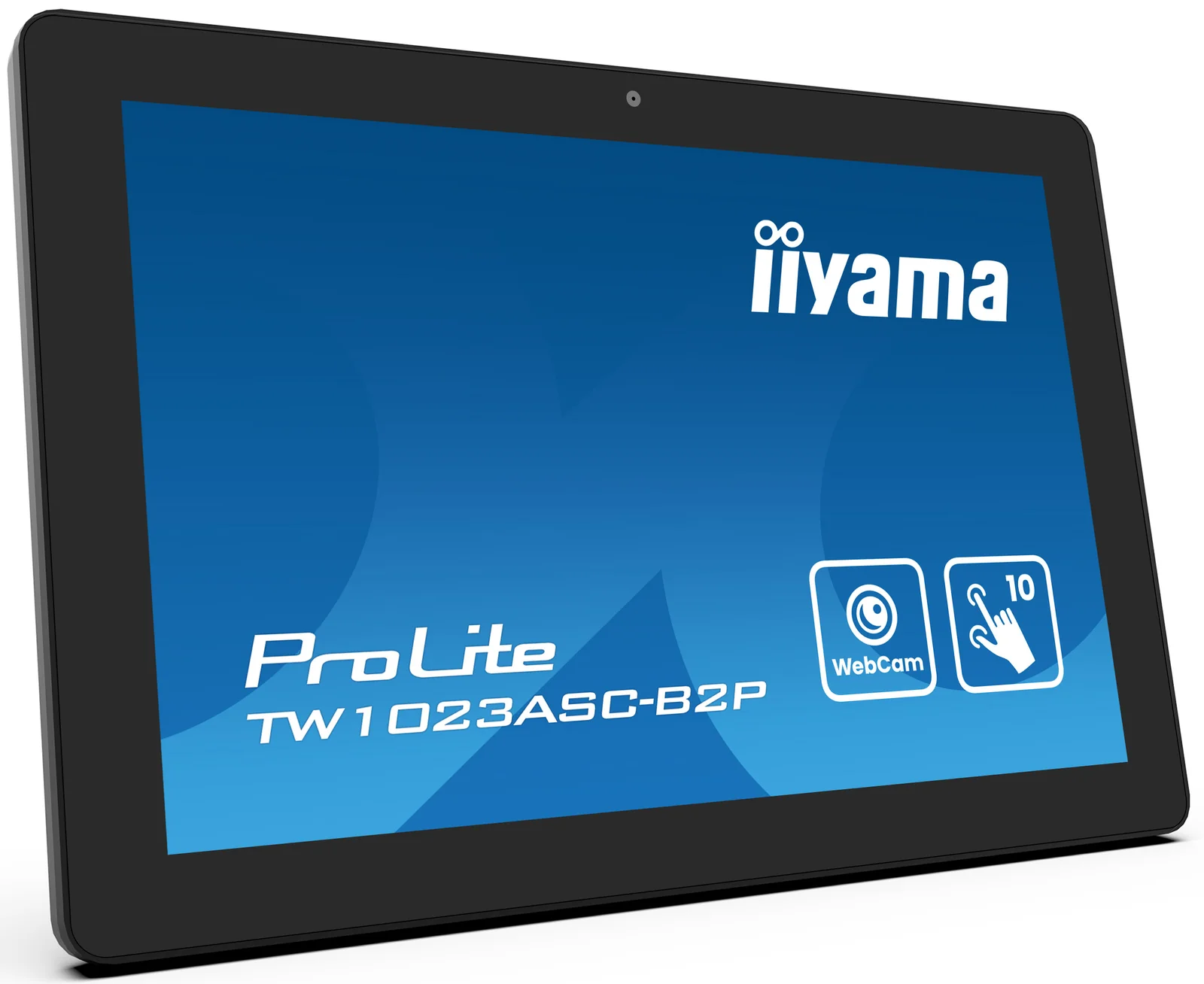

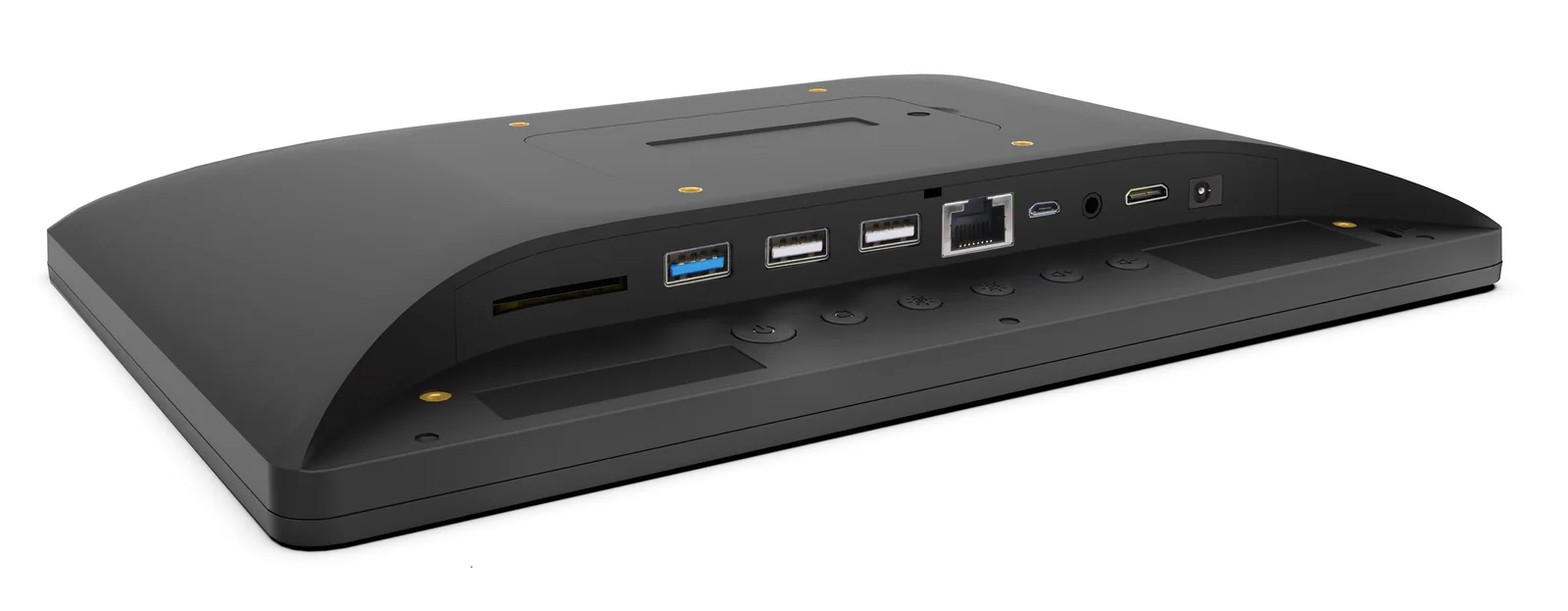

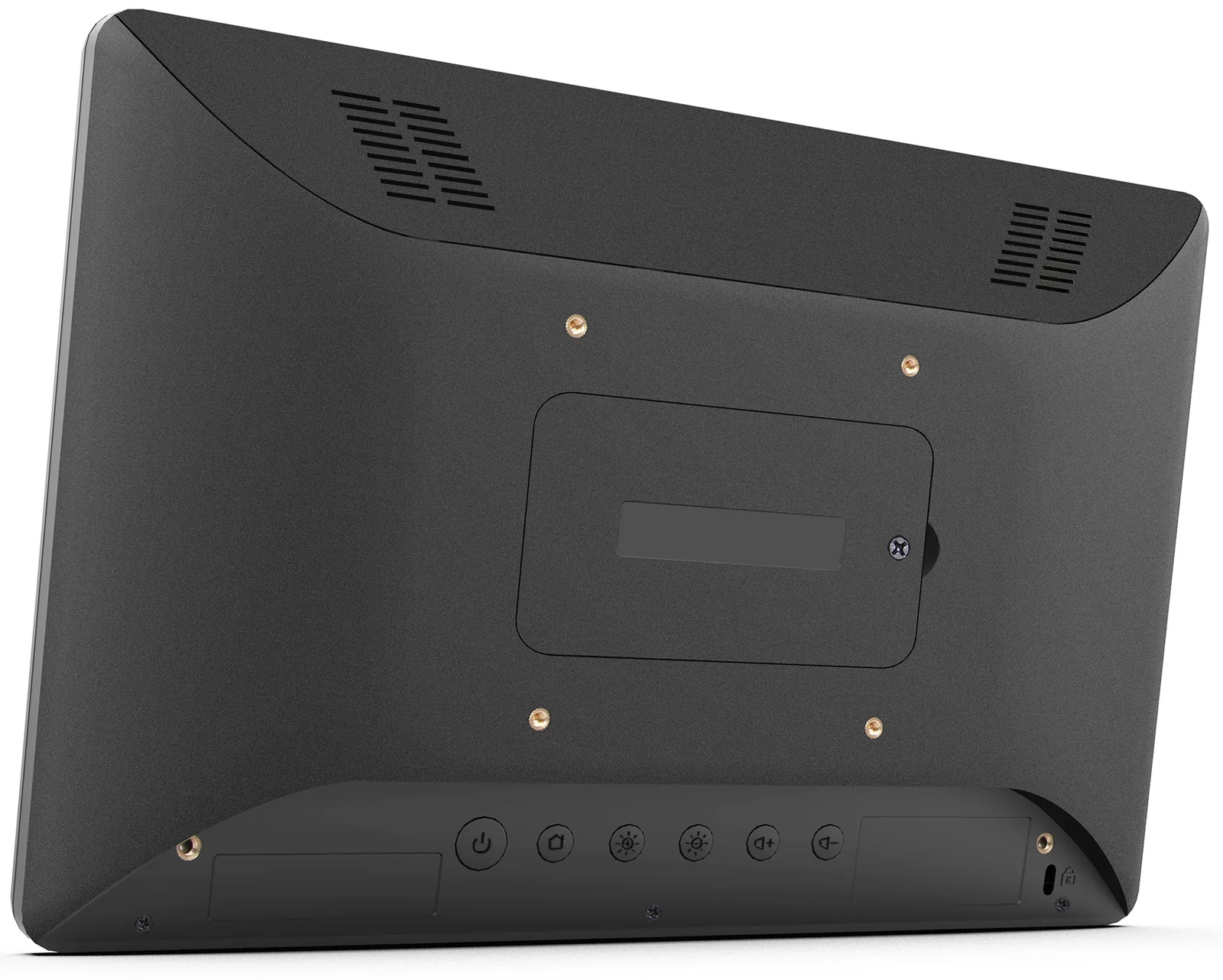

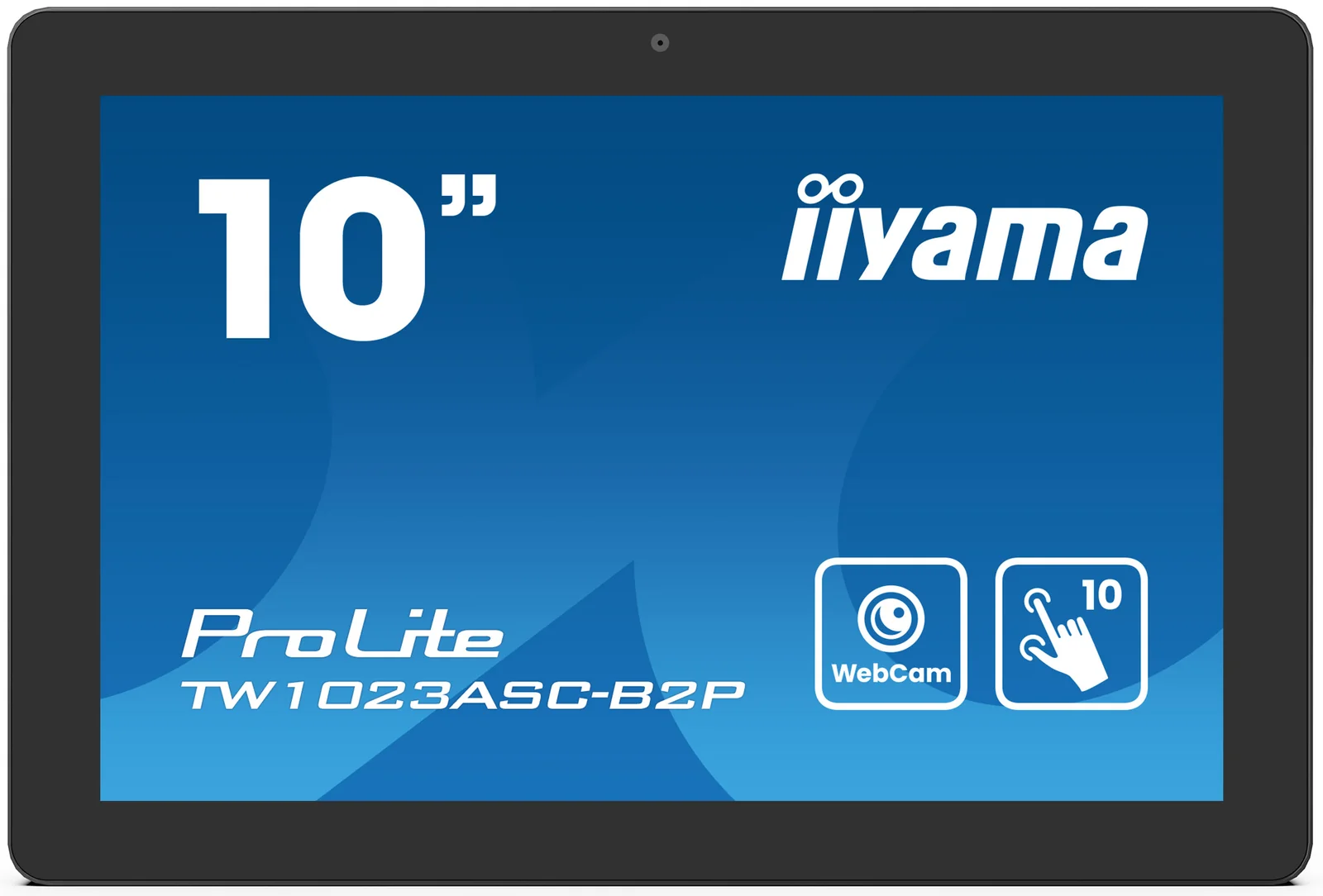

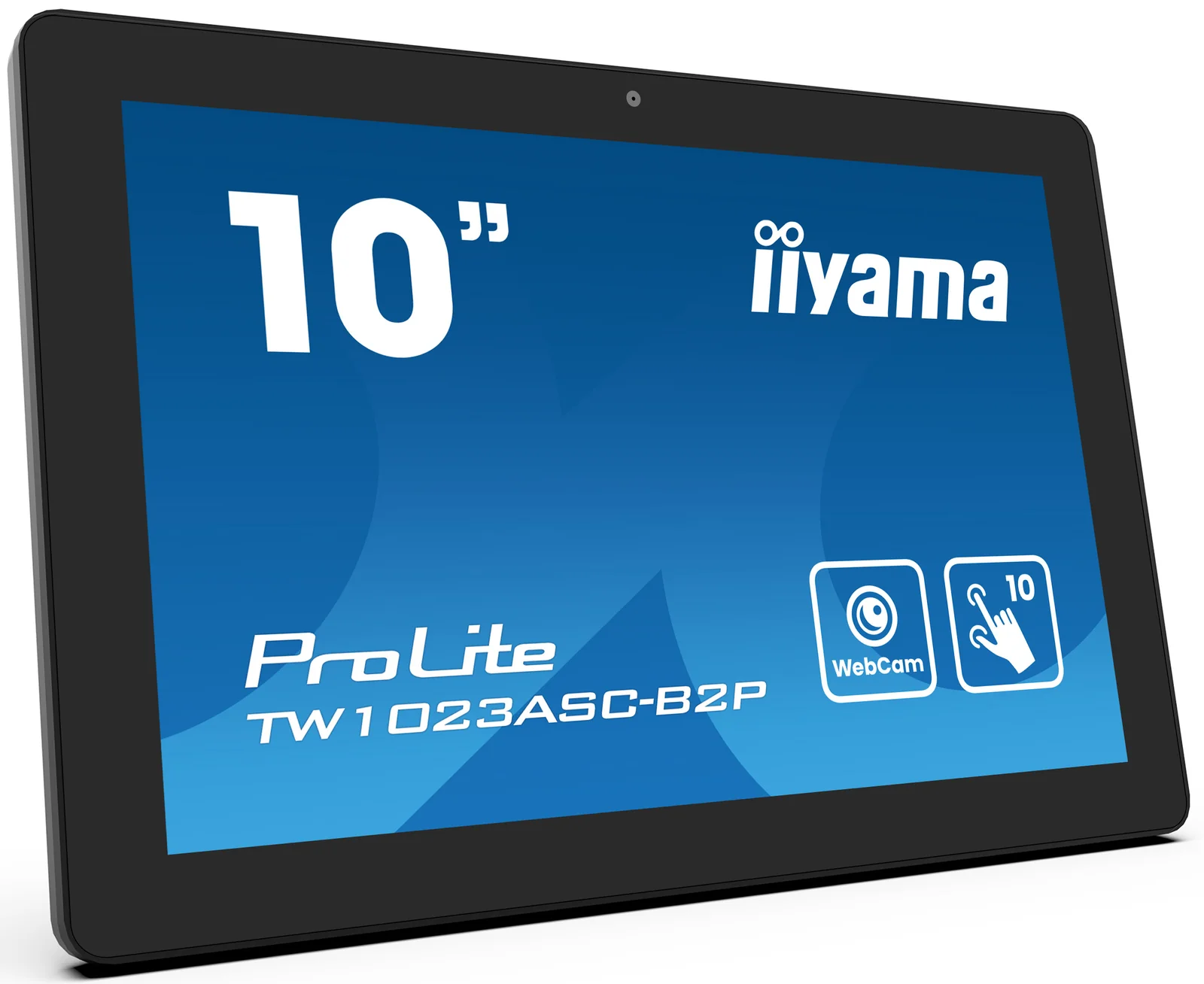

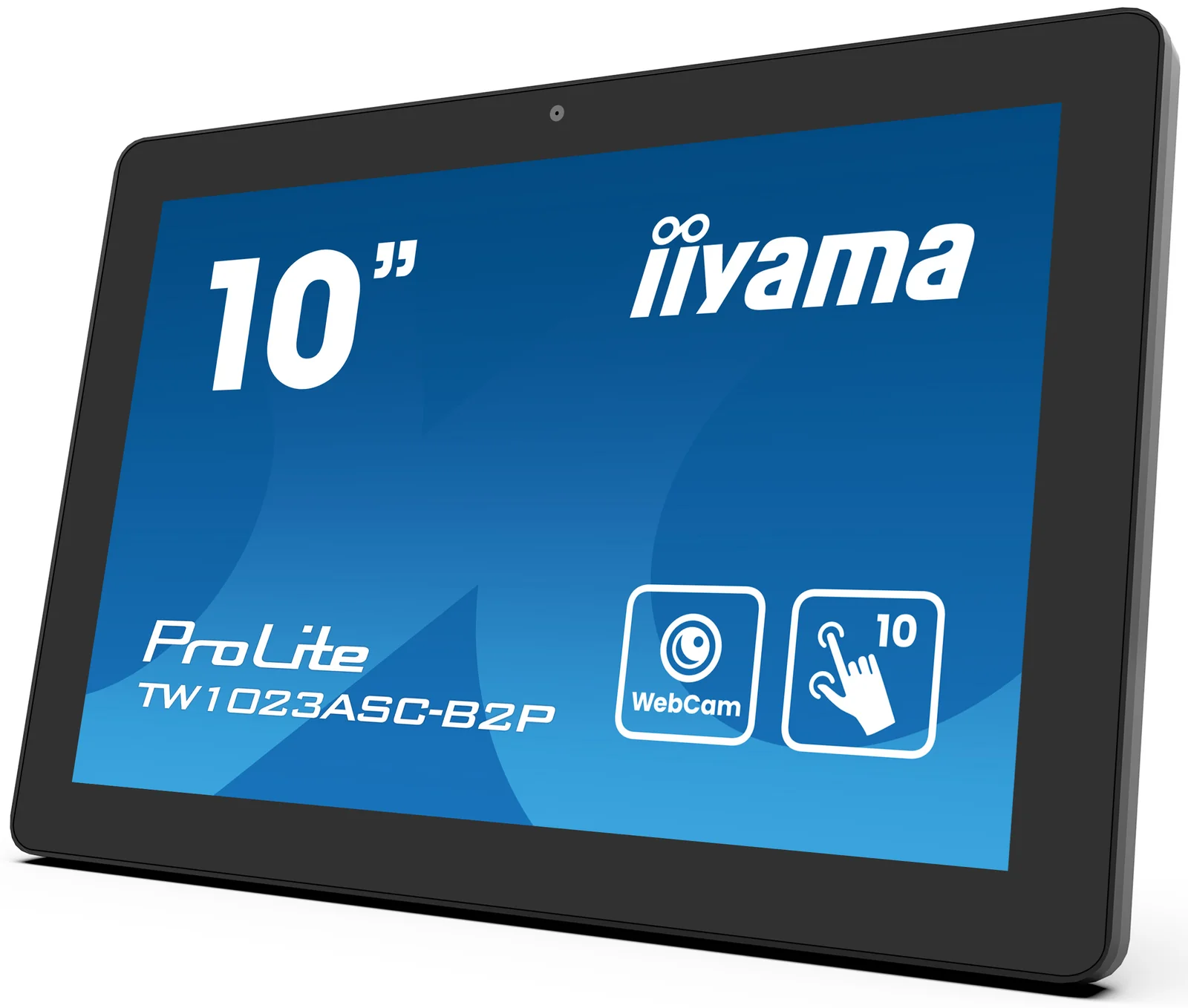

iiyama TW1023ASC-B2P 10.1" IPS Monitor
Model TW1023ASC-B2P
Overview
The ProLite TW1023ASC-B2P touch panel PC is a perfect choice for high-use environments such as retail, interactive POS, information desks or hospitality applications. Thanks to the pre-installed Android operating system, it is possible to easily customize the monitor by installing applications directly to it. The Power over Ethernet technology (POE) allows to provide both data connection and power by a single cable, simplifying all installations. This monitor can operate in landscape, portrait or face-up orientation. Together with the built-in camera, microphone and speakers it offers limitless, interactive installation possibilities.
Specifications
Performance
- Flicker-free technology
- Yes
- Operating hours (hours/days)
- 24/7
- Operating system installed
- Android
- Operating system version
- 13
Display
- Screen size
- 10.1"
- Display diagonal
- 10.1"
- Display resolution
- 1280 x 800 pixels
- Native aspect ratio
- 16:9
- Panel type
- IPS
- Touchscreen
- Yes
- Touchscreen technology
- Projected capacitive system
- Number of simultaneous touchpoints
- 10
- Display brightness (typical)
- 450 cd/m²
- Display brightness
- 385 cd/m²
- Response time
- 25 ms
- Response time measurement type
- GTG (Gray to Gray)
- Contrast ratio (typical)
- 1000:1
- Viewing angle, horizontal
- 160 °
- Viewing angle, vertical
- 160 °
- Display number of colours
- 16.7 million colours
Design
- Product colour
- Black
- Front bezel colour
- Black
- Glass thickness
- 1.25 mm
Power
- Power consumption (typical)
- 18 W
- Power consumption (standby)
- 0.5 W
- AC adapter output voltage
- 12 V
- Power supply type
- External
Network
- Wi-Fi
- Yes
- Wi-Fi standards
- Wi-Fi 5 (802.11ac),Wi-Fi 4 (802.11n),802.11g,802.11a,802.11b
- Bluetooth
- Yes
- Bluetooth version
- 5.2
- Ethernet LAN
- Yes
Ergonomics
- VESA mounting
- Yes
- Panel mounting interface
- 75 x 75 mm
- Cable management
- Yes
Multimedia
- Number of speakers
- 2
- RMS rated power
- 3 W
- Built-in speaker(s)
- Yes
- Megapixel (approx.)
- 5 MP
- Built-in microphone
- Yes
- Built-in camera
- Yes
Packaging data
- Package width
- 398 mm
- Package depth
- 68 mm
- Package height
- 223 mm
- Package weight
- 1360 g
- Package type
- Box
- Quantity per pack
- 1 pc(s)
Sustainability
- Sustainability certificates
- ErP
Packaging content
- Cables included
- AC
- Quick start guide
- Yes
Ports & interfaces
- USB 2.0 Type-A ports quantity
- 2
- USB Touch port
- Yes
- HDMI ports quantity
- 1
- Audio input
- Yes
- Card reader integrated
- Yes
- Compatible memory cards
- SD
Weight & dimensions
- Width (with stand)
- 255 mm
- Depth (with stand)
- 30.5 mm
- Height (with stand)
- 172 mm
- Weight (with stand)
- 800 g
