HP
HP Z6 G5 A, 64GB RAM, 1TB SSD
Model Z6 G5 A
Overview

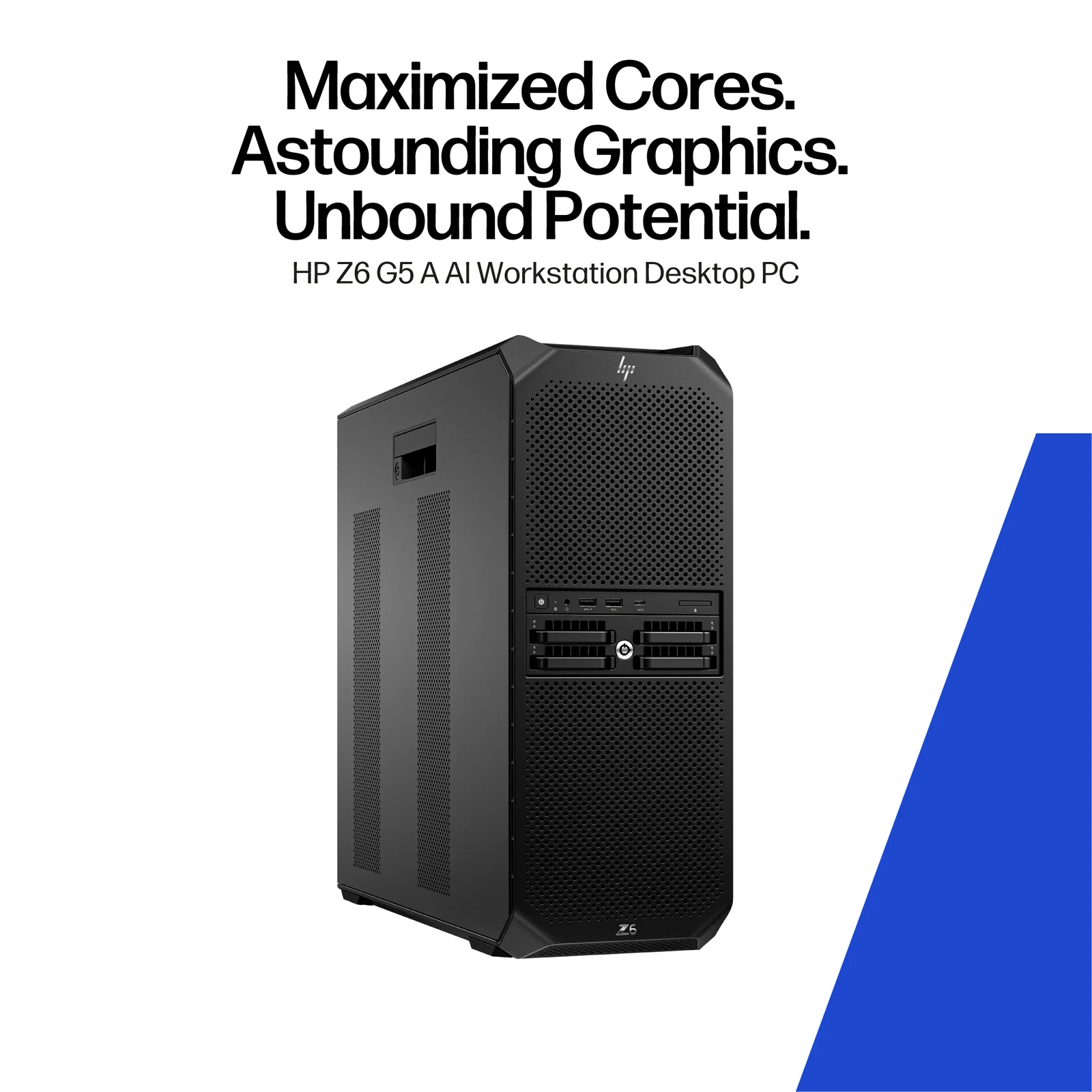

Maximized Cores. Astounding Graphics. Unbound Potential The refreshed HP Z6 G5 A is a powerhouse for AI workflows, 3D rendering and virtual production. Its innovative system design, with a next-gen AMD Ryzen™ Threadripper™ PRO CPU,[1] combines an astounding number of cores in a single CPU with up to 3 GPUs.[2] Create and render at once on intensive projects.
Specifications
Performance
- Market positioning
- Performance
- Password protection
- Yes
- Password protection type
- BIOS,Power on
- Trusted Platform Module (TPM)
- Yes
- Product type
- Workstation
- Trusted Platform Module (TPM) version
- 2.0
Storage
- Storage
- 1 TB
- Total storage capacity
- 1000 GB
- Storage media
- SSD
- Optical drive type
- No
- Number of storage drives installed
- 1
- Total SSDs capacity
- 1000 GB
- Number of SSDs installed
- 1
- SSD capacity
- 1000 GB
- SSD memory type
- TLC
- SSD interface
- PCI Express 4.0
- SSD form factor
- M.2
Display
- Display included
- No
Design
- Chassis type
- Tower
- Colour name
- Black
- Cable lock slot
- Yes
- Cable lock slot type
- Kensington
- Product colour
- Black
Power
- Power supply
- 1450 W
- Power supply input voltage
- 100 - 240 V
- Power supply input frequency
- 50/60 Hz
Memory
- Internal memory
- 64 GB
- Maximum internal memory
- 1000 GB
- Internal memory type
- DDR5-SDRAM
- Memory layout (slots x size)
- 2 x 32 GB
- Memory clock speed
- 6400 MHz
- Memory module type
- DIMM
- ECC
- Yes
- Memory data transfer rate
- 6400 MT/s
Network
- Ethernet LAN
- Yes
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Cabling technology
- 10/100/1000Base-T(X)
- Wi-Fi
- No
Graphics
- On-board graphics card
- No
- On-board graphics card model
- Not available
Software
- Operating system installed
- Windows 11 Pro
Processor
- Processor manufacturer
- AMD
- Processor family
- AMD Ryzen Threadripper PRO
- Processor generation
- AMD Ryzen Threadripper PRO 9000 WX-Series
- Processor model
- PRO 9945WX
- Processor cores
- 12
- Processor threads
- 24
- Processor boost frequency
- 5.4 GHz
- Processor frequency
- 4.7 GHz
- Processor cache
- 64 MB
- Processor cache type
- L3
Expansion slots
- Number of 3.5" bays
- 2
- PCI Express x16 (Gen 4.x) slots
- 1
- PCI Express x16 (Gen 5.x) slots
- 4
Ports & interfaces
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 12
- USB 3.2 Gen 2x2 Type-C ports quantity
- 1
- Line-in
- Yes
- Microphone in
- Yes
