GIGABYTE

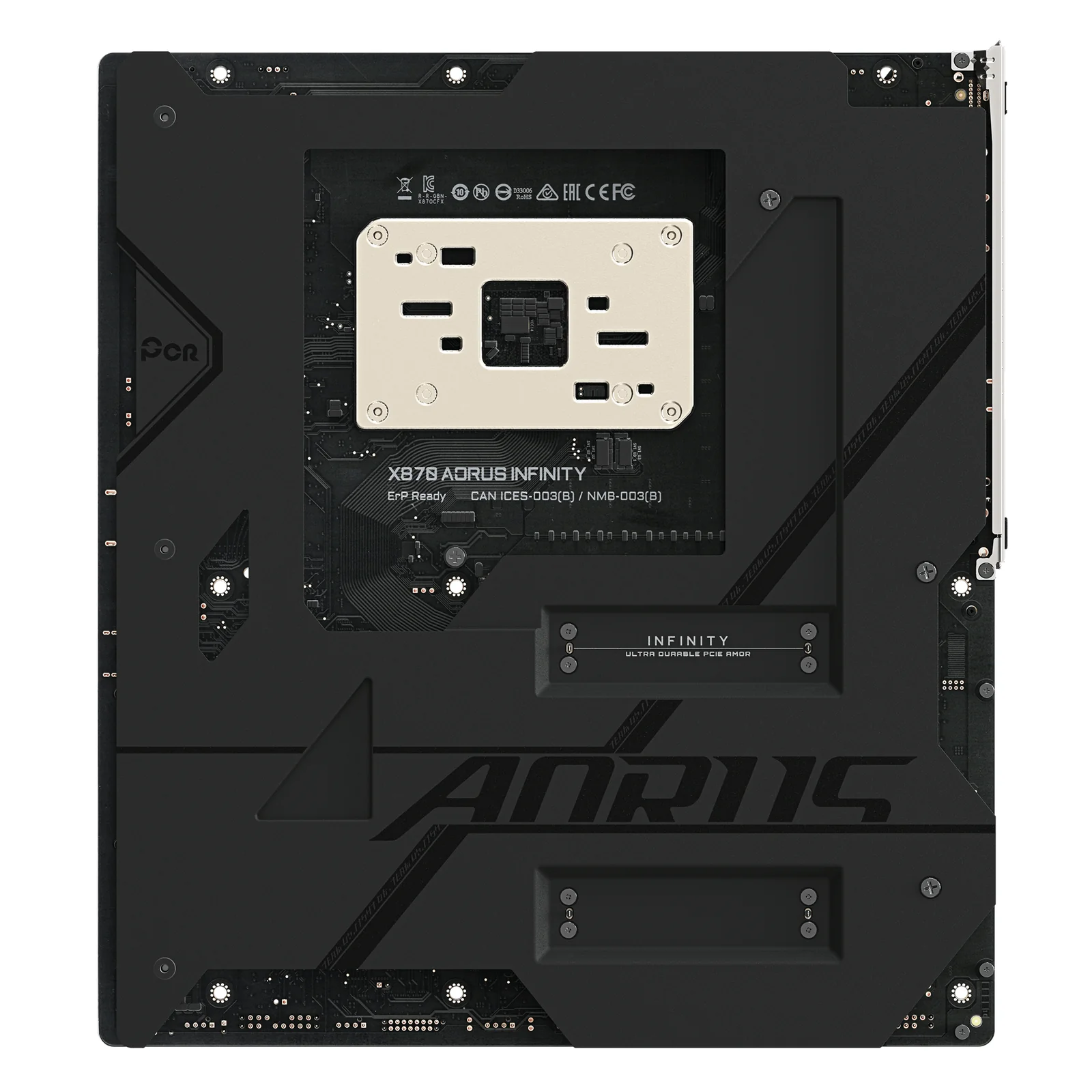

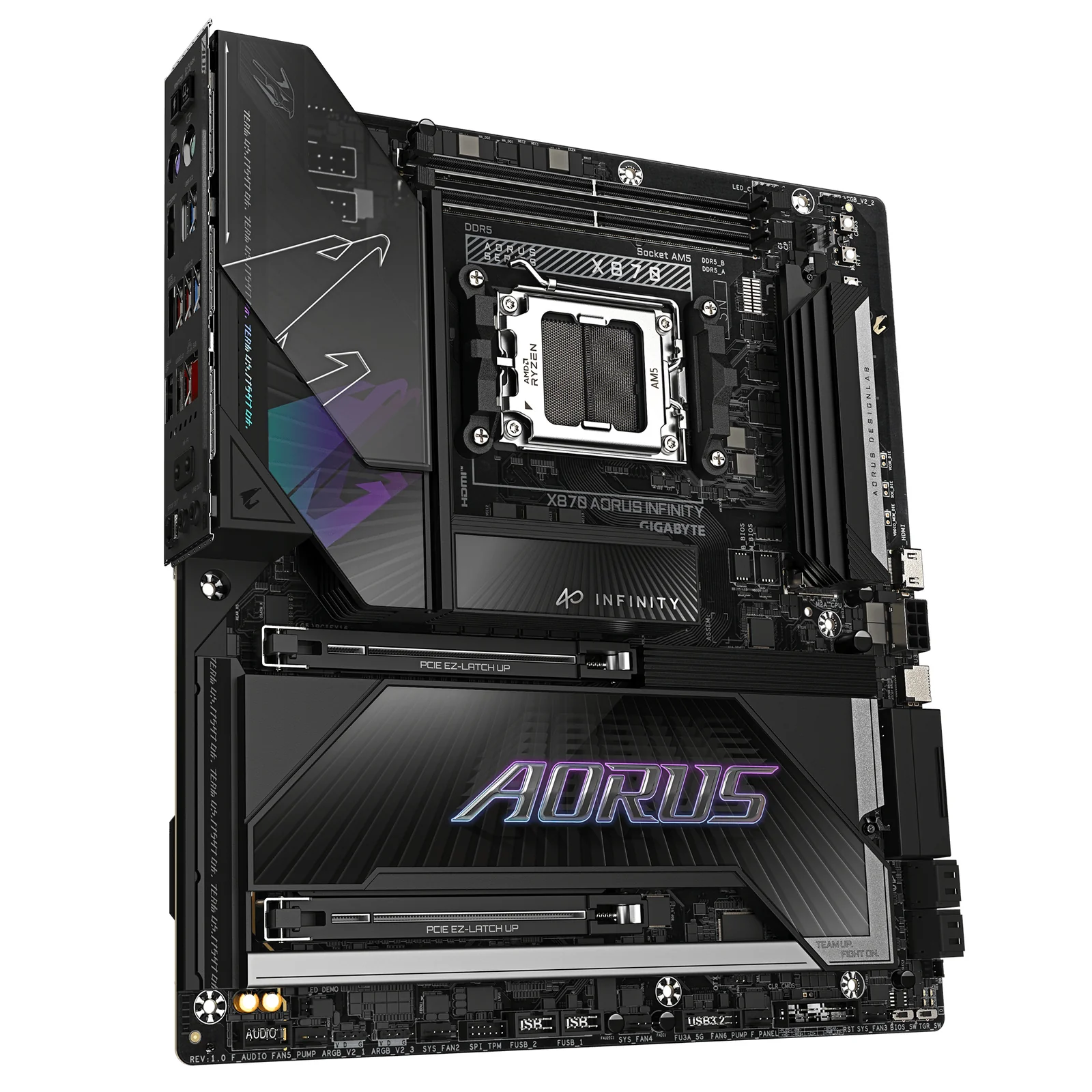

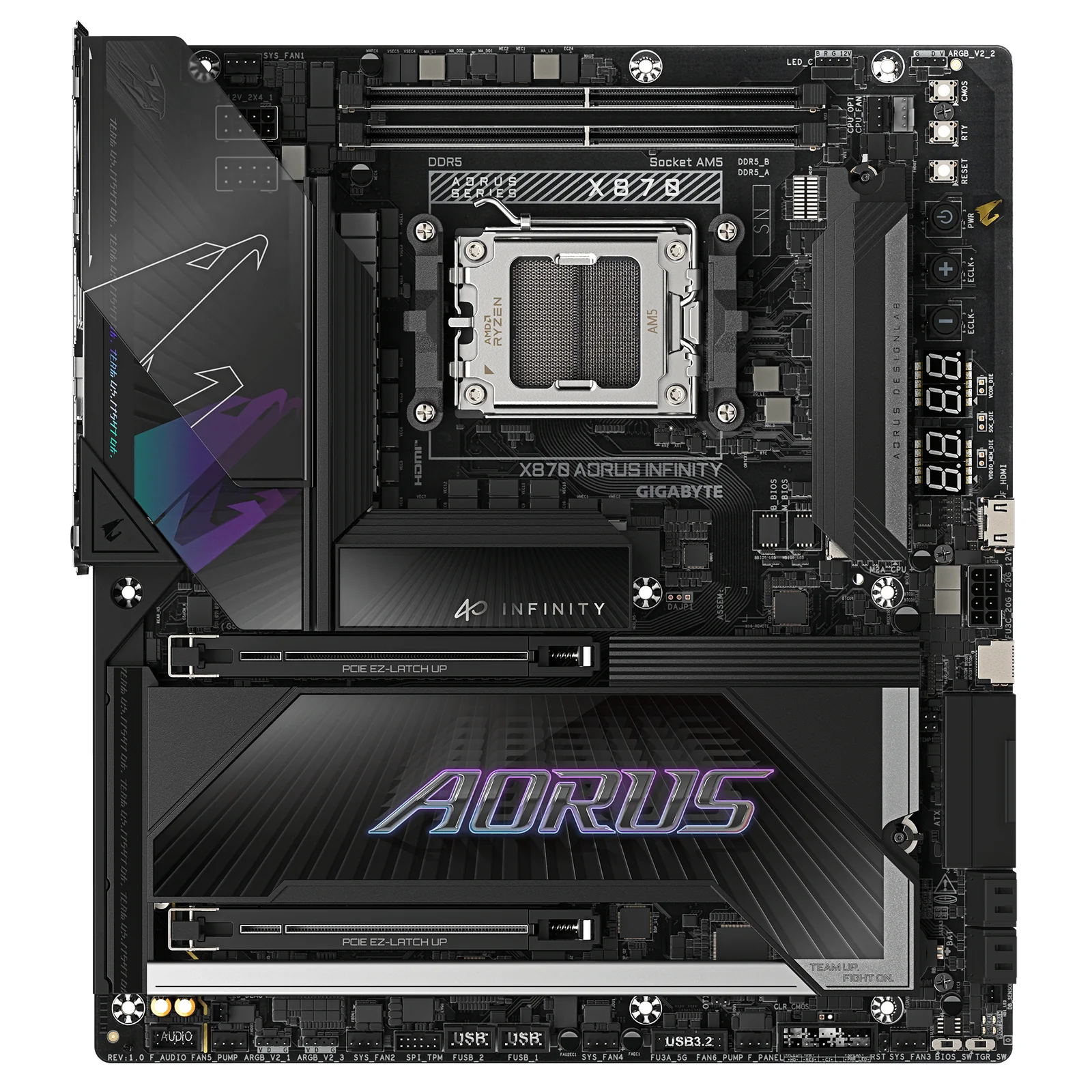

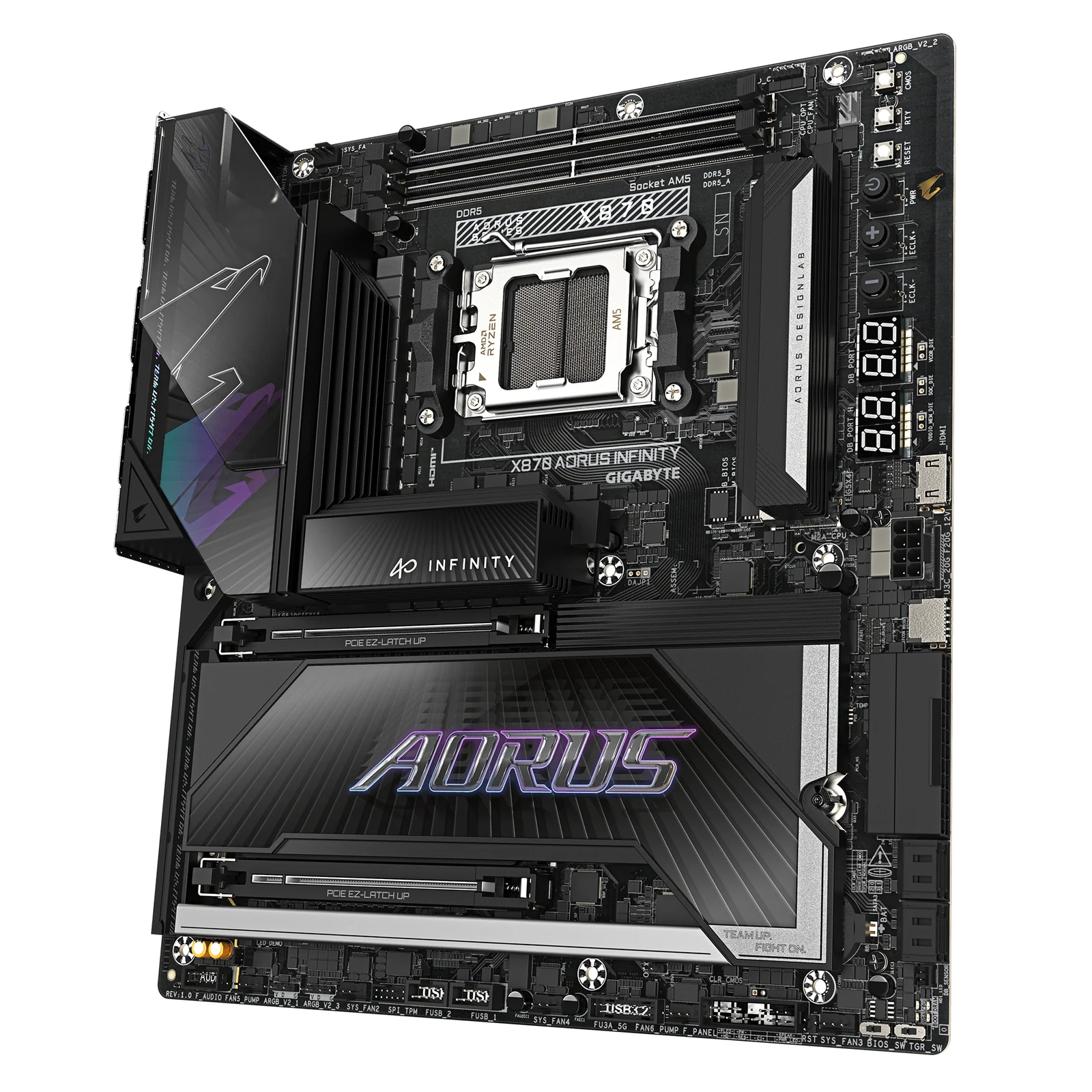

GIGABYTE X870 AORUS INFINITY motherboard
Model X870 AORUS INFINITY Motherboard
Overview
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
Specifications
BIOS
- BIOS type
- UEFI AMI
- BIOS memory size
- 1024 Mbit
- ACPI version
- 5.0
- Clear CMOS jumper
- Yes
- Clear CMOS button
- Yes
- Desktop Management Interface (DMI) version
- 2.7
- System Management BIOS (SMBIOS) version
- 2.7
Memory
- Supported memory types
- DDR5-SDRAM
- Number of memory slots
- 2
- Memory slots type
- DIMM
- Memory channels
- Dual-channel
- ECC сompatibility
- non-ECC
- Supported memory clock speeds
- 4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000,8200,8400,8600,8800,9200,9600 MHz
- Supported memory clock speed (max)
- 11400 MHz
- Maximum internal memory
- 128 GB
- Unbuffered memory
- Yes
- Maximum internal memory per slot
- 64 GB
Battery
- Battery weight
- 3 g
- Lithium weight per battery
- 0.07 g
- Number of battery cells
- 1
- Battery capacity
- 220 mAh
- Battery technology
- Lithium-Manganese Dioxide (LiMnO2)
- Battery type
- CR2032
Network
- Ethernet LAN
- Yes
- Ethernet interface type
- 2.5 Gigabit Ethernet,5 Gigabit Ethernet,Fast Ethernet,Gigabit Ethernet
- LAN controller
- Realtek RTL8126
- Wi-Fi
- Yes
- Top Wi-Fi standard
- Wi-Fi 7 (802.11be)
- Wi-Fi standards
- 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax),Wi-Fi 6E (802.11ax),Wi-Fi 7 (802.11be)
- WLAN controller model
- Qualcomm QCNCM865
- Bluetooth
- Yes
- Bluetooth version
- 5.4
Features
- Motherboard chipset
- AMD X870
- Audio chip
- Realtek ALC1220
- Audio output channels
- 7.1 channels
- Product colour
- Black
- PC health monitoring
- CPU,FAN,Temperature,Voltage,Water cooling
- Component for
- PC
- Motherboard form factor
- Extended ATX
- Motherboard chipset family
- AMD
- Cooling type
- Passive
- Power source type
- ATX
- Windows operating systems supported
- Windows 11 x64
Graphics
- Parallel processing technology support
- Not supported
- Maximum resolution
- 4096 x 2160 pixels
- HDCP
- Yes
- HDCP version
- 2.3
- DirectX version
- 12.0
Processor
- Processor manufacturer
- AMD
- Processor socket
- Socket AM5
- Compatible processor series
- AMD Ryzen 7000 Series,AMD Ryzen 8000 Series,AMD Ryzen 9000 Series
- Supported processor sockets
- Socket AM5
Internal I/O
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- USB 3.2 Gen 2x2 connectors
- 1
- Number of SATA III connectors
- 4
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- Number of CPU fan connectors
- 2
- Number of chassis fan connectors
- 6
- EPS power connector (8-pin)
- Yes
- Number of EPS power connectors (8-pin)
- 2
- TPM connector
- Yes
- Number of water pump connectors
- 3
- Number of temperature sensor headers
- 2
Logistics data
- Products per shipping (inner) case
- 1 pc(s)
Expansion slots
- PCI Express x16 (Gen 5.x) slots
- 2
- Number of M.2 (M) slots
- 3
- 1st M.2 largest key size
- 25110
- 1st M.2 highest PCI Express generation
- 5.0
- 2nd M.2 largest key size
- 22110
- 2nd M.2 highest PCI Express generation
- 5.0
- 3rd M.2 largest key size
- 22110
- 3rd M.2 highest PCI Express generation
- 4.0
Storage controllers
- Supported storage drive types
- HDD & SSD
- Supported storage drive interfaces
- M.2,PCI Express 4.0,PCI Express 5.0,SATA III
- Number of HDDs supported
- 4
- Number of storage drives supported
- 7
- RAID support
- Yes
- RAID levels
- 0,1,5,10

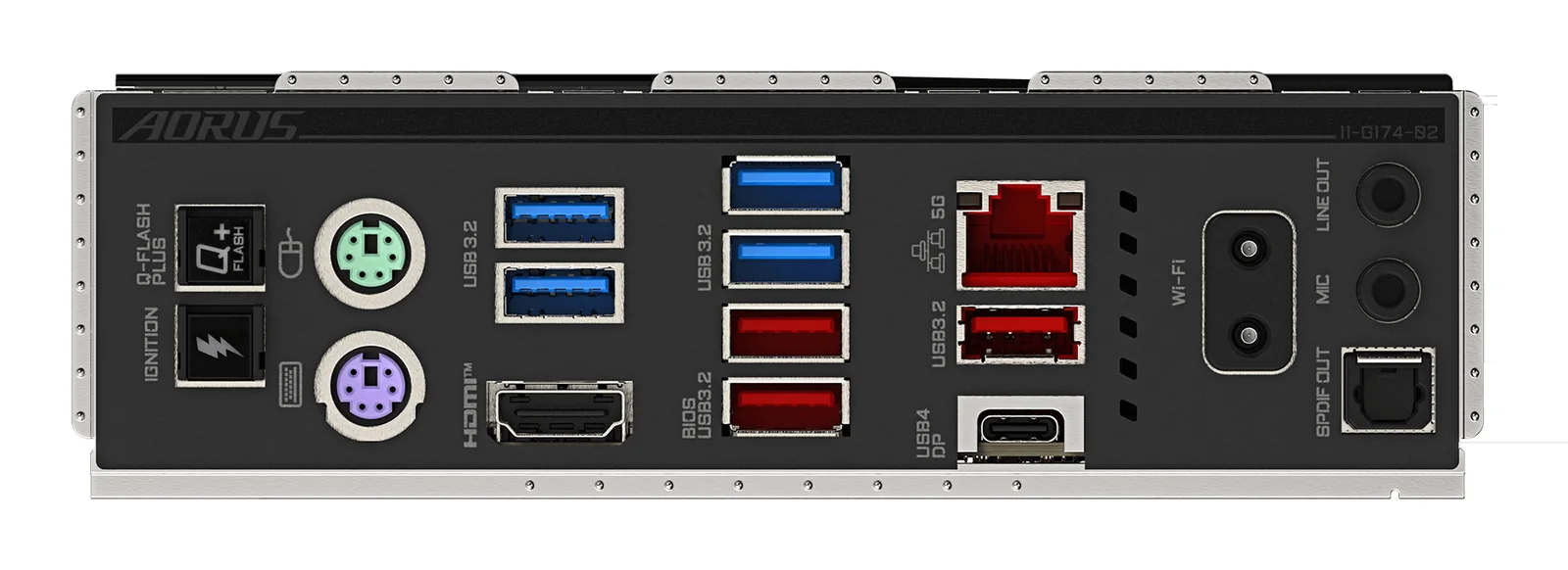

Rear panel I/O ports
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 3
- USB4 Gen 2x2 ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
- PS/2 ports quantity
- 2
- HDMI ports quantity
- 1
- HDMI version
- 2.1
- Headphone outputs
- 1
- Line-in
- Yes
- S/PDIF out port
- Yes
- WiFi-AP antenna jack
- 2
