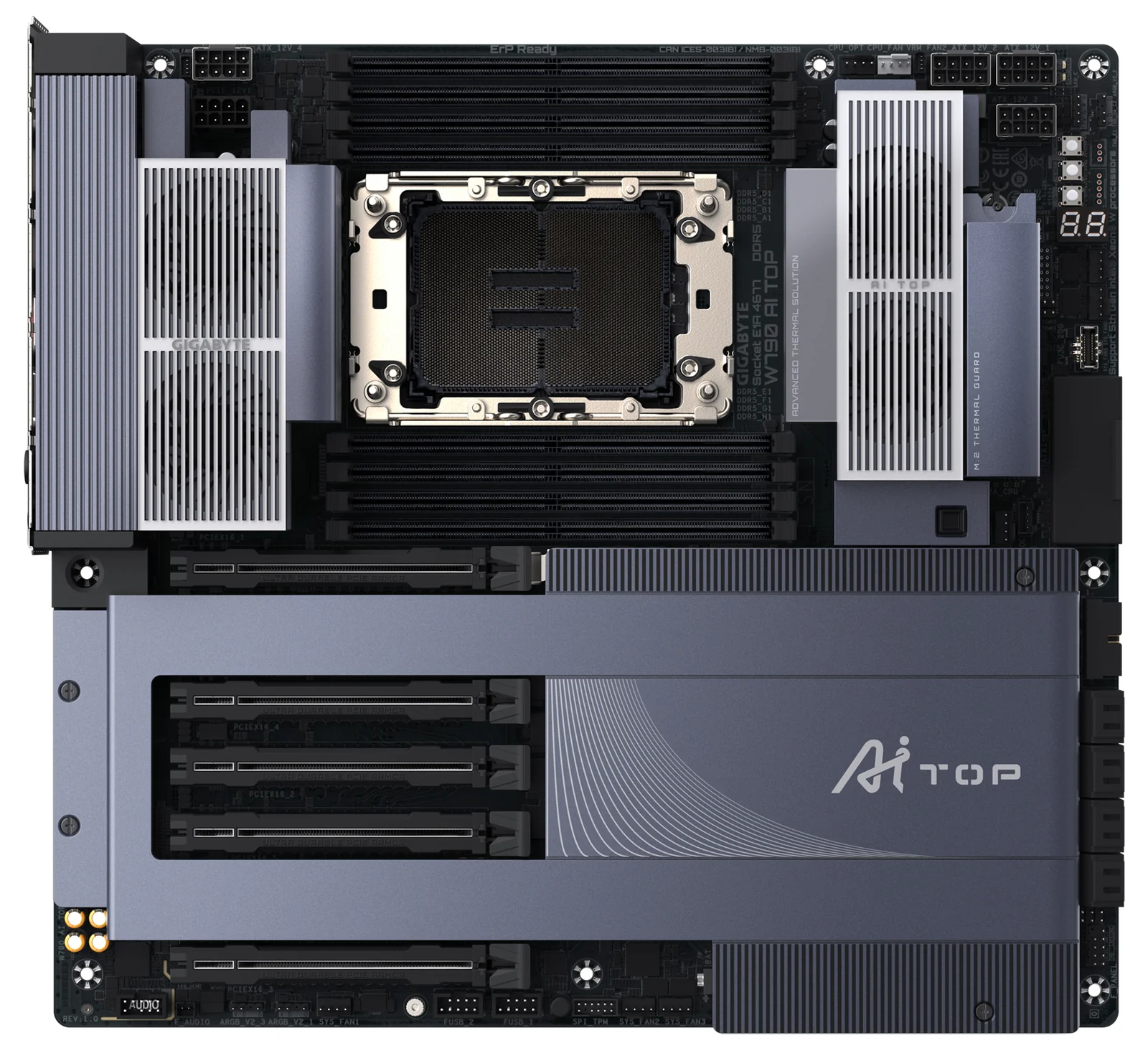

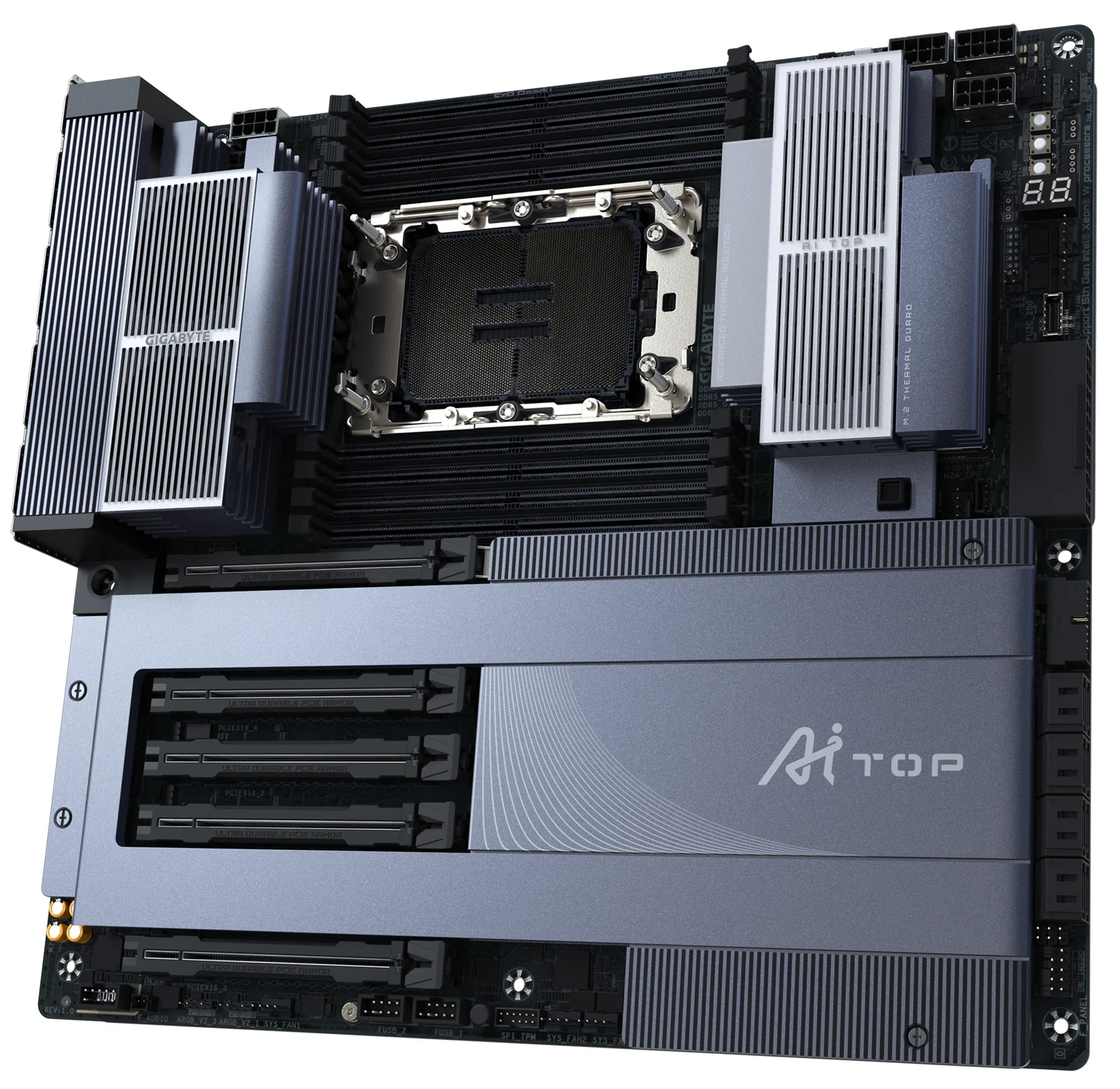

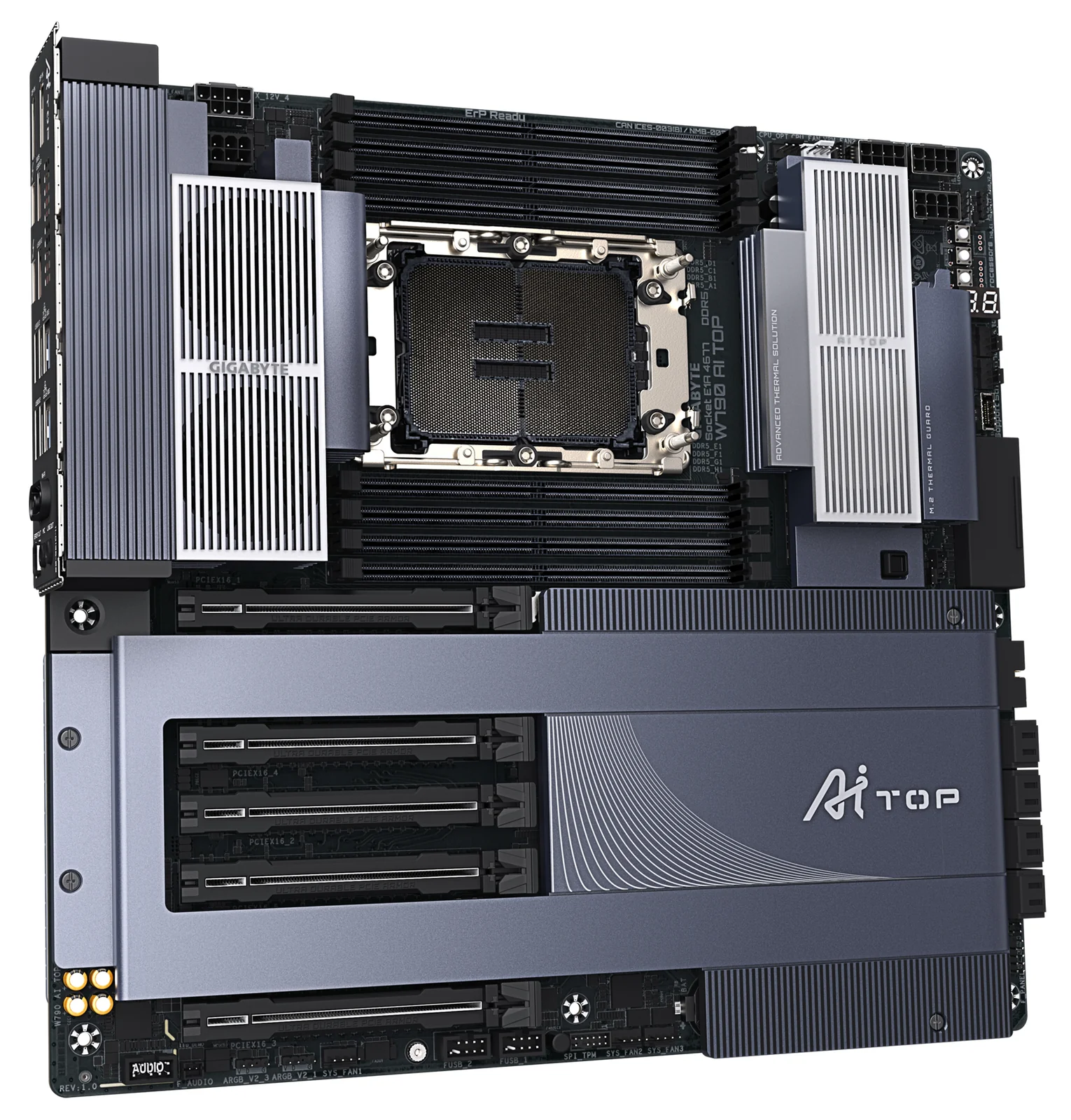

GIGABYTE W790 AI TOP
Model W790 AI TOP Motherboard - Supports Intel Xeon CPUs, 16+2+2 phases VRM, up to 5600MHz DDR5 (OC), 4xPCIe 5.0 + 2xPCIe 4.0 M.2, Wi-Fi 7, 10 GbE LAN, Thunderbolt 4
Overview
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
Specifications
BIOS
- BIOS type
- UEFI AMI
- BIOS memory size
- 512 Mbit
- ACPI version
- 5.0
- Clear CMOS jumper
- Yes
- Desktop Management Interface (DMI) version
- 2.7
- System Management BIOS (SMBIOS) version
- 2.7
Memory
- Supported memory types
- DDR5-SDRAM
- Number of memory slots
- 8
- Memory slots type
- DIMM
- Memory channels
- Octa-channel
- ECC сompatibility
- ECC
- Supported memory clock speeds
- 4800,5600 MHz
- Supported memory clock speed (max)
- 5600 MHz
- Maximum internal memory
- 2000 GB
- Maximum RDIMM memory
- 256 GB
Network
- Ethernet LAN
- Yes
- Ethernet interface type
- 10 Gigabit Ethernet
- LAN controller
- Intel X710-AT2
- Wi-Fi
- Yes
- Top Wi-Fi standard
- Wi-Fi 7 (802.11be)
- Wi-Fi standards
- 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax),Wi-Fi 6E (802.11ax),Wi-Fi 7 (802.11be)
- WLAN controller model
- Intel Wi-Fi 7 BE200
- Bluetooth
- Yes
- Bluetooth version
- 5.4
Features
- Motherboard chipset
- Intel W790
- Audio chip
- Realtek ALC897
- Audio output channels
- 7.1 channels
- Product colour
- Black
- PC health monitoring
- FAN,Temperature,Voltage,Water cooling
- Component for
- Server
- Motherboard form factor
- Extended ATX
- Motherboard chipset family
- Intel
- Power source type
- ATX
- Windows operating systems supported
- Windows 11 x64
Graphics
- Parallel processing technology support
- Not supported
Processor
- Processor manufacturer
- Intel
- Processor socket
- LGA 4677 (Socket E)
- Compatible processor series
- Intel Xeon
- Intel Xeon series
- W-2400,W-3400,W3500,W-2500
Internal I/O
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- USB 3.2 Gen 2x2 connectors
- 1
- Number of SATA III connectors
- 8
- Audio connector
- Yes
- Front panel audio connector
- Yes
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- Number of CPU fan connectors
- 2
- Number of chassis fan connectors
- 6
- EPS power connector (8-pin)
- Yes
- Number of EPS power connectors (8-pin)
- 4
- TPM connector
- Yes
- Number of water pump connectors
- 1
- Number of temperature sensor headers
- 2
Logistics data
- Country of origin
- Taiwan
- Products per shipping (inner) case
- 1 pc(s)
Expansion slots
- PCI Express x16 (Gen 5.x) slots
- 5
- Number of M.2 (M) slots
- 6
- 1st M.2 largest key size
- 2280
- 1st M.2 highest PCI Express generation
- 5.0
- 2nd M.2 largest key size
- 2280
- 2nd M.2 highest PCI Express generation
- 5.0
- 3rd M.2 largest key size
- 2280
- 3rd M.2 highest PCI Express generation
- 5.0
- 4th M.2 largest key size
- 2280
- 4th M.2 highest PCI Express generation
- 5.0
- 5th M.2 largest key size
- 2280
- 5th M.2 highest PCI Express generation
- 4.0
- 6th M.2 largest key size
- 2280
- 6th M.2 highest PCI Express generation
- 4.0
Storage controllers
- Supported storage drive types
- HDD & SSD
- Supported storage drive interfaces
- M.2,SATA III
- Number of HDDs supported
- 8
- Number of storage drives supported
- 14
- RAID support
- Yes
- RAID levels
- 0,1,5,10

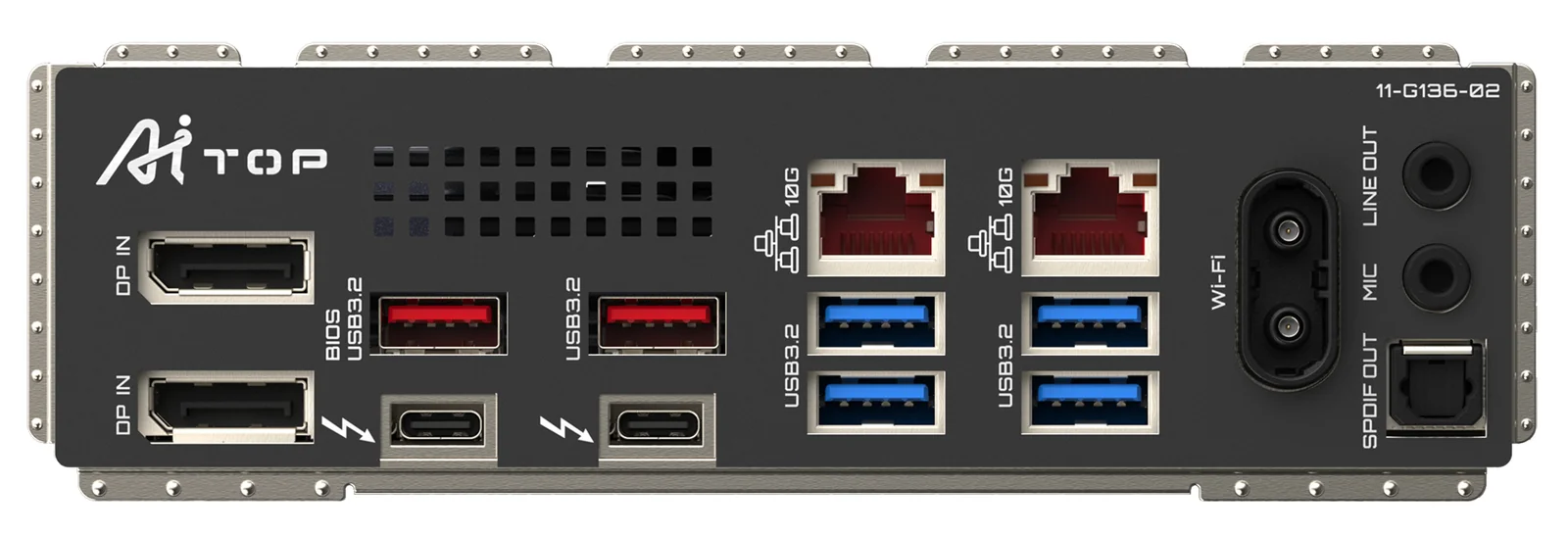

Rear panel I/O ports
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 2
- Ethernet LAN (RJ-45) ports
- 2
- DisplayPorts quantity
- 2
- Headphone outputs
- 1
- Line-in
- Yes
- S/PDIF out port
- Yes
- Digital audio optical out
- 1
- Thunderbolt ports quantity
- 2
- WiFi-AP antenna jack
- 2
Processor special features
- Trusted Platform Module (TPM)
- Yes
