GIGABYTE

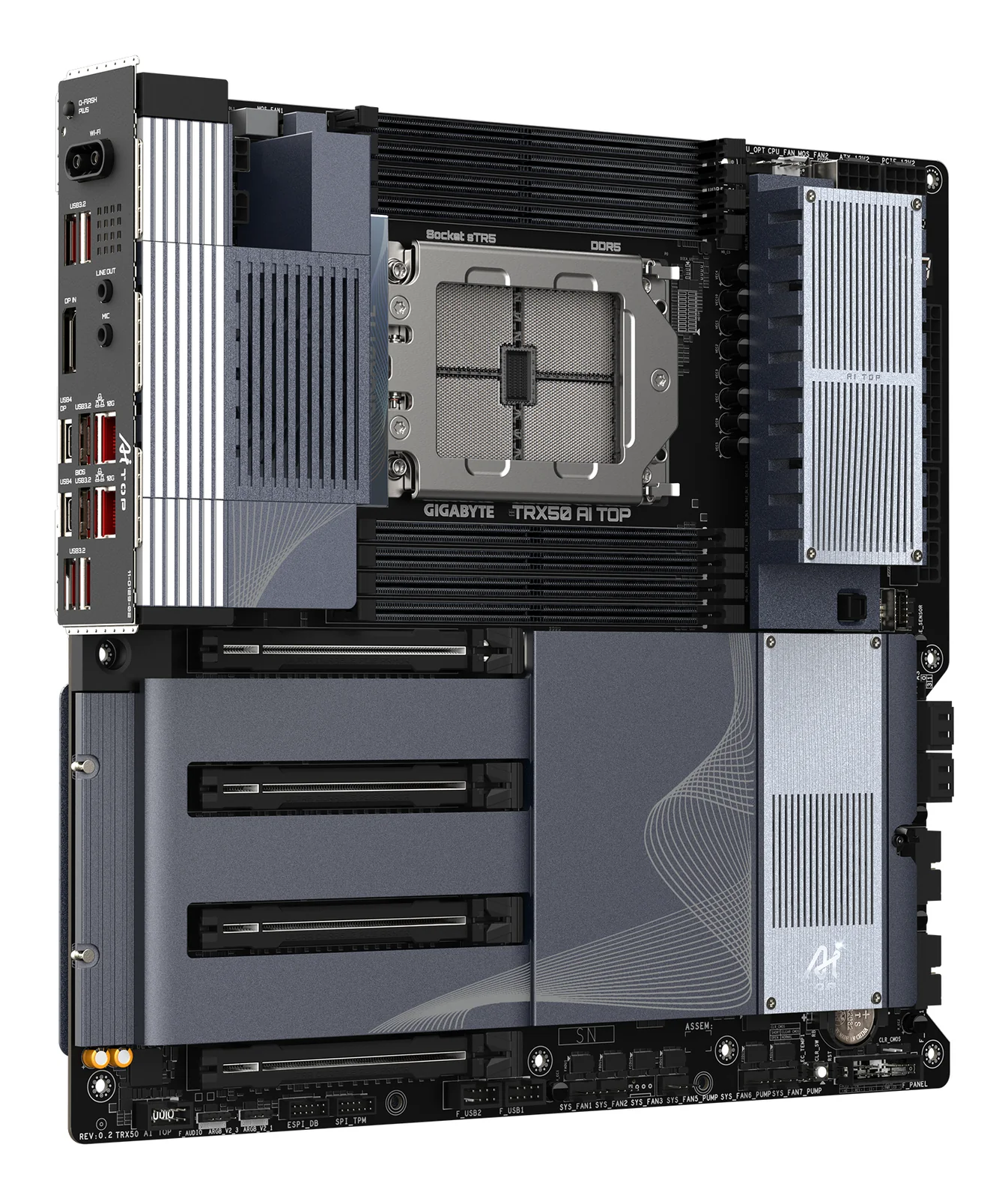

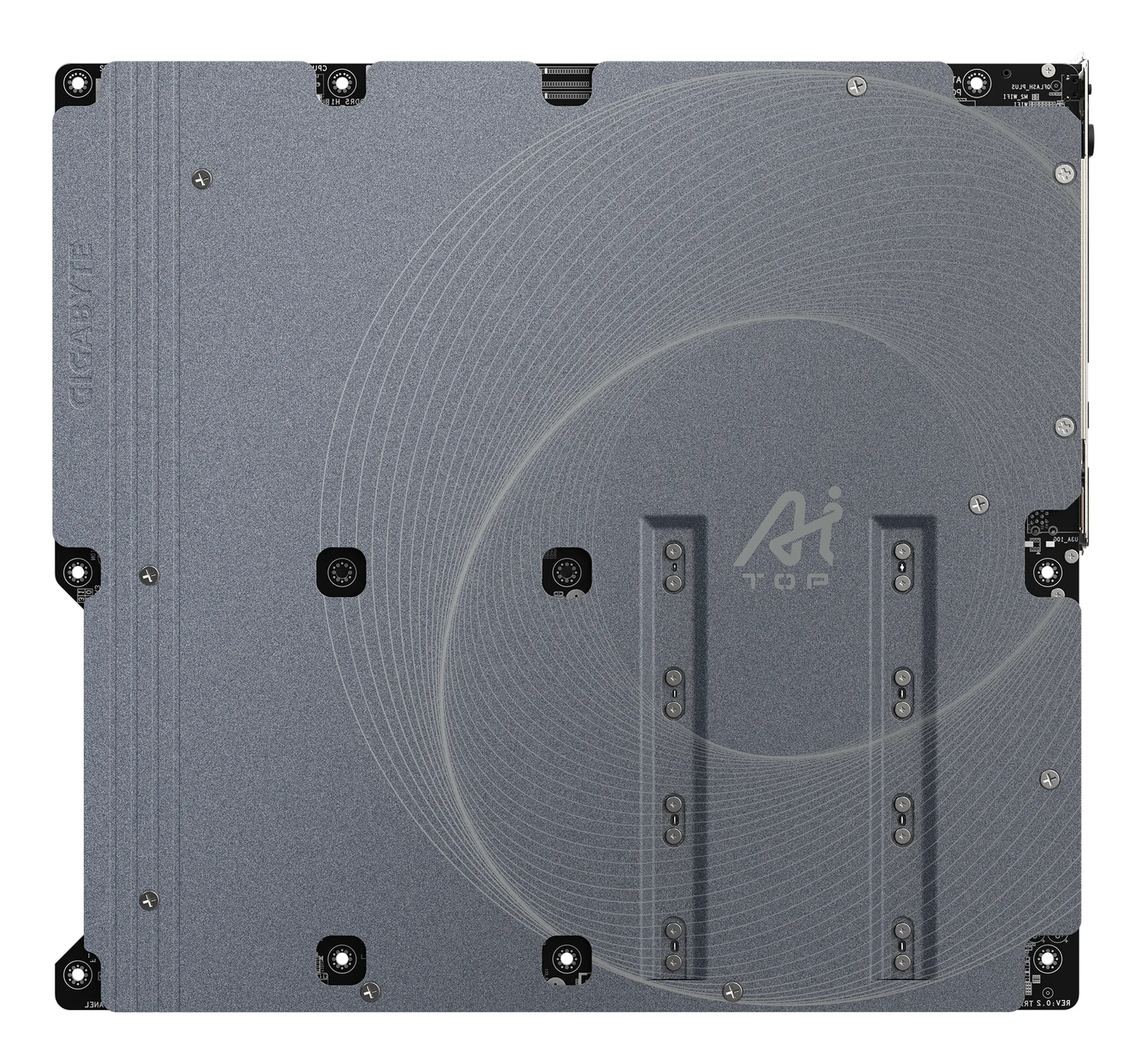

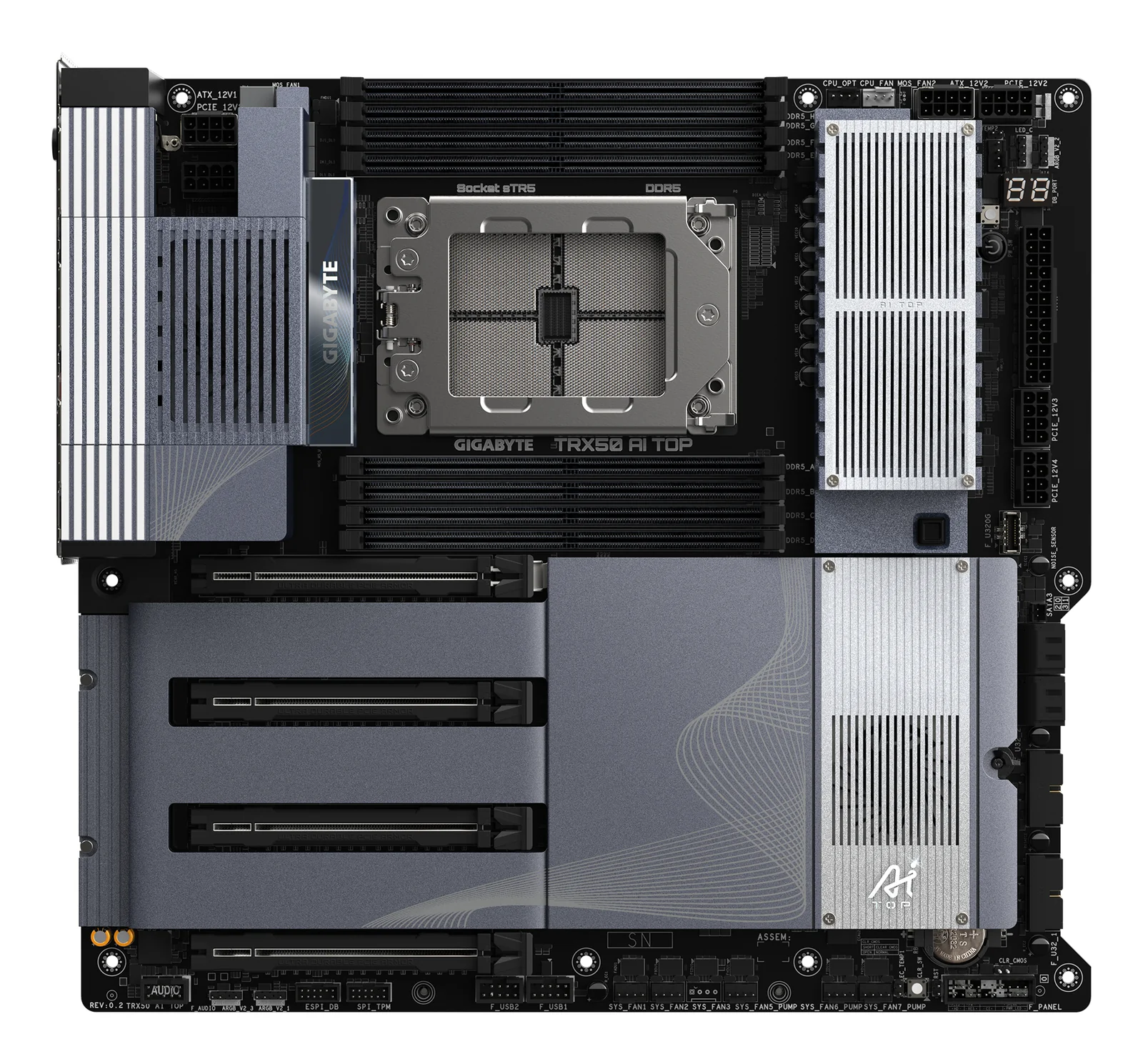

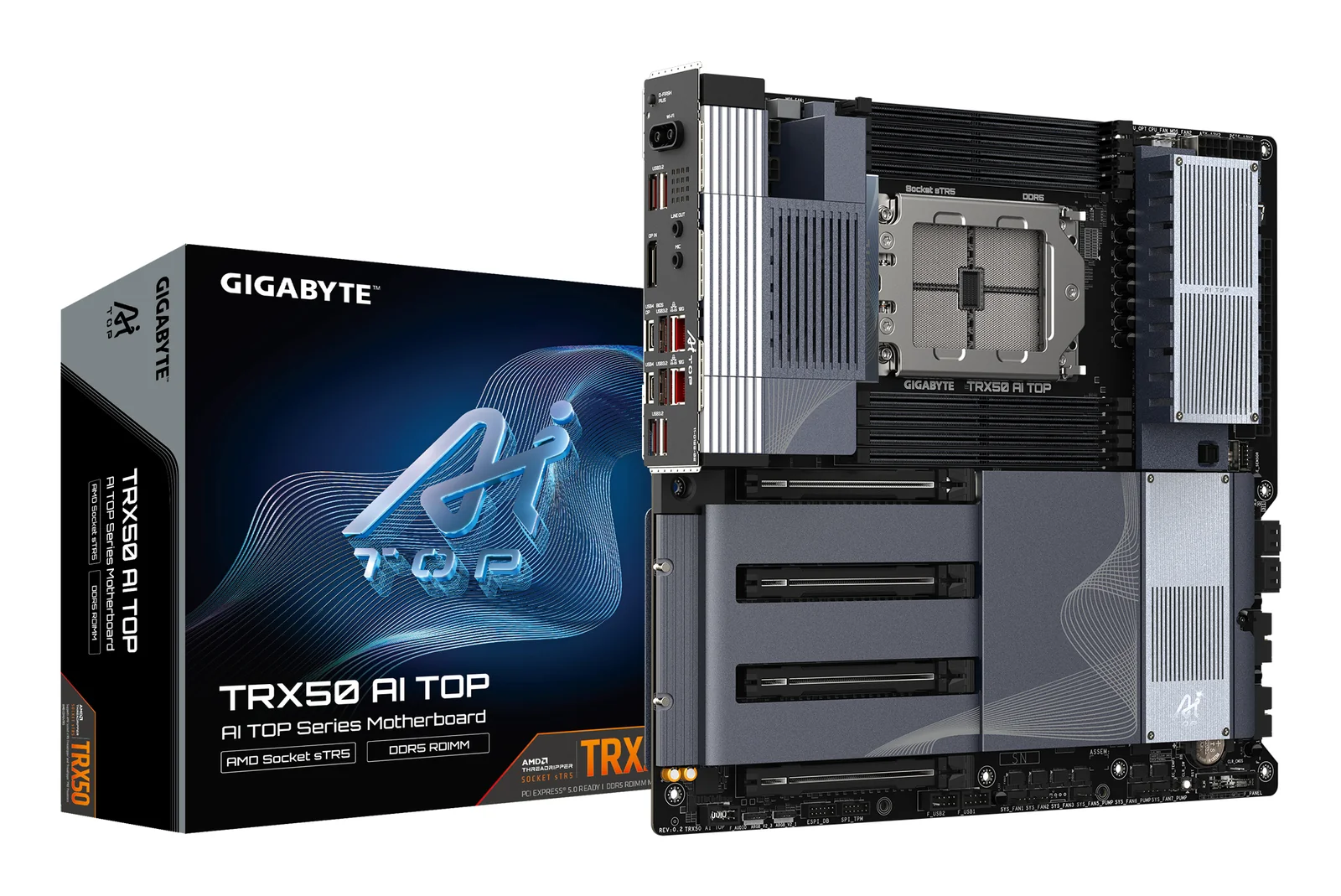

GIGABYTE TRX50 AI TOP
Model TRX50 AI TOP Motherboard - Supports AMD Ryzen PRO 7000 CPUs, 16+8+4 Phases Digital VRM, up to 5200MHz DDR5 (OC), 4xPCIe 5.0 + 4xPCIe 4.0 M.2, Wi-Fi 7, 10GbE LAN, USB 3.2 Gen 2x2
Overview
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
Specifications
BIOS
- BIOS type
- UEFI AMI
- BIOS memory size
- 256 Mbit
- ACPI version
- 5.0
- Clear CMOS jumper
- Yes
- Desktop Management Interface (DMI) version
- 2.7
- System Management BIOS (SMBIOS) version
- 2.7
Memory
- Supported memory types
- DDR5-SDRAM
- Number of memory slots
- 8
- Memory slots type
- DIMM
- Memory channels
- Quad-channel
- ECC сompatibility
- ECC
- Maximum internal memory
- 2000 GB
- Unbuffered memory
- Yes
Battery
- Battery weight
- 3 g
- Lithium weight per battery
- 0.07 g
- Number of battery cells
- 1
- Battery technology
- Lithium-Manganese Dioxide (LiMnO2)
- Battery type
- CR2032
Network
- Ethernet LAN
- Yes
- Ethernet interface type
- 10 Gigabit Ethernet
- Wi-Fi
- Yes
- Top Wi-Fi standard
- Wi-Fi 7 (802.11be)
- Wi-Fi standards
- 802.11a,802.11b,802.11g,Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax),Wi-Fi 7 (802.11be)
- Bluetooth
- Yes
- Bluetooth version
- 5.3
Features
- Motherboard chipset
- AMD TRX50
- Audio chip
- Realtek ALC4080
- Audio output channels
- 2.0 channels
- PC health monitoring
- FAN,Temperature,Voltage
- Component for
- PC
- Motherboard form factor
- Extended ATX
- Motherboard chipset family
- AMD
- Linux operating systems supported
- Ubuntu 24.04 LTS
- Windows operating systems supported
- Windows 11
Graphics
- Maximum resolution
- 4096 x 2160 pixels
- HDCP
- Yes
- DirectX version
- 12.0
Processor
- Processor manufacturer
- AMD
- Processor socket
- Socket sTR5
- Compatible processor series
- AMD Ryzen Threadripper 7000 Series,AMD Ryzen Threadripper PRO 7000 WX-Series
- Supported processor sockets
- sTRX5
- Maximum internal memory supported by processor
- 2000 GB
Internal I/O
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- Number of SATA III connectors
- 4
- Total number of SATA connectors
- 4
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- ATX Power connector (24-pin)
- Yes
- Power fan connector
- Yes
- CPU fan connector
- Yes
- EPS power connector (8-pin)
- Yes
- TPM connector
- Yes
- Serial port headers
- 1
- RGB LED pin header
- Yes
Logistics data
- Country of origin
- Taiwan
- Products per shipping (inner) case
- 1 pc(s)
Expansion slots
- PCI Express x16 slots
- 3
- Number of M.2 (M) slots
- 4
Storage controllers
- Supported storage drive types
- HDD & SSD
- Supported storage drive interfaces
- M.2,SATA III
- Number of HDDs supported
- 4
- Number of storage drives supported
- 8
- RAID support
- Yes
- RAID levels
- 0,1,10

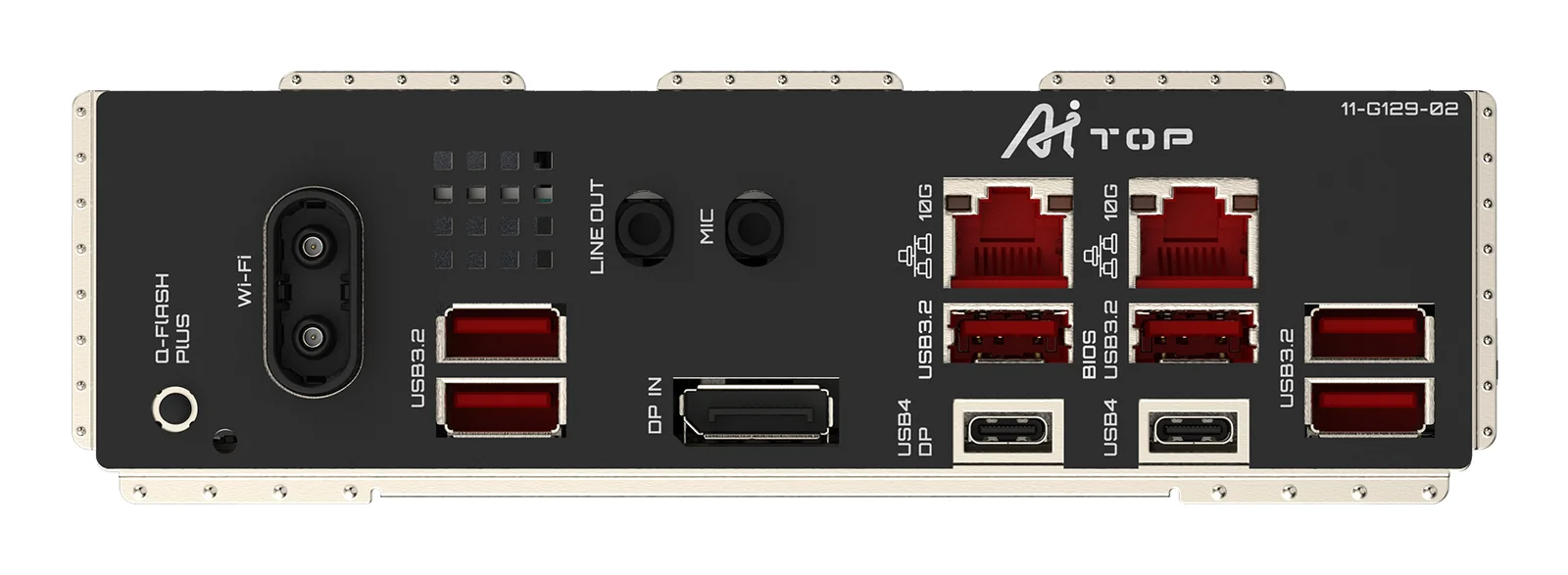

Rear panel I/O ports
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 6
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 2
- Ethernet LAN (RJ-45) ports
- 1
