GIGABYTE

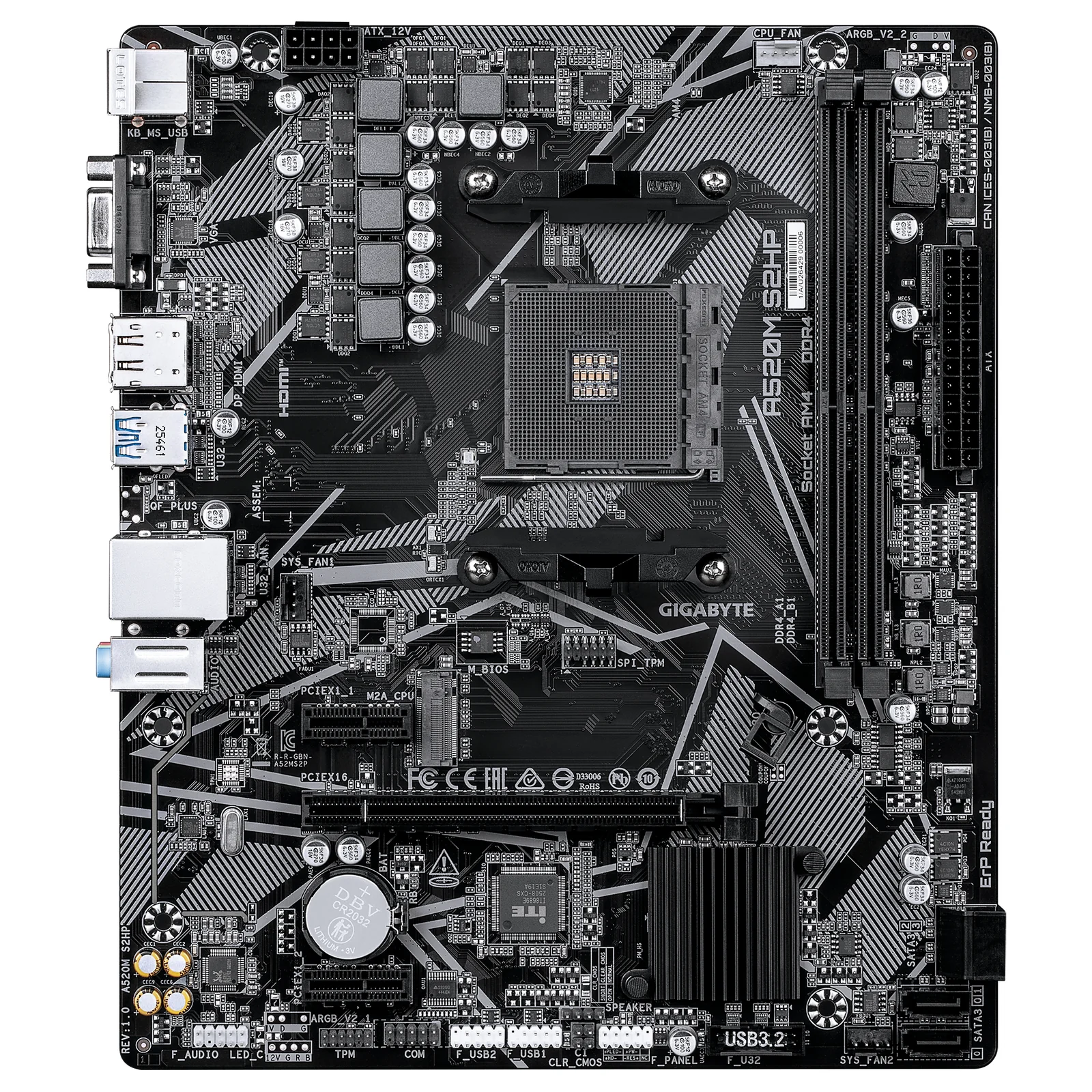

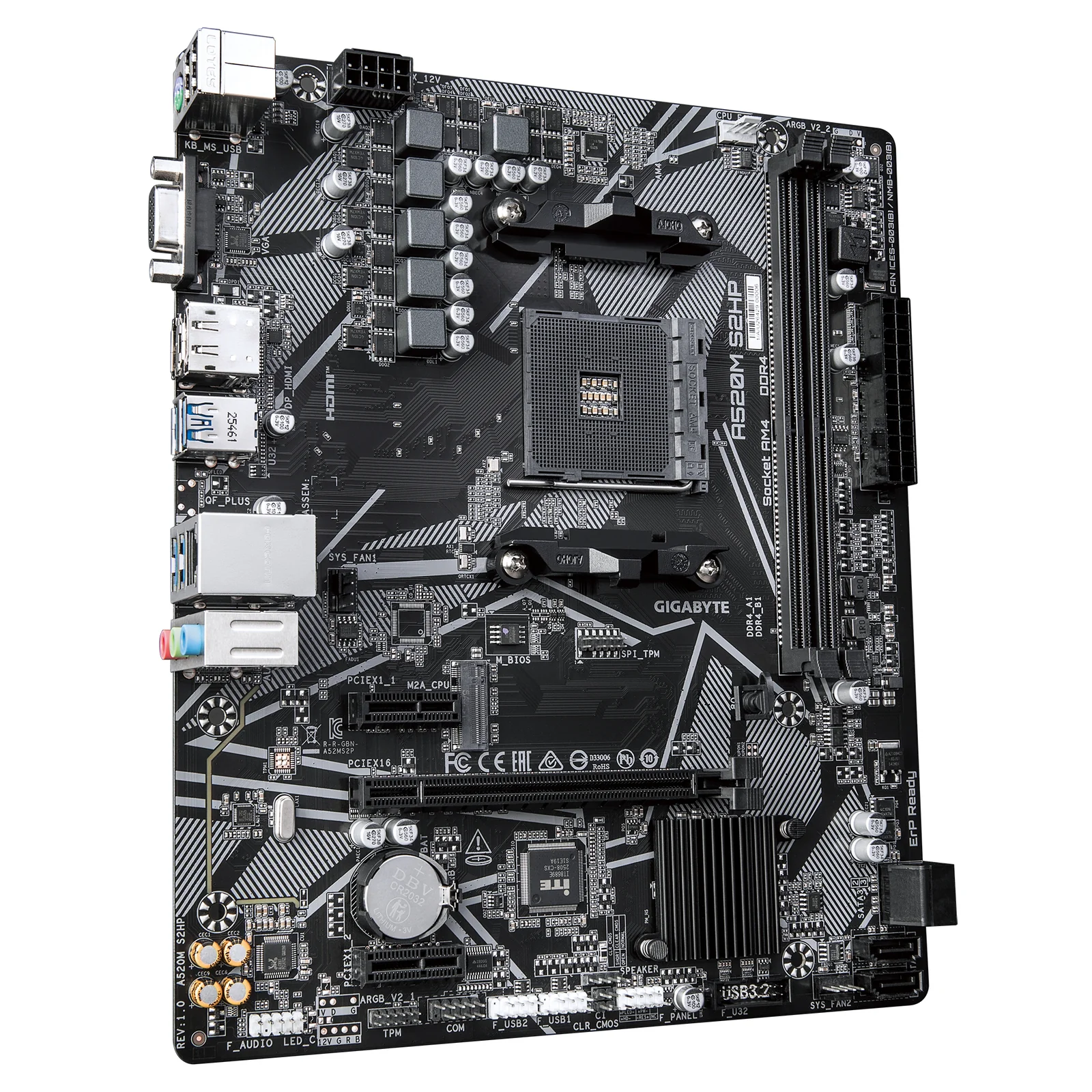

GIGABYTE A520M S2HP motherboard
Model A520M S2HP Motherboard
Overview
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
Specifications
BIOS
- BIOS type
- UEFI AMI
- BIOS memory size
- 128 Mbit
- ACPI version
- 5.0
- Clear CMOS jumper
- Yes
- Clear CMOS button
- Yes
- Desktop Management Interface (DMI) version
- 2.7
- System Management BIOS (SMBIOS) version
- 2.7
Memory
- Supported memory types
- DDR4-SDRAM
- Number of memory slots
- 2
- Memory slots type
- DIMM
- Memory channels
- Dual-channel
- ECC сompatibility
- ECC & non-ECC
- Supported memory clock speeds
- 2133,2400,2667,2933,3200,3333,3600,4866 MHz
- Supported memory clock speed (max)
- 3200 MHz
- Maximum internal memory
- 64 GB
Battery
- Battery weight
- 3 g
- Lithium weight per battery
- 0.07 g
- Number of battery cells
- 1
- Battery capacity
- 220 mAh
- Battery technology
- Lithium-Manganese Dioxide (LiMnO2)
- Battery type
- CR2032
Network
- Ethernet LAN
- Yes
- Ethernet interface type
- Gigabit Ethernet
- Wi-Fi
- No
Features
- Motherboard chipset
- AMD A520
- Audio output channels
- 7.1 channels
- Product colour
- Black
- Component for
- PC
- Motherboard form factor
- Micro ATX
- Motherboard chipset family
- AMD
Graphics
- On-board graphics card
- No
- HDCP
- Yes
Processor
- Processor manufacturer
- AMD
- Processor socket
- Socket AM4
- Compatible processor series
- AMD Ryzen 3000 Series
- Maximum number of SMP processors
- 1
- Supported processor sockets
- Socket AM4
Internal I/O
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- Number of SATA III connectors
- 4
- ATX Power connector (24-pin)
- Yes
- Power fan connector
- Yes
- CPU fan connector
- Yes
- Number of chassis fan connectors
- 2
- RGB LED pin header
- Yes
- Number of RGB LED pin headers
- 4
Logistics data
- Country of origin
- China
- Products per shipping (inner) case
- 1 pc(s)
Expansion slots
- PCI Express x1 (Gen 3.x) slots
- 2
- PCI Express x16 (Gen 3.x) slots
- 1
- Number of M.2 (M) slots
- 1
Storage controllers
- Supported storage drive interfaces
- M.2,PCI Express 3.0,SATA
- RAID support
- Yes
- RAID levels
- 0,1,10

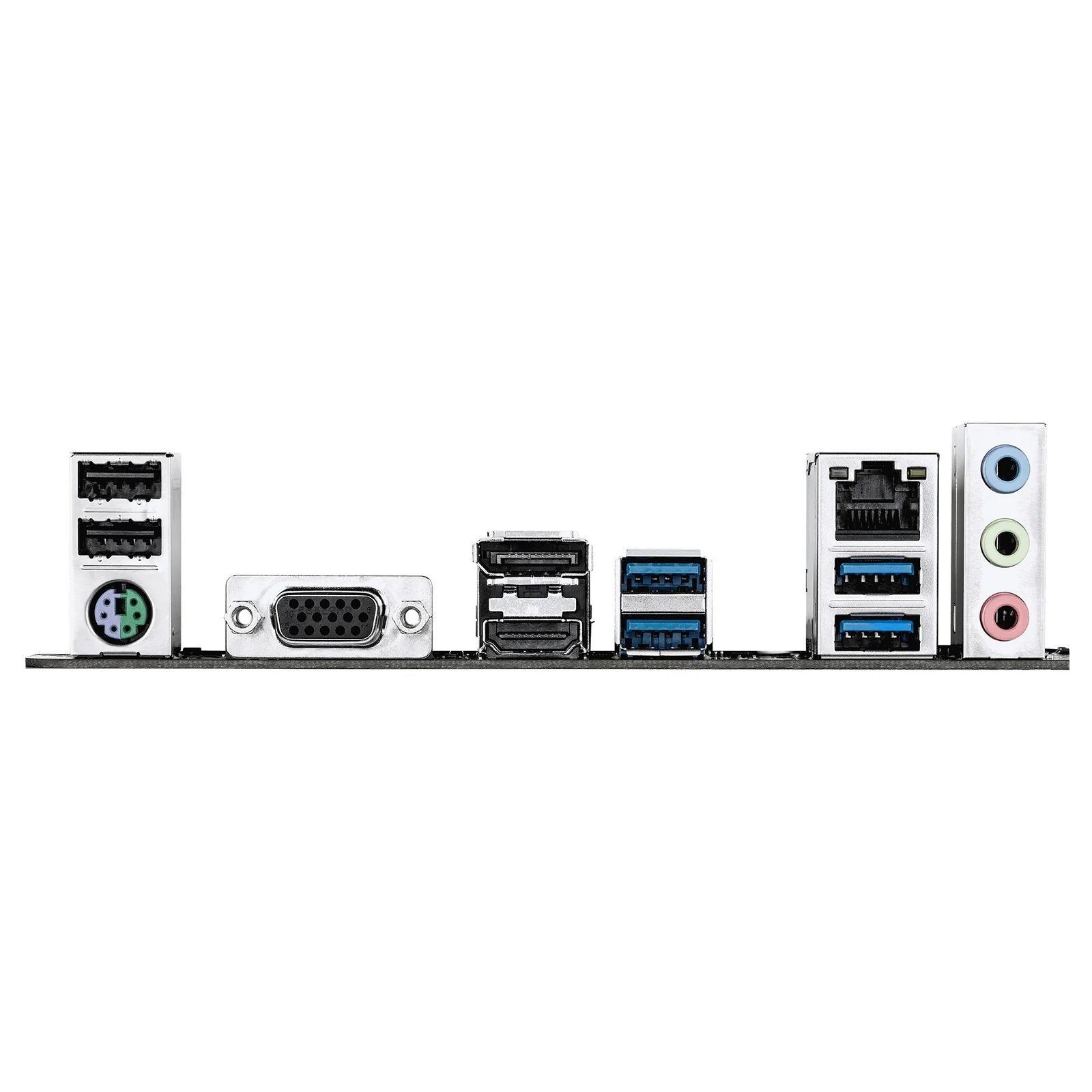

Rear panel I/O ports
- USB 2.0 ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- Ethernet LAN (RJ-45) ports
- 1
- PS/2 ports quantity
- 1
- HDMI ports quantity
- 1
