Epson

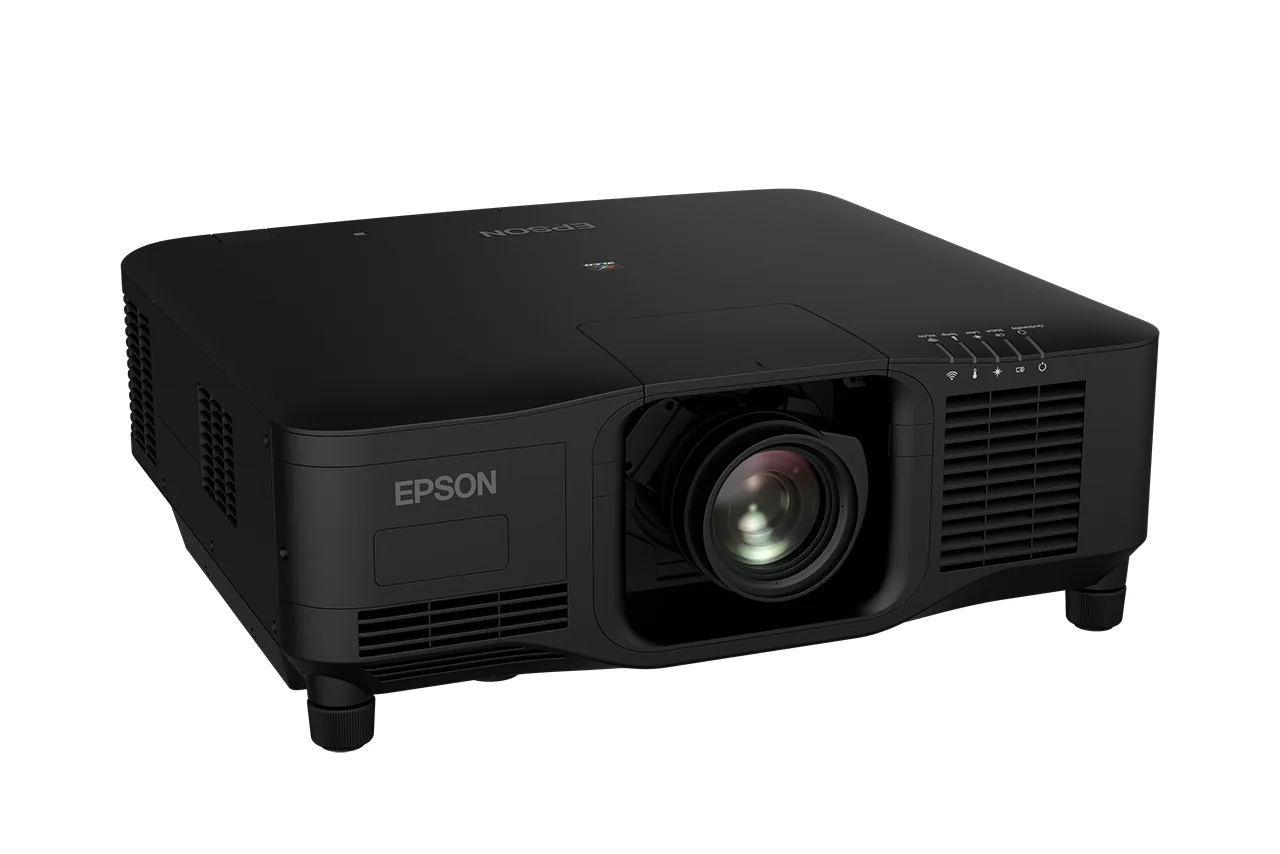

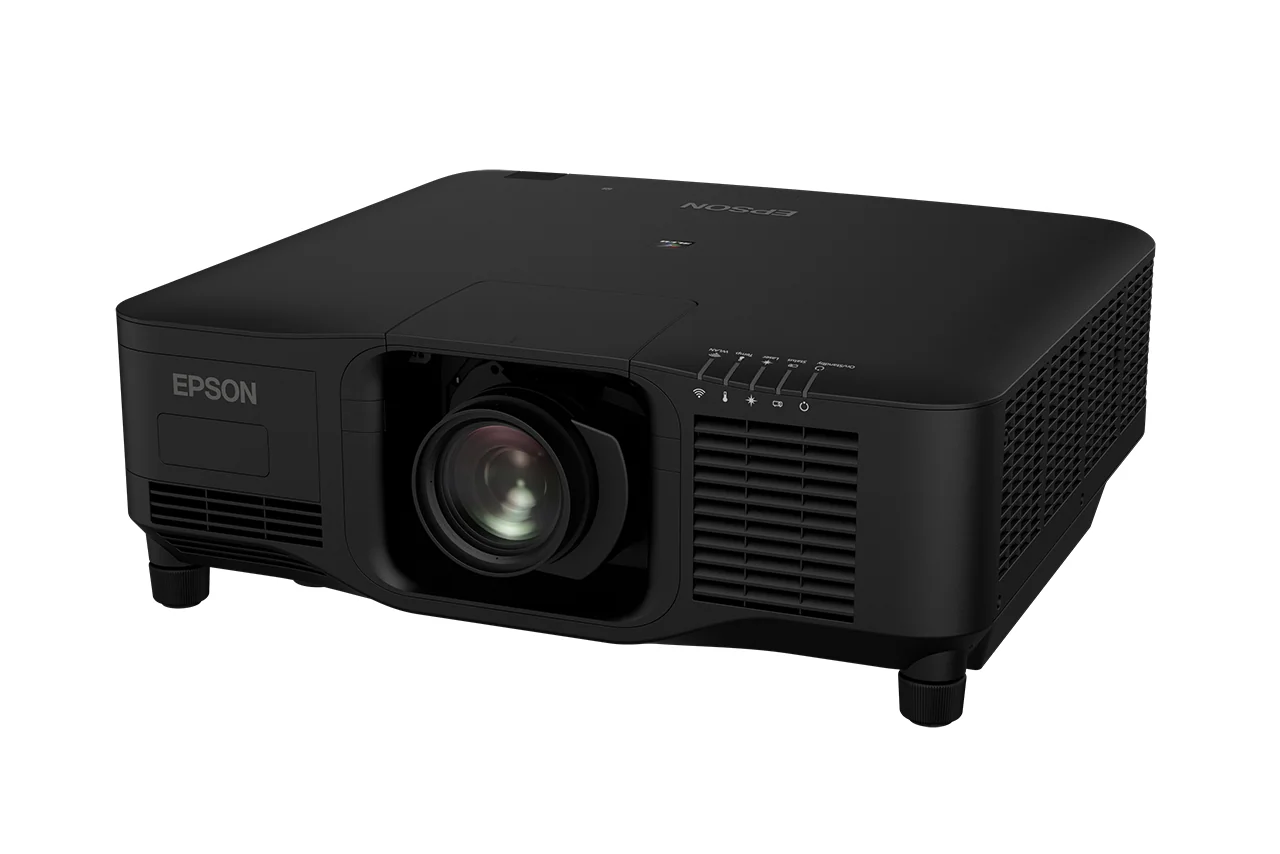

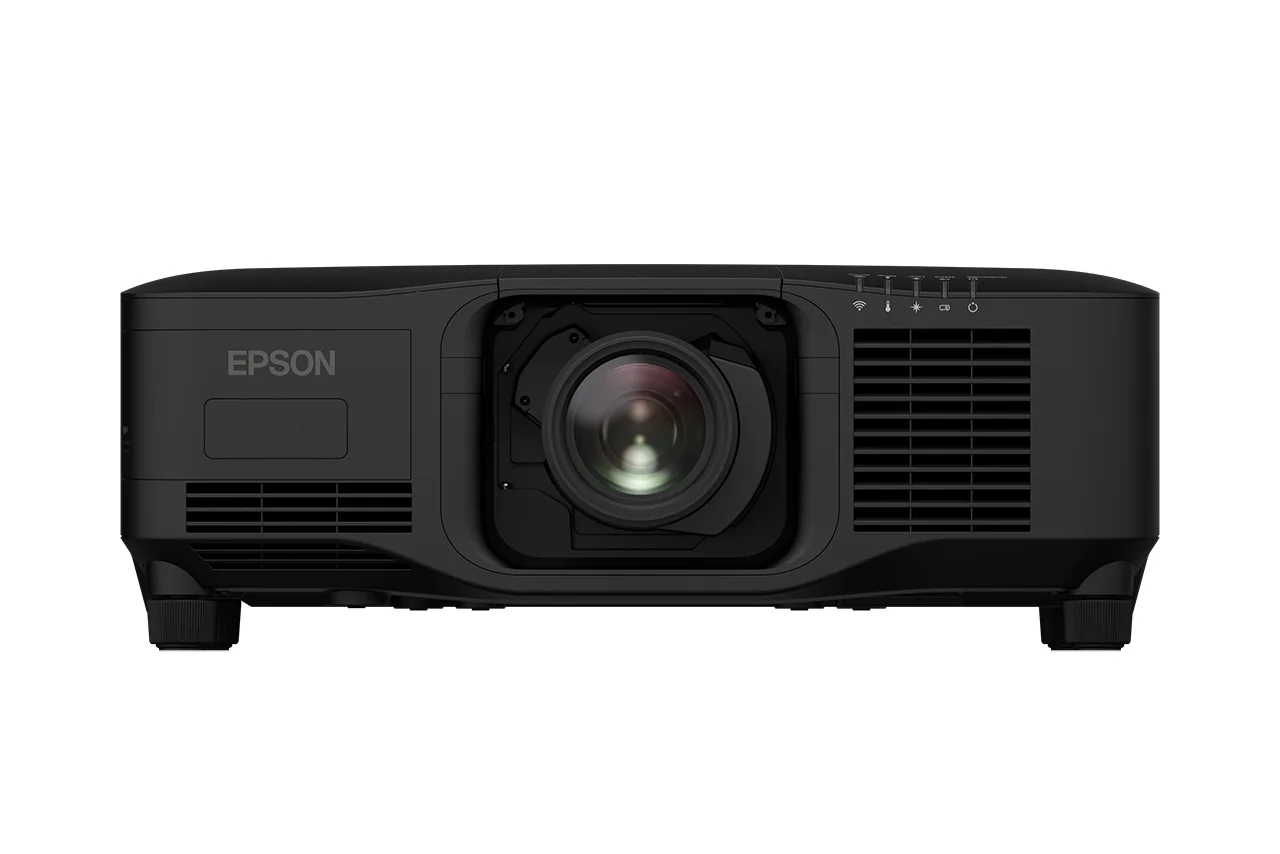

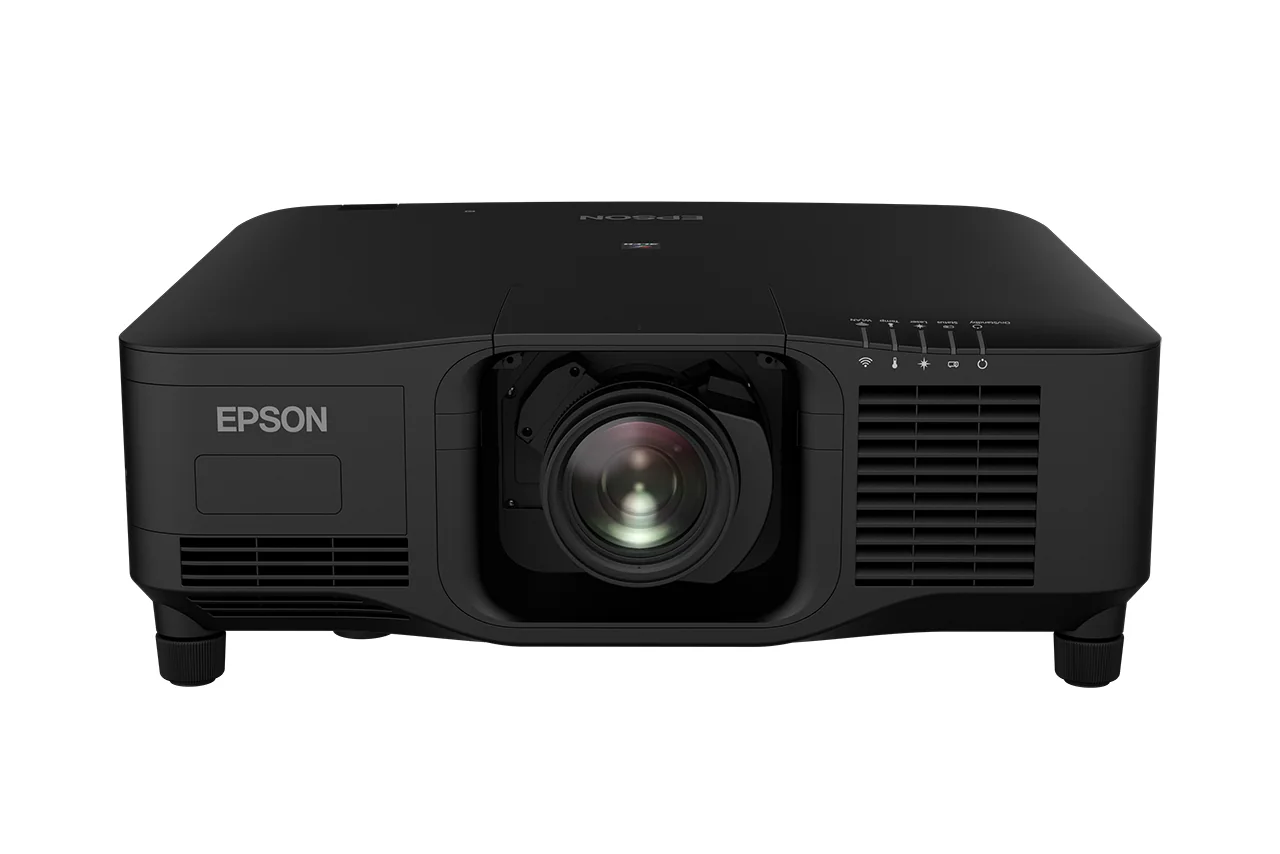

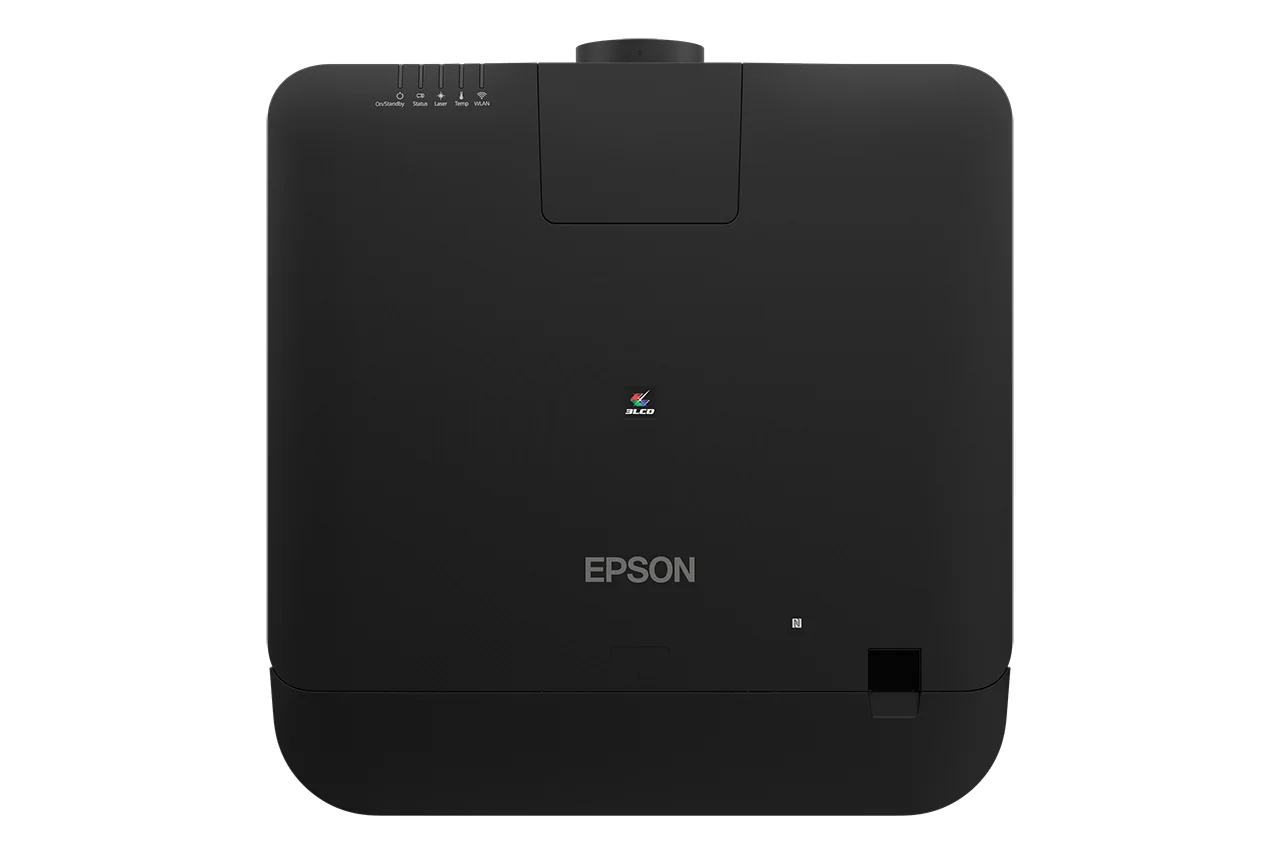

Epson EB-PQ2220B 4K Projector

Model EB-PQ2220B

Overview

20,000lm 4K projector Designed to engage and captivate audiences with ultra-high resolution, large format content, the EB-PQ2220B uses 3LCD technology to deliver outstanding colour reproduction, while Epson's patented 4K Crystal Motion technology offers stunning image quality. Affordable and energy-efficient, the projector also features interchangeable lenses, a light and compact design and extensive connectivity. The world's smallest and lightest 20,000lm 4K projector¹ Building on the success of the EB-PU Series, the EB-PQ2220B is not only the smallest and lightest in its class, but is highly affordable, versatile, extremely energy-efficient and packed with advanced features. A revolutionary 4K experience Marvel at the clarity of the images produced by Epson’s latest 4K technology. Combining its patented, state of the art 4K Crystal Motion, panel thermo-control and double micro-lens array technologies, Epson achieves a new benchmark in 4K image quality. Fantastically flexible Featuring a wide range of connectivity, including 12G SDI in/out and HDMI in/out supporting 120Hz 4K. This high brightness projector also benefits from cross-platform lens compatibility, using the same 4K lenses as the existing EB-PU Series, including the ELPLX02S zero-offset ultra-short throw lens which is perfect for immersive spaces. This projector is supplied 'body-only', allowing you to build the perfect solution for your installation. Reliable Built for exceptional reliability, the EB-PQ2220B features IP5X rated dust resistance² and up to 20,000 hours maintenance-free operation, or even longer in extended modes. Extensive software Compatible with the ELPEC01 camera, Epson Projector Professional Tool and Epson Projector Config Tool for a wealth of calibration, assistance and control functionality.

Specifications

Storage

Card reader integrated
No

Display

Built-in display
No
Colour depth
10 bit

Design

Market positioning
Presentation
Product colour
Black
Placement
Ceiling,Desktop,Floor,Flying frame,Wall
Cable lock slot
Yes
Cable lock slot type
Kensington

Power

Power source
AC
Power consumption (typical)
1431 W
Power consumption (standby)
0.5 W
Power consumption (economy mode)
975 W
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz

Video

Analog signal format system
Not supported
Full HD
Yes
3D
No
Video processing
10 bit
Video colour modes
BT.709,Cinema,DICOM simulation mode,Dynamic,Multi-projection,Natural,Presentation

Network

Smart TV
No
Ethernet LAN
Yes
Ethernet LAN data rates
10,100 Mbit/s

Features

Interactive
No
Noise level (economic mode)
39 dB
On Screen Display (OSD)
Yes
Noise level
48 dB
High Dynamic Range (HDR) supported
Yes
High Dynamic Range (HDR) technology
High Dynamic Range 10 (HDR10),Hybrid Log-Gamma (HLG)
International Protection (IP) code
IPX5
Password protection
Yes

Projector

Supported aspect ratios
16:9,21:9
Smart projector
No
Contrast ratio (dynamic)
5000000:1
Projector brightness
20000 ANSI lumens
Projection technology
3LCD
Projector native resolution
UHD 4K (3840x2160)
Contrast ratio (typical)
3000:1
Native aspect ratio
16:9
Number of colours
1.07 billion colours
Projector brightness (economic mode)
14000 ANSI lumens
Keystone correction, horizontal
±30 °
Keystone correction, vertical
±45 °
Matrix size
1.04"
White light output
20000 ANSI lumens
Colour light output
20000 ANSI lumens

Lens system

Focus
Motorized
Focal length range
Varies by lens mm
Zoom capability
Yes
Throw ratio
0.34 - 7.16:1, Varies by lens

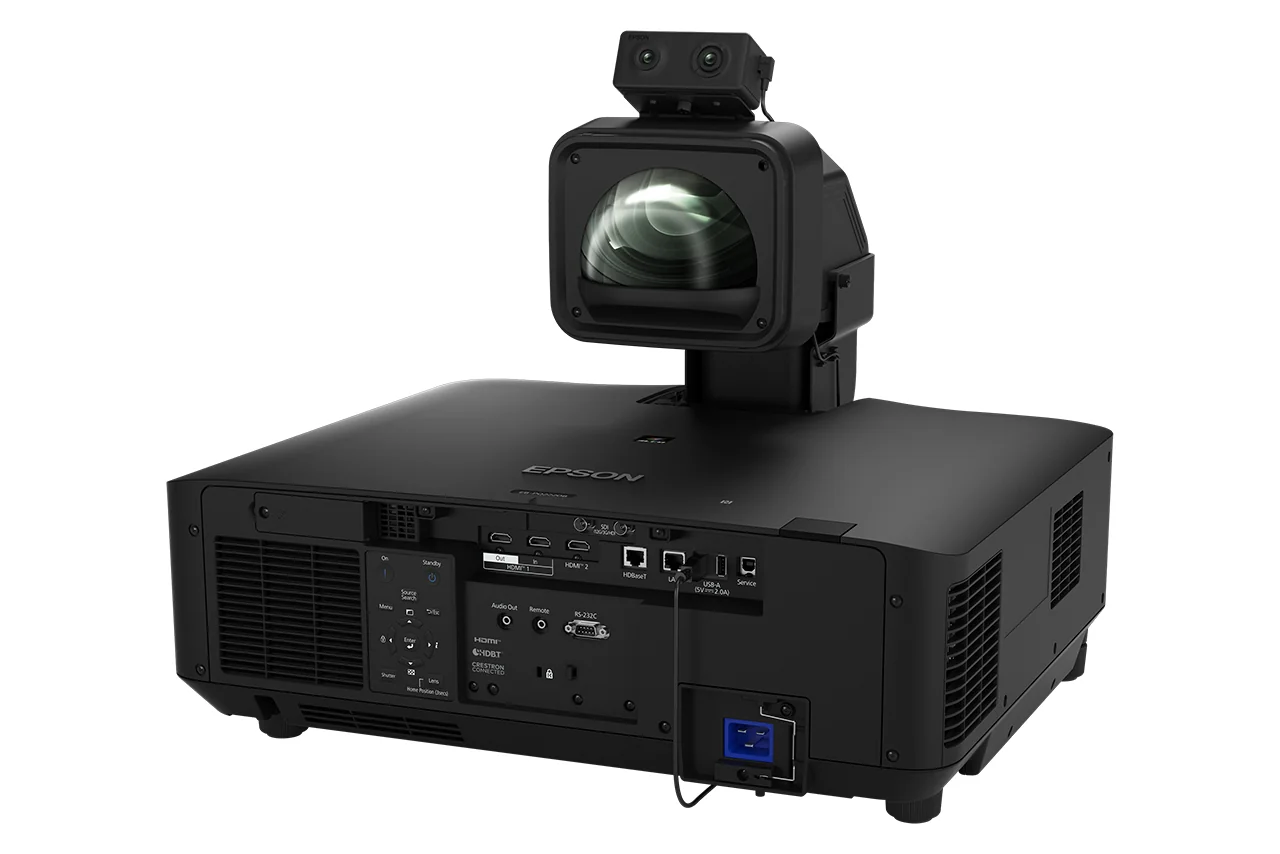

Interchangeable lens
Yes

Light source

Light source type
Laser
Service life of light source
20000 h
Service life of light source (economic mode)
30000 h

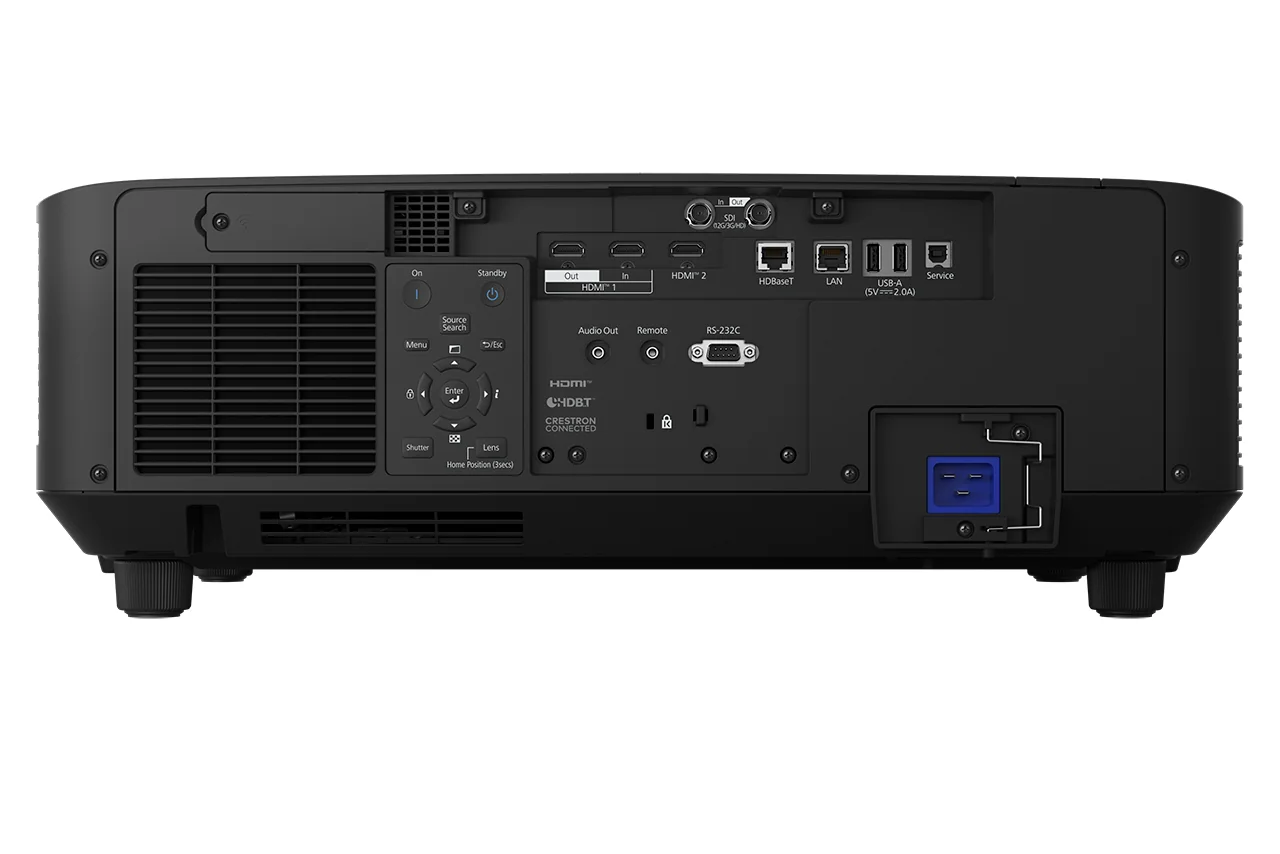

Ports & interfaces

HDBaseT port
Yes
Service port type
USB Type-B
USB 2.0 ports quantity
2
USB 2.0 Type-A ports quantity
2
USB 2.0 Type-B ports quantity
1
Serial interface type
RS-232C
HDMI ports quantity
3
DVI port
No
AC (power) in
Yes

Operational conditions

Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
20 - 80 %
Storage relative humidity (H-H)
10 - 90 %
