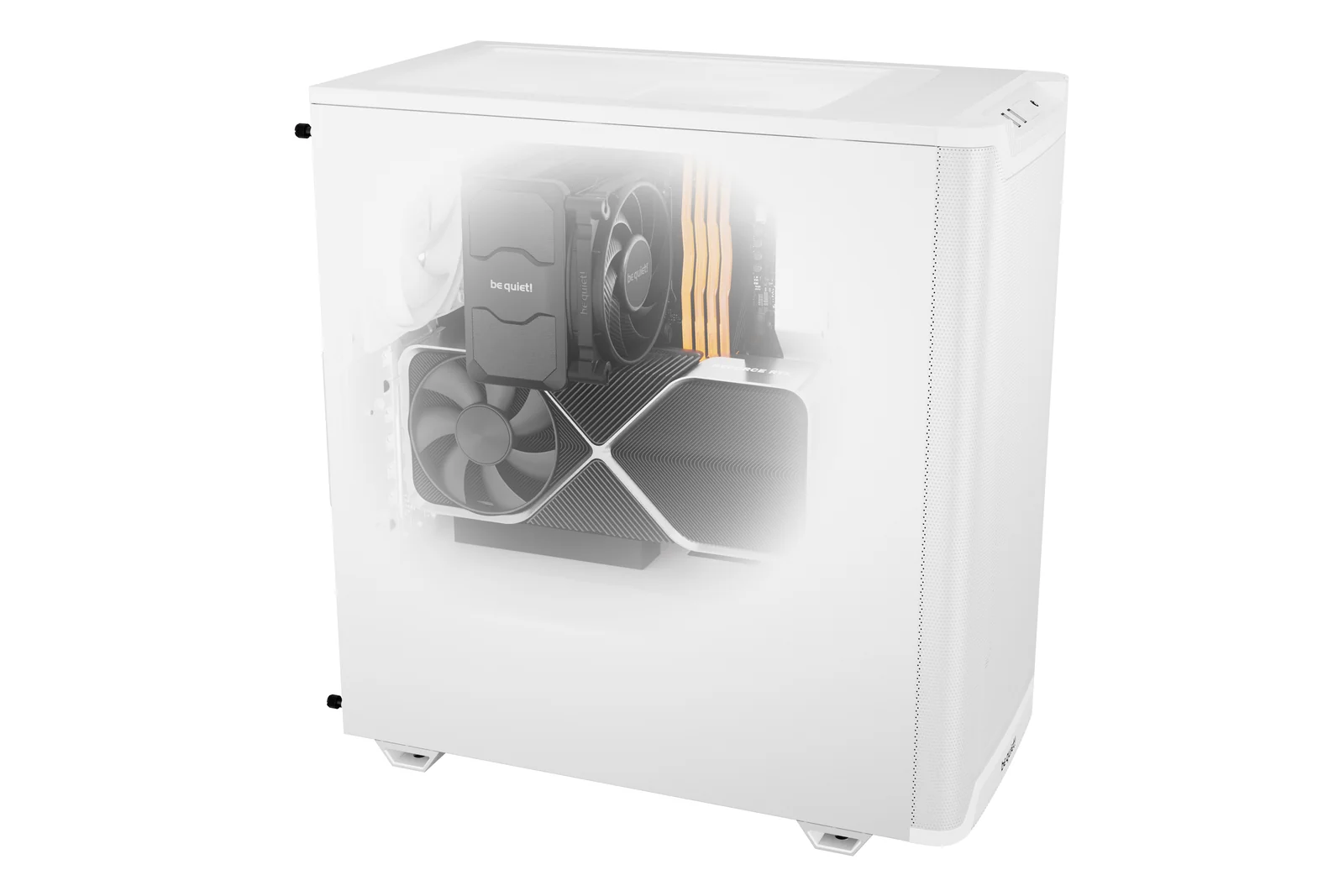

be quiet! PURE BASE 501 Airflow White PC Case

Model PURE BASE 501 Airflow White

Overview

Comfortably compact Pure Base 501 Airflow White is a traditional, timeless and versatile be quiet! ATX case with compact dimensions. REDUCED TO THE MAX Classic appearance Without any distractions, Pure Base 501 Airflow White is reduced to excel at its core functions and is aimed at users that appreciate an unagitated presentation. PERFECT CASE FAN Fan blades optimized for high airflow With optimization for maximum airflow, Pure Wings 3 140mm PWM is the perfect choice for Pure Base 501 Airflow White. Its 7 airflow-optimized fan blades not only reduce noise-generating turbulences but also ensure Pure Wings 3 140mm PWM White provides the performance that is needed for demanding configurations. MORE THAN MEETS THE EYE Generous space for high-end hardware Despite its compact dimensions, Pure Base 501 Airflow White offers enough space for high-end graphics cards and large coolers. Triple fans or a radiator up to 360mm can be installed easily at the front, while the top area provides space for up to 2 fans or a radiator up to 240mm. WAY UP! With rotatable PCIe slots Why not try something else with your GPU? The PCIe slots of the Pure Base 501 Airflow White can be rotated 90° for an upright installation of wide high-end graphics cards. The spacing is perfect for the optional be quiet! Riser Cable, whose foam base provides excellent anti-sag support for graphics cards in vertical orientation. INVENTORY MANAGEMENT With smart cable routing options As a compact PC case, Pure Base 501 Airflow White optimally uses the offered space. Thanks to cleverly integrated cable routing options, it makes cable management a breeze. CONNECT WITH ME State-of-the-art technology for your system A USB 3.2 Gen. 2 Type C connector and 2 Type A ports on the front I/O port for fast and easy connectivity.

Specifications

Storage

Supported HDD sizes
2.5,3.5"

Design

Material
Acrylonitrile Butadiene Styrene (ABS),Steel
Form factor
Midi Tower
Type
PC
Product colour
White
Supported motherboard form factors
ATX,Micro ATX,Mini-ITX
Number of 3.5" bays
2
Number of 2.5" bays
5
Number of expansion slots
7
Anti-dust filter
Yes
Reset button
Yes
On/off button
Yes
Maximum CPU cooler height
178 mm
Maximum PSU length
180 mm

Cooling

Front fans installed
1x 140 mm
Number of front fans supported (max)
3
Front fans diameters supported
120,140 mm
Rear fans installed
1x 140 mm
Number of rear fans supported (max)
1
Rear fans diameters supported
120,140 mm
Number of top fans supported (max)
2
Top fans diameters supported
120,140 mm
Maximum airflow
57.4 cfm
Maximum air pressure
0.96 mmH2O
Front radiator sizes supported
120,140,240,280,360 mm
Rear radiator sizes supported
120,140 mm
Top radiator sizes supported
120,240 mm
Pulse-width modulation (PWM) support
Yes

Power supply

Power supply included
No
Supported power supply form factors
ATX,PS2

Packaging data

Package width
292 mm
Package depth
518 mm
Package height
503 mm
Package weight
8000 g

Technical details

Compliance certificates
CE,REACH,RoHS

Ports & interfaces

Audio input
Yes
Audio output
Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2

Weight & dimensions

Width
231 mm
Depth
450 mm
Height
463 mm
Weight
6800 g
