be quiet!

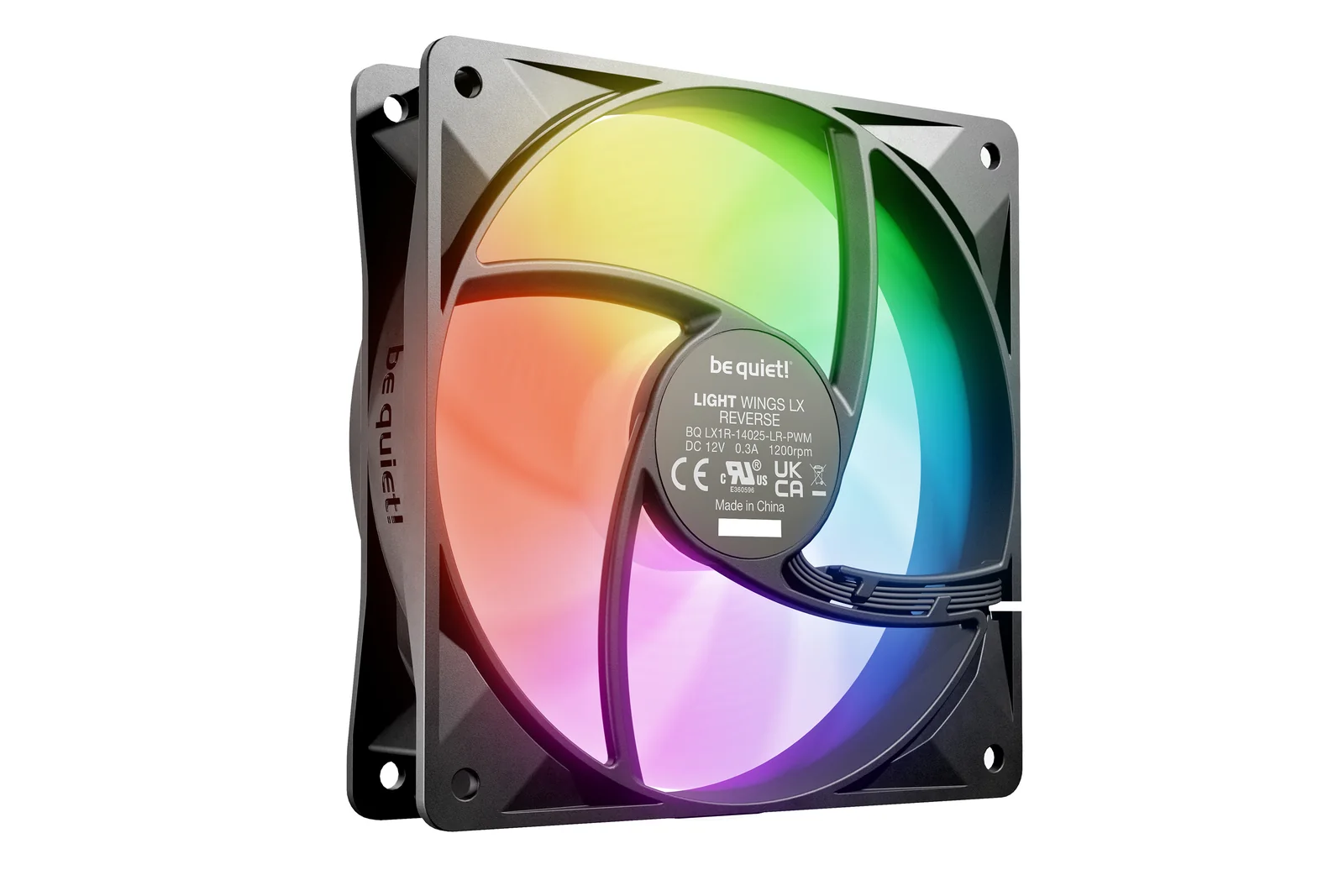

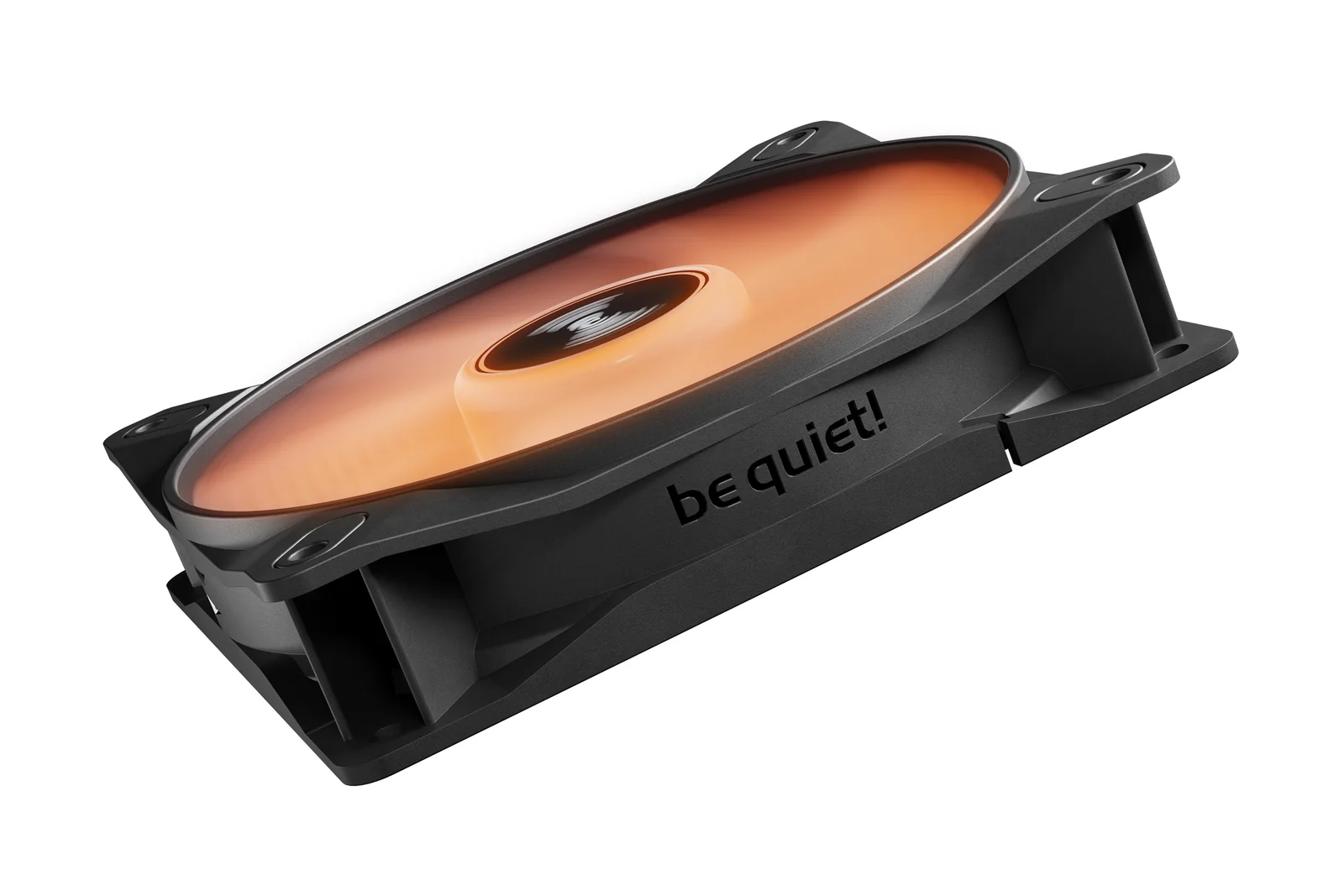

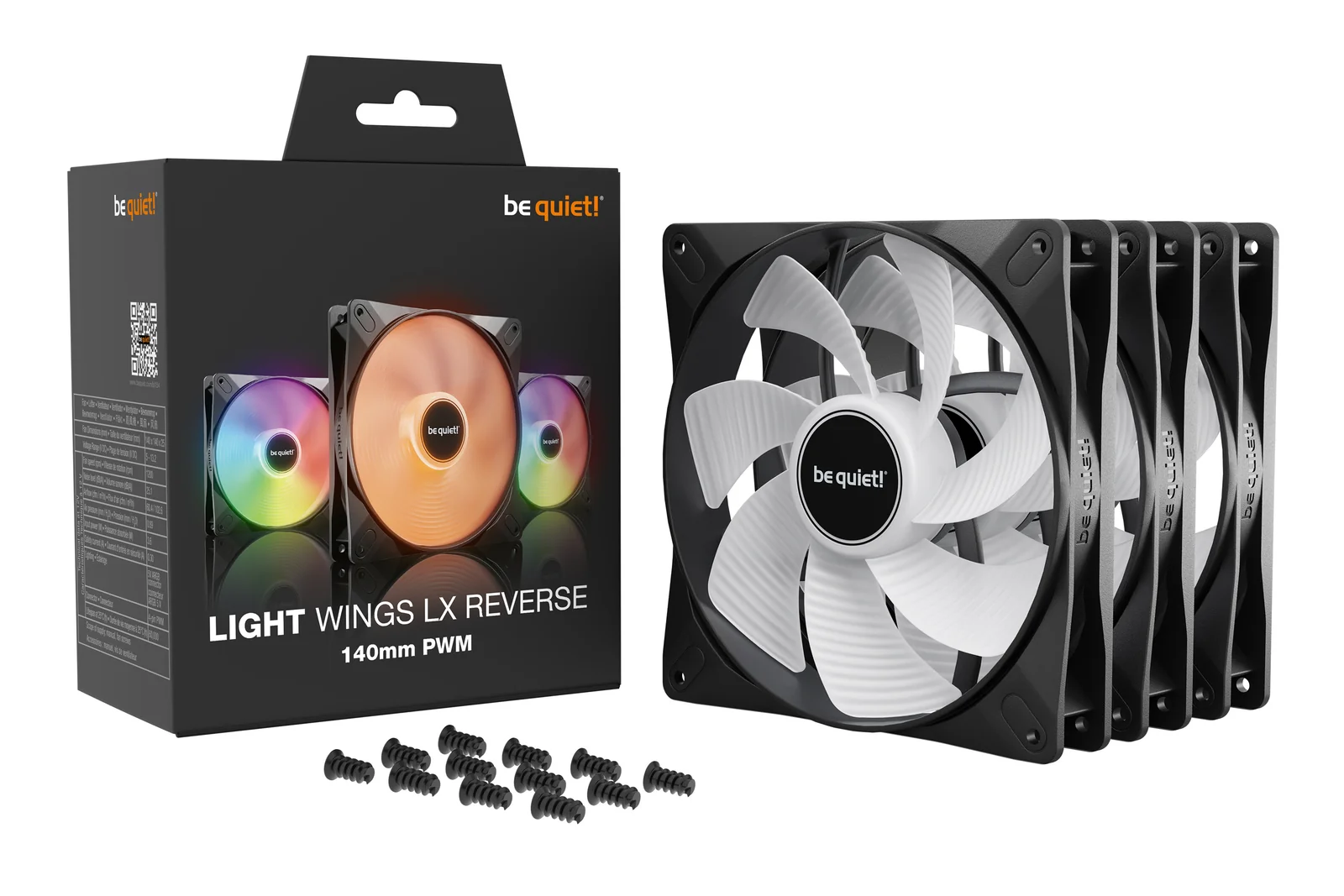

be quiet! Light Wings LX 140mm PWM Reverse Triple Pack
Model Light Wings LX 140mm PWM Reverse Triple Pack
Overview
be quiet! Light Wings LX 140mm PWM Reverse Triple Pack. Type: Fan, Fan diameter: 14 cm, Rotational speed (max): 1200 RPM, Airflow: 102.6 m³/h, Maximum air pressure: 0.89 mmH2O, Bearing type: Rifle bearing. Voltage: 6 - 13.2 V. Width: 140 mm, Depth: 140 mm, Height: 25 mm. Product colour: Black
Specifications
Performance
- Suitable location
- Computer case
- Type
- Fan
- Fan diameter
- 140 mm
- Rotational speed (max)
- 1200 RPM
- Noise level (high speed)
- 25.1 dB
- Maximum airflow
- 60.4 cfm
- Airflow
- 102.6 m³/h
- Maximum air pressure
- 0.89 mmH2O
- Pulse-width modulation (PWM) support
- Yes
- Bearing type
- Rifle bearing
- Quantity per pack
- 3 pc(s)
- Fan's mean time to failure (MTTF)
- 60000 h
Design
- Product colour
- Black
- Number of fans
- 1 fan(s)
- Illumination LED
- Yes
- Illumination colour
- Multi
- LED connector type
- 3-pin
- Fan connector
- 4-pin
Power
- Power consumption (typical)
- 3.6 W
- Voltage
- 6 - 13.2 V
- Rated voltage
- 12 V
- Rated current
- 0.1 A
- LED voltage
- 5 V
Logistics data
- Products per shipping (inner) case
- 20 pc(s)
- Shipping (inner) case width
- 309 mm
- Shipping (inner) case length
- 360 mm
- Shipping (inner) case height
- 428 mm
- Shipping (inner) case gross weight
- 12380 g
Technical details
- Compliance certificates
- CE,RoHS,UL,UKCA,WEEE
Weight & dimensions
- Width
- 140 mm
- Depth
- 140 mm
- Height
- 25 mm
- Weight
- 164 g
- Cable length
- 0.5 m
- Package width
- 142 mm
- Package depth
- 80 mm
- Package height
- 184 mm
- Package weight
- 577 g
