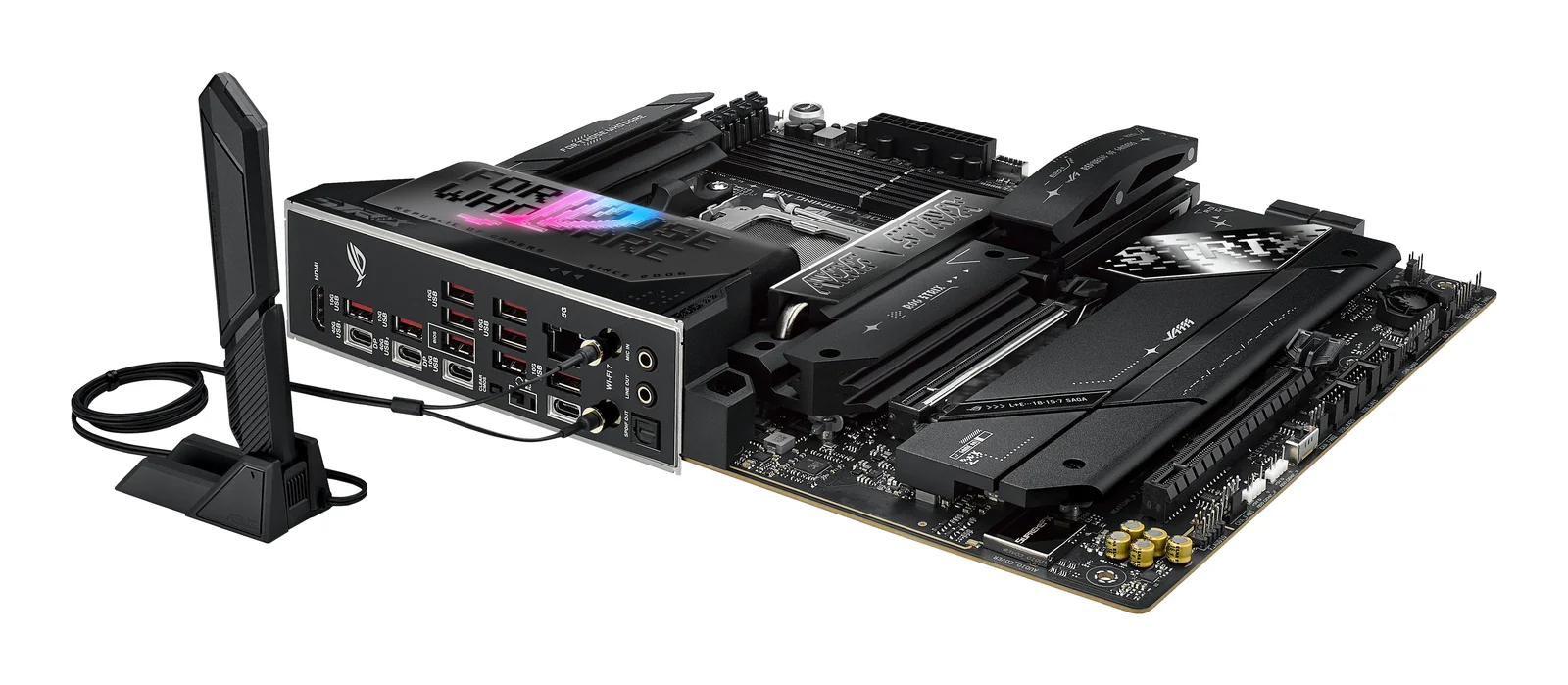

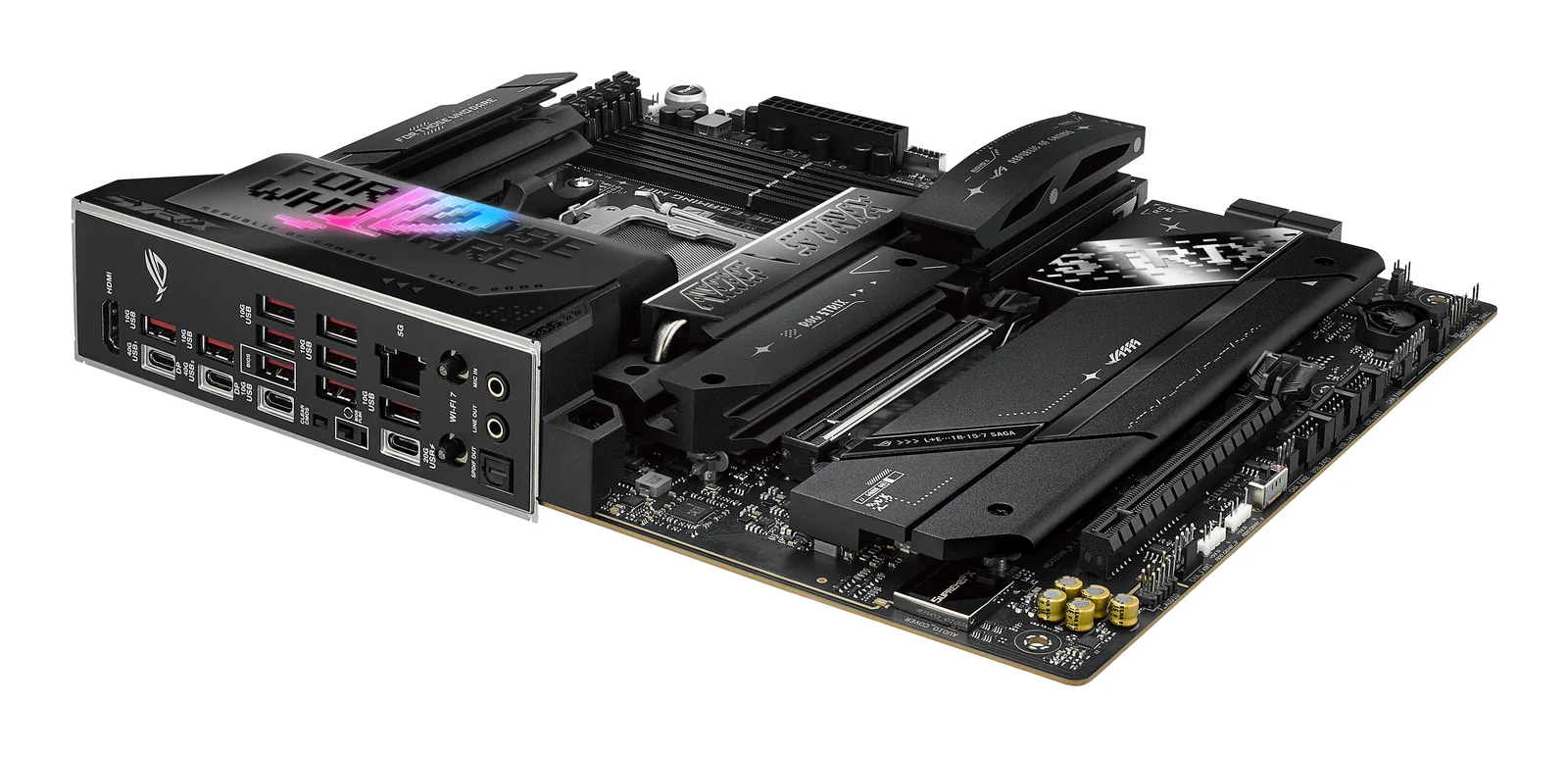

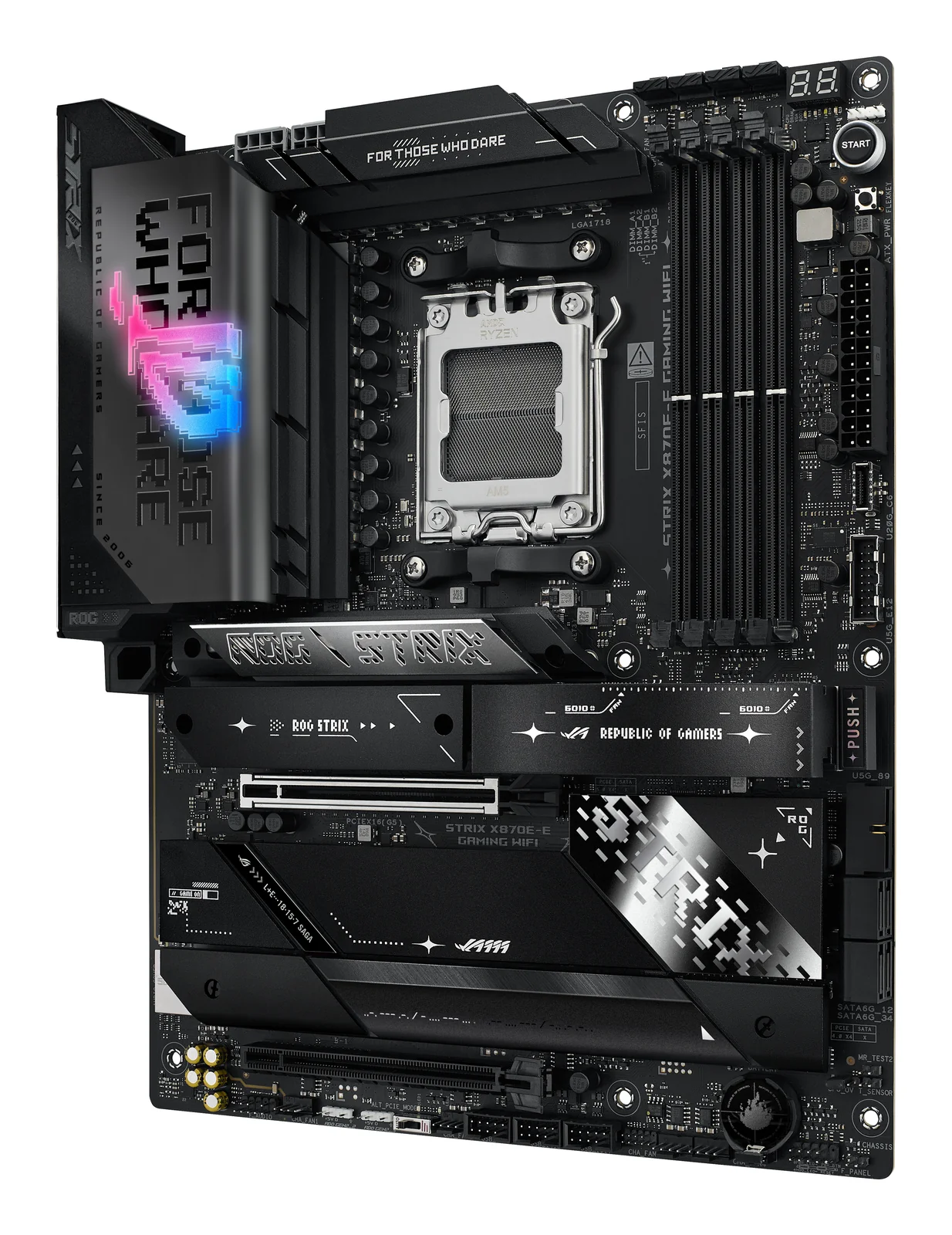

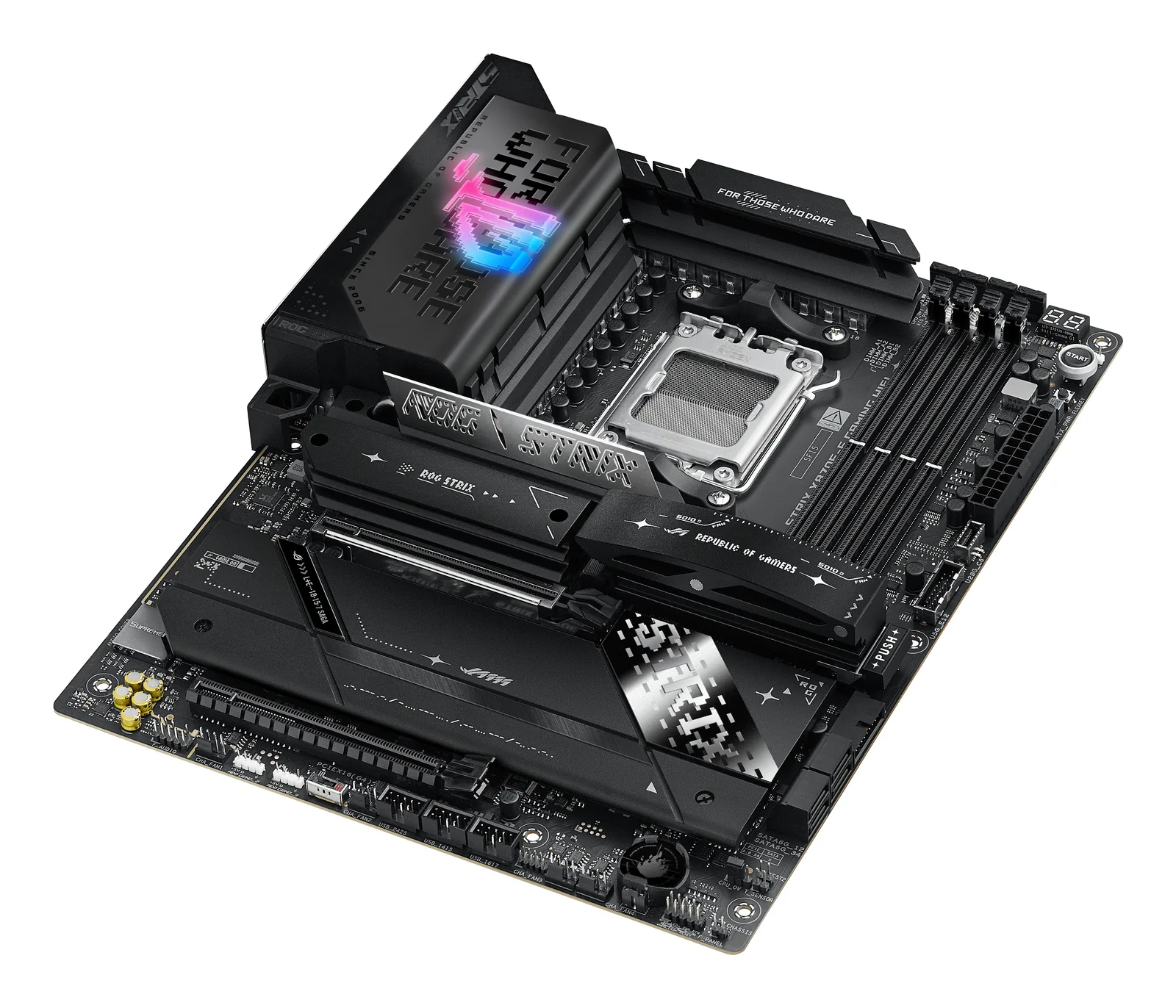

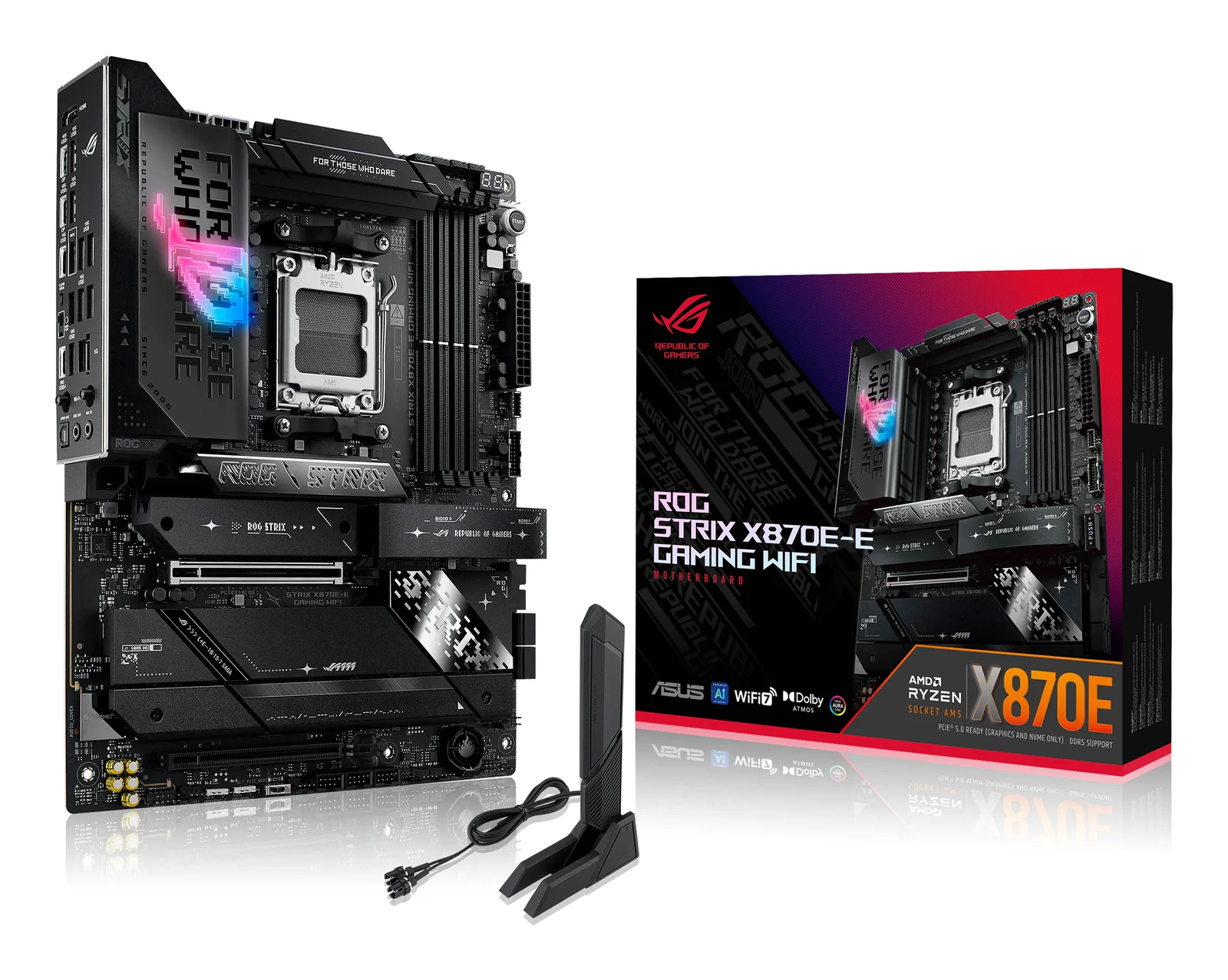

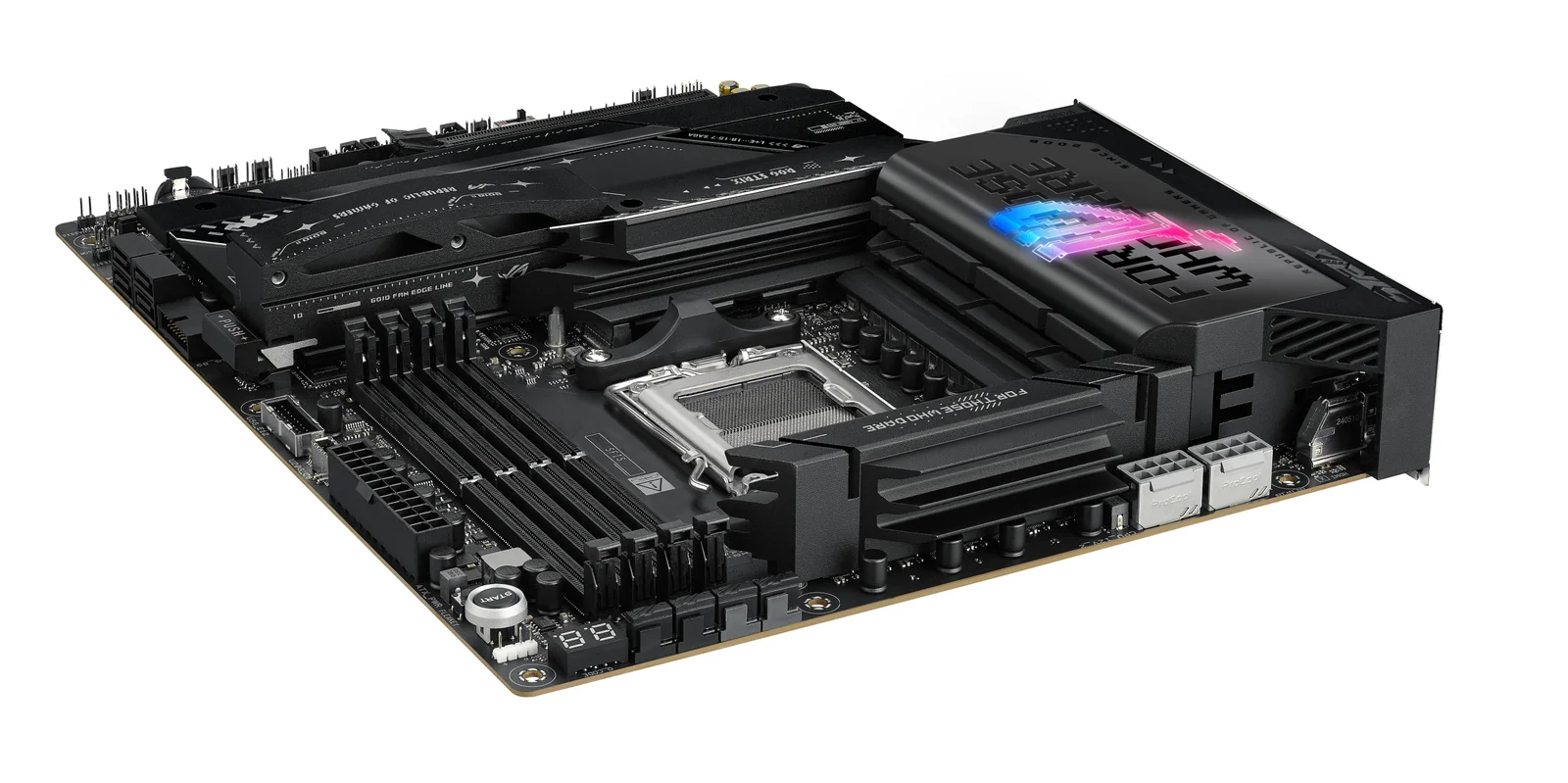

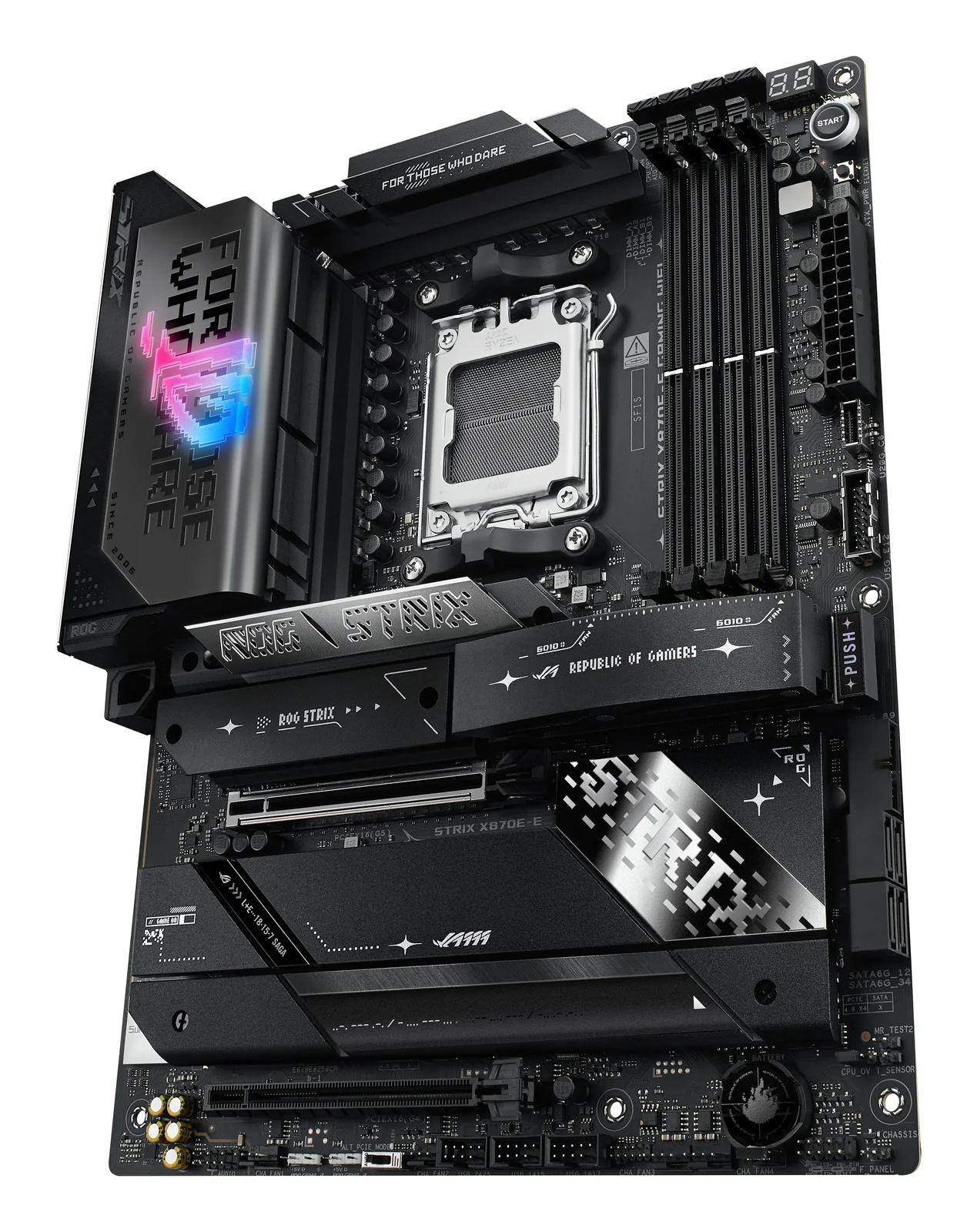

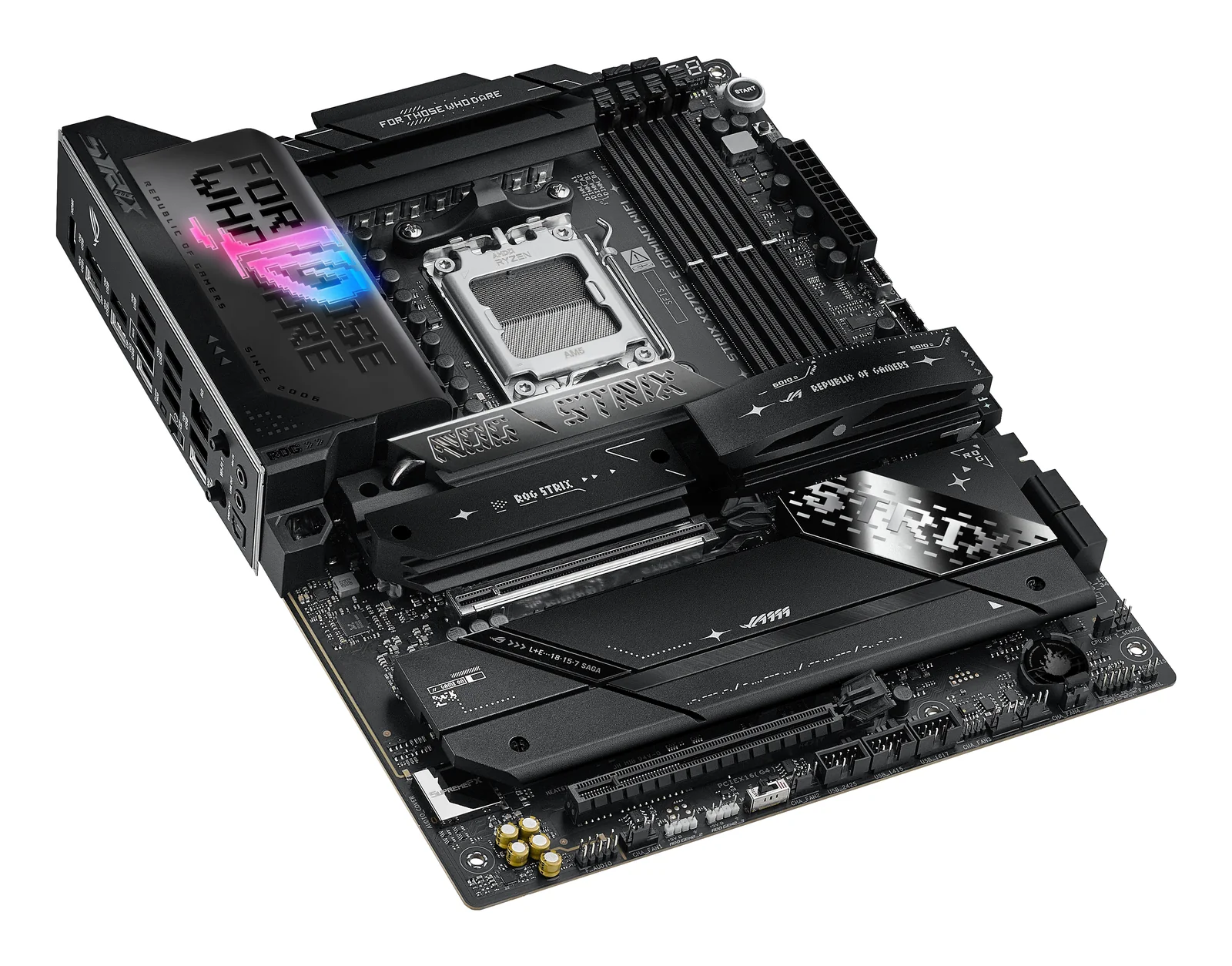

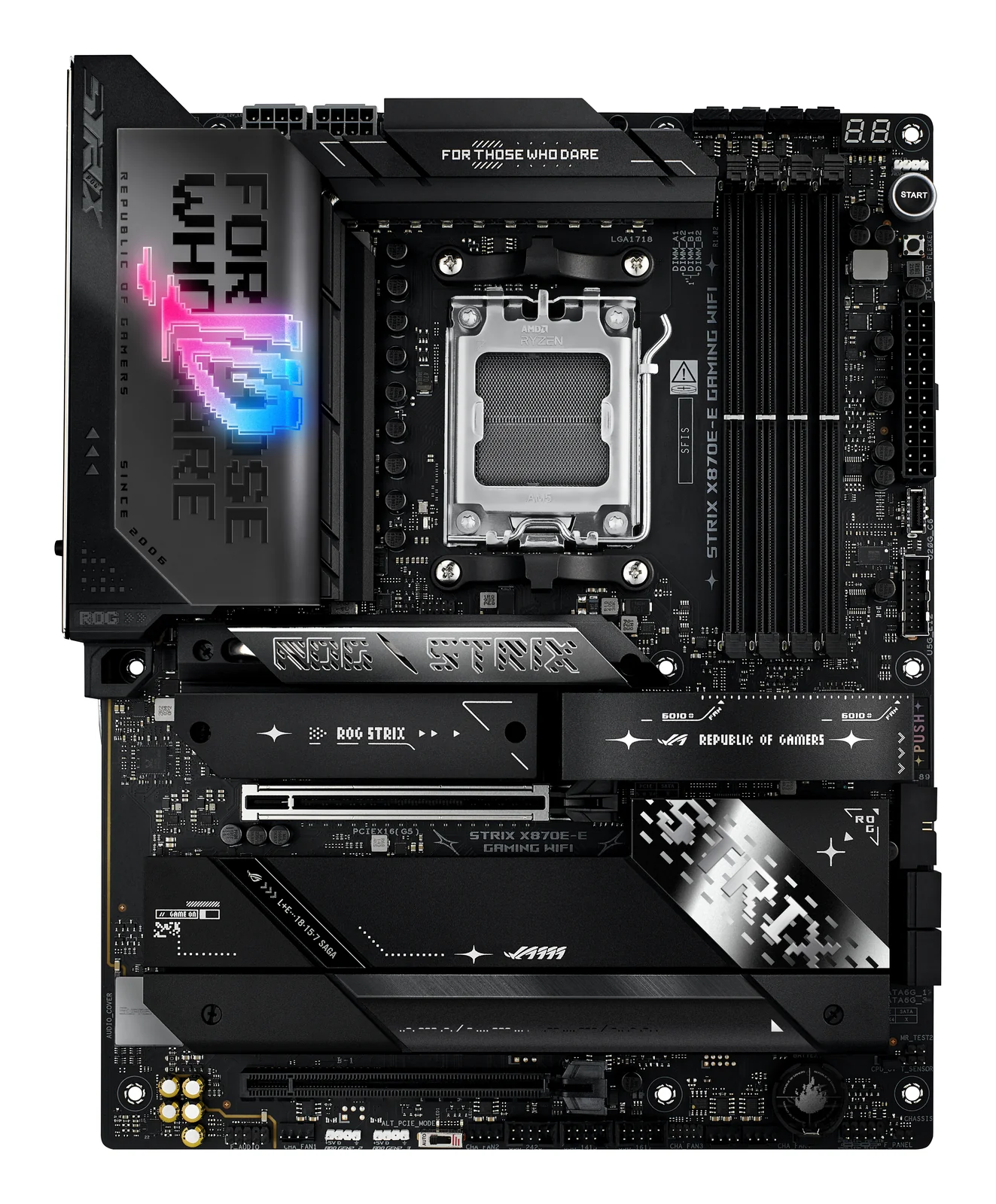

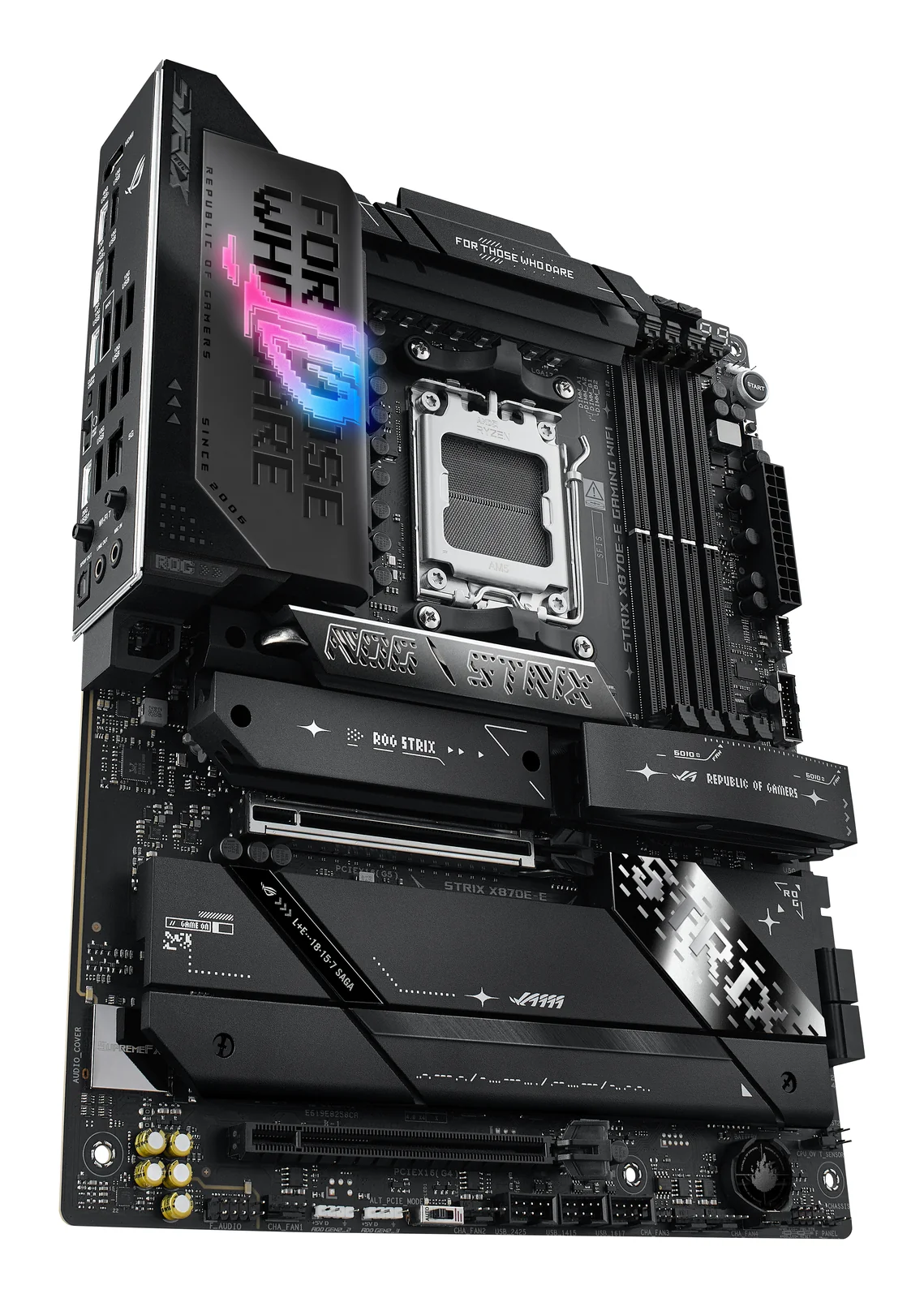

ASUS ROG STRIX X870E-E GAMING WIFI
Model ROG STRIX X870E-E GAMING WIFI
Overview
ASUS AI INTELLIGENCE ai OVERCLOCKING ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. AI Overclocking ai cOOLING II Balance the thermals and acoustics of any build with a single click. AI NETWORKING II AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*. Performance OVERCLOCKING Dynamic OC Switcher Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.
Specifications
BIOS
- BIOS type
- UEFI AMI
- BIOS memory size
- 256 Mbit
- Clear CMOS button
- Yes
Memory
- Supported memory types
- DDR5-SDRAM
- Number of memory slots
- 4
- Memory slots type
- DIMM
- Memory channels
- Dual-channel
- ECC сompatibility
- ECC & non-ECC
- Maximum internal memory
- 192 GB
- Unbuffered memory
- Yes
Network
- Ethernet LAN
- Yes
- Ethernet interface type
- 5 Gigabit Ethernet
- Wi-Fi
- Yes
- Top Wi-Fi standard
- Wi-Fi 7 (802.11be)
- Wi-Fi standards
- Wi-Fi 7 (802.11be)
- Bluetooth
- Yes
- Bluetooth version
- 5.4
Features
- Motherboard chipset
- AMD X870E
- Audio chip
- Realtek ALC4080
- Audio output channels
- 7.1 channels
- Product colour
- Black
- Component for
- PC
- Motherboard form factor
- ATX
- Motherboard chipset family
- AMD
- Windows operating systems supported
- Windows 11 x64
Graphics
- Parallel processing technology support
- Not supported
- On-board graphics card
- No
Processor
- Processor manufacturer
- AMD
- Processor socket
- Socket AM5
Internal I/O
- USB 2.0 connectors
- 3
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 2
- USB 3.2 Gen 2x2 connectors
- 1
- Number of SATA III connectors
- 4
- Front panel audio connector
- Yes
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- Number of chassis fan connectors
- 5
- 12V power connector
- Yes
Packaging data
- Package width
- 365 mm
- Package depth
- 281 mm
- Package height
- 87 mm
- Package weight
- 3025 g
Expansion slots
- PCI Express x16 (Gen 4.x) slots
- 1
- PCI Express x16 (Gen 5.x) slots
- 1
- Number of M.2 (M) slots
- 5
Storage controllers
- Supported storage drive types
- HDD & SSD
- Supported storage drive interfaces
- M.2,SATA III
- Number of HDDs supported
- 4
- Number of storage drives supported
- 9
- RAID support
- Yes
- RAID levels
- 0,1,10,5
Weight & dimensions
- Width
- 305 mm
- Depth
- 244 mm
- Height
- 50 mm
Rear panel I/O ports
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 9
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- USB 3.2 Gen 2x2 Type-C ports quantity
- 1
- USB4 Gen 2x2 ports quantity
- 2
- Ethernet LAN (RJ-45) ports
- 1
- HDMI ports quantity
- 1
- Headphone outputs
- 1
- Microphone in
- Yes
- S/PDIF out port
- Yes
- WiFi-AP antenna jack
- 1
