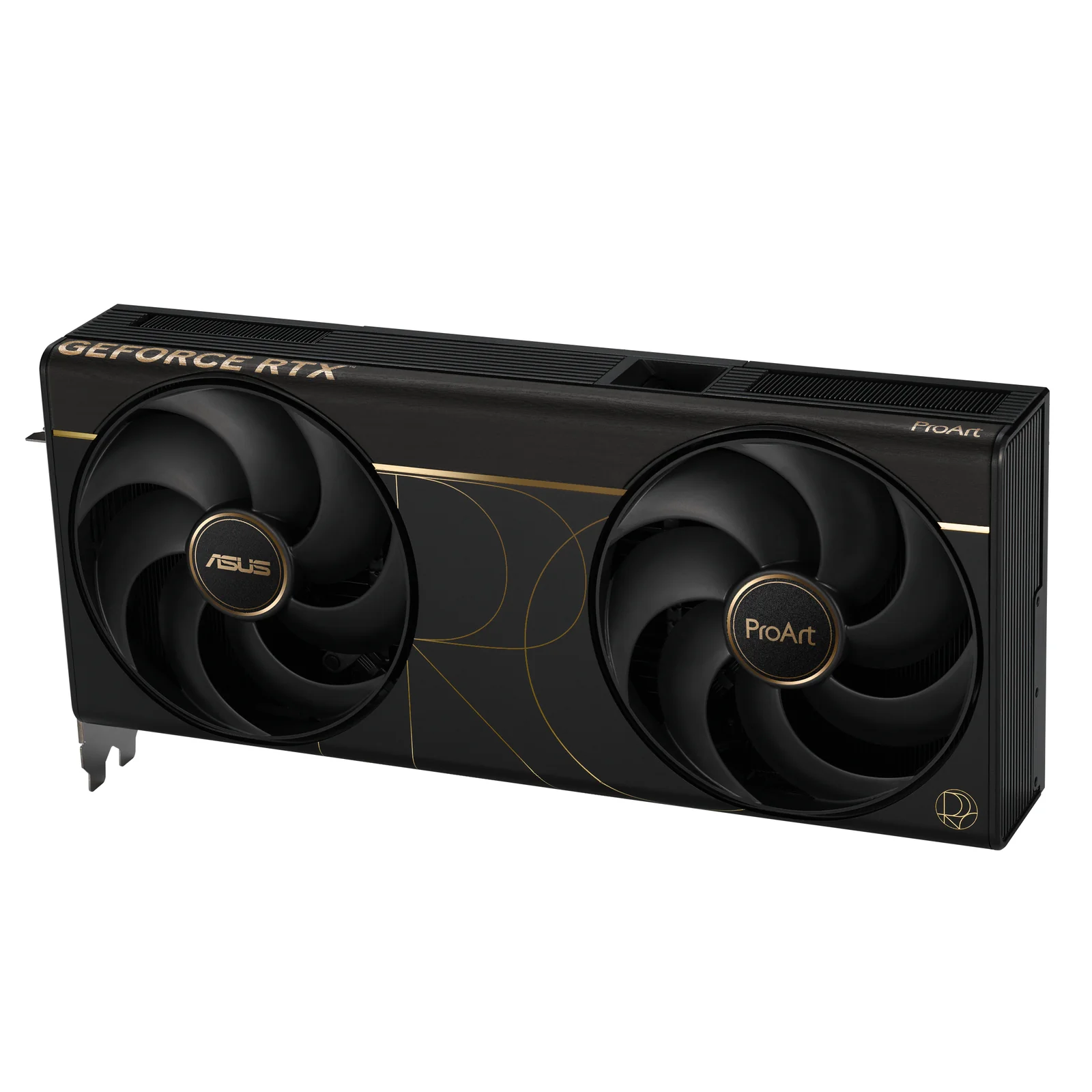

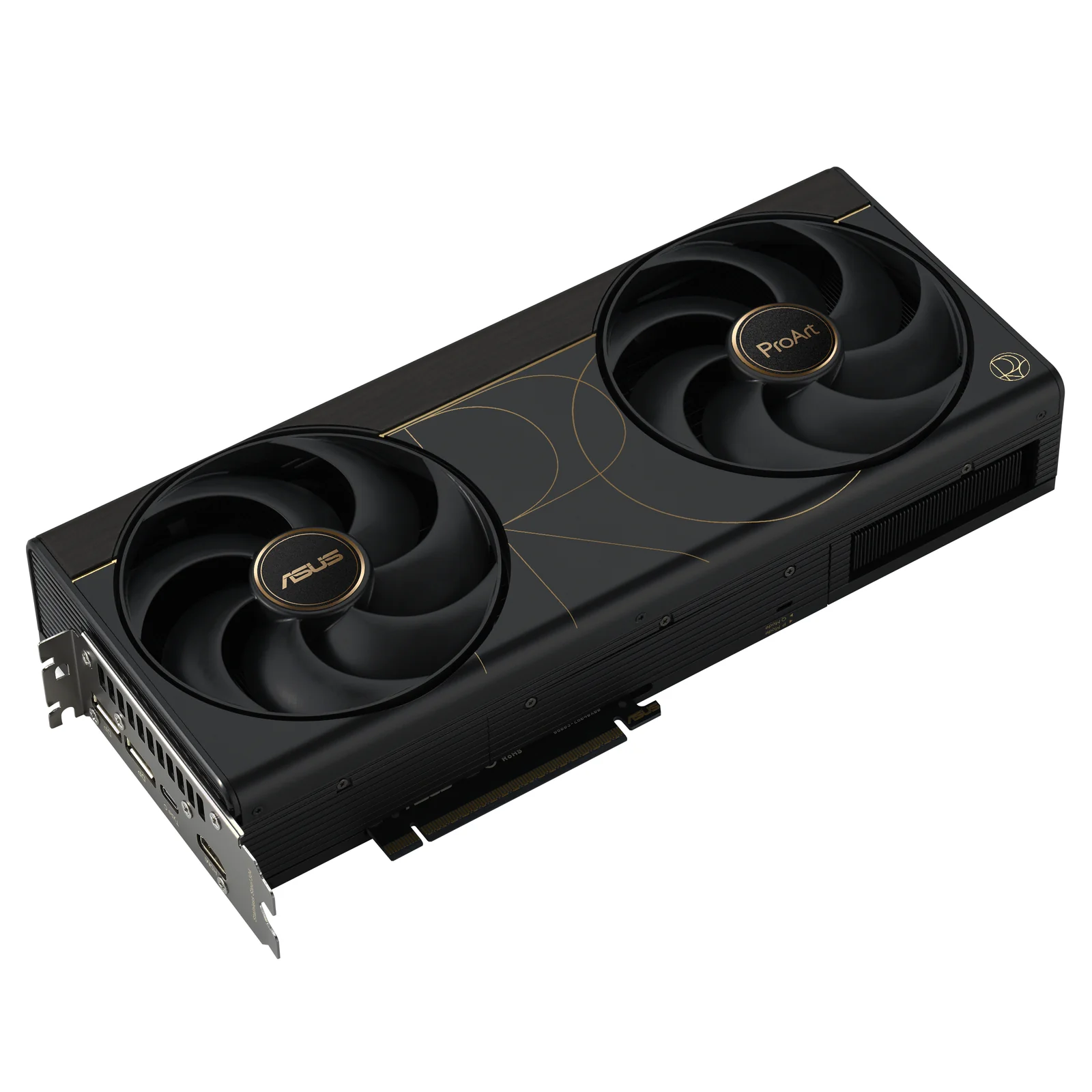

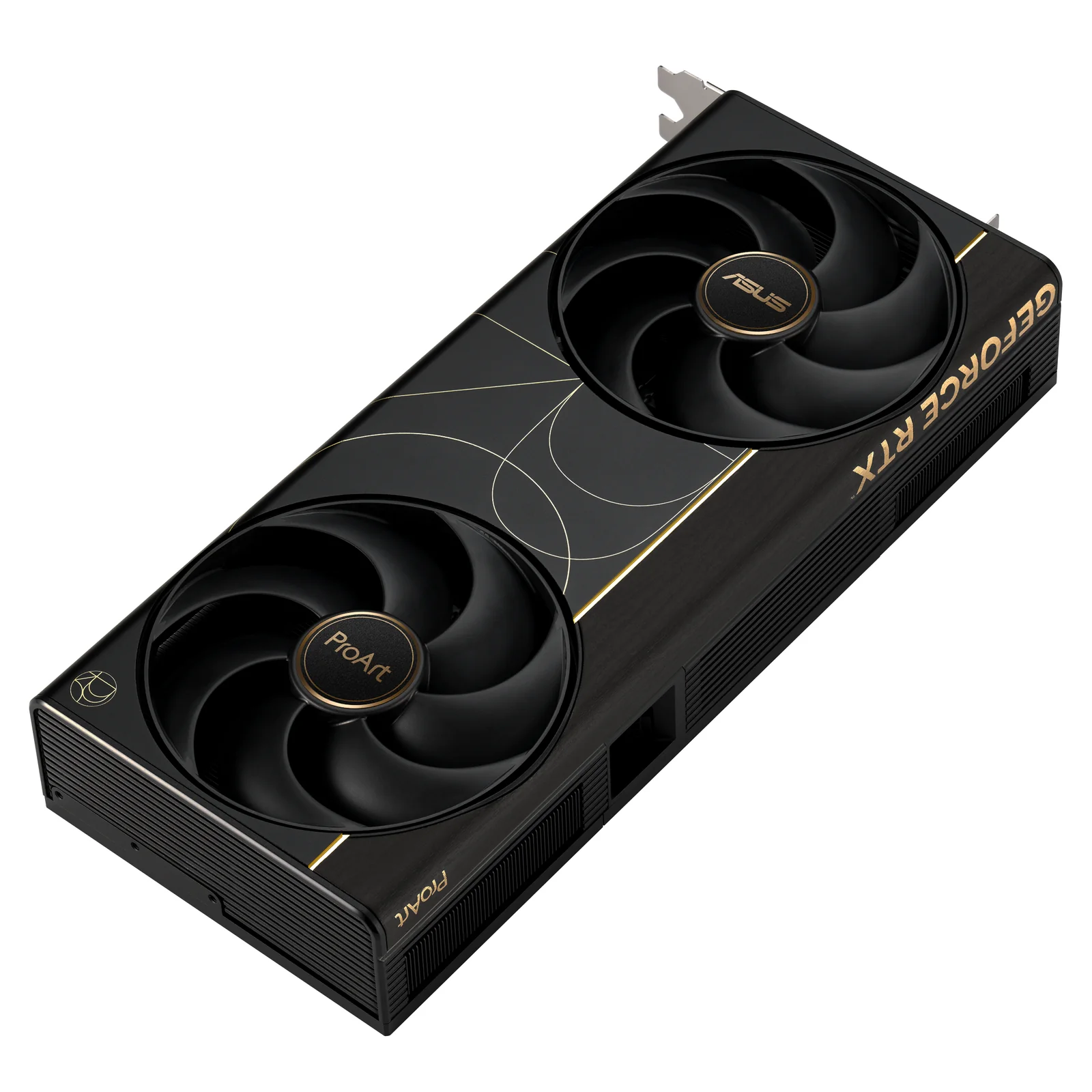

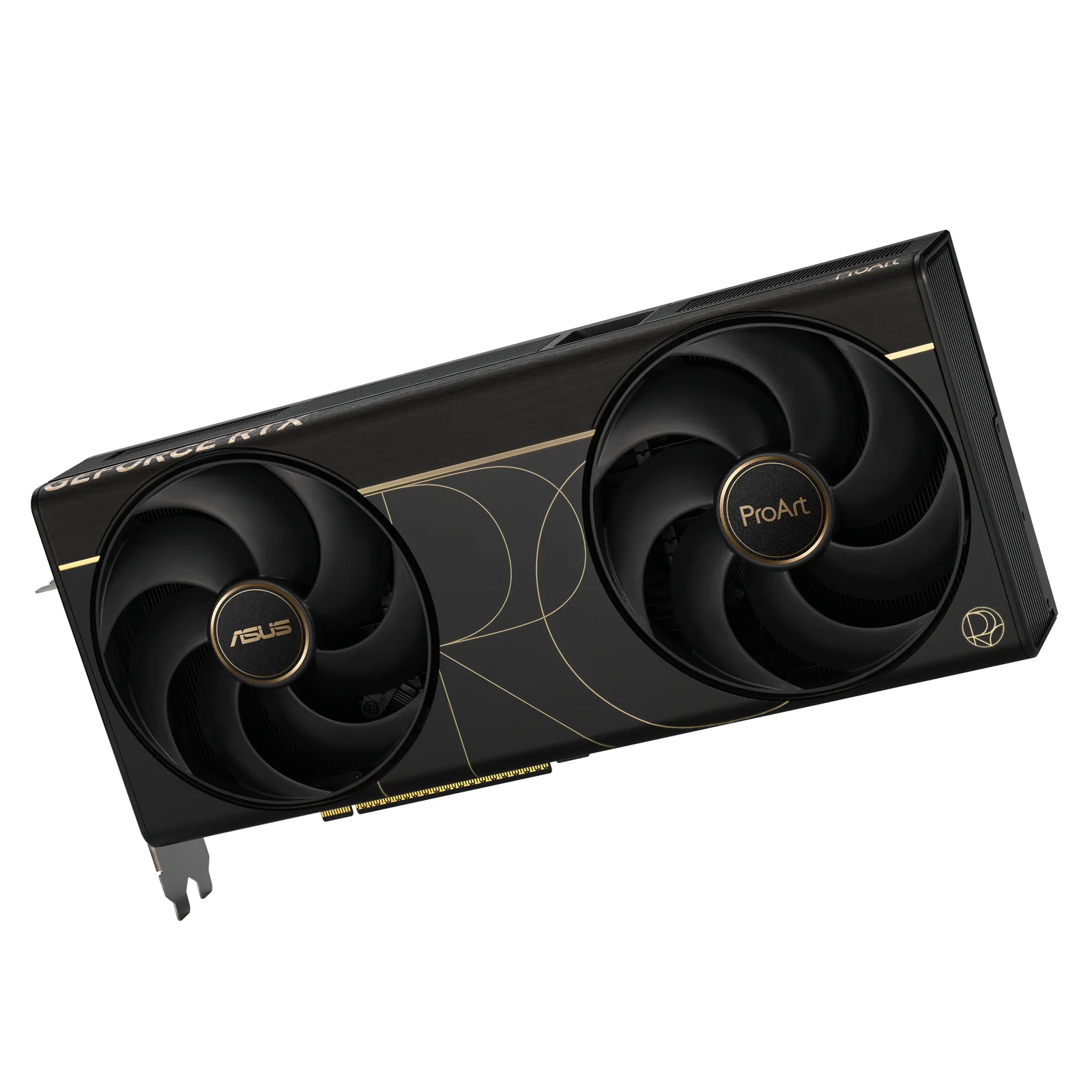

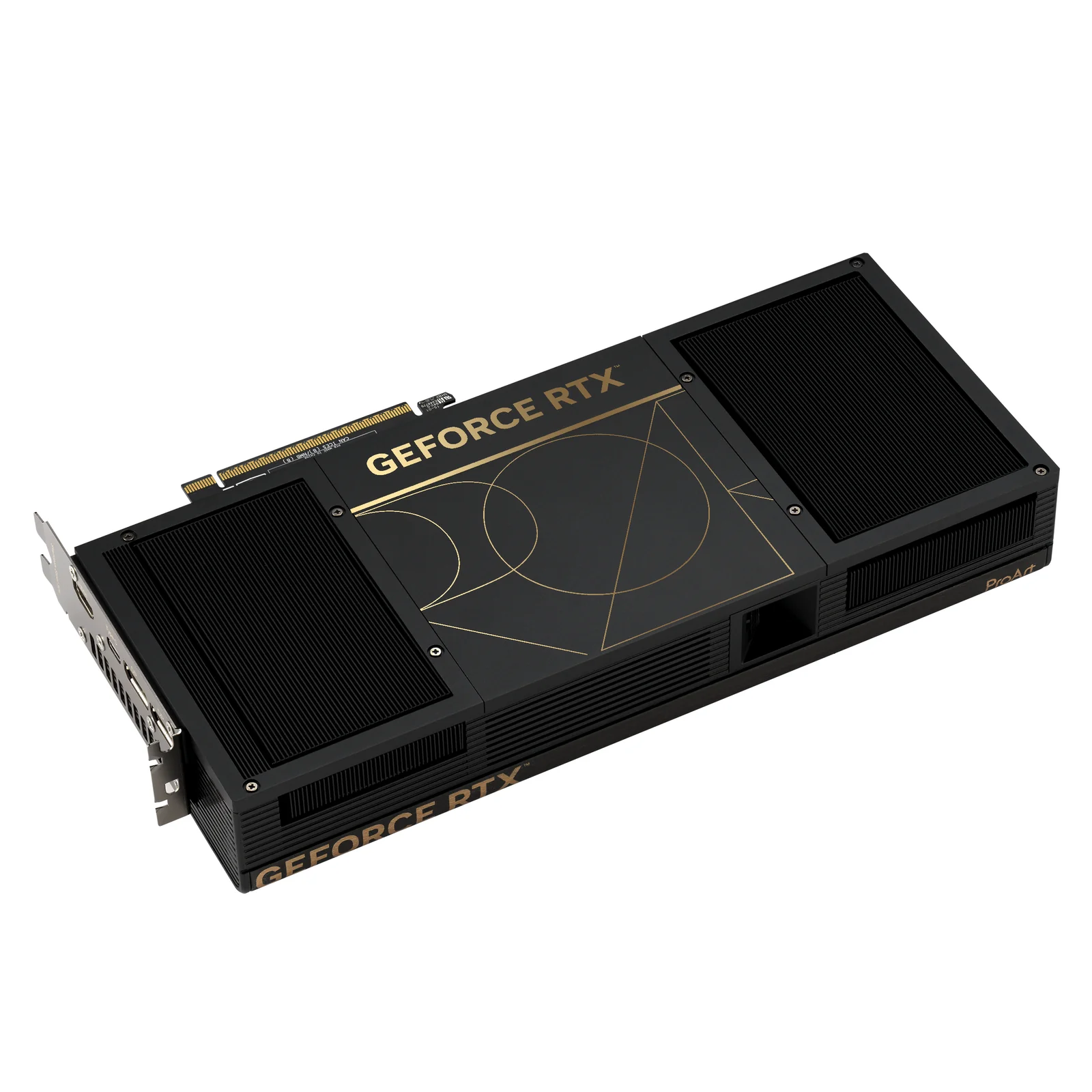

ASUS ProArt -RTX5090-O32G
Model PROART-RTX5090-O32G
Overview

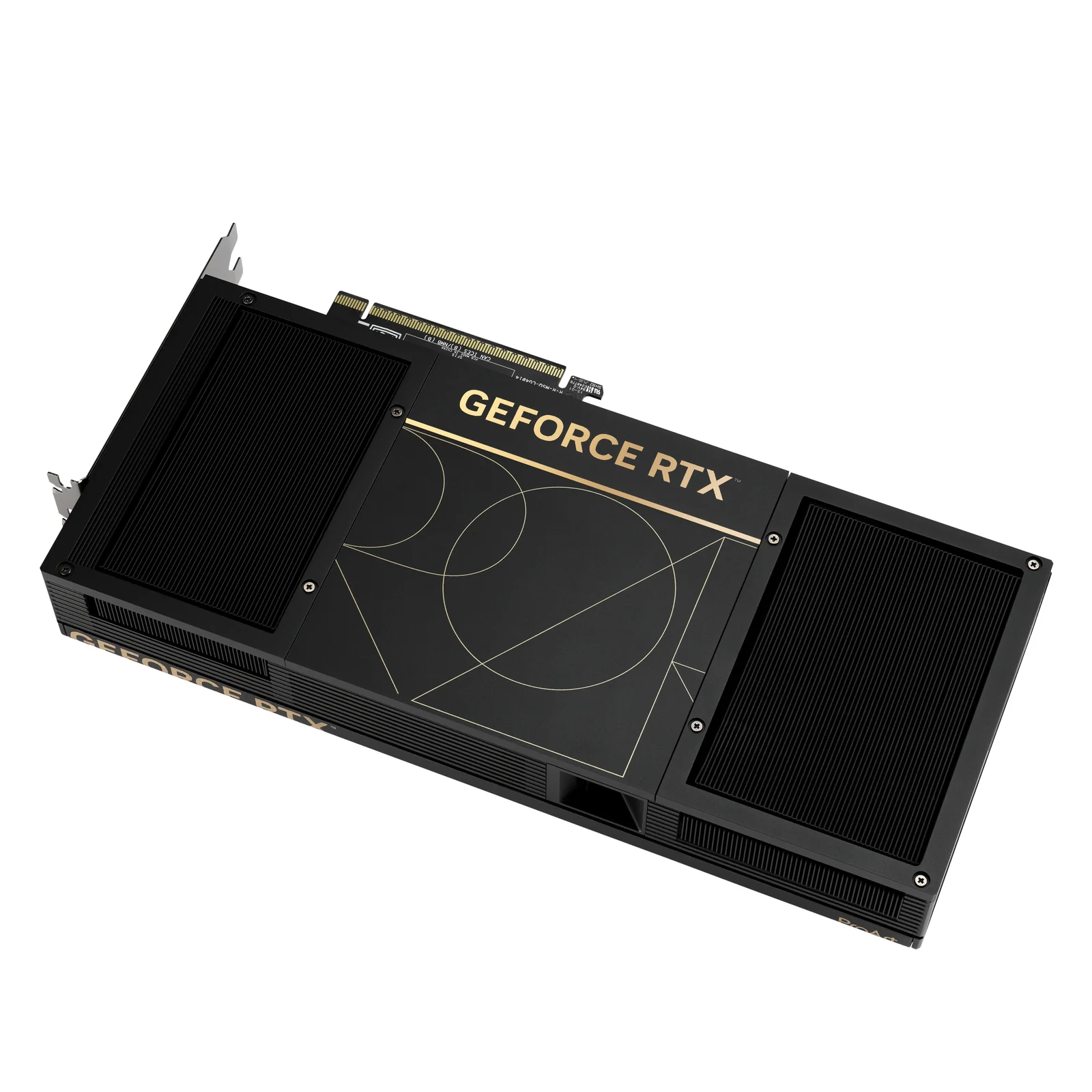

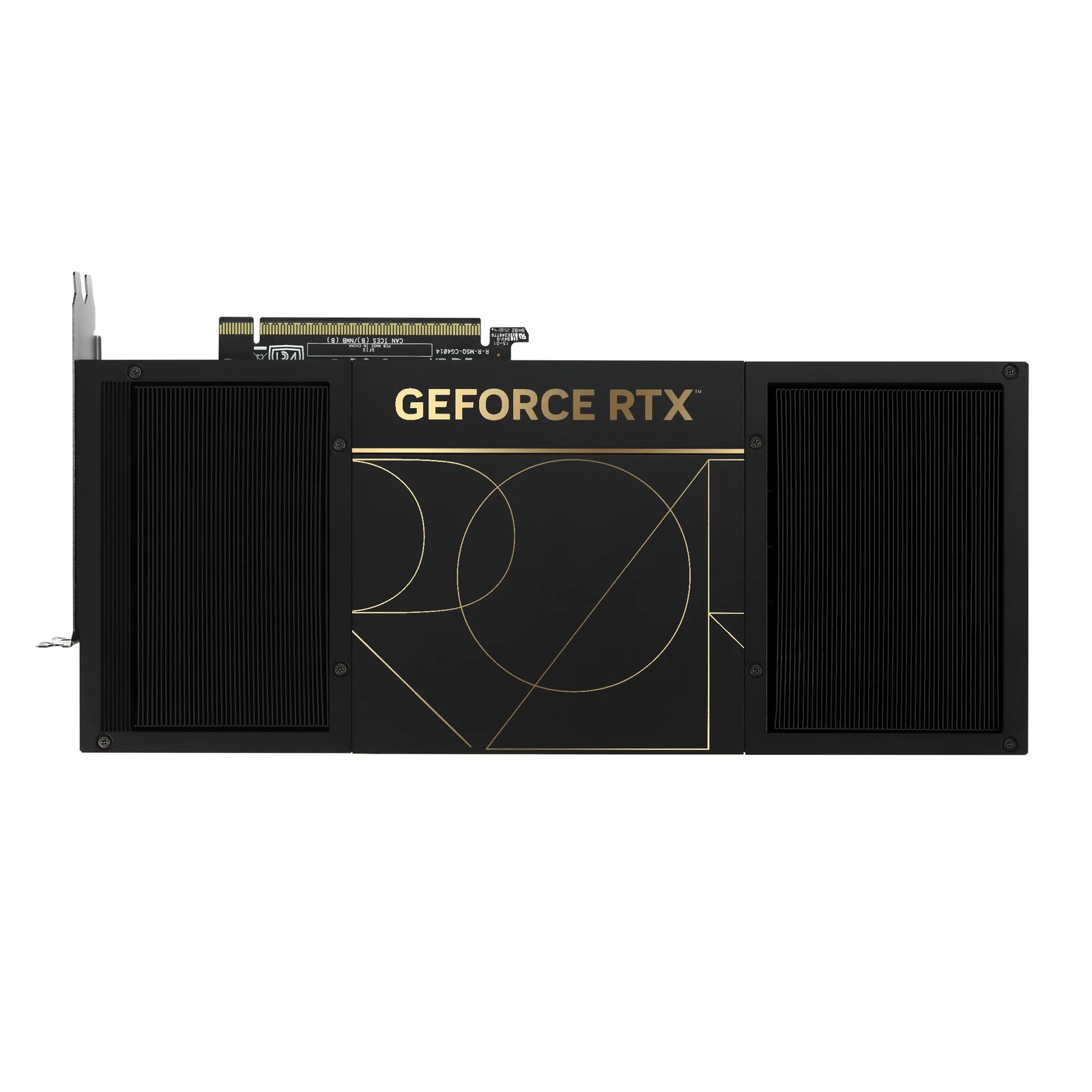

ProArt GeForce RTX™ 5090 OC Edition Artistry Meets Performance Experience exceptional power and cooling in a compact design with the ProArt GeForce RTX™ 5090. This first-ever 2.5-slot compact RTX 5090 card from ASUS features two large Axial-tech fans, a vapor chamber, and a double-vented backplate. It also features liquid metal thermal compound for enhanced GPU cooling, helping to ensure optimal performance. A USB Type-C port enhances versatility for content creation workflows, and wood-patterned laminate trim plus subtle ProArt elements deliver a refined aesthetic. Whether you're building a small-form-factor workstation or a full-scale tower, the ProArt RTX 5090 delivers ultimate versatility. Build Small. Play Big. You can pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Look for cases that are compatible with SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build. Premium Cooling Exceptional Thermal in Compact 2.5-Slot Design Large dual Axial-tech fans and a double-vented backplate maximize airflow, while a vapor chamber and liquid metal compound help ensure exceptional thermal performance in a compact design.
Specifications
Performance
- TV tuner integrated
- No
- OpenGL version
- 4.6
- HDCP
- Yes
- HDCP version
- 2.3
- NPU performance up to
- 3352 TOPs
- Overclocked (OC) edition
- Yes
Design
- Cooling type
- Active
- Cooling technology
- ASUS Axial-tech
- Number of fans
- 2 fan(s)
- Form factor
- Full-Height/Half-Length (FH/HL)
- Bracket height
- Full-Height (FH)
- Number of slots
- 2.5
- Illumination
- No
- SFF ready
- Yes
- Product colour
- Black
Power
- Minimum system power supply
- 1000 W
Memory
- Discrete graphics card memory
- 32 GB
- Graphics card memory type
- GDDR7
- Memory bus
- 512 bit
- Data transfer rate
- 28 Gbit/s
Processor
- CUDA
- Yes
- CUDA cores
- 21760
- Graphics processor family
- NVIDIA
- Graphics processor
- GeForce RTX 5090
- Processor frequency
- 2482 MHz
- Processor frequency (OC mode)
- 2512 MHz
- Maximum resolution
- 7680 x 4320 pixels
- Parallel processing technology support
- Not supported
- Maximum displays per videocard
- 4
Packaging data
- Package width
- 405 mm
- Package depth
- 233 mm
- Package height
- 88.5 mm
- Package weight
- 2471 g
- Package type
- Box
Packaging content
- Manual
- Yes

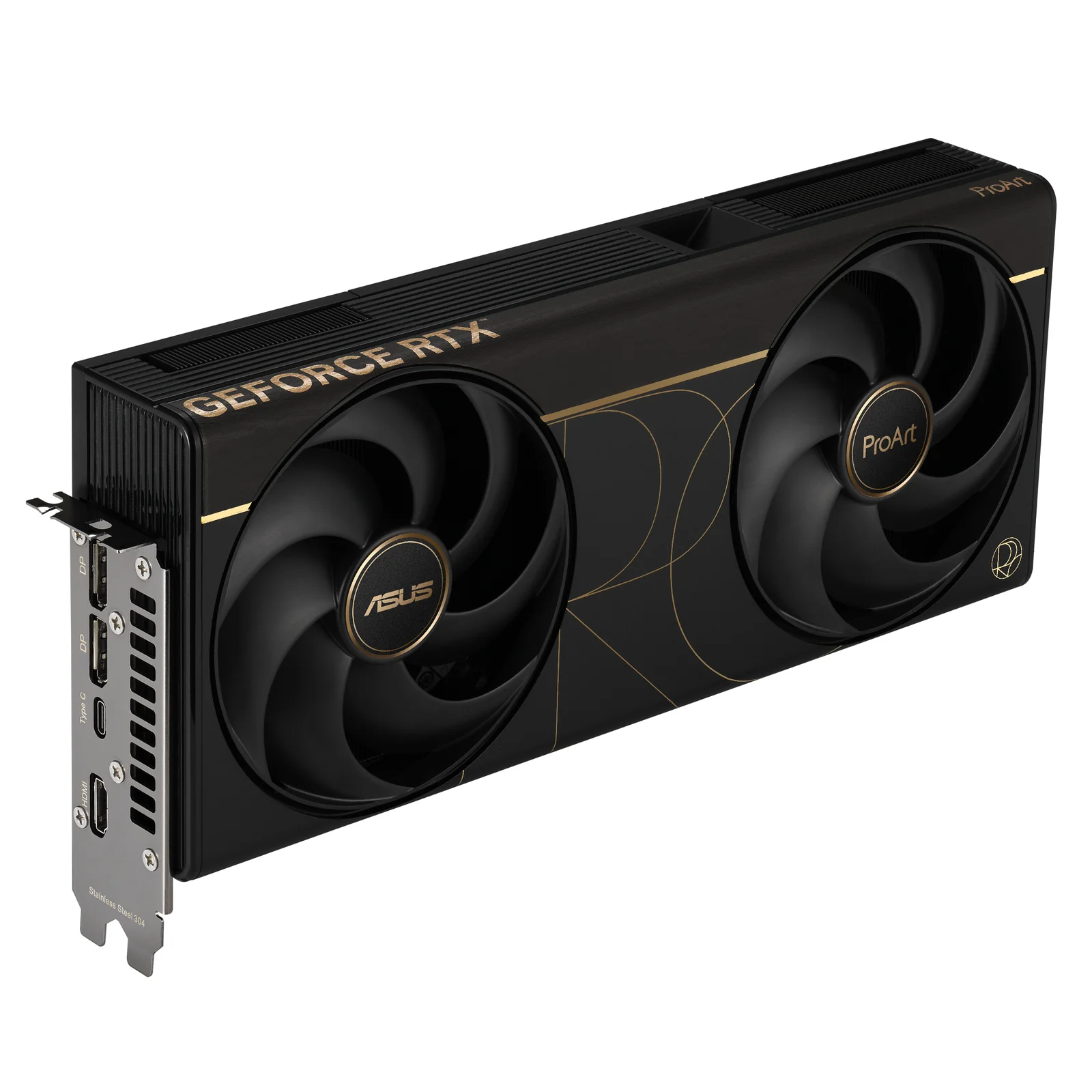

Ports & interfaces
- Interface type
- PCI Express 5.0
- HDMI ports quantity
- 1
- HDMI version
- 2.1b
- DisplayPorts quantity
- 2
- DisplayPort version
- 2.1b
- USB Type-C ports quantity
- 1
Weight & dimensions
- Weight
- 1810 g
- Length
- 304 mm
- Depth
- 50 mm
- Height
- 140 mm
