ASUS

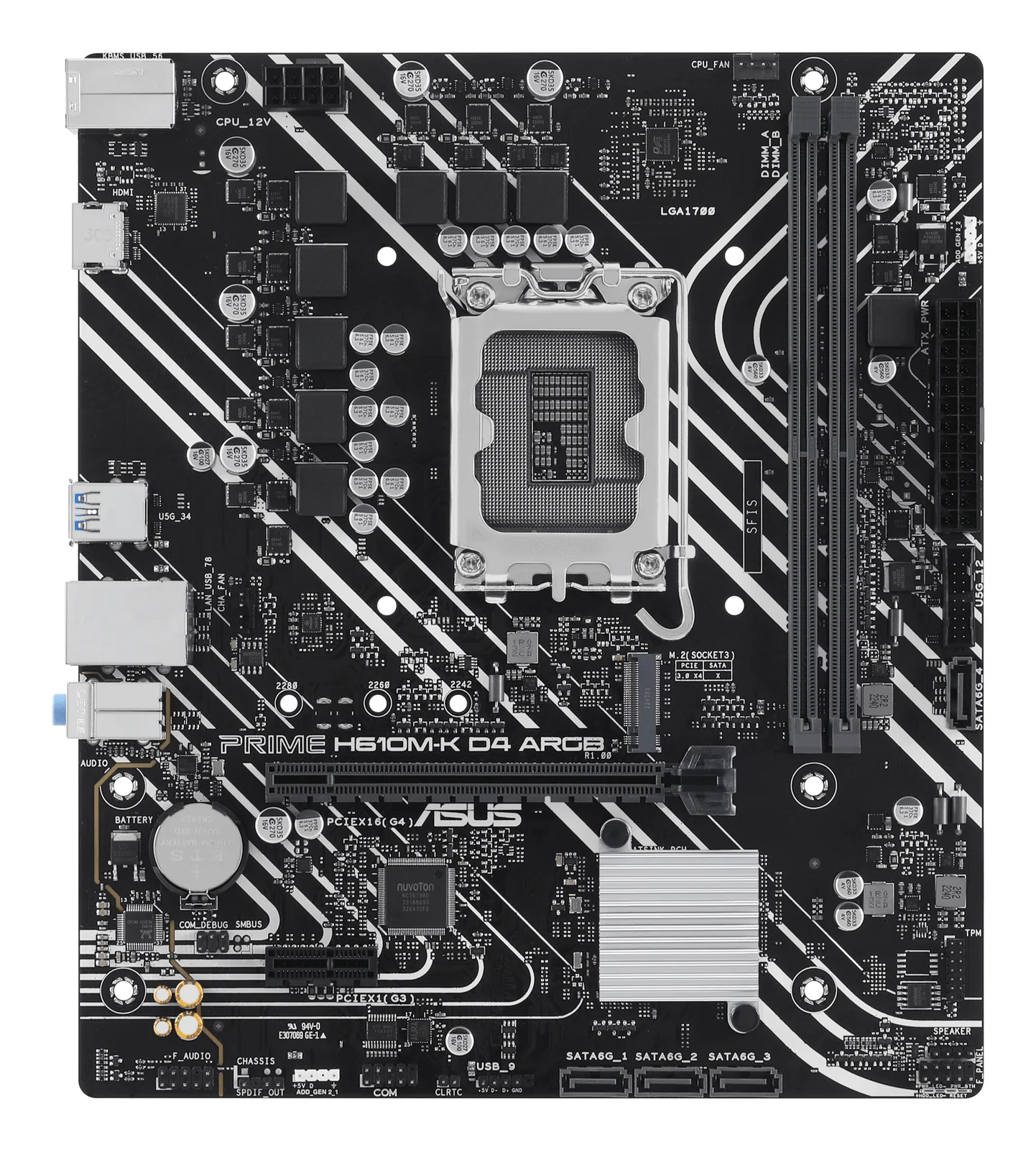

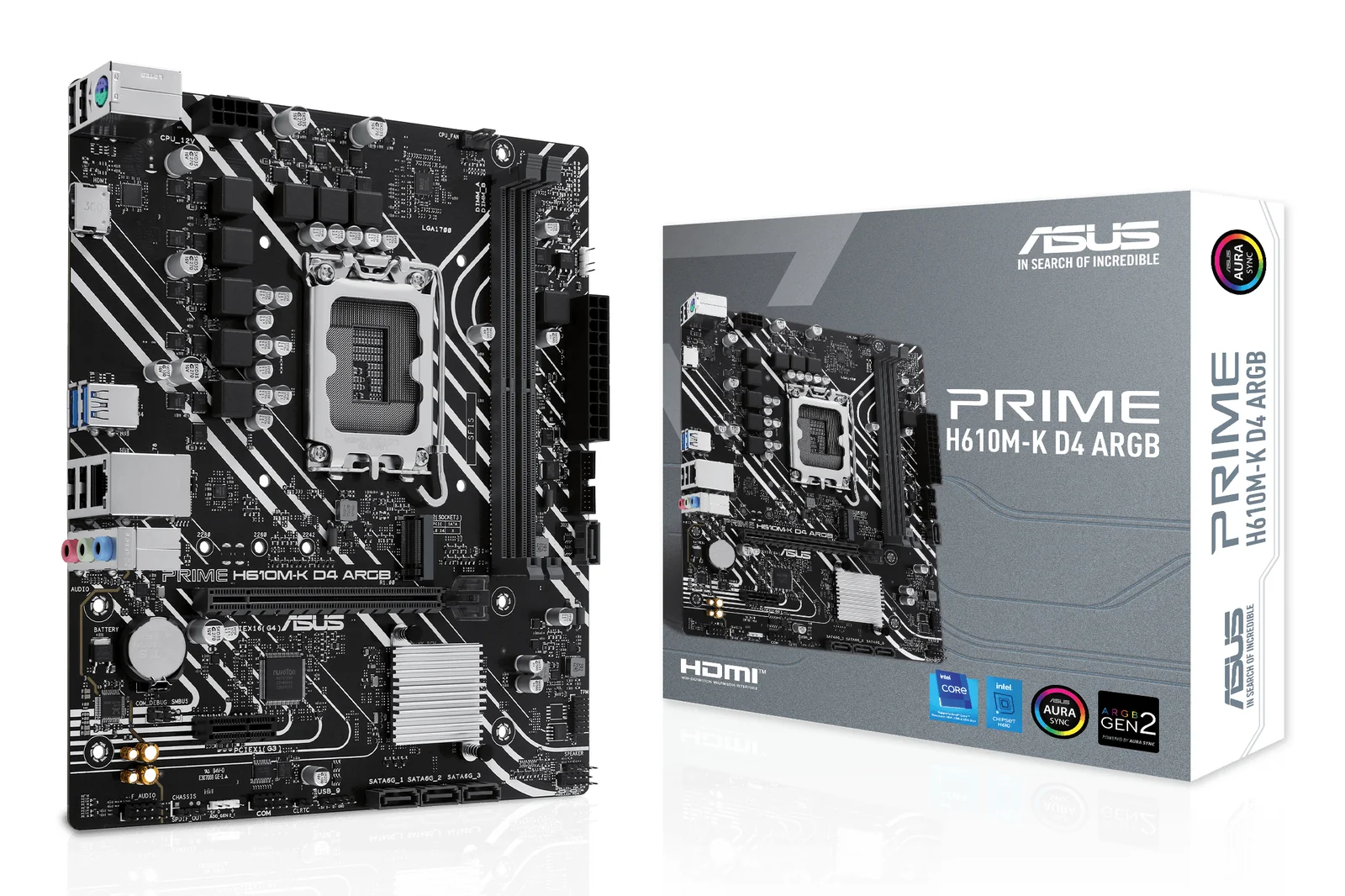

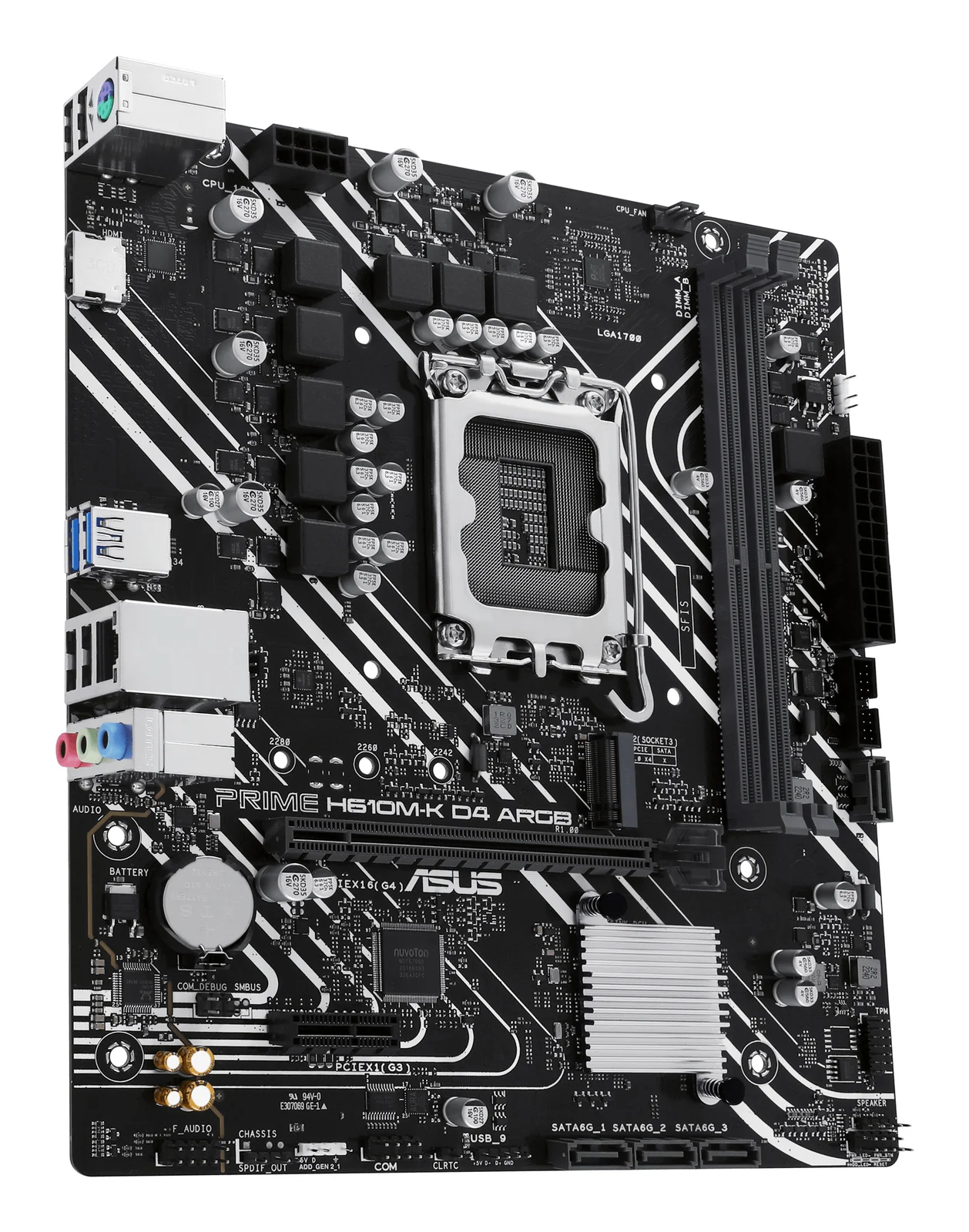

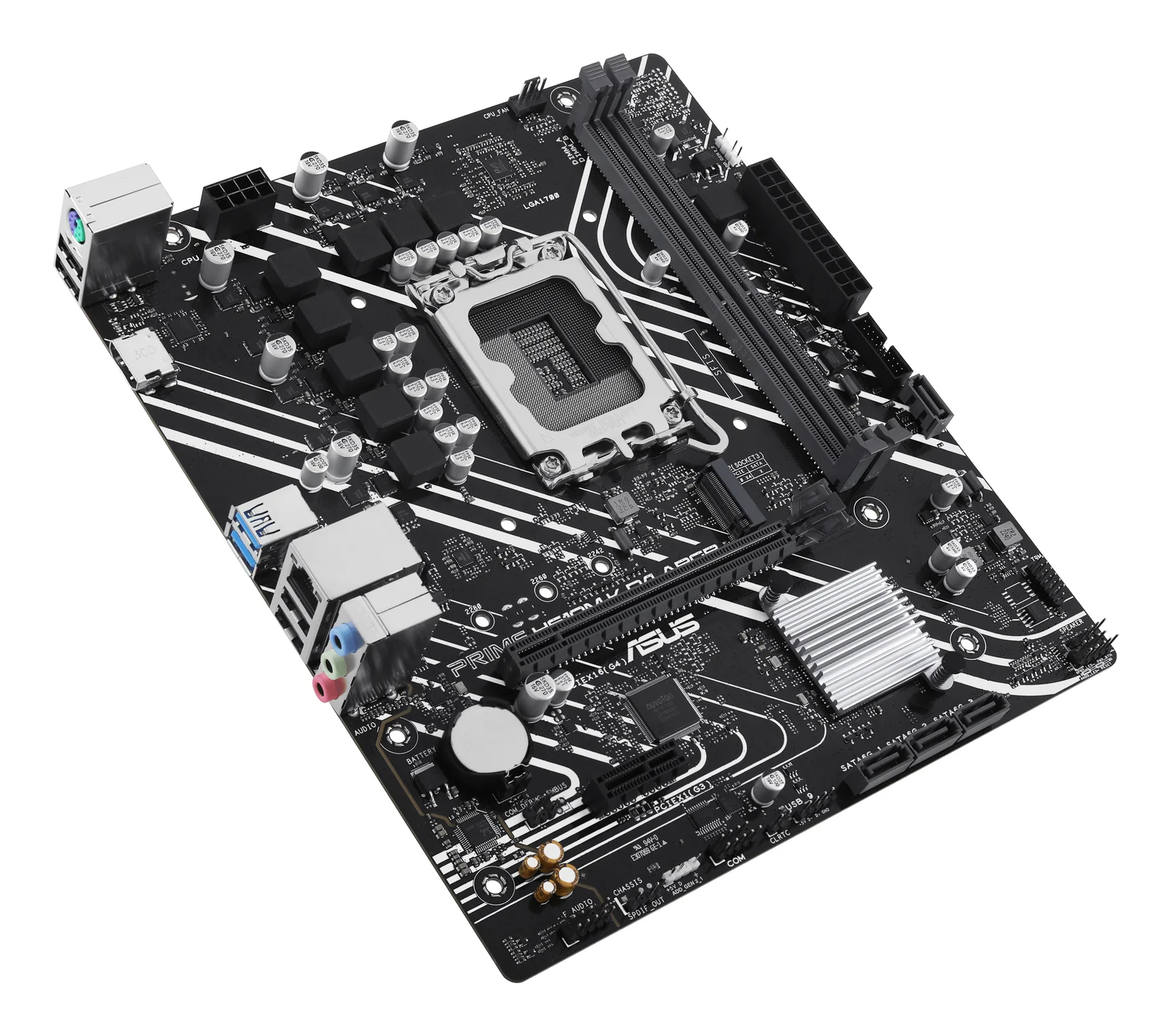

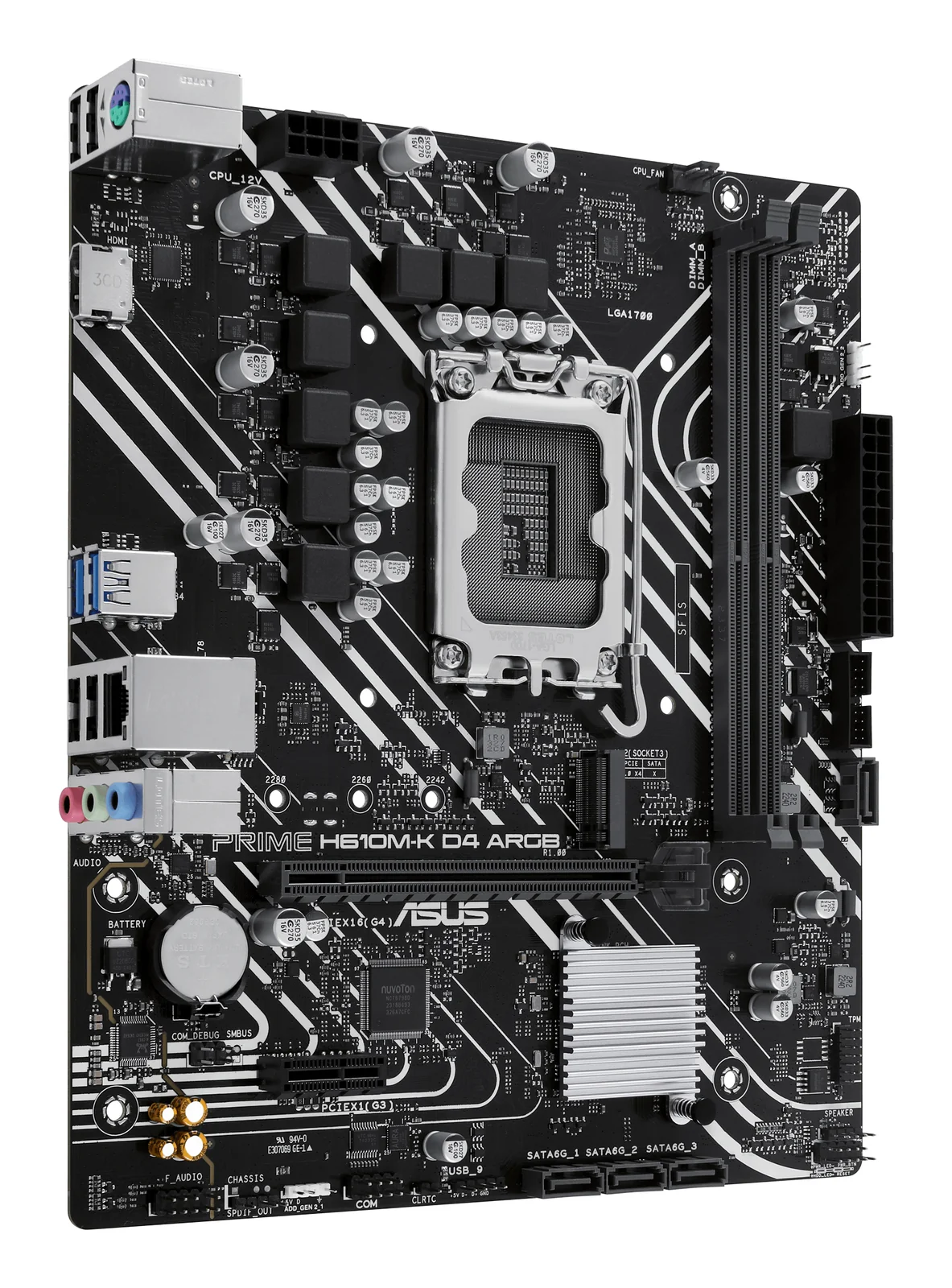

ASUS PRIME H610M-K D4 ARGB
Model PRIME H610M-K D4 ARGB
Overview
H610M-K D4 ARGB ASUS Prime series motherboards are expertly engineered to unleash the full potential of 14th, 13th & 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features. FLEXIBILITY Comprehensive controls form the foundation of the ASUS Prime series. The Prime H610 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity. All-Around Energy Efficiency The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.
Specifications
BIOS
- BIOS type
- UEFI AMI
- BIOS memory size
- 128 Mbit
Memory
- Supported memory types
- DDR4-SDRAM
- Number of memory slots
- 2
- Memory slots type
- DIMM
- Memory channels
- Dual-channel
- ECC сompatibility
- non-ECC
- Supported memory clock speeds
- 3200,3000,2933,2800,2666,2400,2133 MHz
- Supported memory clock speed (max)
- 3200 MHz
- Maximum internal memory
- 64 GB
- Unbuffered memory
- Yes
Network
- Ethernet LAN
- Yes
- Ethernet interface type
- Gigabit Ethernet
- Wi-Fi
- No
- Top Wi-Fi standard
- Not available
Features
- Motherboard chipset
- Intel H610
- Audio output channels
- 7.1 channels
- Component for
- PC
- Motherboard form factor
- Micro ATX
- Motherboard chipset family
- Intel
- Windows operating systems supported
- Windows 10 x64,Windows 11
Graphics
- Parallel processing technology support
- Not supported
Processor
- Processor manufacturer
- Intel
- Processor socket
- LGA 1700
- Compatible processor series
- Intel Celeron,Intel Pentium Gold,Intel Core i3,Intel Core i5,Intel Core i7,Intel Core i9
- Supported processor sockets
- LGA 1700
Internal I/O
- USB 2.0 connectors
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- Number of SATA III connectors
- 4
- S/PDIF out connector
- Yes
- Audio connector
- Yes
- Front panel audio connector
- Yes
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- Number of chassis fan connectors
- 1
- EPS power connector (8-pin)
- Yes
- Number of COM connectors
- 1
- TPM connector
- Yes
- 12V power connector
- Yes
Packaging data
- Package width
- 270 mm
- Package depth
- 263 mm
- Package height
- 51.5 mm
- Package weight
- 800 g
Expansion slots
- PCI Express x1 (Gen 3.x) slots
- 1
- PCI Express x16 (Gen 4.x) slots
- 2
- Number of M.2 (M) slots
- 1
Storage controllers
- Supported storage drive types
- HDD & SSD
- Supported storage drive interfaces
- M.2,SATA III
- Number of storage drives supported
- 5
Weight & dimensions
- Width
- 234 mm
- Depth
- 203 mm

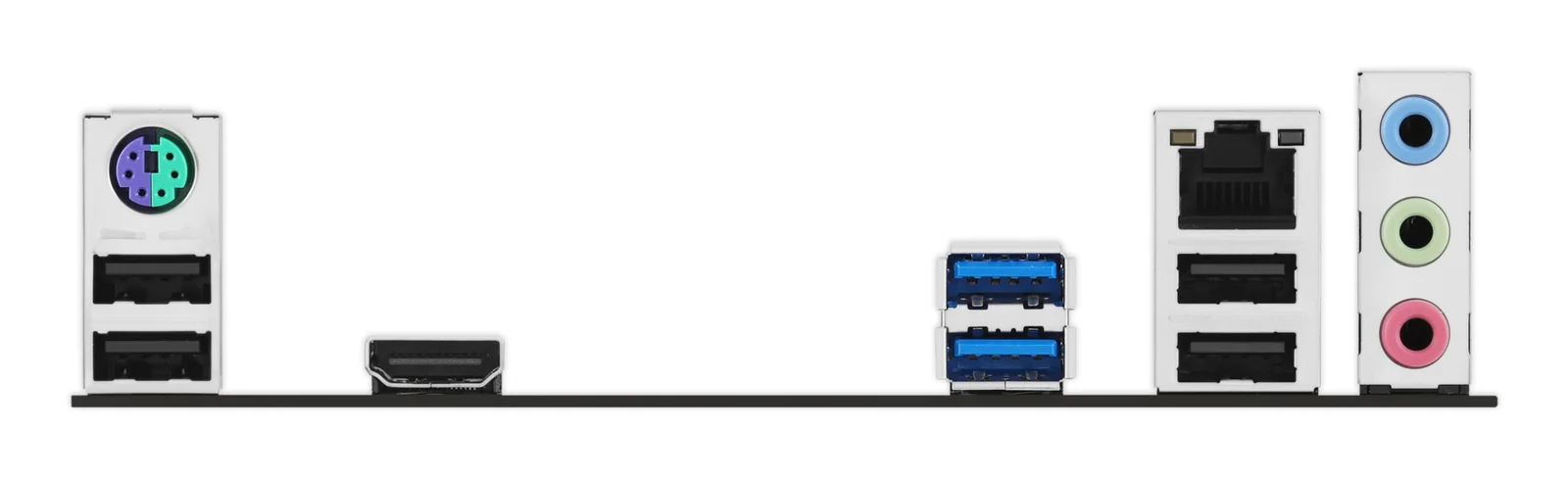

Rear panel I/O ports
- USB 2.0 ports quantity
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- Ethernet LAN (RJ-45) ports
- 1
- PS/2 ports quantity
- 1
- HDMI ports quantity
- 1
- Microphone in
- Yes
