MSI

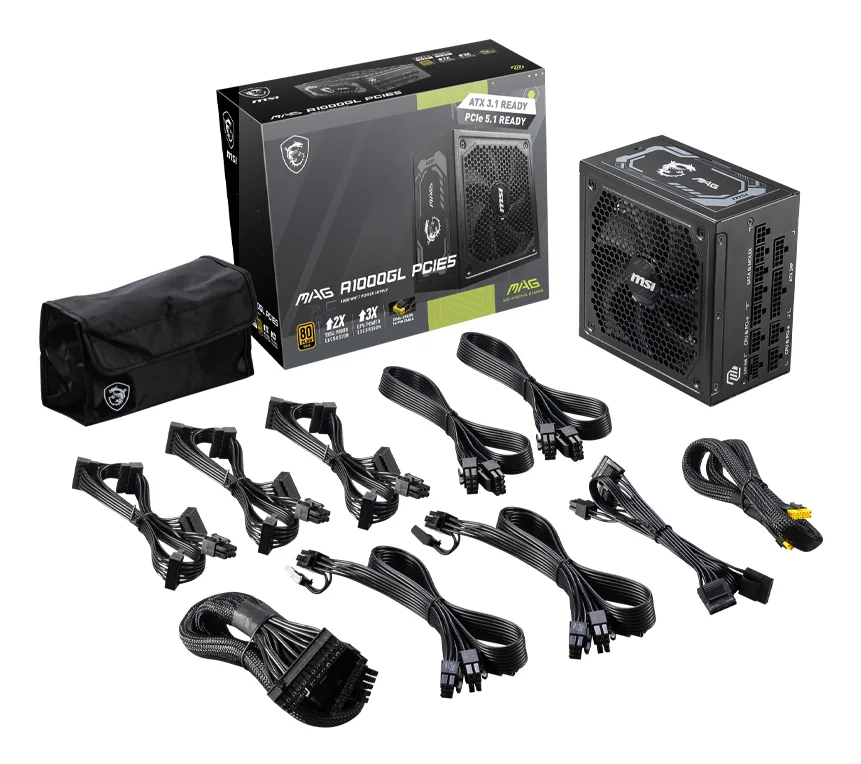

MSI MAG A1000GL PCIE5 1000W Power Supply

Model MAG A1000GL PCIE5

Overview

MSI MAG A1000GL PCIE5. Total power: 1000 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Width: 150 mm, Depth: 150 mm, Height: 86 mm

Specifications

Performance

80 PLUS certification
80 PLUS Gold
Purpose
PC
Power supply unit (PSU) form factor
ATX
ATX version
3.1
Bearing technology
FDB

Design

Product colour
Black
Cooling type
Active
Fan diameter
135 mm
Number of fans
1 fan(s)
Fan speed
500 - 1800 RPM
Illumination
No
On/off switch
Yes

Power

Total power
1000 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power Factor Correction (PFC) type
Active
Number of +12V rail(s)
1
Combined power (+3.3V)
120 W
Combined power (+12V)
999.6 W
Combined power (+5V)
120 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
15 W
Max output current (+3.3V)
22 A
Max output current (+12V)
83.3 A
Max output current (+5V)
22 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
3 A

Other features

Fan's mean time to failure (MTTF)
150000 h

Technical details

Sustainability compliance
Yes

Ports & interfaces

Motherboard power connector
24-pin ATX
Motherboard power cable length
600 mm
Number of SATA power connectors
12
SATA power cable length
150,500 mm
Peripheral (Molex) power connectors (4-pin)
1
Peripheral (Molex) power cable length
450,500 mm
EPS power connector (8-pin)
No
EPS power connector (4+4 pin)
Yes
PCI Express power connectors (6+2 pin)
4
PCI Express power connectors (16-pin)
1
Cabling type
Fully-Modular

Weight & dimensions

Width
150 mm
Depth
150 mm
Height
86 mm
