GIGABYTE

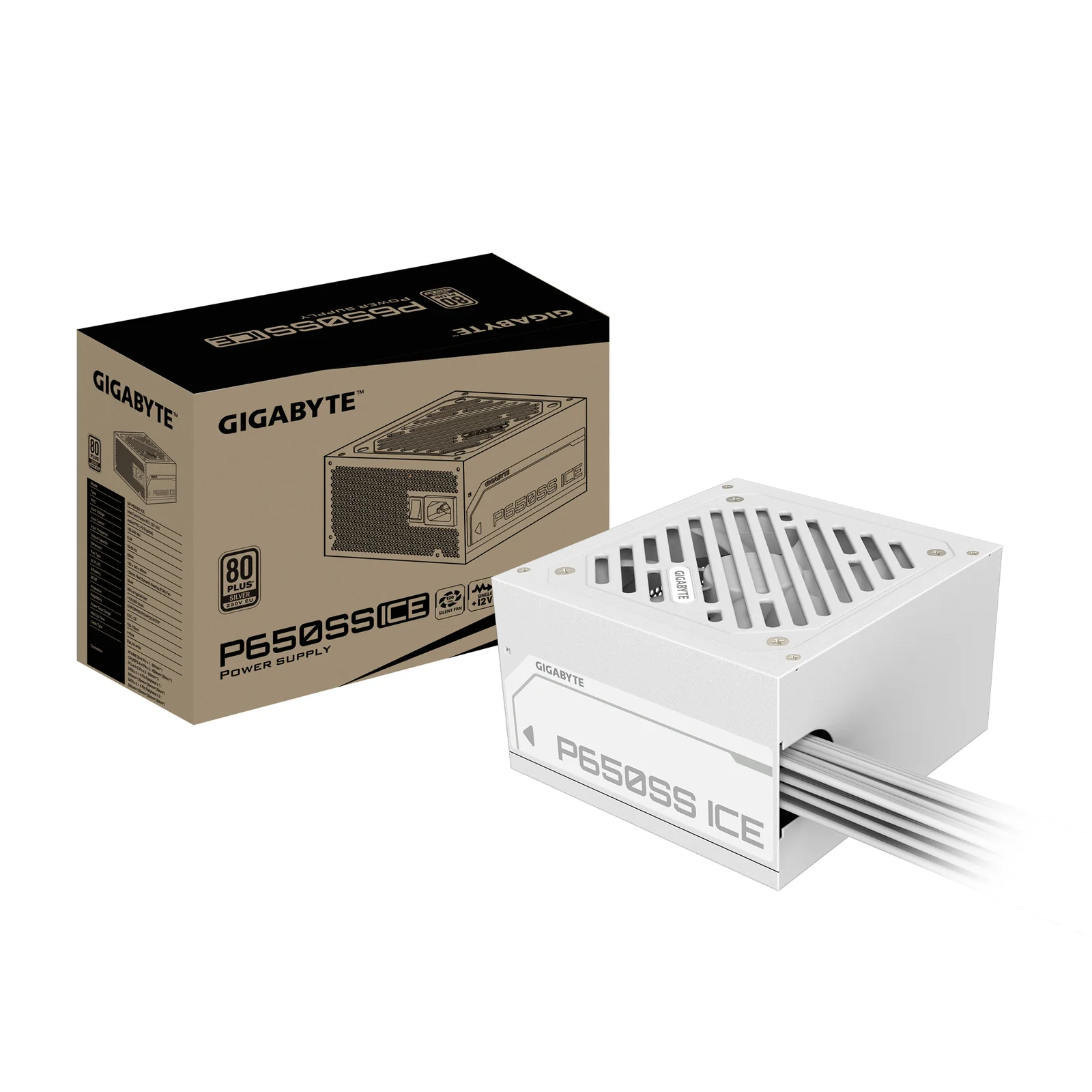

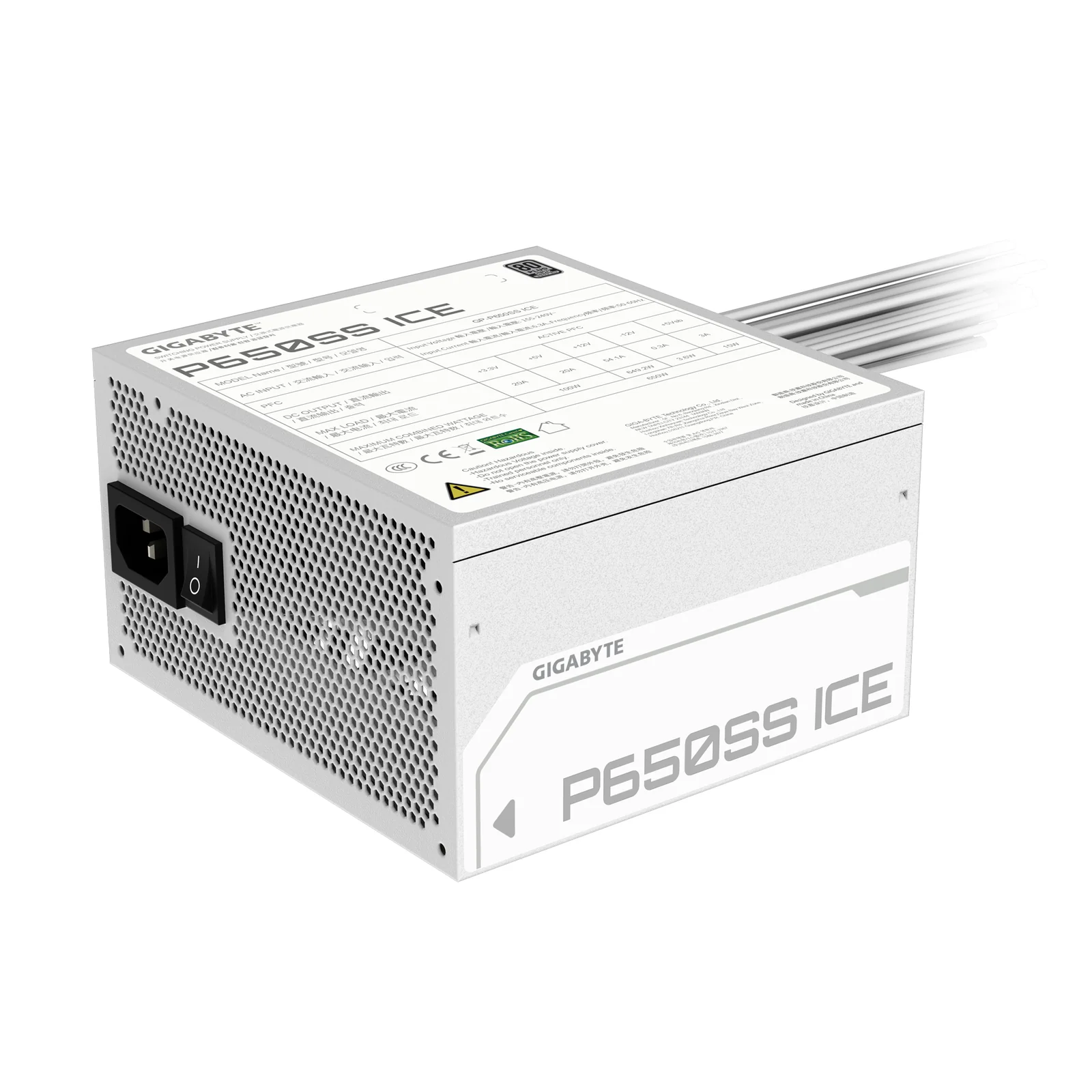

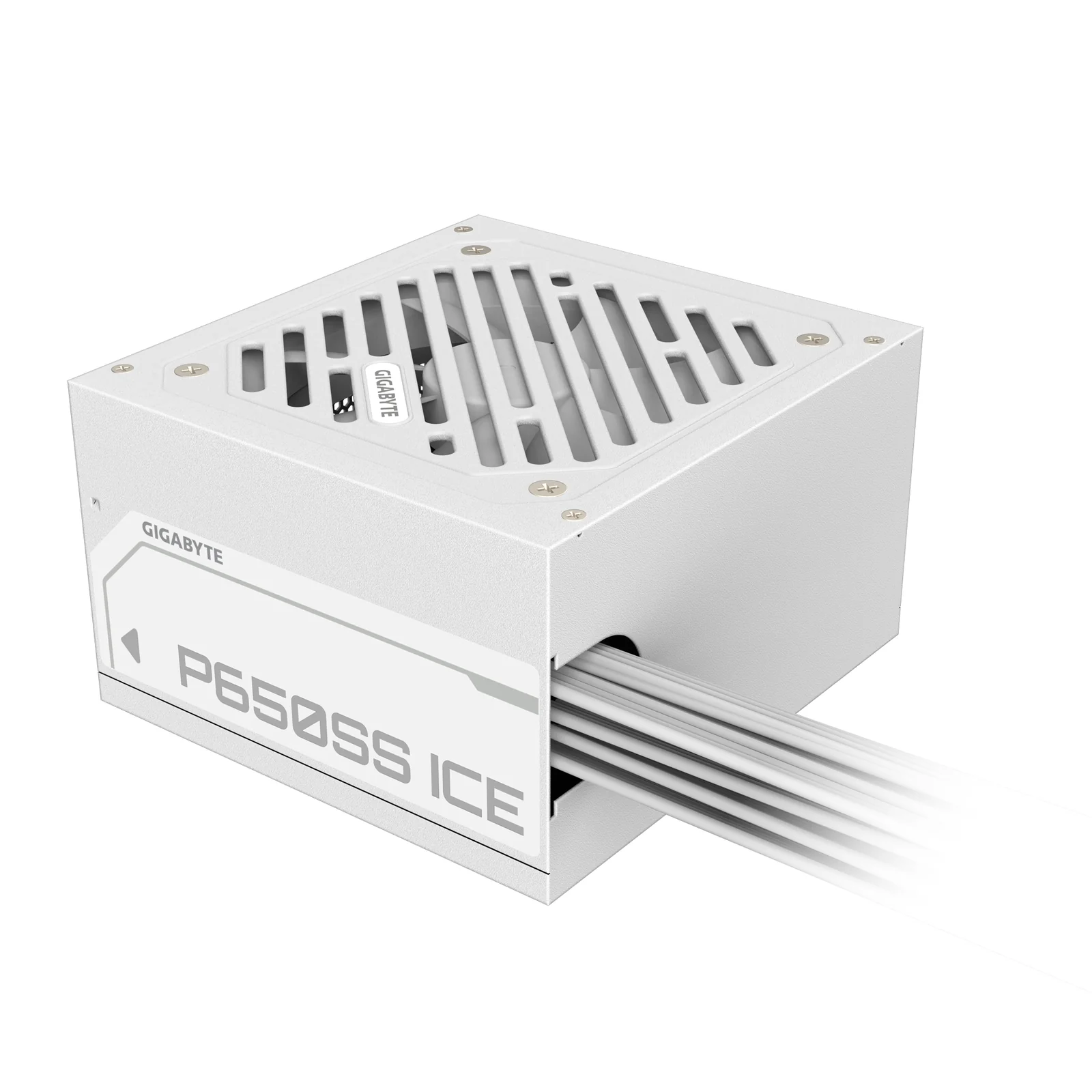

GIGABYTE P650SS ICE 650W Power Supply

Model P650SS ICE Power Supply - PCIe 5.0, 80 PLUS Silver, 120mm Fan, ATX 3.0 compatible, EU Plug

Overview

Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.

Specifications

Performance

80 PLUS certification
80 PLUS Silver
Purpose
PC
Power supply unit (PSU) form factor
ATX
ATX version
3.0
Bearing technology
FDB
Mean time between failures (MTBF)
100000 h

Design

Product colour
White
Cooling type
Active
Fan diameter
120 mm
Number of fans
1 fan(s)
Fan location
Top
On/off switch
Yes

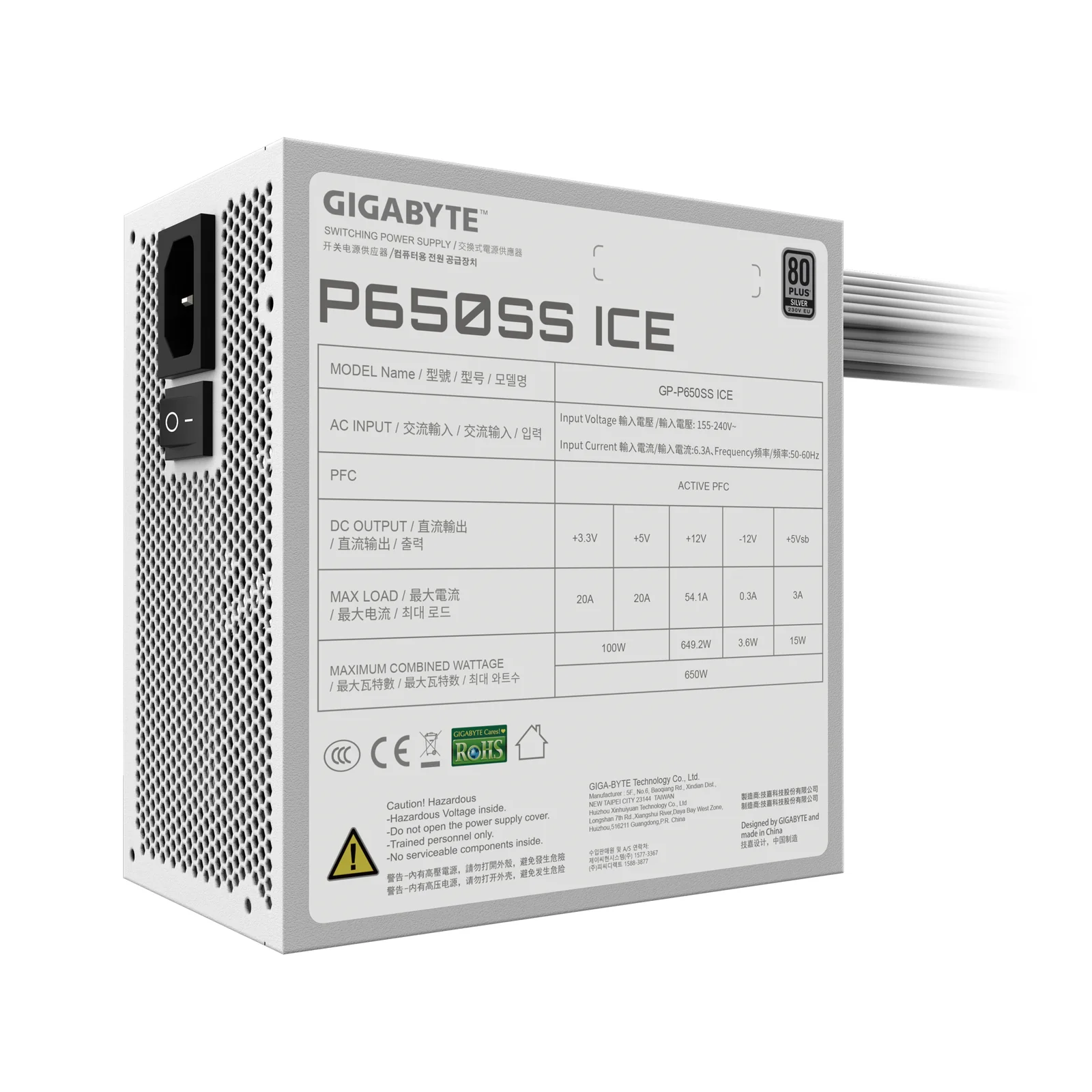

Power

Total power
650 W
AC input voltage
155-240 V
AC input frequency
50/60 Hz
Input current
6.3 A
Power factor
0.9
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
100 W
Combined power (+12V)
649.2 W
Combined power (+5V)
100 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
15 W
Max output current (+3.3V)
20 A
Max output current (+12V)
54.1 A
Max output current (+5V)
20 A
Max output current (-12V)
0.3 A

Logistics data

Warranty period
3 year(s)

Packaging data

Package width
254 mm
Package depth
206 mm
Package height
117 mm
Package weight
2600 g
Package type
Box

Ports & interfaces

Motherboard power connector
20+4 pin ATX
Motherboard power cable length
600 mm
Number of SATA power connectors
5
SATA power cable length
120,500 mm
Peripheral (Molex) power connectors (4-pin)
2
Peripheral (Molex) power cable length
120,500 mm
PCI Express power connectors (6+2 pin)
2
PCI Express power cable length
650 mm
CPU P4 connector (4-pin)
1
CPU power connector (4+4 pin)
Yes
CPU power cable length
600 mm
ATX power connector (20+4 pin)
Yes
Floppy disk drive connector
Yes
Cabling type
Non-Modular

Weight & dimensions

Width
140 mm
Depth
150 mm
Height
86 mm
Weight
2230 g
