be quiet!

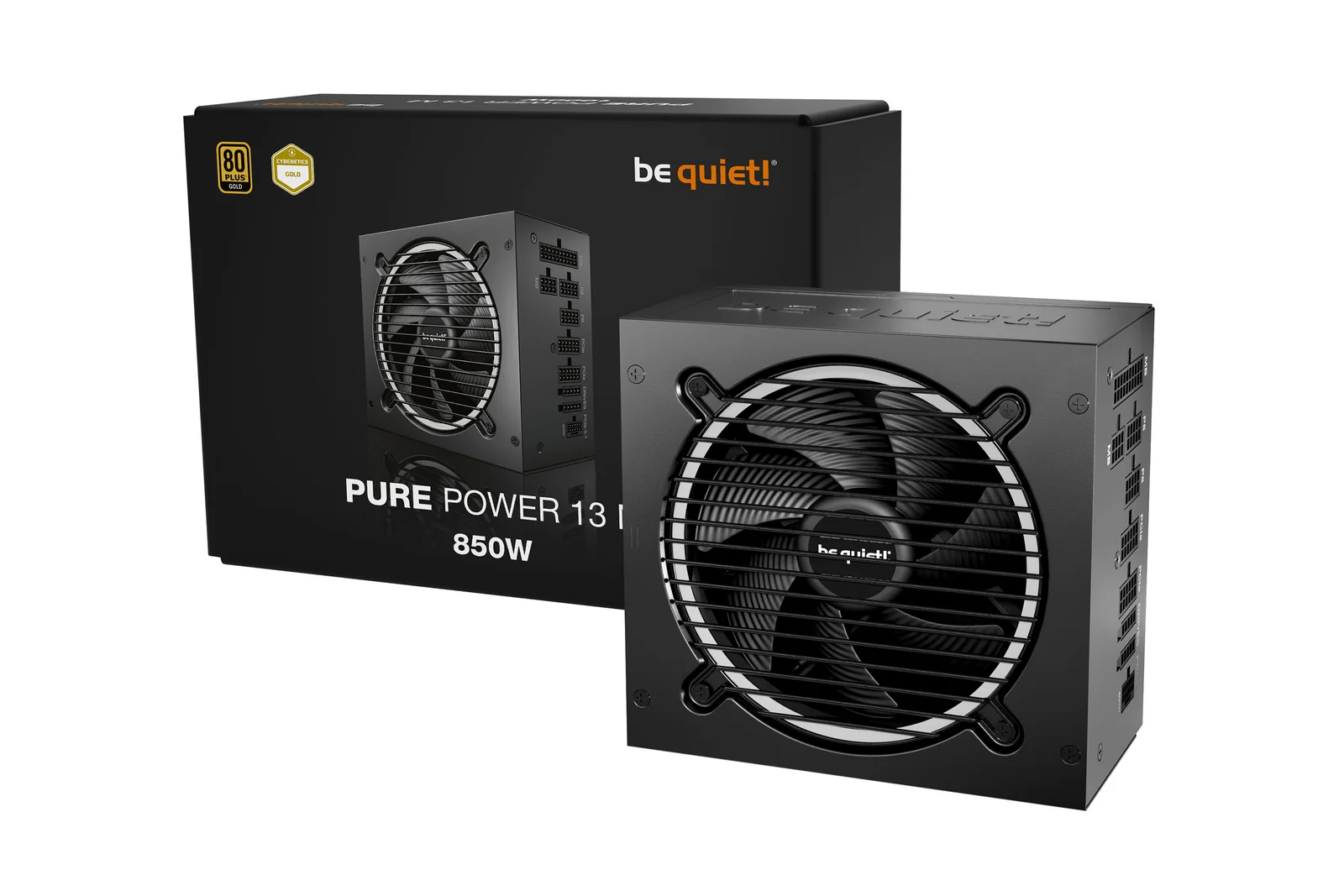

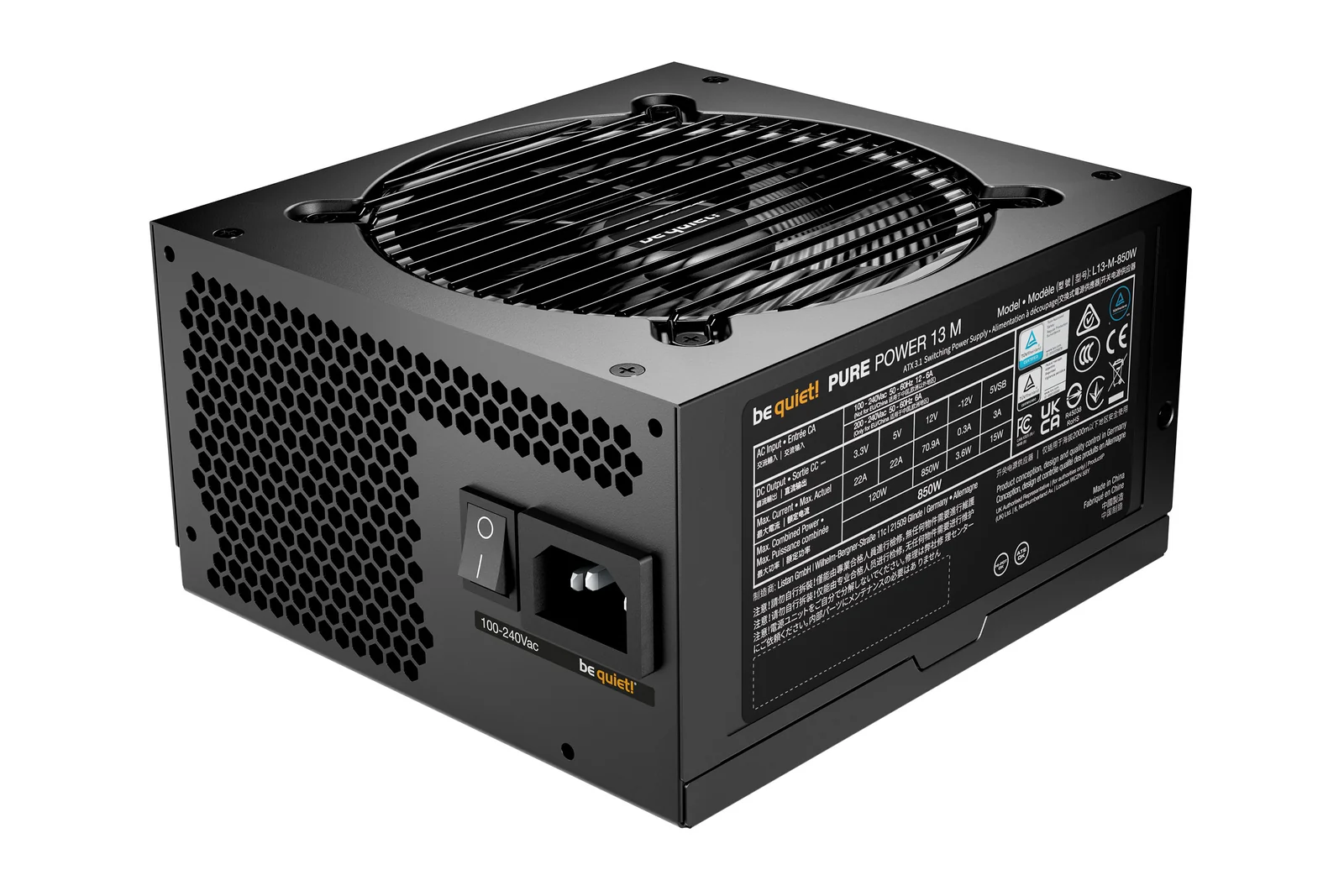

be quiet! Pure Power 13 M | 850W Power Supply

Model Pure Power 13 M | 850W

Price coming soon

Leave your email and we'll tell you when it's available to order.

SKU: TS-301118
EAN: 4260052192191

Overview

Exceptional quiet, superior features Pure Power 13 M 850W is an ATX 3.1 compliant and PCIe 5.1 compatible power supply with semi-passive cooling. It offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers outstanding compatibility with current-gen and next-gen graphics cards. Pure Power 13 M 850W offers the best combination of features with outstanding compatibility.

Specifications

Performance

80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
EPS version: 2.92

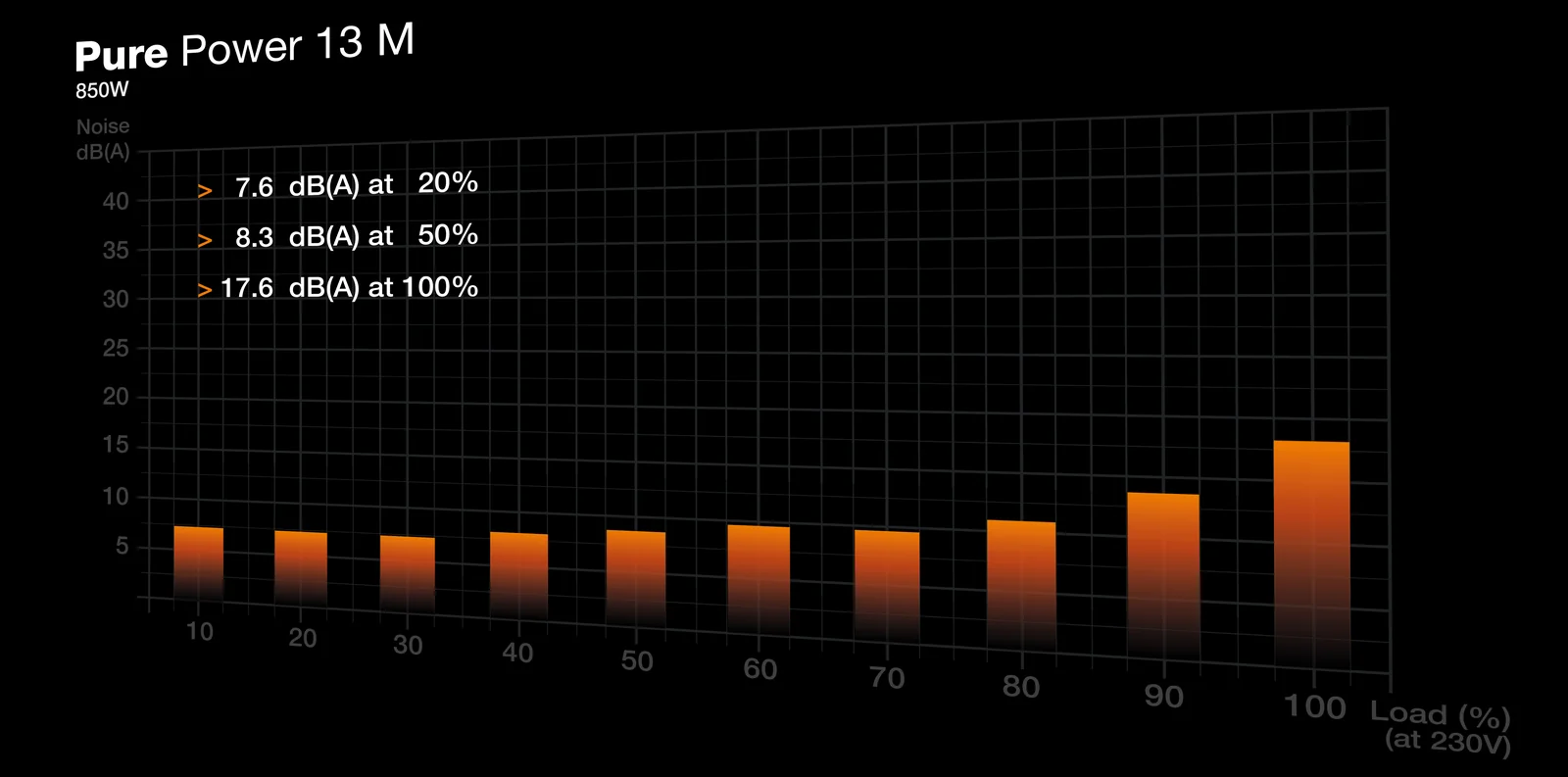

Noise level: 30.2 dB
Bearing technology: Rifle
Mean time between failures (MTBF): 100000 h

Design

Product colour: Black
Cooling type: Active
Fan diameter: 120 mm
Number of fans: 1 fan(s)
Fan speed: 0 - 2000 RPM
Illumination: No
On/off switch: Yes

Power

Total power: 850 W
Peak power: 900 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Maximum input current (@110V): 12 A
Maximum input current (@220V): 6 A
Power factor: 0.98
Power Factor Correction (PFC) type: Active
Number of +12V rail(s): 1
Combined power (+3.3V): 120 W
Combined power (+12V): 850 W
Combined power (+5V): 120 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 22 A

Certificates

Compliance certificates: BSMI,CB,CCC,CE,Federal Communications Commission (FCC),IRAM,RCM,RoHS,TÜV mark,UKCA,WEEE,cTUVus

Logistics data

Shipping (inner) case length: 580 mm
Shipping (inner) case width: 325 mm
Shipping (inner) case height: 233 mm
Products per shipping (inner) case: 6 pc(s)
Shipping (inner) case gross weight: 22700 g

Other features

Screws included: Yes
Cable ties included: Yes

Packaging data

Package width: 210 mm
Package depth: 320 mm
Package height: 133 mm
Package weight: 3400 g

Packaging content

Cables included: AC,CPU,PCIe,Peripheral (Molex),SATA

Technical details

Sustainability certificates: ENERGY STAR,ErP

Ports & interfaces

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 550 mm
Number of SATA power connectors: 6
SATA power cable length: 500,650,800,950 mm
Peripheral (Molex) power connectors (4-pin): 2
Peripheral (Molex) power cable length: 800,950 mm
EPS power connector (8-pin): Yes
PCI Express power connectors (6+2 pin): 4
PCI Express power connectors (12-pin): 1
CPU P4 connector (4-pin): 2
CPU power connector (4+4 pin): Yes
CPU power cable length: 650 mm
PCI Express connector: Yes
Cabling type: Fully-Modular

Weight & dimensions

Width: 150 mm
Depth: 160 mm
Height: 86 mm
Weight: 2620 g

Operational conditions

Operating temperature (T-T): 0 - 40 °C
