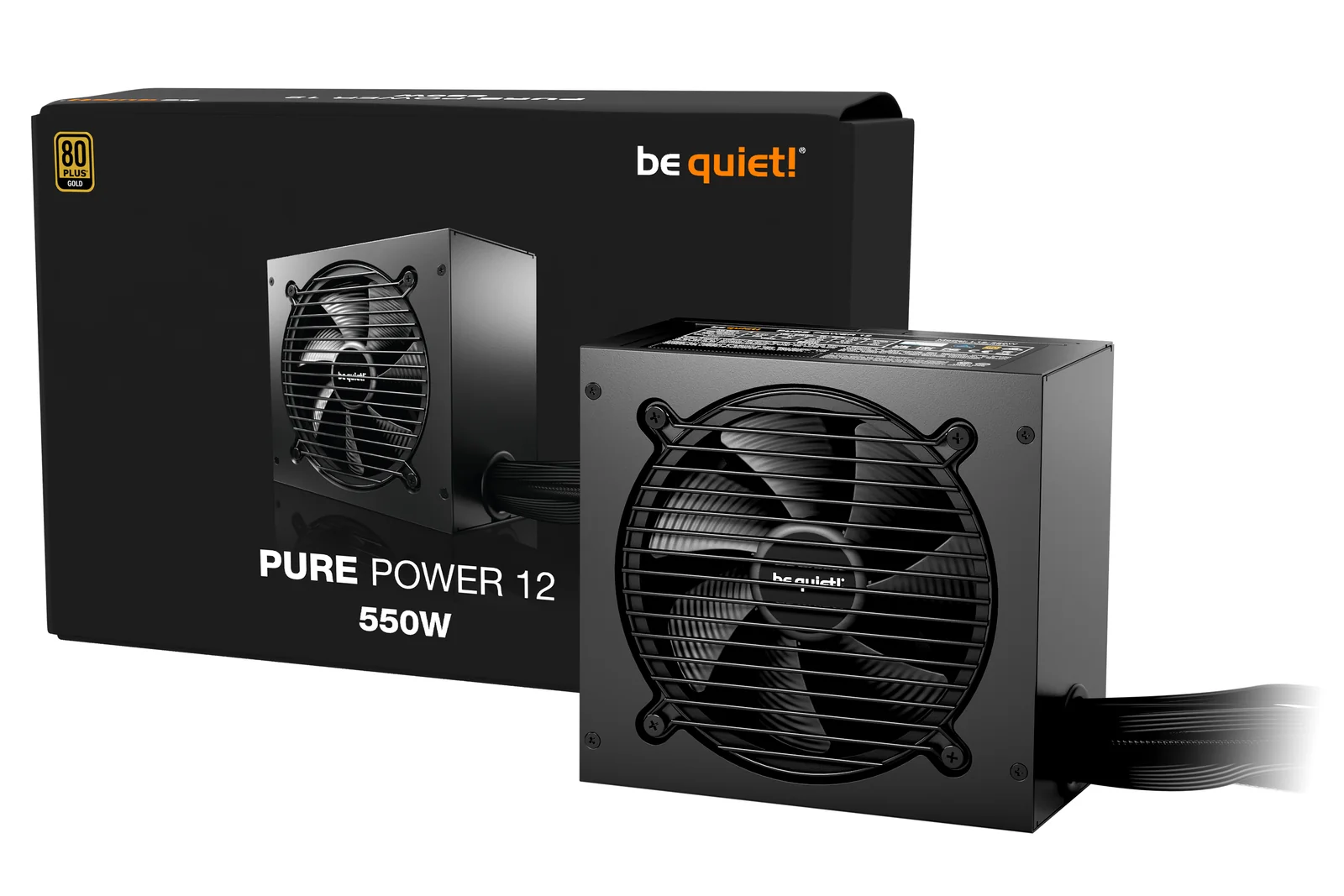

be quiet! PURE POWER 12 550W Power Supply

Model PURE POWER 12 550W

Price coming soon

Leave your email and we'll tell you when it's available to order.

SKU: TS-401294
EAN: 4260052191163

Overview

Exceptional quiet, superior features Pure Power 12 550W is ATX 3.1 compliant and PCIe 5.1 compatible and offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers remarkable convenience and outstanding compatibility.

Specifications

Performance

80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
EPS version: 2.92

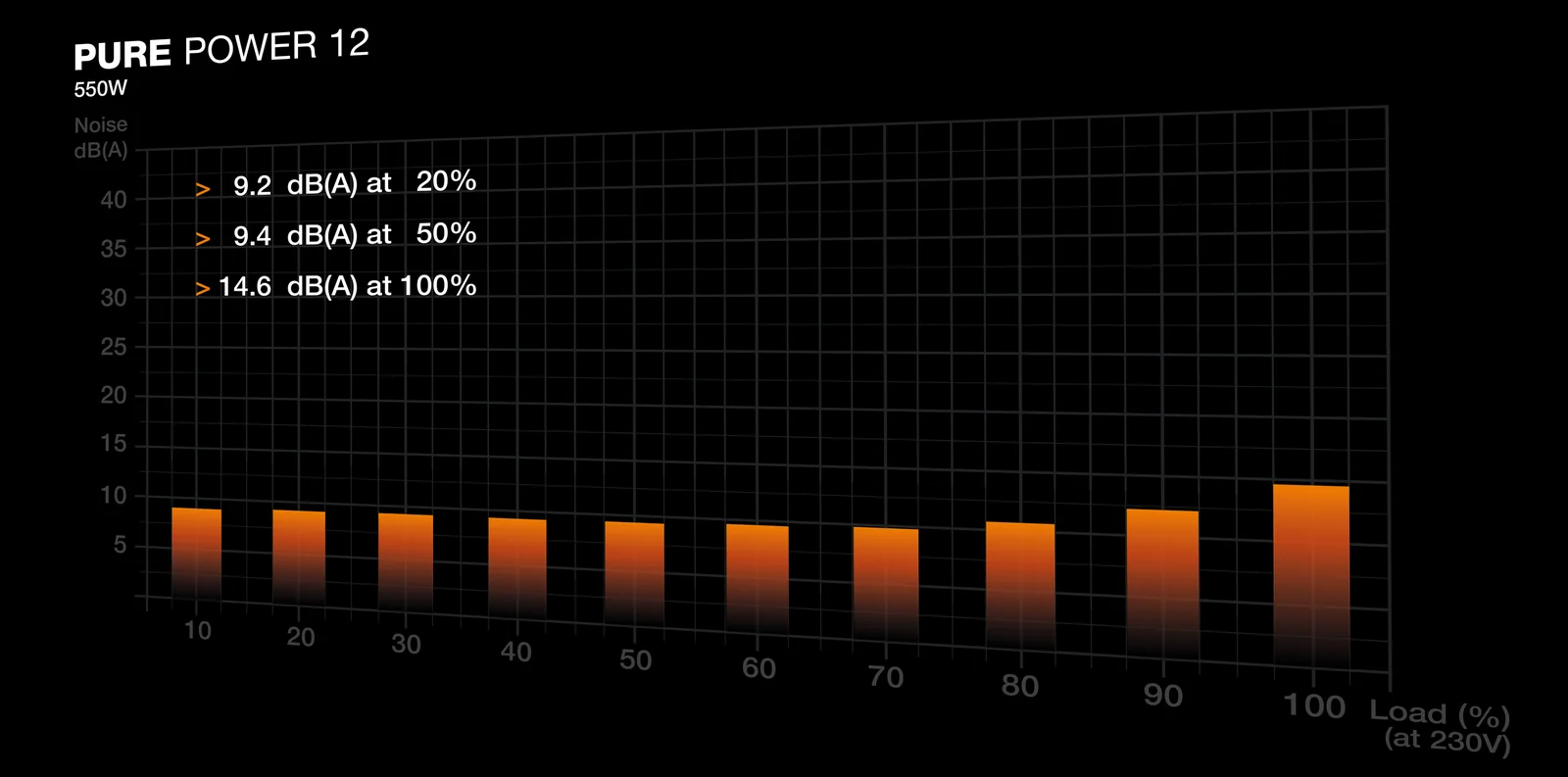

Noise level: 14.6 dB
Bearing technology: Rifle
Mean time between failures (MTBF): 100000 h

Design

Product colour: Black
Cooling type: Active
Fan diameter: 120 mm
Number of fans: 1 fan(s)
Illumination: Yes
On/off switch: Yes

Power

Total power: 550 W
Peak power: 600 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Maximum input current (@110V): 10 A
Maximum input current (@220V): 5 A
Power factor: 0.98
Power Factor Correction (PFC) type: Active
Number of +12V rail(s): 1
Combined power (+3.3V): 120 W
Combined power (+12V): 550 W
Combined power (+5V): 120 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A

Certificates

Compliance certificates: CB,CE,Federal Communications Commission (FCC),RoHS,UKCA,WEEE,cTUVus

Logistics data

Shipping (inner) case length: 440 mm
Shipping (inner) case width: 345 mm
Shipping (inner) case height: 418 mm
Shipping (inner) case net weight: 17700 g
Products per shipping (inner) case: 6 pc(s)
Warranty period: 10 year(s)

Other features

Screws included: Yes

Packaging data

Package width: 133 mm
Package depth: 320 mm
Package height: 210 mm
Package weight: 2800 g

Packaging content

Cables included: AC
Cable tie(s) included: Yes

Technical details

Sustainability certificates: ENERGY STAR,ErP,Triman

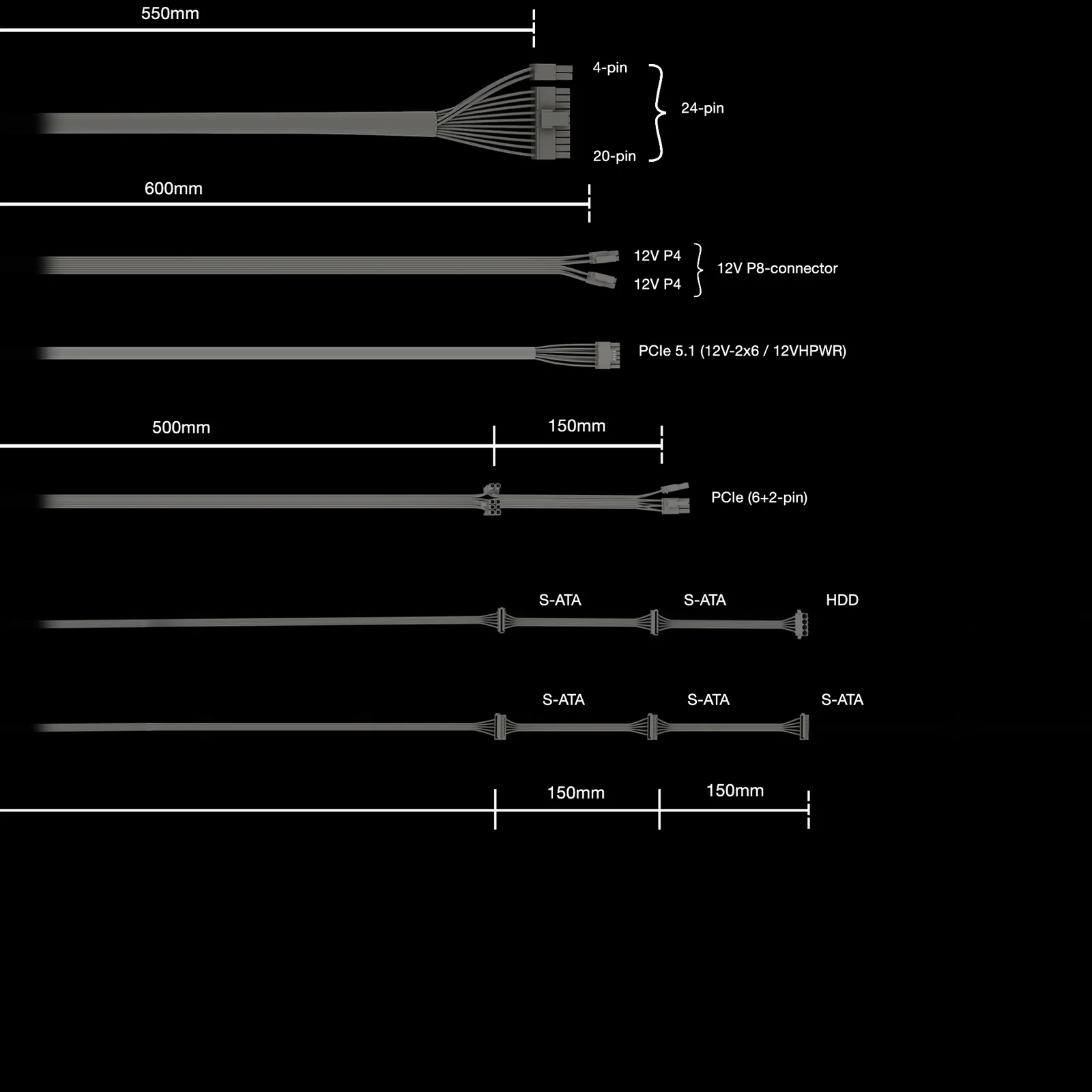

Ports & interfaces

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 550 mm
Number of SATA power connectors: 5
SATA power cable length: 500,650,800 mm
Peripheral (Molex) power connectors (4-pin): 1
Peripheral (Molex) power cable length: 800 mm
PCI Express power connectors (6+2 pin): 2
PCI Express power connectors (12-pin): 1
PCI Express power cable length: 600 mm
CPU power connector (4+4 pin): Yes
CPU power cable length: 600 mm
PCI Express connector: Yes
Cabling type: Non-Modular

Weight & dimensions

Width: 86 mm
Depth: 160 mm
Height: 150 mm
Weight: 2300 g

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 0 - 90 %
Storage relative humidity (H-H): 0 - 95 %
