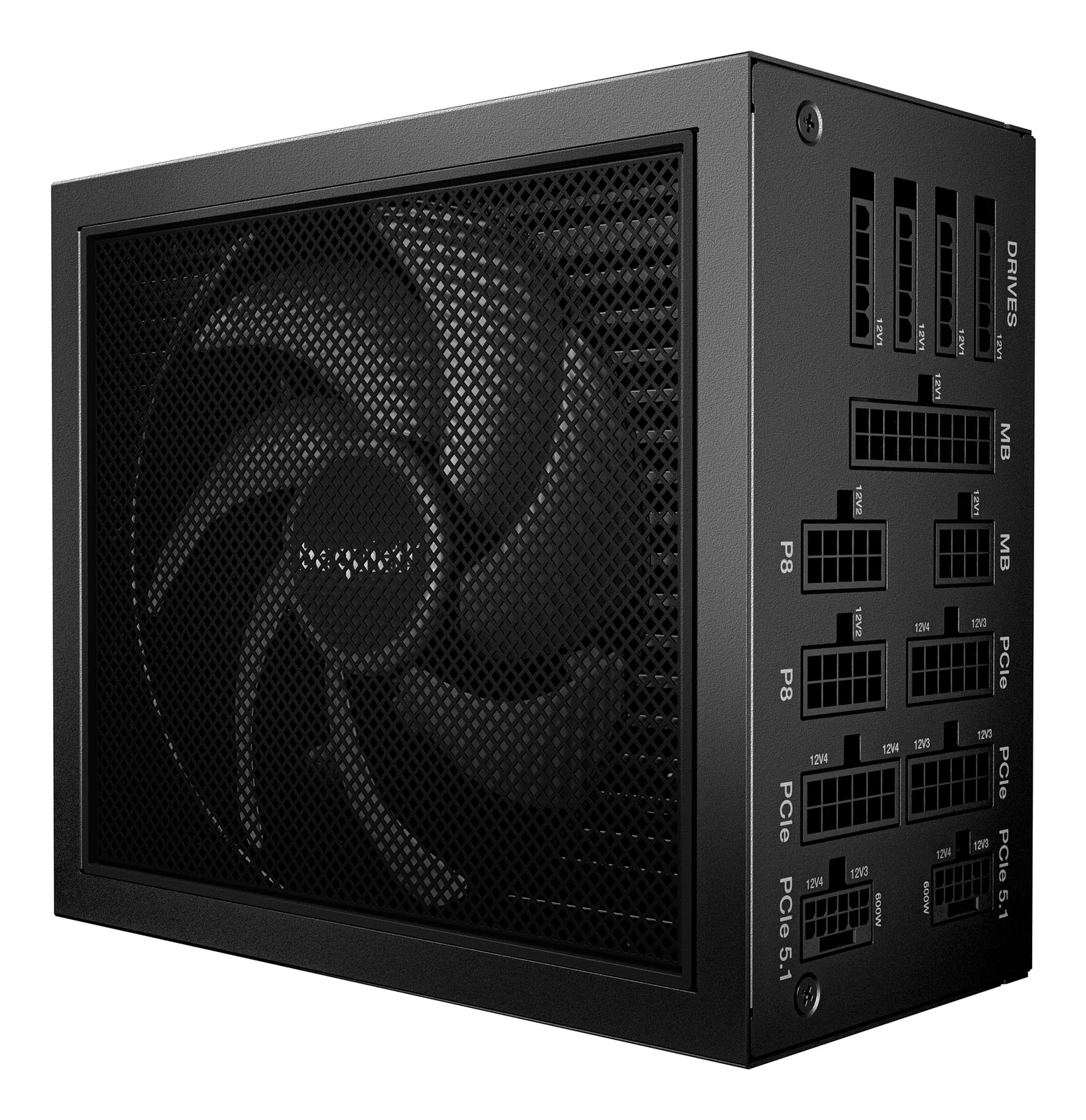

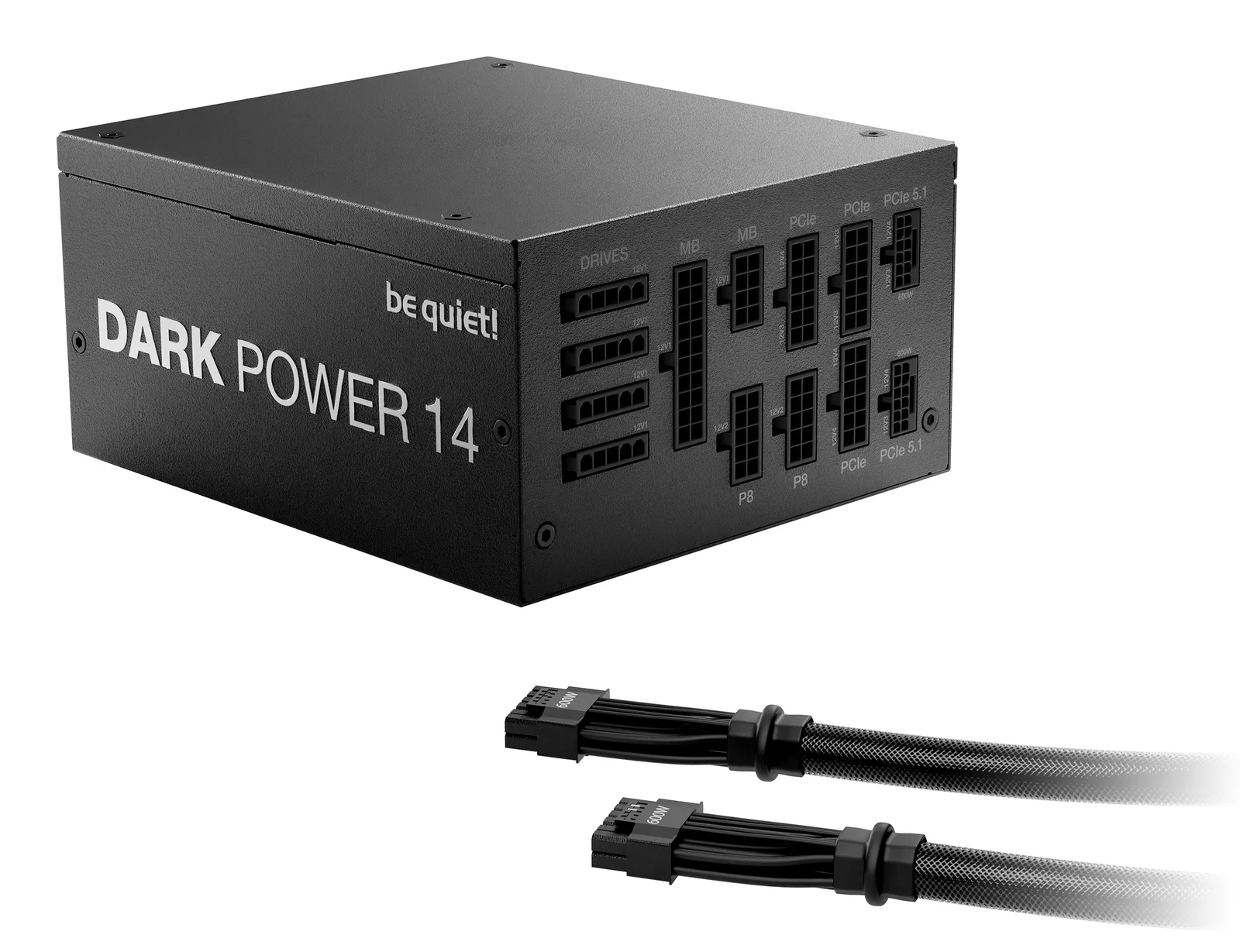

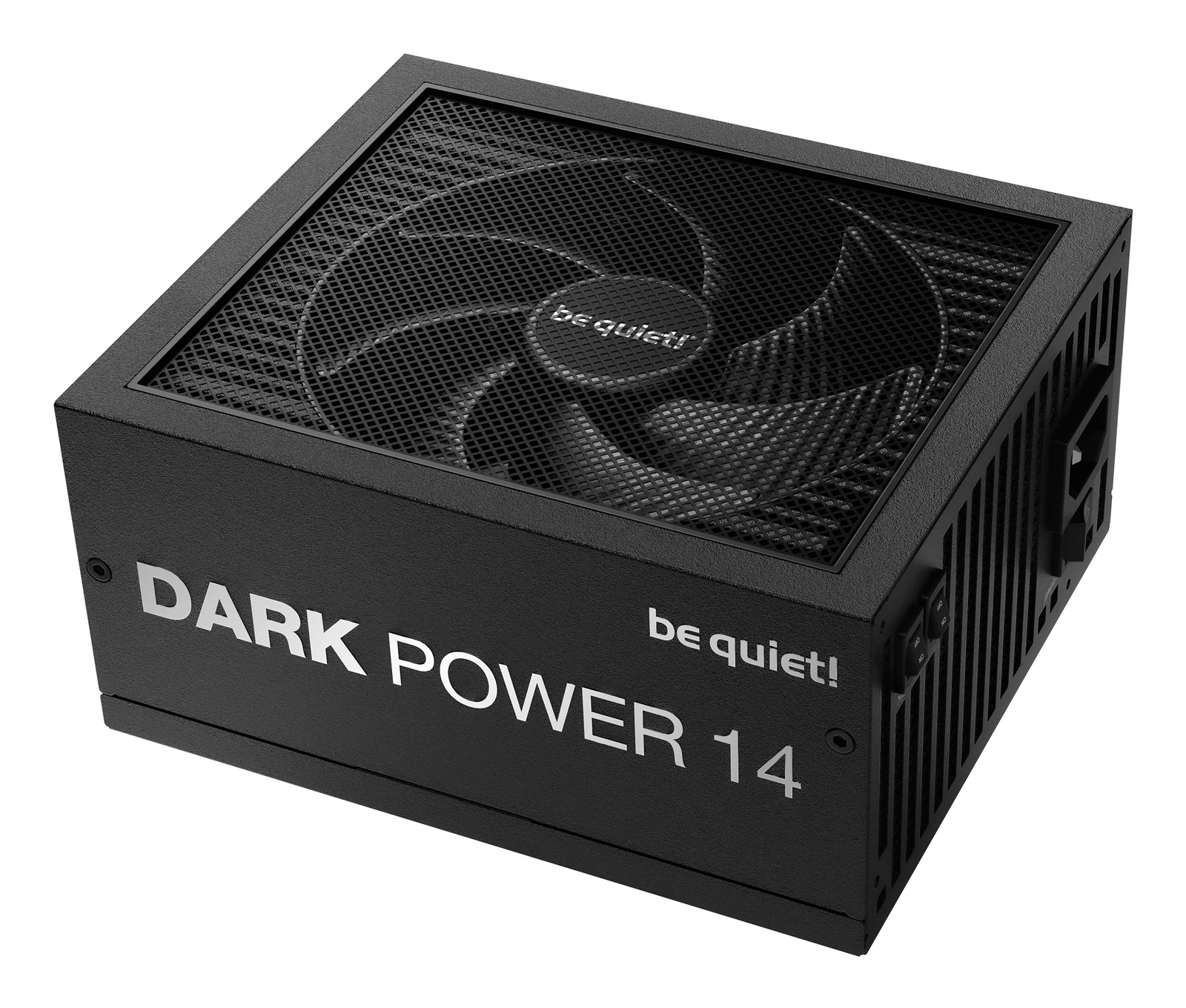

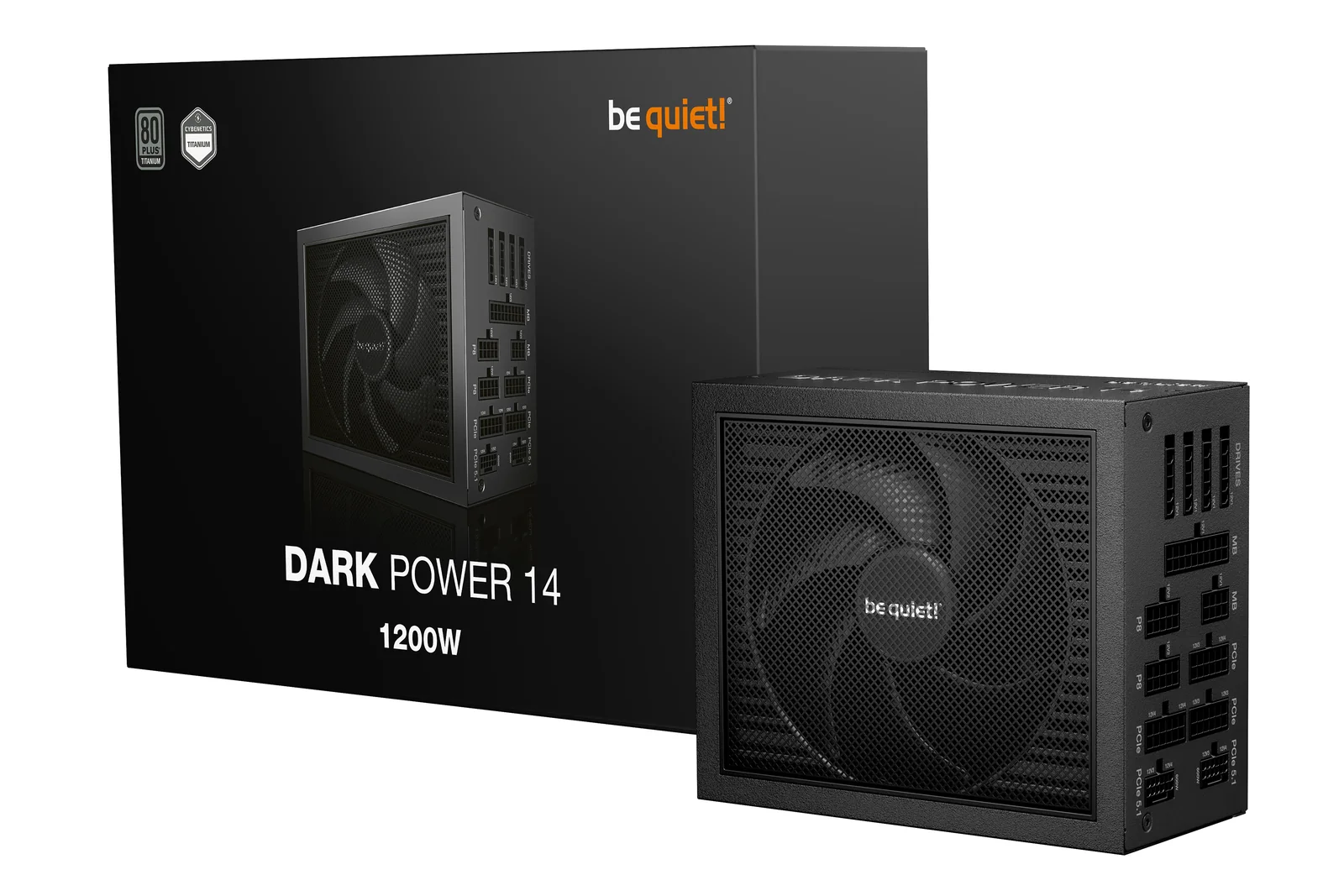

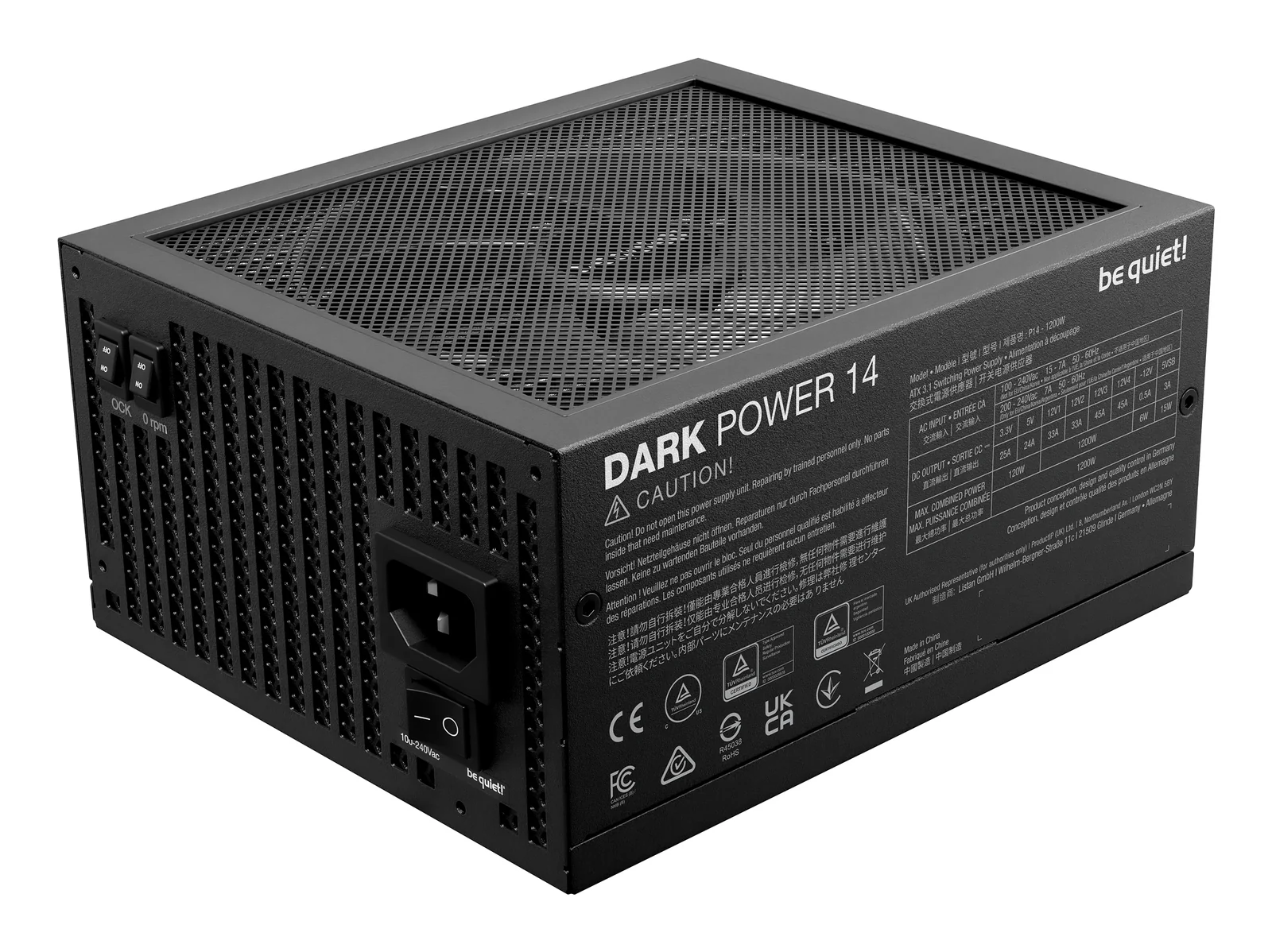

be quiet! Dark Power 14 1200 W - 80 Plus Titanium Power Supply

Model Dark Power 14 1200 W - 80 Plus Titanium

Price coming soon

Leave your email and we'll tell you when it's available to order.

SKU: TS-401032
EAN: 4260052192030

Overview

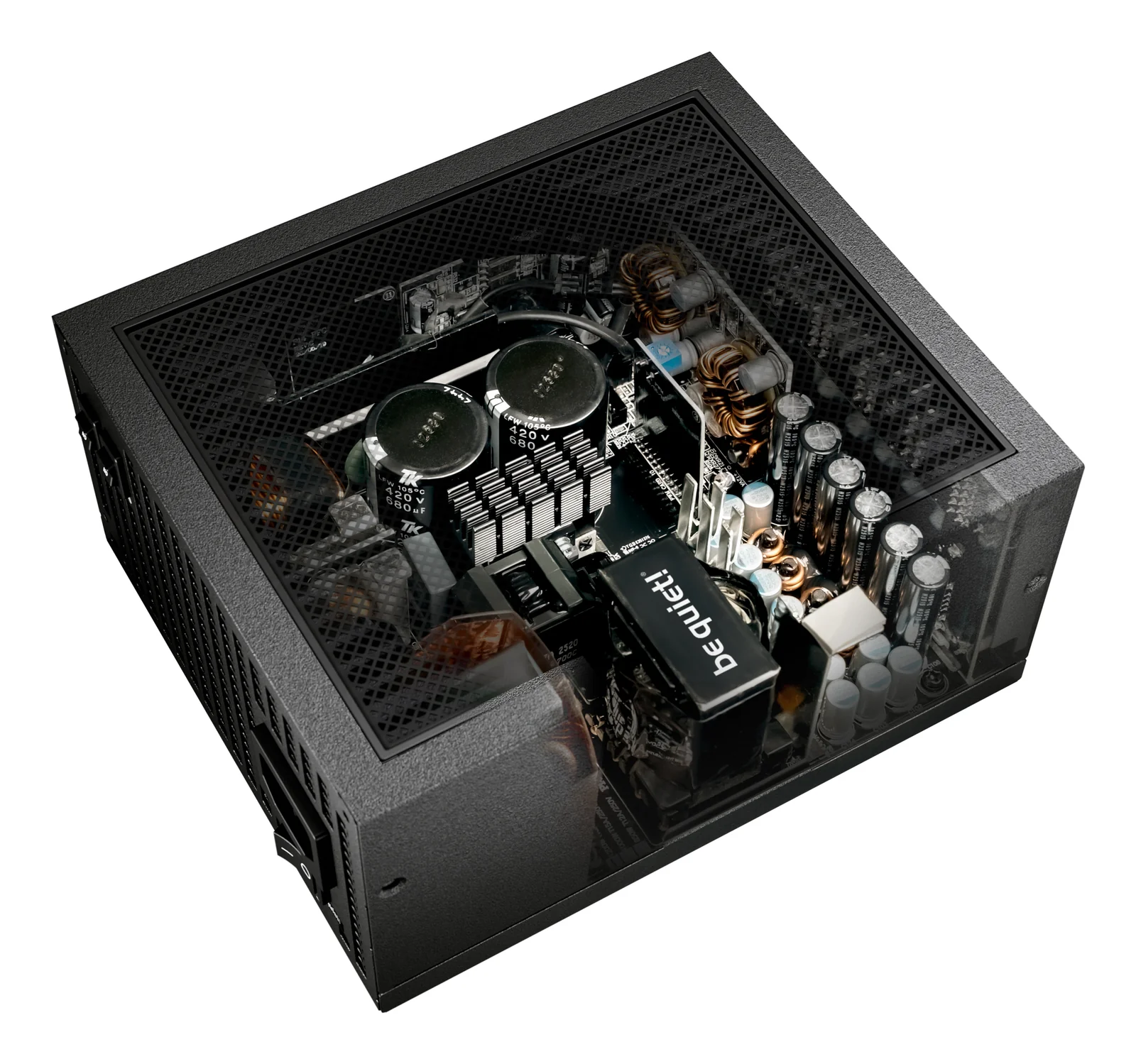

No compromise silence and performance Dark Power 14 1200W claims nothing less than the top spot. This powerhouse features a high-performance heat sink design with an integrated fan and can be operated in either active or semi-passive mode.

Specifications

Performance

80 PLUS certification: 80 PLUS Titanium
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
EPS version: 2.92
Noise level: 21.1 dB
Bearing technology: FDB
Mean time between failures (MTBF): 100000 h

Design

Product colour: Black
Cooling type: Active
Fan diameter: 135 mm
Number of fans: 1 fan(s)
Fan speed: 0 - 2100 RPM
Illumination: No
On/off switch: Yes

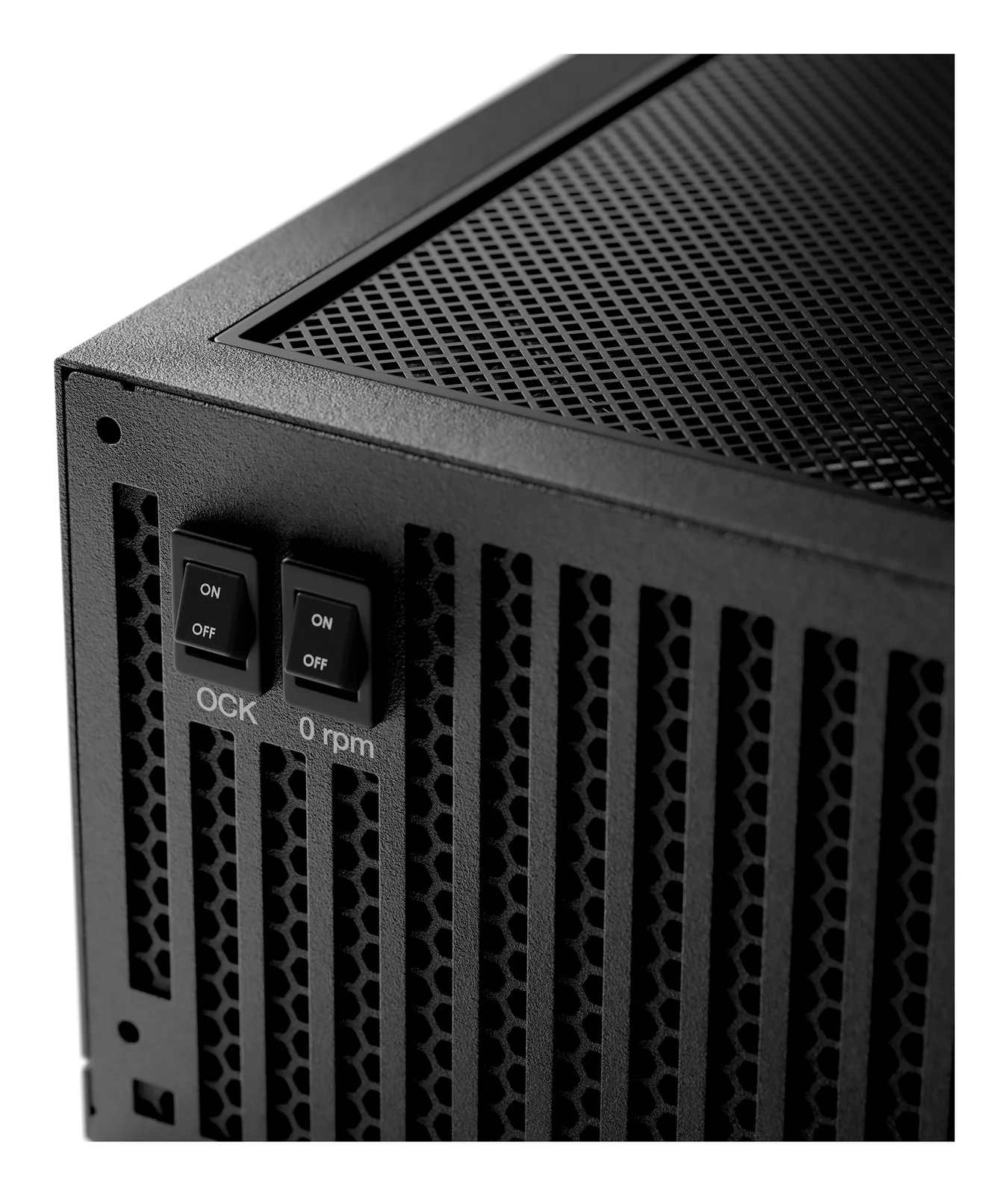

On/off fan switch: Yes

Power

Total power: 1200 W
Peak power: 1300 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Maximum input current (@110V): 10 A
Maximum input current (@220V): 5 A
Power factor: 0.98
Number of +12V rail(s): 4
Combined power (+3.3V): 120 W
Combined power (+12V): 1200 W
Combined power (+5V): 120 W
Max output current (+3.3V): 25 A
Max output current (+12V1): 33 A
Max output current (+12V2): 33 A
Max output current (+12V3): 45 A

Certificates

Compliance certificates: CB,Federal Communications Commission (FCC),RoHS,TÜV mark,UKCA,WEEE,cTUVus

Logistics data

Shipping (inner) case length: 528 mm
Shipping (inner) case width: 368 mm
Shipping (inner) case height: 260 mm
Shipping (inner) case net weight: 20140 g
Products per shipping (inner) case: 4 pc(s)

Other features

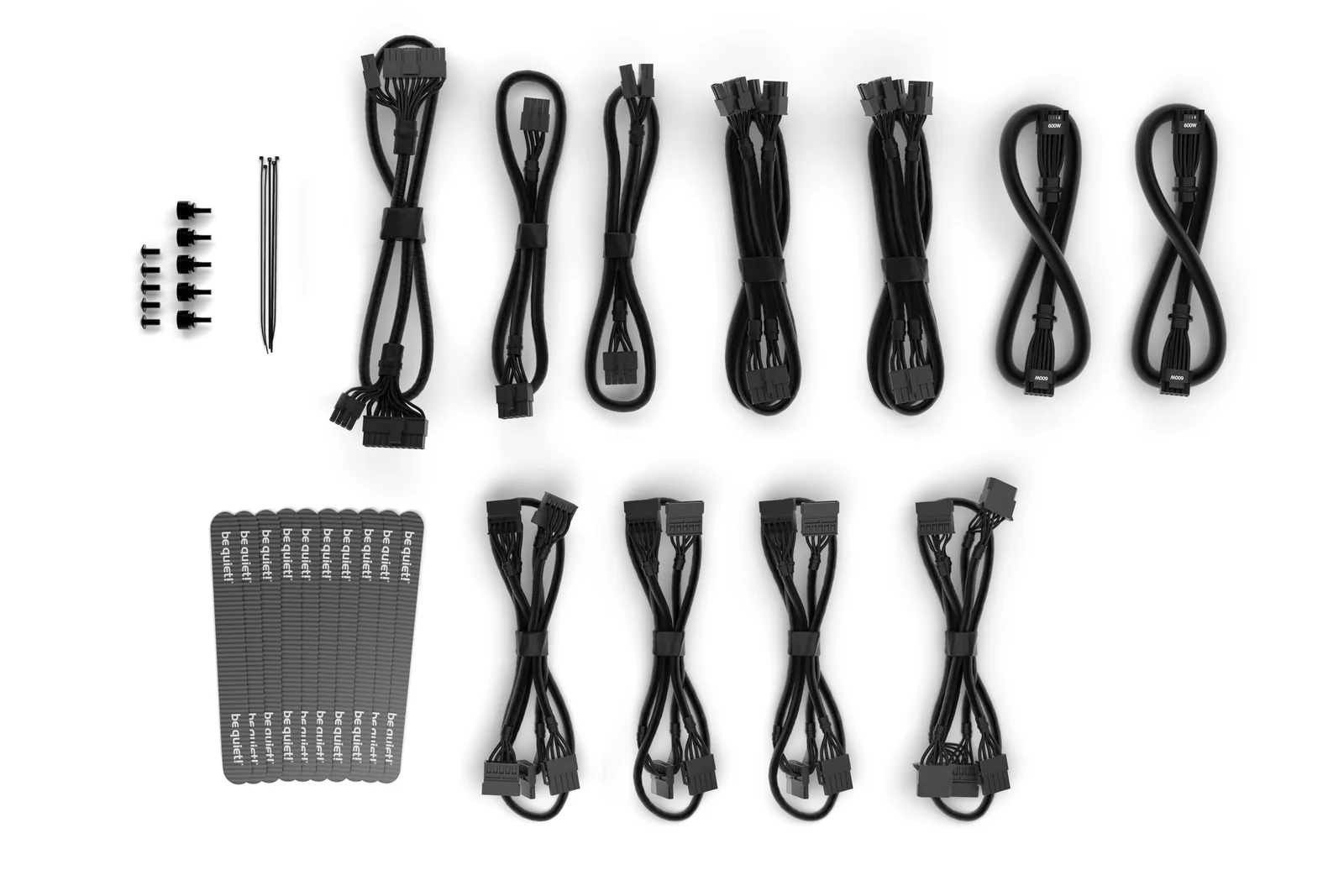

Screws included: Yes
Cable ties included: Yes

Packaging data

Manual: Yes
Manual languages: CHI (SIMPL),DEU,ENG,ESP,FRE,ITA,JPN,POL,RUS,THA,UKR
Package width: 230 mm
Package depth: 126 mm
Package height: 355 mm
Package weight: 3700 g

Technical details

Sustainability certificates: ENERGY STAR,ErP,Triman

Ports & interfaces

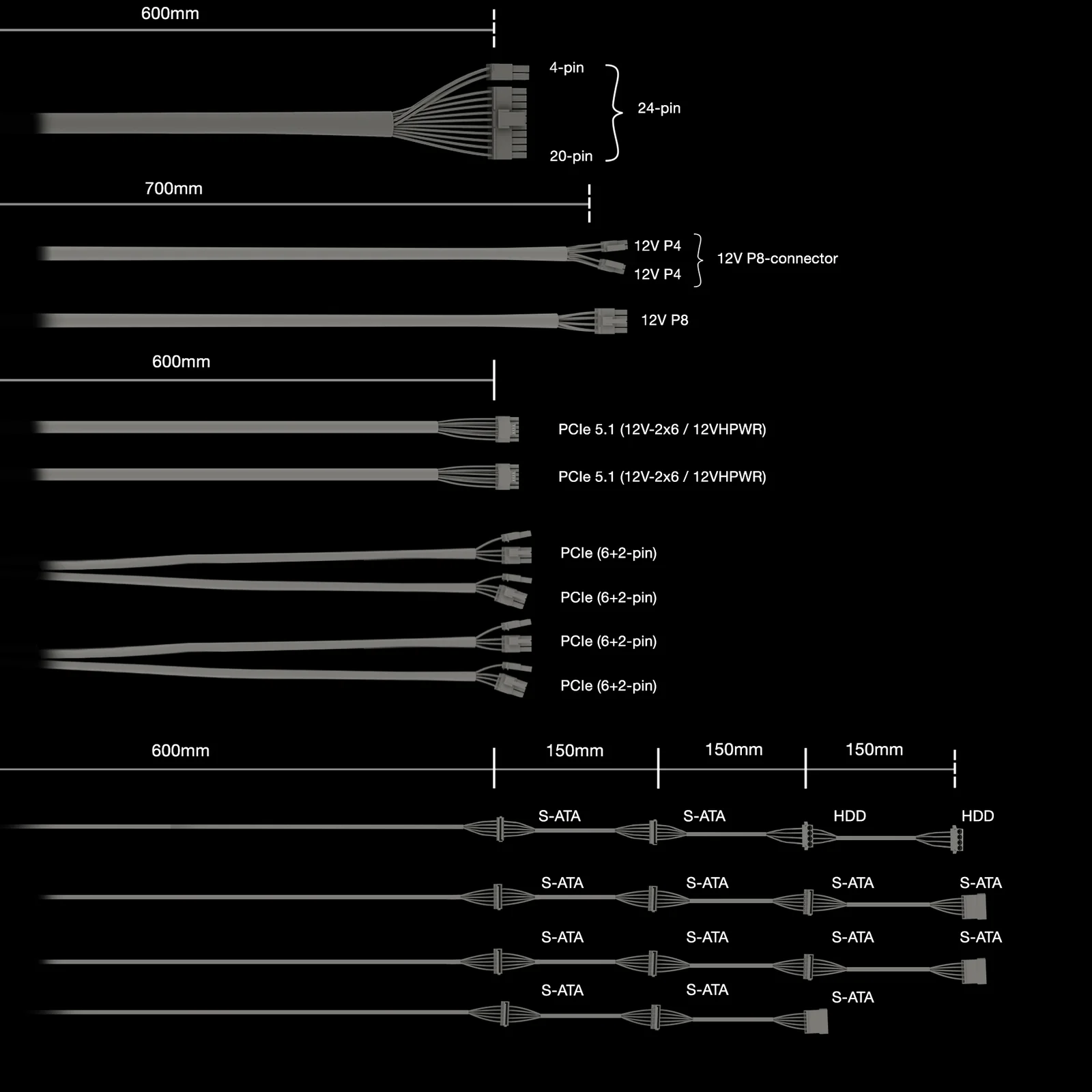

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 600 mm
Number of SATA power connectors: 13
SATA power cable length: 600,750,900,1050 mm
Number of SATA power cables: 4
Peripheral (Molex) power connectors (4-pin): 2
Peripheral (Molex) power cable length: 900,1050 mm
EPS power connector (8-pin): Yes
EPS power connector (4+4 pin): Yes
PCI Express power connectors (6+2 pin): 4
PCI Express power connectors (12-pin): 2
PCI Express power cable length: 600 mm
CPU power connector (4+4 pin): Yes
CPU power cable length: 700 mm
ATX power connector (20+4 pin): Yes

Weight & dimensions

Width: 150 mm
Depth: 175 mm
Height: 86 mm
Weight: 2300 g

Operational conditions

Operating temperature (T-T): 0 - 40 °C
