ASUS

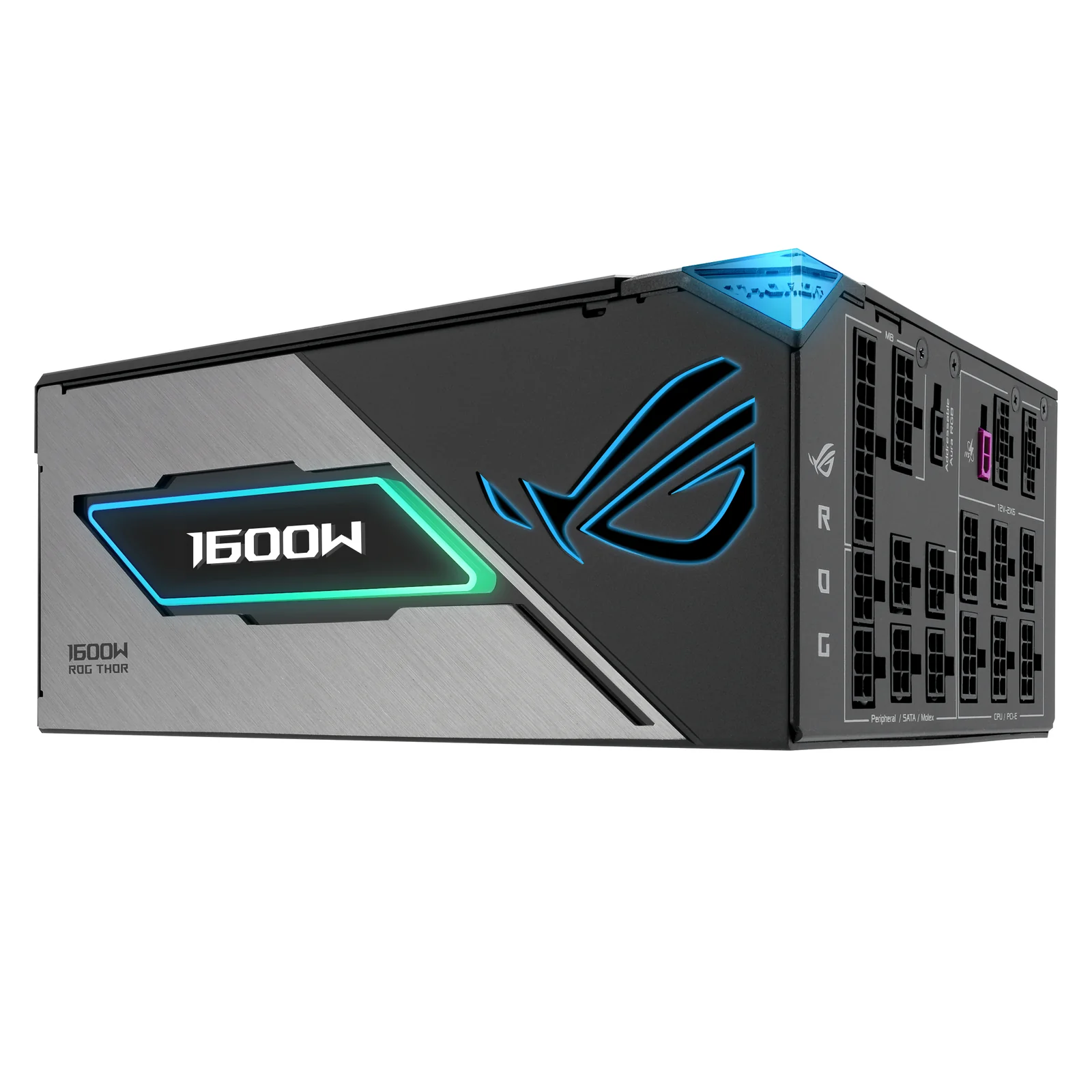

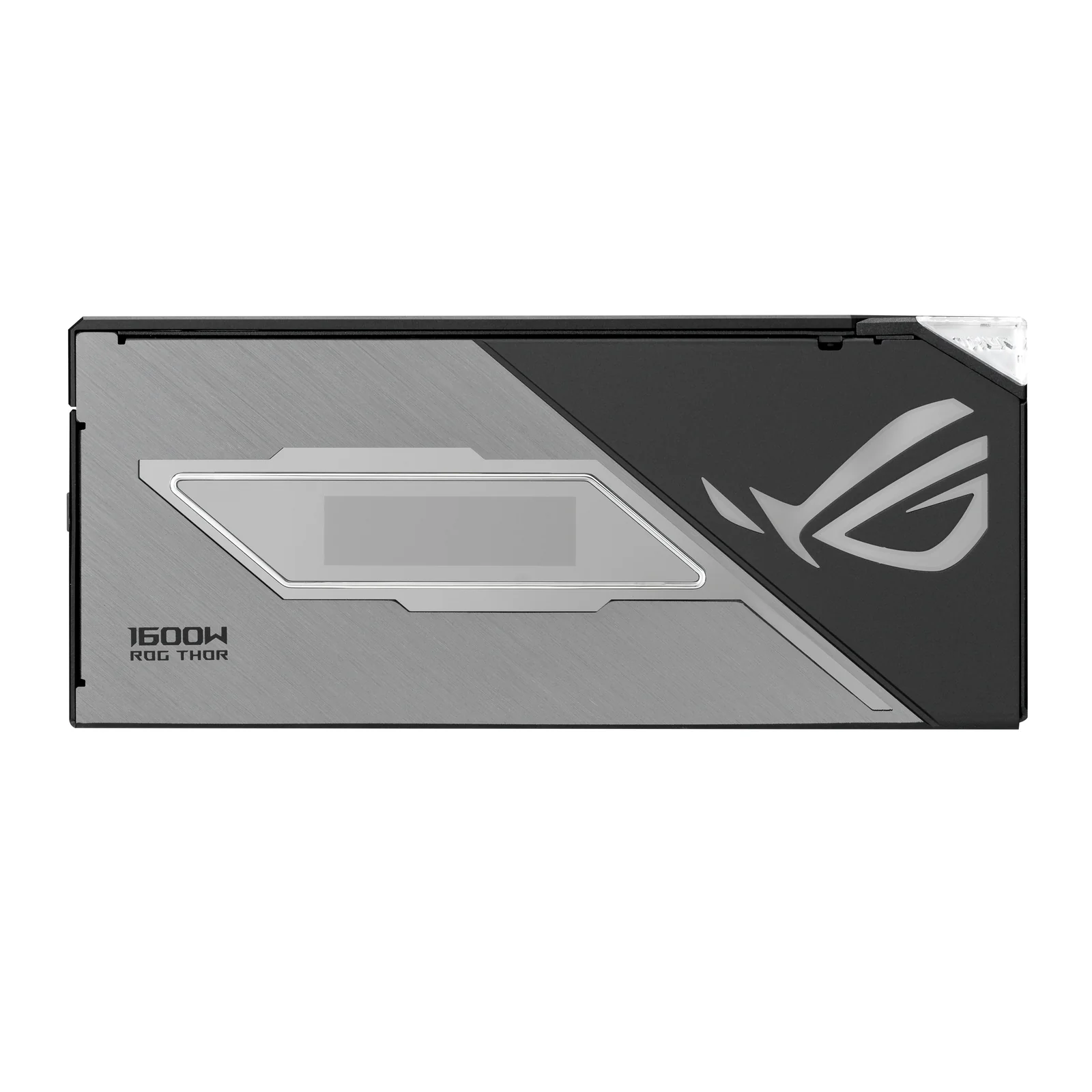

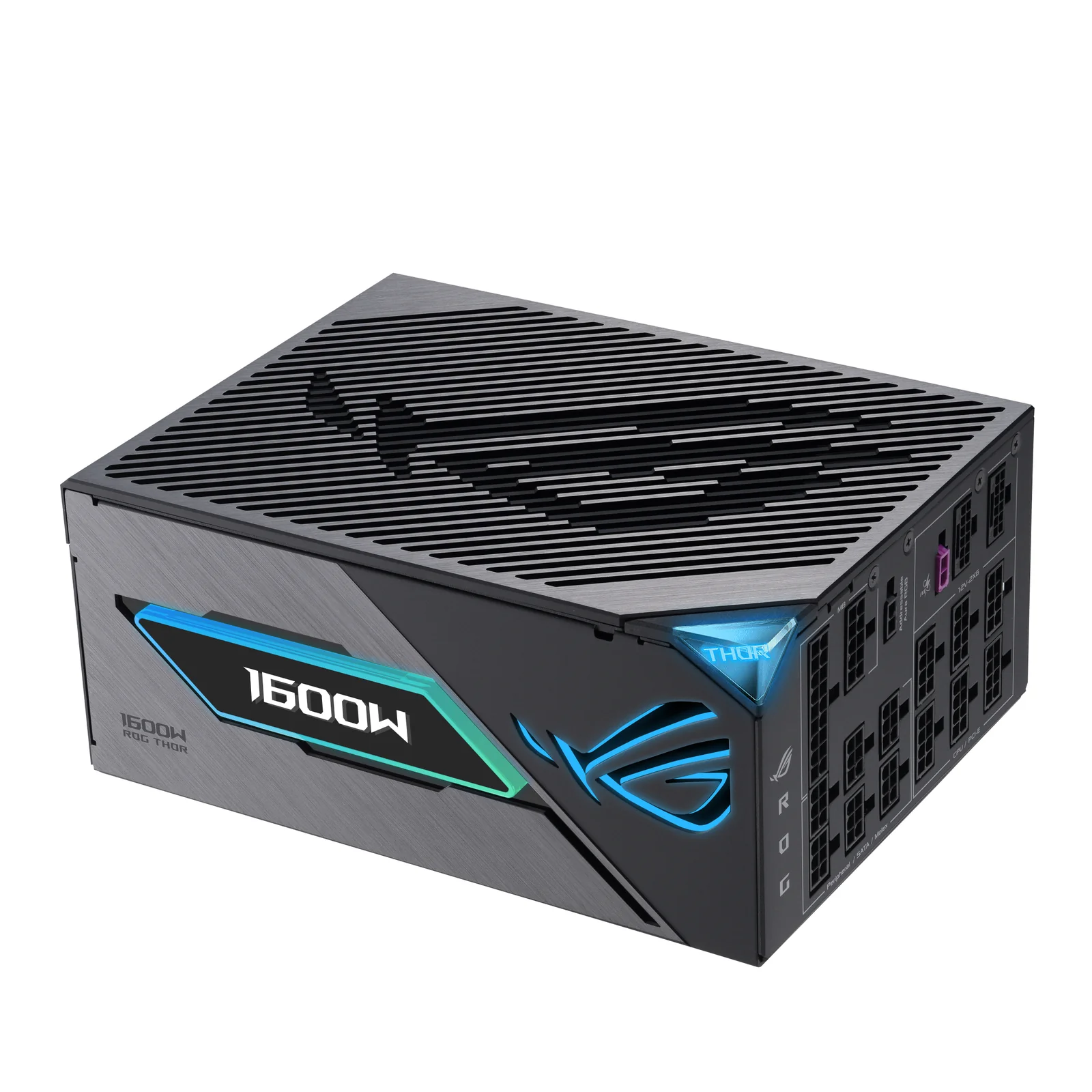

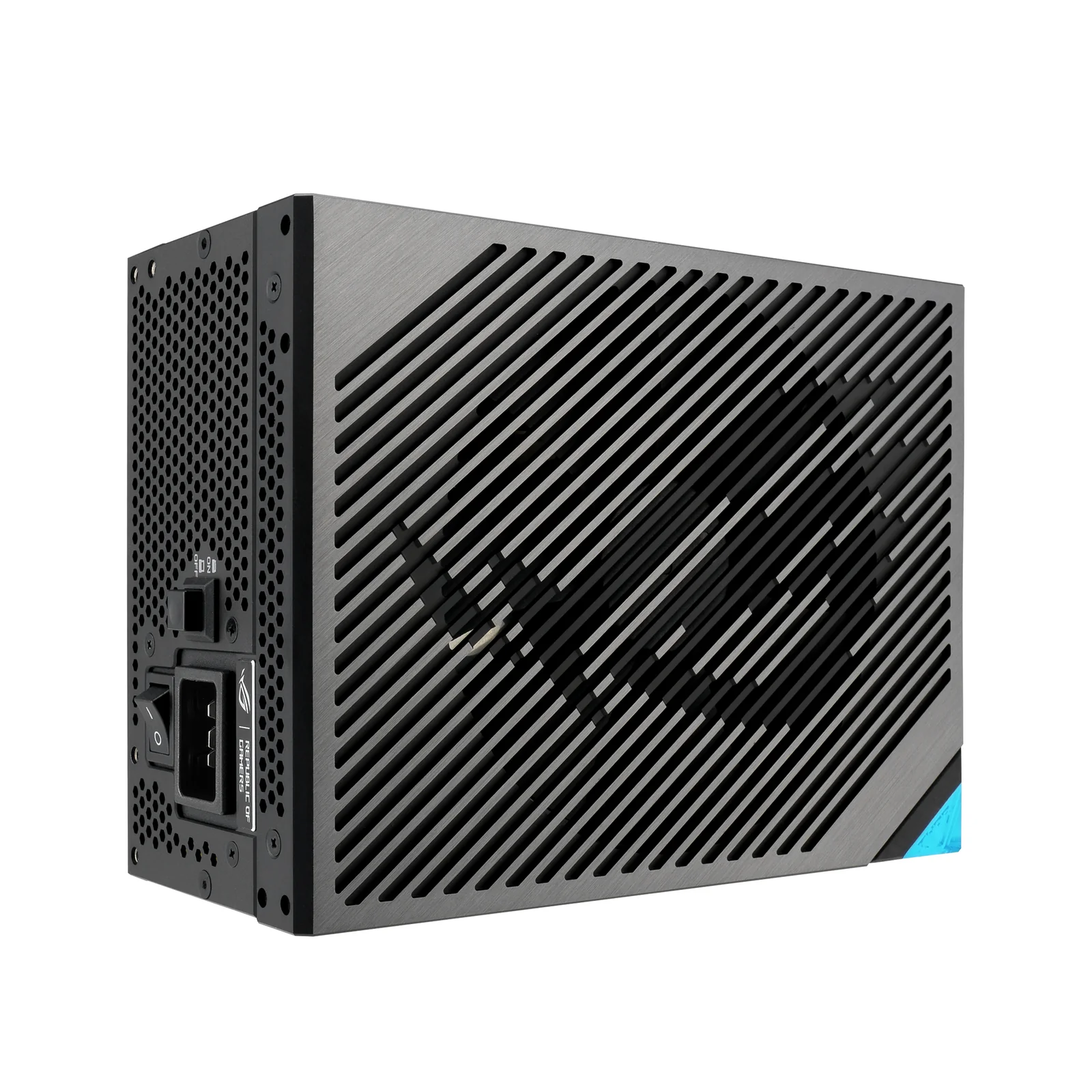

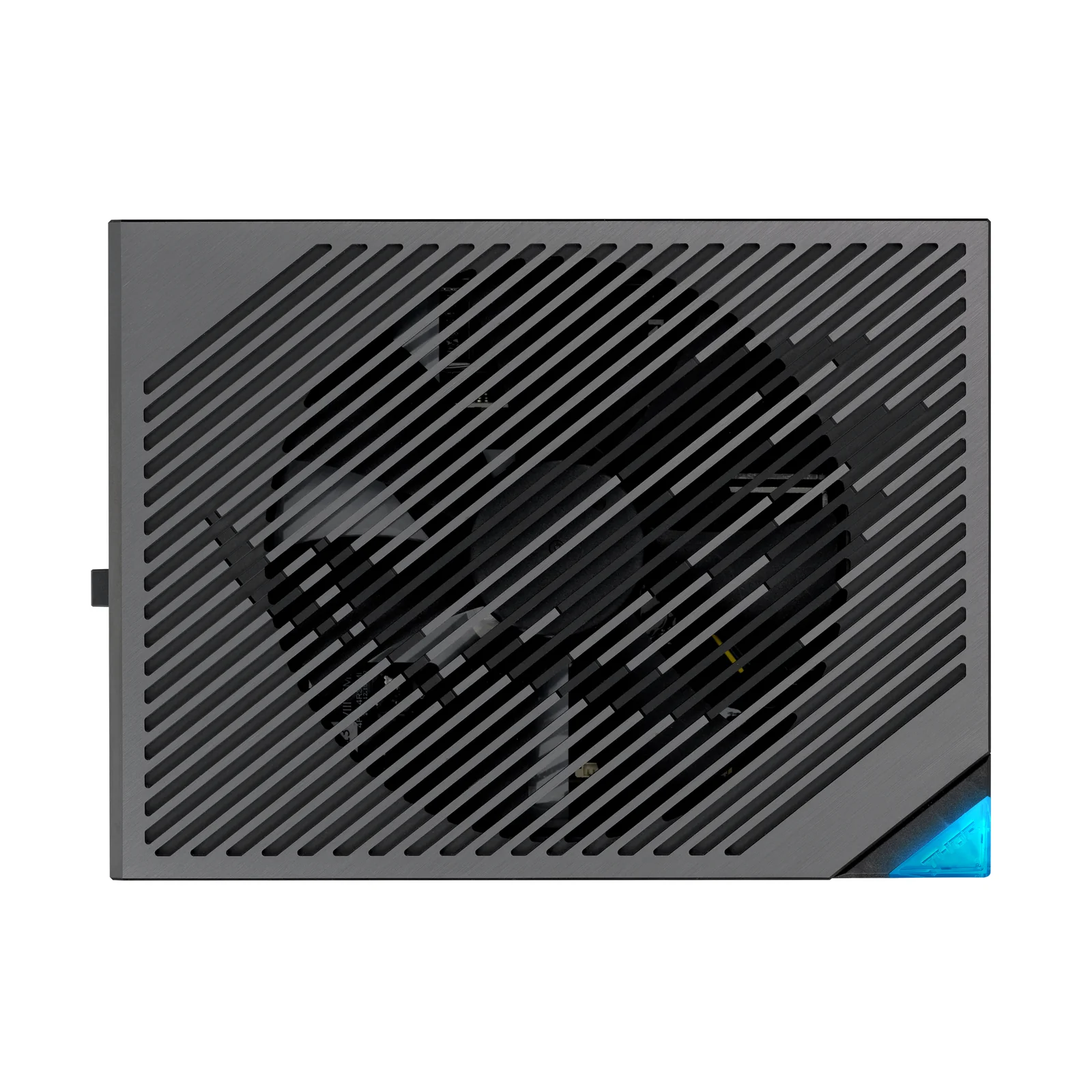

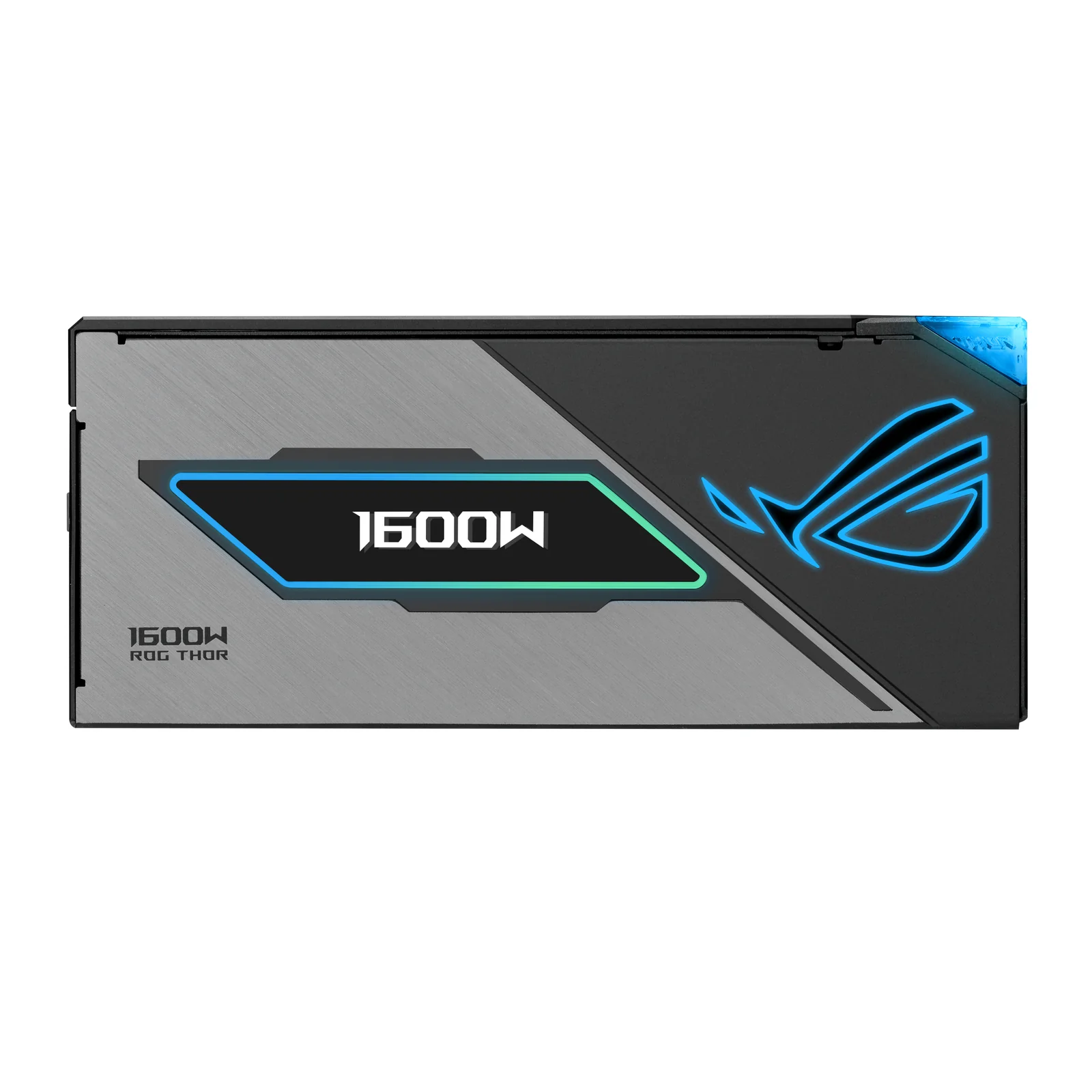

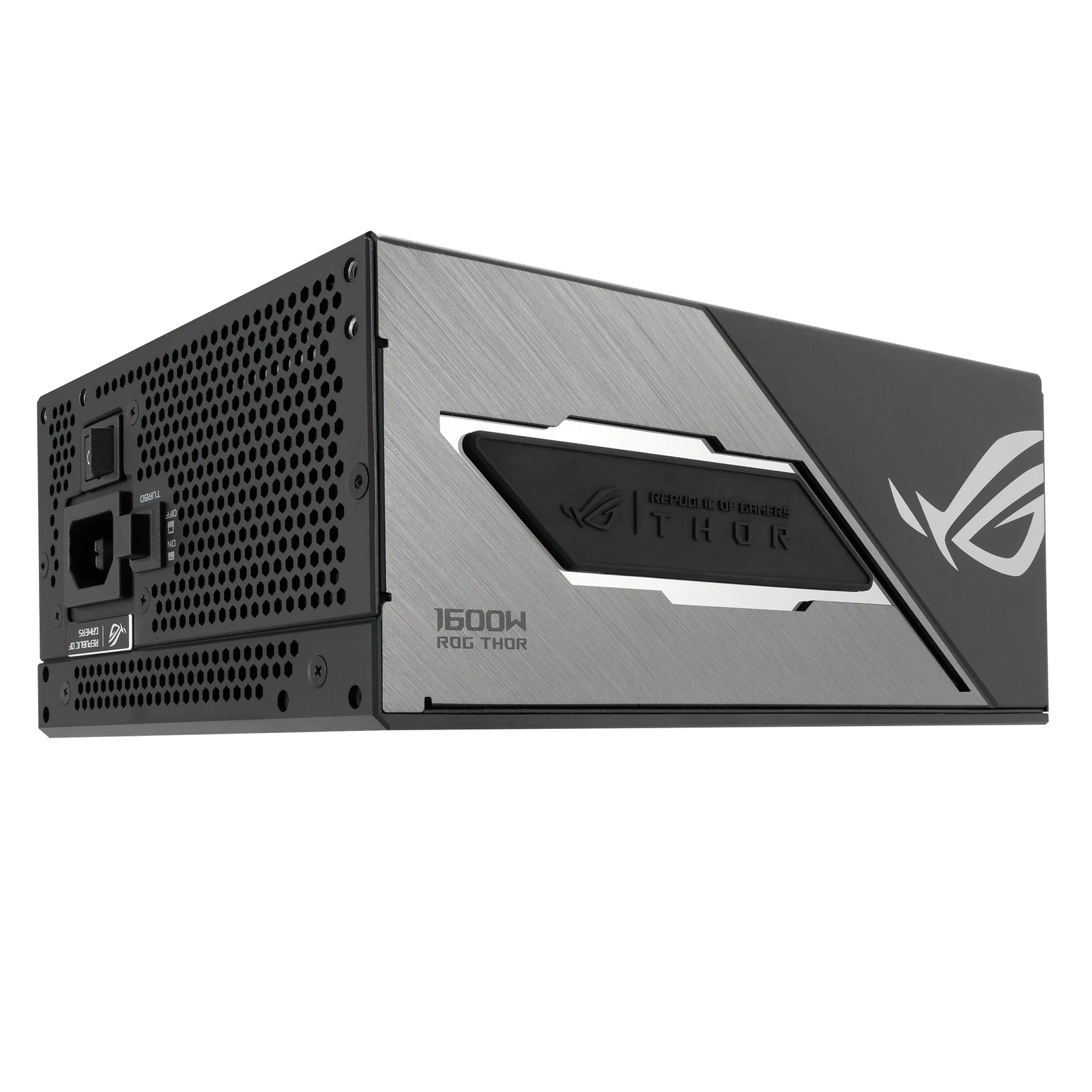

ASUS ROG -THOR-1600T3-GAMING 1600W Power Supply

Model ROG-THOR-1600T3-GAMING

Overview

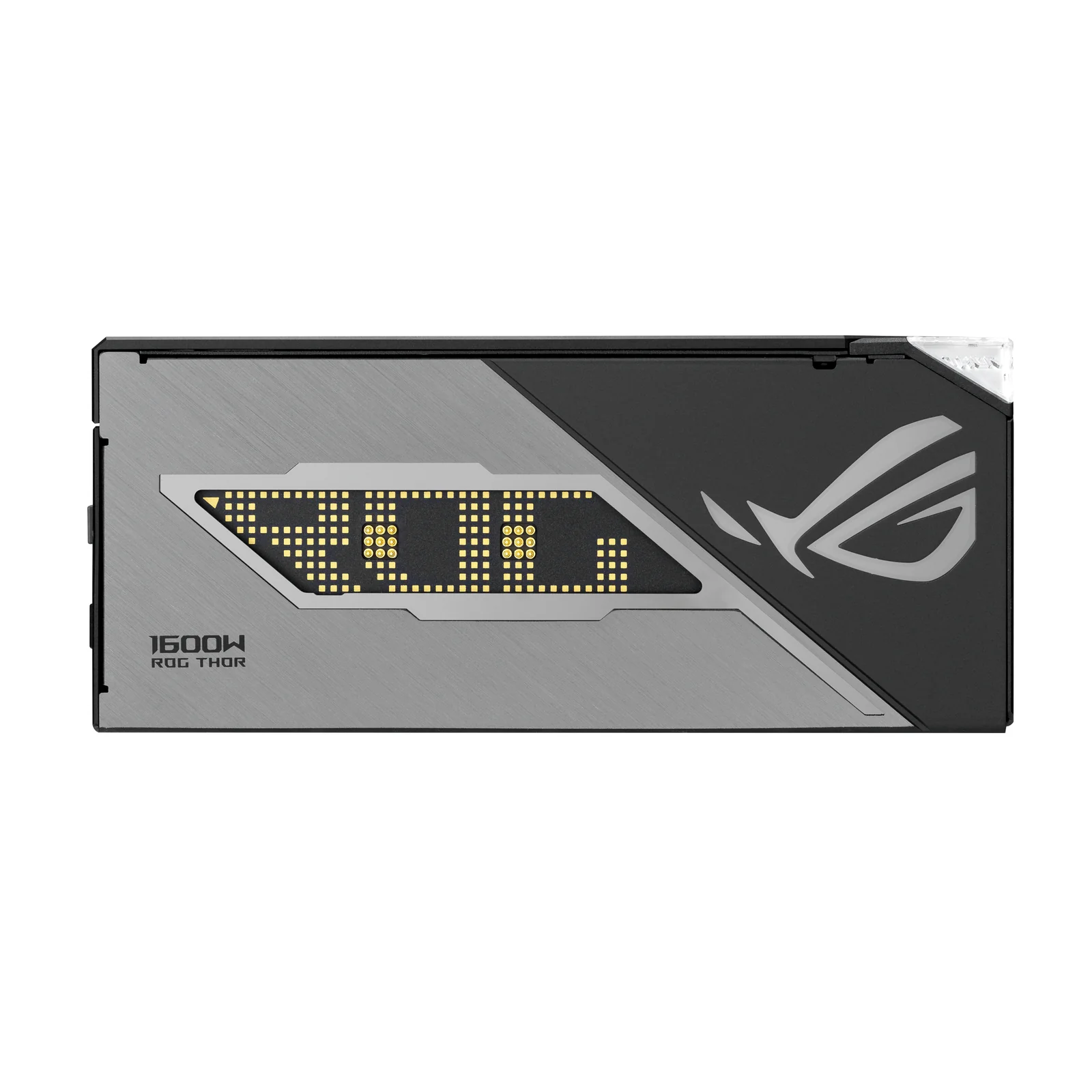

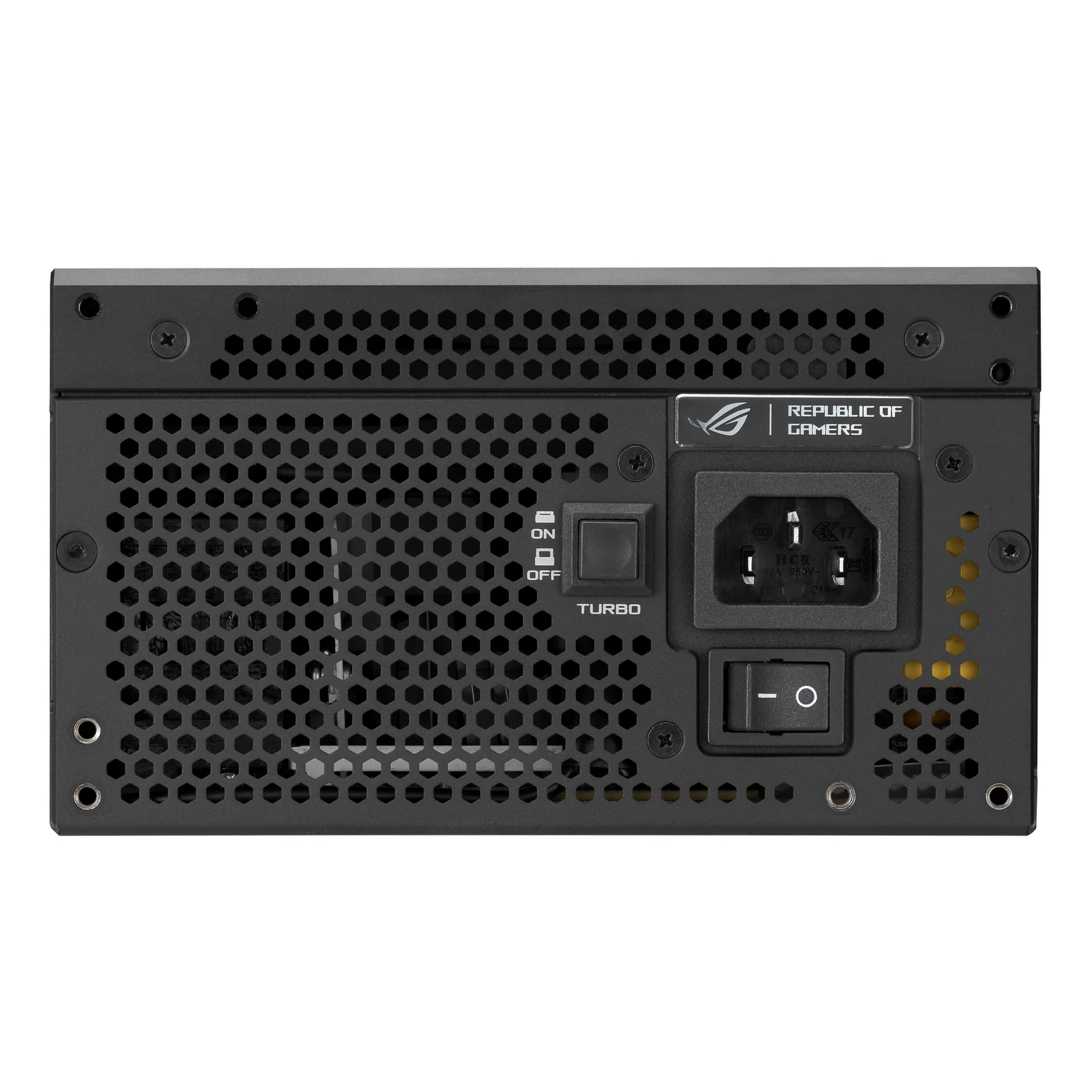

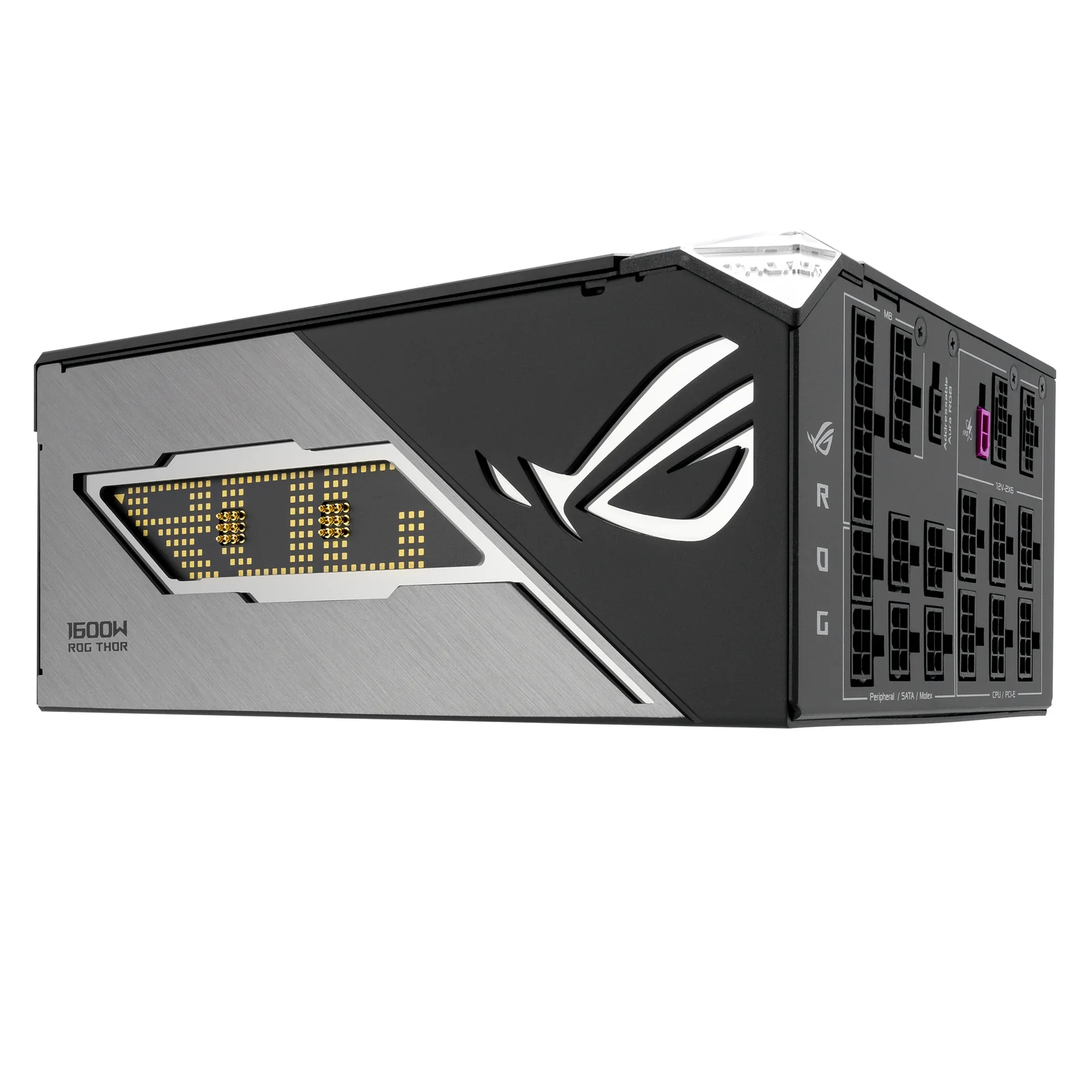

ULTIMATE POWER. UNMATCHED STABILITY. The ROG Thor 1600W Titanium III delivers the ultimate power and stability demanded by gamers. A next-gen GaN MOSFET delivers superior efficiency, and "GPU-First" voltage sensing features a patented-intelligent voltage stabilizer, ensuring top-tier performance and stability. Meanwhile, there is Turbo Mode for maximum cooling when overclocking or for other demanding workloads. The ROG Thor 1600W Titanium III also features the signature Thor OLED display, now upgraded for easy magnetic attachment - it can be swapped to either side of the unit to accommodate fan-up or fan-down PSU installation.

Specifications

Performance

80 PLUS certification
80 PLUS Titanium
Purpose
PC
Power supply unit (PSU) form factor
ATX
ATX version
3.1
Silent mode
Yes
Bearing technology
DBB
Mean time between failures (MTBF)
120000 h

Design

Product colour
Grey
Cooling type
Active
Number of fans
1 fan(s)
Illumination
Yes
Built-in display
Yes
Display type
OLED
On/off switch
Yes

Power

Total power
1600 W
AC input voltage
100 - 240 V
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
125 W
Combined power (+12V)
1600 W
Combined power (+5V)
125 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
15 W
Max output current (+3.3V)
30 A
Max output current (+12V)
133.3 A
Max output current (+5V)
25 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
3 A
Power protection features
Over current,Over power,Over voltage,Overheating,Short circuit,Under voltage

Packaging data

Package width
390 mm
Package depth
251 mm
Package height
159 mm
Package weight
6300 g
Package type
Box

Packaging content

Cables included
CPU,PCIe,Peripheral (Molex),SATA
Cable tie(s) included
Yes

Ports & interfaces

Motherboard power connector
20+4 pin ATX
Motherboard power cable length
610 mm
Number of SATA power connectors
10
SATA power cable length
120,400 mm
Peripheral (Molex) power connectors (4-pin)
9
Peripheral (Molex) power cable length
150,400 mm
PCI Express power connectors (6+2 pin)
4
PCI Express power connectors (16-pin)
2
PCI Express power cable length
750 mm
CPU power connector (4+4 pin)
Yes
CPU power cable length
1000 mm
PCI Express connector
Yes
Cabling type
Fully-Modular

Weight & dimensions

Width
200 mm
Depth
150 mm
Height
86 mm
Weight
2800 g
