ASUS

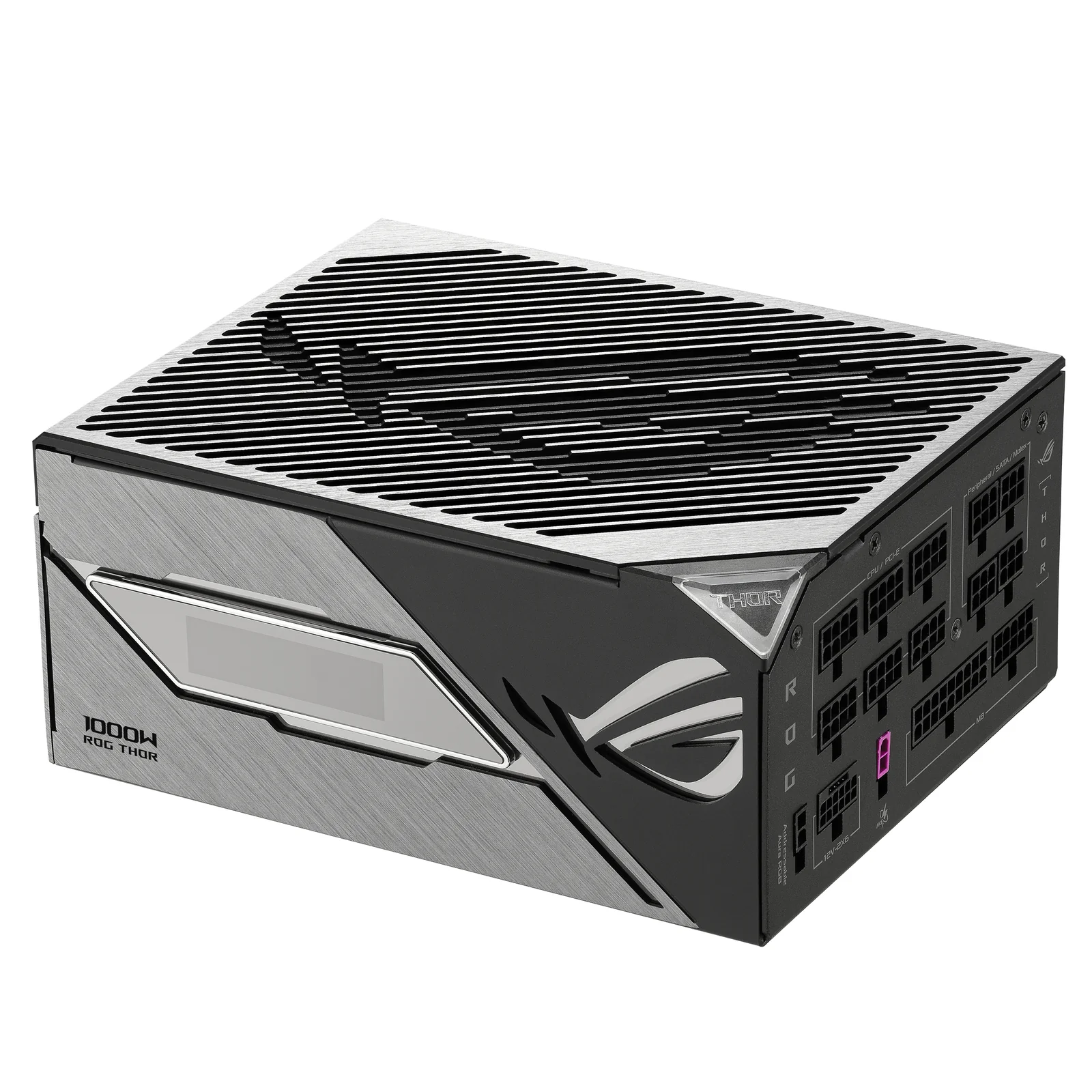

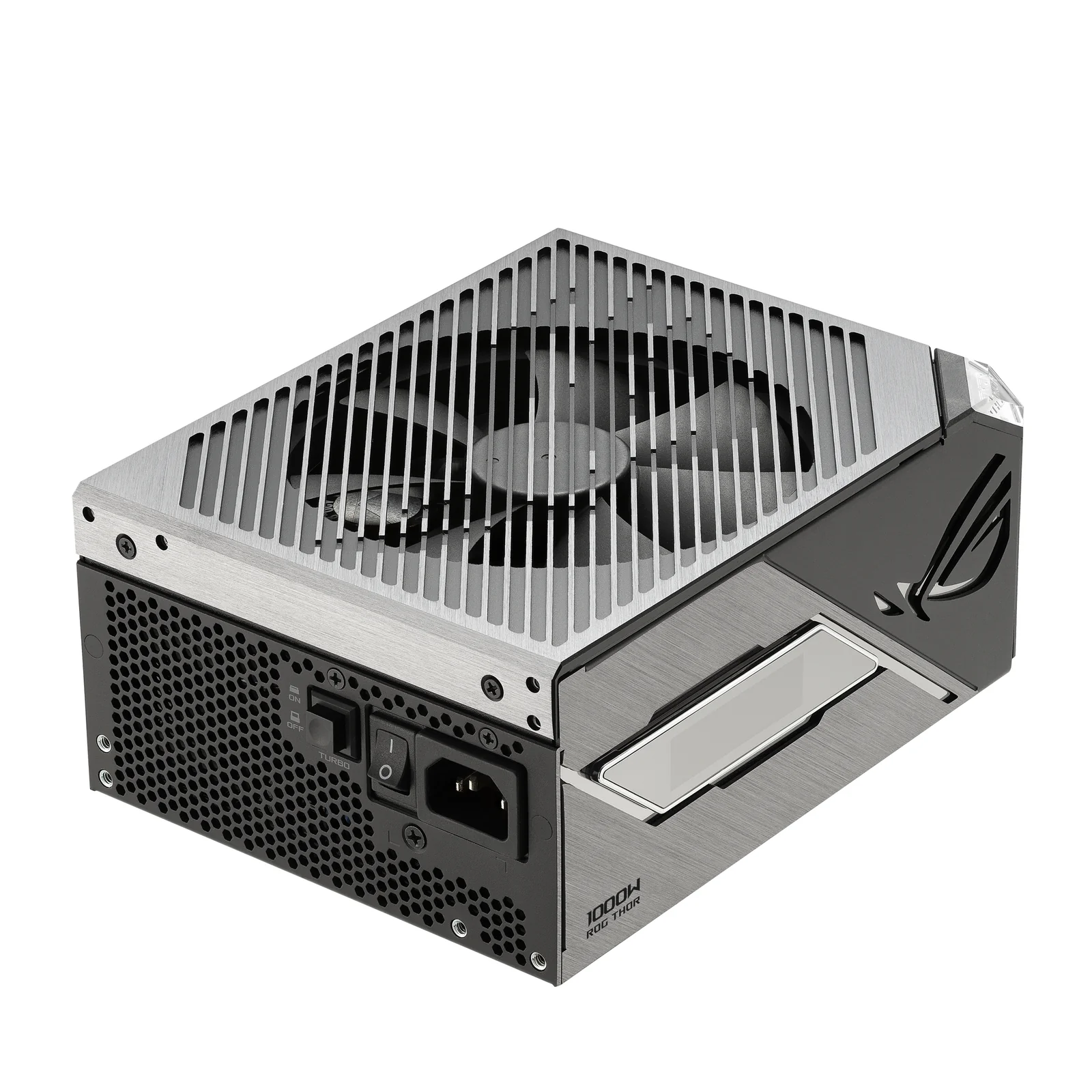

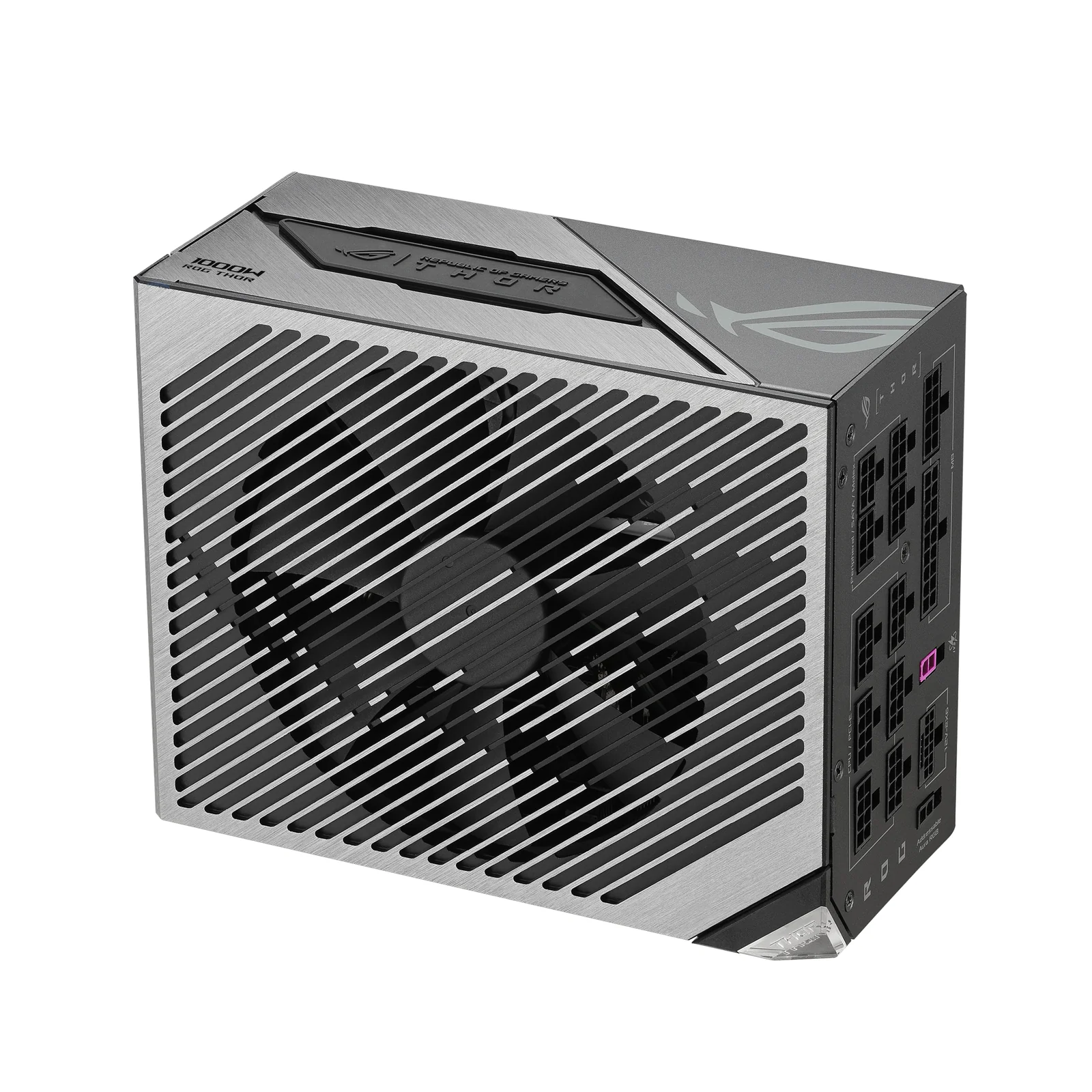

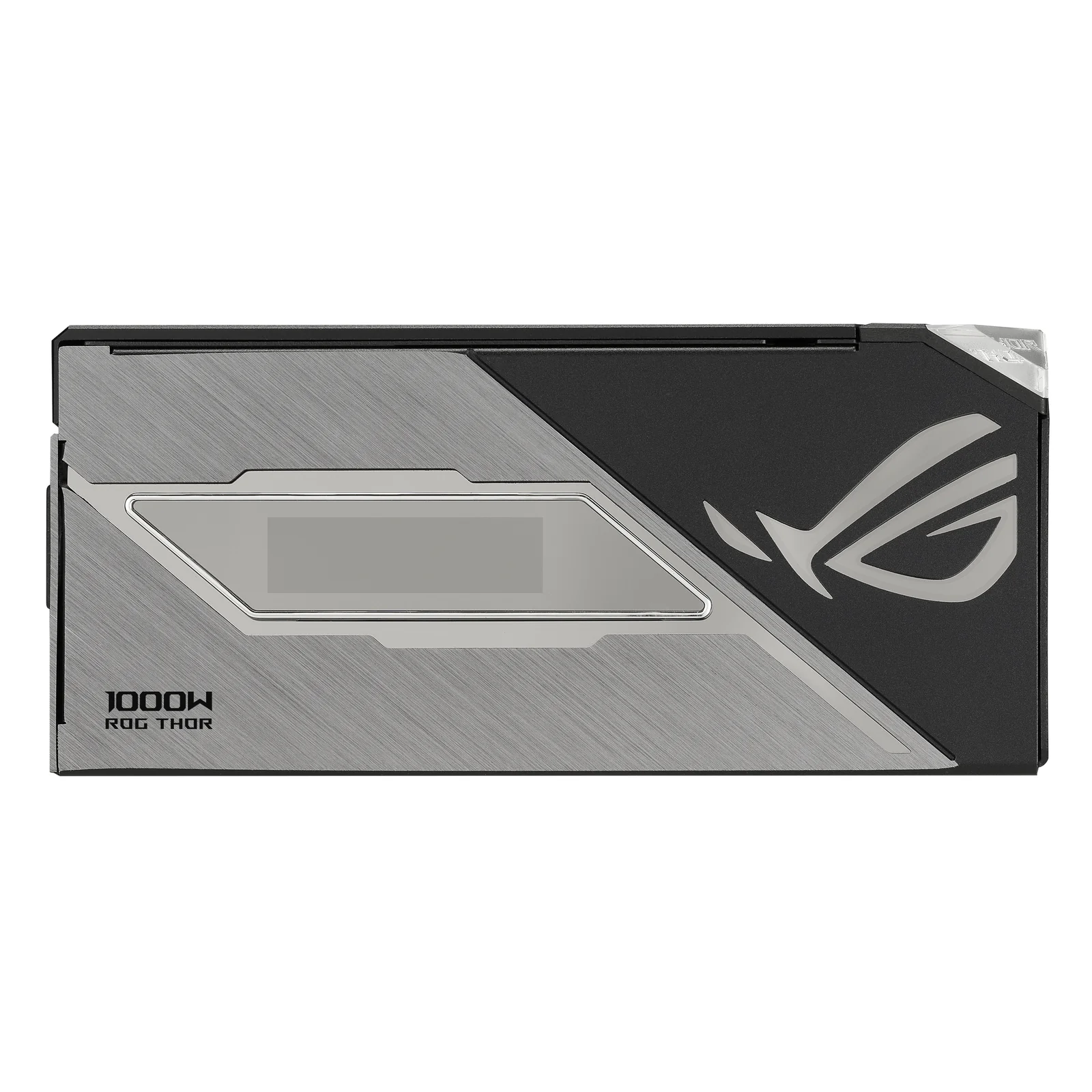

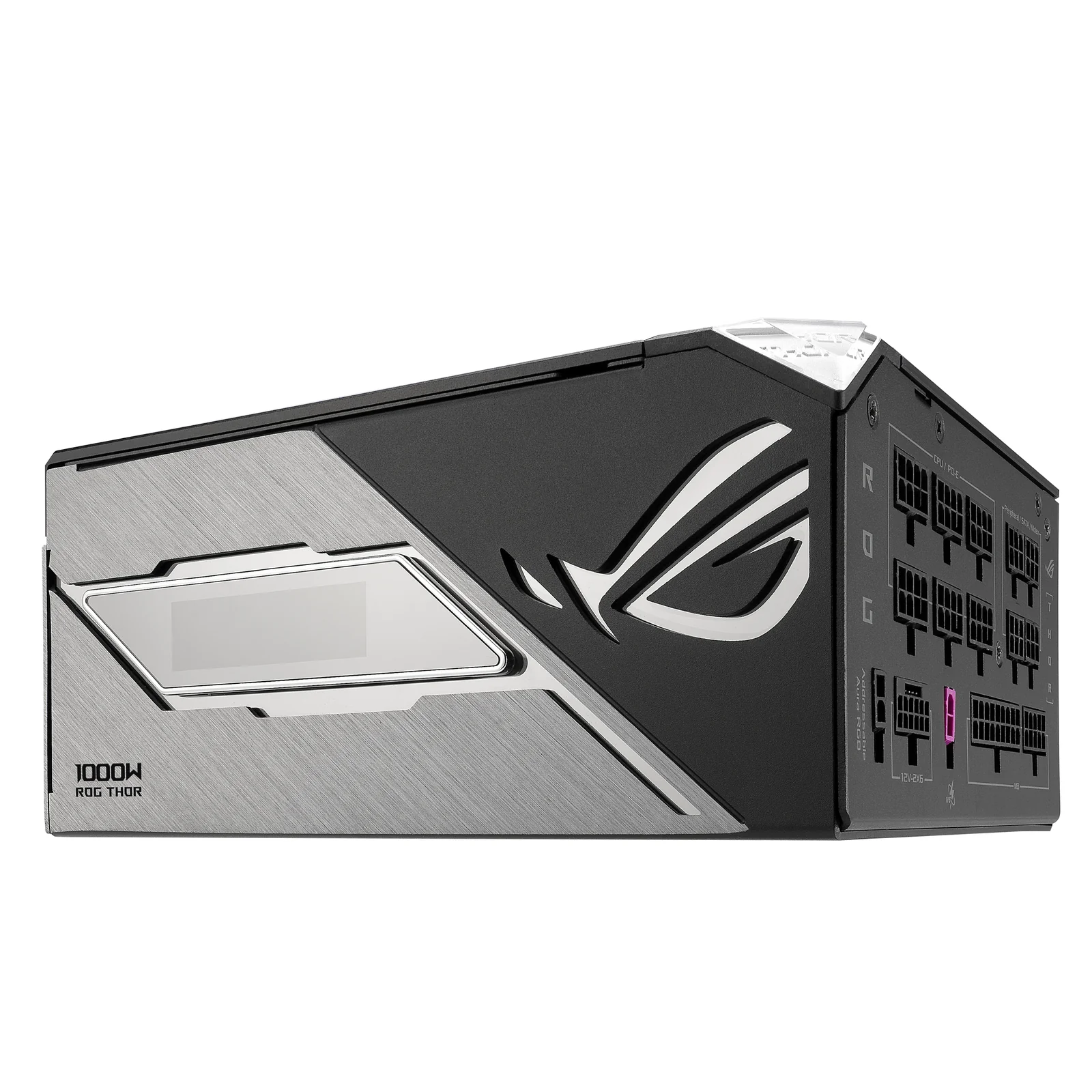

ASUS ROG -THOR-1000P3-GAMING 1000W Power Supply

Model ROG-THOR-1000P3-GAMING

Overview

Featuring a GaN MOSFET, “GPU-First” patented intelligent voltage stabilizer and a magnetic OLED display, ROG Thor 1000W Platinum III delivers unmatched performance and rock-solid stability for your ultimate PC build ROG THOR 1000W PLATINUM III ULTIMATE POWER. UNMATCHED STABILITY. The ROG Thor 1000W Platinum III delivers the ultimate power and stability demanded by gamers. A next-gen GaN MOSFET delivers superior efficiency, and "GPU-First" voltage sensing features a patented-intelligent voltage stabilizer, ensuring top-tier performance and stability. Meanwhile, there is Turbo Mode for maximum cooling when overclocking or for other demanding workloads. The ROG Thor 1000W Platinum III also features the signature Thor OLED display, now upgraded for easy magnetic attachment – it can be swapped to either side of the unit to accommodate fan-up or fan-down PSU installation.

Specifications

Performance

80 PLUS certification
80 PLUS Platinum
Purpose
PC
Power supply unit (PSU) form factor
ATX
ATX version
3.1
Bearing technology
DBB
Mean time between failures (MTBF)
120000 h

Design

Product colour
Black
Cooling type
Active
Number of fans
1 fan(s)
Fan location
Top
Illumination
Yes

Power

Total power
1000 W
AC input voltage
100 - 240 V
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
125 W
Combined power (+12V)
1000 W
Combined power (+5V)
125 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
15 W
Max output current (+3.3V)
30 A
Max output current (+12V)
83.33 A
Max output current (+5V)
25 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
3 A
Power protection features
Over current,Over power,Over voltage,Overheating,Short circuit,Under power

Packaging data

Package width
379 mm
Package depth
241 mm
Package height
127 mm
Package weight
5080 g
Package type
Box

Packaging content

Cables included
CPU,PCIe,SATA,Peripheral (Molex)

Ports & interfaces

Motherboard power connector
20+4 pin ATX
Motherboard power cable length
610 mm
Number of SATA power connectors
7
SATA power cable length
400,120 mm
Peripheral (Molex) power connectors (4-pin)
6
Peripheral (Molex) power cable length
400,150 mm
PCI Express power connectors (6+2 pin)
4
PCI Express power connectors (16-pin)
1
PCI Express power cable length
750 mm
CPU power connector (4+4 pin)
Yes
CPU power cable length
1000 mm
PCI Express connector
Yes
Cabling type
Fully-Modular

Weight & dimensions

Width
190 mm
Depth
150 mm
Height
86 mm
Weight
2370 g
