ASUS

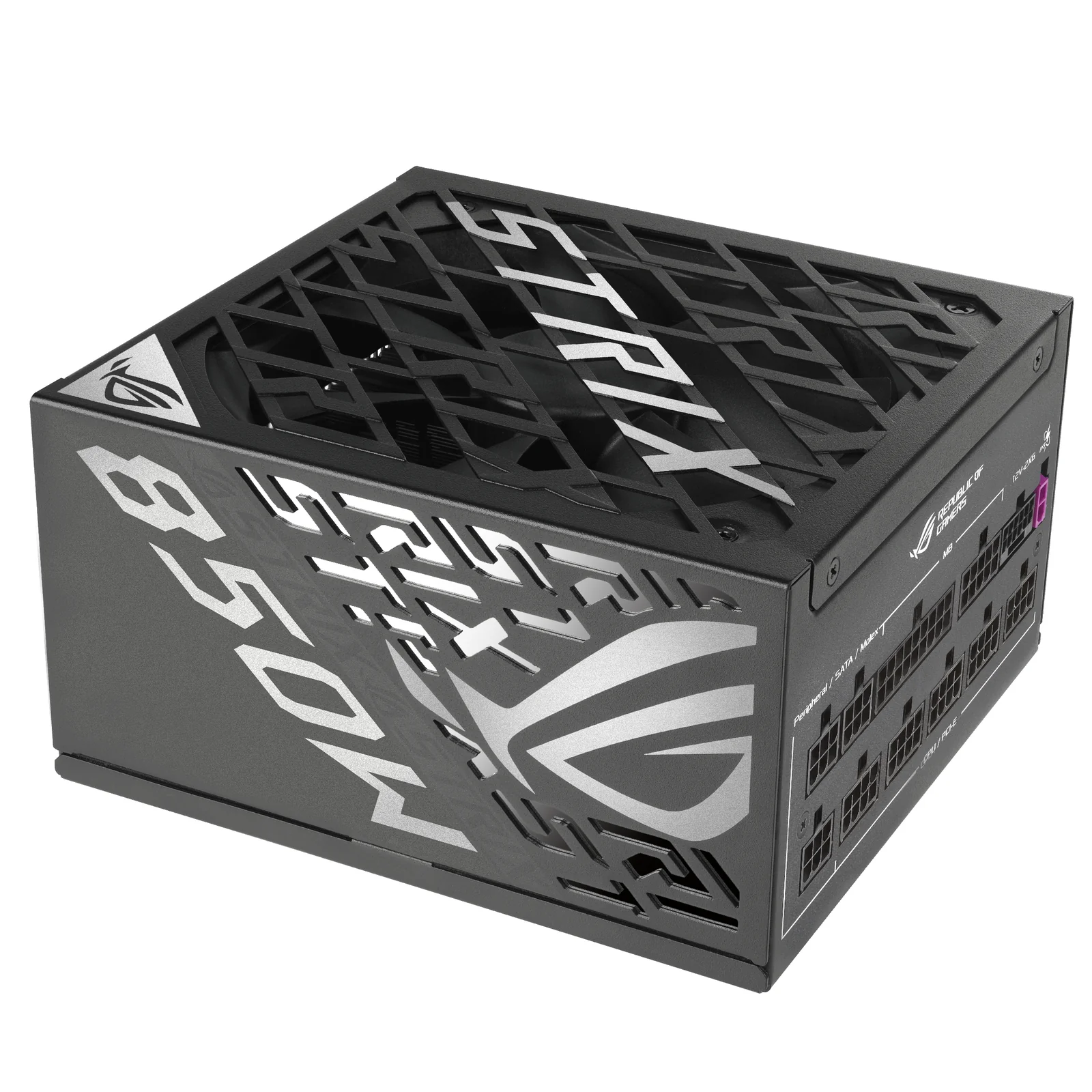

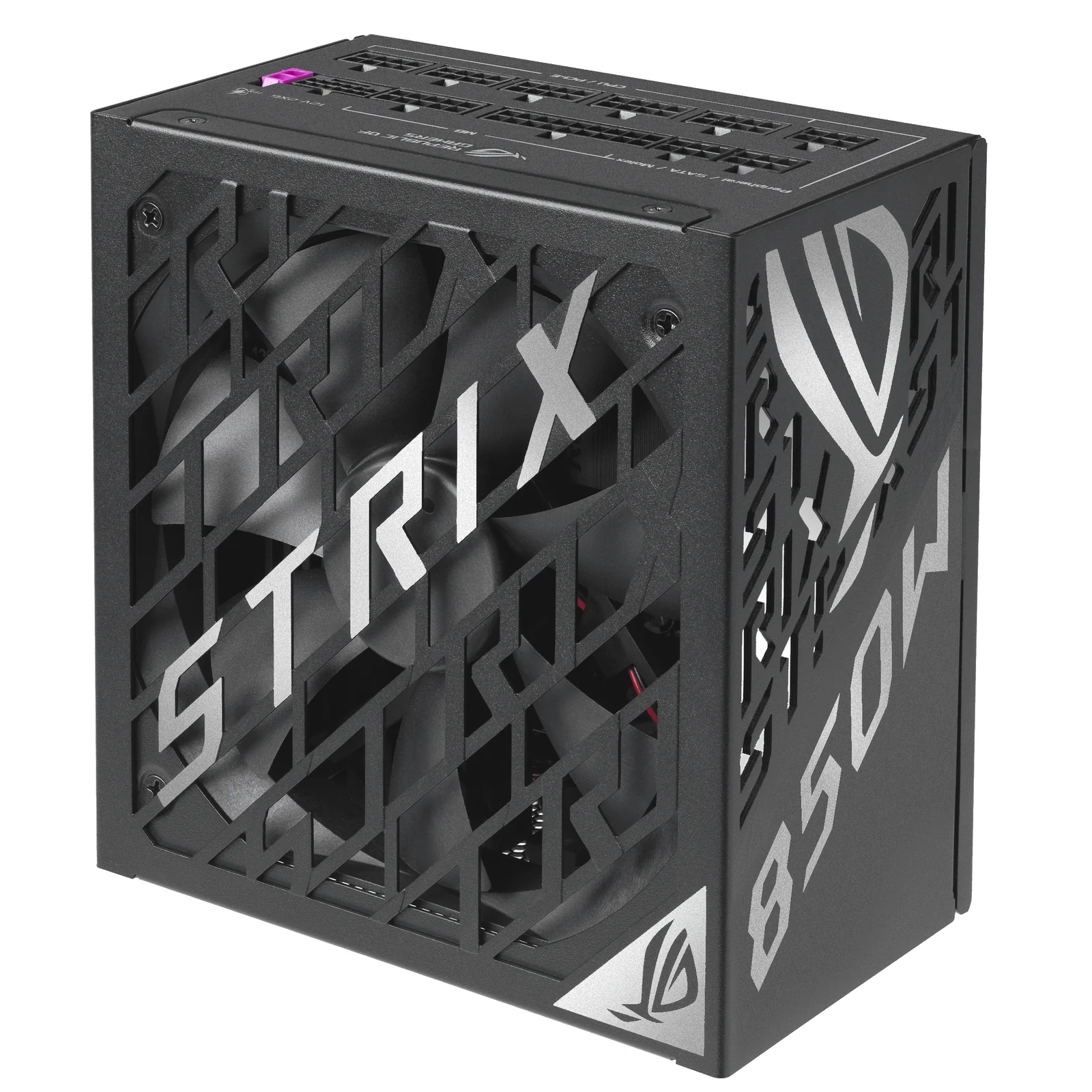

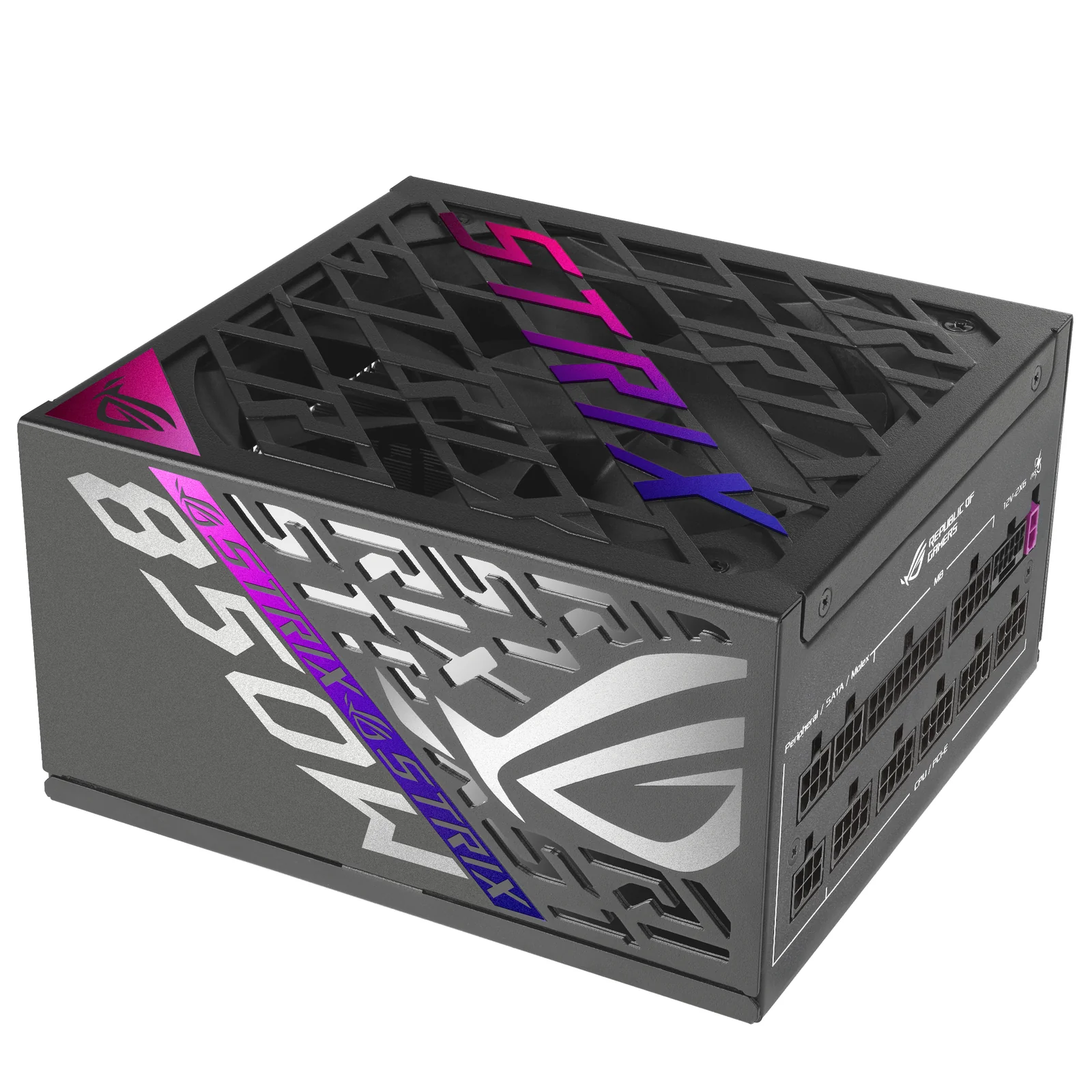

ASUS ROG -STRIX-850P-GAMING 850W Power Supply

Model ROG-STRIX-850P-GAMING

Overview

Superior Stability. Next-Level Efficiency The ROG Strix Platinum PSU delivers the top-tier performance and unwavering stability demanded by gamers. Featuring next-gen GaN MOSFET for superior power efficiency. The Intelligent Voltage Stabilizer ensures a steady flow of power to the graphics card. Plus, it is ready for latest hardwares with ATX 3.1 compliance and a native 12V-2x6 connector. The ROG Strix Platinum Series ensures your high-end rig has the power to conquer any challenge. GaN MOSFET The ROG Strix Platinum PSU boasts innovative GaN MOSFET that delivers superior power efficiency by up to 30%, resulting in lower energy waste. Plus, the smaller size of GaN MOSFET allows for a more organized internal layout within the PSU. This optimized design provides space for larger heatsinks and enhanced airflow, improving heat dissipation within the PSU. ROG Heatsinks Cool under pressure ROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation. Etched Cables Made from a pliable premium material, these etched cables are easily flexible during installation, and they operate at temperatures 50°C lower than the safety limit when routed for cable management. These cables also meet the rigorous standards of the UL1581 flame test and UL758 certification, helping to ensure a smooth PC DIY experience and exceptional safety.

Specifications

Performance

80 PLUS certification
80 PLUS Platinum
Purpose
PC
Power supply unit (PSU) form factor
ATX
ATX version
3.1
Silent mode
Yes
Mean time between failures (MTBF)
120000 h

Design

Product colour
Black
Cooling type
Semi-passive
Number of fans
1 fan(s)
Fan location
Top

Power

Total power
850 W
AC input voltage
100 - 240 V
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
130 W
Combined power (+12V)
850 W
Combined power (+5V)
130 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
15 W
Max output current (+3.3V)
25 A
Max output current (+12V)
70.8 A
Max output current (+5V)
25 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
3 A
Power protection features
Over current,Over power,Over voltage,Overheating,Short circuit,Under voltage

Certificates

Compliance certificates
RoHS

Packaging data

Package width
320 mm
Package depth
200 mm
Package height
108 mm
Package weight
2800 g
Package type
Box

Packaging content

Cables included
CPU,PCIe,SATA,Peripheral (Molex)

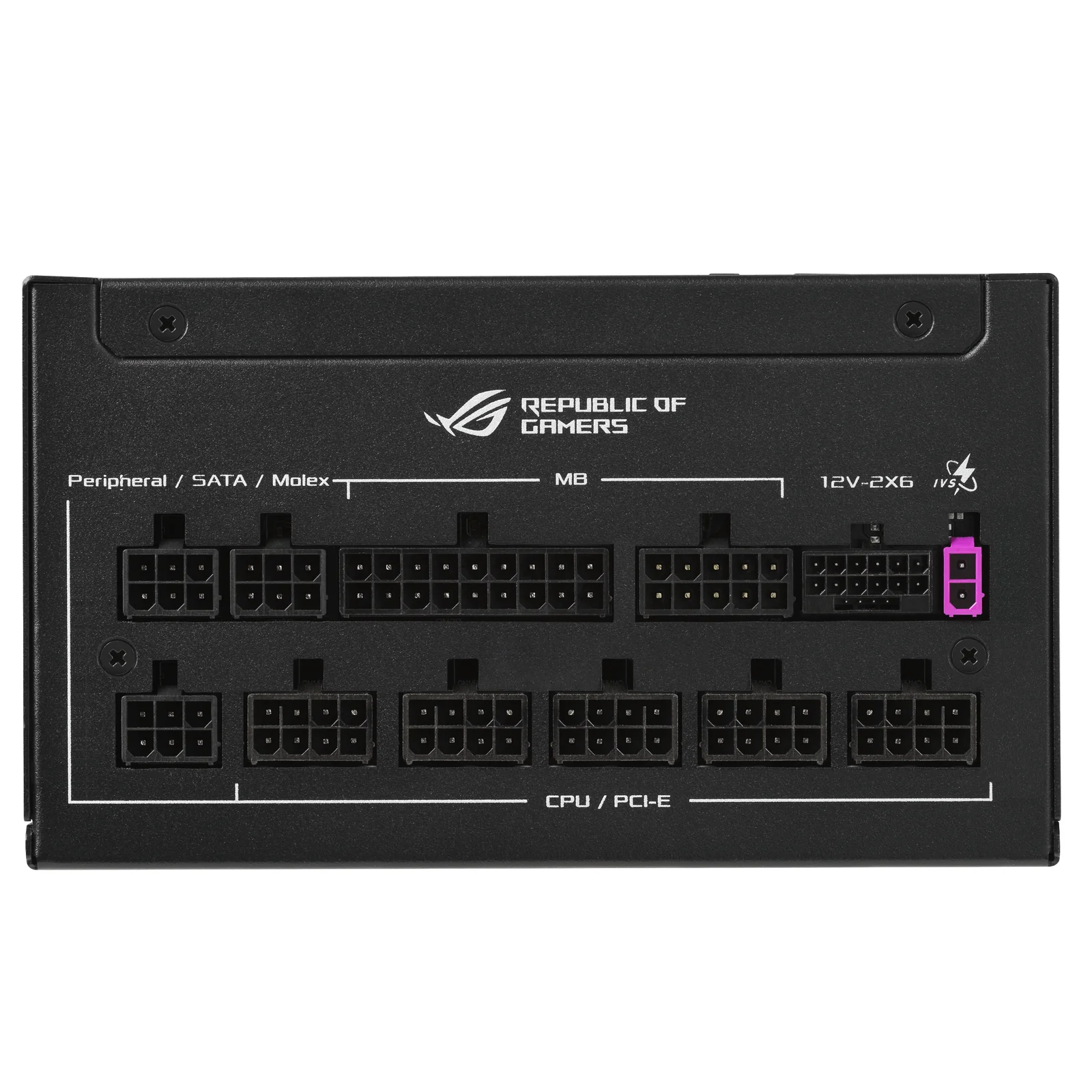

Ports & interfaces

Motherboard power connector
20+4 pin ATX
Motherboard power cable length
610 mm
Number of SATA power connectors
6
SATA power cable length
400,120 mm
Peripheral (Molex) power connectors (4-pin)
3
Peripheral (Molex) power cable length
400,150 mm
PCI Express power connectors (6+2 pin)
3
PCI Express power connectors (16-pin)
1
PCI Express power cable length
750 mm
CPU power connector (4+4 pin)
Yes
CPU power cable length
1000 mm
PCI Express connector
Yes
Cabling type
Fully-Modular

Weight & dimensions

Width
160 mm
Depth
150 mm
Height
86 mm
Weight
1780 g
