Coming soonTP-Link Archer NX505 5G AX3000 Wireless Dual-Band Gigabit Wi-Fi 6 Router
Model Archer NX505 5G AX3000 Wireless Dual-Band Gigabit
Overview
Superior 5G – A Revolutionary Experience Transform 5G signals into rapid downloads and flawless video calls with Archer NX505. The router delivers incredible speeds up to 6.47 Gbps and 4G compatibility. Share 5G Speed with Reliable Wi‑Fi Built with cutting-edge 5G and Wi-Fi 6, Archer NX505 brings superior wireless performance, expanded coverage and increased capacity, enabling faster loading and stable multi‑device connections Plug and Play, Enjoy 5G Network Everywhere Simple, just one SIM card Traditional broadband or cable installation is costly and time-consuming for temporary or remote locations. Archer NX505 delivers hassle-free, high-speed internet with easy SIM plug-and-play functionality. Flexibly Create Whole Home Mesh WiFi If you have any dead zones at home, just add another Easymesh-Compatible router/range extender to further form your whole home multi-gigabit mesh WiFi. No more searching for a stable connection. External Antenna Ports for Boosting Your Signal If your indoor 5G/4G signal is poor, connect the external antenna to significantly enhance reception for a consistently stable connection. Easy Setup and Use Set up Archer NX505 in minutes via its intuitive web interface and Tether app. Manage network, parental and access controls on your devices, with automatic firmware updates for optimal network performance and security.
Specifications
Design
- Product colour
- White
- Built-in display
- No
- Product type
- Desktop/pole router

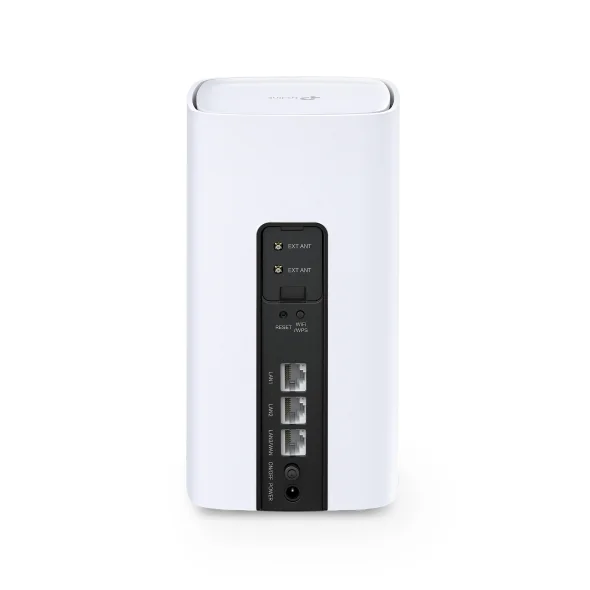

Antenna
- Antenna design
- Internal & external
- Antenna connector type
- SMA
Network
- Ethernet LAN
- Yes
- Ethernet LAN interface type
- Gigabit Ethernet
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Cabling technology
- 10/100/1000Base-T(X)
- Port forwarding
- Yes
- Port triggering
- Yes
- Dynamic DNS (DDNS)
- Yes
- Number of guest networks (2.4 GHz)
- 1
- Number of guest networks (5 GHz)
- 1
Security
- Security algorithms
- 64-bit WEP,128-bit WEP,WPA,WPA-PSK,WPA2,WPA2-PSK
- Guest access
- Yes
- DoS attack prevention
- Yes
- Parental control
- Yes
- Filtering
- Yes
- IP address filtering
- Yes
- URL filtering
- Yes
- DMZ support
- Yes
Protocols
- DHCP client
- Yes
- DHCP server
- Yes
- Universal Plug and Play (UPnP)
- Yes
- Supported network protocols
- IPv4, IPv6
Certificates
- Compliance certificates
- CE,RoHS
Mobile network
- Mobile network generation
- 5G
- 3G standards
- DC-HSDPA,HSPA,HSPA+,UMTS
- 4G standard
- LTE-TDD & LTE-FDD
- 5G bands supported
- 700,800,850,900,1800,2100,2300,2500,2600,3500,3700 MHz
- 4G bands supported
- 700,800,850,900,1800,2100,2300,2500,2600,3500,3700 MHz
- 3G bands supported
- 850,900,2100 MHz
- SIM card type
- NanoSIM
WAN connection
- Ethernet WAN
- Yes
- DSL WAN
- No
- SIM card slot
- Yes
- WAN connection type
- RJ-45
Packaging content
- Cables included
- LAN (RJ-45)
- AC adapter included
- Yes
- Quick installation guide
- Yes
Ports & interfaces
- Ethernet LAN (RJ-45) ports
- 2
- USB port
- No
Management features
- Wi-Fi Multimedia (WMM)/(WME)
- Yes
- Quality of Service (QoS) support
- Yes
- Reset button
- Yes
- WPS push button
- Yes
Wireless LAN features
- Wi-Fi band
- Dual-band (2.4 GHz / 5 GHz)
- Top Wi-Fi standard
- Wi-Fi 6 (802.11ax)
- WLAN data transfer rate (max)
- 3000 Mbit/s
- Wi-Fi standards
- 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax)
- WLAN data transfer rate (first band)
- 574 Mbit/s
- WLAN data transfer rate (second band)
- 2402 Mbit/s
