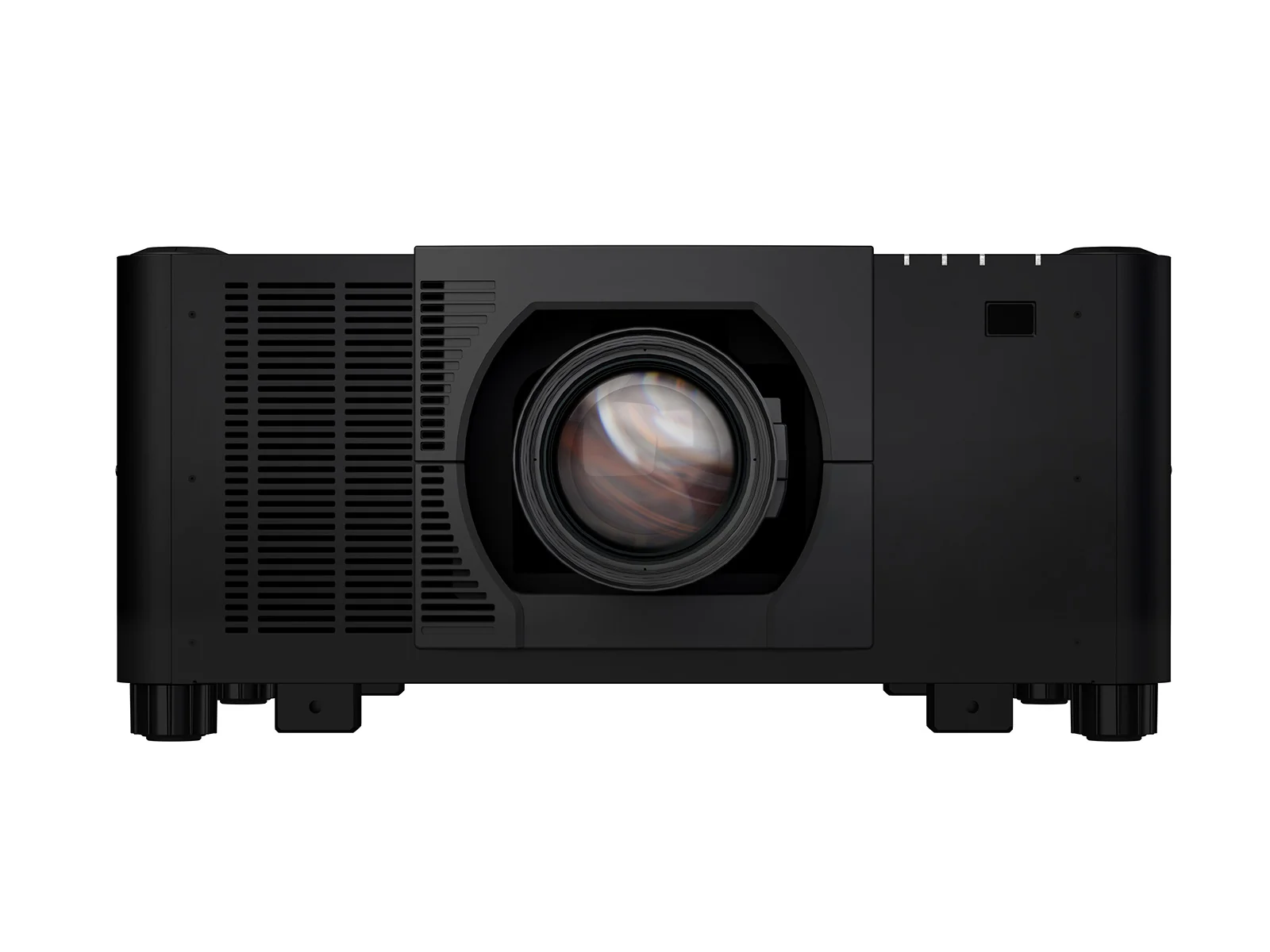

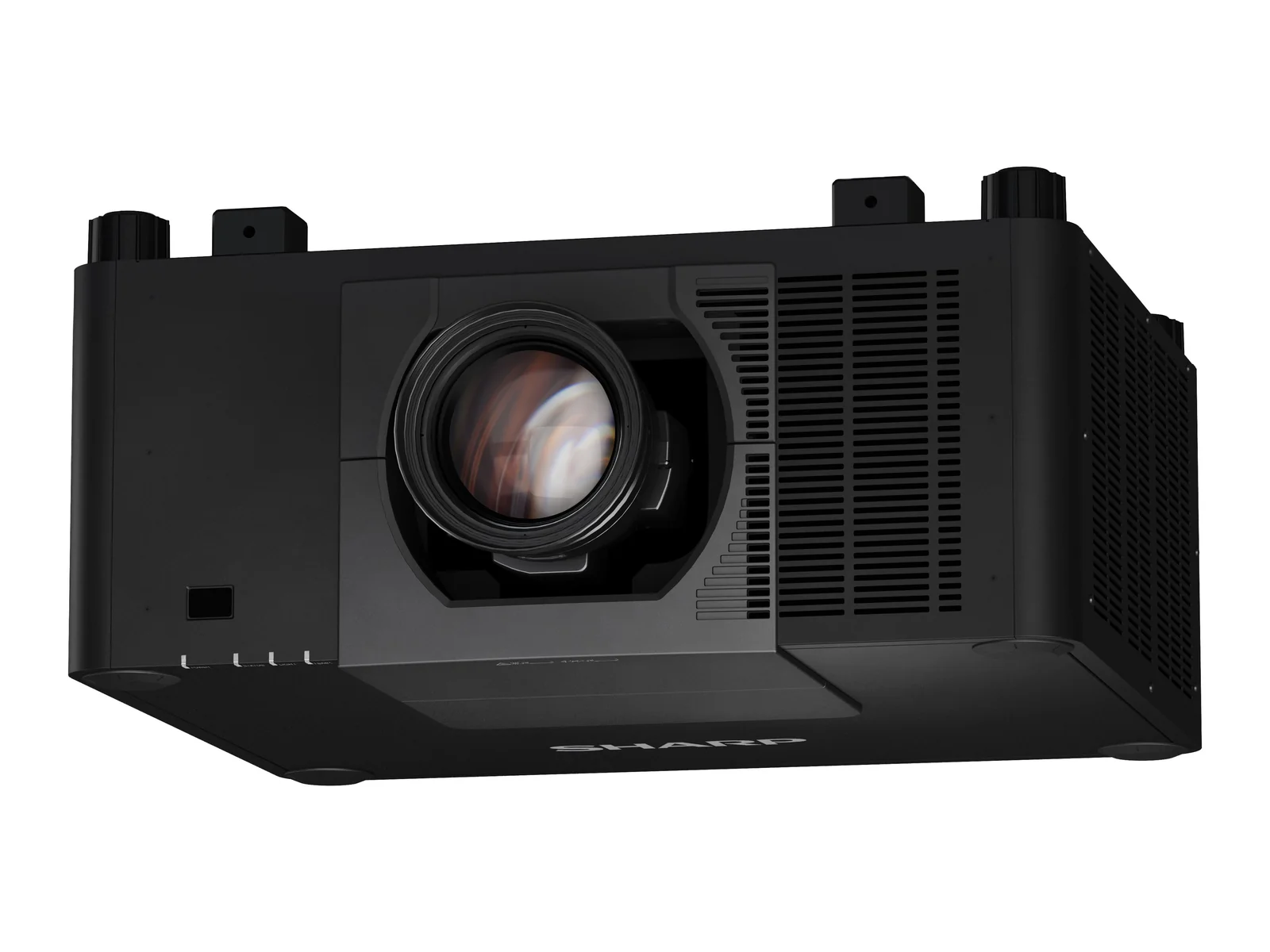

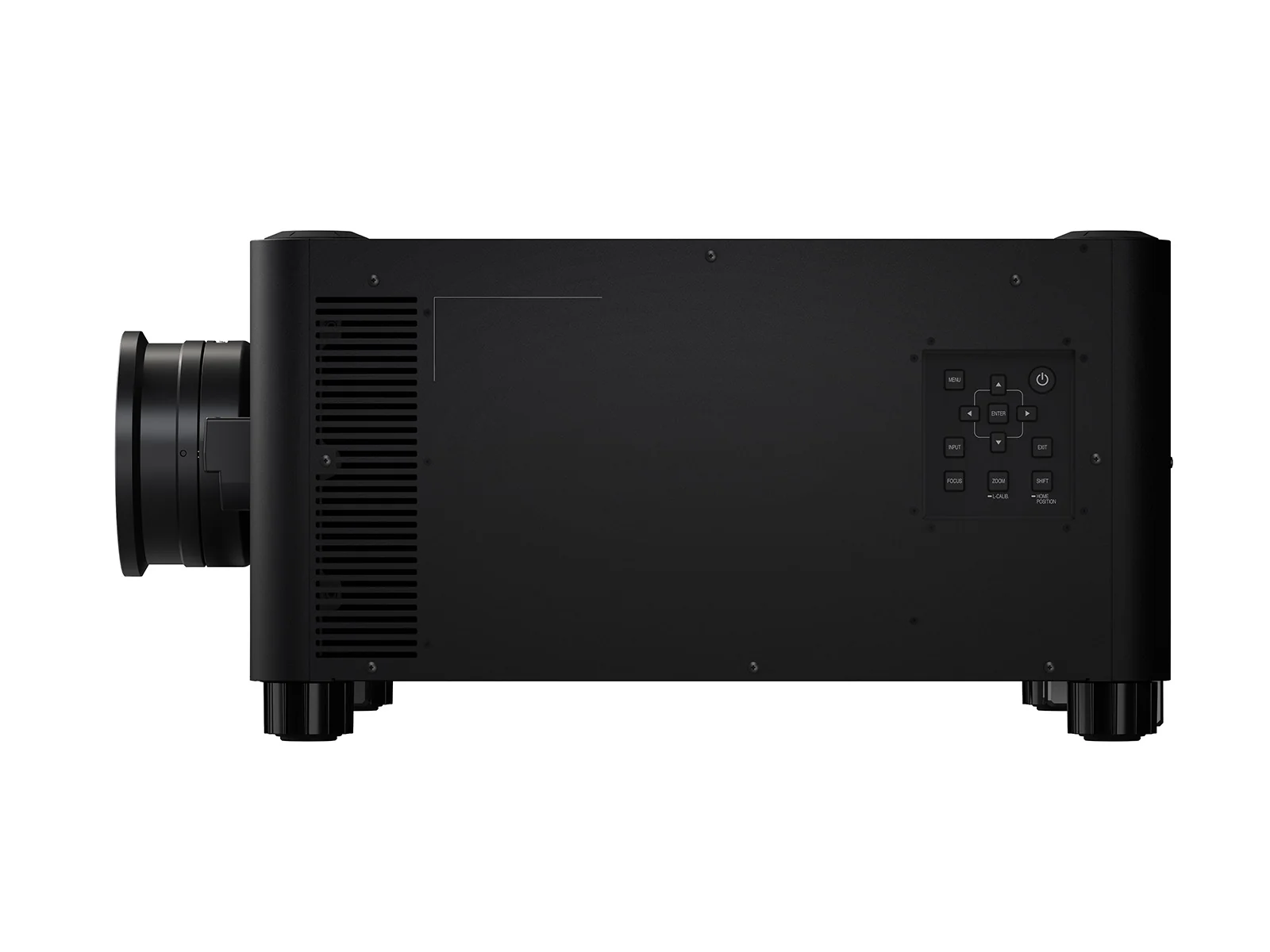

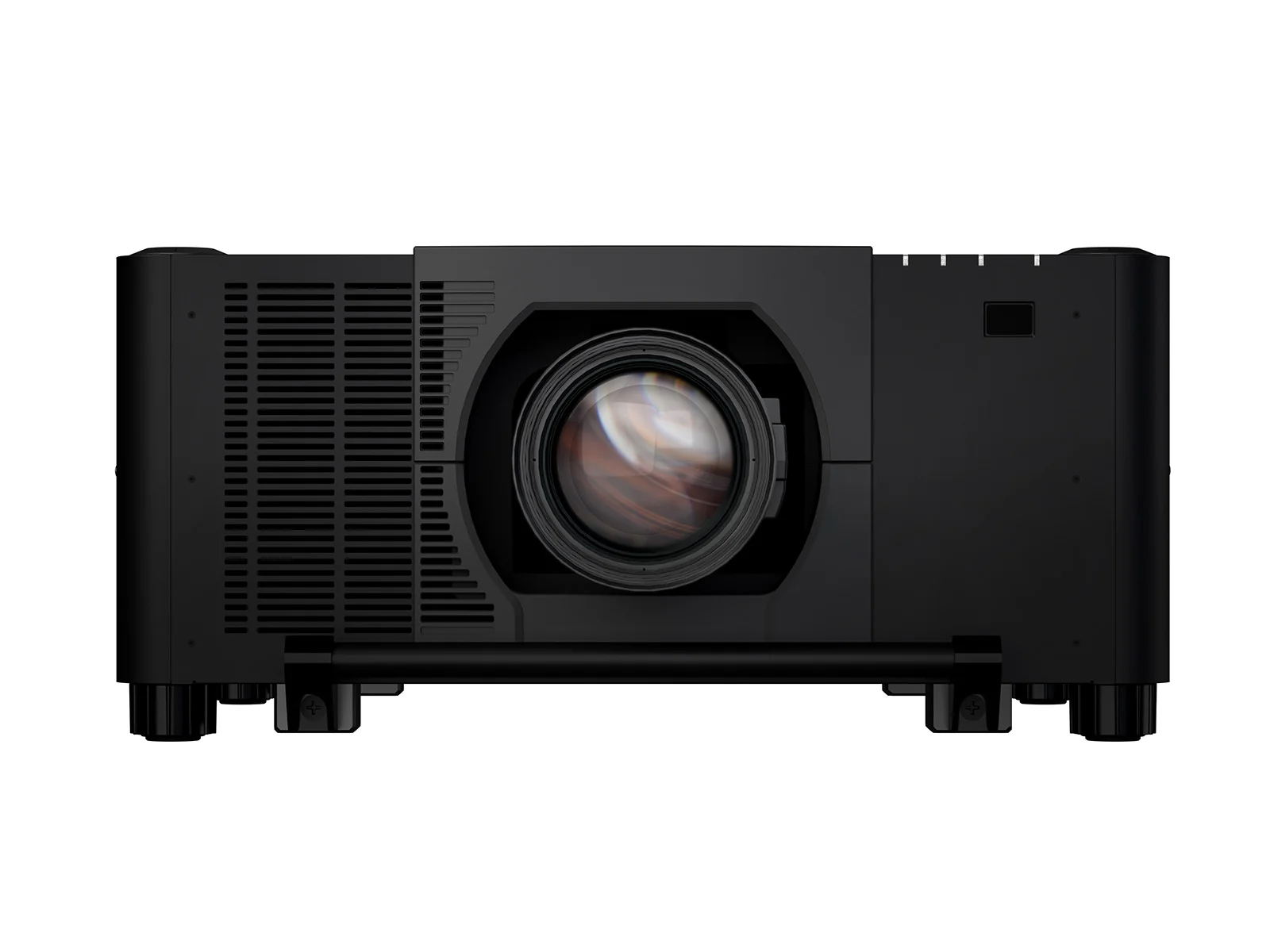

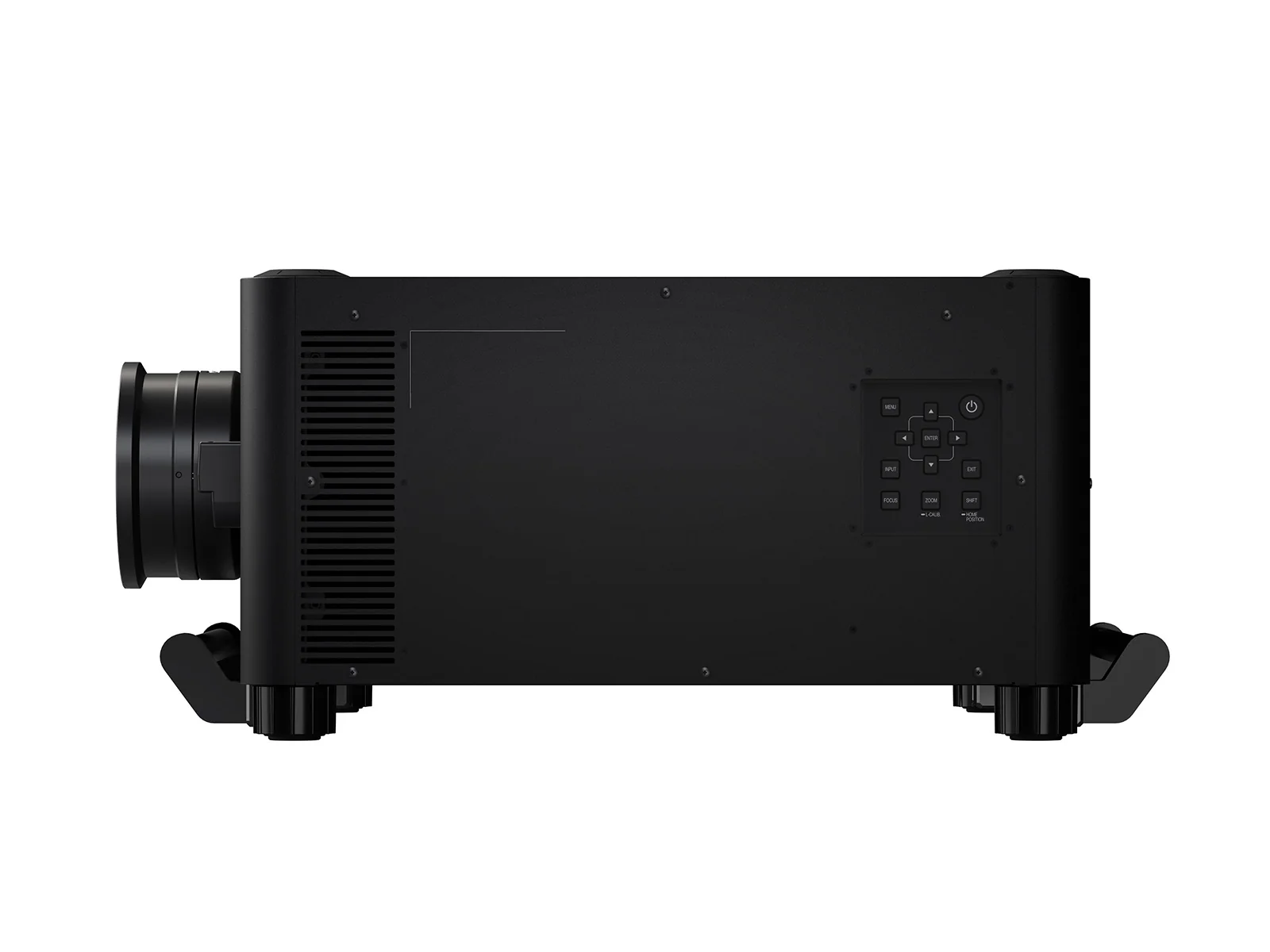

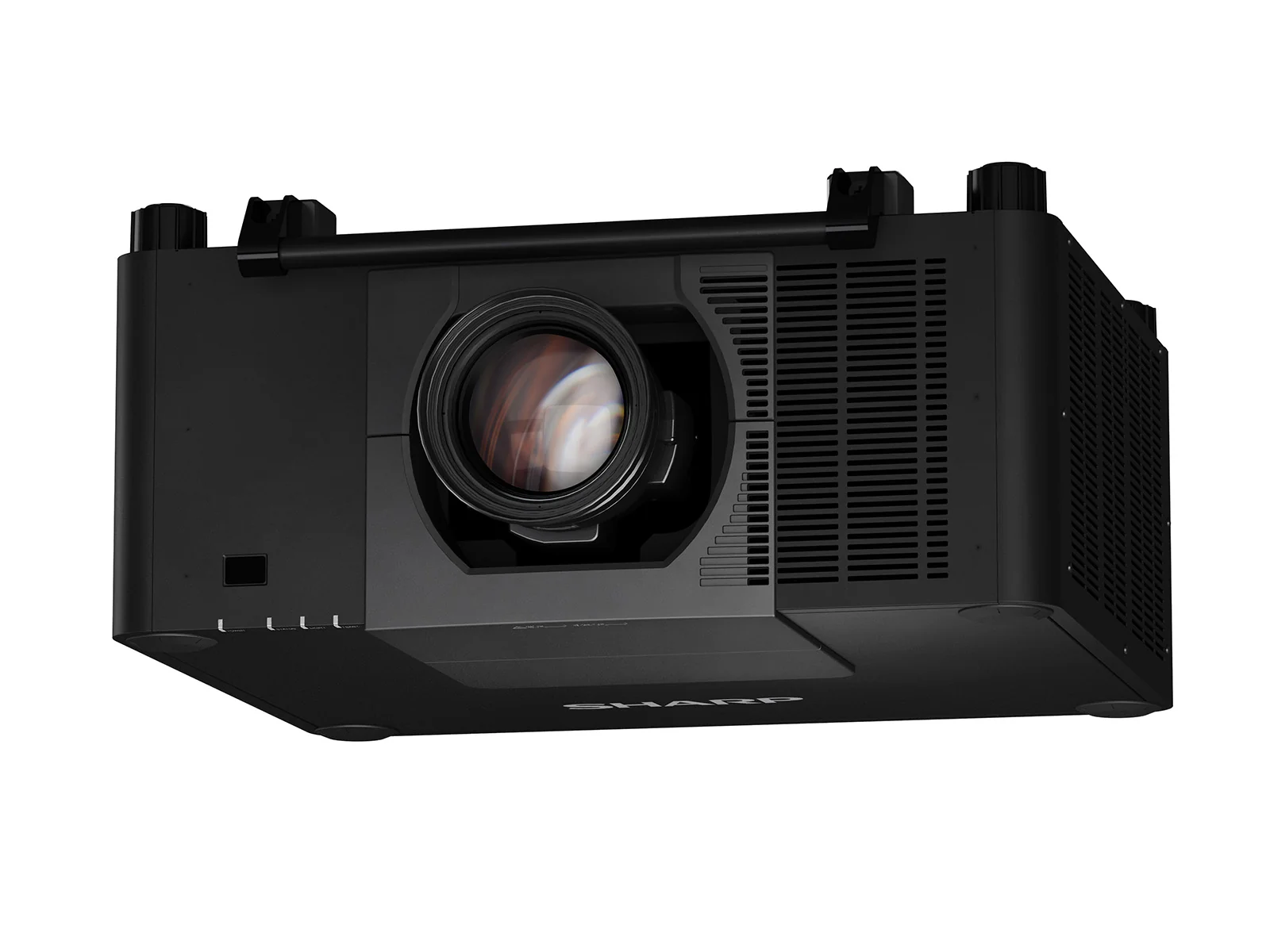

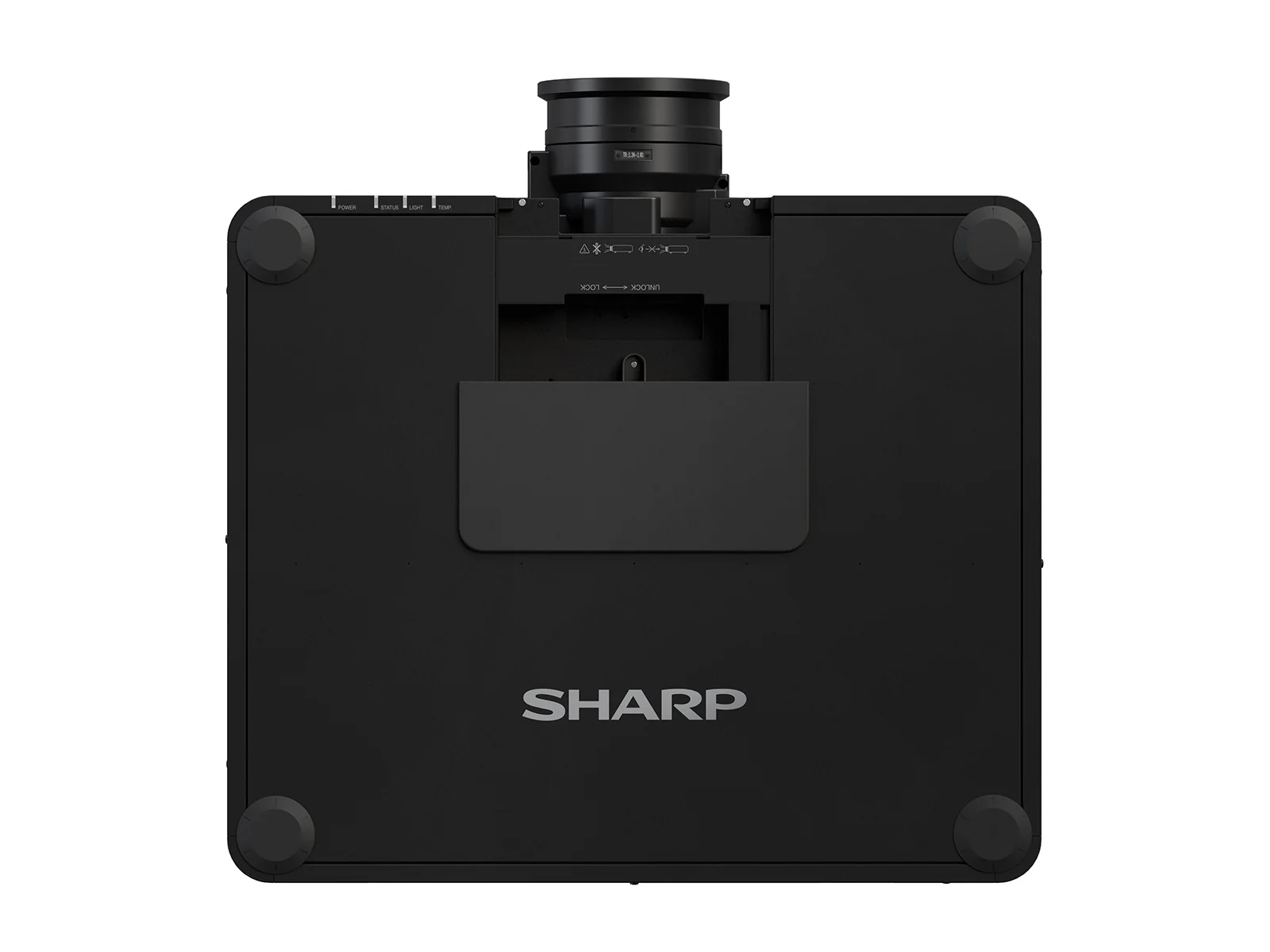

Coming soonSharp XP-A201U-B WUXGA Projector
Model XP-A201U-B
Overview
High brightness with extreme efficiency For long-lasting imaging performance at high brightness with movie-quality colour rendition, the Sharp A201U encapsulates efficiency. Every aspect of its design forges maximum productivity, achieving remarkable performance alongside impressive cost, space and energy saving. Born of NEC heritage, the A201U presents the same high quality Japanese design and engineering standards as its predecessor, the NEC PA Series, delivering on Sharp/NEC’s promise of quality, service and sustainability. This next generation model utilises legacy PA Series lenses securing against e-waste and reducing costs. The first and only LCD projector featuring RB laser technology, this innovative solution is highly efficient in producing the most intensely natural tones, minimising power consumption whilst delivering brilliant, almost DCI-P3 colour performance at high brightness levels. Consistently superior imaging quality is safeguarded with an IP5X rated optical engine, sealed against even the finest dust particles and eliminating maintenance demands. Featuring advanced installation capabilities, easily managed with full ProAssist support, the compact Sharp A201U delivers the reliability, functionality and value as demanded by higher education, corporate, leisure and museum applications.
Specifications
Display
- Built-in display
- No
Design
- Product type
- Short throw projector
- Product colour
- Black
Power
- Power source
- AC
- Power consumption (typical)
- 1530 W
- Power consumption (standby)
- 0.5 W
- AC input voltage
- 100 - 240 V
- AC input frequency
- 50 - 60 Hz
Video
- Full HD
- Yes
- 3D
- No
Network
- Ethernet LAN
- Yes
- Ethernet LAN (RJ-45) ports
- 1
Features
- Noise level (economic mode)
- 34 dB
- Noise level
- 42 dB
- Certification
- CE; EAC; ErP; RoHS; TUEV
Projector
- Supported aspect ratios
- 16:10,16:9
- Screen size compatibility
- 60 - 500"
- Projection distance
- 0.68 - 80.77 m
- Projector brightness
- 20000 ANSI lumens
- Projection technology
- 3LCD
- Projector native resolution
- WUXGA (1920x1200)
- Contrast ratio (typical)
- 3000000:1
- Native aspect ratio
- 16:10
- Horizontal scan range
- 15 - 153 kHz
- Vertical scan range
- 24 - 120 Hz
- Keystone correction, horizontal
- -40 - 40 °
- Keystone correction, vertical
- -30 - 30 °
Lens system
- Focus
- Motorized
- Zoom capability
- Yes
- Zoom type
- Auto
- Horizontal lens shift range
- -25 - 25 %
- Vertical lens shift range
- 65 - 65 %
Light source
- Light source type
- Laser
- Service life of light source
- 25000 h

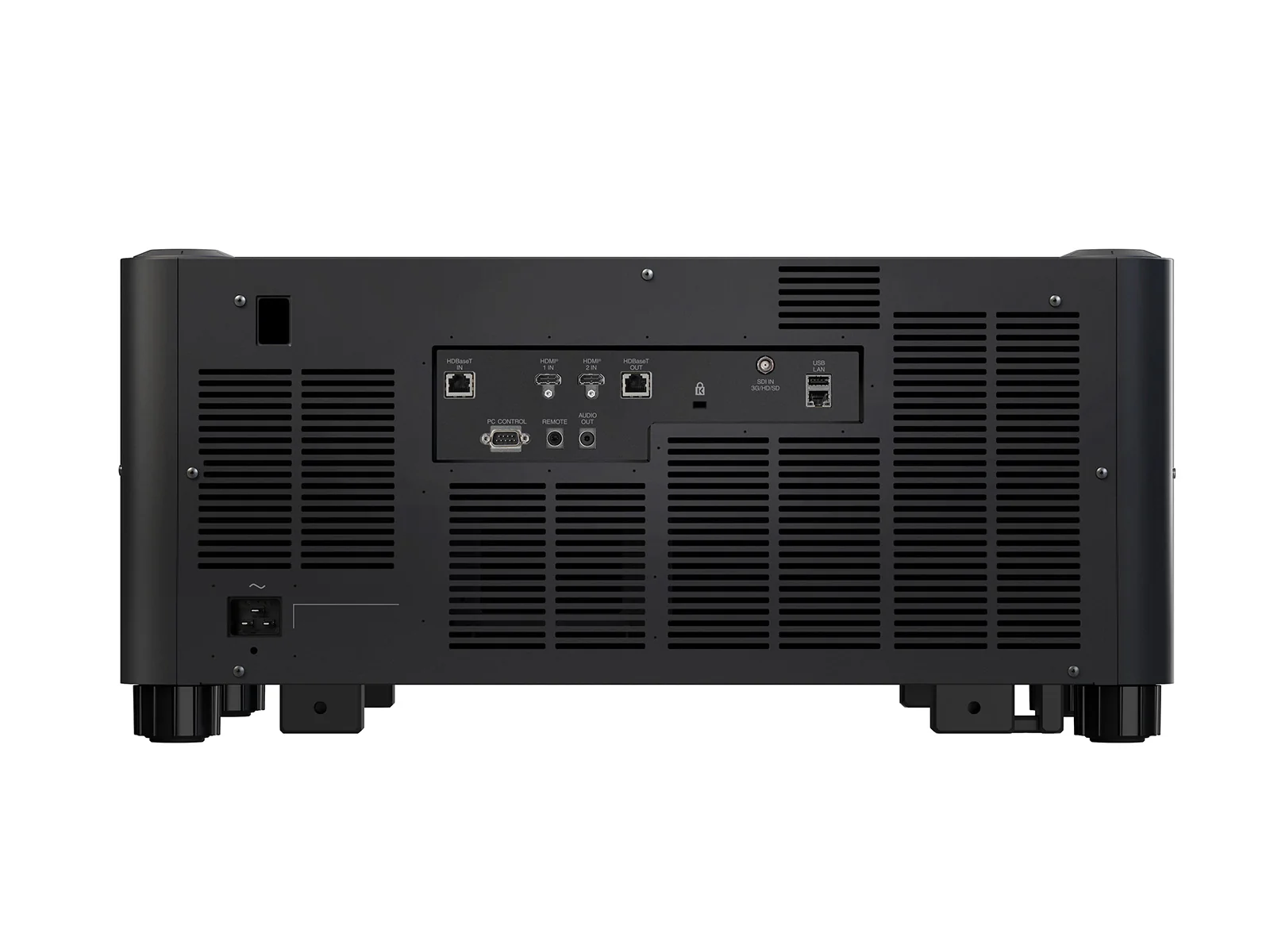

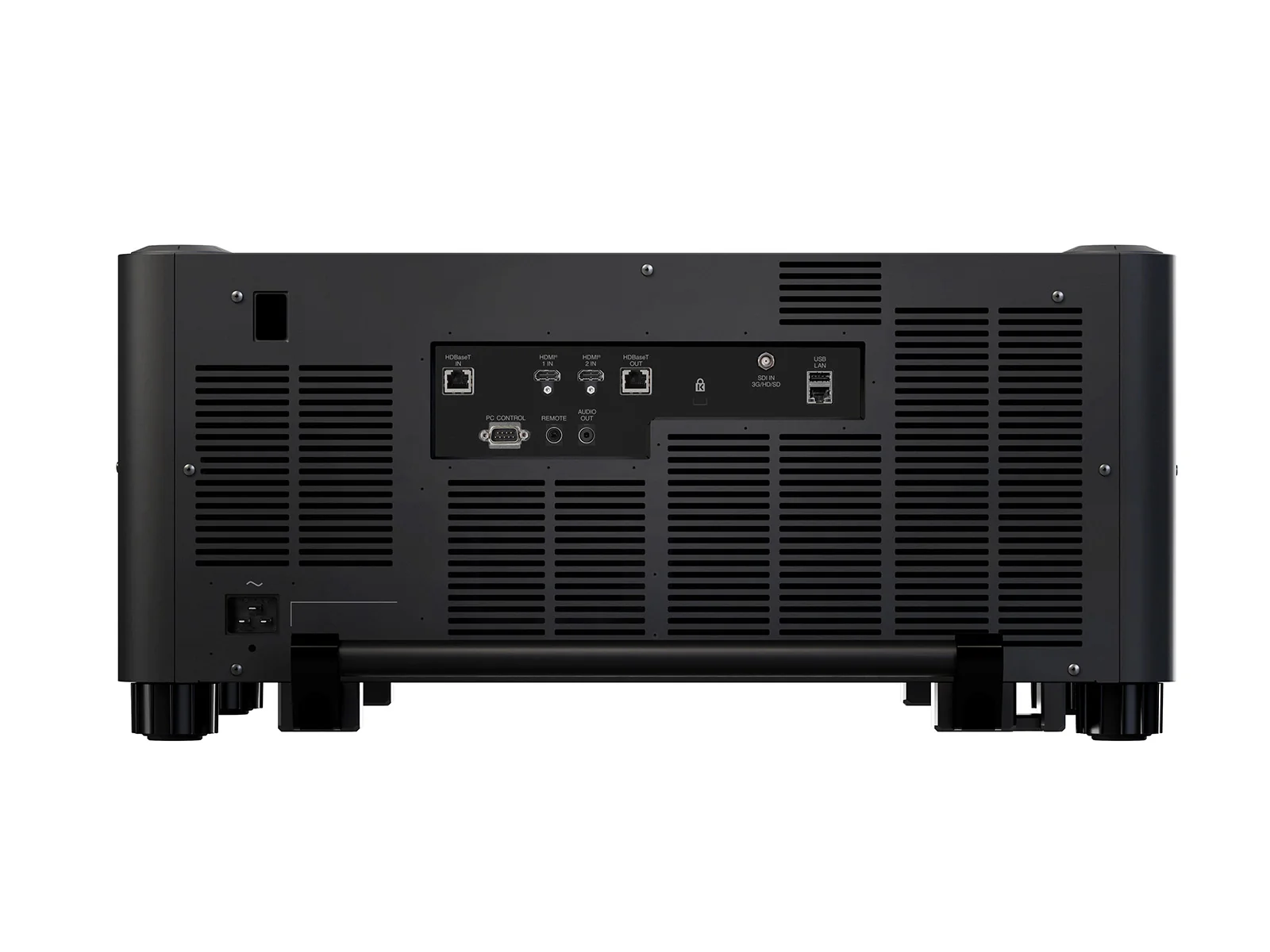

Ports & interfaces
- HDBaseT port
- Yes
- USB 2.0 Type-A ports quantity
- 1
- Serial interface type
- RS-232
- PC Audio out
- Yes
- HDMI ports quantity
- 2
- 3G-SDI input
- 1
- AC (power) in
- Yes
Weight & dimensions
- Width
- 650 mm
- Depth
- 549 mm
- Height
- 262 mm
- Weight
- 38700 g
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -10 - 50 °C
- Operating relative humidity (H-H)
- 20 - 80 %
- Storage relative humidity (H-H)
- 20 - 80 %
