Sharp

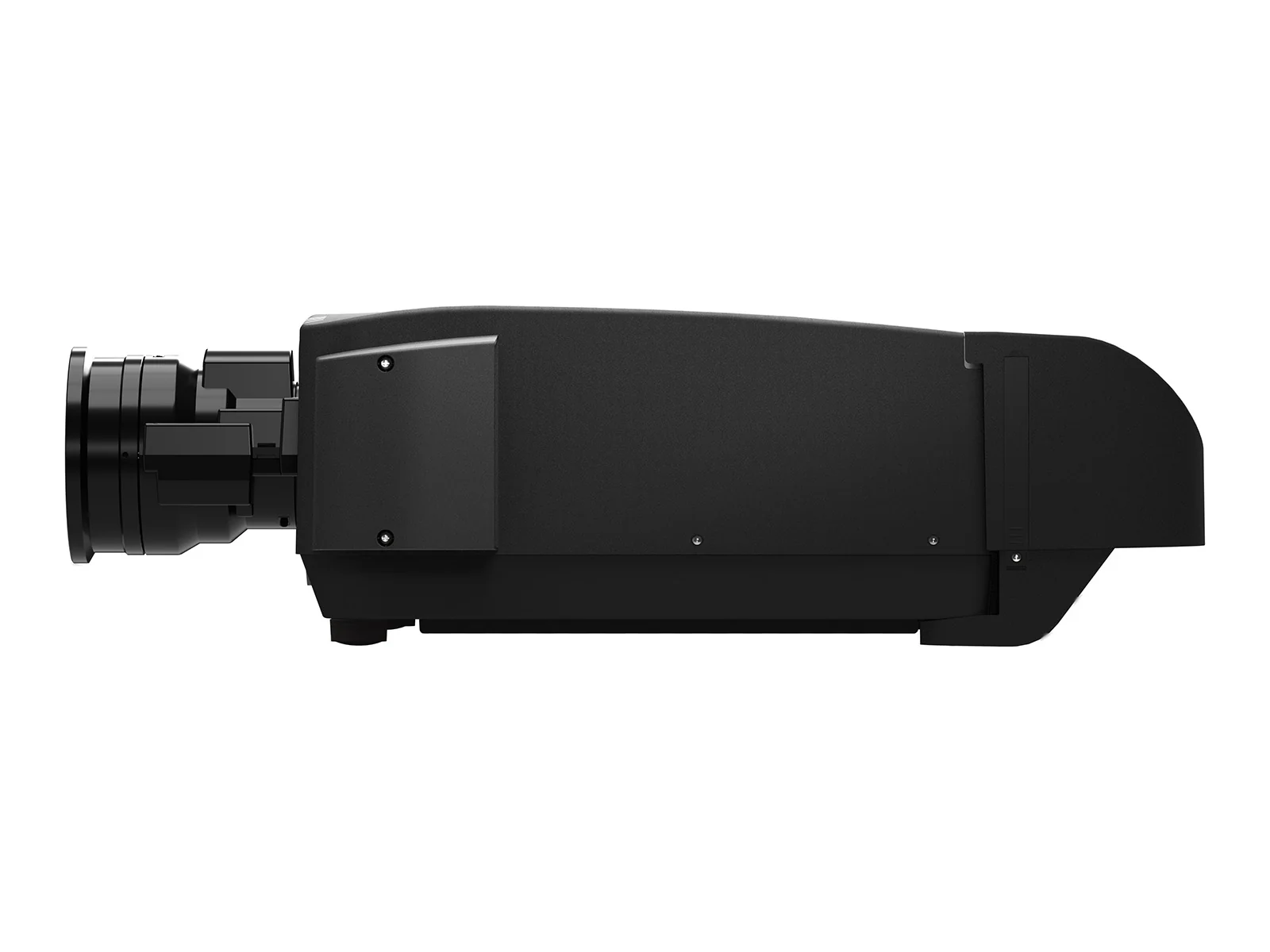

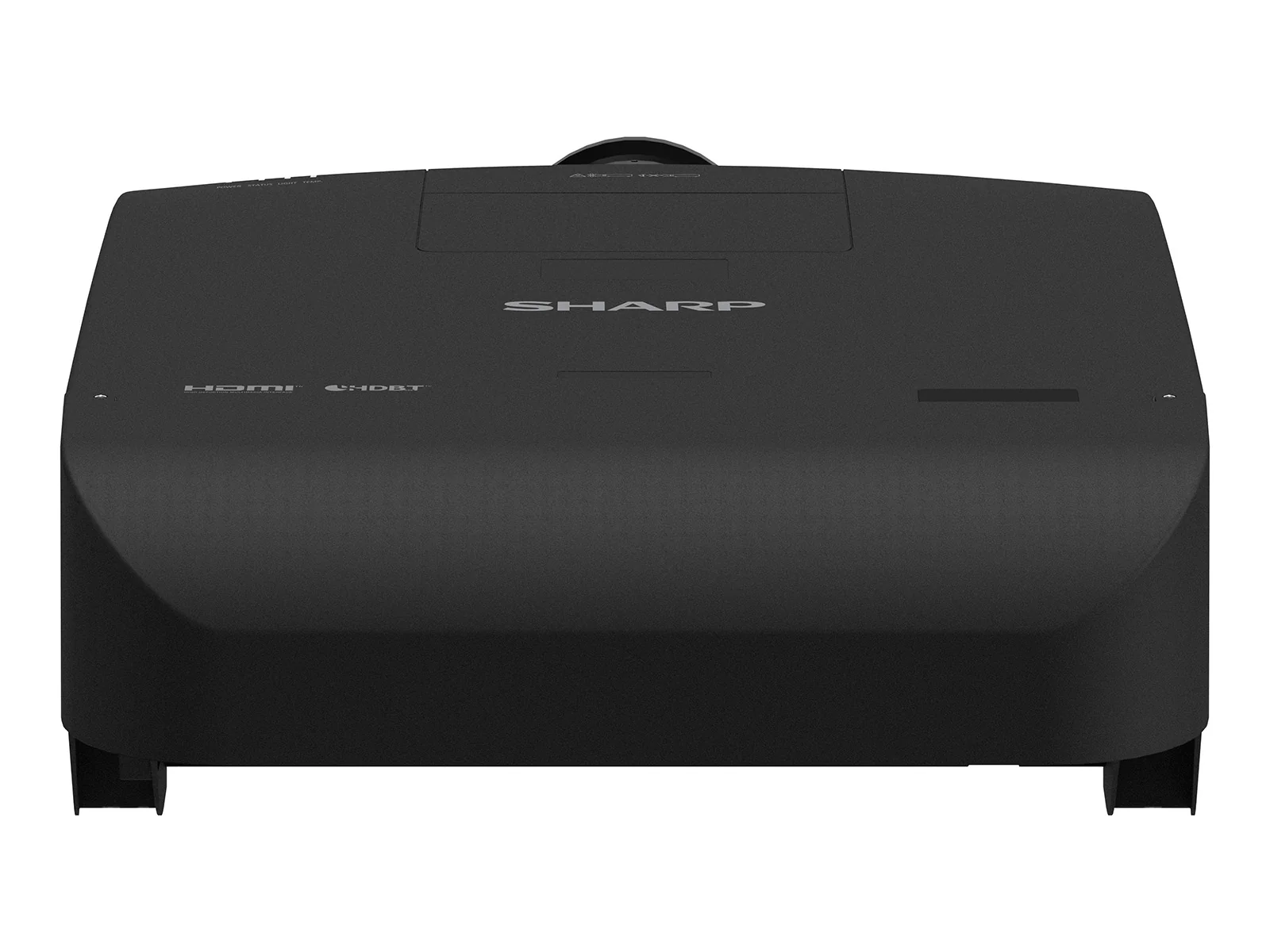

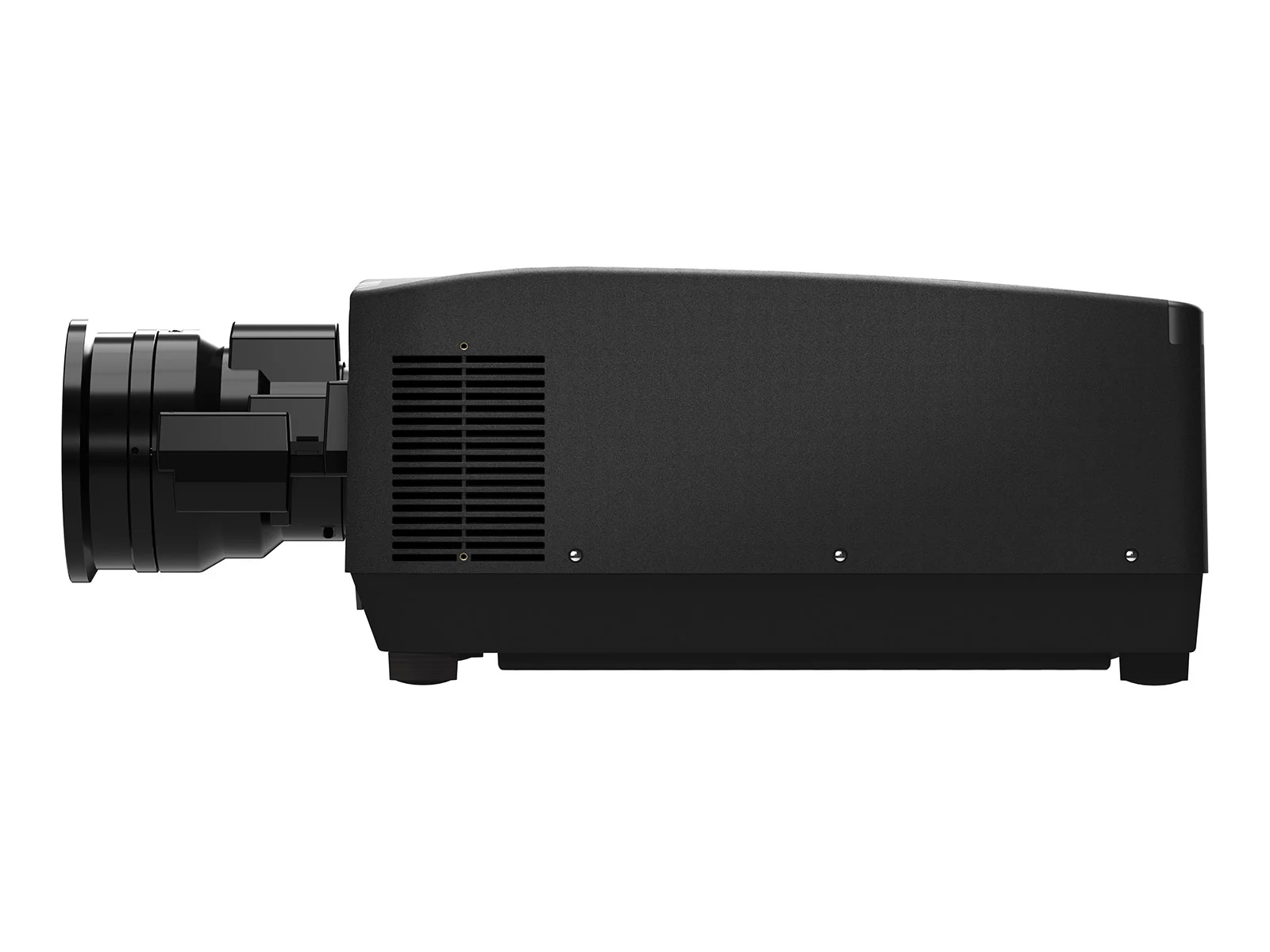

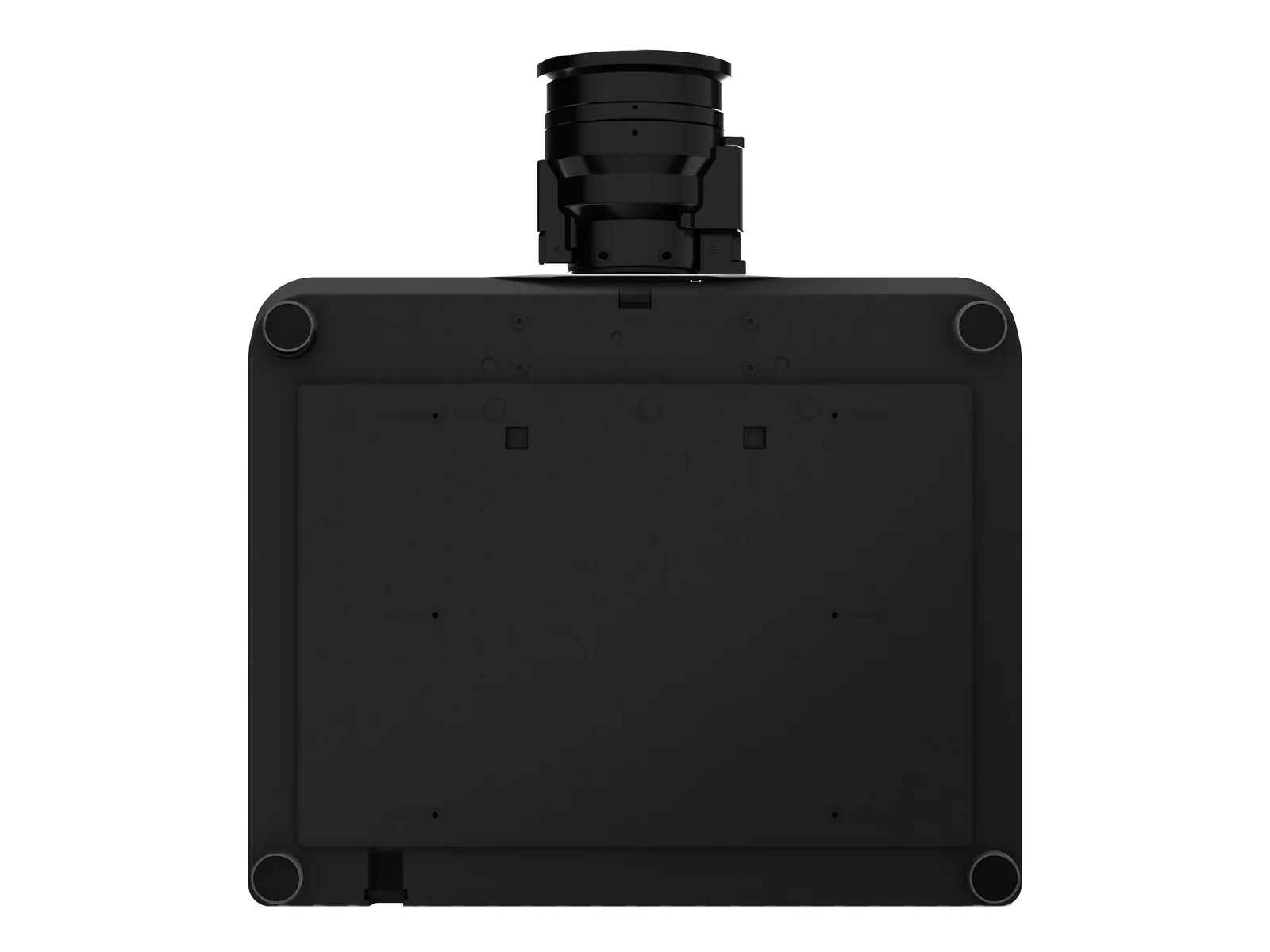

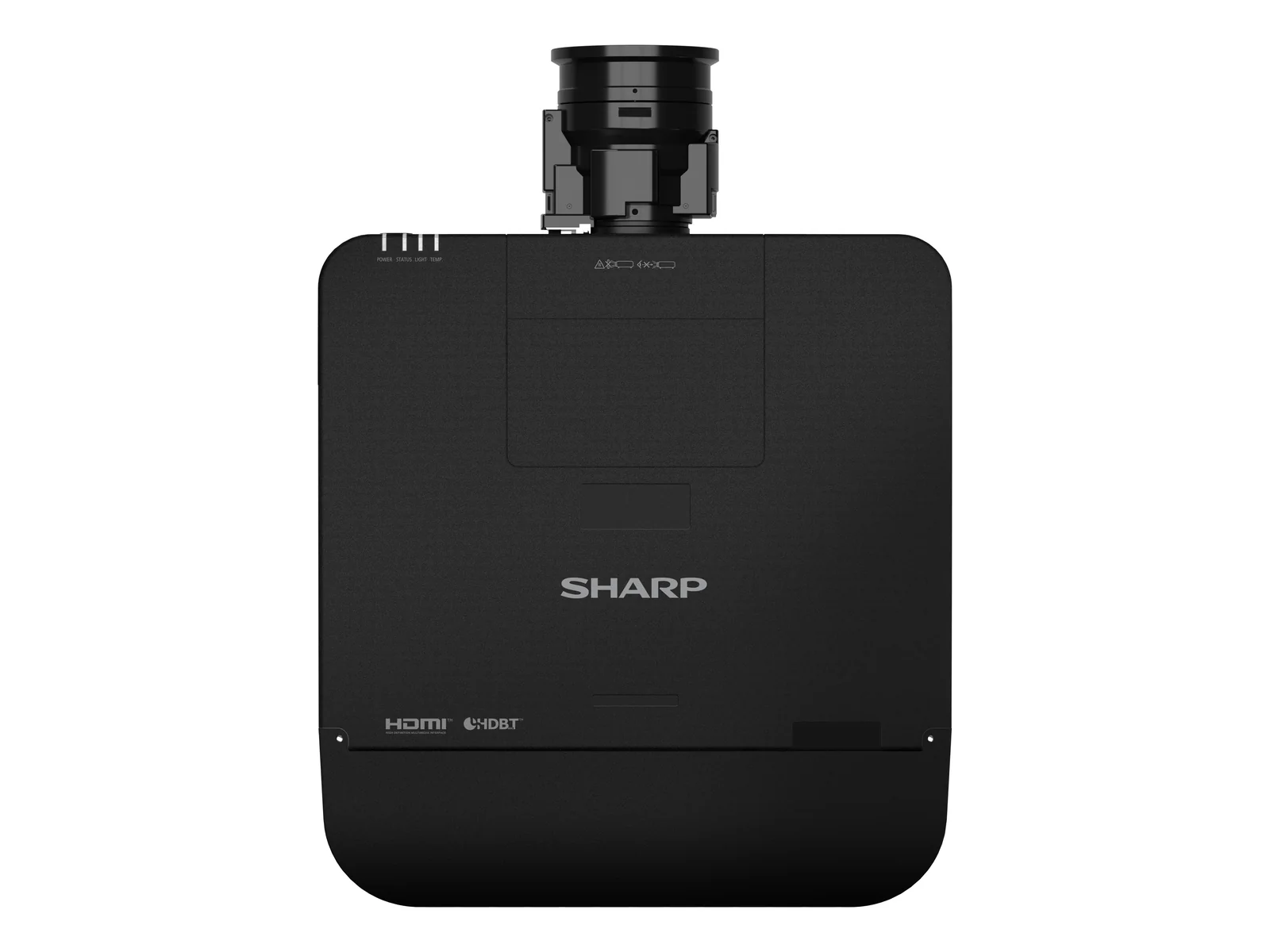

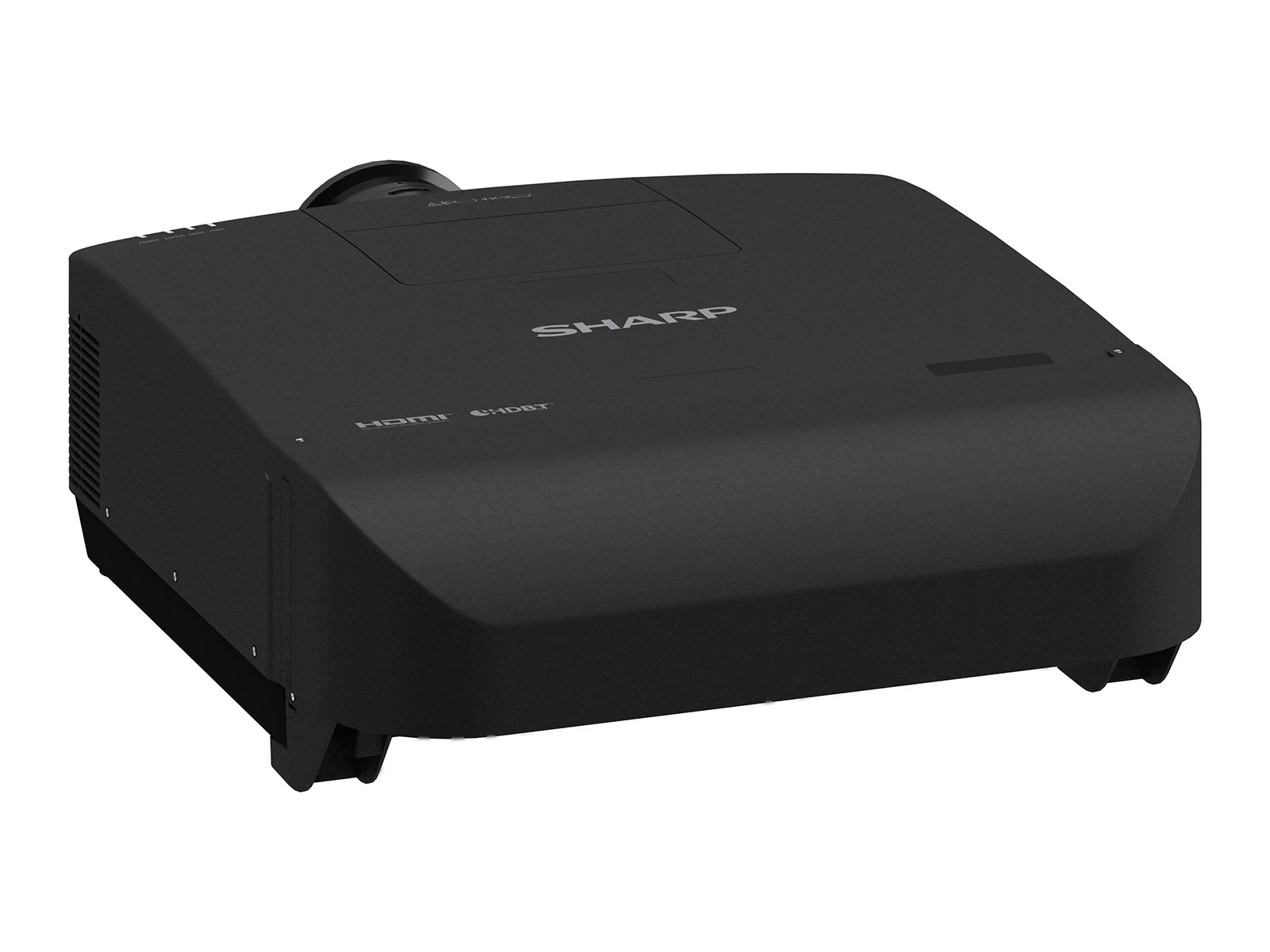

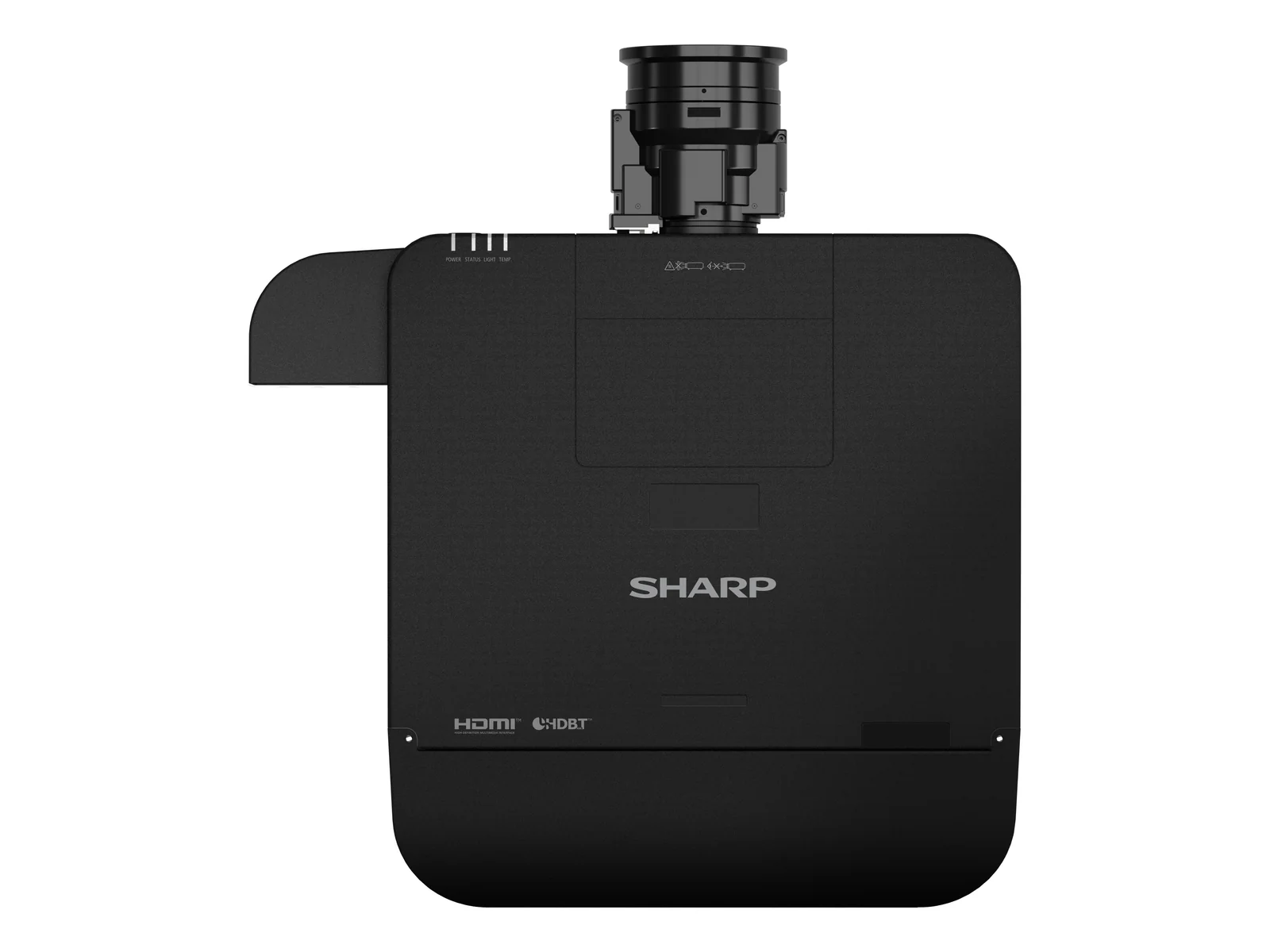

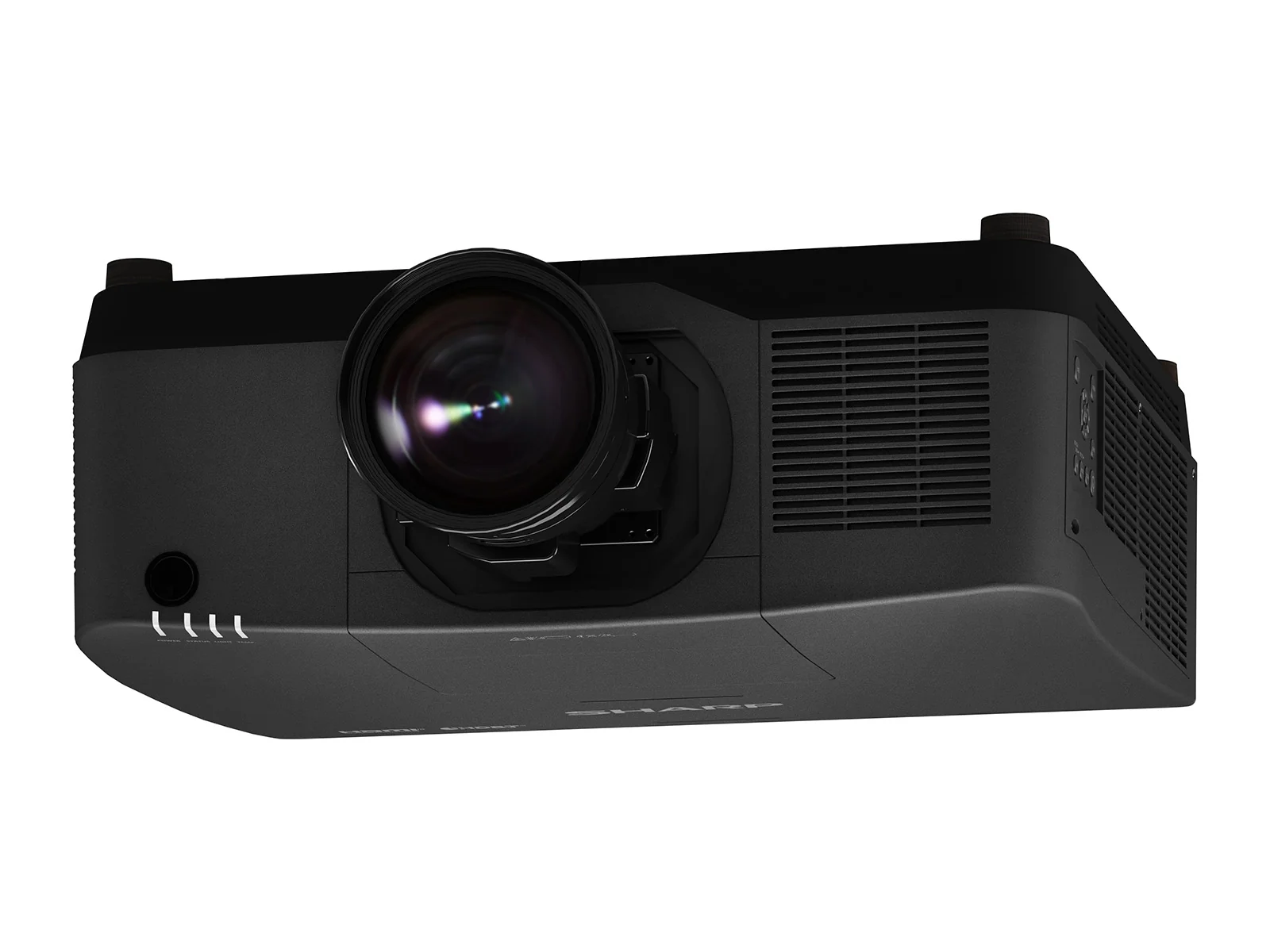

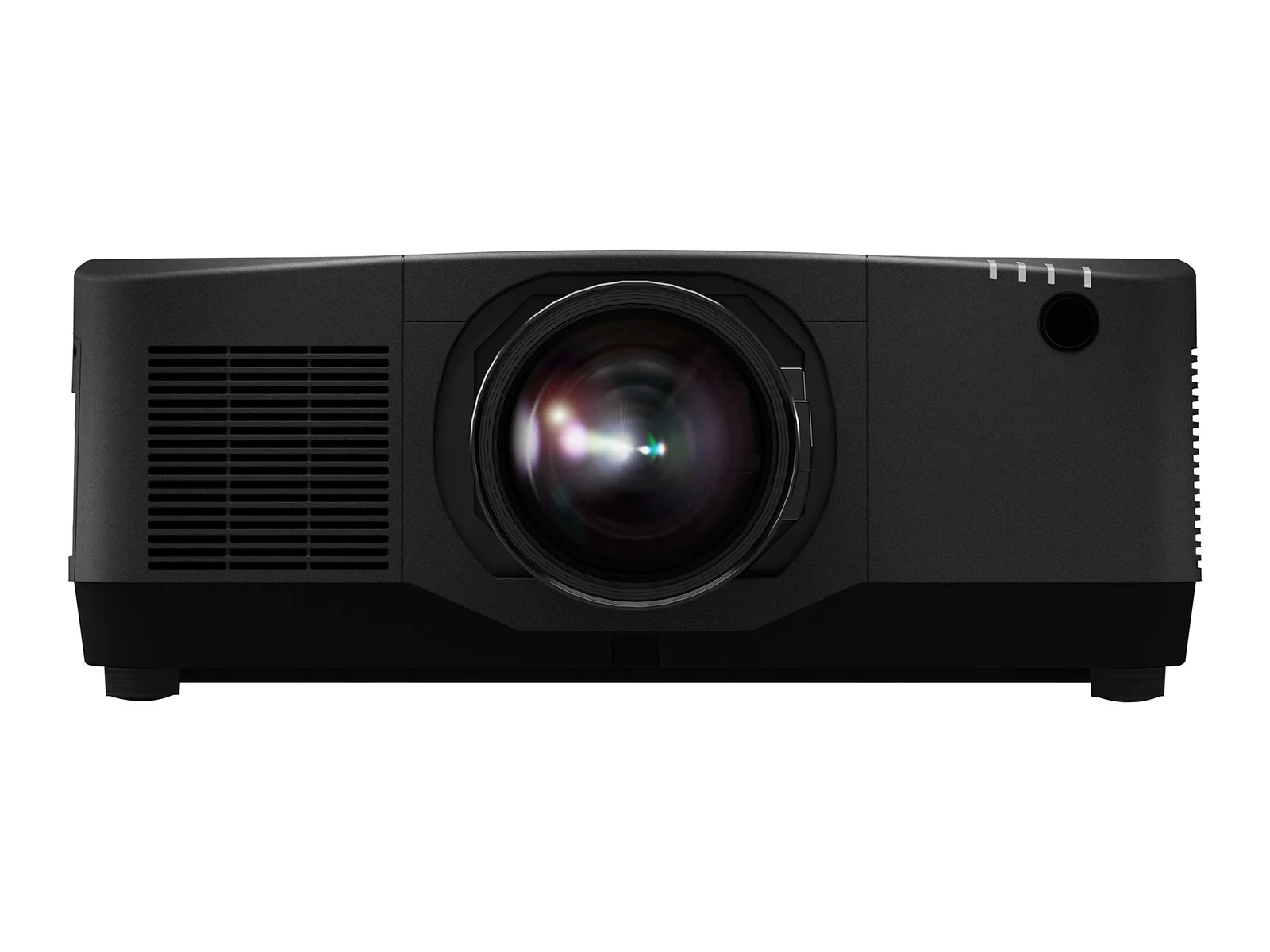

Sharp A175U WUXGA Projector

Model A175U

Overview

Precision, Clarity, Enduring Performance Delivering consistent, reliable performance with vivid colour and clarity, the Sharp A Series is engineered for fixed installations that require dependable image quality and low maintenance. With precise white point calibration and an extended colour space, the A Series uses 12-bit colour signal processing to achieve rich saturation and deep contrast, perfect for detailed visual content in education, public displays, and simulation environments. Its super-silent operation makes it well suited to acoustically sensitive spaces such as lecture halls, museums, and contol rooms. The sealed optical engine, rated IP5X against dust ingress, maintains stable image quality and sustained brightness over time. The filter-less LCD design combined with a laser light source removes the need for lamp replacements, minimising service costs and enabling up to 20,000 hours of operation. Installation is streamlined with Sharp's ProAssist software, enabling remote setup and adjustment even when the projector is inaccessible. Wide lens shift, along with advanced features such as HDBaseT-out, blending, and stacking capabilities, ensures flexible integration in complex environments.

Specifications

Display

Built-in display
No

Design

Product type
Standard throw projector
Product colour
Black

Power

Power source
AC
Power consumption (typical)
990 W
Power consumption (standby)
0.5 W
Power consumption (economy mode)
890 W
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz

Network

Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1

Features

Noise level (economic mode)
37 dB
HDCP
Yes
Noise level
43 dB

Projector

Supported aspect ratios
16:10
Screen size compatibility
60 - 500"
Projection distance
0.68 - 80.77 m
Projector brightness
17000 ANSI lumens
Projection technology
3LCD
Projector native resolution
WUXGA (1920x1200)
Contrast ratio (typical)
3000000:1
Native aspect ratio
16:10
Horizontal scan range
15 - 153 kHz
Vertical scan range
24 - 120 Hz
Keystone correction, horizontal
-40 - 40 °
Keystone correction, vertical
-30 - 30 °

Lens system

Focus
Motorized
Horizontal lens shift range
-25 - 25 %
Vertical lens shift range
-65 - 65 %

Light source

Light source type
Laser
Service life of light source
20000 h

Packaging content

Remote control included
Yes
Remote control type
IR
Cables included
AC

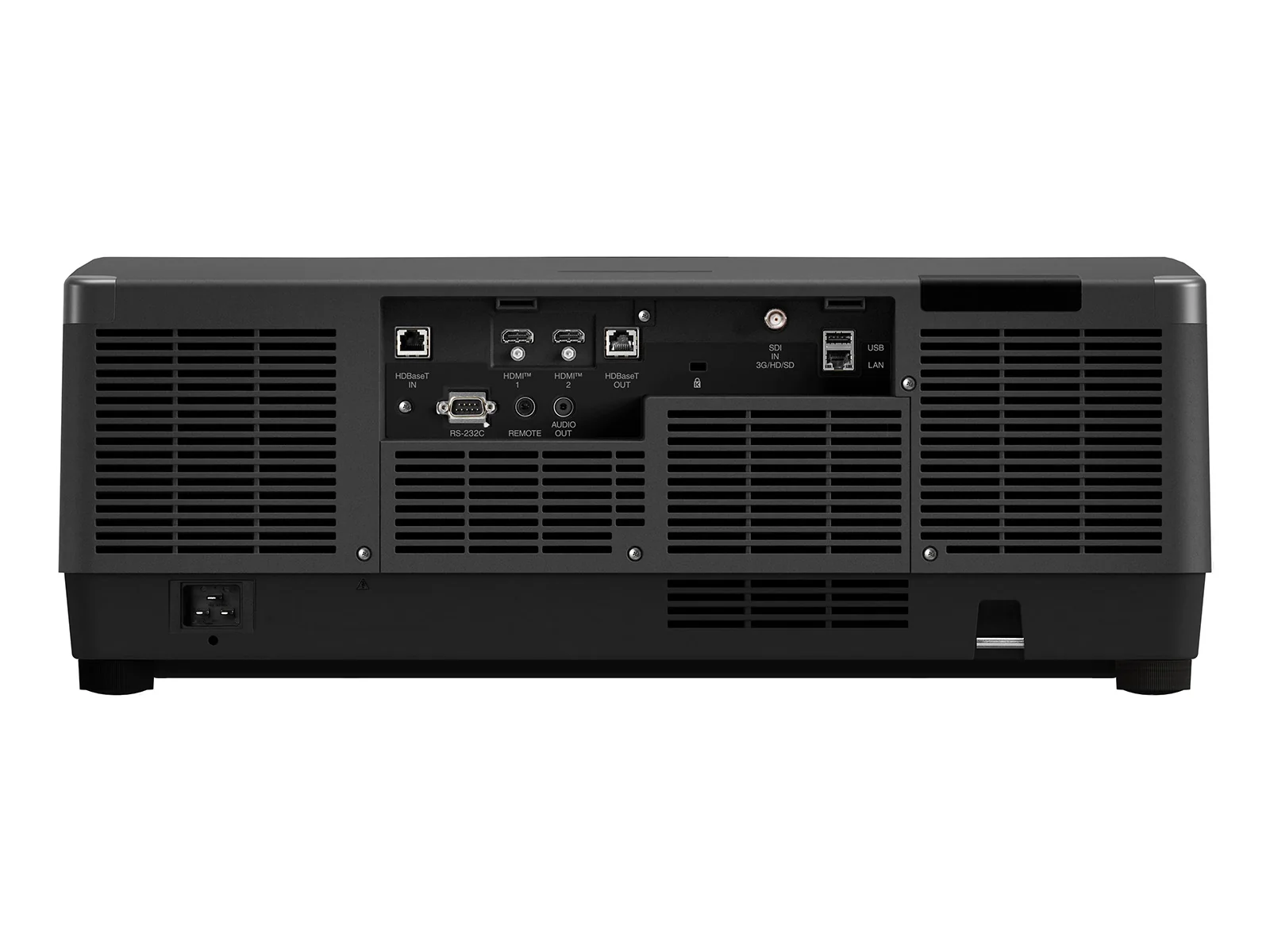

Ports & interfaces

USB 2.0 Type-A ports quantity
1
Audio (L/R) in
1
Audio (L/R) out
2
Serial interface type
RS-232
HDMI ports quantity
2
3G-SDI input
1

Weight & dimensions

Width
599 mm
Depth
490 mm
Height
238 mm
Weight
28700 g

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 50 °C
Operating relative humidity (H-H)
20 - 80 %
Storage relative humidity (H-H)
20 - 80 %
