QNAP

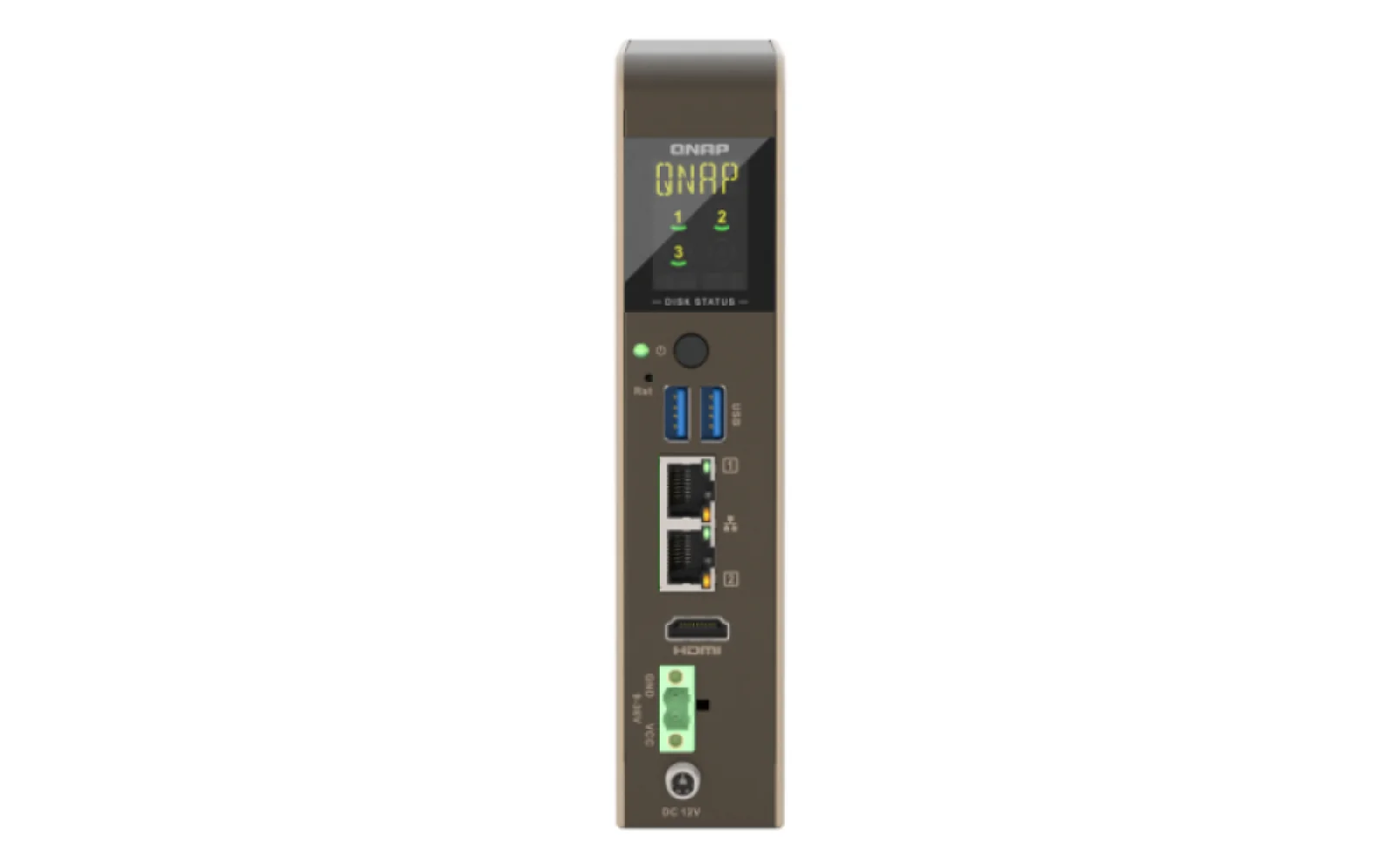

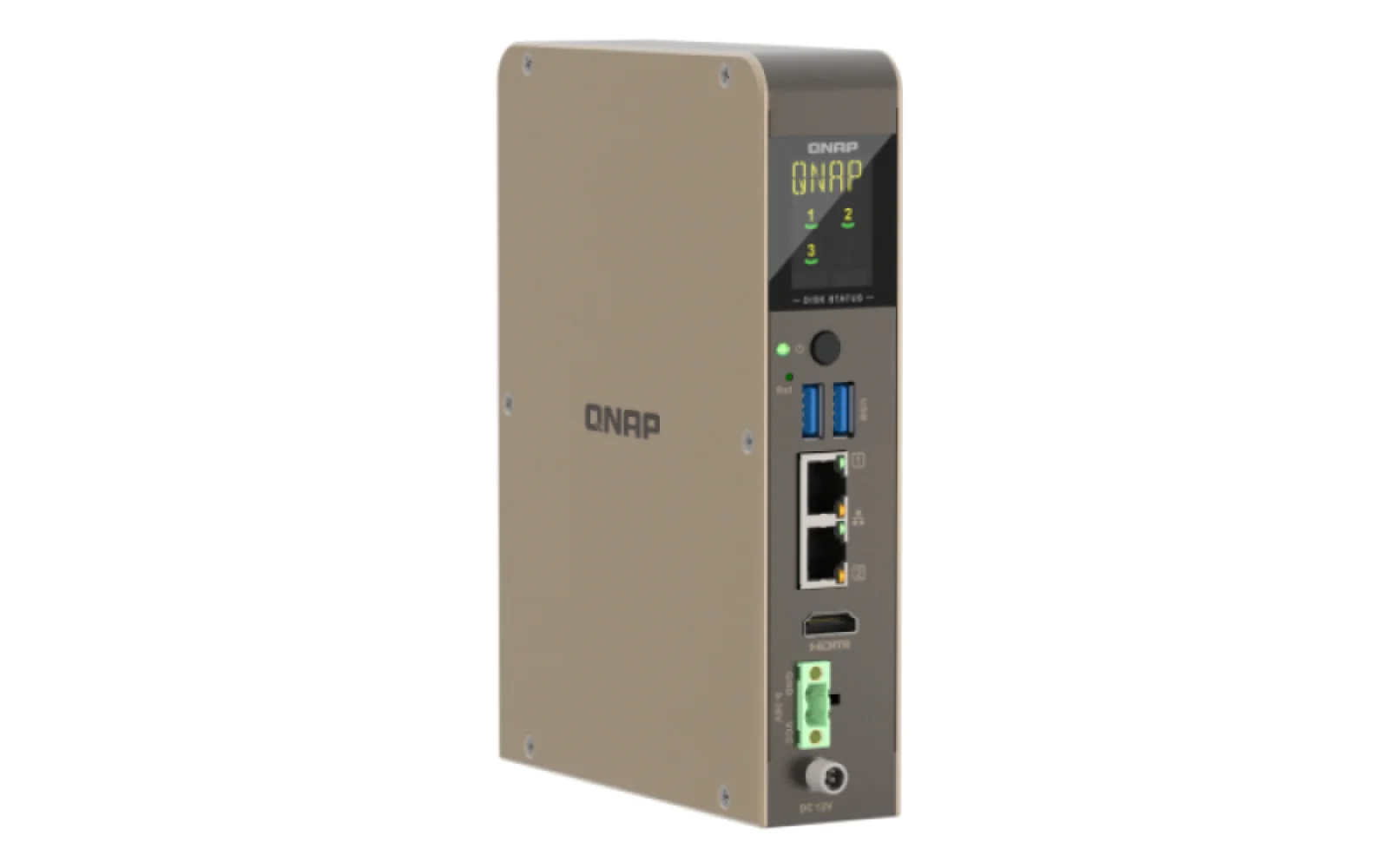

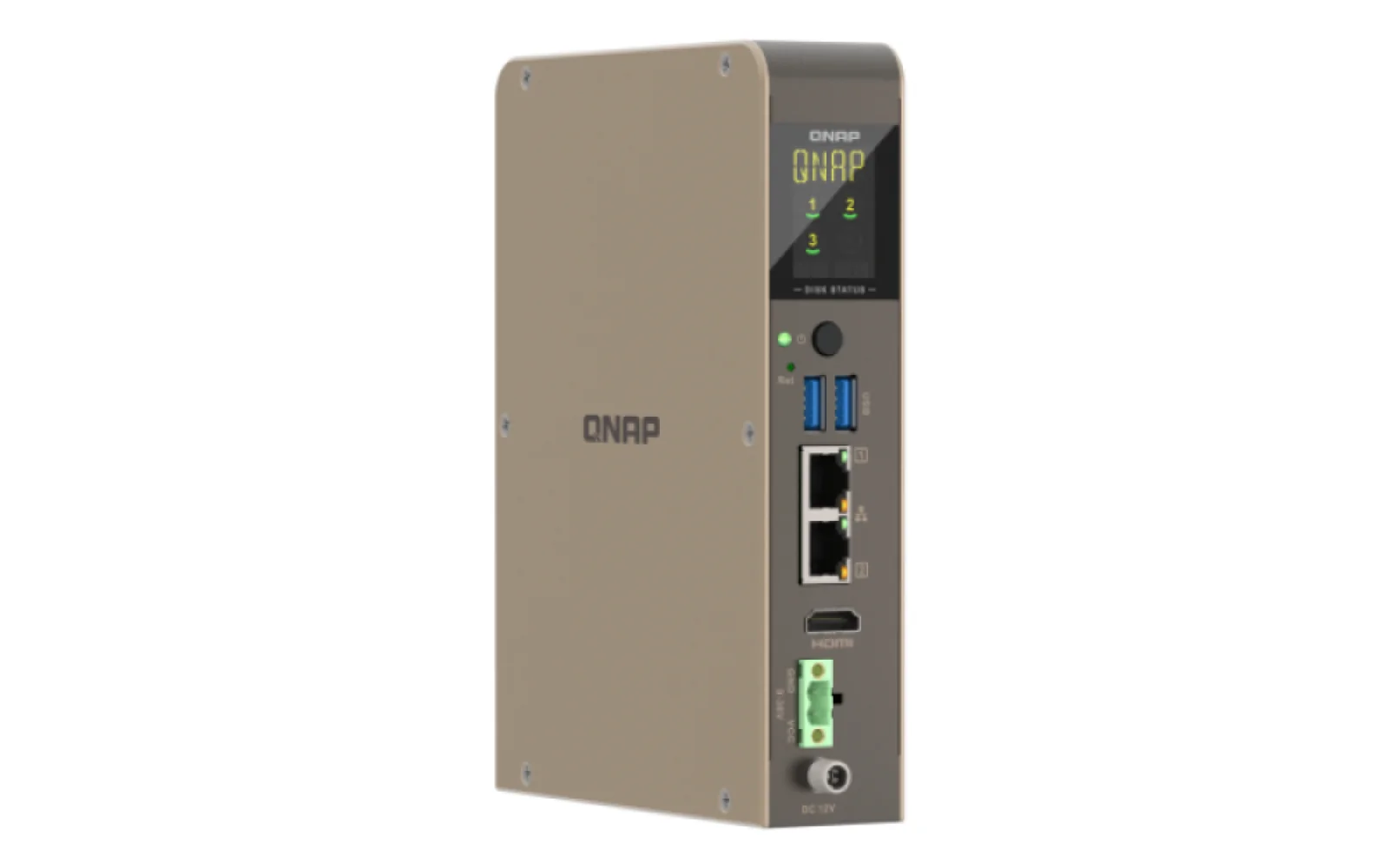

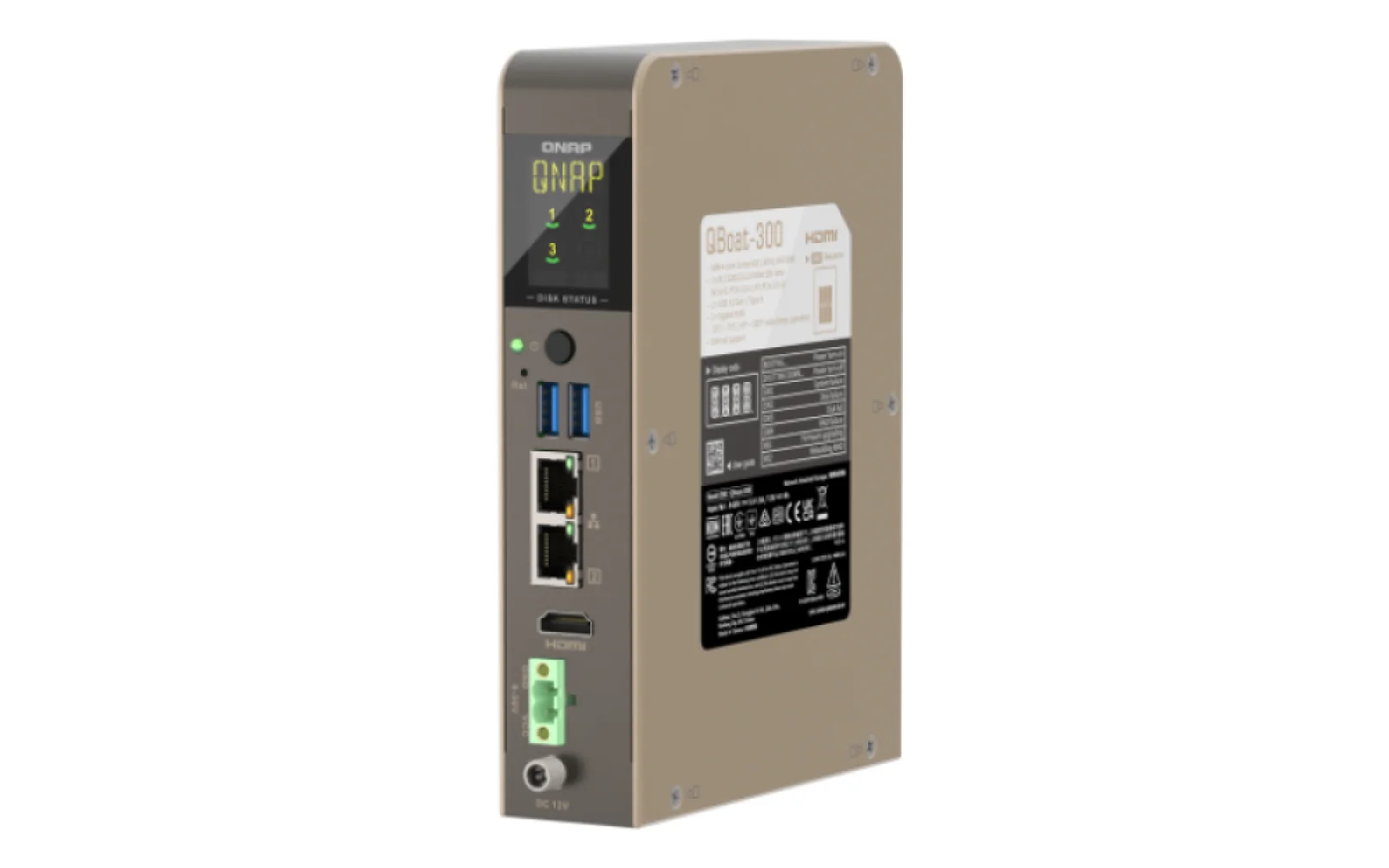

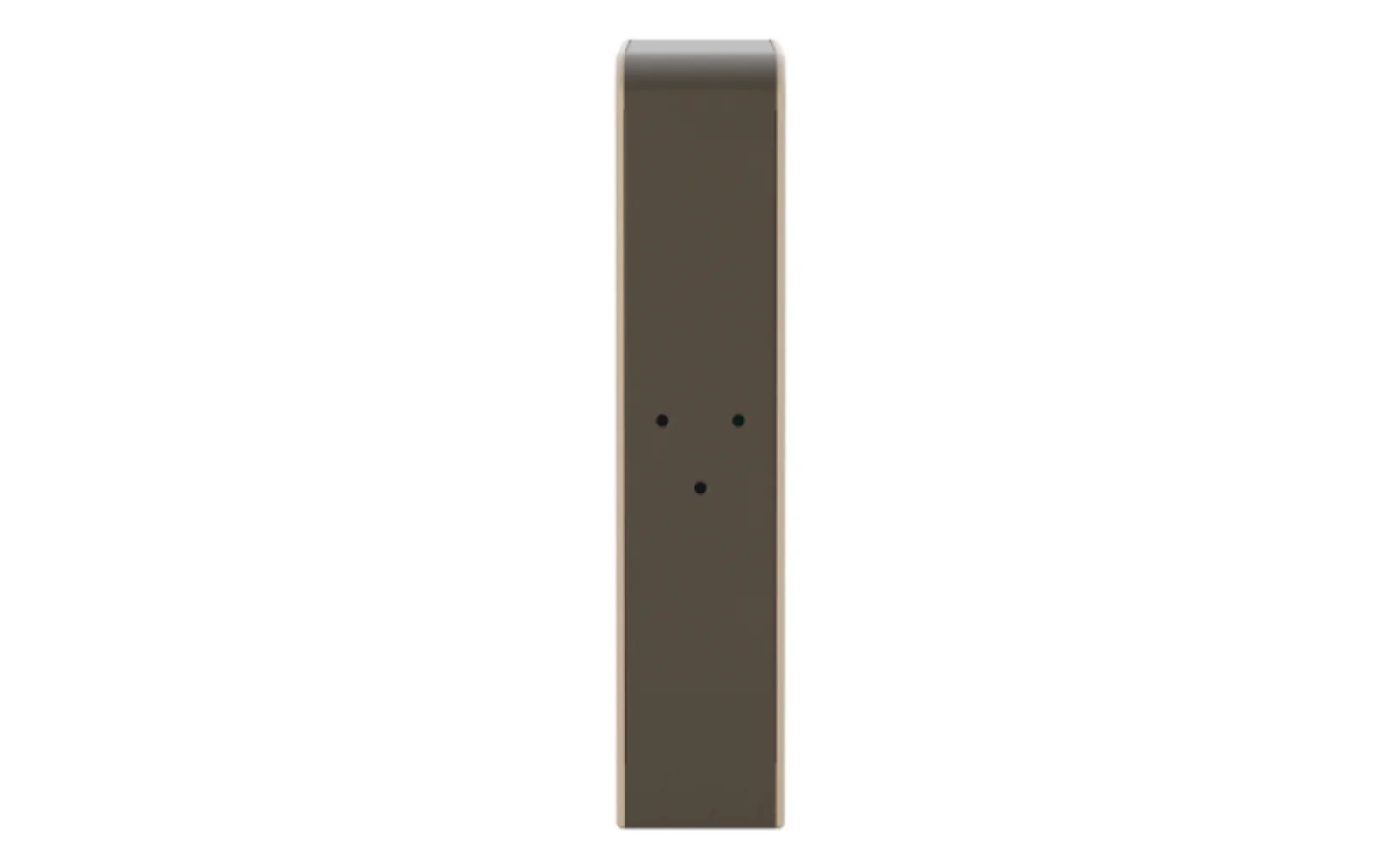

QNAP QBoat-300 3-Bay NAS
Model QBoat-300
Overview
QBoat-300 Industrial-Grade Edge Data Hub Built for 24/7 Production Lines QBoat-300 is a NAS designed for Industry 4.0 edge computing. Equipped with a quad-core industrial-grade wide-temperature processor and passive cooling mechanism, along with 3 M.2 NVMe SSD slots, its fanless design ensures stable high-performance data access even in extreme environments. Provides a flexible buffer hub for MES systems.
Specifications
Performance
- Type
- NAS
- Device class
- Small & Medium Business
- Backup function
- Yes
- Reset button
- Yes
- On/off switch
- Yes
Storage
- Storage drive capacity
- 0 GB
- Supported storage drive interfaces
- M.2
- Storage drive sizes supported
- M.2"
- RAID support
- Yes
- RAID levels
- 0,1,5,6,10,60,JBOD
- Online RAID migration
- Yes
- Online RAID expansion
- Yes
- RAID rebuild
- Yes
- Storage drives installed
- No
- Total installed storage capacity
- 0 TB
- Number of storage drives supported
- 3
- Installed storage drive type
- No
- Supported storage drive types
- SSD
- Auto-rebuild
- Yes
- Bad block scan
- Yes
Design
- Chassis type
- Compact
- Product colour
- Grey
Power
- Power consumption (typical)
- 12.02 W
- AC input voltage
- 100 - 240 V
- Output voltage
- 12 V
Memory
- Internal memory
- 4 GB
- Flash memory
- 4000 MB
Network
- Ethernet LAN
- Yes
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Jumbo frames support
- Yes
- Wake-on-LAN ready
- Yes
Software
- Operating system installed
- QNAP QTS
- Operating system version
- 5.2.9
Processor
- Processor manufacturer
- ARM
- Processor boost frequency
- 1.8 GHz
- Processor cores
- 4
Ports & interfaces
- USB port
- No
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- Ethernet LAN (RJ-45) ports
- 2
Weight & dimensions
- Width
- 40 mm
- Depth
- 132 mm
- Height
- 184 mm
- Weight
- 870 g
- Package width
- 199 mm
- Package depth
- 74.5 mm
- Package height
- 271.5 mm
- Package weight
- 1700 g
