MSI

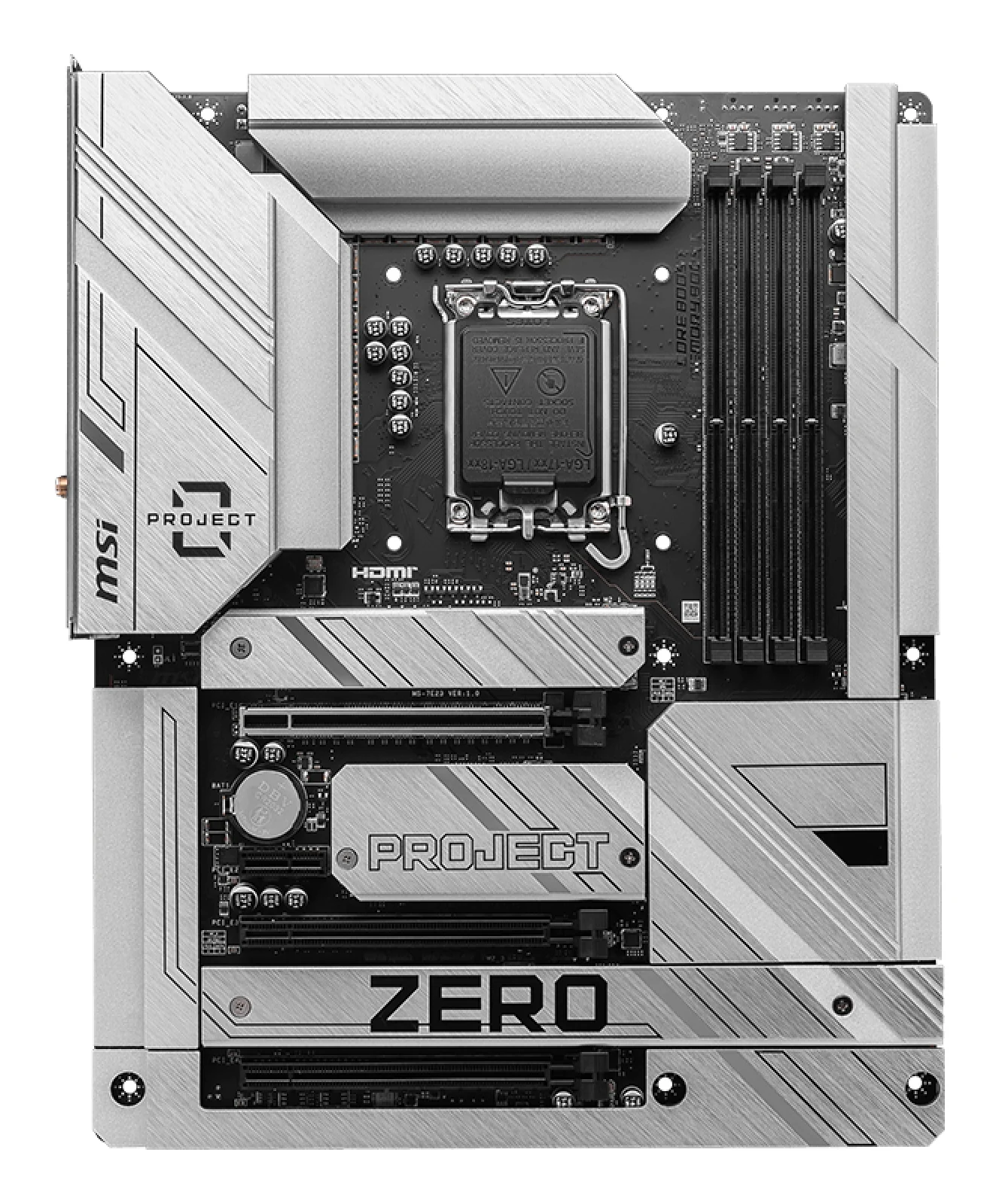

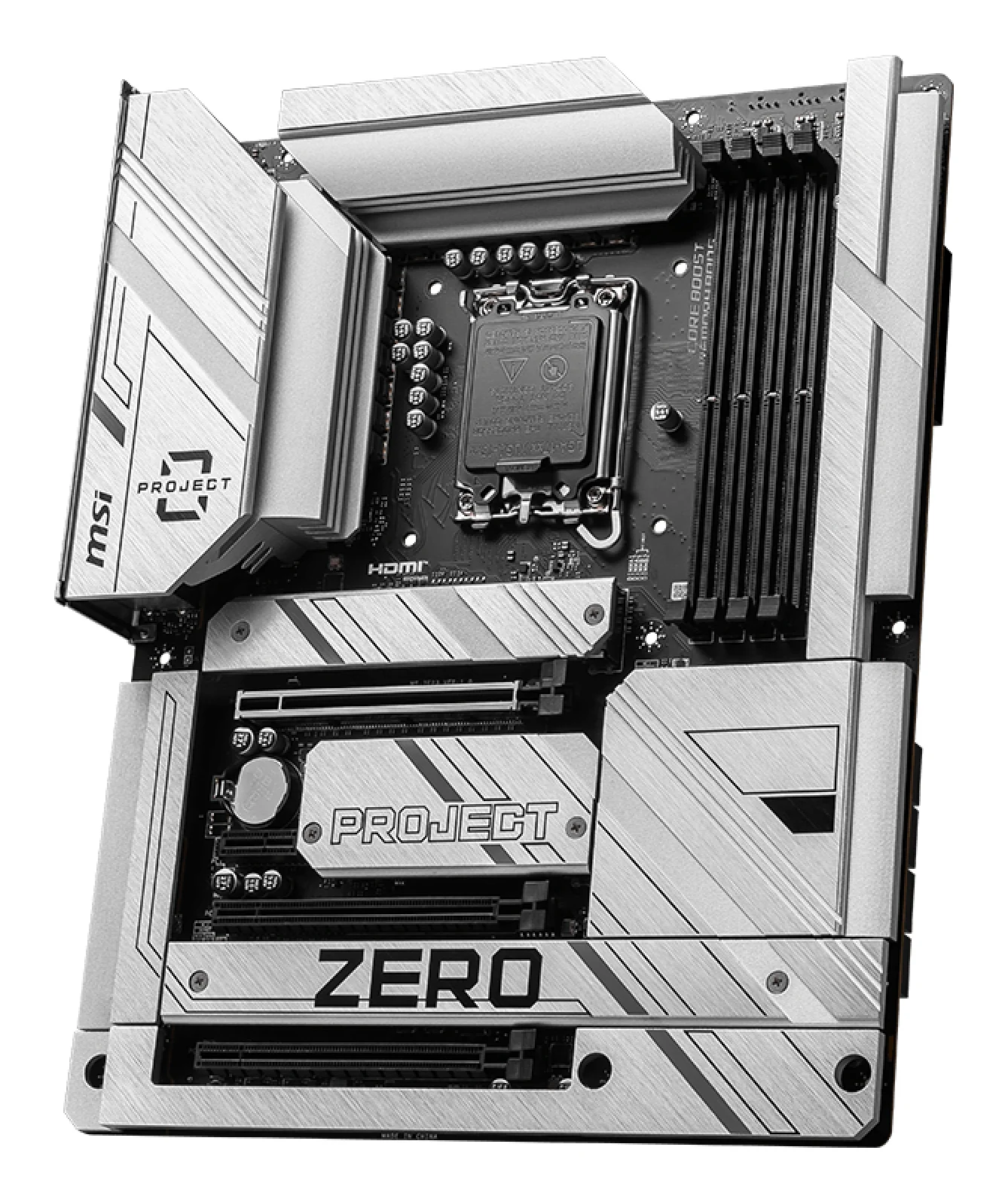

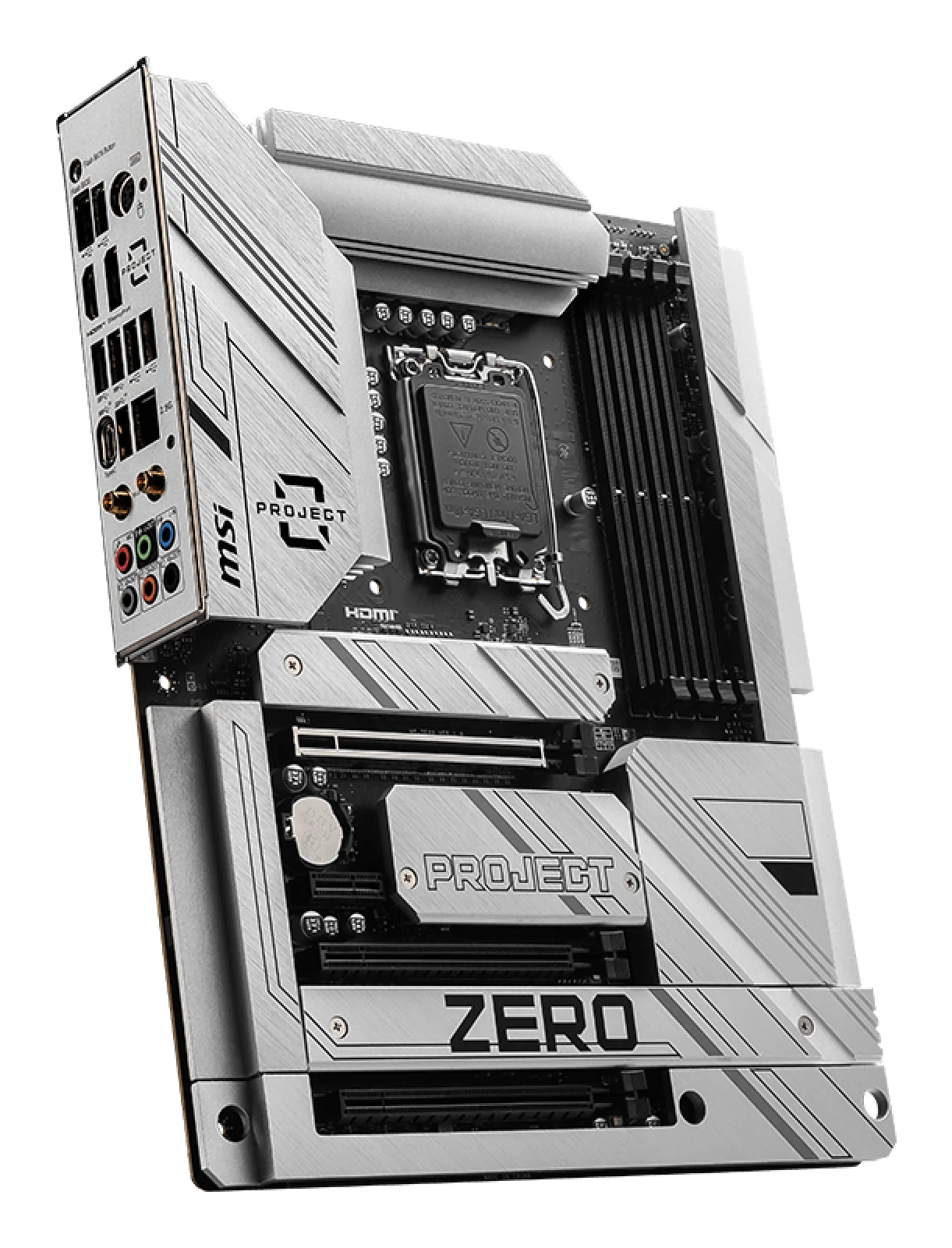

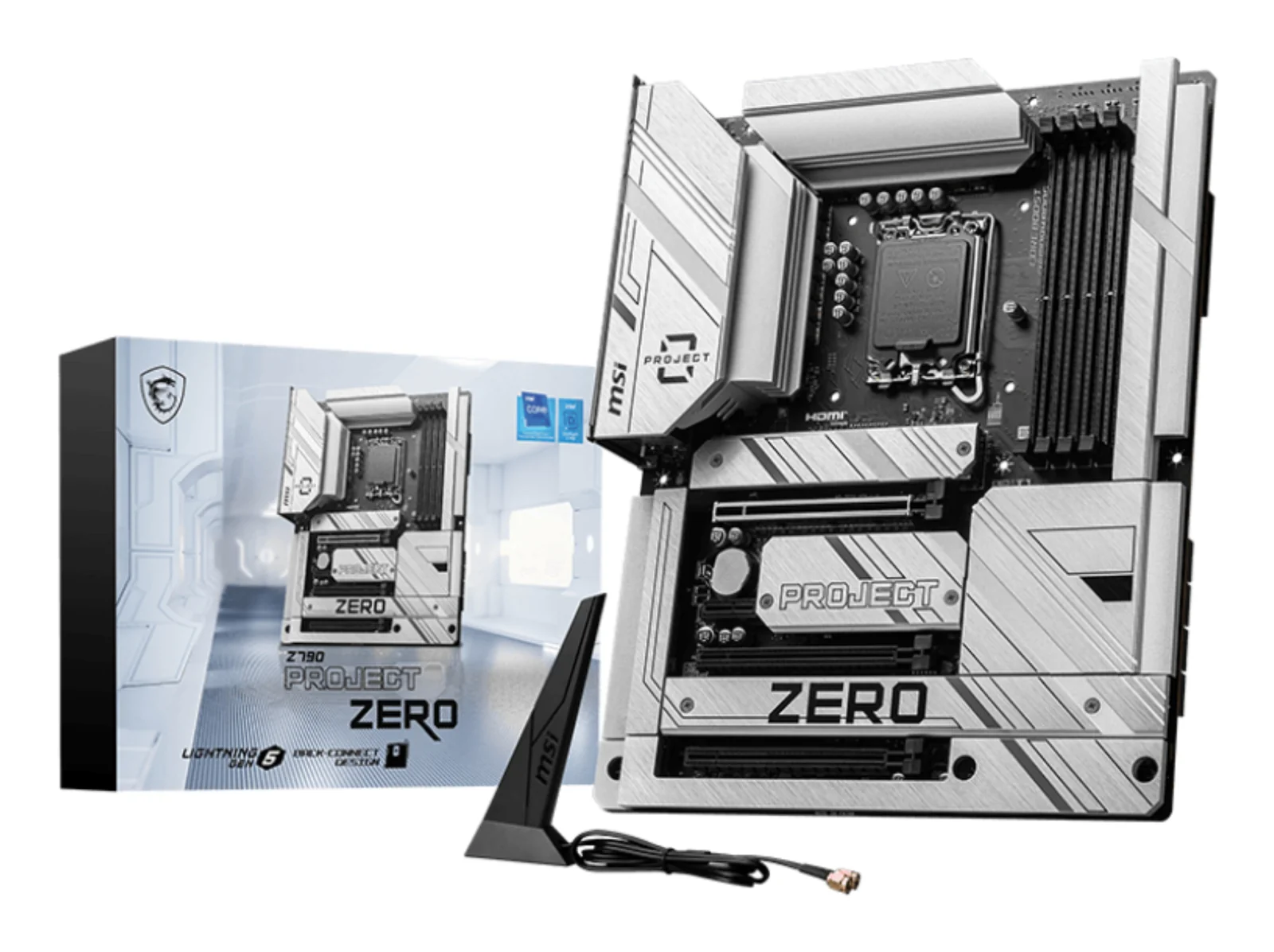

MSI Z790 PROJECT ZERO
Model Z790 PROJECT ZERO
Overview

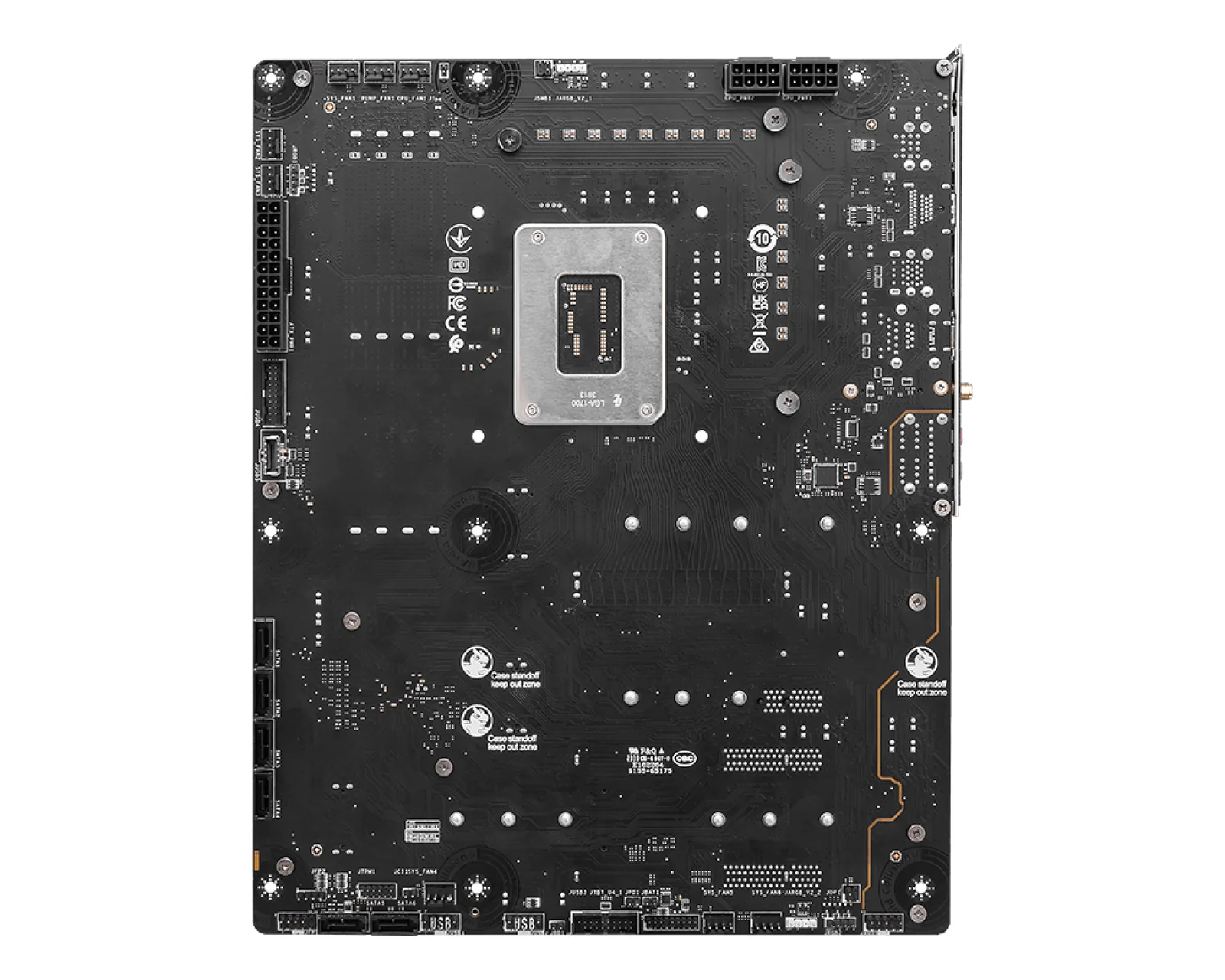

The Z790 PROJECT ZERO features a unique back-connect design that reduces the complexity of cable management, resulting in a neater and more aesthetically pleasing appearance for the system. It’s compatible with Intel 14th /13th/ 12th Processors, supports DDR5, and comes equipped with a 2.5G LAN and Wi-Fi 7 solution. This makes it an excellent choice among ATX motherboards. ABSOLUTE SIMPLICITY Z790 PROJECT ZERO moves the power connectors, fan connectors, and other pin headers to the back of the motherboard. This provides a cleaner and neater front view, allowing the motherboard, liquid cooler, and graphics card's aesthetic design to be fully displayed.
Specifications
BIOS
- BIOS type
- UEFI AMI
- BIOS memory size
- 256 Mbit
- ACPI version
- 6.4
- System Management BIOS (SMBIOS) version
- 3.5
Memory
- Supported memory types
- DDR5-SDRAM
- Number of memory slots
- 4
- Memory slots type
- SO-DIMM
- Memory channels
- Dual-channel
- ECC сompatibility
- non-ECC
- Supported memory clock speeds
- 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz
- Supported memory clock speed (max)
- 7200 MHz
- Maximum internal memory
- 256 GB
Network
- Ethernet LAN
- Yes
- Ethernet interface type
- 2.5 Gigabit Ethernet
- Wi-Fi
- Yes
- Top Wi-Fi standard
- Wi-Fi 7 (802.11be)
- Wi-Fi standards
- 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax),Wi-Fi 6E (802.11ax),Wi-Fi 7 (802.11be)
- Bluetooth
- Yes
- Bluetooth version
- 5.4
Features
- Motherboard chipset
- Intel Z790
- Audio chip
- Realtek ALC897
- Audio output channels
- 7.1 channels
- Product colour
- Grey
- Motherboard form factor
- ATX
- Motherboard chipset family
- Intel
- Windows operating systems supported
- Windows 10 x64,Windows 11 Enterprise x64
Graphics
- On-board graphics card
- No
Processor
- Processor manufacturer
- Intel
- Processor socket
- LGA 1700
- Compatible processor series
- Intel Celeron,Intel Pentium,Intel Pentium Gold
- Maximum internal memory supported by processor
- 256 GB
Internal I/O
- USB 2.0 connectors
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 4
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 1
- Number of SATA III connectors
- 6
- Total number of SATA connectors
- 6
Expansion slots
- PCI Express x1 slots
- 1
- PCI Express x16 slots
- 3
- Number of M.2 (M) slots
- 4
Storage controllers
- Supported storage drive interfaces
- PCI Express 4.0,PCI Express 5.0
- Number of HDDs supported
- 10
- Number of storage drives supported
- 4
- RAID support
- Yes
- RAID levels
- 0,1,5,10
Weight & dimensions
- Width
- 243.84 mm
- Depth
- 304.8 mm
Rear panel I/O ports
- USB 2.0 ports quantity
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 6
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- USB4 Gen 2x2 ports quantity
- 2
- Ethernet LAN (RJ-45) ports
- 1
- HDMI ports quantity
- 1
- HDMI version
- 2.1
- DisplayPorts quantity
- 1
- DisplayPort version
- 1.4
