MSI

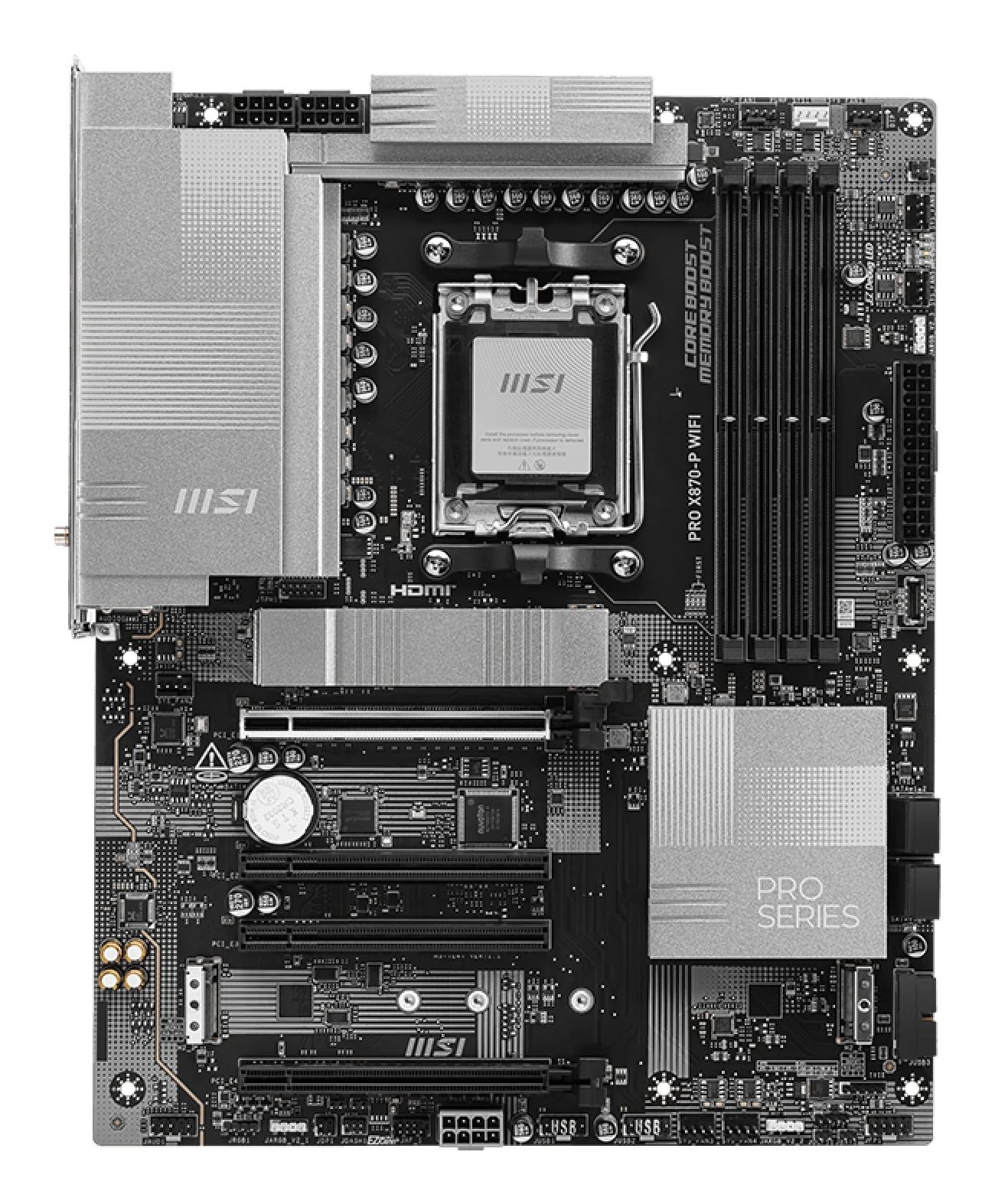

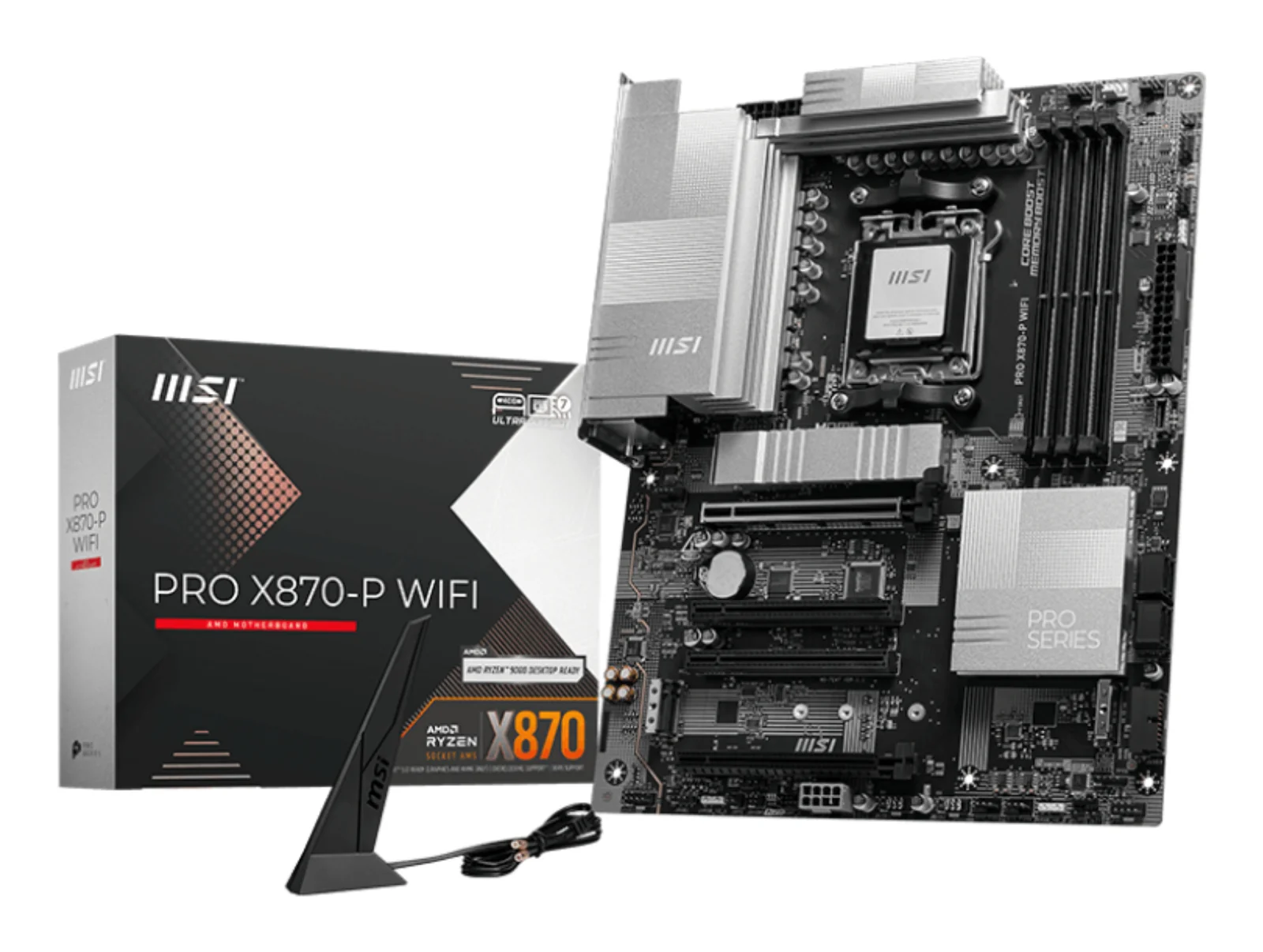

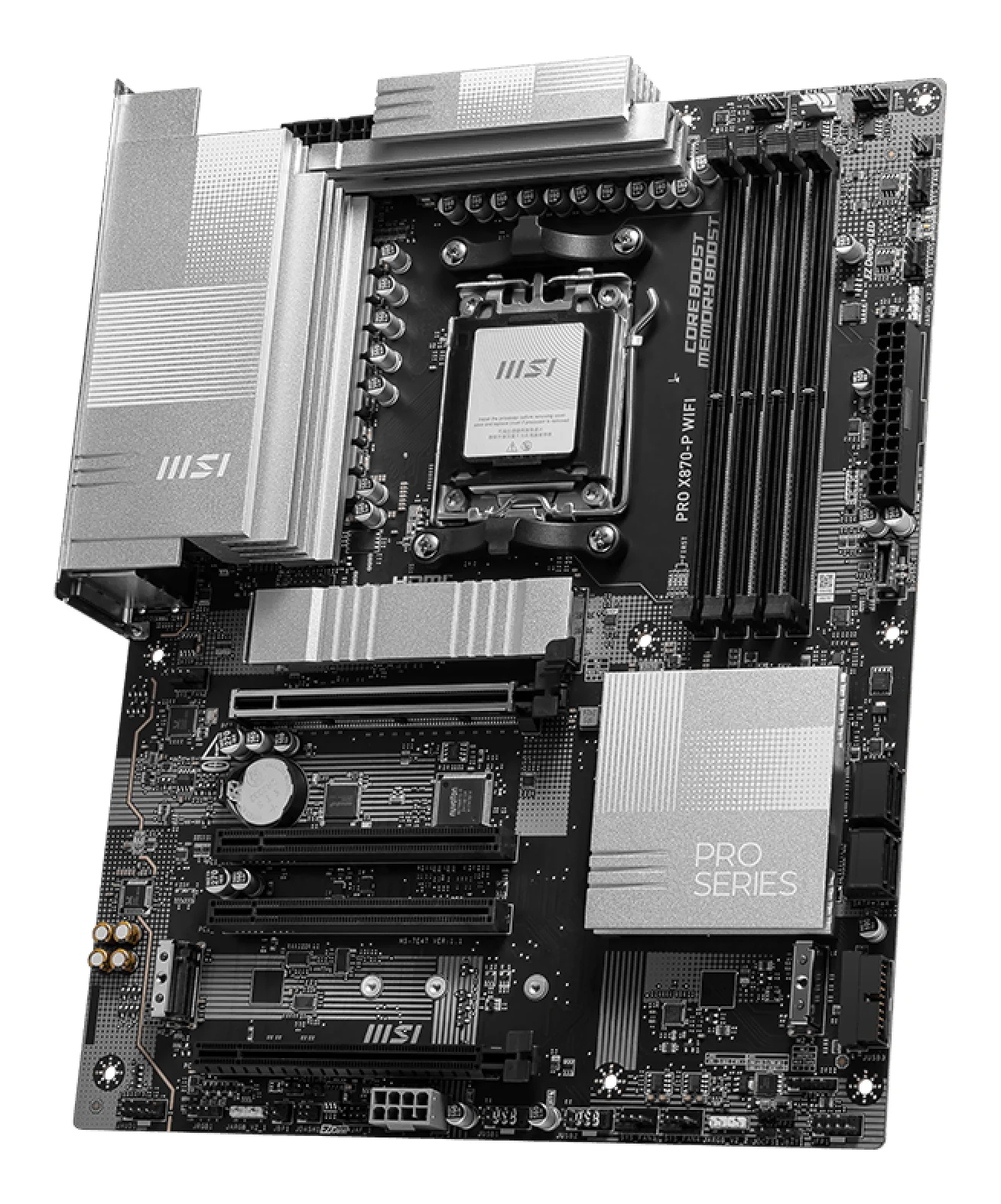

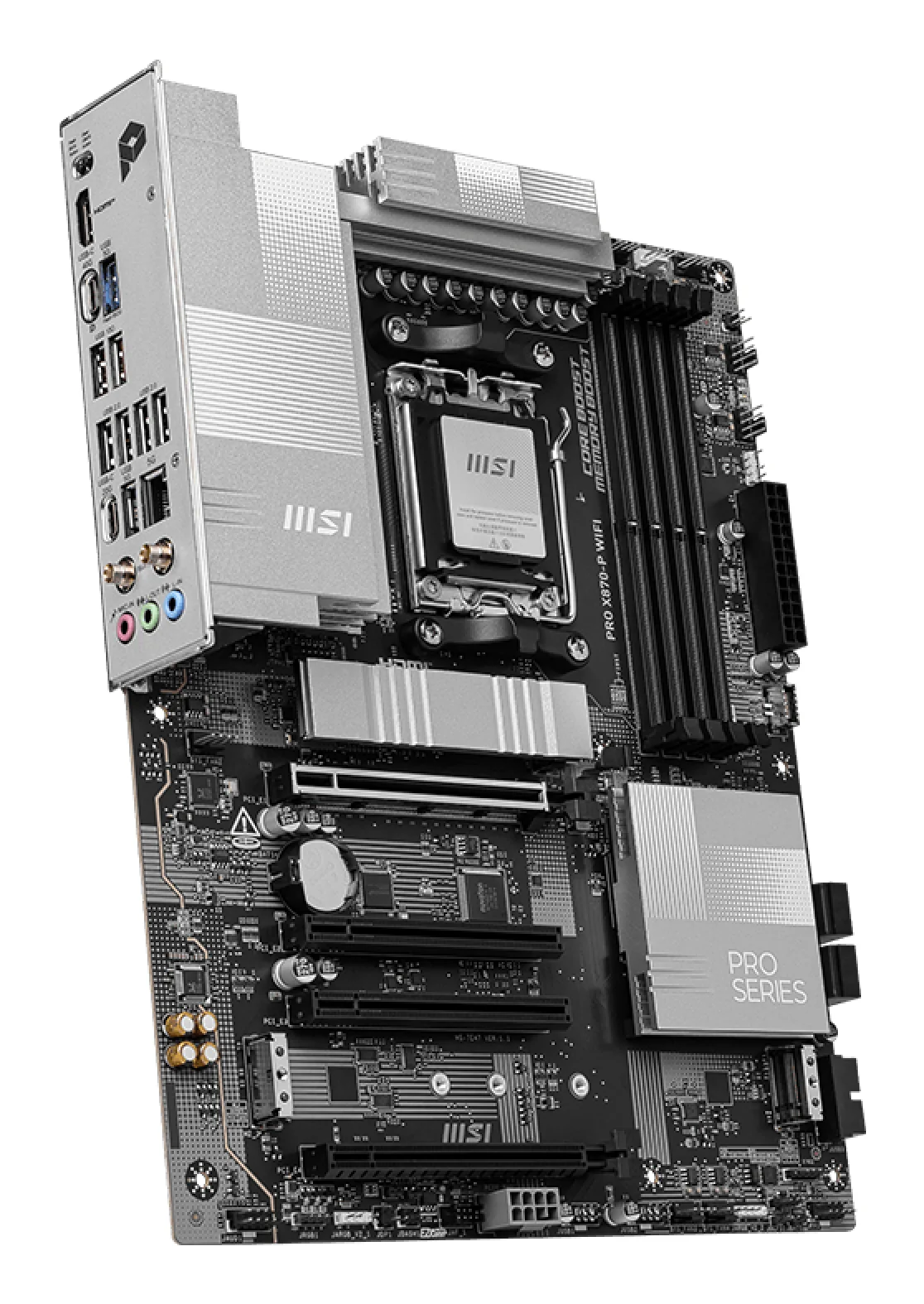

MSI PRO X870-P WIFI

Model PRO X870-P WIFI

Overview

PRO X870-P WIFI PRO X870-P WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 5G LAN, PCIe 5.0 M.2 with EZ M.2 Shield Frozr II, and Supplemental PCIe Power, ready for the AMD Ryzen™ 9000 series processors. BUSINESS ELEGANCE The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency. MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before. 14+2+1 DRPS POWER DESIGN Unleash and sustain the maximum performance with a flagship VRM design built with a total of 14+2+1 digital power phases. Combining dual power connectors and 60A Smart Power Stage, PRO X870-P WIFI is ready for the challenge of high-end processors. HIGH-BANDWIDTH AND LOW-LATENCY NETWORK MSI's premium network solution provides incredible data transfer speed for demanding users. BUILD FOR THE MOST ADVANCED PC FOR GAMING AND CREATING When only the fastest will do, an AMD X800-series motherboard delivers. With USB 4.0 onboard along with robust overclocking1 capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe® 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an AMD X800-series motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.

Specifications

Memory

Supported memory types
DDR5-SDRAM
Number of memory slots
4
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
non-ECC
Supported memory clock speeds
4800,5600,8200 MHz
Supported memory clock speed (max)
8200 MHz
Maximum internal memory
256 GB

Network

Ethernet LAN
Yes
Ethernet interface type
5 Gigabit Ethernet
Wi-Fi
Yes
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Wi-Fi standards
Wi-Fi 7 (802.11be)
Bluetooth
Yes
Bluetooth version
5.4

Features

Motherboard chipset
AMD X870
Audio output channels
7.1 channels
Product colour
Black
PC health monitoring
CPU,FAN,Temperature,Voltage
Component for
PC
Motherboard form factor
ATX
Motherboard chipset family
AMD
Windows operating systems supported
Windows 11 x64

Graphics

On-board graphics card
No

Processor

Processor manufacturer
AMD
Processor socket
Socket AM5
Compatible processor series
AMD Ryzen 7
Supported processor sockets
Socket AM5
Maximum internal memory supported by processor
256 GB

Internal I/O

USB 2.0 connectors
4
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Number of SATA III connectors
4
Total number of SATA connectors
4
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes

Expansion slots

PCI Express x16 slots
4
Number of M.2 (M) slots
3

Storage controllers

Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2,SATA III
Number of HDDs supported
7
Number of storage drives supported
4
RAID support
Yes
RAID levels
0,1

Weight & dimensions

Width
243.84 mm
Depth
304.8 mm

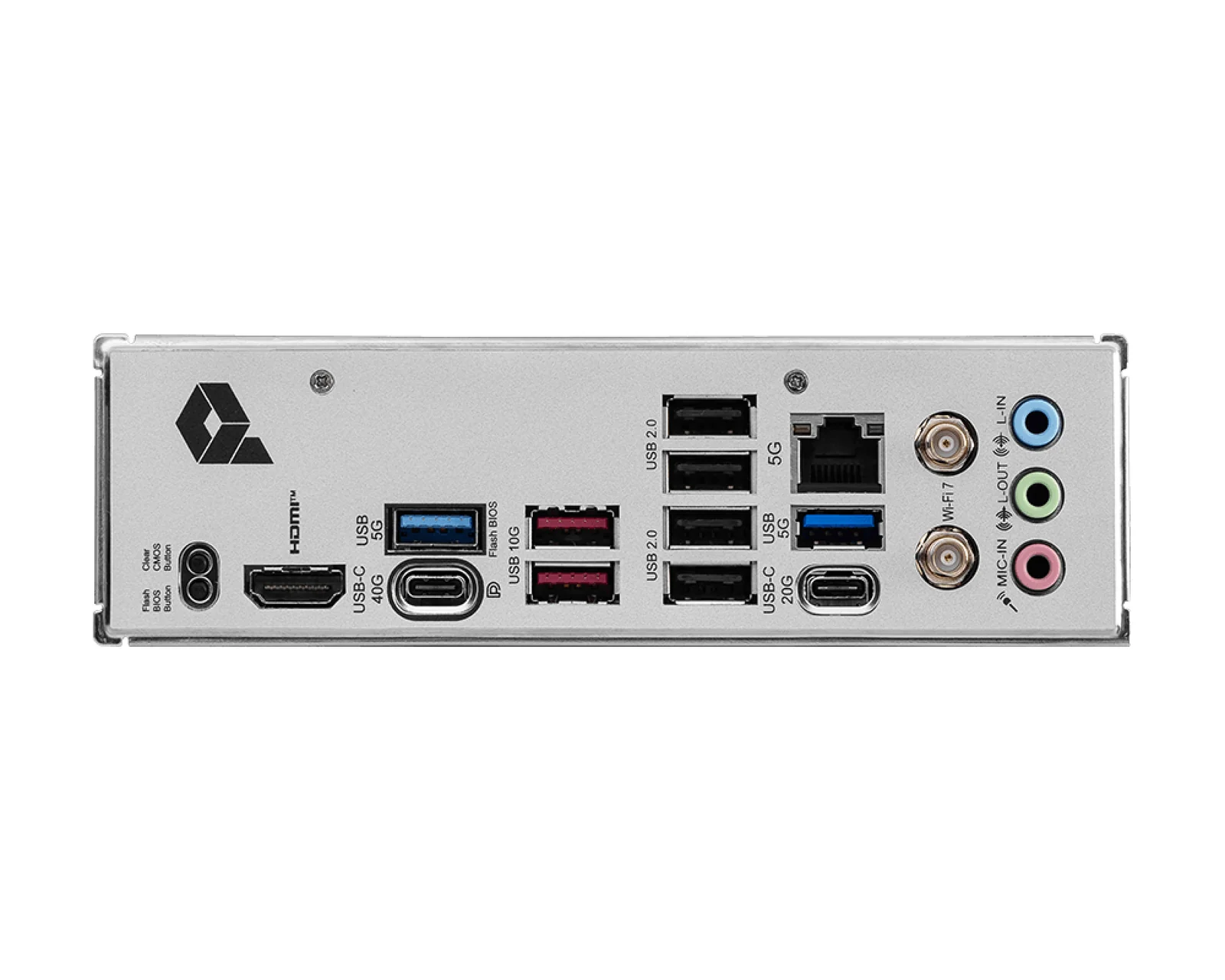

Rear panel I/O ports

USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
1
DisplayPorts quantity
2
Microphone in
Yes
S/PDIF out port
Yes
