MSI

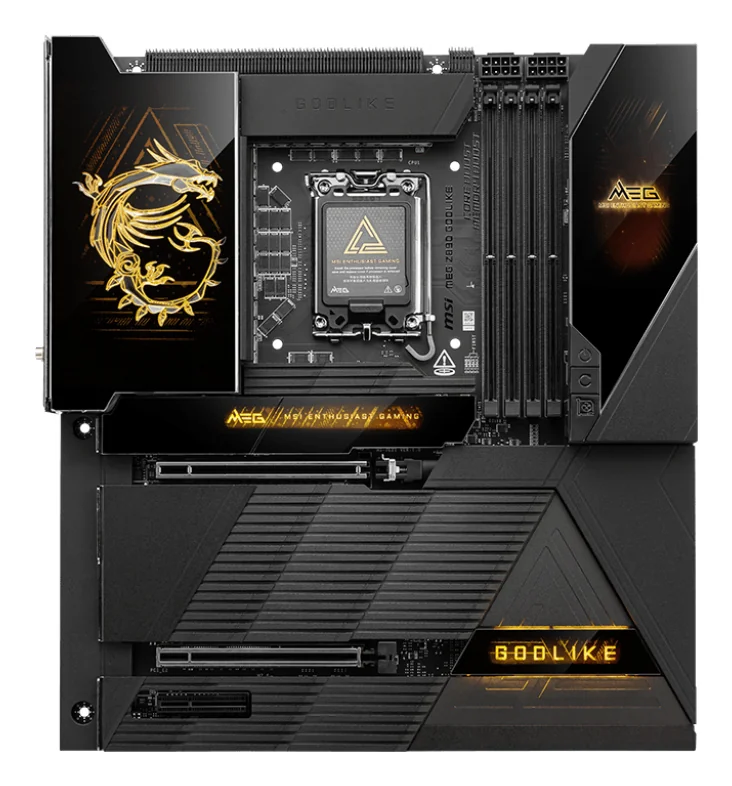

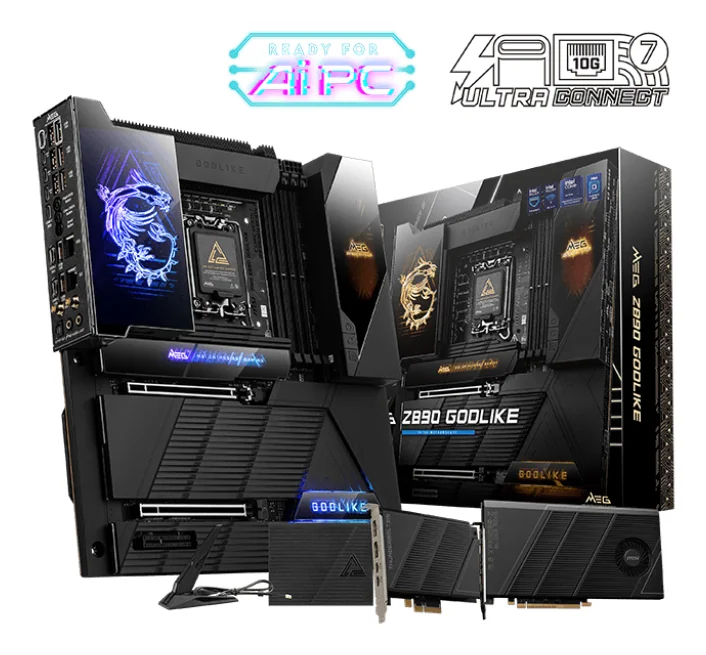

MSI MEG Z890 GODLIKE
Model MEG Z890 GODLIKE
Overview
Built for unparalleled performance on the Intel Z890 chipset and Core Ultra processors, the MEG Z890 GODLIKE equips true Wi-Fi 7, 10G Super LAN, Thunderbolt 5, Supplemental PCIe Power, and the revolutionary Dynamic Dashboard III. Dominate tournaments and immerse in extreme gaming with the MEG Z890 GODLIKE. Dynamic Dashboard III A 3.99-inch full-color LCD offers real-time hardware monitoring, troubleshooting, BIOS update status, clock display, and personalization options, significantly enhancing the overall user experience. EZ LINK The GODLIKE-exclusive EZ Link design consolidates most of the case front panel headers, fan headers, and RGB headers into the EZ Bridge and EZ Control Hub, simplifying installation and creating a cleaner aesthetic. M.2 XPANDER-Z SLIDER GEN5 In addition to the 6 built-in M.2 slots, the MEG Z890 GODLIKE also comes with the all-new M.2 XPANDER-Z SLIDER GEN5 card, providing even more high-speed storage expansion options.
Specifications
BIOS
- Clear CMOS button
- Yes
Memory
- Supported memory types
- DDR5-SDRAM
- Number of memory slots
- 4
- Memory slots type
- DIMM
- Memory channels
- Dual-channel
- ECC сompatibility
- non-ECC
- Supported memory clock speeds
- 5600,6400,7200,9200 MHz
- Supported memory clock speed (max)
- 9200 MHz
- Maximum internal memory
- 256 GB
Network
- Ethernet LAN
- Yes
- Ethernet interface type
- 10 Gigabit Ethernet
- Wi-Fi
- Yes
- Top Wi-Fi standard
- Wi-Fi 7 (802.11be)
- Wi-Fi standards
- 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax),Wi-Fi 6E (802.11ax),Wi-Fi 7 (802.11be)
- Bluetooth
- Yes
- Bluetooth version
- 5.4
Features
- Motherboard chipset
- Intel Z890
- Audio chip
- Realtek ALC4082
- Audio output channels
- 7.1 channels
- Product colour
- Black
- Component for
- PC
- Motherboard form factor
- ATX
- Motherboard chipset family
- Intel
- Windows operating systems supported
- Windows 11 x64
Graphics
- On-board graphics card
- No
Processor
- Processor manufacturer
- Intel
- Processor socket
- LGA 1851 (Socket V1)
- Compatible processor series
- Intel Core Ultra (Series 2)
- Supported processor sockets
- LGA 1851
- Maximum internal memory supported by processor
- 256 GB
Internal I/O
- USB 2.0 connectors
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 4
- USB 3.2 Gen 2x2 connectors
- 1
- Number of SATA III connectors
- 4
- Total number of SATA connectors
- 4
- S/PDIF out connector
- Yes
- Front panel connector
- Yes
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- Chassis intrusion connector
- Yes
- EPS power connector (8-pin)
- Yes
- Number of EPS power connectors (8-pin)
- 1
- TPM connector
- Yes
- RGB LED pin header
- Yes
- Number of RGB LED pin headers
- 1
Expansion slots
- PCI Express x4 slots
- 1
- PCI Express x16 slots
- 2
- Number of M.2 (M) slots
- 8
- 1st M.2 largest key size
- 2280
- 1st M.2 highest PCI Express generation
- 5.0
- 2nd M.2 largest key size
- 2280
- 2nd M.2 highest PCI Express generation
- 5.0
- 3rd M.2 largest key size
- 2280
- 3rd M.2 highest PCI Express generation
- 4.0
- 4th M.2 largest key size
- 2280
- 5th M.2 largest key size
- 2280
- 6th M.2 largest key size
- 2280
Storage controllers
- Supported storage drive types
- SSD
- Supported storage drive interfaces
- M.2,SATA III
- Number of storage drives supported
- 8
- RAID support
- Yes
- RAID levels
- 0,1,5,10
Weight & dimensions
- Width
- 277 mm
- Depth
- 304.8 mm
Rear panel I/O ports
- USB 2.0 ports quantity
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- DisplayPorts quantity
- 2
- DisplayPort version
- 2.1
- S/PDIF out port
- Yes
- Thunderbolt ports quantity
- 4
