MSI MEG X870E GODLIKE
Model MEG X870E GODLIKE
Overview
Built for unparalleled performance on the AMD X870E chipset and Ryzen 9000 processors, the MEG X870E GODLIKE equips true Wi-Fi 7, 10G Super LAN, high-speed USB4, Supplemental PCIe Power, and the revolutionary Dynamic Dashboard III. Dominate tournaments and immerse in extreme gaming with the MEG X870E GODLIKE.
Specifications
BIOS
- BIOS type
- UEFI AMI
- BIOS memory size
- 256 Mbit
- ACPI version
- 6.5
- System Management BIOS (SMBIOS) version
- 3.7
Memory
- Supported memory types
- DDR5-SDRAM
- Number of memory slots
- 4
- Memory slots type
- DIMM
- Memory channels
- Dual-channel
- ECC сompatibility
- non-ECC
- Supported memory clock speeds
- 4800,5600 MHz
- Supported memory clock speed (max)
- 9000 MHz
- Maximum internal memory
- 256 GB
Network
- Ethernet LAN
- Yes
- Ethernet interface type
- 5 Gigabit Ethernet
- Wi-Fi
- Yes
- Top Wi-Fi standard
- Wi-Fi 7 (802.11be)
- Wi-Fi standards
- 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax),Wi-Fi 6E (802.11ax),Wi-Fi 7 (802.11be)
- Bluetooth
- Yes
- Bluetooth version
- 5.4
Features
- Motherboard chipset
- AMD X870E
- Audio output channels
- 7.1 channels
- Product colour
- Black
- PC health monitoring
- CPU,FAN,Temperature,Voltage
- Component for
- PC
- Motherboard form factor
- Extended ATX
- Motherboard chipset family
- AMD
- Windows operating systems supported
- Windows 11 x64
Graphics
- On-board graphics card
- No
Processor
- Processor manufacturer
- AMD
- Processor socket
- Socket AM5
- Compatible processor series
- AMD Ryzen 7000 Series,AMD Ryzen 8000 Series,AMD Ryzen 9000 Series
- Supported processor sockets
- Socket AM5
Internal I/O
- USB 2.0 connectors
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 4
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 2
- Number of SATA III connectors
- 4
- Total number of SATA connectors
- 4
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- EPS power connector (8-pin)
- Yes
Expansion slots
- PCI Express x16 (Gen 3.x) slots
- 1
- PCI Express x16 (Gen 4.x) slots
- 1
- PCI Express x16 (Gen 5.x) slots
- 1
- Number of M.2 (M) slots
- 5
- 1st M.2 largest key size
- 2280
- 1st M.2 highest PCI Express generation
- 5.0
- 2nd M.2 largest key size
- 2280
- 2nd M.2 highest PCI Express generation
- 5.0
- 3rd M.2 largest key size
- 22110
- 3rd M.2 highest PCI Express generation
- 4.0
- 4th M.2 largest key size
- 2280
- 4th M.2 highest PCI Express generation
- 4.0
- 5th M.2 largest key size
- 2280
- 5th M.2 highest PCI Express generation
- 4.0
Storage controllers
- Supported storage drive types
- HDD & SSD
- Supported storage drive interfaces
- M.2,SATA III
- Number of HDDs supported
- 4
- Number of storage drives supported
- 9
- RAID support
- Yes
- RAID levels
- 0,1,10
Weight & dimensions
- Width
- 304.8 mm
- Depth
- 277 mm

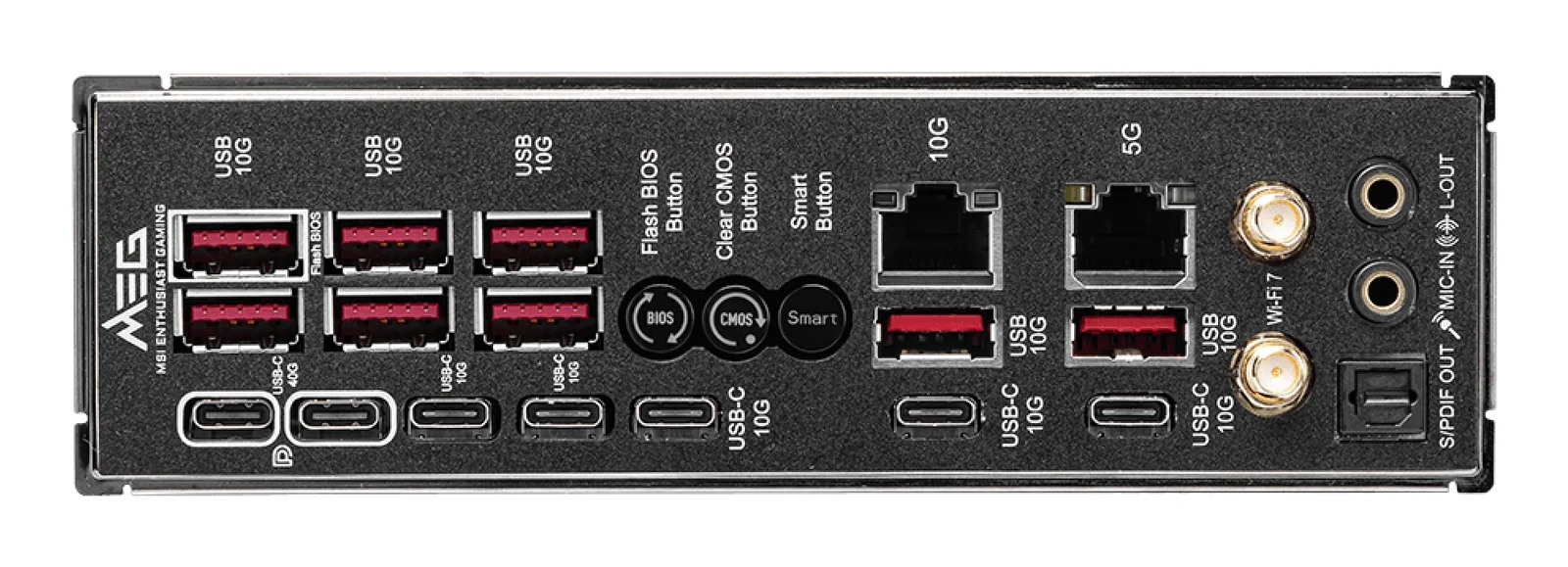

Rear panel I/O ports
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 8
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 5
- USB4 Gen 2x2 ports quantity
- 2
- Ethernet LAN (RJ-45) ports
- 1
- HDMI version
- 2.1
- Microphone in
- Yes
- S/PDIF out port
- Yes
