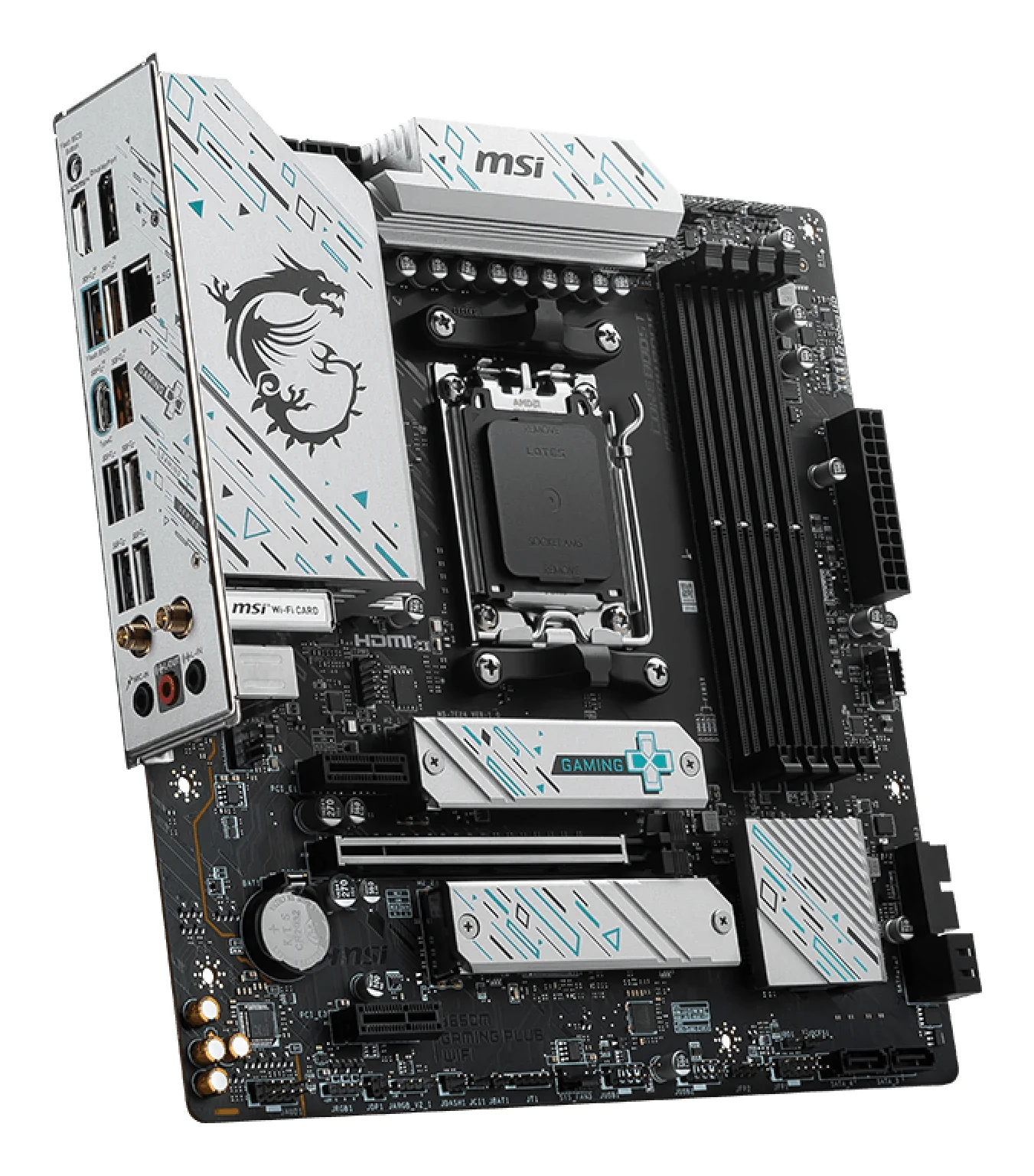

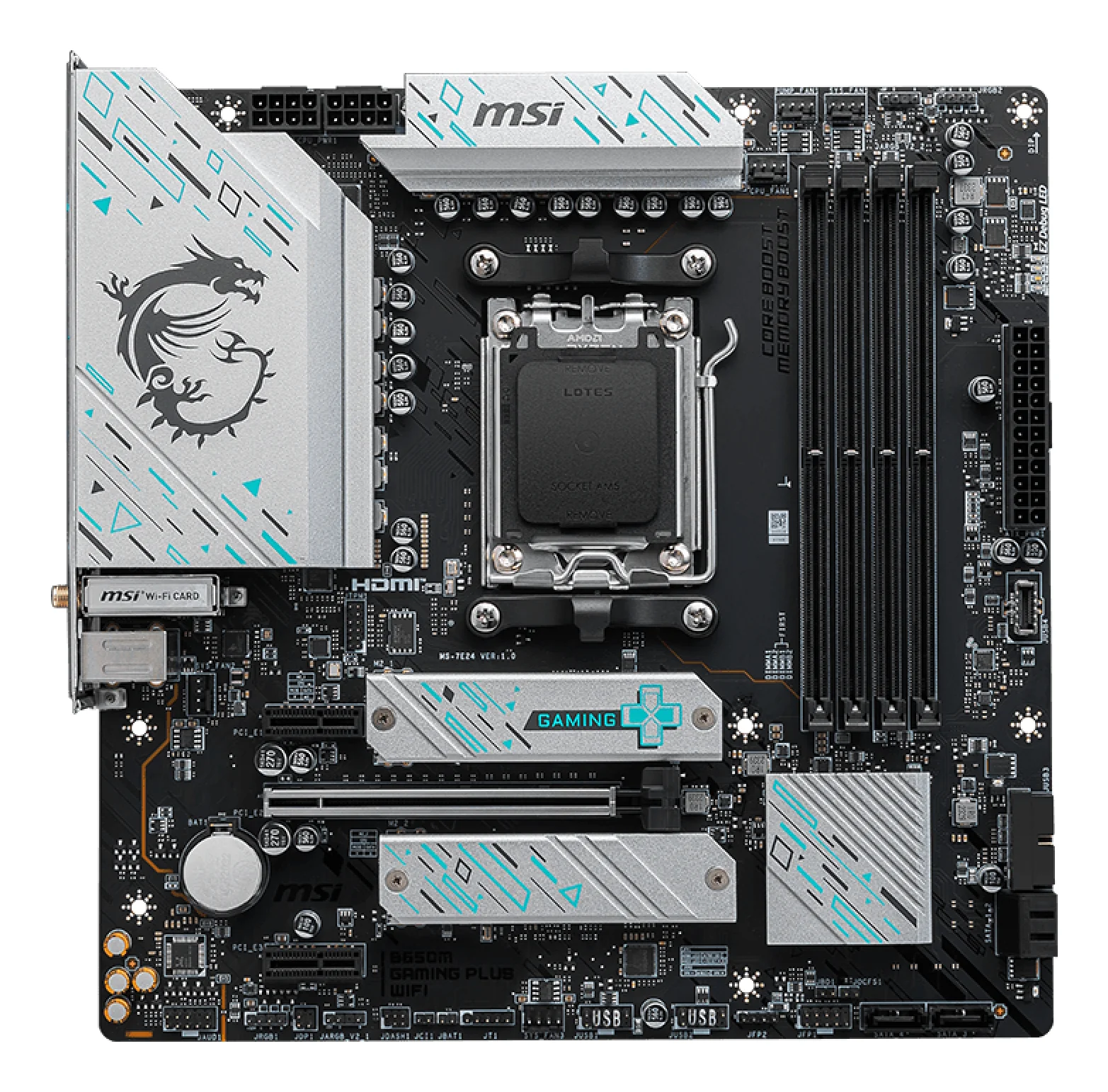

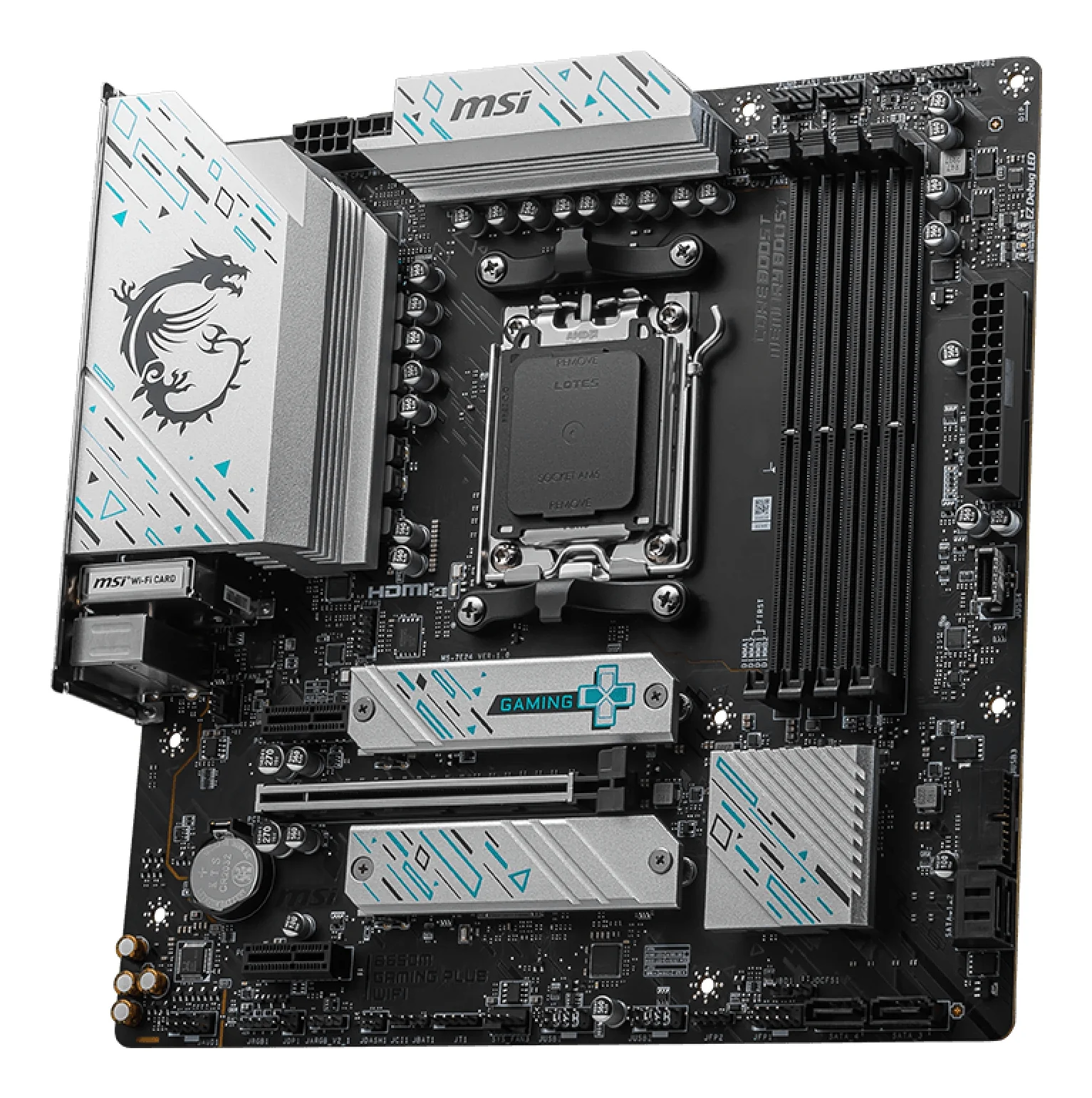

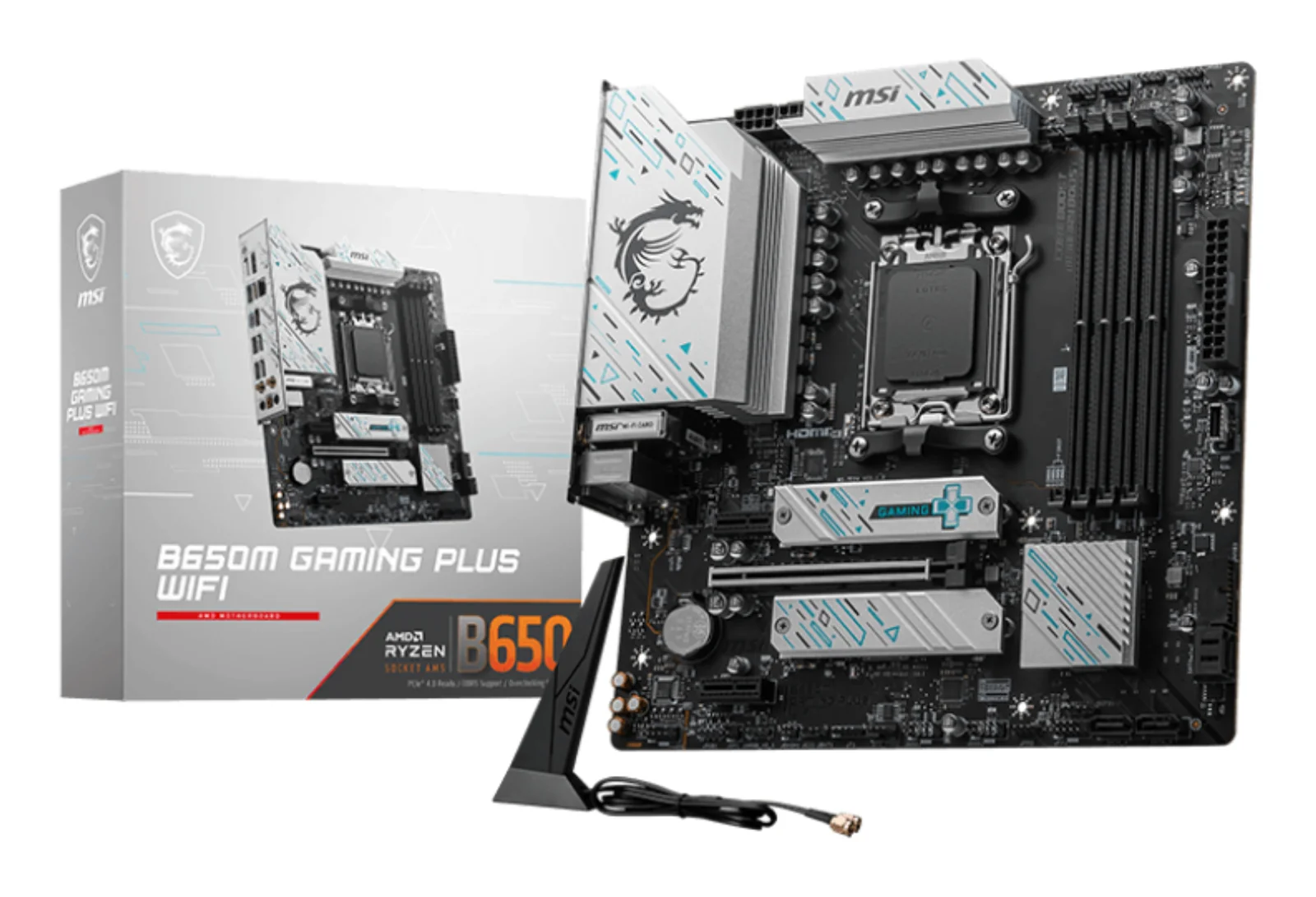

MSI B650M GAMING PLUS WIFI
Model B650M GAMING PLUS WIFI
Overview
MSI B650M Gaming Plus wifi Title B650M GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want it all. LIGHTNING GEN 4 PCI-E MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation. REINFORCED, HEAVY SOLDERED CONNECTIONS MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.
Specifications
BIOS
- BIOS type
- UEFI AMI
- BIOS memory size
- 256 Mbit
- ACPI version
- 6.4
- System Management BIOS (SMBIOS) version
- 3.5
Memory
- Supported memory types
- DDR5-SDRAM
- Number of memory slots
- 4
- Memory channels
- Dual-channel
- ECC сompatibility
- non-ECC
- Supported memory clock speeds
- 7200, 7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz
- Supported memory clock speed (max)
- 7200 MHz
- Maximum internal memory
- 192 GB
- Unbuffered memory
- Yes
Network
- Ethernet LAN
- Yes
- Ethernet interface type
- 2.5 Gigabit Ethernet
- Wi-Fi
- Yes
- Top Wi-Fi standard
- Wi-Fi 6E (802.11ax)
- Wi-Fi standards
- 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax),Wi-Fi 6E (802.11ax)
- Bluetooth
- Yes
- Bluetooth version
- 5.3
Features
- Motherboard chipset
- AMD B650
- Audio chip
- Realtek ALC897
- Audio output channels
- 7.1 channels
- Product colour
- Black
- Component for
- PC
- Motherboard form factor
- Micro ATX
- Motherboard chipset family
- AMD
- Windows operating systems supported
- Windows 10 x64,Windows 11 x64
Graphics
- Parallel processing technology support
- Not supported
Processor
- Processor manufacturer
- AMD
- Processor socket
- Socket AM5
- Supported processor sockets
- Socket AM5
- Maximum internal memory supported by processor
- 192 GB
Internal I/O
- USB 2.0 connectors
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 1
- Number of SATA III connectors
- 4
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- CPU fan connector
- Yes
- Chassis intrusion connector
- Yes
- TPM connector
- Yes
- RGB LED pin header
- Yes
Expansion slots
- PCI Express x16 (Gen 4.x) slots
- 1
- Number of M.2 (M) slots
- 2
Packaging content
- Cables included
- SATA
Storage controllers
- Supported storage drive types
- HDD & SSD
- Supported storage drive interfaces
- M.2,PCI Express
- Number of storage drives supported
- 6
- RAID support
- Yes
- RAID levels
- 0,5,10
Weight & dimensions
- Width
- 243.84 mm
- Depth
- 243.84 mm

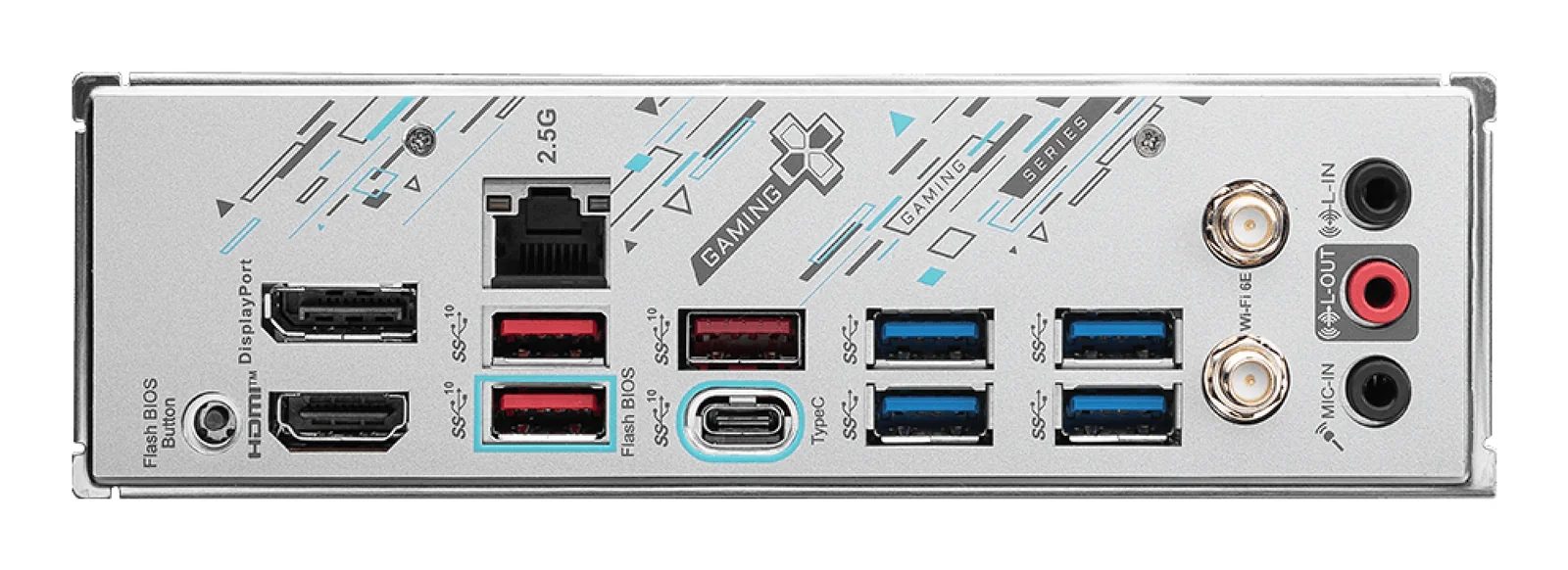

Rear panel I/O ports
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 3
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
- HDMI ports quantity
- 1
- HDMI version
- 2.1
- DisplayPorts quantity
- 1
- DisplayPort version
- 1.4
- S/PDIF out port
- Yes
