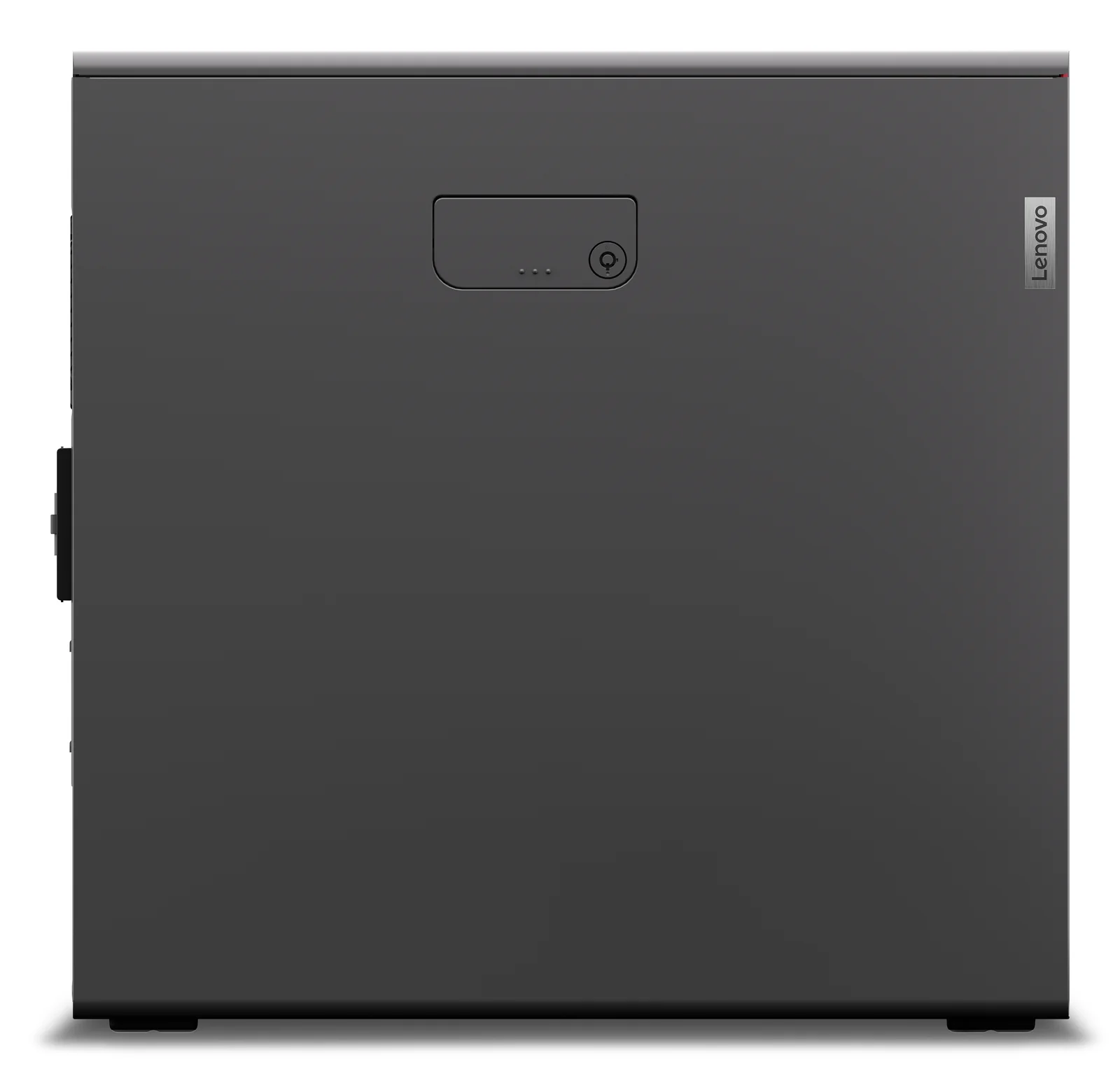

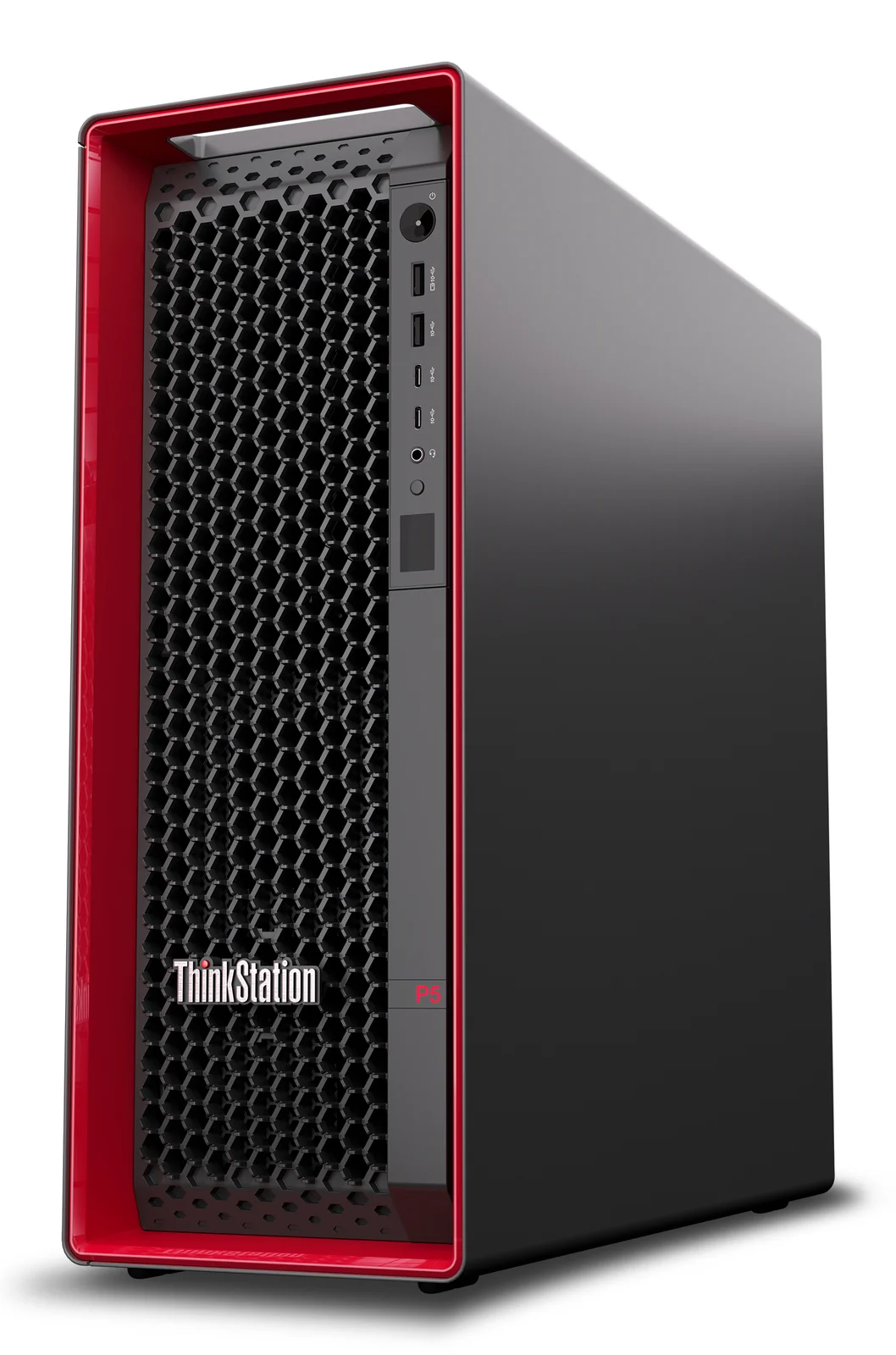

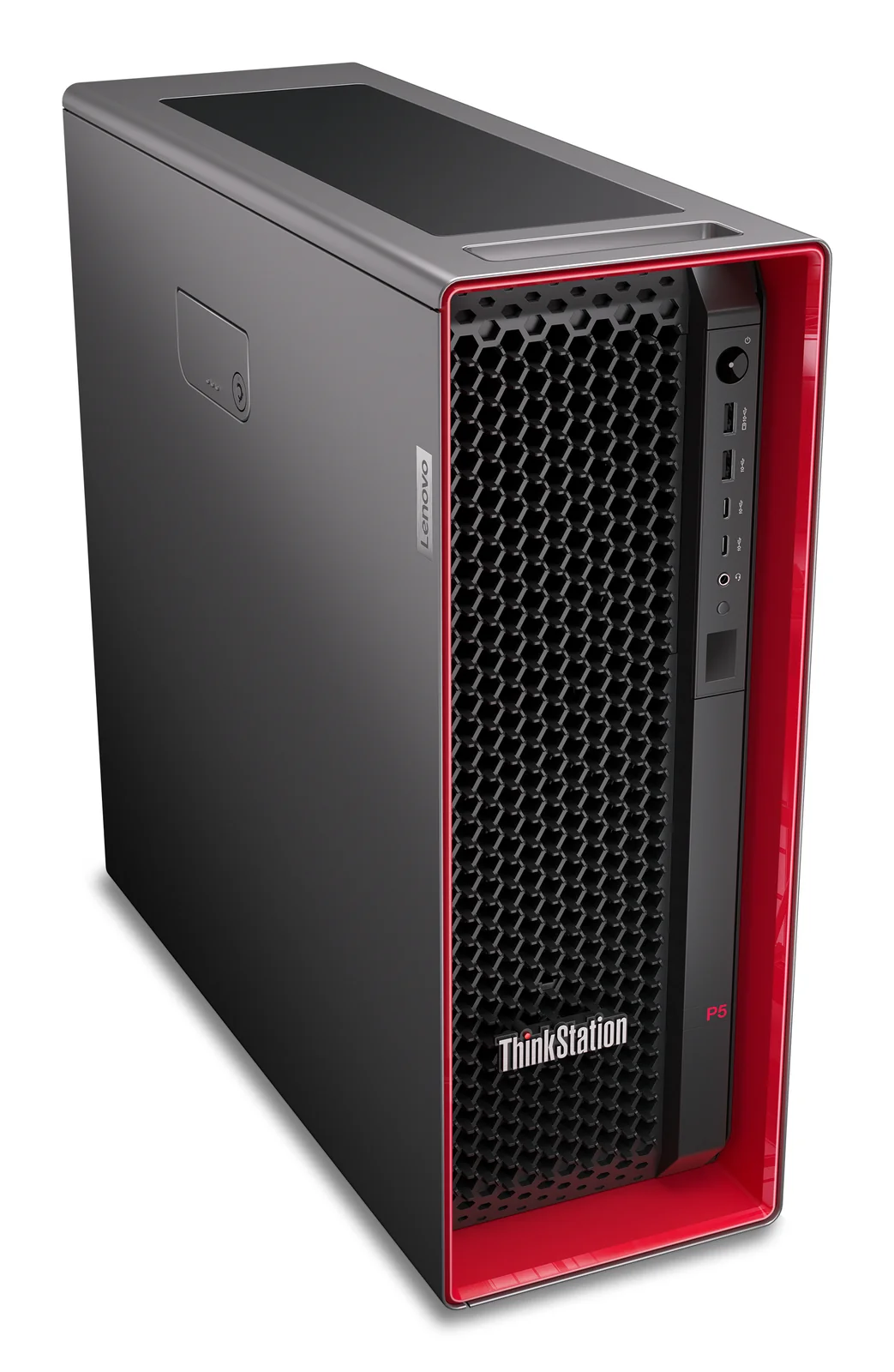

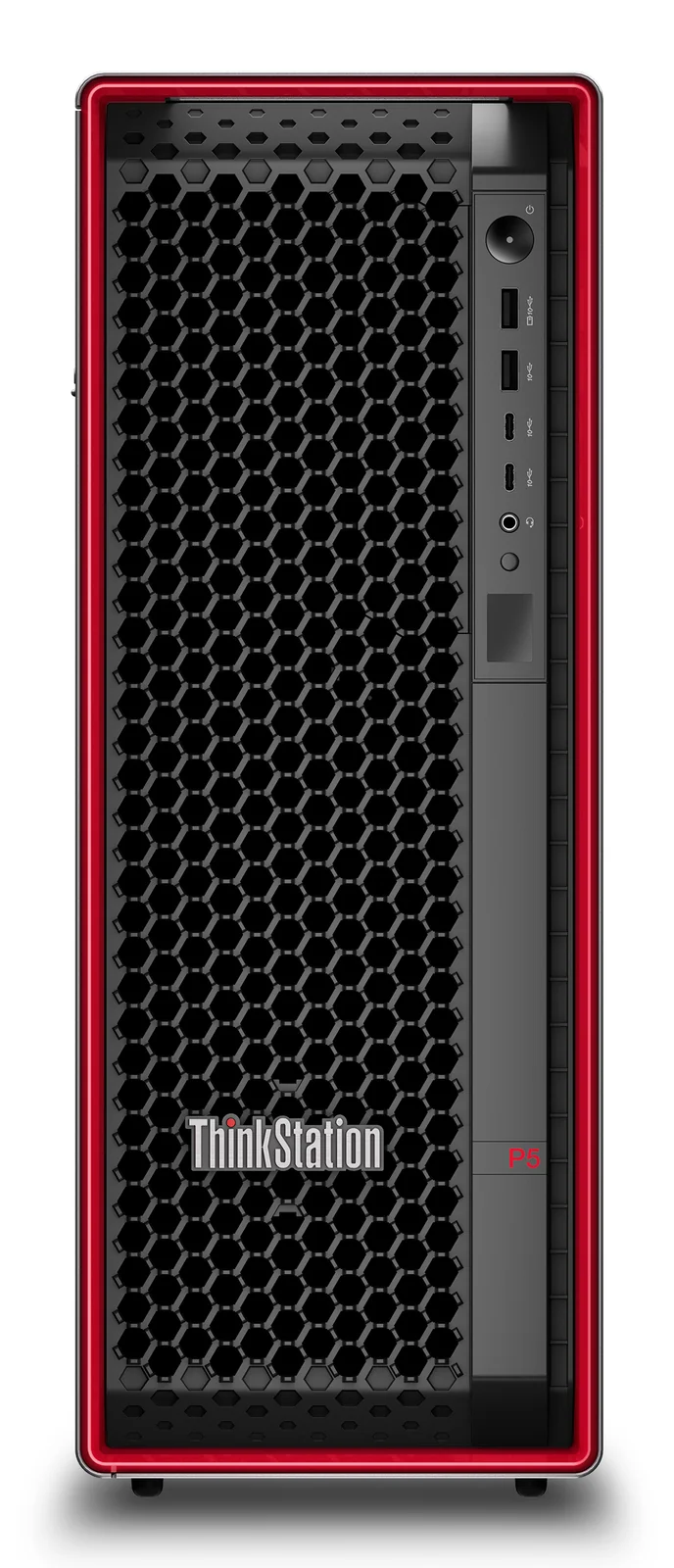

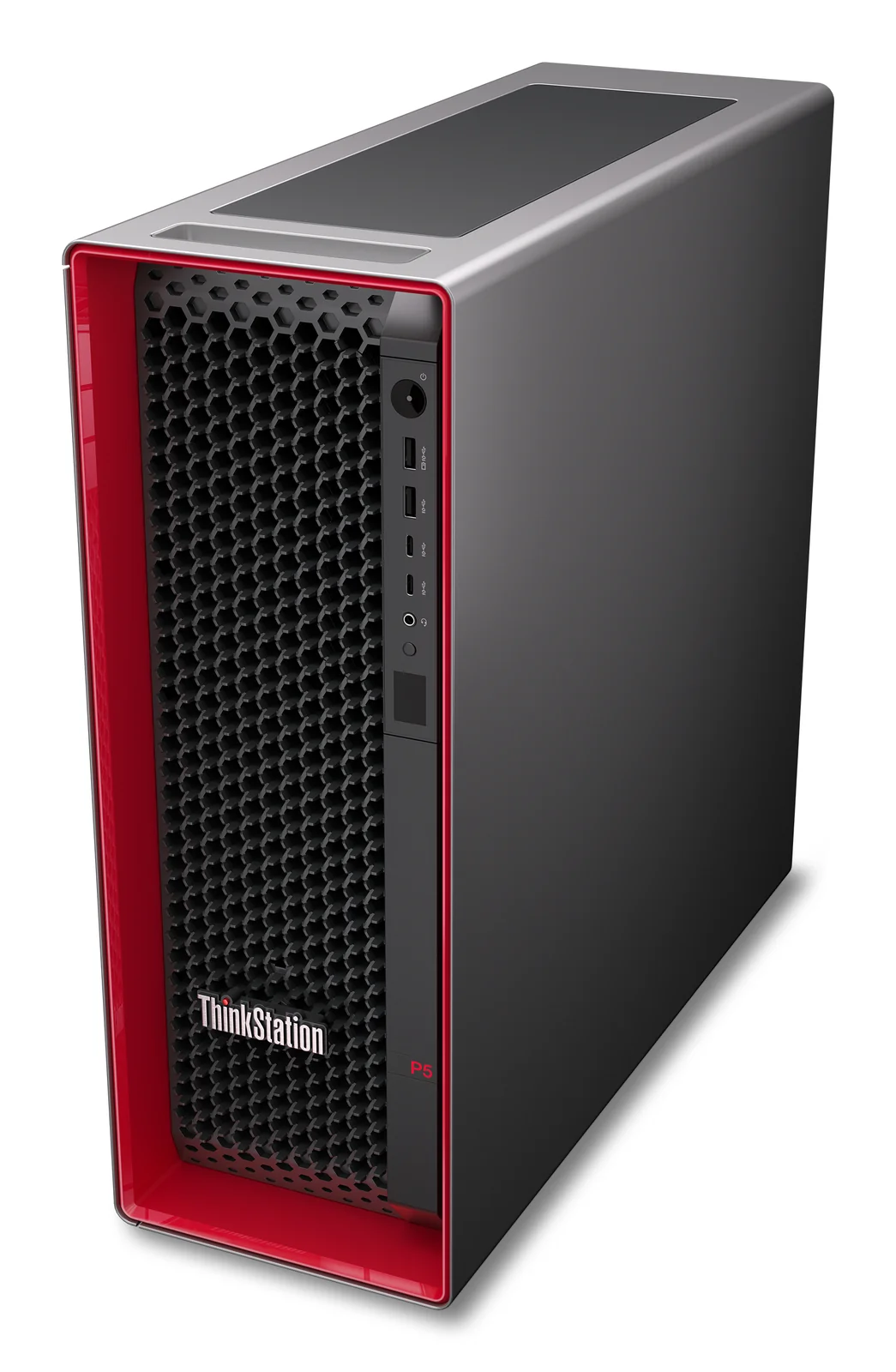

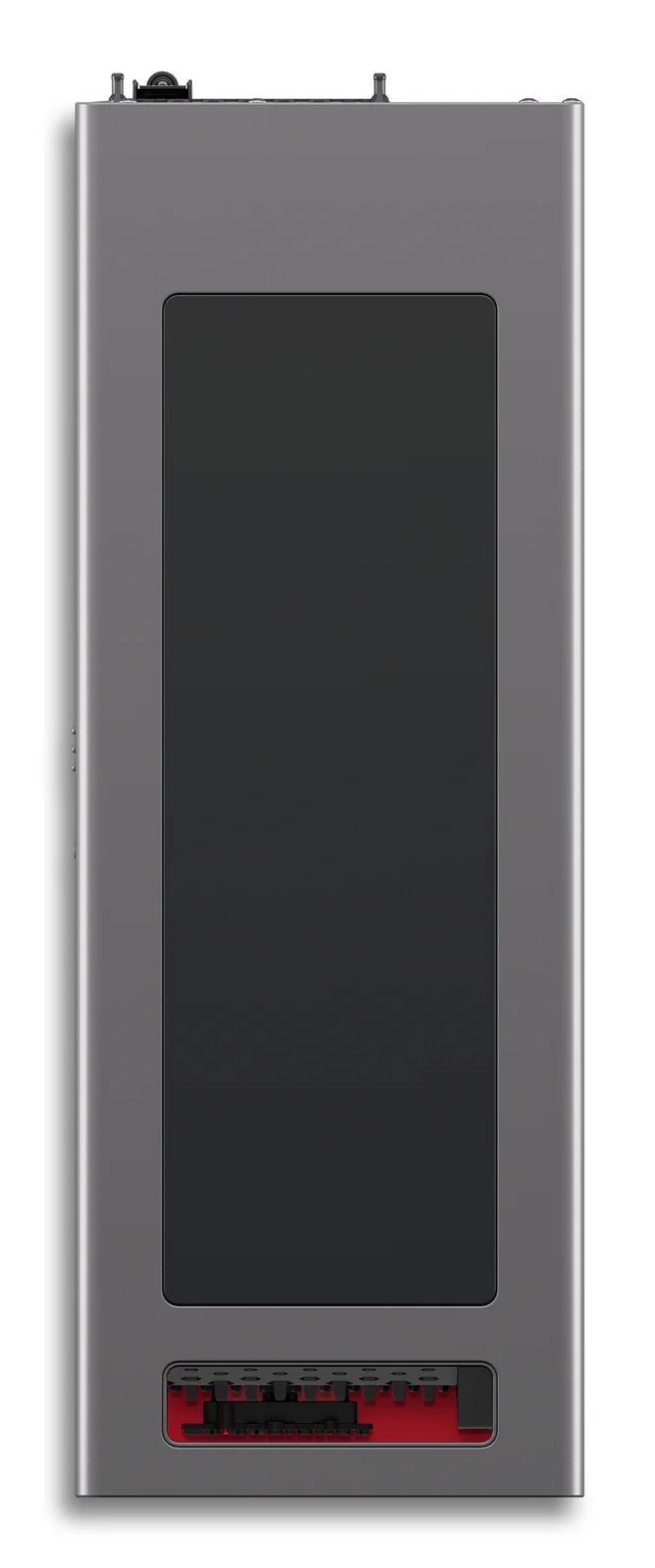

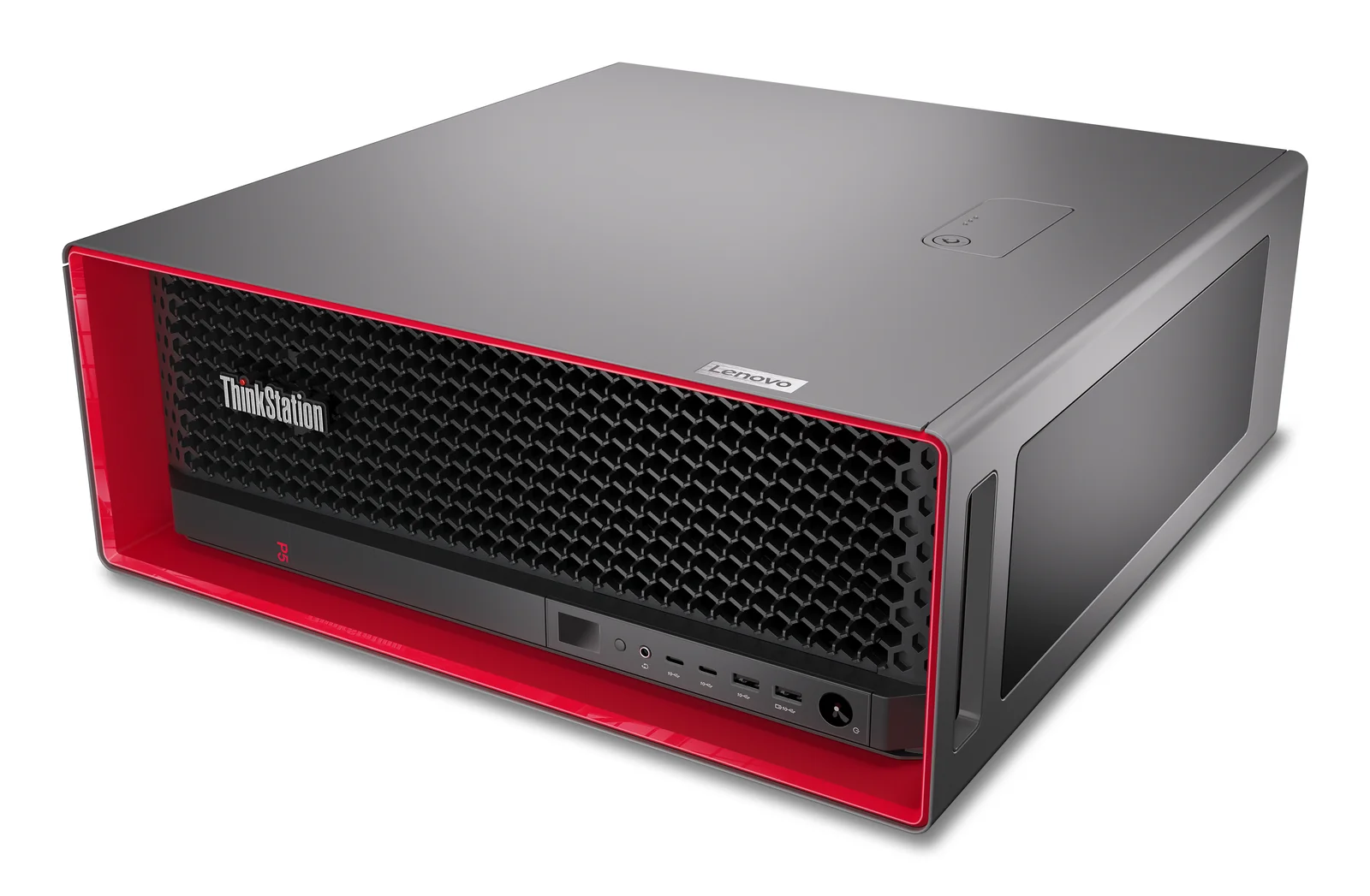

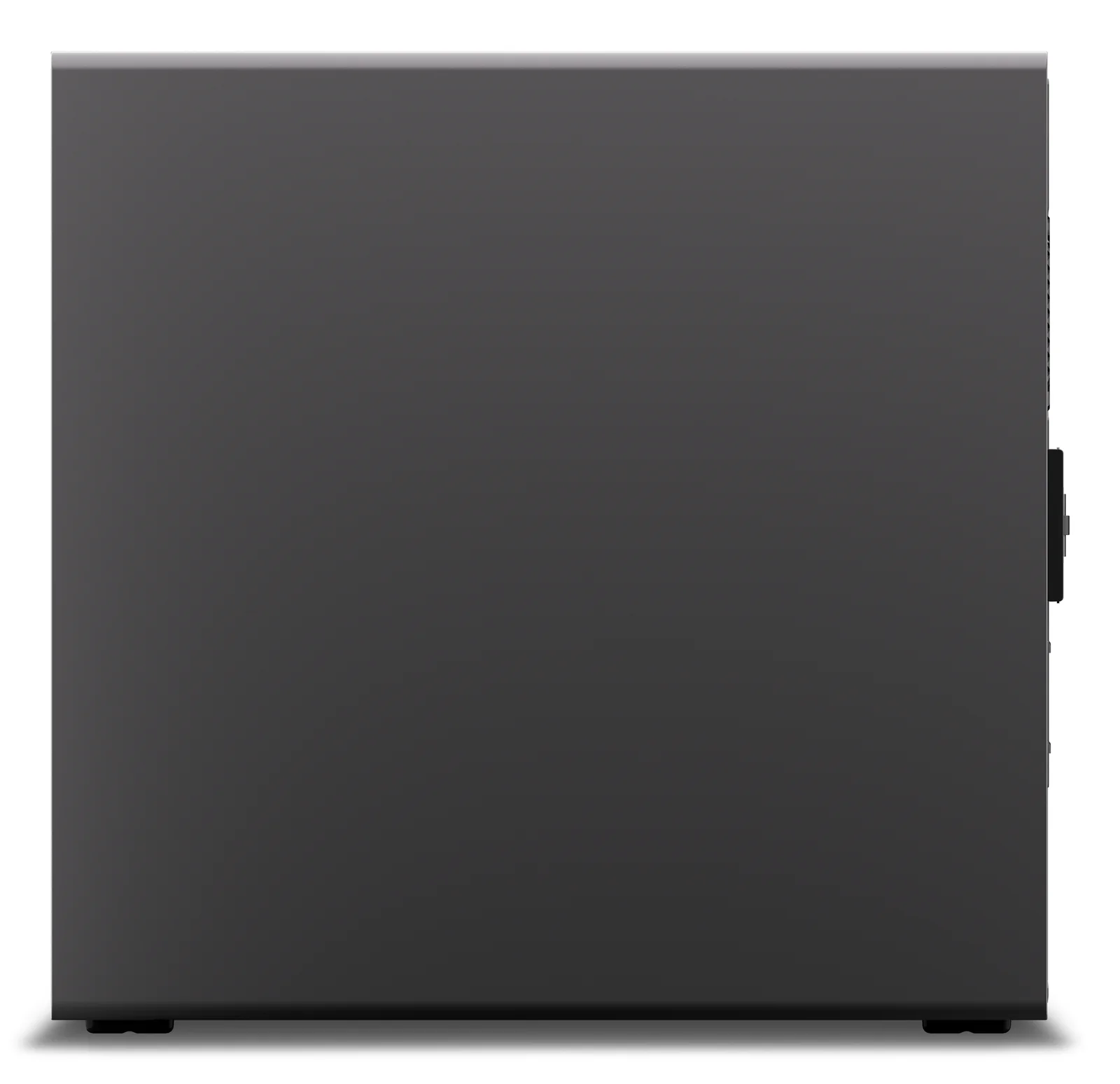

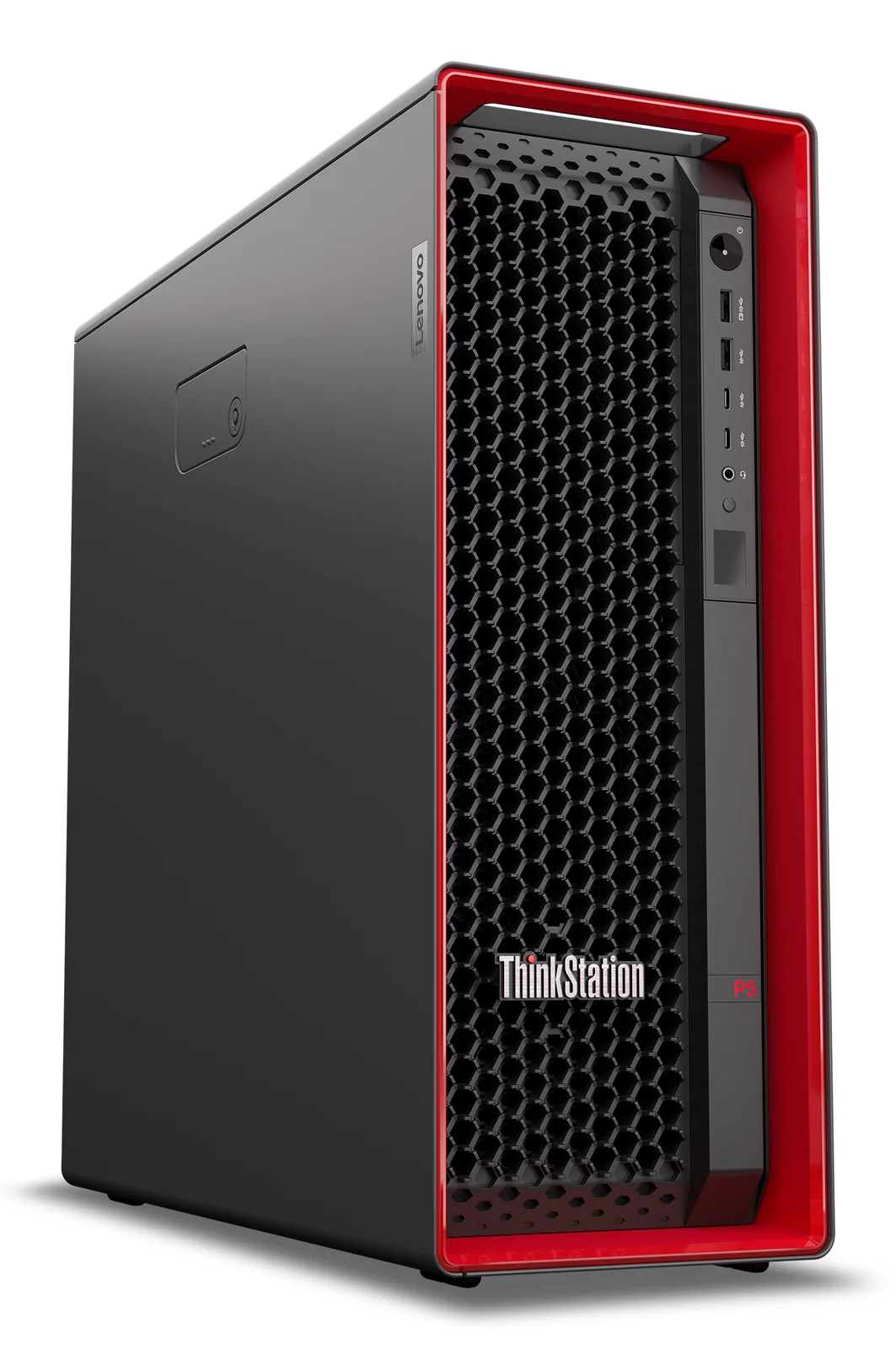

Lenovo ThinkStation P5 Gen 2, 64GB RAM, 2TB SSD
Model ThinkStation P5 Gen 2
Overview
Lenovo ThinkStation P5 Gen 2. Processor frequency: 3.1 GHz, Processor family: Intel® Xeon®, Processor model: 654. Internal memory: 64 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 6400 MHz. Total storage capacity: 2 TB, Storage media: SSD. Discrete graphics card model: NVIDIA RTX PRO 4000 Blackwell. Operating system installed: Windows 11 Pro for Workstations, Operating system architecture: 64-bit. Power supply: 750 W. Chassis type: Tower. Product type: Workstation. Product colour: Black
Specifications
Performance
- Motherboard chipset
- Intel W890
- Password protection
- Yes
- Password protection type
- BIOS,Power on
- Trusted Platform Module (TPM)
- Yes
- Product type
- Workstation
- Trusted Platform Module (TPM) version
- 2.0
- Built-in speaker(s)
- Yes
Storage
- Total storage capacity
- 2000 GB
- Storage media
- SSD
- Optical drive type
- No
- Number of storage drives installed
- 1
- Total SSDs capacity
- 2000 GB
- Number of SSDs installed
- 2
- SSD capacity
- 1000 GB
- SSD interface
- PCI Express 5.0
- NVMe
- Yes
- SSD form factor
- M.2
- M.2 SSD size
- 2280 (22 x 80 mm)
- Self-Encrypting Drive (SED)
- Yes
- Card reader integrated
- No
- RAID support
- Yes
- RAID levels
- 0,1,10
Display
- Display included
- No
Design
- Chassis type
- Tower
- Volume
- 33 L
- Cable lock slot
- Yes
- Cable lock slot type
- Kensington
- Product colour
- Black
Audio
- Audio chip
- Realtek ALC897-Q
- Audio system
- High Definition Audio
- Number of speakers
- 1
Power
- Power supply
- 750 W
- 80 PLUS certification
- 80 PLUS Platinum
Memory
- Internal memory
- 64 GB
- Maximum internal memory
- 1000 GB
- Internal memory type
- DDR5-SDRAM
- Memory layout (slots x size)
- 2 x 32 GB
- Memory slots
- 8x DIMM
- Memory clock speed
- 6400 MHz
- ECC
- Yes
- Memory channels
- Quad-channel
- Buffered memory type
- Registered (buffered)
- Memory data transfer rate
- 6400 MT/s
Network
- Ethernet LAN
- Yes
- Ethernet LAN data rates
- 2500 Mbit/s
- LAN controller
- Intel I226-LM
- Wi-Fi
- No
- Ethernet interface type
- 2.5 Gigabit Ethernet
Graphics
- Discrete graphics card
- Yes
- Discrete GPU manufacturer
- NVIDIA
- On-board graphics card
- No
- Discrete graphics card model
- NVIDIA RTX PRO 4000 Blackwell
- Discrete graphics card memory
- 24 GB
- Discrete graphics memory type
- GDDR7
- Number of discrete graphics cards
- 1
- On-board graphics card model
- Not available
Software
- Operating system architecture
- 64-bit
- Operating system language
- ENG,FRE
- Operating system installed
- Windows 11 Pro for Workstations
- Bundled software
- Lenovo AI Now
Processor
- Processor manufacturer
- Intel
- Processor family
- Intel Xeon
- Processor model
- 654
- Processor cores
- 18
- Processor threads
- 36
- Processor boost frequency
- 4.8 GHz
- Processor frequency
- 3.1 GHz
- Performance cores
- 18
- Processor cache
- 72 MB
- Processor socket
- LGA 4710
- Processor base power
- 200 W
- Maximum turbo power
- 240 W

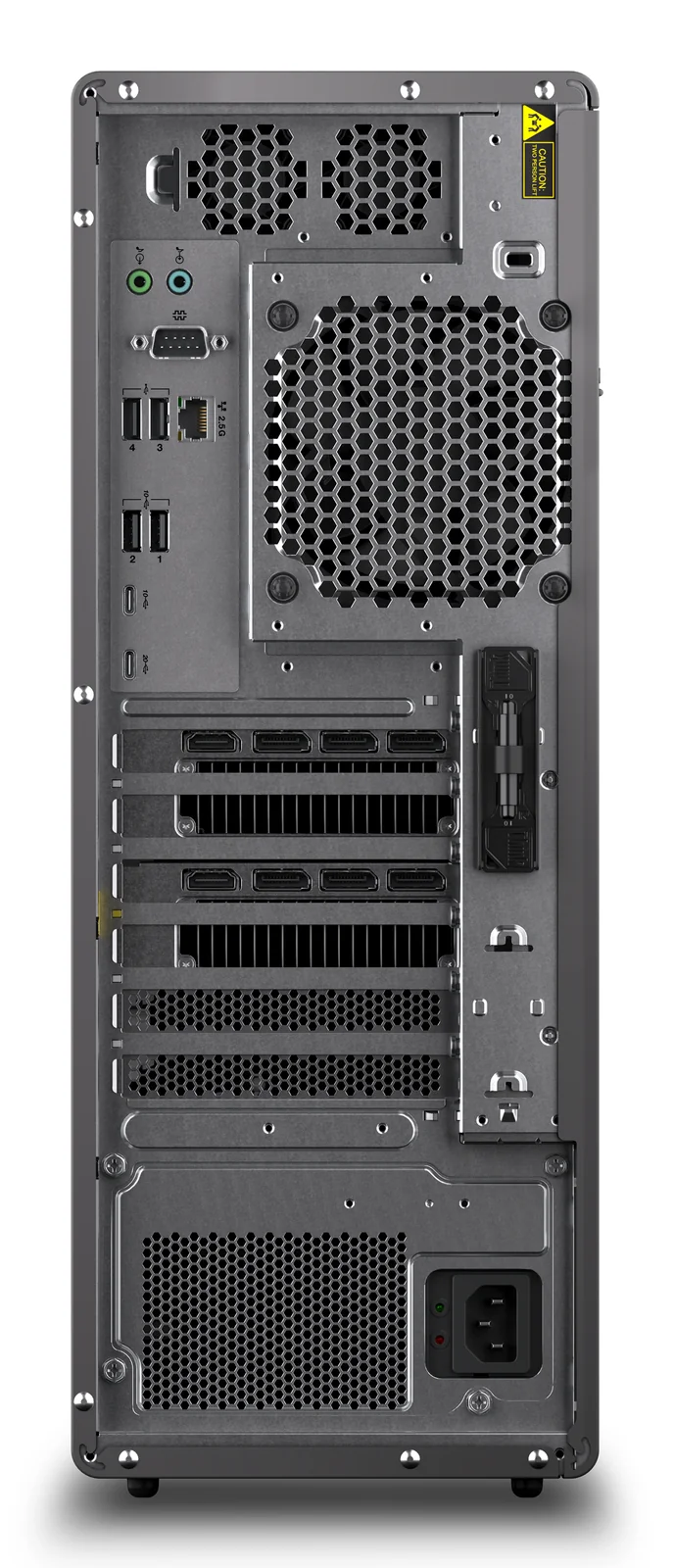

Ports & interfaces
- USB 2.0 ports quantity
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- USB 3.2 Gen 2x2 Type-C ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
- Combo headphone/mic port
- Yes
- Line-out
- Yes
- Line-in
- Yes
