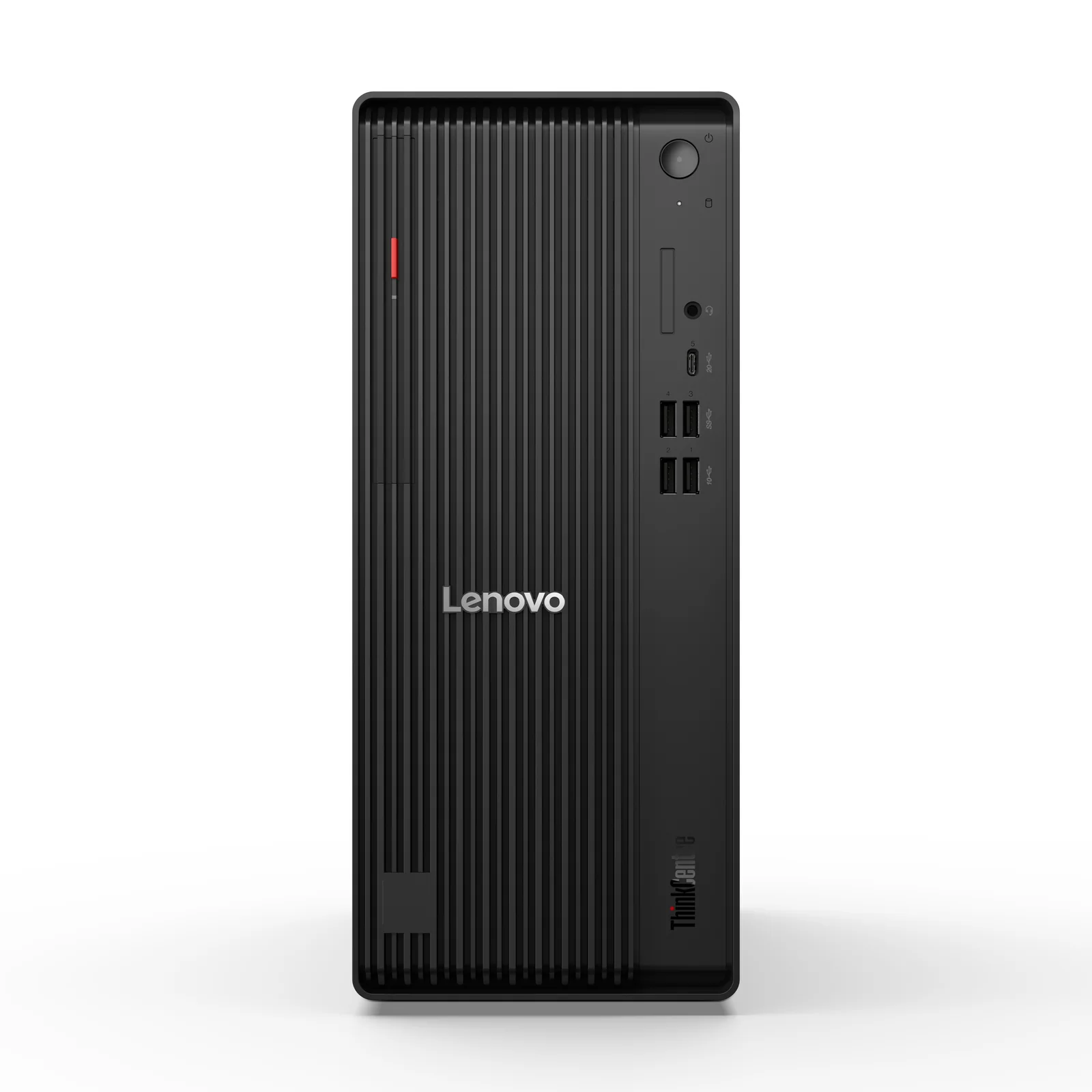

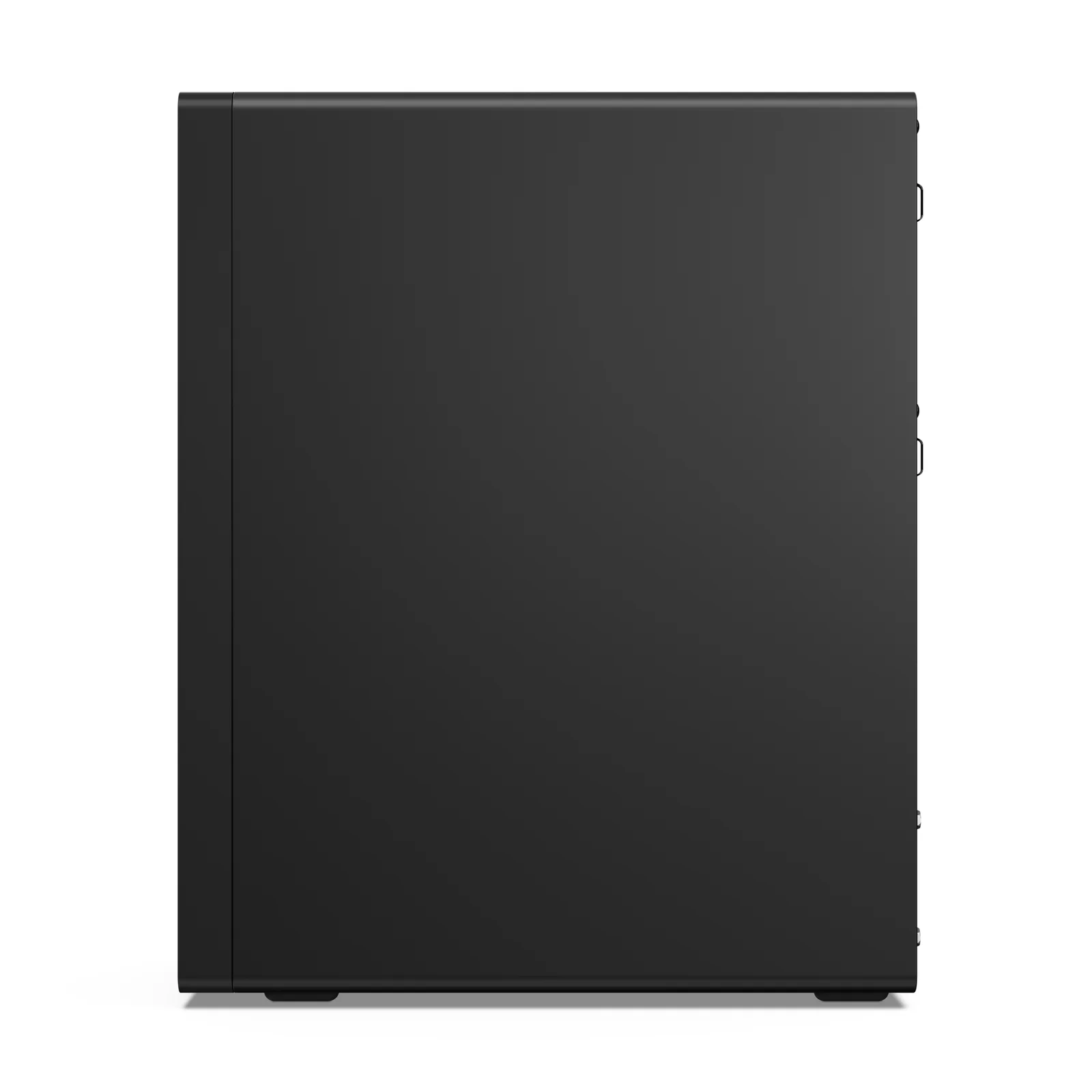

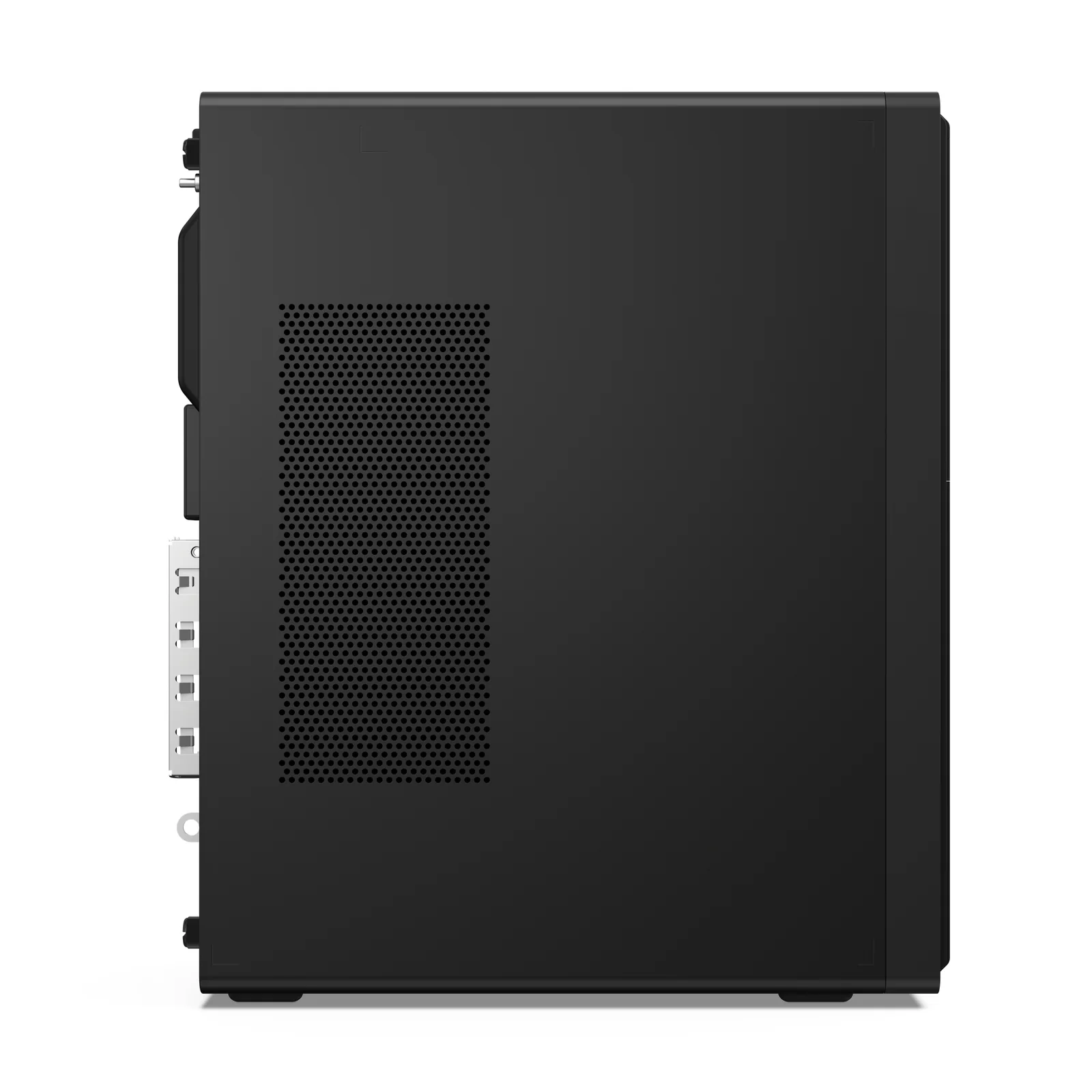

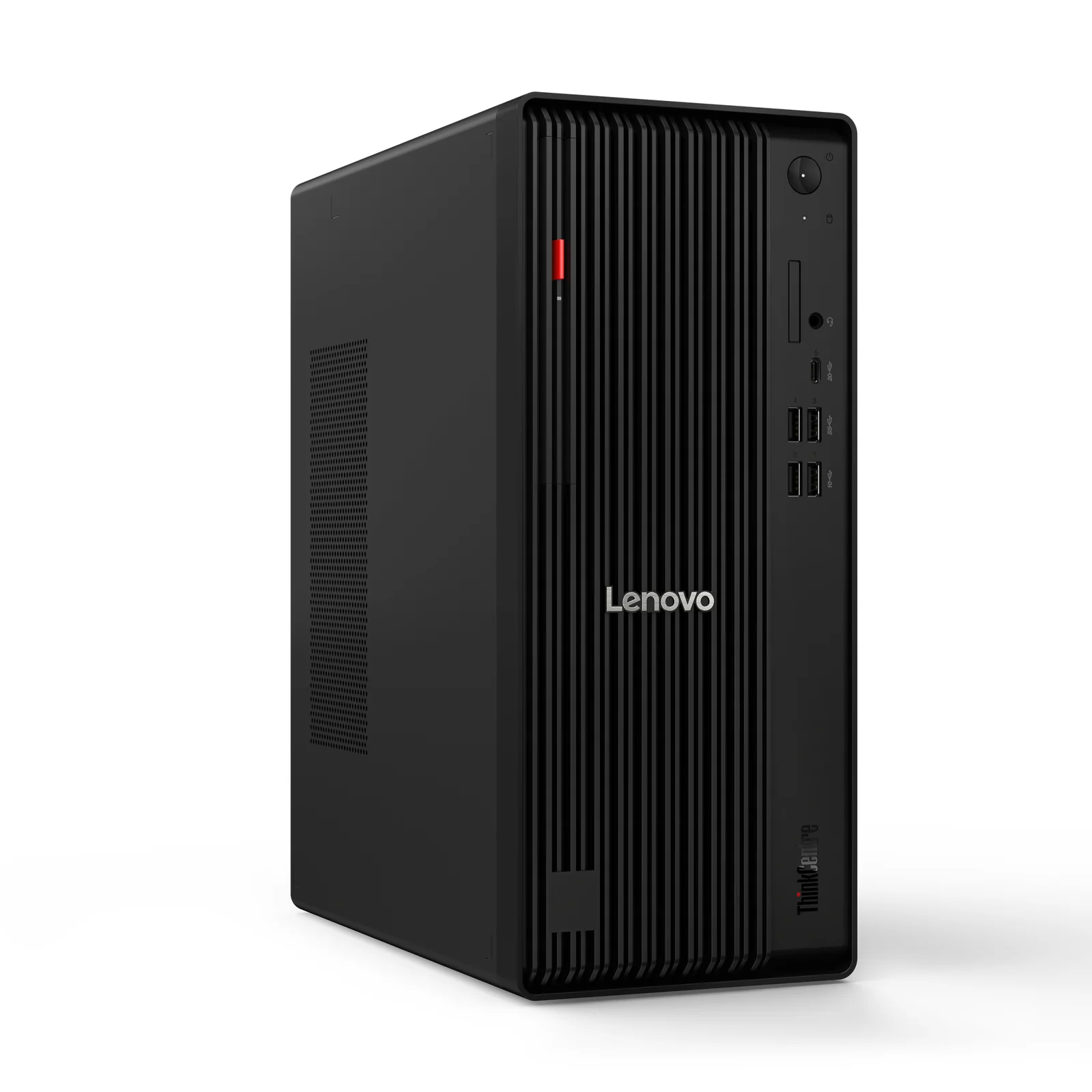

Lenovo ThinkCentre M70t Gen 6, Intel Core Ultra 5 225, 16GB RAM, 512GB SSD

Model ThinkCentre M70t Gen 6

Price coming soon

Leave your email and we'll tell you when it's available to order.

SKU: TS-800060
EAN: 0199274253493

Overview

Lenovo ThinkCentre M70t Gen 6. Processor family: Intel Core Ultra 5, Processor model: 225. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5600 MHz. Total storage capacity: 512 GB, Storage media: SSD, Card reader integrated. On-board graphics card model: Intel® Graphics. Operating system installed: Windows 11 Pro. Power supply: 260 W. Chassis type: Tower. Product type: PC. Weight: 5.7 kg. Product colour: Black

Specifications

Performance

Memory (RAM): 16 GB
Motherboard chipset: Intel Q870
Trusted Platform Module (TPM): Yes
Product type: PC

Storage

Storage: 512 GB
Total storage capacity: 512 GB
Storage media: SSD
Optical drive type: No
Total SSDs capacity: 512 GB
Number of SSDs installed: 1
SSD capacity: 512 GB
SSD interface: PCI Express 4.0
NVMe: Yes
SSD form factor: M.2
Card reader integrated: Yes

Design

Chassis type: Tower
Volume: 13.6 L
Cable lock slot: Yes
Cable lock slot type: Kensington
Product colour: Black

Audio

Audio chip: Realtek ALC623-CG
Audio system: High Definition Audio
Number of speakers: 1

Power

Power supply: 260 W

Memory

Internal memory: 16 GB
Maximum internal memory: 128 GB
Internal memory type: DDR5-SDRAM
Memory layout (slots x size): 1 x 16 GB
Memory slots: 4x DIMM
Memory clock speed: 5600 MHz

Network

Ethernet LAN: Yes
Ethernet LAN data rates: 100,1000 Mbit/s
Wi-Fi: No

Graphics

Discrete graphics card: No
On-board graphics card: Yes
Discrete graphics card model: Not available
On-board GPU manufacturer: Intel
On-board graphics card family: Intel Graphics
On-board graphics card model: Intel Graphics

Software

Operating system language: ENG,FRE,DEU,DUT,ITA
Operating system installed: Windows 11 Pro

Processor

Processor manufacturer: Intel
Processor family: Intel Core Ultra 5
Processor generation: Intel Core Ultra (Series 2)
Processor model: 225
Processor cores: 10
Processor threads: 10
Processor boost frequency: 4.9 GHz
Performance cores: 6
Efficient cores: 4
Performance-core Max Turbo Frequency: 4.9 GHz
Efficient-core Max Turbo Frequency: 4.4 GHz
Performance-core base frequency: 3.3 GHz
Efficient-core base frequency: 2.7 GHz
Processor cache: 20 MB
Processor cache type: Smart Cache

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
DisplayPorts quantity: 2
HDMI ports quantity: 1
HDMI version: 2.1
Ethernet LAN (RJ-45) ports: 1
Combo headphone/mic port: Yes
Line-out: Yes

Neural processor unit (NPU)

Neural processor unit (NPU): Intel AI Boost
Sparsity support: Yes
Windows Studio effects support: Yes
AI software frameworks supported by NPU: DirectML,OpenVINO,Windows ML,ONNX RT,WebNN
Total processor performance up to: 23 TOPs
NPU performance up to: 13 TOPs
GPU performance up to: 4 TOPs
